Brand	Antari
Model	F5 Fazer
Product Type	Smoke machine for lighting effects
Power Supply	110-120V 60Hz / 220-240V 50Hz
Power Consumption	850W
Warm-up	3.5 to 4 minutes
Maximum Output	85 m³/min
Tank Capacity	2.8 L
Fluid Consumption	3 ml/min
Recommended Fluid	Antari FLG (water-based)
DMX Channels	2 channels
DMX Connectors	XLR 3 and 5 pin
Wireless Control	Built-in W-DMX
Display	Blue LCD
Dimensions (L x W x H)	535 x 465 x 225 mm
Weight	22.9 kg
Fuse	T6.3A (100V), T7A (110-120V), T4A (220-240V) 250V
Safety	Grounding, overheating protection, indoor use only
Required Clearance	50 cm around the unit
Maintenance	Clean ventilation grilles regularly, use distilled water if not in use
Warranty	Void if non-recommended fluid used
Serviceability	Do not open, contact Antari dealer

Frequently Asked Questions - F5 Fazer Antari

How to start the machine?

Plug in the machine, fill the tank with Antari FLG fluid, turn it on. Wait for warm-up for about 4 minutes until the display shows 'Ready to Faze'. Then press the 'Volume' button to start smoke production.

What fluid should I use?

Use exclusively Antari FLG water-based fluid. Using any other fluid may void the warranty and damage the machine.

How to turn off the machine?

Press and hold the 'Stop' button for 3 seconds. The machine starts an automatic cleaning cycle, then turns off by itself.

How to adjust the smoke output?

Use the UP and DOWN buttons or access the 'VOLUME' menu to adjust the output from 1 to 100%.

How to use the timer mode?

Press the TIMER (UP) button to access the menu. Set the interval and duration in the submenus, then activate the mode. The machine will operate according to these settings.

How to connect the machine to a DMX controller?

Use a DMX XLR cable (3 or 5 pin). In the menu, set the DMX address from 1 to 511. The machine uses 2 channels: channel 1 for output, channel 2 for fan speed.

What to do if the machine displays 'WARNING!'?

This message indicates overheating. Unplug the machine, let it cool down, clean the ventilation grilles and ensure there is no obstruction. If the problem persists, contact your Antari dealer.

How to clean the machine?

Unplug the machine. Clean the exterior with a damp cloth. Remove dust from the ventilation grilles with a soft brush or a small blower. If not used for a long time, run the machine with distilled water to maintain the pump and heating element.

Can I use a fluid other than Antari FLG?

No, only the use of Antari FLG fluid is recommended. Using any other fluid may cause malfunctions and void the warranty.

How to change the fuse?

Unplug the machine. Use a flathead screwdriver to unscrew the fuse holder. Replace the fuse with one of the same type: T6.3A (100V), T7A (110-120V) or T4A (220-240V), all 250V. Insert the new fuse and screw back.

USER MANUAL F5 Fazer Antari

Two black and silver industrial equipment cases with visible control panels and a digital display (no text or symbols)

User Manual - English

Safety Information

Please read the following safety information carefully before operating the machine. This information includes important safeguards about installation, usage, and maintenance. Pay attention to all warning labels and instructions in this manual and printed on the machine.

If you have questions about how to operate the machine safely, please contact your local Antari dealer for help.

• Keep this device dry.
  • Always connect to a grounded circuit to avoid risk of electrocution.
• Before connecting machine to power, always check voltage indicate on machine match to your local AC voltage. Do not use the machine if AC power voltage does not match.
• Disconnect the machine from AC power before servicing and when not in use.
• This product is for indoor use only! Do not expose to rain or moisture. If fluid is spilled, disconnect AC power and clean with a damp cloth. If fluid is spilled onto electronic parts, immediately unplug the machine and contact your local Antari dealer for advice.
• No user serviceable and modifiable parts inside. Never try to repair this product, an unauthorized technician may cause damage or malfunction to the machine.
  • For adult use only. Never leave the machine running unattended.
• Installed the machine in a well-ventilated area. Provide at least 50 cm space around the machine.
• Never add flammable liquid of any kind to the machine.
  • Make sure there are no flammable materials close to the machine while operating.

• Only use Antari fluid. Other fluid may lead to heater clog and malfunction.
- If the machine fails to work, unplug the machine and stop operation immediately. Contact your local Antari dealer for advise.
• Before transporting the machine, make sure the fluid tank is completely drained.
- Fog fluid may present health risks if swallowed. Do not drink fog fluid. Store it securely. In case of eye contact or if fluid is swallowed, immediately look for medical advice.

Unpacking and Inspection

Immediately upon receiving the machine, carefully unpack the carton, check the content to ensure that all parts are present and have been received in good condition. If any parts appear damaged or mishandled from shipping, notify the shipper immediately and retrain the packing material for inspection.

What is included: 1 x F-5 Fazer

1 x Power Cord

1 x Fluid Tank

1 x User Manual

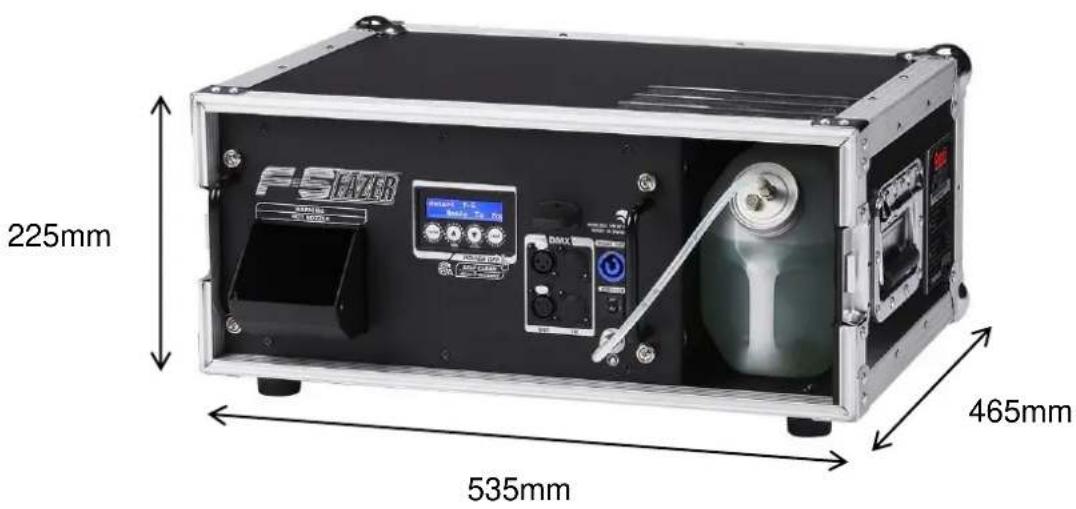

Product Dimensions

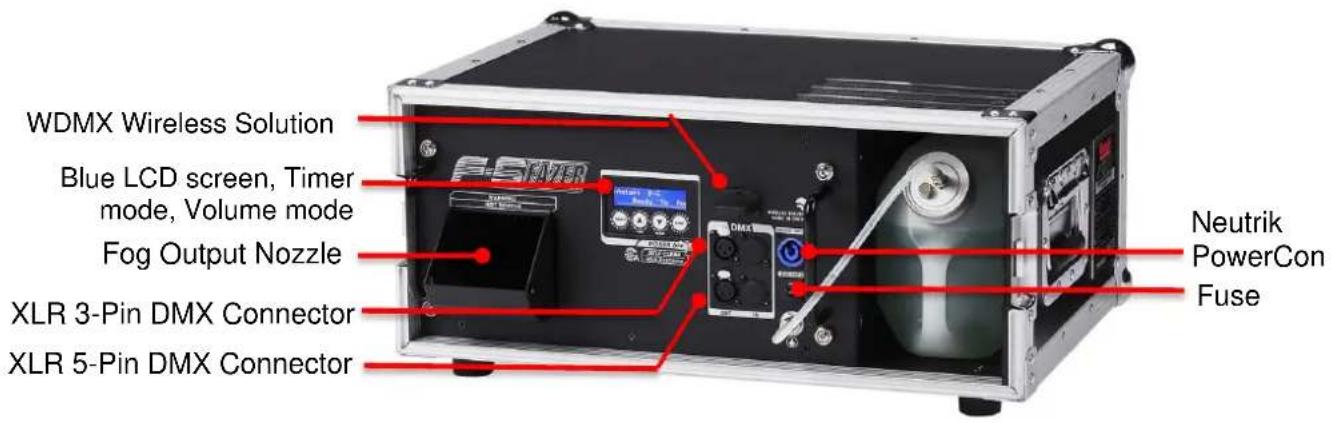

Product Overview

Setting Up

Step 1: Place the machine on a flat surface and in a suitable large area with at least 50 ~cm open space around the machine.

Step 2: Fill the fluid tank with Antari approved fluid.

Step 3: Connect the machine to suitable rated power supply. To determine the power requirement for the machine refer to the label on the back of the machine.

Always connect the machine to a protected circuit and ensure it is properly grounded to avoid risk of electrocution.

Step 4: Turn on the machine and allow it to heat up. Heat up takes approximately 4 mintues. Once the machine has reached operating temperature, the display will show Ready to Faze. Now the machine is ready for operation.

Step 5: To start making haze, press the Volume button on the control panel.

Step 6: To turn off the machine, hold the STOP button for 3 seconds; the machine will automatically run a self-cleaning process and shut off after the process is done.

To switch the language used for the control interface, press the [Menu] button BEFORE turning on the machine and HOLD it until the LCD screen flashes twice. After the two flashes, press [Menu] to choose the language: English and 中文 (Chinese).

Control Panel Operation

The machine can be operated with the onboard digital control interface.

Antari F-5 Ready to Faze

Button Function

[MENU] Scroll through setting menu

[UP]/[TIMER] Up/Activate Timer function

[DOWN]/[VOLUME] Down/Activate Volume function

[STOP] Deactivate Timer/Volume function

Hold 3 seconds to start self-cleaning process

Control Menu

Timer

Interval XXX Sec Set interval from 1 to 300 seconds

Timer

Duration XXX Sec Set duration from 1 to 120 seconds

Timer

Output XXX %

Set output volument from 1 to 100 %

Volume

Output XXX %

Set output volume from 1 to 100 %

Fan Speed

XXX %

Set fan speed from 20 to 100%

DMX-512

Address: XXX

W-DMX

Address: XXX

Set DMX/W-DMX address from 1 to 511

W-DMX Power

XX

Turn On/Off W-DMX

W-DMX Reset

XX

Unlink from a W-DMX transmitter

Air Pump Sensor

XX

Turn On/Off air pump sensor

Run Last Setting

XX

Turn On/Off run last setting function

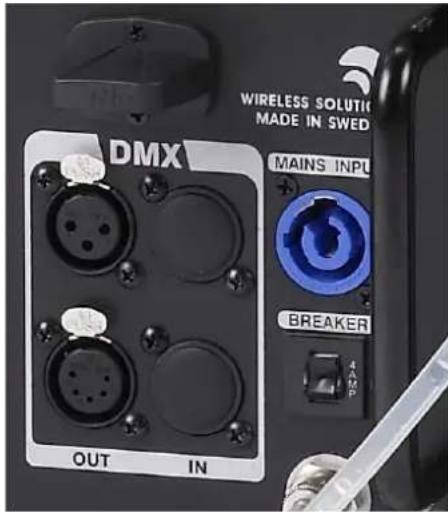

DMX Connector Pin Assignment

The machine provides a 3- or 5-pin XLR connector for DMX connection. The diagram below indicates pin assignment information.

3 Pin XLR

5 Pin XLR

Pin	Function
1	Ground
2	Data-
3	Data+

DMX Operation

Making the DMX Connection – Connect the machine to a DMX controller or to one of the machines in the DMX chain. The machine uses a 3-pin or 5-pin XLR connector for DMX connection, the connector is located on the front of the machine.

Address Setup – Use control menu to set DMX address. The machine occupies 2 control channels. The starting address is defined as the first channel from which the machine will respond to the controller. Always double check to make sure there are no overlapping channles in order to control the machine correctly.

DMX Channel Function

Channel 1	DMX Value Range	Function
Faze Output Level	0 – 4	Faze Off
	5 – 255	Faze Output 1 – 100%
Channel 2	DMX Value Range	Function
Fan Output Level	0 – 4	Fan 20%
	5 – 255	Fan 21 – 100%

Fluid

Only use Antari FLG water-based liquid for the F-5 Fazer. The machine is tested and calibrated with this liquid to get the best output performance. Warranty will be void if any other type of liquid is used, improper use of liquid may lead to machine failure and malfunction.

Service and Maintenance

• Do not allow the machine to become contaminated.
• Remove dust from air vents with air compressor, vacuum or a soft brush.
• Only use a damp cloth to clean the casing.
• Before storing run distilled water through the system to help avoid condensing the pump or heater.
• It is recommended to run the machine on a monthly basis in order to achieve best performance and output condition.
• Excessive dust, liquid and dirt built up will degrade performance and cause overheating.

Replacing the Fuse

Disconnect AC power before replacing fuse. Only replace fuse with same type and rating.

Step 1: Disconnect power cord from supply.

Step 2: Use a flat-head screwdriver to release fuse holder.

Step 3: Replace fuse with exact same type and rating as indicated below.

Step 4: Reinsert fuse holder.

Fuse

$$ 1 0 0 \mathrm{V} = \mathrm{T6.3A} 2 5 0 \mathrm{V} $$

$$ 1 1 0 - 1 2 0 \mathrm{V} = \mathrm{T7A} 2 5 0 \mathrm{V} $$

$$ 2 2 0 - 2 4 0 \mathrm{V} = \mathrm{T4A} 2 5 0 \mathrm{V} $$

Status Messages

Warming Up

Machine heating up

Antari F-5

Ready To Faze

Machine ready for operation

Warning!

Heater Overheat

Machine has detected overheat on heater unit and will not operate, please contact local distributor/dealer for service and support.

Warning!

Temp Error

Machine can not heat up and will not operate. Please contact local distributor/dealer for service and support.

Warning!

Fluid Backflow

Fluid backflow into airpump detected, machine will not operate.

Please contact local distributor/dealer for service and support.

Technical Specifications

Input voltage 110-120V 60Hz

220-240V 50Hz

Fuse 100V = T6.3A 250V

$$ 1 1 0 - 1 2 0 \mathrm{V} = \mathrm{T7A} 2 5 0 \mathrm{V} $$

$$ 2 2 0 - 2 4 0 \mathrm{V} = \mathrm{T4A} 2 5 0 \mathrm{V} $$

Power Consumption AC-120V/230V,850W

Warm-up time 3.5 - 4 min. (approx.)

Coverage volume 6000 cu.ft./min. (85 m³/min.)

Max. operating time 7.2 hrs max. output

Fluid tank capacity 2.8 L

Fluid consumption 3 ml/min.

Compatible fluid Antari FLG water-based fluid

Control option DMX 512, Cable remote, Manual,

Adjustable haze volume and fan speed

DMX channels

2 channels, haze volume and fan speed

Power connection IEC

DMX data connection 3-pin and 5-pin XLR

Remote control connection

3.5mm headphone jack

Dimension

L 535 x W 465 x H 225 m

Dry weight 22.9 kg

Approvals CE I cETLus

Intertek 9700333

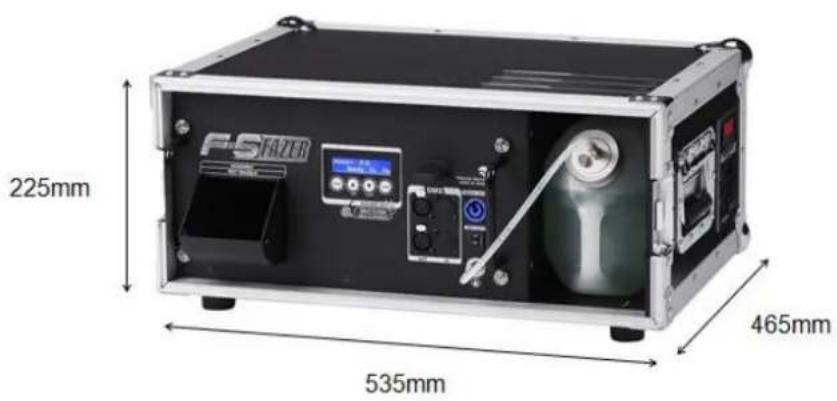

DIMENSIONS DU PRODUIT

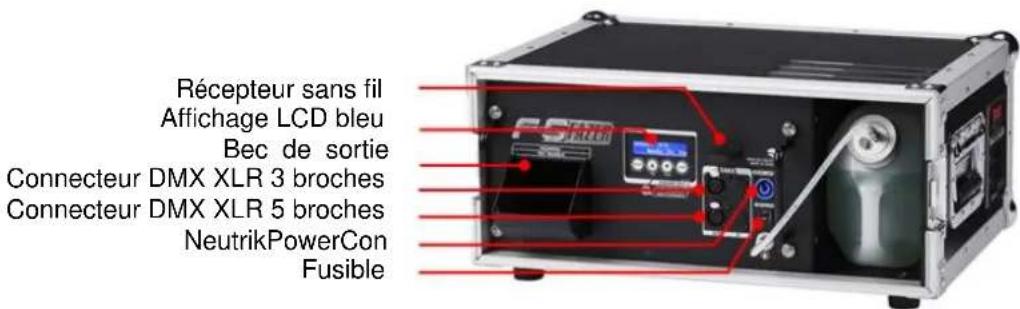

DESCRIPTIF DU PRODUIT

REPLACEMENT DU FUSIBLE

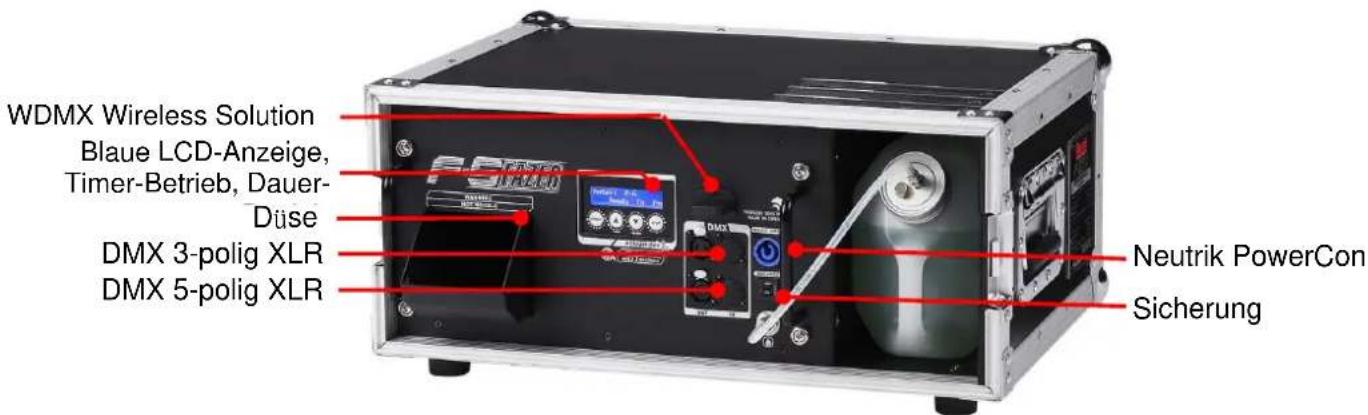

Geräteübersicht

Inbetriebnahme

Antari F-5 Ready to Faze

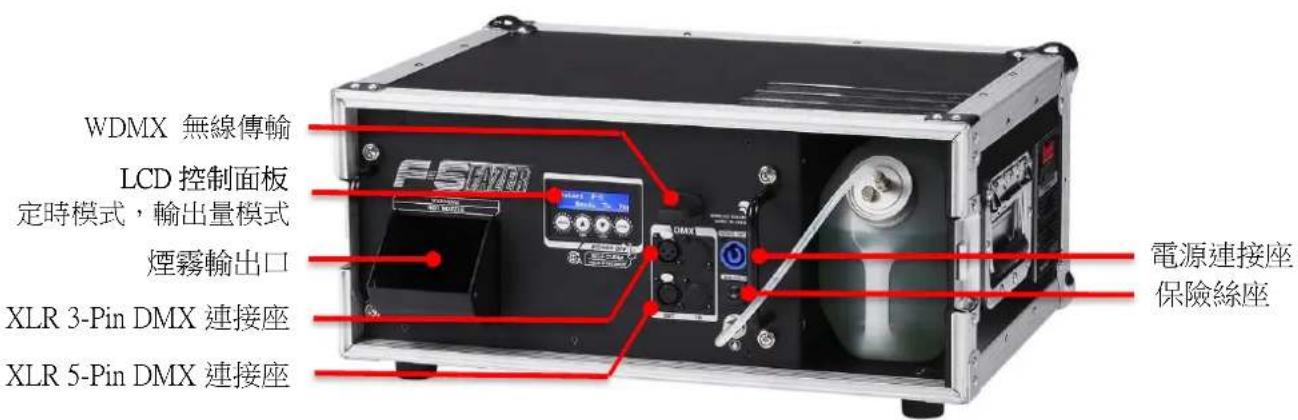

機器外觀概述
