USER MANUAL CVS200 011 CANDY

• Please read this manual carefully before using.
• The company reserves the right to interpret the manual.
• Please refer to the actual product appearance.
• Please keep it properly together with the invoice after reading.
• In case of product technology or software upgrades, no further notice will be given.
• This product is intended for sale and use in the Europe only.

Important safety tips 1

Product Introduction 2

Product Components 3

Operation Instruction 4

Cleaning and Maintenance 7

Cautions 8

FAQ 13

Technical Specifications----14

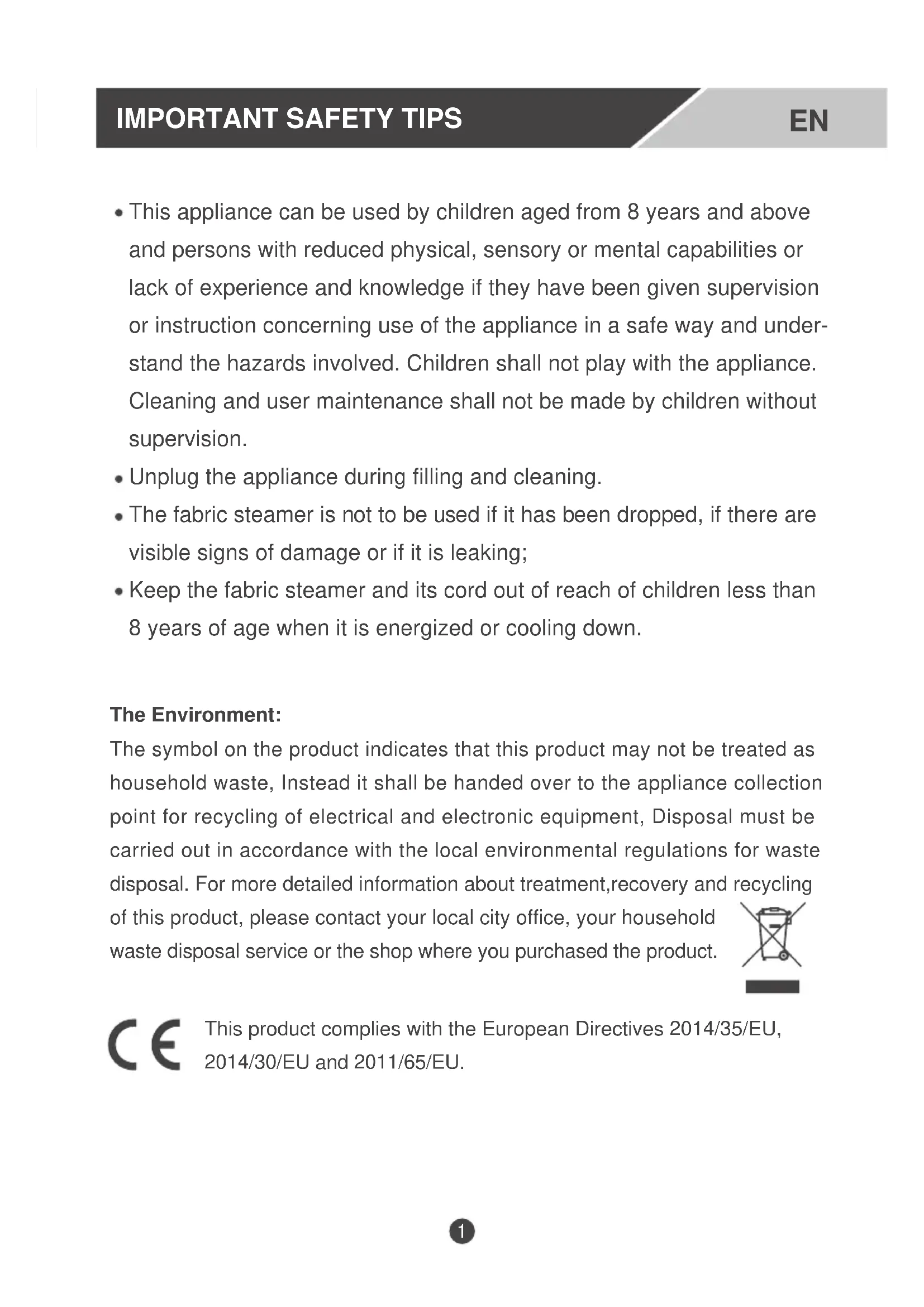

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Unplug the appliance during filling and cleaning.
• The fabric steamer is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking;
• Keep the fabric steamer and its cord out of reach of children less than 8 years of age when it is energized or cooling down.

The Environment:

The symbol on the product indicates that this product may not be treated as household waste, Instead it shall be handed over to the appliance collection point for recycling of electrical and electronic equipment, Disposal must be carried out in accordance with the local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling

of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

CE This product complies with the European Directives 2014/35/EU, 2014/30/EU and 2011/65/EU.

• The mini body with folding design, which is more convenient to carry.
• This product can be used flat or hanging, wet or dry, making it easy to care for all types of clothing.
• Operation and control in one click for continuous steam output, which is safe and convenient.
• The transparent separated water tank is easy to fill water, which is simple and beautiful.
• The panel is stainless steel, which makes the steam come out more evenly and smoothly, and it does not hurt clothing, saves ironing time.
• The panel is drip-proof for more comfortable use.
• It can automatically cut off the power, stop for 8min and turn off automatically when unattended, which is safer.
• The shutdown protection will be carried out in case of water shortage to prolong the use of the product.

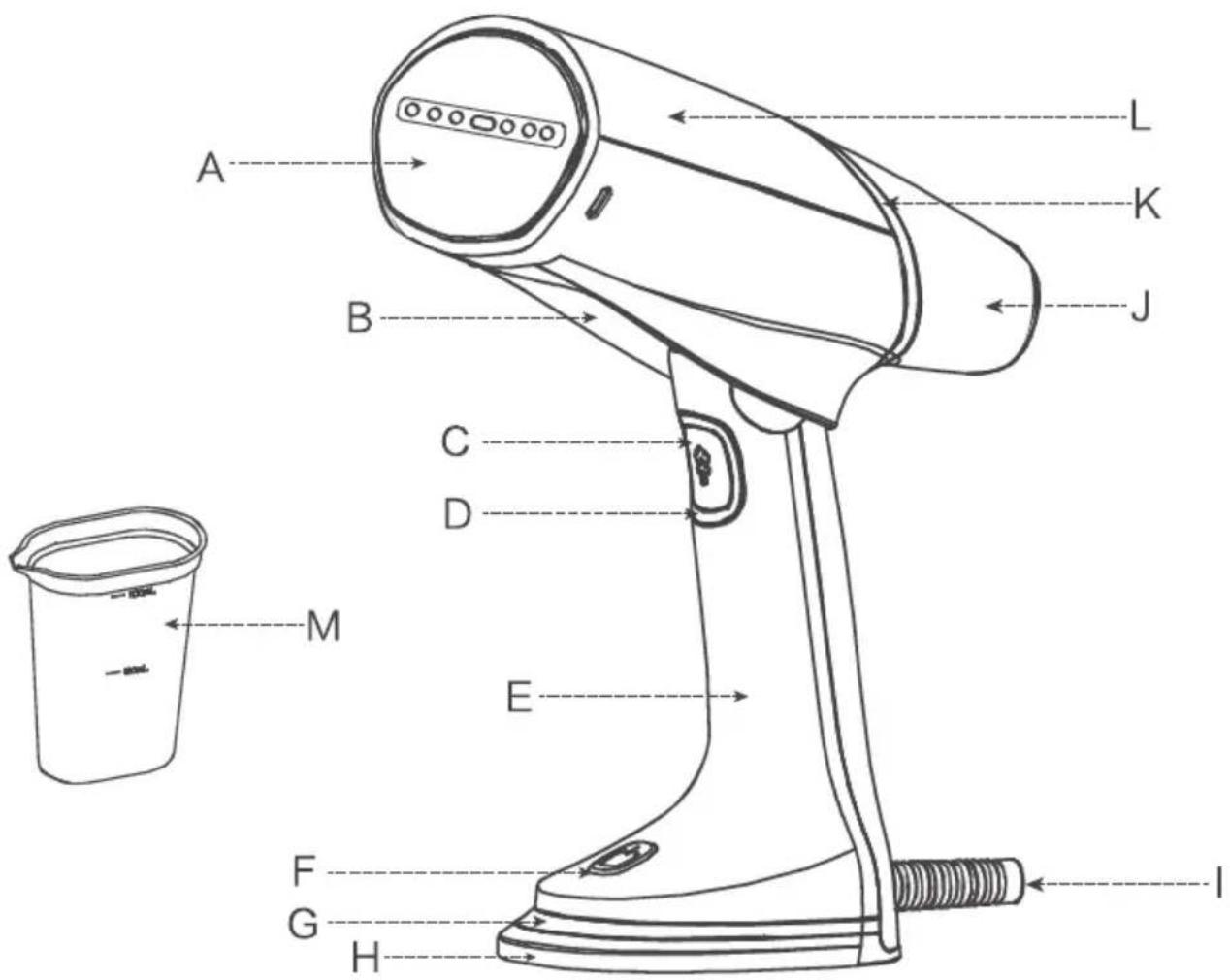

A B C D E F G H I J K L

A. Panel
B. Main body
C. Steam button
D. Steam button retaining ring
E. Handle

F. Power button
G. Lampshade
H. Bottom cover
I. Bushing
J. Water tank

K. Decorative ring
L. Upper cover
M. Measuring cup

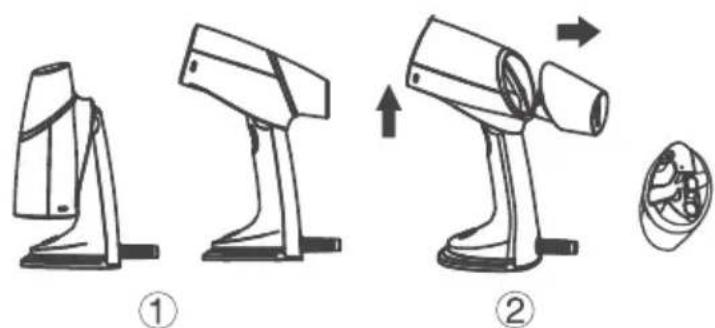

1. Take out the water tank (Figure 1)

① Take out the product and open it from the folded state to the normal use state.
② Hold the water tank to disassemble, pull out the water tank, open the water tank inlet cover, fill purified water into the water tank. And make sure the water tank is at least one-third full, then put the water tank back into the body.

Diagram showing three stages of a hairdryer device with labeled steps and directional arrows indicating motion.

Figure 1

2. Water tank filling (Figure 2)

① Fill water into the measuring cup, do not exceed the maximum water level (approx. 100mL).
② After filling the tank, cover the water tank and reinstall it.

①

Simple line drawing of a container pouring liquid into a container (no text or symbols)

②
Figure 2

• When filling the water tank, please place the tank horizontally and fill it with the appropriate amount of water to avoid overflow.
• A click is heard during installation to indicate that the water tank is properly installed.
• Please use purified water.

3. Start to use (Figure 3)

① Connect the product to the rated voltage. Press the power button, the red light flashes and starts heating, when the red light lasts a long time, press the steam button, the indicator light turns from red to green and the product starts to give off steam. When the steam button is pressed again, the product stops giving off steam. When the power button is pressed again, the machine can be turned off, at this time the indicator light will go out.

② This product has an intelligent automatic shutdown function. When the user stops using the product for more than a certain period of time, the internal control circuit of the product will cut off the power supply and enter the automatic power-off mode. At this time, the indicator light flashes slowly and the product stops heating, which prevents accidents and also saves electricity.

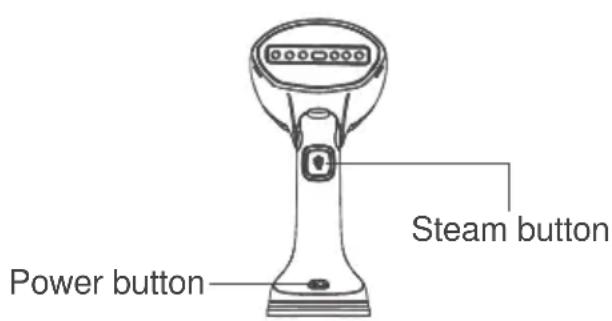

Power button Steam button

①

Power indicator light

②
Figure 3

Note: There is a risk of scalds; direct contact ironing of silk and other specialty fabrics is strictly prohibited.

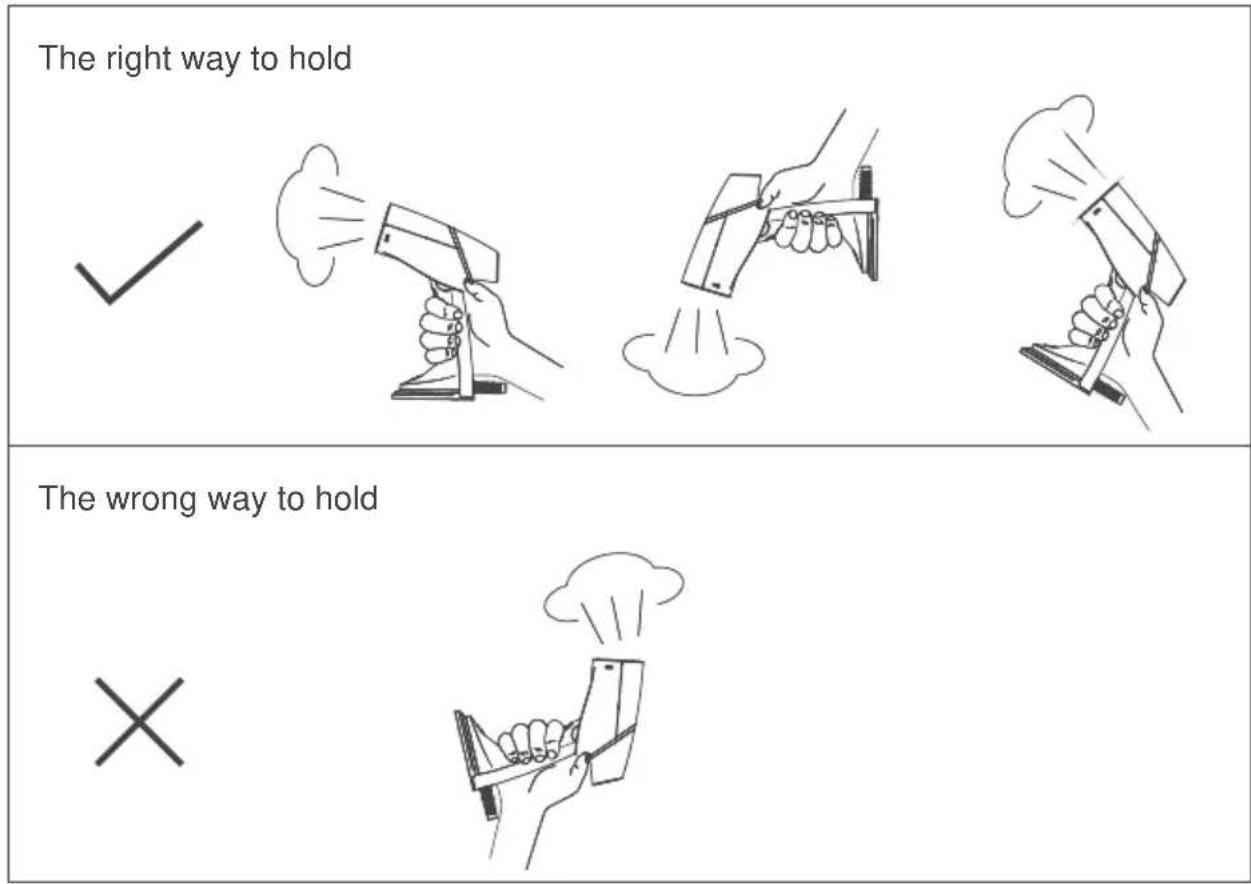

The right way to hold ✓ The wrong way to hold ×

1. After use, leave it to cool down.

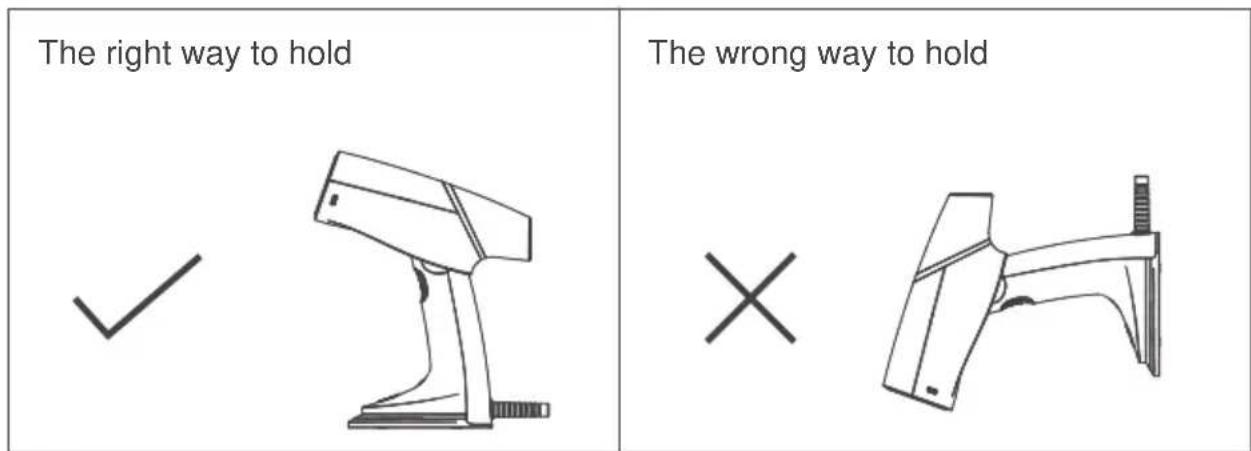

The right way to hold ✓ The wrong way to hold ×

Cleaning, Maintenance and Storage

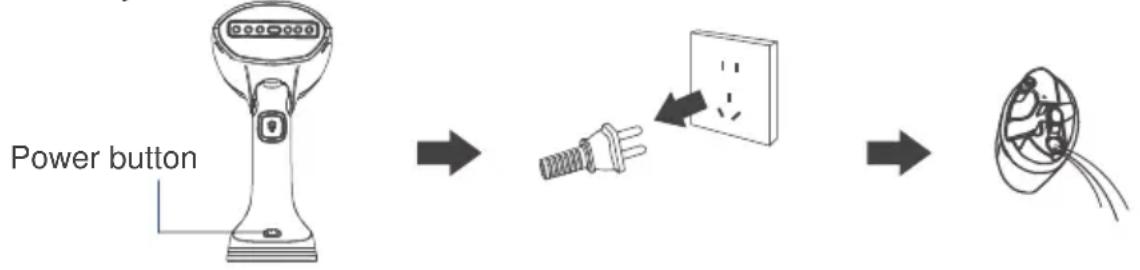

① After turning off the switch and unplugging the power plug, if there is still residual water in the water tank, please pour out the residual water first and wait until the machine cools down completely before cleaning the body.

② Wipe the surface and the sole plate of the product with a soft cloth, when stains appear, wipe with a soft cloth dipped in neutral detergent.

Line drawing of a hand holding a small object with sparkles, no text or symbols present

③ After putting the power cord away, fold the garment steamer horizontally and put it away.

Diagram showing a cable being inserted into a stand, with no text or symbols present.

• Please cut off the power supply before cleaning and maintenance.
• This machine must not be washed with water, or immersed in water, which can easily cause electric shock, short circuit, fire, failure and so on.
• Keep your hands dry when unplugging the power plug.
• Do not use thinners, chemicals, steel brushes or other items that may cause damage or malfunction to the machine for cleaning and maintenance. Do not operate with wet hands.
• When the product is not in use, the power plug should be unplugged to ensure that there is no residual water in the whole machine, keep the whole machine clean, and arrange it, and then store it in a ventilated place.
• Do not fill the water tank with perfume, vinegar, detergent, ironing compound or other chemicals, as this product is not suitable for use with these chemicals.

Important Safety Tips

In order to reduce the risk of malfunction, electric shock, injury, fire, life safety accidents, and damage to equipment or property, please be sure to observe the relevant precautions described in this manual. The following signs are used to illustrate and describe the hazards, injuries and property damage caused by disregard of sign instructions and improper use:

This sign is used to alert users to notice: The operating steps that are prohibited to take.
This sign is used to alert users to notice: The operating steps that must be followed in order to operate this product safely.

1. Please read this manual carefully before using the product. It is prohibited for infants, young children and incompetent persons.
2. This product is for home use only, please do not use it in the bathroom or outdoors.
3. The input voltage of the product must conform to the rated voltage indicated on the product. Please insert the power plug completely into the socket to avoid fire.
4. Please properly handle the packaging and plug sheath of this product, and keep them away from infants and young children to avoid accidents such as suffocation of infants and young children.
5. Please use clean water sources such as purified water or distilled water.
6. Items that not allowed to use steam: artificial leather, silk braids, low-temperature plastics and low-temperature products.
7. Do not use any other accessories that are not authorized by the manufacturer. If the machine breaks down due to this reason, the warranty will be automatically terminated.

8. After removing the packaging, please check whether the product is damaged and whether the accessories are complete.

9. In case of failure, unplug the power plug immediately and do not leave the defective product in working condition.

10. If the power supply cord is damaged, it must be replaced by professionals from the manufacturer, its maintenance department or similar departments to avoid danger.

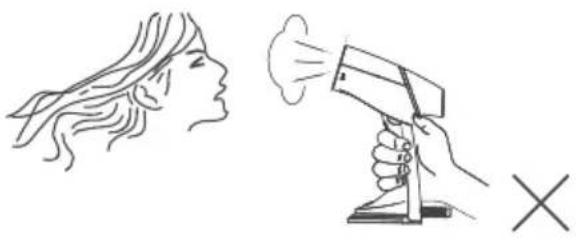

Do not touch the steam or face the steam nozzle towards the human body during use to avoid scalds.	Do not tangle, pull, or crush the power cord to avoid exposing the power cord, and result in scalds, electric shock, or fire.
Do not lay the product sideways to avoid water overflow and damage to the floor, table, or carpet.	Do not insert needles or other foreign matters into the steam outlet of the ironing sole plate to avoid electric shock or scalds.
Do not add perfume, vinegar, starch, detergent or other chemicals to the water tank to avoid staining clothing.	Do not modify, disassemble or repair this product by yourself, as abnormal operation may cause injury, or affect the life span of the machine.
When unplugging the power plug, please hold the plug before unplugging, do not pull or twist the power supply, and keep your hands dry to avoid electric shock or injury.	Do not use extension cords with external plugs, and do not share the socket with other products to avoid danger.
Do not approach water sources, fire sources and flammable materials during use to avoid possible electric shock or fire.	Do not immerse the product in water or other liquids, and do not rinse or fill the product directly facing the tap to avoid electric shock or injury.
This product is only used for ironing clothes, do not use it on the human body to avoid scalds.	When using this product on fine or specialty clothing, please try it on a hidden area of the clothing first to avoid damaging your clothing.
During the ironing process, the sole plate should not be close to hard objects such as zippers and buttons, otherwise the sole plate will be scratched.	When filling the water tank, please remember to use a special water cup, otherwise the main unit may be soaked in water or the water in the tank may overflow.
When adding or pouring water, or cleaning and maintaining the product, be sure to unplug the power plug to avoid electric shock or fire caused by aging of the power cord insulation.	If you do not use it for a long time or go out, please unplug the power plug, and the machine should also be unplugged immediately if any abnormality occurs (such as burning smell).

! Please place the product firmly on the base, and use it on a stable plane. Otherwise, the product may fall down or scald yourself.

Line drawing of a handheld electronic device with a lever and base (no text or symbols)

During use, if the sole plate of the product is facing up or tilted upward, it will result in no water supply and no steam coming out of the water tank, and even cause water overflow or electric shock.

Pure mechanical component diagram without any text, numbers, or symbols

Please check the following points first before entrusting the maintenance department to repair.

Fault Phenomenon	Possible Cause Handling Method
Completely not work and the switch indicator light does not light up	The power plug is not plugged into the power supply	Plug the power plug into a live socket
	The power switch is damaged	Look for professionals to check and repair
	The thermal fuse is damaged	Look for professionals to check and repair
No steam coming out but the switch indicator light is on	The water tank is not filled with water	Fill the water tank with the appropriate amount of water
	The steam switch button is not pressed	Press the steam switch button
	The product is still in the preheating state	Please use after preheating
The steam is too less	The voltage is too low	Please avoid using the product during peak hours of electricity consumption
The water tank leaks	The silicone seal of the water tank is out of work	Look for professionals to repair
	The water tank is broken
Due to the larger airflow generated by steam impact the panel, there is occasionally a "puff" sound at the panel, which is a normal phenomenon, please feel free to use.When the temperature regulator in the machine body is working, it happens sometimes that the amount of steam becomes low. When the temperature stabilizes, the amount of steam will return to normal. Steam may not be visible due to high room temperature or indoor light.
Technical Parameters
Product Name Product		Model
Handheld Garment Steamer		CS-G1001(W) EU
Rated Voltage	Rated Frequency	Rated Power Water	Tank Capacity
230V~	1000W 100mL50/60Hz

Packing List
Name	Quantity	Name Name	Quantity		Quantity
Main unit	1	Measuring cup	1	Manual	1

CANDY

QINGDAO HAIER INTELLIGENT HOUSEHOLD APPLIANCES CO., LTD.

Address: Haier Industrial Park, No.1 Haier Road, Qingdao, P.R.C.266101

Version: Version 1, 2024

Certificate of Quality

Checker:
