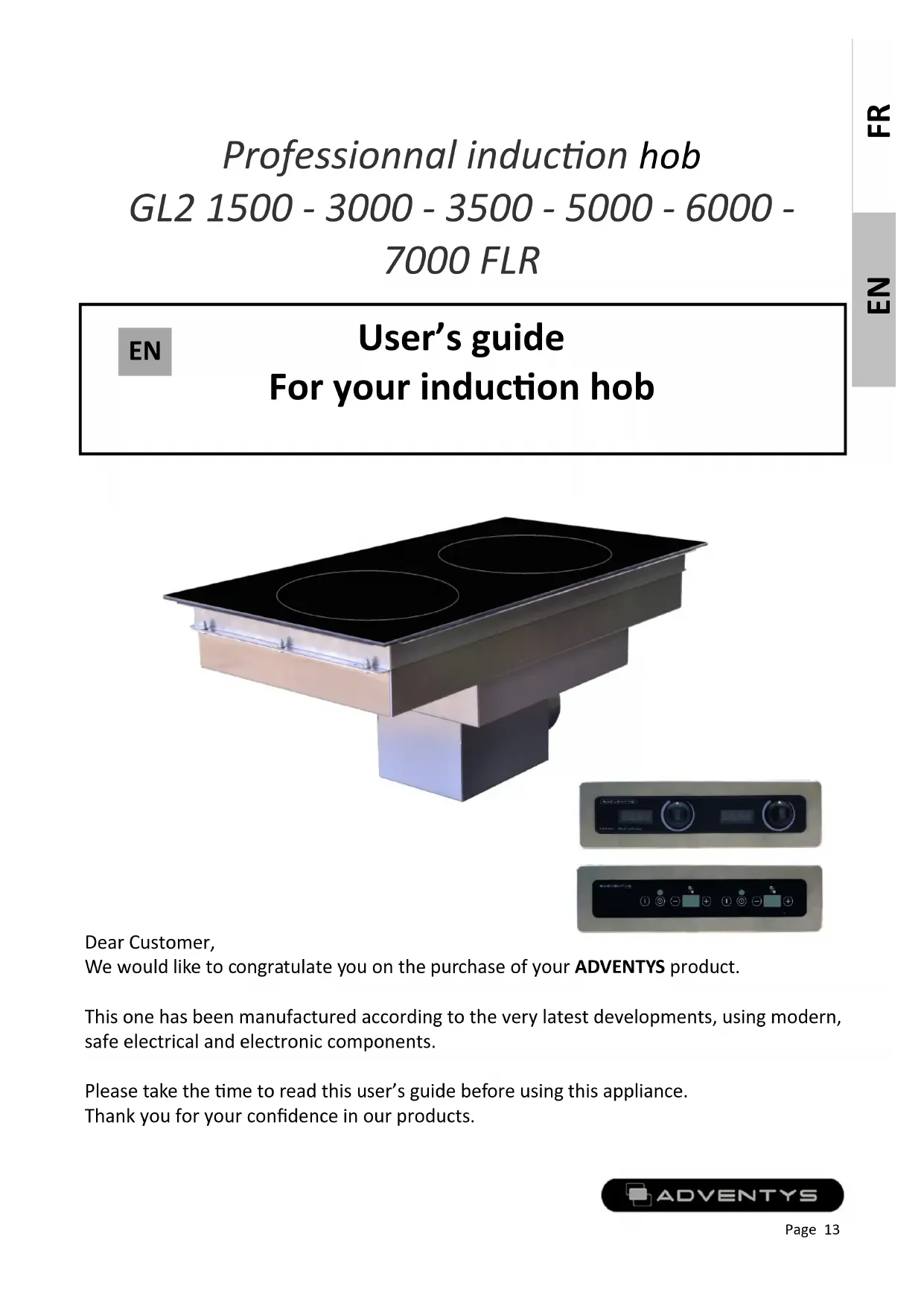

Professional induction hob

GL2 1500 - 3000 - 3500 - 5000 - 6000 -

7000 FLR

EN

User's guide

For your induction hob

Dear Customer,

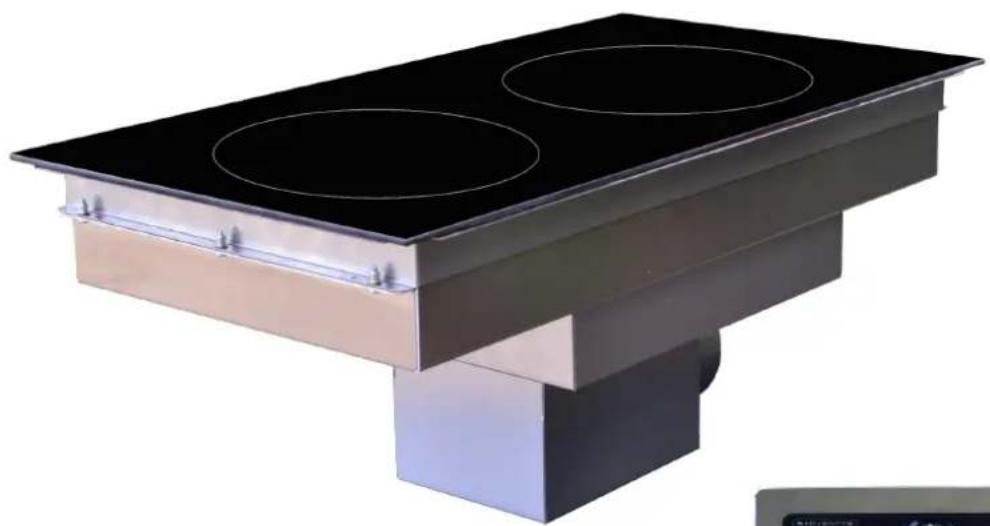

We would like to congratulate you on the purchase of your ADVENTYS product.

This one has been manufactured according to the very latest developments, using modern, safe electrical and electronic components.

Please take the time to read this user's guide before using this appliance.

Thank you for your confidence in our products.

Contents

Technical information 14

Declaration of Compliance and disposal of appliance 14

Integration of the product 16

Connecting your hob 18

Operating instructions

Cookware recommended 21

How to maintain and care for your hob

Small problems and their remedies

Guarantee 24

Throughout this guide:

22 Indicates important Safety information

Technical specifications

Model:	GL2 3000-3500-5000-6000-7000 FLR
Name:	Integrated induction hob
Matérials:	Stainless steel and EZ / Vitroceramic plate
Power:	2 x 750 (1500W) - 2 X 1500W (3000W) - 2x1750W (3500W) - 2x2500W (5000W) - 2x3000W (6000W) - 2x3500W (7000W)
Electricity supply:	single phase 230V +/-10% 50Hz
Current:	2x3A (1500W) - 2x6.5A (3000W) - 2x9A (3500W) - 2x11A (5000W) - 2x13A (6000W) - 2x16A (7000W)
Controls	4 Capacitive touches and timer Or knobs command
Dimensions of appliance:	W 325 X D 600 X H 254 mm
Dimensions of the vitroceramic glass	W 325 X D 600 X H 4 mm
Dimensions of the inductor:	210 mm
Maximun weight allowed on the appliance:	25 kg + 25kg
Net weight of the appliance:	12,5 Kg

Compliance and waste statement

This product complies with current EU directives. We certify this in the EU compliance statement. We can send you a copy of the compliance statement in question if required.

The packing materials in which this appliance is packed are recyclable. Please recycle them by disposing of them in the appropriate containers at your local facility. In so doing, you will be making a n to the protection of the environment.

At the end of its useful life, the appliance to be scrapped must be destroyed in accordance with the applicable national regulations that govern the elimination and recycling of waste.

We recommend you contact a company that specialises in waste disposal.

WARNING:

To avoid all risks associated with the destruction of the appliance, ensure that it is disconnected from themains and that the mains cable is removed.

PLEASE NOTE!

When destroying the appliance, local rules and the applicable regulations in your country or geographical zone must be adhered to.

Using your hob safety

The induction principle

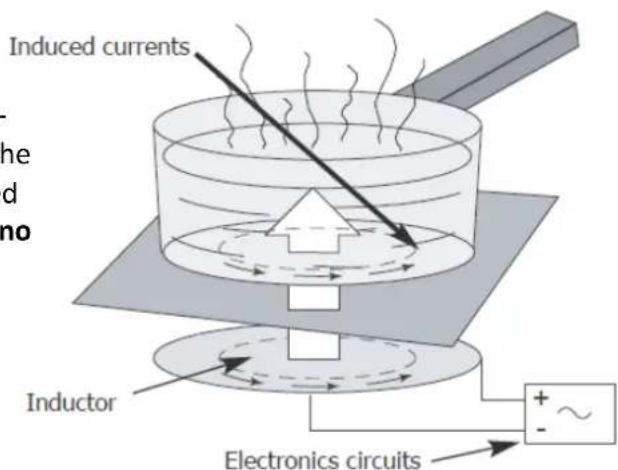

After the appliance is switched on and a power level is selected, electronic circuits produce induced currents in the base of the pan which instantly transmits the heat produced to the foodstuffs. Cooking takes place with practically no energy loss with a very high energy output.

If you have a heart pacemaker Or other active implant fitted :

The functioning of the hob complies with the currently applicable norms concerning electromagnetic disturbance. Your induction cooking hob therefore fully meets the legal requirements (89/336/CEE directives). It has been designed not to cause disturbance to other electric appliances insofar as they also meet the requirements of the same regulations. Your induction hob emits magnetic fields in its immediate surroundings.

To avoid the possibility of interference between your cooking hob and a heart pacemaker, the latter must be designed to comply with the regulations that apply to it.

In this respect, we can therefore only guarantee the compliance of our own appliance. With regard to the compliance of a heart pacemaker or any eventual incompatibility, we recommend that you consult its manufacturer or your doctor.

If a crack appears in the surface of the glass, disconnect the appliance immediately from the mains supply to avoid the risk of electric shock. To do this, remove the fuses or operate the cut-off switch.

Do not use your appliance again until the vitroceramic glass has been replaced.

Only appropriate cookware should be placed on the hob. Do not put any other object on it, no matter what it is.

Ensure that the mains cable of any electric appliance that is plugged into a socket located in the immediate vicinity of the hob does not come into contact with the cooking zones.

When cooking, never use aluminium foil and never place products that are wrapped in aluminium or frozen products in aluminium trays, on the hob. The aluminium will melt and will permanently damage your appliance.

Do not clean your hob with huge amounts of water. Use a little bit of household alcohol.

Do not use a steam cleaner.

If the mains cable is damaged, it must be replaced by the manufacturer, their After Sales Service or a person with similar qualifications to avoid risk.

This appliance is not intended for use by anyone (including children) whose physical, sensory or mental capacities are reduced, or lacking experience or knowledge, unless they have been able to benefit from prior instructions as to the use of the appliance or supervision by a person who is responsible for their safety.

Supervise children to ensure that they do not play with the appliance.

Users should exercise caution if wearing items such as rings, watches or similar objects when using the appliance since these may heat up when positioned very close to the cooking surface.

Only use pans of the type and size recommended.

Integration product

Mechanical installation:

For the integration of the kit in the top of the furniture, it is necessary to follow the instruction indicated below.

1) Realize a cut out of : 331 x 606 mm. (Please respect the distance of 5cm with in the vertical walls).
2) Fixation of the frame (supply in the packaging) around the cut out under the work top.

(We recommend a strong mechanical assembly to be able to support a load on the vitro ceramic of 25Kg by burner). This assembly can be realized by:

• Gudgeons welded under work-top then screwing on the frameexecutive)

• Soldering of the frame under work-top

• Sticking of the frame under work-top

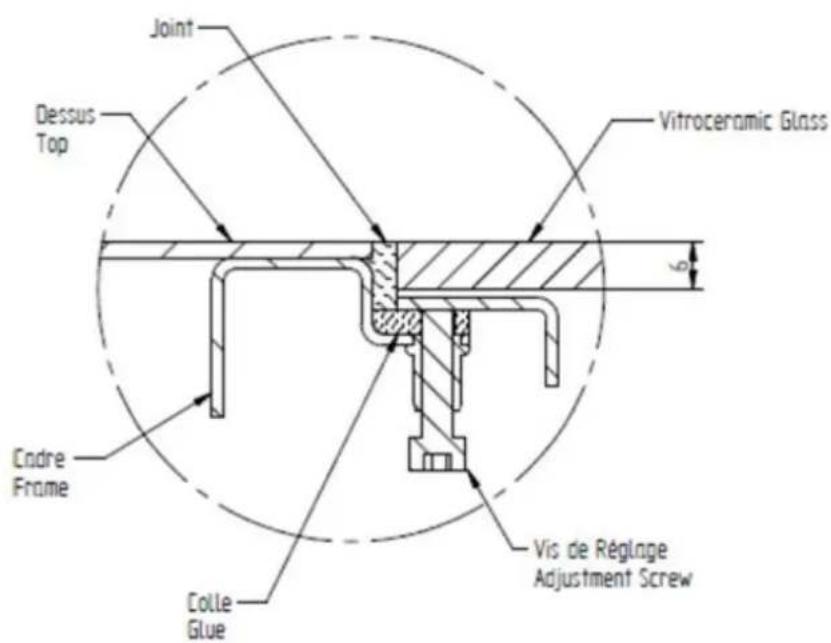

3) Place the kit in the cut out on the frame, then adjust the 4 screws in a way that the glass is flushed in the work-top.

(We recommend that the position of the glass is equal or slightly lower than the work plan to avoid chipping the glass when we make slide a pan).

4) Remove the KIT of the support.
5) Put down a joint of glue (CAF 99 for example) thermal high strength on the frame.
6) Reposition the Kit by centering it in the cut out.
7) Press slightly on the kit to put it there earthed up on 4 screws.
8) Let dry according to recommendation of the manufacturer of glue.
9) Realize a food seal (novasil type S56) between the top of furniture and the vitro ceramic glass.
10) Let dry according to recommendation of the manufacturer of seal.
11) Remove any residues of glue / joint from the point of view of work and the glass before quite started.

Integration product

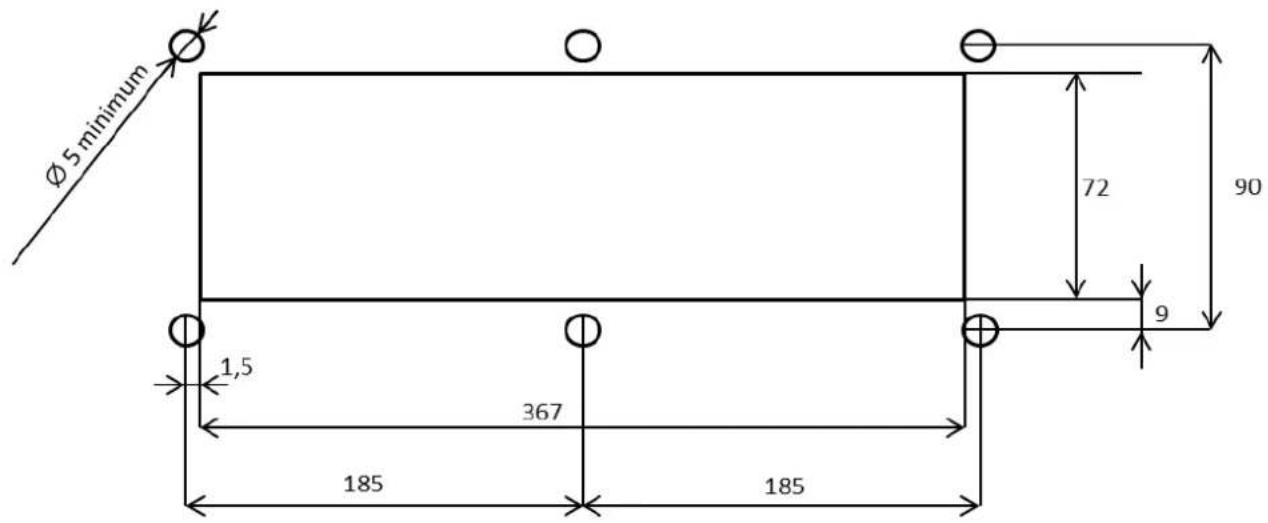

Control panel installation (capacitives touches or knobs) :

2) Add a silicone joint under the control panel.
3) Insert the control panel into the cut out.
4) Fix the control panel by tightening the bolts.

Connecting your hob

Electrical connection

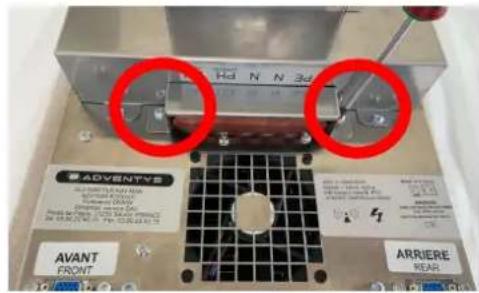

First of all, unscrew the protective cover

For 6000 and 7000 versions:

Connection of the terminal block on 1 single-phase 32A line with a 32A circuit breaker.

-N + N on neutral conductor
-PH front + PH rear on Phase conductor
-PE on earth conductor

Connection of the terminal block on 2 single-phase 16A lines with 2 circuit breakers.

(The neutral connections are bridged)

-N on Neutral conductor line 1
-PH front on Phase conductor line 1
-PE on earth conductor line 1

And

-N on Neutral conductor line 2
-PH rear on Phase conductor line 2
-PE on earth conductor line 2

Connection of the terminal block on 1 three-phase

-N + N on Neutral conductor
-PH front on Phase conductor 1 (ph1)
-PH rear on Phase conductor 2 (ph2)
-PE on earth conductor

NB: nothing is connected on phase 3 (ph3)

Command connection

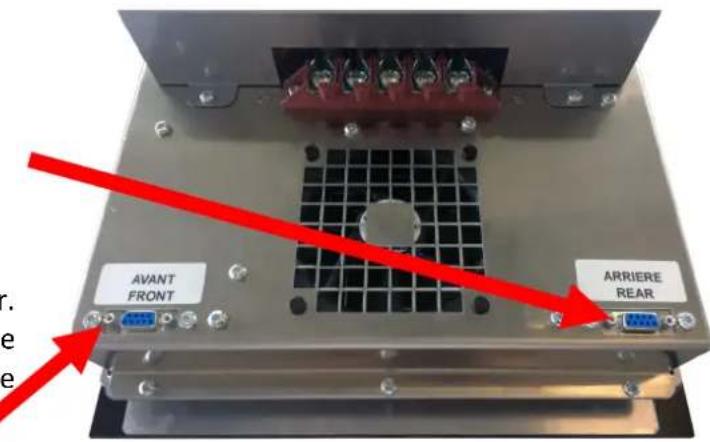

It is necessary to connect the 2 cables of the block command respectively on 2 connectors SUBD-9.

So to lock the connections, it is imperative to screw 2 binding screws of every connector. Also, it is imperative to connect the ground wire of the block commands to the Ground.

Air flow

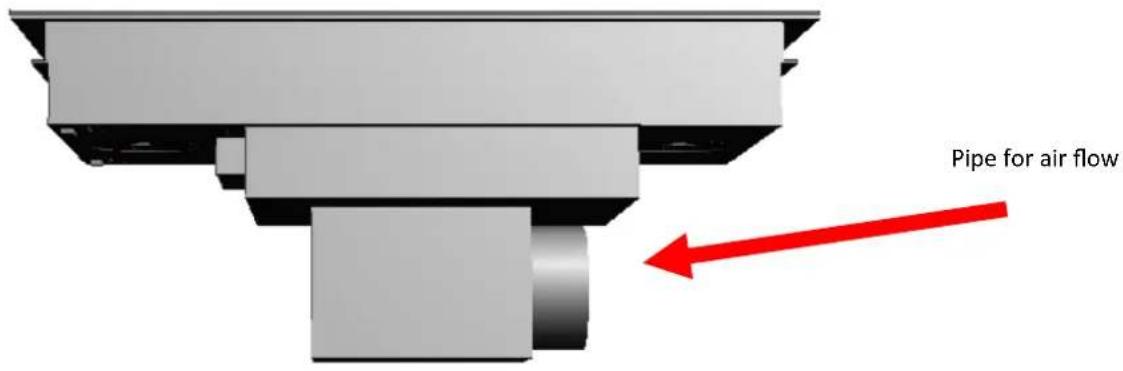

Install a pipe diameter 100mm under the product and an air filter at the other side of the pipe, where fresh air enter.

Connection to the generator

TECHNICAL CONNECTION

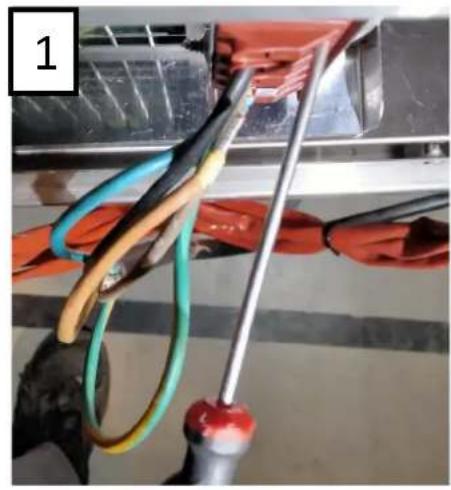

In order to insert and connect each conductor in the terminal block:

1 Insert the end of a flat screwdriver to the right. The maximum diameter of the rod must be 4mm

Repeat the previous steps for each wire to be connected

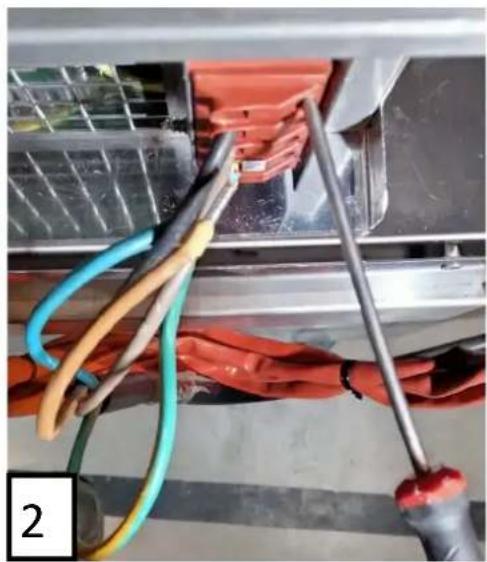

2/ Then move the screwdriver to the right to allow the lowering of the spring-loaded jaw of the terminal block contact.

Be careful not to push the wire end too far into the jaw of the terminal block!!!

YES

Operating instruction

Power setting

Place an induction-friendly pan on the cooktop to start using the product. The display indicates the level of regulation. Make sure the pan is not empty.

To adjust the power level press (+) or (-) POWER

Powers levels: form 1 to 20.

As soon as the pan is removed from the cooking zone, the display indicates the absence of the pan by a blinking. There is close to no consumption of power. If the display flashes when the pan recovers the cooking zone, it means that the material of the pan is not compatible with the induction technologie.

Timer setting

The timer is activated by pressing the "Timer selection" button. The timer light comes on and the message "ti" is displayed for 3 seconds.

The desired cooking time is selected by pressing the (+) and (-) TIMER buttons. The timer duration is between 1 and 99 timer.

An audible signal informs the user when the timer is over.

The end of the timer forces the power to stop.

To stop the audible BEEP emitted at the end of the timer, a short press on one of the buttons is sufficient.

Pressing the "Timer selection" button again allows you to return to level adjustment mode. The timer indicator goes out and the message "te" is displayed for 3 seconds.

Display of specific message

The device is extremely safe. It makes a permanent control of the values of temperature and other electric parameters to guarantee to the user the best level of performance and safety at every moment.

A flashing error code « Fx » can appear on the display to warn about a malfunctioning.

The code error flashing is effective as long as the user doesn't stop the device manually unplug and replug the unit, and then relaunch the device using the « On/Off » touch.

If a code error becomes permanent without having the possibility of cancelling it by trying to relaunch the device, it is advised to get in touch with the after-sales service specified by the retailer of the product.

Cookware Recommended

Your induction hob is able to recognize the majority of pans and recipients.

Testing a pan: place the pan on the cooking zone with a power level set : if indicator 4stays on, your pan is compatible, if it flashes, your pan has not been recognised and cannot be used. You can also test with the aid of a magnet: if it "sticks" to the base of the pan, then the pan is compatible with induction technology.

Induction-compatible pans are:

• enamelled steel pans with or without a nonstick coating.
• stainless-steel pans designed for induction. Most stainless steel pans are suitable if they pass the pan test.
• cast-iron pans with or without an enamelled base.
• aluminium pans with special bases.

Pans must rested on the stainless steel collar hich border the WOK glass to avoid any shock between the pan and the glass

NOTE

Pans made from glass, ceramic material, clay, aluminium (without special pan base), and copper, as well as certain non-magnetic stainless steels are not compatible with induction cooking. The indicator for the power level selected will flash to inform you of this.

Containers made of plastic must not be placed on hot surfaces

How to maintain and care for your hob

Avoid shocks when handling the pans.

The glass surface is very strong, however it is not unbreakable.

Avoid rubbing the pans over the surface of the appliance.

Centre your pan on the induction cooking zone.

Do not leave an empty pan on the induction zone.

Do not pre-heat foodstuffs on the highest power setting if you are using a pan with an anti-stick coating (of the teflon type) without or with a tiny a mount of cooking fat or oil.

Do not heat an unopened tin can, as it might burst.

Use maximum power (3000W) only for boiling or deep-frying.

All these defects that do not cause a non operation or inability to use are not covered by the guarantee.

Do not leave metal cooking utensils, lids, knives or any other metal objects on the inductioncooking zone. These objects are liable to heat up if they remain too close to the magnetic field generated by the induction cooking zone.

Your device is cleaned easily, to help you, here is some advice:

Type of spots How to proceed Use

Slight	Dilute well the zone to clean with hot water then wipe.	Sanitary sponges
Accumulation of recooked spots	Dilute well the zone to clean with hot water, use a special scraper for glass to rough-hew, finish with the scraper side of a sanitary sponge, then wipe.	Sanitary sponges special scraper for glass
Haloes and tracks of limestone	Apply some hot spirit vinegar to the spot, let act, wipe with a soft cloth. Use a domestic product.	Special vitroceramic glass dough
Inlays following the over-flowing of sugar, aluminium or molten plastic	Apply to the surface a special product for vitroceramic glass, rather containing some solicone (protective effect).	Special vitroceramic glass product

Small problems and their remedies

If you think that your hob is not functioning correctly .... this does not necessarily mean that a fault has occurred. Please verify the following in all cases :

YOU NOTICE THAT ...	POSSIBLE CAUSES	WHAT YOU CAN DO
When putting into service, a bright display appears	Regular functioning	NOTHING: everything is normal
When putting into service, your installation short-circuits	The connection of you device is defective	Verify your connection or the conformity of the connection
The ventilation continues a few minutes after stopping the device	Cooling of the device	It's normal
The device doesn't work. The display on the casing stays off	The device is not supplied. The supply or the connection is defective	Inspect fuses and the circuit breaker of your electric installation
« F- » appears on the display	There is a touch activated permanently on the control keyboard	If the default doesn't disappear, call the after-sales service
« F7 » appears on the display	Electric circuits are over heating	Inspect the ventilation of the device and check if it is operational
The device doesn't work, another code appears on the display	Electric circuits doesn't work well	Call the after-sales service
After switching on the device and starting the cooking zone, the selected indicator continues to flash	The pan you are using is not compatible with the induction technology or is of a diameter smaller than 12 cm	See « Cookware Recommended section »
Pan makes noise while cooking	It's a vibration generated by the circulation of the current in the pan	This phenomenon is normal with some type of pans. There is no danger
The device releases a smell during the first cookings	New device	Run the cooking during half an hour with a pan full of water
If the vitroceramic hob suffers a breakage, split or crack, no matter how small, disconnect the appliance immediately and contact After-Sales Service.

Garantee

Keep the proof of purchase to use the guarantee service of your product.

Any modification such as drilling, welding, crimping, clinching, etc., is not permitted and is not covered by the manufacturer's warranty.

Any wrong modification or installation, which does not respect ADVENTYS' standards, is not covered by the manufacturer's warranty and will be permanently suspended.

The guarantee is subject to the non-modification of the product and its mechanical and electrical specifications. Opening the product cancels any form of warranty.

Any defects in appearance caused by the use of abrasive products or friction of cookware on the ceramic glass hob that does not result in a non-functioning or inability to use the appliance is not covered in the guarantee. The vitroceramic glass and the casing are not subject to warranty.

ANY REPAIRS MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN APPROVED BY ADVENTYS.

Only the distributors of our brand:

• KNOW YOUR APPLIANCE PERFECTLY AND HOW IT WORKS.
• FULLY APPLY OUR METHODS OF ADJUSTEMENT, MAINTENANCE AND REPAIRS.
• USE ONLY ORIGINAL SPARE PARTS.

In case of a claim or if you wish to order spare parts from your distributor, please specify the full reference numbers of your appliance (appliance type and serial number). This information appears on the plate fixed under the metal casing of the appliance.

The descriptions and characteristics given in this booklet are for information purposes only and do not imply commitment from the manufacturer. Concerned about the quality of our products, we reserve the right to carry out necessary changes or improvements without prior notice.

Original spare parts: ask your retailer for certified original spare parts during a maintenance operation.
