USER MANUAL FISP 8000 Adventys

Chere cliente, cher client,

LES CAUSES POSSIBLES

QUE FAUT-IL FAIRE?

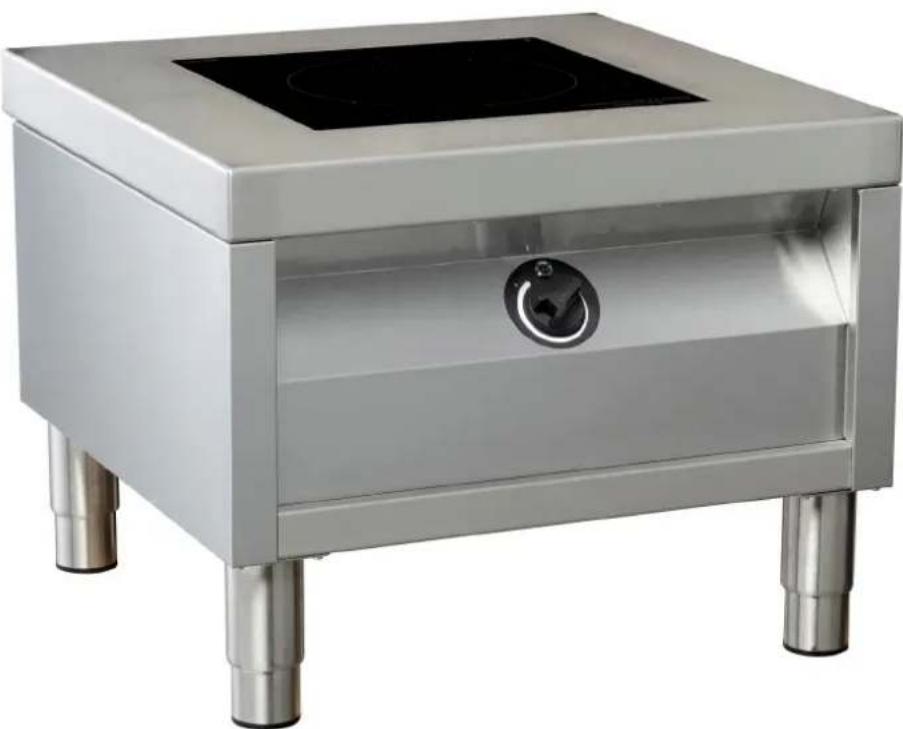

Professional induction hob

FISP 8000

EN

User's guide For your induction hob

Dear Customer,

We would like to congratulate you on the purchase of your ADVENTYS product.

This one has been manufactured according to the very latest developments, using modern, safe electrical and electronic components.

Please take the time to read this user's guide before using this appliance.

Thank you for your confidence in our products.

Technical specifications

Model:	FISP 8000
Name:	Induction stockpot 8000 W
Matérials:	Stainless steel and vitroceramic
Power:	8000 W
Power supply:	Three phase 400V (Works between 320 and 450V / 40 and 70Hz) Provide a H07RNF5G-1.5 1.5mm² cable
Current:	12A per phases
Controls:	Knob and led
Product dimensions:	600 x 600 x h500 mm
Dimensions of the vitroceramic glass:	360 x 360 mm (6 mm thickness)
Dimensions of the inductors:	230 mm
Maximun weight allowed on the appliance:	20 kg

Compliance and waste statement

This product complies with current EU directives. We certify this in the EU compliance statement. We can send you a copy of the compliance statement in question if required.

The packing materials in which this appliance is packed are recyclable. Please recycle them by disposing of them in the appropriate containers at your local facility. In so doing, you will be making a

contribution to the protection of the environment.

At the end of its useful life, the appliance to be scrapped must be destroyed in accordance with the applicable national regulations that govern the elimination and recycling of waste.

We recommend you contact a company that specialises in waste disposal.

WARNING :

To avoid all risks associated with the destruction of the appliance, ensure that it is disconnected from themains and that the mains cable is removed.

PLEASE NOTE!

When destroying the appliance, local rules and the applicable regulations in your country or geographical

zone must be adhered to.

Using your hob safety

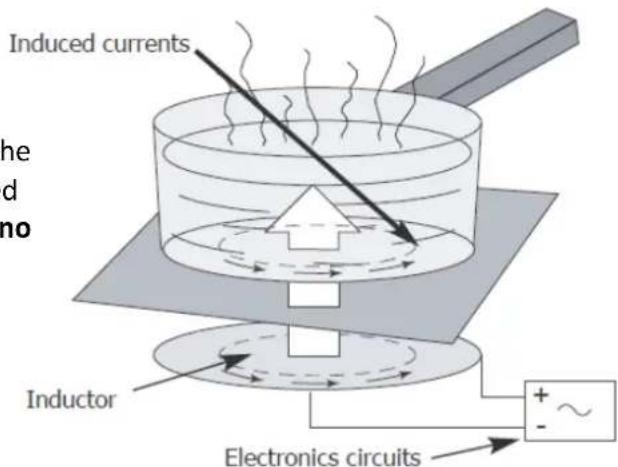

The induction principle

After the appliance is switched on and a power level is selected, electronic circuits produce induced currents in the base of the pan which instantly transmits the heat produced to the foodstuffs. Cooking takes place with practically no energy loss with a very high energy output.

If you have a heart pacemaker Or other active implant fitted :

The functioning of the hob complies with the currently applicable norms concerning electromagnetic disturbance. Your induction cooking hob therefore fully meets the legal requirements (89/336/CEE directives). It has been designed not to cause disturbance to other electric appliances insofar as they also meet the requirements of the same regulations. Your induction hob emits magnetic fields in its immediate surroundings.

To avoid the possibility of interference between your cooking hob and a heart pacemaker, the latter must be designed to comply with the regulations that apply to it.

In this respect, we can therefore only guarantee the compliance of our own appliance. With regard to the compliance of a heart pacemaker or any eventual incompatibility, we recommend that you consult its manufacturer or your doctor.

If a crack appears in the surface of the glass, disconnect the appliance immediately from the mains supply to avoid the risk of electric shock. To do this, remove the fuses or operate the cut-off switch.

Do not use your appliance again until the vitroceramic glass has been replaced.

Only appropriate cookware should be placed on the hob. Do not put any other object on it, no matter what it is.

Ensure that the mains cable of any electric appliance that is plugged into a socket located in the immediate vicinity of the hob does not come into contact with the cooking zones.

When cooking, never use aluminium foil and never place products that are wrapped in aluminium or frozen products in aluminium trays, on the hob. The aluminium will melt and will permanently damage your appliance.

Do not clean your hob with huge amounts of water. Use a little bit of household alcohol.

Do not use a steam cleaner.

If the mains cable is damaged, it must be replaced by the manufacturer, their After Sales Service or a person with similar qualifications to avoid risk.

This appliance is not intended for use by anyone (including children) whose physical, sensory or mental capacities are reduced, or lacking experience or knowledge, unless they have been able to benefit from prior instructions as to the use of the appliance or supervision by a person who is responsible for their safety.

Supervise children to ensure that they do not play with the appliance.

Users should exercise caution if wearing items such as rings, watches or similar objects when using the appliance since these may heat up when positioned very close to the cooking surface.

Only use pans of the type and size recommended.

Electrical connection

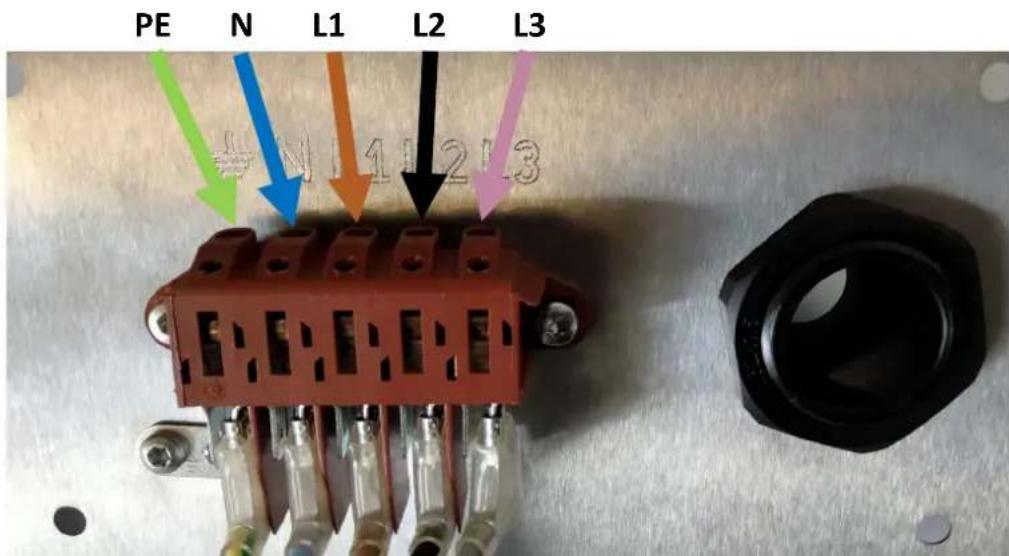

Connections of the generator: Connection plate

At the back of the generator

The generator block must be connected to a 400V, 50 or 60Hz three-phase power supply line.

The power line must have 3 phases L1,2,3, a neutral N and an earth PE. The neutral will be used exclusively to supply an additional turbine under 230V (if connected).

The mains supply connection is made at the back of the generator. It is desirable that the 5 conductors be fitted with ferrules at their ends.

(!) We recommend the use of an H07RN-F-5G-2.5 power cord (conductor cross-sections of 2.5mm^2 ). It is essential that the power supply line used is protected by a 30mA differential circuit breaker.

In the event that the generator blocks have to be disconnected from the electrical network, it is necessary to provide a mains disconnection device accessible by the user, near the product. If the disconnection device is operated manually, it must guarantee total disconnection of the generators, vis-à-vis the 3 phase conductors + the neutral conductor of the three-phase electrical network.

ELECTRICAL CONNECTION

To be able to insert and connect each conductor in the terminal block:

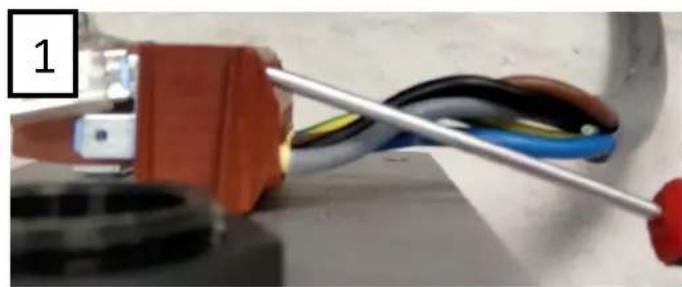

1/Insert upwards the end of a flat screwdriver. The maximum diameter of the rod must be 4mm.

Repeat the previous steps for each wire to be connected

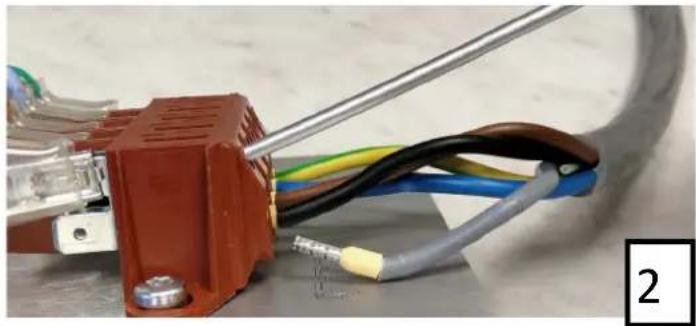

2 / Then lift the screwdriver to allow the lowering of the spring-loaded jaw of the terminal block contact.

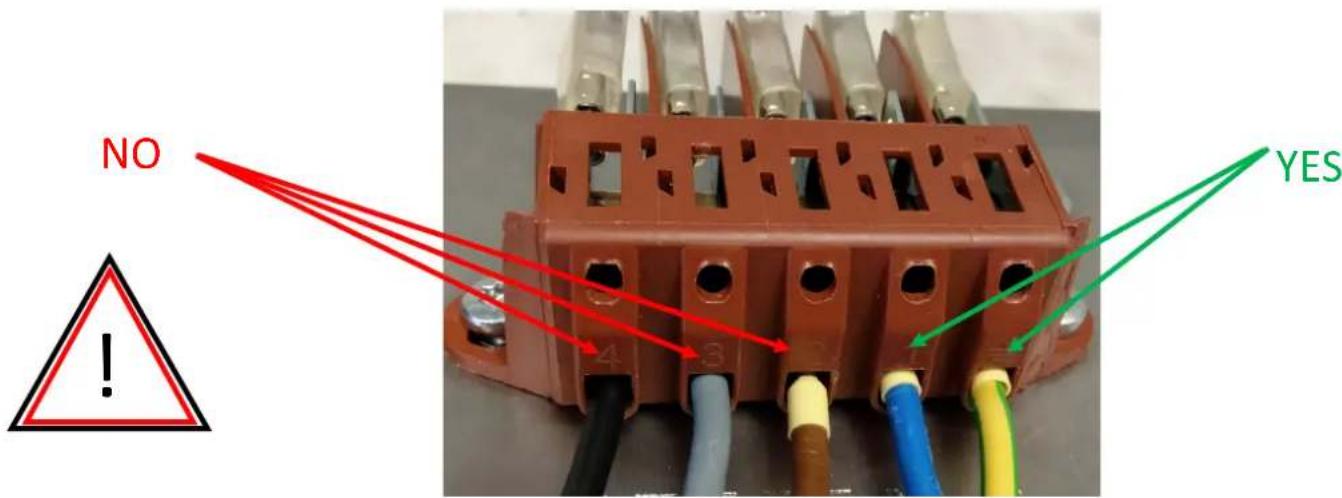

Be careful not to push the wire end too far into the jaw of the terminal block!!!

Ho

Switching on the device, adjusting the power

Turn the adjustment knob and position it outside the "OFF" zone to the desired power level. The display shows the selected value to indicate to the user that the hotplate is operational and ready to send power to the large utensil.

There are 20 power levels between 1 and 20 which correspond to power levels between 50W<Power<8000W.

As long as the utensil compatible with induction technology is placed on the cooking zone, the display permanently shows the desired level. It is possible at any time to adjust the power level between 50W<Power<8000W.

As soon as the pan is removed from the hotplate, the display indicates the absence of the pan by a flashing light.

If the display flashes when the cookware covers the hotplate: this means that: OR: the material of the saucepan is incompatible with induction technology

EITHER: The diameter of the pan is too small to be detected

Cookware Recommended

Your induction hob is able to recognize the majority of pans and recipients.

Testing a pan: place the pan on the cooking zone with a power level set : if indicator stays on, your pan is compatible, if it flashes, your pan has not been recognised and cannot be used.

You can also test with the aid of a magnet: if it "sticks" to the base of the pan, then the pan is compatible with induction technology.

Induction-compatible pans are:

• enamelled steel pans with or without a nonstick coating.
• stainless-steel pans designed for induction.

Most stainless steel pans are suitable if they pass the pan test.

• cast-iron pans with or without an enamelled base.
• aluminium pans with special bases.

NOTE

Pans made from glass, ceramic material, clay, aluminium (without special pan base), and copper, as well as certain non-magnetic stainless steels are not compatible with induction cooking. The indicator for the power level selected will flash to inform you of this.

Containers made of plastic must not be placed on hot surfaces

How to maintain and care for your hob

Avoid shocks when handling the pans.

The glass surface is very strong, however it is not unbreakable.

Avoid rubbing the pans over the surface of the appliance.

Centre your pan on the induction cooking zone.

Do not leave an empty pan on the induction zone.

Do not pre-heat foodstuffs on the highest power setting if you are using a pan with an anti-stick coating (of the teflon type) without or with a tiny a mount of cooking fat or oil.

Do not heat an unopened tin can, as it might burst.

All these defects that do not cause a non operation or inability to use are not covered by the guarantee.

Do not leave metal cooking utensils, lids, knives or any other metal objects on the inductioncooking zone. These objects are liable to heat up if they remain too close to the magnetic field generated by the induction cooking zone.

Small problems and their remedies

If you think that your hob is not functioning correctly .... this does not necessarily mean that a fault has occurred. Please verify the following in all cases :

YOU NOTICE THAT ...	POSSIBLE CAUSES	WHAT YOU CAN DO
When putting into service, a bright display appears	Regular functioning	NOTHING: everything is normal
When putting into service, your installation short-circuits	The connection of you device is defective	Verify your connection or the conformity of the connection
The ventilation continues a few minutes after stopping the device	Cooling of the device	It's normal
The device doesn't work. The display on the casing stays off	The device is not supplied. The supply or the connection is defective	Inspect fuses and the circuit breaker of your electric installation
« F-» appears on the display	There is a touch activated permanently on the control keyboard	If the default doesn't disappear, call the after-sales service
« F7 » appears on the display	Electric circuits are over heating	Inspect the ventilation of the device and check if it is operational
The device doesn't work, another code appears on the display	Electric circuits doesn't work well	Call the after-sales service
After switching on the device and starting the cooking zone, the selected indicator continues to flash	The pan you are using is not compatible with the induction technology or is of a diameter smaller than 12 cm	See « Cookware Recommended section »
Pan makes noise while cooking	It's a vibration generated by the circulation of the current in the pan	This phenomenon is normal with some type of pans. There is no danger
The device releases a smell during the first cookings	New device	Run the cooking during half an hour with a pan full of water
If the vitroceramic hob suffers a breakage, split or crack, no matter how small, disconnect the appliance immediately and contact After-Sales Service.

Garantee

Keep the proof of purchase to use the guarantee service of your product.

Any modification such as drilling, welding, crimping, clinching, etc., is not permitted and is not covered by the manufacturer's warranty.

Any wrong modification or installation, which does not respect ADVENTYS' standards, is not covered by the manufacturer's warranty and will be permanently suspended.

The guarantee is subject to the non-modification of the product and its mechanical and electrical specifications. Opening the product cancels any form of warranty.

Any defects in appearance caused by the use of abrasive products or friction of cookware on the ceramic glass hob that does not result in a non-functioning or inability to use the appliance is not covered in the guarantee. The vitroceramic glass and the casing are not subject to warranty.

ANY REPAIRS MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN APPROVED BY ADVENTYS.

Only the distributors of our brand:
- KNOW YOUR APPLIANCE PERFECTLY AND HOW IT WORKS.
- FULLY APPLY OUR METHODS OF ADJUSTEMENT, MAINTENANCE AND REPAIRS.
- USE ONLY ORIGINAL SPARE PARTS.

In case of a claim or if you wish to order spare parts from your distributor, please specify the full reference numbers of your appliance (appliance type and serial number). This information appears on the plate fixed under the metal casing of the appliance.

The descriptions and characteristics given in this booklet are for information purposes only and do not imply commitment from the manufacturer. Concerned about the quality of our products, we reserve the right to carry out necessary changes or improvements without prior notice.

Original spare parts: ask your retailer for certified original spare parts during a maintenance operation.

Made In France
