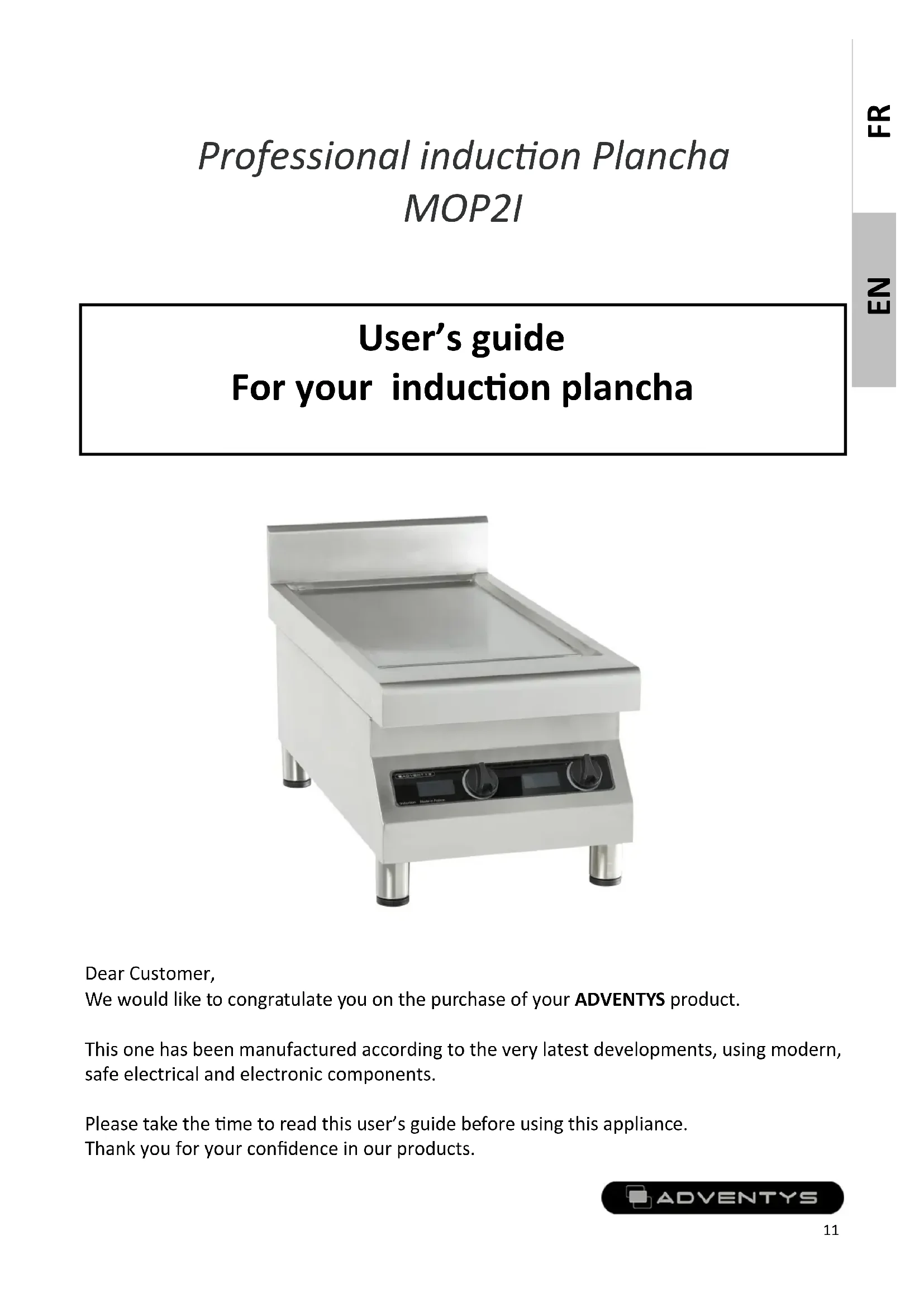

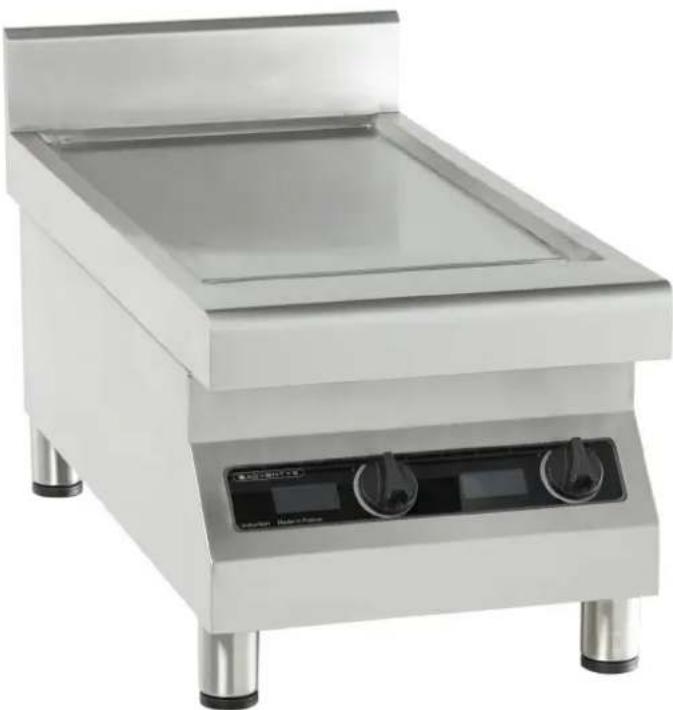

Professional induction Plancha MOP2I

User's guide For your induction plancha

Dear Customer,

We would like to congratulate you on the purchase of your ADVENTYS product.

This one has been manufactured according to the very latest developments, using modern, safe electrical and electronic components.

Please take the time to read this user's guide before using this appliance.

Thank you for your confidence in our products.

Contents

Technical information

Declaration of Compliance and disposal of appliance

Using your induction hob

Electrical connection 14

How the hob works 16

How to maintain and care for your hob

Small problems and their remedies

Garanttee

12 Throughout this guide:

17 Indicates important Safety information

Technical specifications

Model: MOP2I
Name:	Plancha induction hob
Matérials:	Stainless steel
Power:	8000W
Electricity supply:	400V +/-10%, 50Hz or 60Hz+/-2% three phase
Current:	12A
Controls	Capacitive touch control. Knobs controls with 4 digits display for temperature setting.
Dimensions of appliance:	400 x 350 x 800
Dimensions of the inductor:
Net weight of the appliance:	51kg
Maximum weight allowed on the appliance:	30 kg

Compliance and waste statement

This product complies with current EU directives. We certify this in the EU compliance statement. We can send you a copy of the compliance statement in question if required.

The packing materials in which this appliance is packed are recyclable. Please recycle them by disposing of them in the appropriate containers at your local facility. In so doing, you will be making a n to the protection of the environment.

At the end of its useful life, the appliance to be scrapped must be destroyed in accordance with the applicable national regulations that govern the elimination and recycling of waste.

We recommend you contact a company that specialises in waste disposal.

WARNING:

To avoid all risks associated with the destruction of the appliance, ensure that it is disconnected from themains and that the mains cable is removed.

PLEASE NOTE!

When destroying the appliance, local rules and the applicable regulations in your country or geographical zone must be adhered to.

Using your hob safety

The induction principle

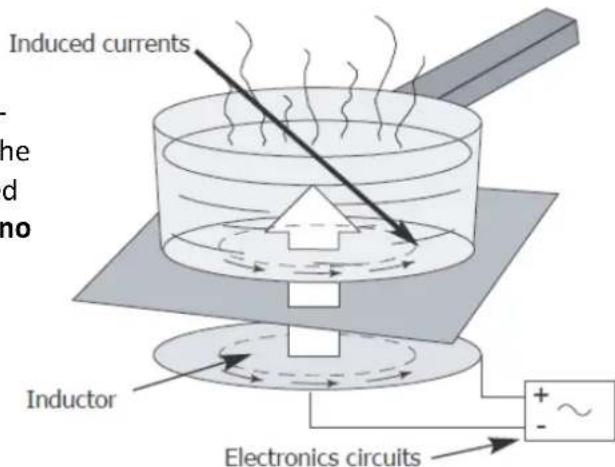

After the appliance is switched on and a power level is selected, electronic circuits produce induced currents in the base of the pan which instantly transmits the heat produced to the foodstuffs. Cooking takes place with practically no energy loss with a very high energy output.

If you have a heart pacemaker Or other active implant fitted :

The functioning of the hob complies with the currently applicable norms concerning electromagnetic disturbance. Your induction cooking hob therefore fully meets the legal requirements (89/336/CEE directives). It has been designed not to cause disturbance to other electric appliances insofar as they also meet the requirements of the same regulations. Your induction hob emits magnetic fields in its immediate surroundings.

To avoid the possibility of interference between your cooking hob and a heart pacemaker, the latter must be designed to comply with the regulations that apply to it.

In this respect, we can therefore only guarantee the compliance of our own appliance. With regard to the compliance of a heart pacemaker or any eventual incompatibility, we recommend that you consult its manufacturer or your doctor.

Only appropriate cookware should be placed on the hob. Do not put any other object on it, no matter what it is. Ensure that the mains cable of any electric appliance that is plugged into a socket located in the immediate vicinity of the hob does not come into contact with the cooking zones.

When cooking, never use aluminium foil and never place products that are wrapped in aluminium or frozen products in aluminium trays, on the hob. The aluminium will melt and will permanently damage your appliance. Do not clean your hob with huge amounts of water. Use a little bit of household alcohol.

Do not use a steam cleaner.

If the mains cable is damaged, it must be replaced by the manufacturer, their After Sales Service or a person with similar qualifications to avoid risk.

This appliance is not intended for use by anyone (including children) whose physical, sensory or mental capacities are reduced, or lacking experience or knowledge, unless they have been able to benefit from prior instructions as to the use of the appliance or supervision by a person who is responsible for their safety.

Supervise children to ensure that they do not play with the appliance.

Users should exercise caution if wearing items such as rings, watches or similar objects when using the appliance since these may heat up when positioned very close to the cooking surface.

Only use pans of the type and size recommended.

Repairs must only be carried out by a technician who has been trained or recommended by the manufacturer. Take care that the coating and the surrounding areas do not contain metal surfaces.

Your induction cooking appliance is not intended to be operated by means of an external timer or a separate remote control.

Electrical connection

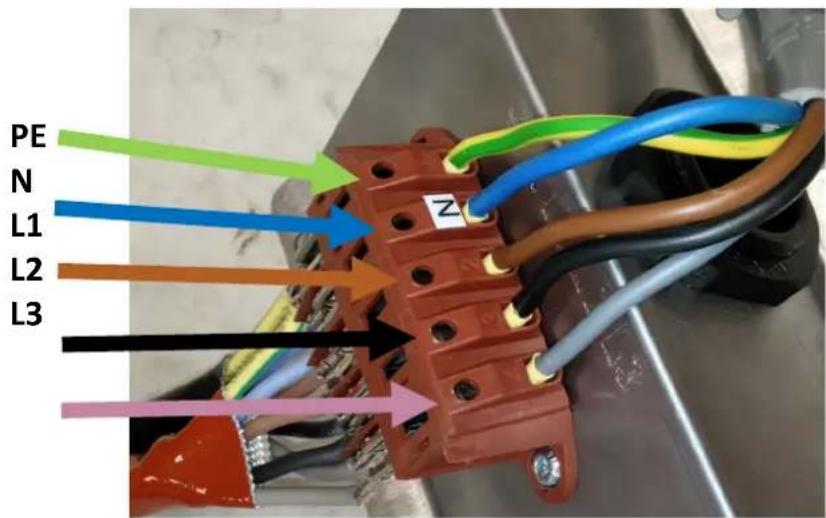

Connections of the generator : Connection plate

At the rear of the generator

The generator bock must be connected to a 400V, 50 or 60Hz three-phase power supply line. The power line must have 3 phases L1,2,3, a neutral N and an earth PE. The neutral will be used exclusively to supply an additional turbine under 230V (if connected).

The mains supply connection is made at the rear of the generator. It is desirable that the 5 conductors be fitted with ferrules at their ends.

(!) We recommend the use of an H07RN-F-5G-2.5 power cord (conductor sections of 2.5mm^2 ). It is essential that the power supply line used is protected by a 30mA differential circuit breaker.

In the event that the generator blocks have to be disconnected from the electrical network, it is necessary to provide a mains disconnection device accessible by the user, near the product. If the disconnection device is operated manually, it must guarantee total disconnection of the generators, with respect to the 3 phase conductors + the neutral conductor of the three-phase electrical network.

Electrical connection

Connections of the generator: connection plate

CONNECTION TECHNIQUE

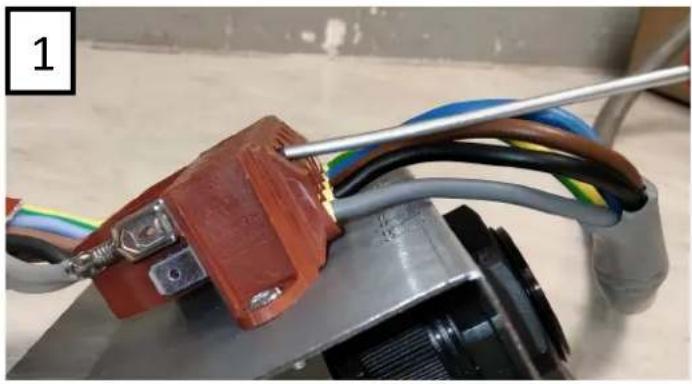

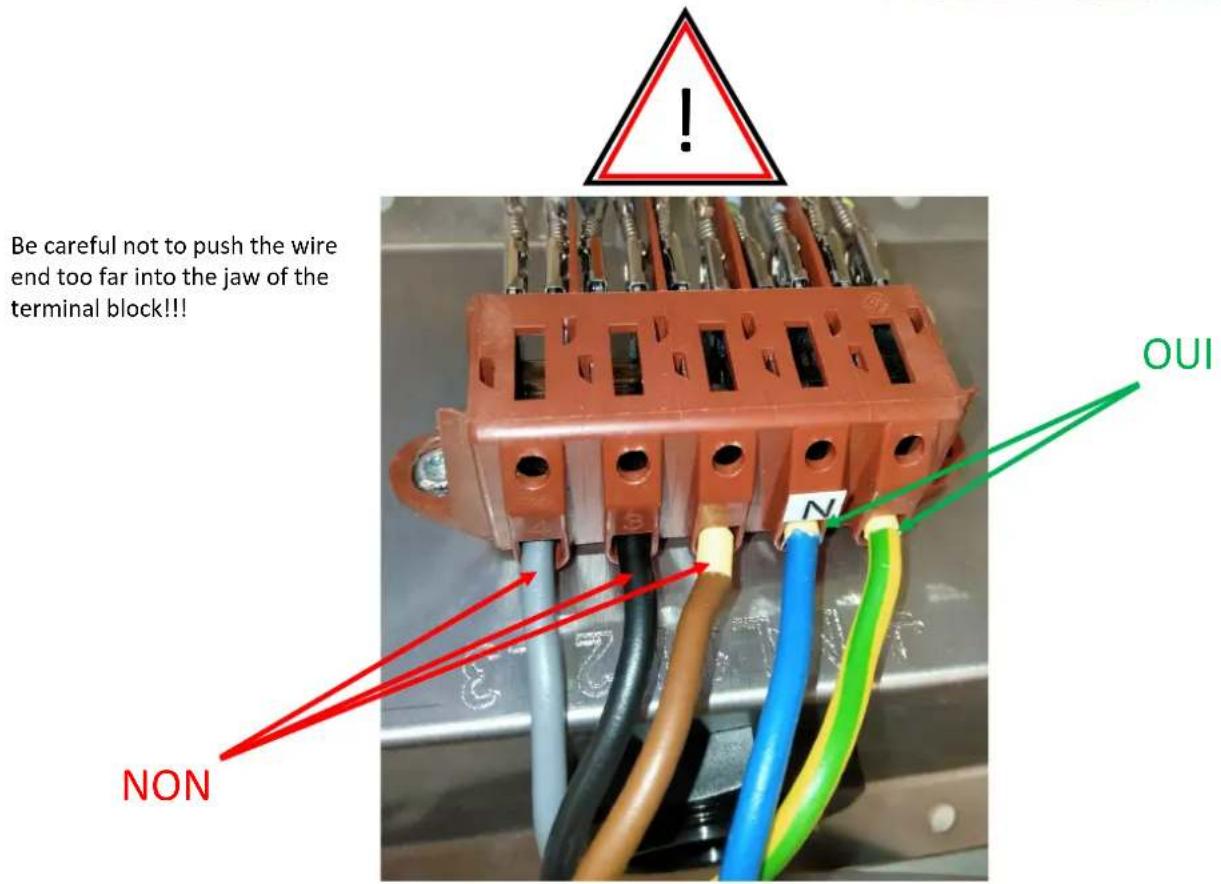

To be able to insert and connect each conductor in the terminal block:

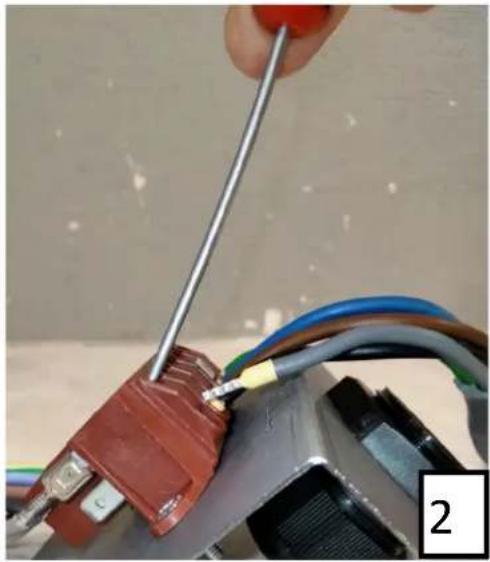

1 Insert the end of a flat screwdriver upwards. The maximum diameter of the rod must be 4mm

Repeat the previous steps for each wire to be connected

2 / Then lift the screwdriver to allow the lowering of the spring-loaded jaw of the terminal block contact.

Operating instruction

To start the appliance, it is necessary to turn the control lever of the desired cooking zone.

The temperature of each of the 2 cooking zones can be adjusted between 60^ and 250^ . The temperature display flashes until the desired temperature is reached.

Display of specific message

The device is extremely safe. It makes a permanent control of the values of temperature and other electric parameters to guarantee to the user the best level of performance and safety at every moment.

A flashing error code « Fx » can appear on the display to warn about a malfunctioning.

DESIGNATION ERREUR	ERROR CODE ON DISPLAY
Sensor vitro T°, short circuit or open circuit	F1
Sensor electronic T°, short circuit or open circuit	F2
3 phases line voltages out of range	F3
Power supplies out of ranges	F4
Sensor ambient T°, (inside the product), short circuit or open circuit	F5
Error with the control of the electronics components	F6
CONTROL board SOFTWARE unconformity	F7
Fans connection problem (fans absence or polarity inversion + with -)	F8
Overheating under the Vitro	H1 ou H3
Overheating of the power electronics components	H2 ou H4
Problem with the vitro T° sensor under the Vitro	H5
Overheating of the ambient temperature	H6

The code error flashing is effective as long as the user doesn't stop the device manually unplug and replug the unit, and then relaunch the device using the « On/Off » touch.

If a code error becomes permanent without having the possibility of cancelling it by trying to relaunch the device, it is advised to get in touch with the after-sales service specified by the retailer of the product.

How to maintain and care for your hob

Avoid rubbing the pans over the surface of the appliance.

Centre your pan on the induction cooking zone.

Do not leave an empty pan on the induction zone.

Do not pre-heat foodstuffs on the highest power setting if you are using a pan with an anti-stick coating (of the teflon type) without or with a tiny a mount of cooking fat or oil.

Do not leave metal cooking utensils, lids, knives or any other metal objects on the inductioncooking zone. These objects are liable to heat up if they remain too close to the magnetic field generated by the induction cooking zone.

All these defects that do not cause a non-operation or inability to use are not covered by the guarantee.

How to maintain and care for your hob

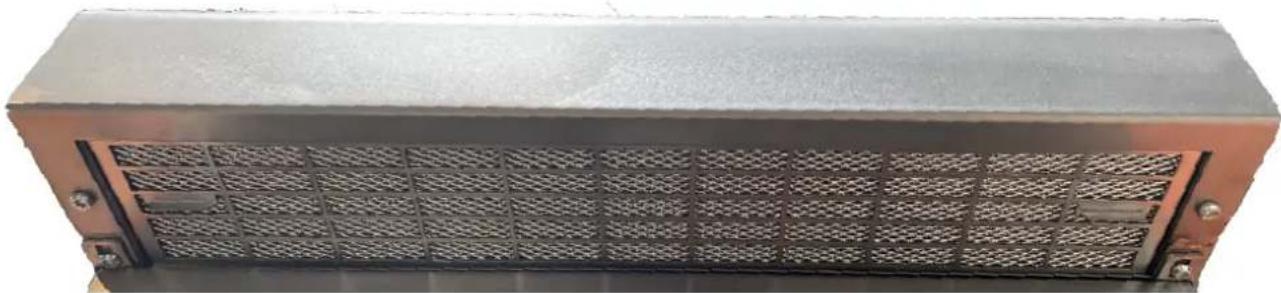

Clean the filter on the front and bottom of the unit (or in the dishwasher) approximately once a week with soapy water. Put it back in a dry place before using it again. This filter protects your appliance from dust and grease. The air filter can be removed and replaced by hand without tools.

Your device is cleaned easily, to help you, here is some advice:

Type of spots How to proceed Use

Slight

Dilute well the zone to clean with hot water then wipe.

Accumulation of recooked spots

Dilute well the zone to clean with hot water, wipe with the scraper side of a sanitary sponge.

Sanitary sponges

Sanitary sponges special scraper for glass

creme cream

Small problems and their remedies

If you think that your hob is not functioning correctly .... this does not necessarily mean that a fault has occurred. Please verify the following in all cases :

YOU NOTICE THAT ...

When putting into service, a bright display appears

When putting into service, your installation short-circuits

The ventilation continues a few minutes after stopping the device

The device doesn't work. The display on the casing stays off

The device doesn't work, another code appears on the display

The device releases a smell during the first cookings

POSSIBLE CAUSES

Regular functioning

The connection of you device is defective

Cooling of the device

The device is not supplied. The supply or the connection is defective

Electric circuits doesn't work well

New device

WHAT YOU CAN DO

NOTHING: everything is normal

Verify your connection or the conformity of the connection

It's normal.

Inspect fuses and the circuit breaker of your electric installation

Unplug and plug back the unit. If the code does not disappear, note the type of error an call your after sales service

Run the cooking during half an hour with nothing on it

Garantee

Keep the proof of purchase to use the guarantee service of your product.

Any modification such as drilling, welding, crimping, clinching, etc., is not permitted and is not covered by the manufacturer's warranty.

Any wrong modification or installation, which does not respect ADVENTYS' standards, is not covered by the manufacturer's warranty and will be permanently suspended.

The guarantee is subject to the non-modification of the product and its mechanical and electrical specifications. Opening the product cancels any form of warranty.

Any defects in appearance caused by the use of abrasive products or friction of cookware on the ceramic glass hob that does not result in a non-functioning or inability to use the appliance is not covered in the guarantee. The vitroceramic glass and the casing are not subject to warranty.

ANY REPAIRS MUST BE CARRIED OUT BY A QUALIFIED TECHNICIAN APPROVED BY ADVENTYS.

Only the distributors of our brand:

• KNOW YOUR APPLIANCE PERFECTLY AND HOW IT WORKS.
• FULLY APPLY OUR METHODS OF ADJUSTEMENT, MAINTENANCE AND REPAIRS.
• USE ONLY ORIGINAL SPARE PARTS.

In case of a claim or if you wish to order spare parts from your distributor, please specify the full reference numbers of your appliance (appliance type and serial number). This information appears on the plate fixed under the metal casing of the appliance.

The descriptions and characteristics given in this booklet are for information purposes only and do not imply commitment from the manufacturer. Concerned about the quality of our products, we reserve the right to carry out necessary changes or improvements without prior notice.

Original spare parts: ask your retailer for certified original spare parts during a maintenance operation.
