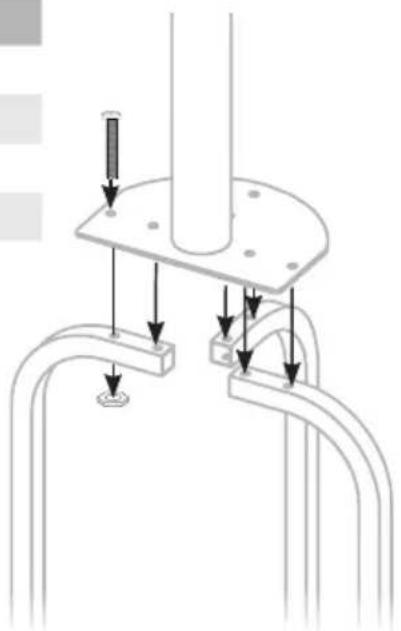

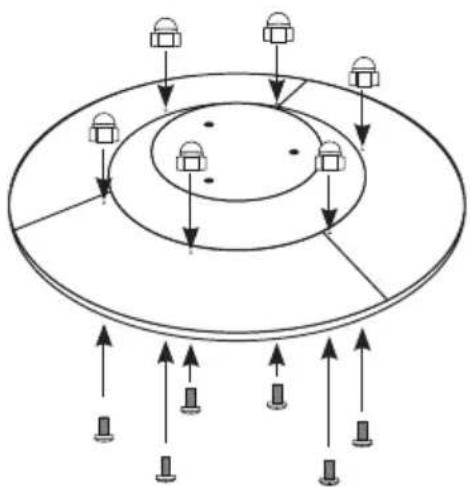

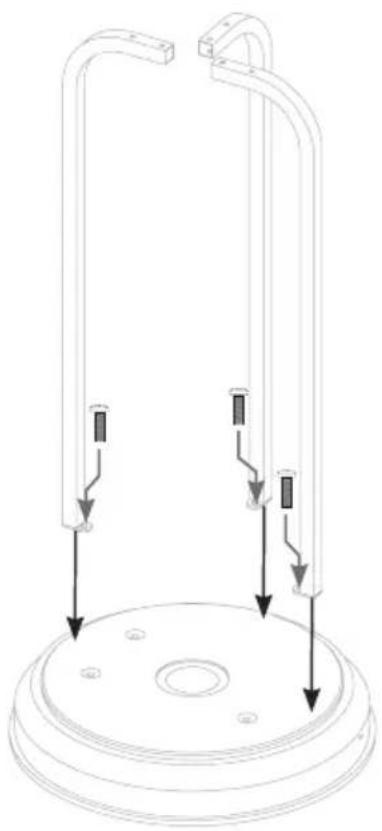

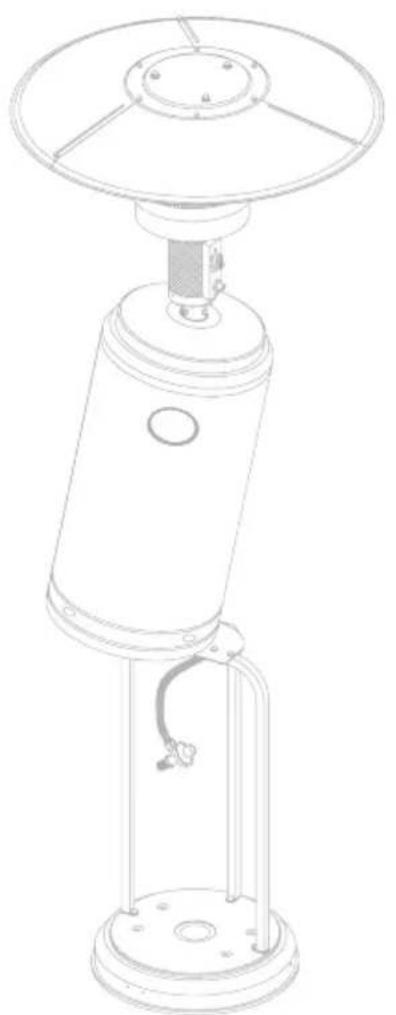

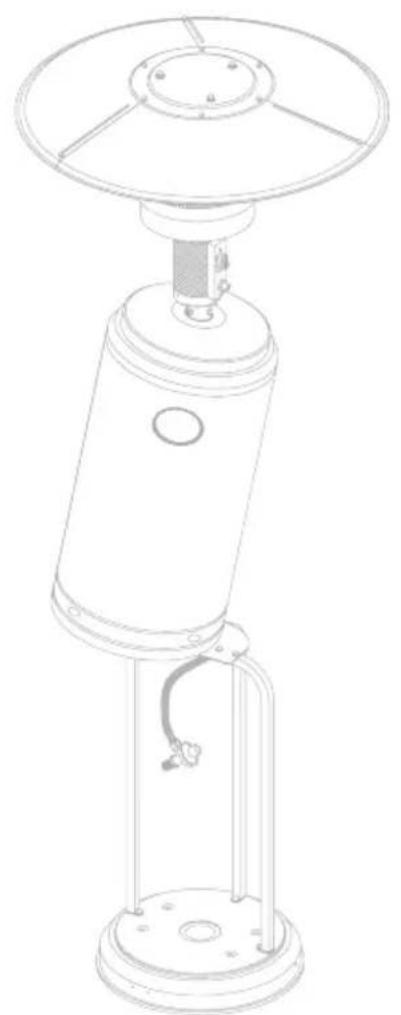

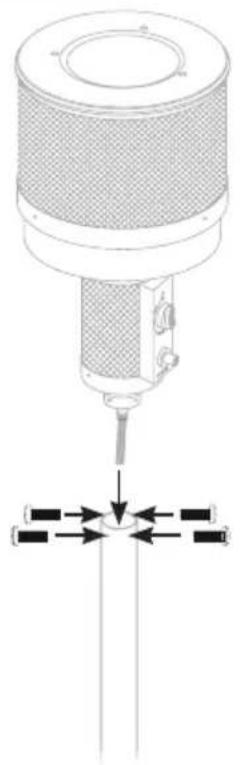

Please read and understand this instruction manual completly before attempting to assemble, ins- tall and use the product! This Manual contains critical information about the assembly, usage and maintenance of this device. General safety information is presented on these first pages and can also be found throughout the manual. Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precautions are essential when using mechanical or propane powered equipment. These precautions are required when using, storing and maintaining this product. If this equipment is used with due respect and caution, the possibility of personal injury or damage to property will be reduced.

EXPLOSION - FIRE HAZARD

• Store fuels such as building materials, paper or cardboard, at a safe distance from the heater, as recommended in the instructions.

• Ensure sufficient clearance around the air openings in the combustion chamber.

• Never use the heater in rooms that contain or may contain volatile or airborne fuels or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals.

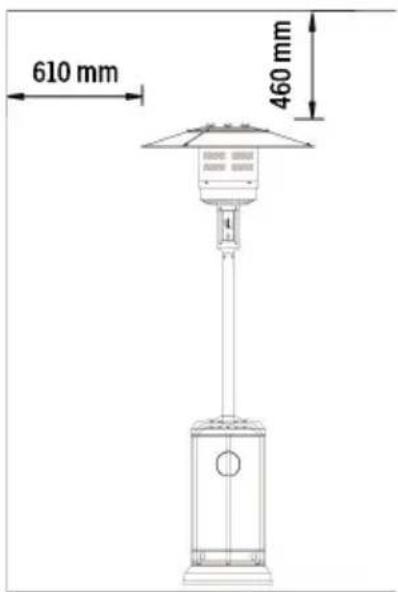

• During operation, this product may be a source of ignition. Keep the area around the heater free of combustible materials such as gasoline, thinner, cleaning solutions, and other flammable gases and liquids. Do not use the heater in areas with high dust generation. Minimum distance of the heater from flammable materials: three (3) feet to the side and two (2) feet from the top.

CARBON MONOXIDE - DANGER

• This heater is a combustion device. All combustion devices produce carbon monoxide (CO) during the combustion process. This product produces small, non-hazardous quantities of CO when used and maintained in accordance with all warnings and instructions. Care must be taken not to block the airflow to or from the heater.

• Carbon monoxide poisoning causes flu-like symptoms, watery eyes, headaches, dizziness, fatigue, and possibly death. You cannot see or smell carbon monoxide. If these symptoms occur during operation of this device, get fresh air immediately!

• For outdoor use only.

• Never use indoors or in other unventilated or enclosed spaces.

• This heater consumes air (oxygen). DANGEROUS FUELS

• Never store propane near strong heat sources, naked flames, pilot lights, direct sunlight, other sources of ignition or at temperatures above 49˚ C.

• Propane gases are heavier than air and may accumulate in low locations. If you smell gas, leave the area immediately.

• Never install or remove propane cylinders while the heater is operating, near flames, pilot lights, other sources of ignition or when the heater is hot.

• This heater is highly incandescent during use and may ignite flammable materials near the burner. Keep flammable materials at least 90 cm from the sides and 60 cm from the top. Keep gasoline and other flammable liquids and gases away from the heater.

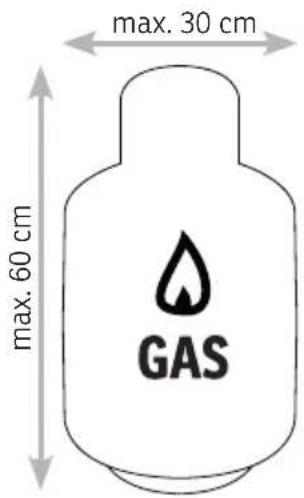

• Store propane gas cylinders outdoors or in a well-ventilated room out of reach of children. Ne- ver store propane gas cylinders in a closed room (house, garage, etc.) If the heater is to be stored indoors, disconnect the propane gas cylinder for outdoor storage. 02 WARNING NOTICEEN

• Do not store or use gasoline or other flammable gases and liquids near this or any other appli- ance. An unconnected gas cylinder must not be stored near this or any other device.

• This product is powered by propane gas. Propane gas is invisible, odorless and flammable. Usually a so-called odorant is added to help detect leaks more easily and can be described as a „rotten egg“ smell.

• The odorant volatilizes over time, so that escaping gas cannot always be detected by smell alone.

• Propane is heavier than air, and escaping propane sinks to the ground.

• It can be ignited by ignition sources such as matches, lighters, sparks or open flames of all kinds, even if they are many meters away from the original leak.

• Only use propane gas that is designed to be vaporized.

• Never leave the heater unattended when it is hot or in operation.

• Keep out of the reach of children.

• Certain materials or objects, when stored under the heater, are exposed to radiant heat and could be seriously damaged. SERVICE SECURITY

• Keep all connections and fittings clean. Make sure that the valve outlet of the propane cylinder is clean.

• During assembly, check all connections and fittings for leaks using soapy water. Never use a flame.

• Use only as a heater. Never modify in any way or use with any appliance.

• Warn children and adults of the dangers of high surface temperatures. Keep sufficient distance from these surfaces to avoid possible skin burns or the ignition of clothing.

• Always supervise small children when they are near the heater.

• Do not hang clothes or other flammable materials on the heater or place them on or near the heater.

• Install any protective devices that have been removed for servicing the appliance before putting it back into operation.

• Installation and repair should only be performed by qualified service personnel. Have the heater professionally inspected before use and once a year.

• More frequent cleaning may be required if necessary.

• It is essential to ensure that the control housing, burner and circulating air duct of the appliance remain clean.EN

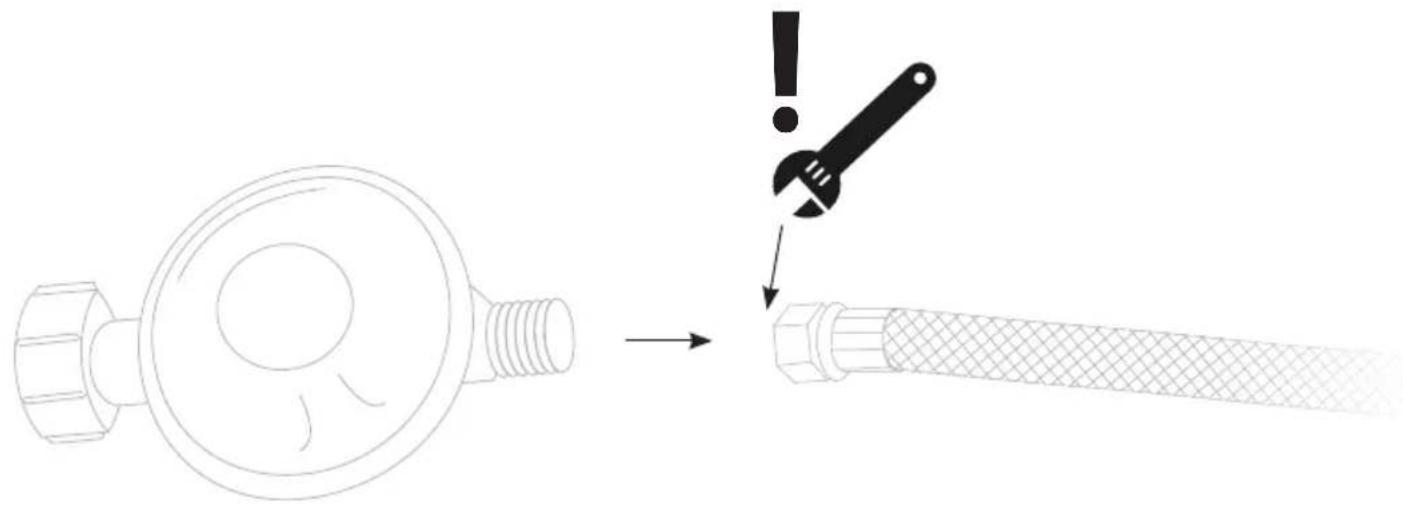

The gas connections are tested for tightness in the factory before delivery. A complete leak test must be carried out at the installation site after installation. During the test, no heat and fire sources can be present in the vicinity of the device!

1. Mix a soap solution of one part liquid cleaner and one part water. The soap solution can be

applied with a spray bottle, brush or cloth. In case of a leak, soap bubbles will form.

2. The heater must be checked with a full gas bottle.

3. Make sure that the regulator is set to OFF.

4. Turn the gas supply completely on.

Pilot Gas supply only when controller is pressed.

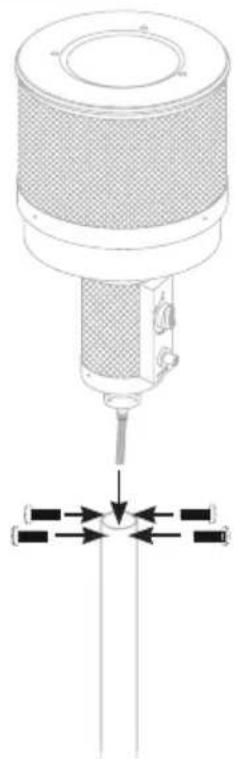

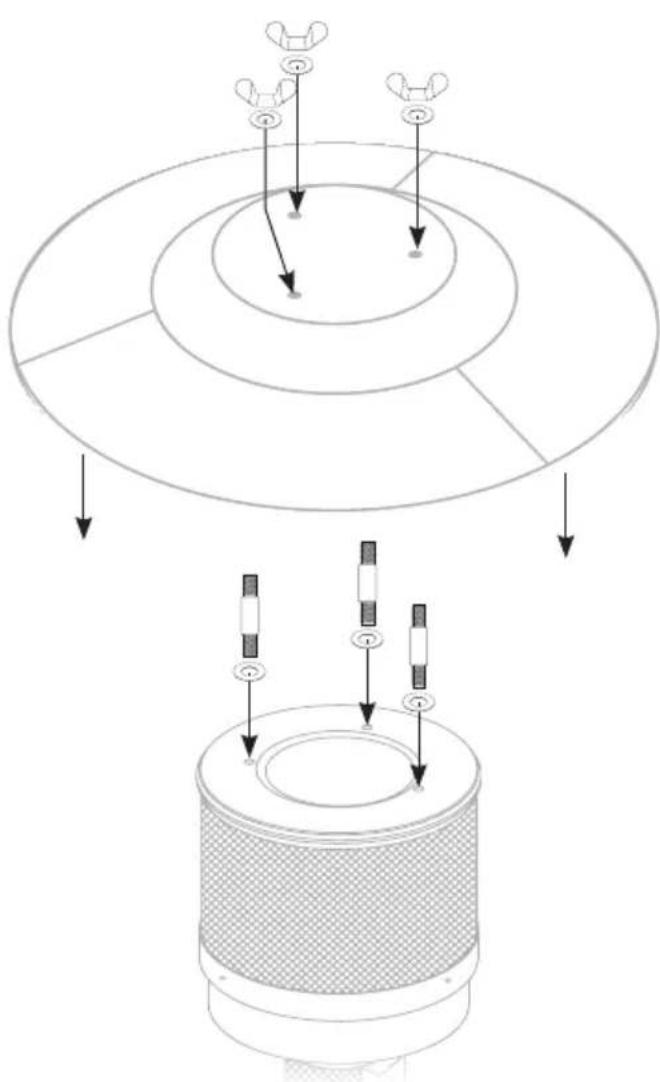

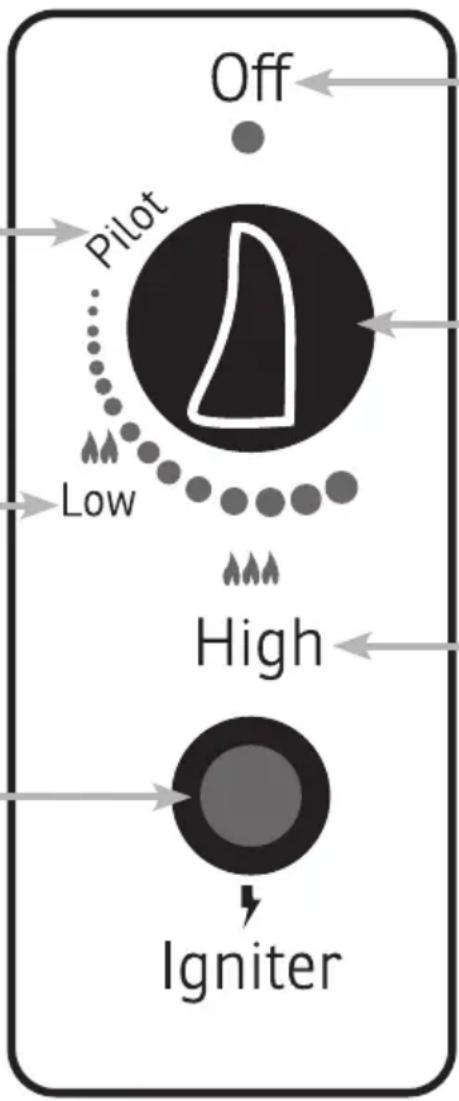

Gas supply completely interrupted. No flame in the burner Controller Turn to regulate the flame. Press to open the gas supply (pilot). High Maximal gas supply. Strong flame in the burner. Low Minimal gas supply. Weak flame in the burner. Igniter Piezo-ignition (no bat- terie). Creates sparks when fully pressedEN

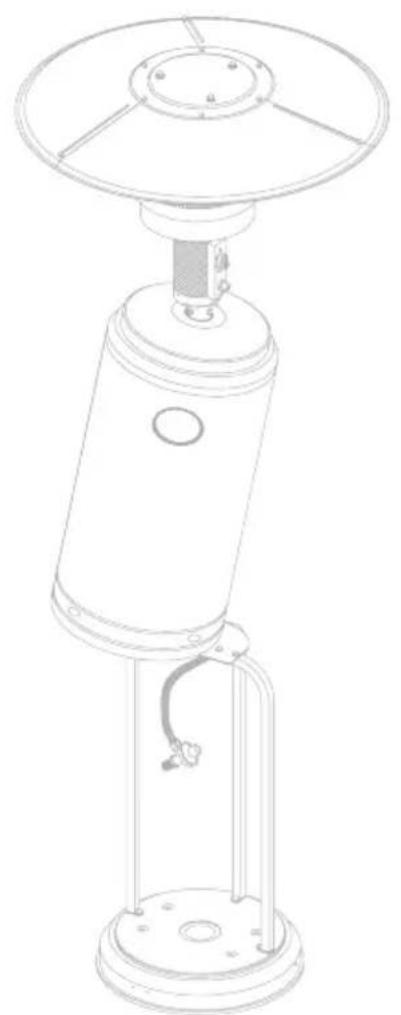

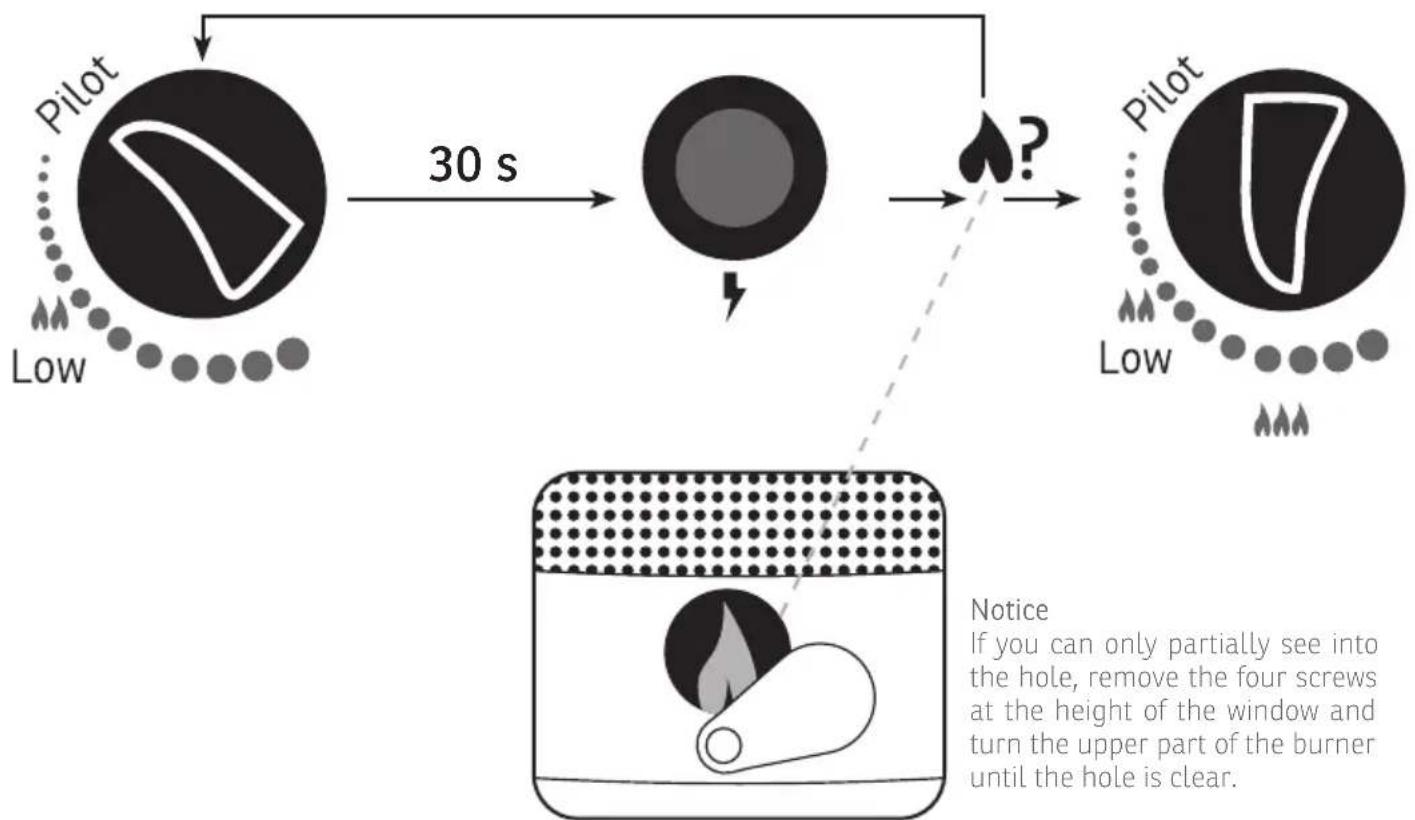

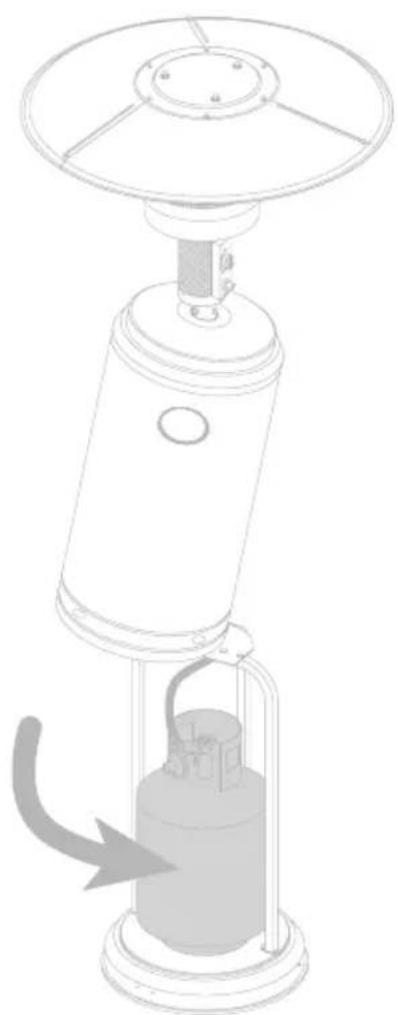

Important: During initial start-up or after replacing a gas cylinder at step 2, wait at least 60 seconds to remove air from the lines.1. Open the valve of the gas cylinder completely.2. Press the gas control knob and turn it to the pilot position.3. Press and hold the gas control knob for 30 seconds and press the ignition button several times until the pilot light comes on. (The pilot flame can be checked through the small hole with sliding cover located on the bottom of the flame guard).4. Turn the gas control knob to the High position. Hold this setting for at least 5 minutes.5. Then turn the gas control knob to the desired heat output. 30 s If you can only partially see into the hole, remove the four screws at the height of the window and turn the upper part of the burner until the hole is clear.NoticeTurn off1. Turn the knob to the PILOT position.2. Press and turn the knob to the OFF position.3. Close the valve on the gas cylinder completely.Minimal safety distance Any modifications or repairs to the device must be carried out by a qualified person. Since the development of the produced devices is constantly progressing, your product may differ minimally from the one described.EN

Storage Before you store the device, make sure that the gasvalve is completly closed and the pressure regulator disconnected from the gastank. Only put the protection hood on, when device has cooled. Cleaning Clean coated surfaces with a soft, damp cloth. Never clean the heater with flammable or caustic cleaning agents. Make sure that the burner is cleaned regularly. Insects can get caught in the bur- ner housing and burn during operation. Maintenance Perform a leak test after a longer period of non-use. If there is any damage to the technology, do not use the device and contact customer service. Construction properties

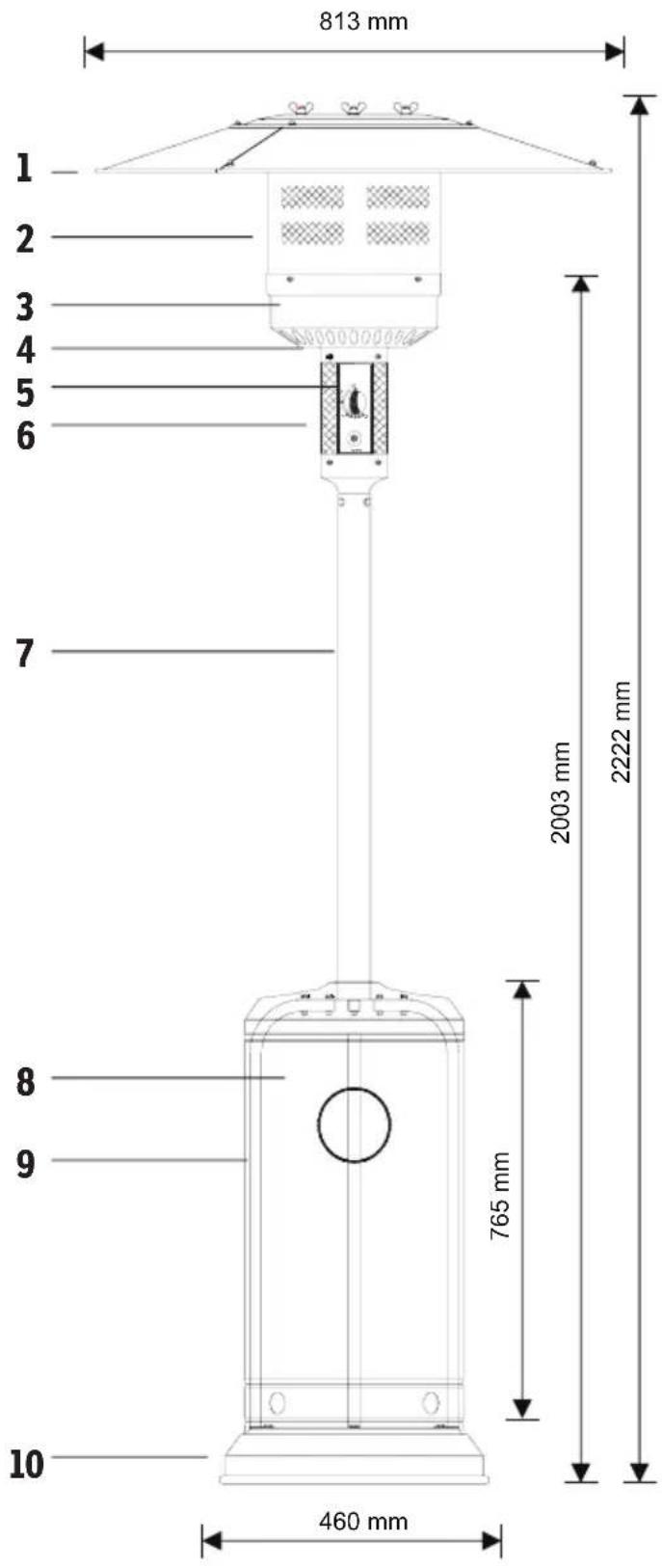

• Transportable patio and garden heater with tank housing

• Housing made of steel with powder coating or stainless steel

• Gas hose connections with metal clamp (screw caps for Germany)

• Heat emission reflector Technical properties

The mark on the injector (e.g. 1.88) indicates that the size of the injector is 1.88 mm Table of the injectorEN

WarrantyAll products are checked from our company before the delivery. In case that there is a lack on your product, please contact the vendor. Please bring your proof of purchase for guarantees. Please save the packaging materials of the unit.DisposalPlease remove the heater properly. You can bring the product to any specialist dealer fort he removal.Technical changesTechnical changes in technique and design are possible.CE declaration of ConformityThis device complies with the following standardsEWR EN 14543:2017EWR 2016/426DISPOSAL INSTRUCTIONS FOR THE ELECTRICAL PART OF THE PRODUCTIn accordance with Article 26 of the Decree-Law of 14 March 2014 implementing Directive 2012/19/EC, and the Law of 31 March 2015 implementing Directive 2015/863/EU on the reduction of the use of hazardous substances in electrical and electronic equipment and on waste management. The crossed-out dustbin symbol on the machine or packaging indicates that the waste generated at the end of its useful life must be collected separately from other waste. The user must therefore take the device to the appropriate collection points at the end of its service life. Sort electronic and electrical waste or send back to the retailer when purchasing new, equivalent devices in a one-to-one process. Appropriate separate collection for subsequent commissioning of the equipment to be recycled, treatment and environmentally sound disposal helps to avoid possible adverse effects on the environment and health, and promote the reuse and/or recycling of the materials to which they belong. Misuse of this product by the user will result in the application of the administrative penalties provided for in the applicable legislation. Batteries contained in the device must be disposed of separately in the appropriate containers for the collection of used batteries.DISPOSAL OF BATTERIES AND ACCUMULATORSIn accordance with Legislative Decree 188 of 20 No-vember 2008 implementing Directive 2006/66/EC on batteries, accumulators and related waste, the sym-bol of the crossed-out waste bin on the battery indicates that the disposal of used batteries is prohibited in household waste.Single-use and rechargeable batteries contain substances that are highly polluting for the environment. The user is obliged to dispose of used batteries at collection points in the municipali-ty or in appropriate containers. This service is free. In this way, legal requirements are adhered to and the environment protec-ted. The symbols identifying hazardous materials that may be present in single-use and rechargeable batteries are as follows: Hg = Mercury, Cd = Cadmium, Pb = Lead.
