USER MANUAL BKK 2152 NS BEKO

Citrus Juicer User Manual FR RU TR BKK 2152 NSPlease read this manual first! Dear Customer! Thank you for selecting a Beko product. We hope that your product which has been manufactured with the highest quality and state-of-the-art technology will provide you the best efficiency. For this, read through this manual and other documentation provided carefully before using your product and keep it for future reference. Should you give this appliance to a third party, ensure the instruction manual is included. Follow the instruc- tions by taking all details and warnings specified in user manual into consideration. Remember that this user manual may also apply for other models. Differences be- tween the models are explicitly described in the manual. Meanings of the Symbols Following symbols are used in various sections of this user manual:

Important information and beneficial recom-mendations about the use of the appliance. Warnings for dangerous situations concern-ing the safety of life and property Warning for electric shock.Does not contain PCB.Made in P.R.C.This product has been produced in environmentally friendly, state-of-the-art facilities.Complies with WEEE Directive.3 / 47 ENCitrus Juicer / User Manual CONTENTS 1 Important safety and environmental instructions 4-9

1.4 Compliance with WEEE Directive and

4 Cleaning and maintenance 12

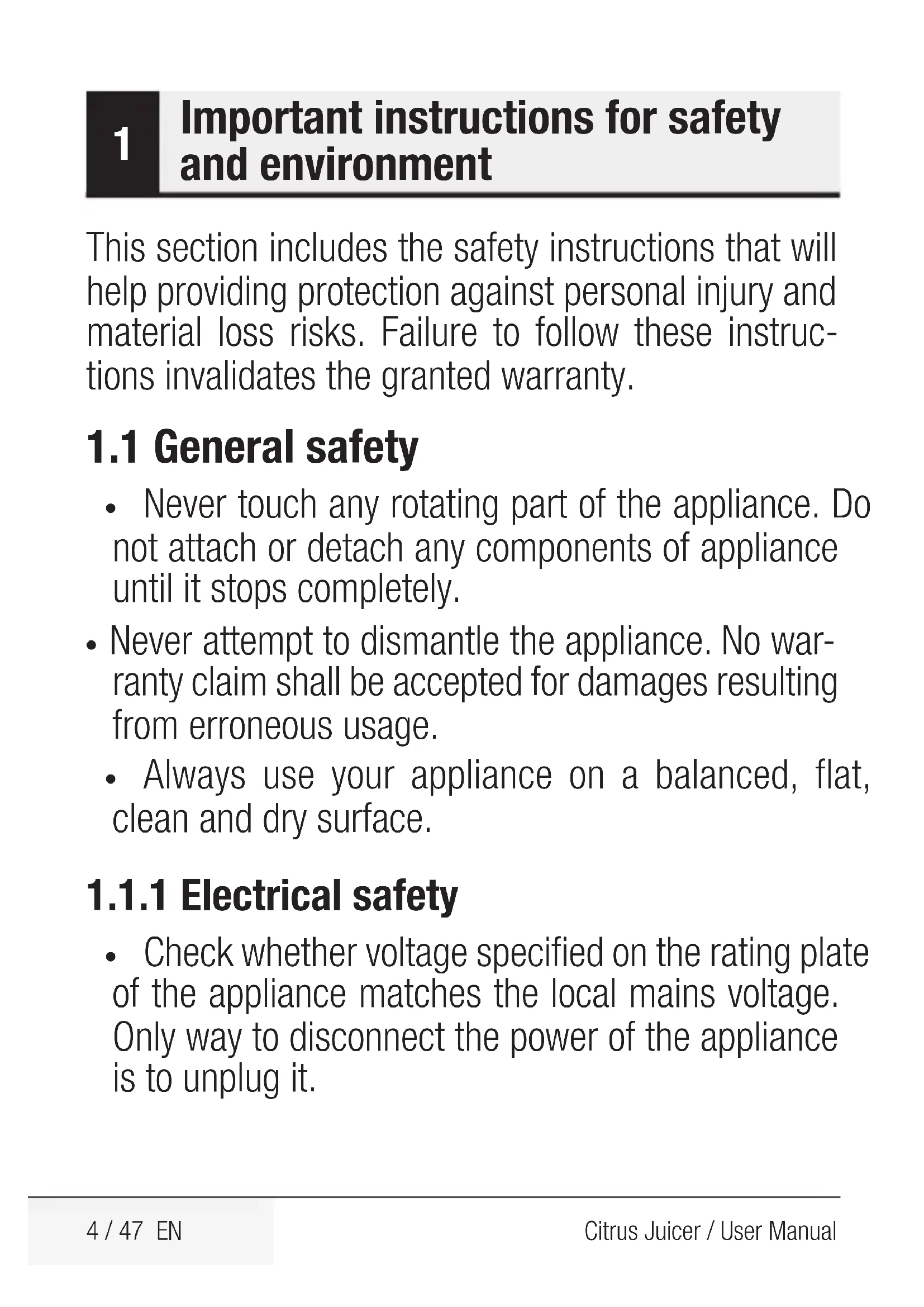

Important instructions for safety and environment This section includes the safety instructions that will help providing protection against personal injury and material loss risks. Failure to follow these instruc- tions invalidates the granted warranty.

• Never touch any rotating part of the appliance. Do not attach or detach any components of appliance until it stops completely.

• Never attempt to dismantle the appliance. No war- ranty claim shall be accepted for damages resulting from erroneous usage.

• Always use your appliance on a balanced, flat, clean and dry surface.

1.1.1 Electrical safety

• Check whether voltage specified on the rating plate of the appliance matches the local mains voltage. Only way to disconnect the power of the appliance is to unplug it.5 / 47 EN Citrus Juicer / User Manual

Important instructions for safety and environment

• This appliance should be connected to a maximum 30 mA domestic residual current protection fuse for additional protection. Please contact an electric technician for recommendations.

• Do not immerse the appliance, its power cable or its plug in water or in any other liquid.

• Always unplug the power cord of the appliance after using the appliance, assembling/disassembling its parts or cleaning it, leaving the room where the appliance is located or when a failure happens. Do not unplug the appliance by pulling from its power cord.

• Do not squeeze or bend the power cord of the ap- pliance or do not rub it against the corners in order not to damage it. Keep away the power cord from hot surfaces and open flame.

• Do not use an extension with the appliance.

• Never use the appliance if it or its power cord is faulty.6 / 47 EN Citrus Juicer / User Manual

Important instructions for safety and environment

• BEKO Small House Appliances comply with the valid safety standards, for this reason, if this appliance is damaged, it or its power cord should be repaired or replaced by its seller, a service agent or authorized service personnel having the similar qualifications.

• Never operate any component of this appliance on or near a gas range, hot plate or hot surfaces such as a heated oven or do not place them on these surfaces.

• Make sure that there is not any danger that the power cable of device is pulled by mistake or any- one trips on it during its use.

• Appliance should always be installed with its power cord in an easily accessible manner.

• Do not use the citrus juicer in an excessively humid and wet hands. Your hands should be dry when you unplug it from the mains.7 / 47 EN Citrus Juicer / User Manual

Important instructions for safety and environment

1.1.2 Product safety

• Clean all components of the appliance carefully which contact the food before first use. For details, refer to “Cleaning and Maintenance” section.

• Do not use the citrus juicer for more than three minutes in an uninterrupted way, you can maintain juicing process after letting it to cool down for a while.

• Use the appliance only with its accessories sup- plied with it.

• Always use your appliance on a balanced, flat, clean and dry surface.

1.2 Intended purpose

• This appliance is intended for household use only. It should not be used commercial purposes.

• Always keep the appliance out of the reach of chil- dren.8 / 47 EN Citrus Juicer / User Manual

Important instructions for safety and environment

• This appliance may be used by children who are at the age of 8 or over and the people whose physi- cal, audio or mental skills are impaired or inexperi- enced or not knowledgeable about the appliance as long as they are supervised or informed and made understood the safe use of the appliance and the encountered dangers. Children should not play with the appliance. Cleaning and user maintenance should be performed by the children if they are not attended.

• Do not leave the appliance unattended when it is in use. It is highly recommended to be very careful when the appliance is being used nearby children and people with limited physical, sensory or mental capacities.9 / 47 EN Citrus Juicer / User Manual

Important instructions for safety and environment

1.4 Compliance with the WEEE Directive and disposal of waste

products This product does not contain the harmful and prohibited sub- stances specified in the “Regulation for Supervision of the Waste Electric and Electronic Appliances” issued by the Ministry of Environment and Urban Planning. Complies with WEEE Directive. This product has been produced from recyclable and reusable high quality components and materials. Therefore, do not dispose of this product with the domestic wastes or other wastes at the end of its service life. Take it to a collection center for recycling of electric and electronic appliances. You can ask for these collection centers from your local ad- ministration. Contribute to protection of environment and natural resourc- es by recycling the used products.

• Package of the product is made of recyclable materials as per our Na- tional Legislation. Do not dispose of the package wastes with domestic wastes or other wastes; bring it to the package collection centers speci- fied by local authorities.10 / 47 EN Citrus Juicer / User Manual

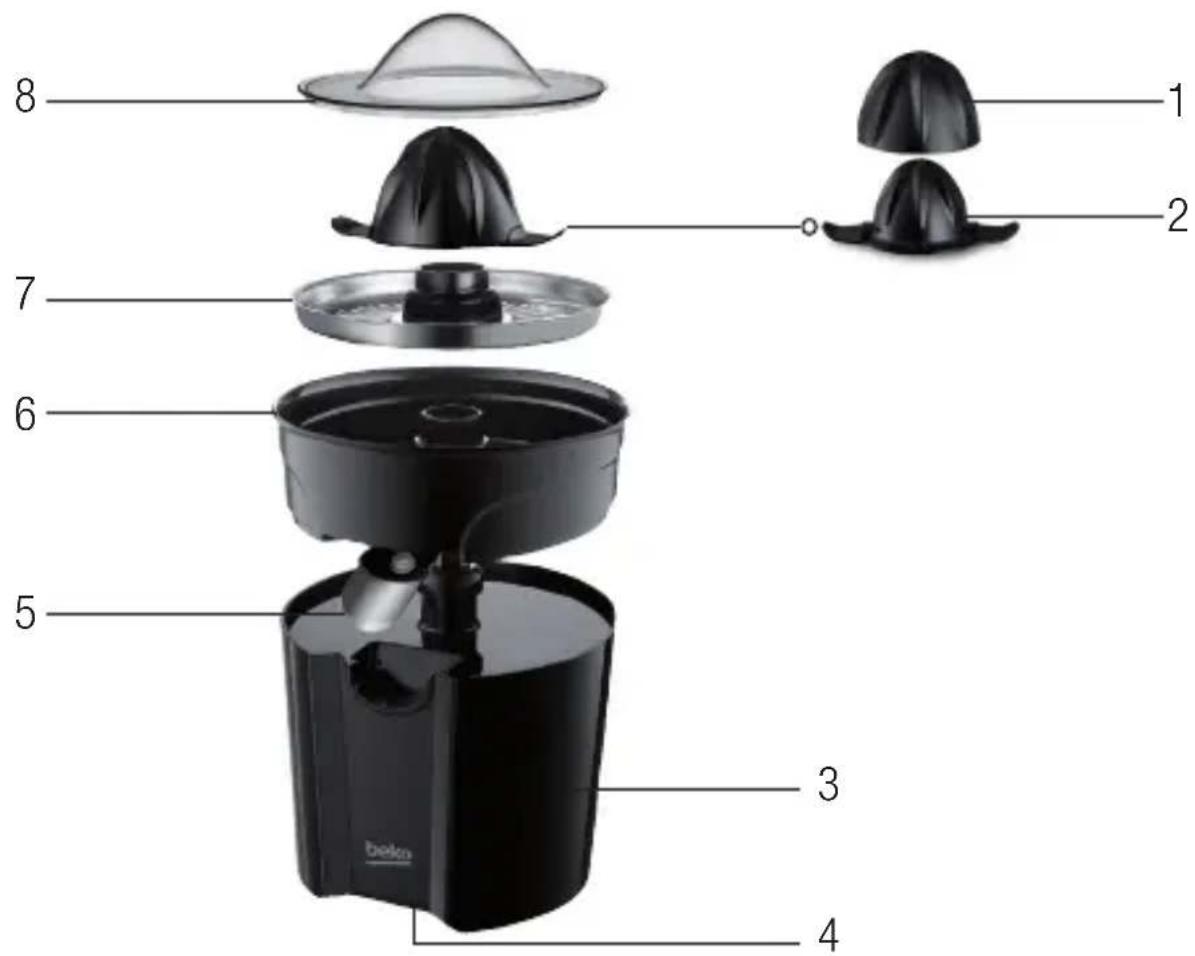

2.1.1 Controls and components

4. Cable winder at the base unit

Markings on the appliance or the values stated in print documents supplied with the appliance are values obtained under laboratory conditions as per relevant standards. These values may vary depending on use of the product and ambient conditions. 2 Your citrus juicer

2.1.2 Technical data

Power supply : 220-240V~, 50Hz Power : 40W This appliance complies with the European CE Directives numbered 2004/108/EC, 2006/95/ EC, 2009/125/EC and 2011/65/EU.

1. Take out all packaging and label

materials and dispose of them in ac- cordance with the local regulations in force.

2. Clean all components of the ap-

pliance carefully which contact the food before first use (Refer to "Cleaning and Maintenance" sec- tion).

3. Cut the fruit well before using the

2. Attach the small cone (2) to the ro-

For large size fruit, large cone (1) can be attached over small cone (2).

4. Push the juice outlet (5) downwards.

In this way, juice fills directly into the glass.

5. Plug in the power cord to the outlet.

6. Push the fruit halves well down to

the (1) or (2) cones and start the ap- pliance.

7. Pull the juice outlet (5) upwards

slowly in order to avoid dripping of juice. Unplug the appliance.

3.3 Hints and practical

• Do not apply excessive force to the fruit juice extracting heads: Increase of the motor sound or any dramatic decrease of the motor speed mean that an extreme force is being ap- plied.

• After each three minutes of extract- ing, let the motor of the appliance to cool down to room temperature.

• Do not touch the juice container dur- ing this process. Keep the motor unit under supervision when the extract- ing fruit juice and hold it to avoid it to move excessively. 3 Use12 / 47 EN Citrus Juicer / User Manual

gasoline, solvents, abra- sive cleaning agents, metal objects or hard brushes to clean the ap- pliance.

1. Finalize the extracting process and

unplug the citrus juicer from the mains.

2. Clean the exterior of the motor unit

(3) with a moist and soft cloth and wipe it dry.

3. To clean it more easily, detach the

large cone (1) from the small cone (2).

4. Put away the cones (1) and (2) after

cleaning and drying them.

merse the motor body or power cord in water or other liquids and do not wash them under water.

Dry all parts with a soft towel before starting to use the appliance after cleaning it.

It is easier to clean the appliance right after us- ing it.

• If you do not intend to use the ap- pliance for a long time, please store it carefully.

• Make sure that the appliance is un- plugged and totally dry.

• Do not wind the power cord around the appliance you can wind it around the cable winder in its base unit.

• Store them in a cool and dry place.
