BKK 2145 - Juicer BEKO - Free user manual and instructions

Product Type	Juicer
Brand	Beko
Model	BKK 2145
Power	1500 W
Voltage	220-240V ~ 50Hz
Insulation Class	II
Material	Plastic body, stainless steel blade filter
On/Off Switch	Yes, with lock-off mechanism
Overload Protection	Automatic shut-off when strained
Filter Type	Centrifugal blade filter
Safety Features	Locking latches, automatic shut-off
Dishwasher Safe	No (parts not dishwasher safe)
Cord Storage	Cable wrap under product
Dimensions (H x W x D)	Approx. 40 x 25 x 25 cm
Weight	Approx. 4 kg
Color	White/black (typical)
Max Continuous Operation	10 minutes
Feeding Channel	Transparent, removable

Frequently Asked Questions - BKK 2145 BEKO

How do I clean the blade filter?

Do not touch the blades directly. Use a brush with hot water and washing liquid to clean the filter. Avoid abrasive cleaners.

Why does my juicer stop working suddenly?

The overload protection activated due to excessive strain. Turn off the appliance, clean the filter and pulp container, wait 10 seconds, then restart.

Can I juice soft fruits like berries?

Yes, but ensure they are cut into appropriate sizes. Remove any seeds or hard shells to prevent damage to the filter.

How long can I use the juicer continuously?

Do not operate for more than 10 minutes continuously. If processing high amounts, use 30-second intervals with cooling breaks.

How do I assemble the juicer?

Place the pulp container on the motor body, insert the blade filter, attach the filter cover, and lock the latches until you hear a click. Ensure all parts are properly aligned.

What should I do if the power cord is damaged?

Do not use the appliance. Contact an authorized service center for replacement. Do not attempt to repair yourself.

Can I wash the parts in a dishwasher?

No. The parts are not dishwasher safe. Hand wash them with warm water and washing liquid, then dry thoroughly.

How do I prevent juice from dripping after use?

After unplugging, push the fruit juice tap upwards to stop any residual flow before removing the container.

What fruits and vegetables can I juice?

Most fruits and vegetables such as apples, carrots, oranges, and celery. Remove hard seeds (e.g., peach pits) and peels (e.g., citrus, pineapple).

How should I store the juicer?

Unplug the appliance, clean and dry all parts, and store in a cool, dry place out of reach of children. Keep the power cord wrapped underneath.

USER MANUAL BKK 2145 BEKO

BKK 2145

EN / RO / SR

CONTENTS

ENGLISH	03-15
ROMÂNĂ	16-32
СРБИН 33-47

Please read this guide first!

Dear Customer,

Thank you for choosing a Beko product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with the state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use and keep it as a reference. Include this guide with the unit if you hand it over to someone else. Observe all warnings and information herein and follow the instructions.

Symbols and their meanings

Following symbols have been used throughout this guide:

Important information and useful hints about usage.

WARNING: Warnings against dangerous situations concerning the security of life and property.

Protection class against electric shock.

Suitable for contact with food.

This product was manufactured at environmentally-friendly modern facilities without any harm on nature.

1

Important safety and environmental instructions

This section contains safety instructions to prevent hazards that can result in injury or property damage. Any warranty is void if these instructions are not followed.

1.1 General safety

• This appliance complies with international safety standards. The appliance may be used by children above the age of 8, persons with limited physical, perceptual, or mental abilities, or persons with a lack of experience and knowledge, if they are supervised or given instructions on the operation of the appliance and any relevant risks they may encounter.
• Children should not tamper with the appliance. Cleaning and user maintenance should not be done by children over 8 years of age unless they are under the supervision of adults.
• This appliance should not be used by children. Store the appliance and its cord out of the reach of children.

1

Important safety and environmental instructions

• Cleaning and user maintenance should not be carried out by unattended children.
• Do not use the appliance if the power cord, the appliance, or the appliance filter is damaged. Contact authorized service.
• Unplug the appliance while it is unsupervised, during accessory mounting/removal, or prior to cleaning.
• Use only original parts or parts recommended by the manufacturer.
• Do not disassemble the appliance.
• Your mains power supply should be in alignment with the specified information on the type tag of the appliance.
• Use the appliance with a grounding plug.
• Do not use the appliance with an extension cord.
• Do not unplug the appliance by pulling on the cord.
• Prior to cleaning, removal, accessory mounting,

1

Important safety and environmental instructions

unplug the appliance and wait for it to stop completely.

• After cleaning, prior to energizing or assembling the parts, dry the appliance and all of its parts. - Do not touch the plug of the appliance while your hands are damp or wet. - Do not immerse the appliance, the power cord or the plug in water or in any other liquids. - Do not operate the appliance or its components over or near hot surfaces or do not put on such surfaces. - Do not operate the appliance continuously for more than 10 minutes. - When you operate the appliance with a high amount of fruit, operate it for a maximum of 30 seconds. Then turn it off, let it cool down, and then operate it again. - Do not dislodge the pulp container while the appliance is running. - Do not use the appliance without a pulp container.

1

Important safety and environmental instructions

• Use only the pusher to throw food into the appliance. Do not use fingers or any other objects.
• Cut the fruits in size that would fit into the food channel.
• Do not touch the small cutting blades at the bottom of the filter. The blades are sharp. There's a probability of getting injured.
• Put the fruits into the appliance after removing the seeds of the stone fruits or peeling the fruits with hard or inedible shell.
• Do not touch any rotating parts of the appliance when it is plugged in. There's a probability of getting injured.
• If you keep the packaging materials, keep them out of the reach of children.
• Do not press the pusher hard to get more fruit juice.

Important safety and environmental instructions

• Run empty for 10 seconds before you start squeezing food in the product and then start squeezing.
• If the appliance is over-strained, it will turn off automatically for protection purposes. Turn off the appliance by setting the on/off switch to “0” and clean the appliance from food that causes it to be forced. After waiting for 10 sec, you can use the appliance again to prepare fruit juice.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical and electronic devices. To find these collection systems please contact your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Important safety and environmental instructions

1.3 Packaging information

The product's packaging is made of recyclable materials, in accordance with the National Legislation. Do not dispose of the packaging waste with the household waste or other wastes, dispose it to the packaging collection areas specified by local

authorities.

1.4 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.5 What to do for energy saving

Turn off and unplug the appliance after each use.

2 Your juice extractor

2.1 Overview

The values provided with the appliance or its accompanying documents are laboratory readings in accordance with the respective standards. These values may differ depending on the use and ambient conditions.

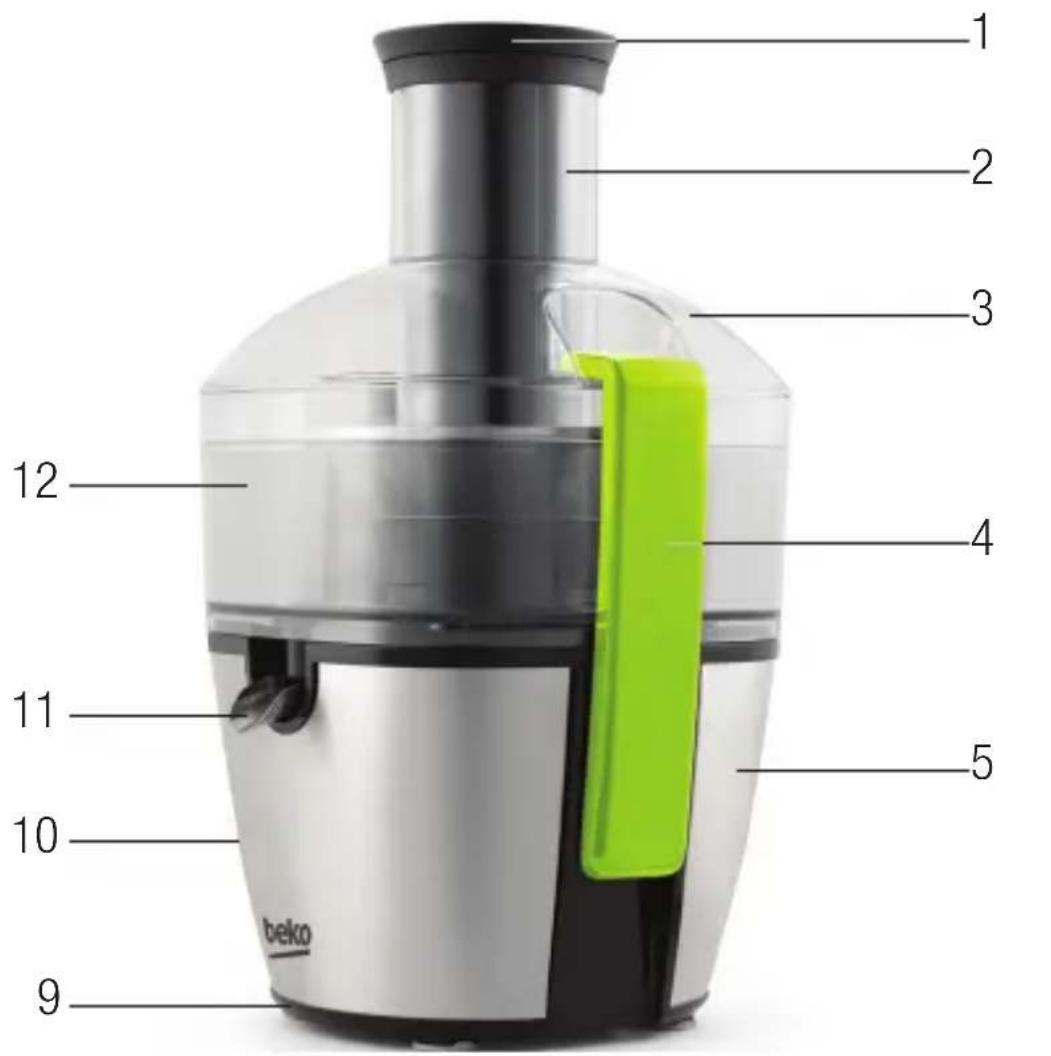

2 Your juice extractor

1. Pusher
2. Transparent feeding channel
3. Transparent filter cover
4. Locking latches
5. Motor body
6. Fruit juice container cover
7. Fruit juice container
8. Blade filter
9. Cable wrap (under the product)
10. On/Off switch
11. Removable fruit juice tap
12. Pulp container

2.2 Technical data

Power supply:

220-240V ~, 50 Hz

Power: 1500 W

Insulation class: II

The rights to make technical and design changes are reserved.

3 Operation

3.1 Intended use

The appliance is intended for home use only, it is not suitable for professional use.

The appliance is designed for squeezing only small amounts of fruits.

3.2 First operation

Remove the parts of the appliance before the first use (see 4.2) and clean them (see 5.1).

4 Installation

4.1 Installation

1. Remove the power cord from the cable winding tool located at the bottom of the appliance (9).
2. Place the pulp container (12) on the motor body (5) in such a way that the fruit juice tap matches with its position on the motor body.
3. Place the blade filter (8) in the middle of the pulp container (12) in such a way that it matches with its teeth on the motor body (5).
4. When it is in place, a "clicking" sound is heard.
5. Place the latch gaps of the transparent filter cover (3) on the pulp container (12) by matching them with the side of the latches.
6. Lift the locking latches (4) upwards and place them to the gaps on the sides of the transparent filter cover (3).
7. Close the lower parts of the locking latches (4) by gently pressing them. – A locking sound is heard.

WARNING: Make sure that all the parts are fully in place. Otherwise, the appliance will not work.

WARNING: Open the locking latch (4) when the appliance is in "0" off position and the filter (8) stops completely.

4 Installation

WARNING: When the locking latch (4) is not locked, the appliance does not work.

1. Place the fruit juice container (7) under the fruit juice tap (11).
2. Plug in the appliance.
3. Separate the seeds of and/or peel the fruit/vegetable that you will process.

WARNING: Hard seeds can damage the filter.

WARNING: Start the fruit juicer 10 seconds after starting the appliance.

Cut the food you will put into the transparent feeding channel (2) at the appropriate size.

1. Put the appropriately sized vegetables and/or fruits in the feeding channel (2) and place the pusher (1) on them.
2. Bring the on/off switch (10) to on (l) position.
3. Push the fruit/vegetable towards the bladed filter (8) with the pusher (1).

WARNING: If the filter (8) fills during use, turn off the appliance by bringing on/off switch to the "0" position. After the appliance has stopped completely, clean the filter and pulp container (11) (see 5.1).

1. When the process is complete, bring the on/off switch (10) to "0" position and wait for it to stop.
2. Unplug the appliance.

Before removing the fruit juice container, you can push the fruit juice tap (11) upwards to prevent flowing.

4.2 Disassembly

To disassemble the parts of the appliance, follow the steps in the installation backwards (see 4.1).

5 Cleaning and maintenance

5.1 Cleaning

WARNING: Do

not use benzene, solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

1. Turn the appliance off and unplug it.
2. Wait for the filter blade (8) to stop completely.

It is easier to clean the appliance right after using it.

1. Disassemble the parts of the appliance (see 4.2).
2. Wipe the motor body (5) with a wet cloth.

WARNING: Do not touch the blades directly when cleaning the blade filter (8).

1. Turn the pulp container (12) and gently remove the fruit juice tap (11) from its slots by pulling it slightly. Wash the tap (11) with hot water and washing liquid.
2. Clean the cover (3), pulp container (12) and blade filter(8) with hot water and help of a brush.
3. Wash other parts with washing liquid and sponge.

5.2 Storage

• If you do not intend to use the appliance for a long time, store it carefully.
• Unplug the appliance before storing.
• Store the appliance in a cool dry place.
• Ensure that the appliance is kept out of reach of children.

WARNING: Do not wash the parts in dishwasher.

5 Cleaning and maintenance

5.3 Transportation and shipping

• During transportation and shipping, carry the appliance with its original packaging. The packaging of the appliance will protect the appliance against physical damage.
• Do not place heavy objects on the appliance or the package. The appliance may get damaged.
• If the appliance is dropped, the appliance may not operate or permanent damage may occur.

The product packaging is made of recyclable materials, in accordance with national environmental protection regulations. Do not dispose of the packaging with household waste or other types of waste, but dispose of it in the collection centers for packaging designated by local authorities.

1.4 Compliance with the RoHS Directive

The values given on the device or in the accompanying documentation are laboratory readings in accordance with the relevant standards. These values may vary depending on usage and ambient conditions.

2 Your juicer

1. Pusher
2. Transparent feed tube
3. Transparent filter lid
4. Locking latches
5. Motor housing
6. Fruit juice jug lid
7. Fruit juice jug
8. Filter with blades
9. Cord storage (underneath the appliance)
10. On/off switch
11. Removable fruit juice spout
12. Pulp container

2.2 Technical Specifications

Power supply:

220-240 V ~, 50 Hz

Power: 1500 W

Insulation class: ||

We reserve the right to make technical and design changes.

3 Operation

3.1 Intended Use

5.3 Transport and Shipping

• During transport and shipping, carry the device in its original packaging. The device's packaging protects it from physical damage.
• Do not place heavy objects on the device or packaging. The device may be damaged.
• If the device falls, it may not work or may suffer permanent damage.

Arçelik A.Ş.

Karaağaç Cad. No: 2-6,
