CJB6040W - Juicer BEKO - Free user manual and instructions

Product type	Electric citrus juicer
Brand	Beko
Model	CJB6040W
Power supply	220-240 V~, 50 Hz
Power	40 W
Package contents	Motor unit, large cone, small cone, spout, juice reservoir, sieve, lid
Main functions	Squeeze citrus fruits (oranges, lemons, grapefruits) with two cone sizes
Juice reservoir capacity	Approximately 0.5 L (estimate)
Maximum continuous operating time	3 minutes, then cool down at room temperature
Material of parts in contact with food	Food-grade plastic (presumed)
Safety	Unplug before cleaning; do not immerse motor unit; do not use if damaged
Maintenance and cleaning	Clean with a damp cloth; wash cones, sieve and reservoir with soapy water; do not use abrasive products
Storage	In a cool, dry place, out of reach of children, do not wrap the cable around the appliance
Repairability	Repair by an authorized service center only
Weight	Approximately 0.8 kg (estimate)
Dimensions (L x D x H)	Approximately 20 x 20 x 25 cm (estimate)
Color	White
Power cord length	Approximately 0.8 m (estimate)
Protection class	Class II (double insulation, presumed)
Use	Household use only

Frequently Asked Questions - CJB6040W BEKO

How to use the Beko CJB6040W citrus juicer?

Cut the fruits in half. Remove the lid and place the small or large cone according to the fruit size. Place a glass under the spout. Plug in the appliance and firmly press the fruit halves onto the cone to start. Do not squeeze for more than 3 minutes continuously.

What types of fruits can be squeezed with this appliance?

This appliance is designed for citrus fruits: oranges, lemons, grapefruits, limes, etc. Stone fruits or hard pulp fruits are not suitable.

How to clean the citrus juicer?

Unplug the appliance. Clean the motor unit with a damp cloth. Wash the cones, sieve, and reservoir with soapy water, then dry. Never immerse the motor unit.

Can I leave the appliance plugged in after use?

No, always unplug after use, before cleaning, or when leaving the room.

What to do if the motor makes an unusual noise?

This means you are applying excessive pressure. Release the pressure and let the motor cool down. Do not force it.

Is it possible to squeeze fruits without cutting them?

No, it is essential to cut the fruits in half before squeezing for proper and safe operation.

Can children use this appliance?

Children over 8 years old can use it under adult supervision. Children should not clean the appliance without supervision.

How to store the appliance after use?

Make sure it is unplugged and completely dry. Store it in a cool, dry place out of reach of children. Do not wrap the cable around the appliance.

Does the appliance have automatic shut-off?

No, automatic shut-off is not mentioned. You need to press the fruits to start and remove pressure to stop.

What to do in case of breakdown or damaged cable?

Do not use the appliance. Contact a Beko authorized service center for repair. Do not open or repair yourself.

USER MANUAL CJB6040W BEKO

Exterior view of a beiko brand juice juicer (no text or symbols visible on the device itself)

CJB6040W

EN DE FR TR ES PL RO SR IT AR

01M-8834373200-2819-07

Please read this user manual first!

Dear Customers,

Thank you for selecting an Beko product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.

Meanings of the symbols

Following symbols are used in the various section of this manual:

Important information and useful hints about usage.

WARNING: Warnings for dangerous situations concerning the safety of life and property.

Materials are intended to be in contact with food.

Potection class against electric shock

This product has been produced in environmentally-friendly, state-of-the-art facilities.

CONTENS

ENGLISH 4-9

DEUTSCH 10-17

FRANÇAIS 18-24

TÜRKÇE 25-31

ESPAÑOL 32-40

POLSKI 41-48

ROMANIAN 49-57

SERBIAN 58-64

ITALIANO 65-72

1

Important instructions for safety and environment

Please read this instruction manual thoroughly before using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

1.1 General safety

• This appliance is intended for private domestic use only. It should not be used for commercial purposes.
• Do not touch any moving parts of the appliance. Do not attach or remove the parts until the device comes to a complete stop.
• Check if the mains voltage on the rating label corresponds to your local mains supply. The only way to disconnect the appliance from the mains is to pull out the plug.

• For additional protection, this appliance should be connected to a redisual current protection switch with no more than 30 mA. Please contact an electrician for advice.

• Do not immerse the appliance, power cord or power plug in water or in other liquids.

• Always disconnect the power plug after using the appliance, before assembling/disassembling or cleaning the product, if you are leaving the room or if a fault occurs. Do not disconnect the plug by pulling on the cord.
• Do not squeeze or bend the power cord and do not rub in on sharp edges in order to prevent any damage. Keep the cord away from hot surfaces and open flames.
• Do not use an extension cord with the appliance.
• Never use the appliance if the power cord or the appliance is damaged.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.

1 Important instructions for safety and environment

• Our BEKO Household Appliances meet applicable safety standards; if the appliance or power cord is damaged, it must be repaired or replaced by a service centre to avoid any danger. Faulty or unqualified repair work may cause danger and risks to the user.
• Do not dismantle the appliance under any circumstances. No warranty claims are accepted for damage caused by improper handling.
  • Always keep the appliance out of the reach of children.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning utilisation of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.

• Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years.
• Do not leave the appliance unattended when it is in use. Extreme caution is advised when the appliance is being used near children and people with limited physical, sensory or mental capabilities.
• Before using the appliance for the first time, clean all parts carefully which come into contact with food. Please see full details in the "Cleaning and care" section.
• Do not press the citrus more than three minutes continuously.

1

Important instructions for safety and environment

• Never operate or place any part of this appliance on or near hot surfaces such as a gas burner, electric burner or heated oven.
• Never use the appliance with damp or wet hands.
• Operate the appliance with supplied parts only.
  • Always use the appliance on a stable, flat, clean and dry surface.
• Make sure that there is no danger that the power cord could be accidentally pulled or that someone could trip over it when the appliance is in use.
• The appliance has to be positioned in such a way that the plug is always accessible.

1.2 Compliance with the WEEE Directive and Disposing of the Waste Product:

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to offical collection point for recycling of electrical and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

1.3 Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

1.4 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2 Citrus juicer

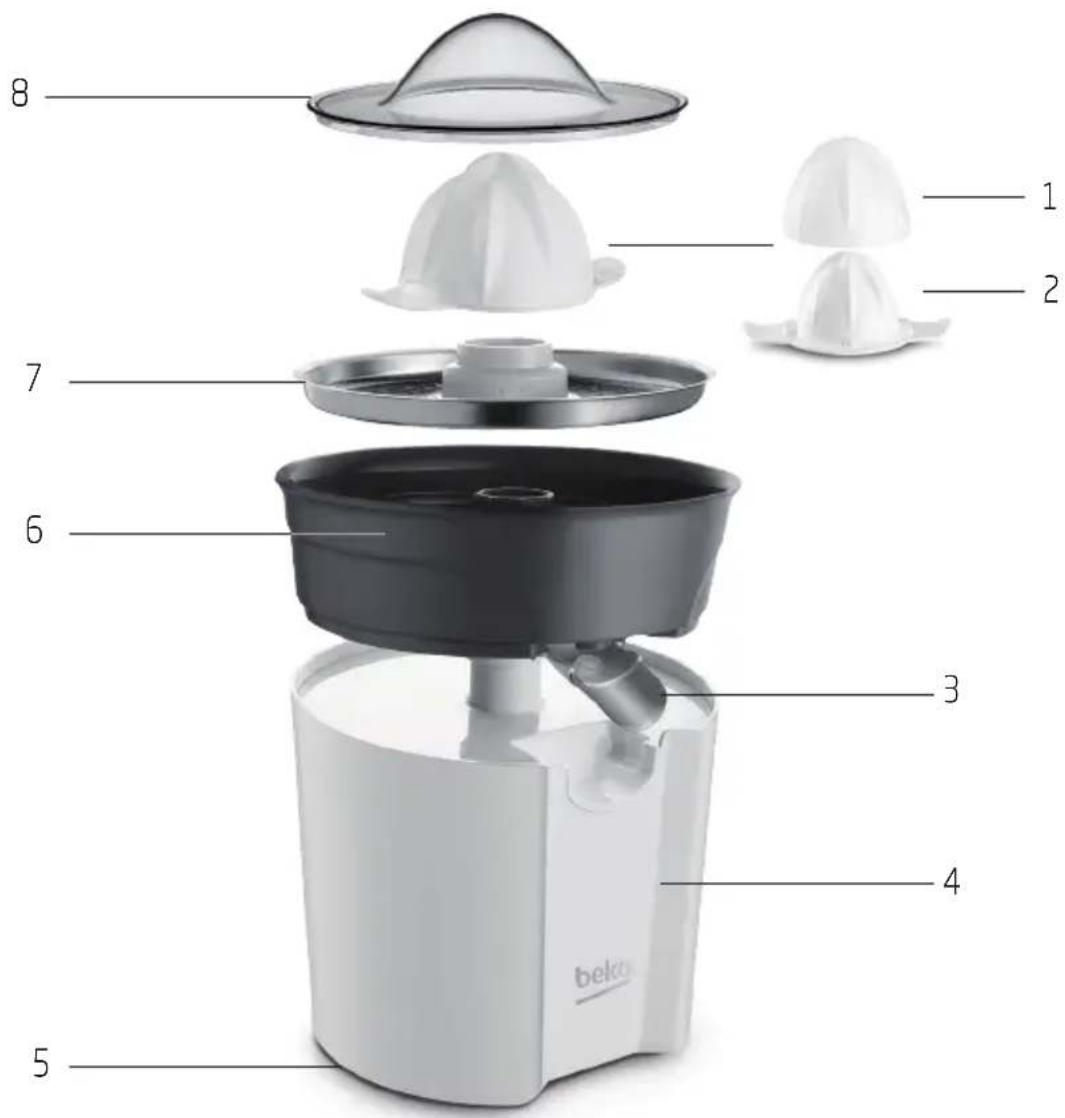

2.1 Overview

1. Large cone
2. Small cone
3. Spout
4. Motor unit
5. Cable coil
6. Sieve holder
7. Sieve
8. Lid

2.2 Technical data

Power supply: 220-240 V\~, 50 Hz

Power: 40 W

Technical and design modifications reserved.

The values which are declared in the markings affixed on your appliance or the other printed documents supplied with it represent the values which were obtained in the laboratories pursuant to the pertinent standards. These values may vary according to the usage of the appliance and ambient conditions.

3 Operation

3.1 Preparation

1. Remove all packaging and sticker materials and dispose of them according to the applicable legal regulations.
2. Before using the appliance for the first time, clean all parts which come into contact with food (see the "Cleaning and Care" section).
3. Before using the appliance, cut the fruits into halves.

3.2 Operation

1. Remove the lid (8).
2. Put the small cone (2) in to the turning pin.

The large cone (1) can be snapped onto the small cone (2) for serving large fruit.

1. Place an appropriate size glass under the juice outlet (3).
2. Push the juice outlet (3) downwards. In this way, juice fills directly into the glass.
3. Insert the plug into the wall socket.
4. Switch the appliance on by firmly pressing the halved fruit onto the cones (1) or (2).
5. Pull the juice outlet (3) upwards gently in order to avoid dripping of juice. Disconnect the plug from the wall socket.

3.2.1 Hints and tips

• Do not put excessive pressure on the juicing heads: if the motor starts getting louder or the speed of the motor decreases significantly, there is too much pressure being exerted on the head.
  • After each three minutes pressing, let the motor cool down to room temperature.
• Do not touch the juice container during operation. Always hold the lower part of the motor unit when squeezing the fruit.

4 Information

4.1 Cleaning and care

WARNING: Never use petrol solvents, abrasive cleaners, metal objects or hard brushes to clean the appliance.

1. Turn the appliance off and disconnect it from the wall socket.
2. Let the appliance cool down completely.
3. Use a soft, damp cloth to clean the exterior of the base unit (4) and then wipe it dry.
4. Separate the large cone (1) from the small cone (2) for easier cleaning.
5. Store the cones (2) and (1) after you cleaned and dried them.

WARNING: Never put the appliance or power cord in water or any other liquids and never hold them under running water.

Before using the appliance after cleaning, dry all parts carefully using a soft towel.

Cleaning is easier right after the usage.

4.2 Storage

• If you do not plan to use the appliance for a long period of time, please store it carefully.
• Make sure that the appliance is unplugged and completely dry.
• Do not wrap the power cord around the appliance.
• Store it in a cool, dry place.
• Make sure the appliance is always kept out of the reach of children.

4.3 Handling and transportation

• During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
• Do not place heavy loads on the appliance or the packaging. The appliance may be damaged.
• Dropping the appliance will render it non-operational or cause permanent damage.
