USER MANUAL WES319100 WESTINGHOUSE

Outdoor Patio Heater

Line drawing of a portable outdoor heater with a cylindrical base and top-mounted fan (no text or symbols)

Owner's Manual

Carefully and thoroughly read this Owner's Manual before using/operating the sauna.

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.

WARNING

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. A propane cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

WARNING: For Outdoor Use Only

DANGER

CARBON MONOXIDE HAZARD

This appliance can produce carbon monoxide which has no odor.

Using it in an enclosed space can kill you.

Never use this appliance in an enclosed space such as a camper, tent, car or home.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment.

CSA/ANSI Z83.26 :20 • CSA 2.37:20: Gas-fired outdoor infrared patio heaters

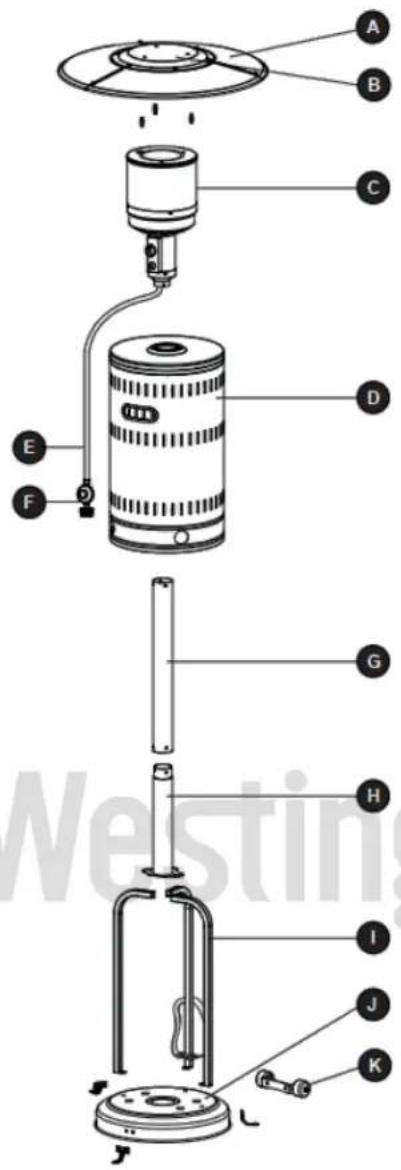

PACKAGE CONTENTS

A B C D E F G H I J K Westing

PART DESCRIPTION QUANTITY

A	Reflector Panel	3
B	Reflector Plate	1
C	Head Assembly	1
D	Cylinder Housing	1
E	Gas Hose (pre-assembled in C)		1
F	Regulator (pre-assembled in C)		1
G	Upper Pole	1
H	Lower Pole	1
I	Support Bracket		1
J	Base	1
K	Wheel Kit	1

Simple crown icon inside a circle (no text or symbols)

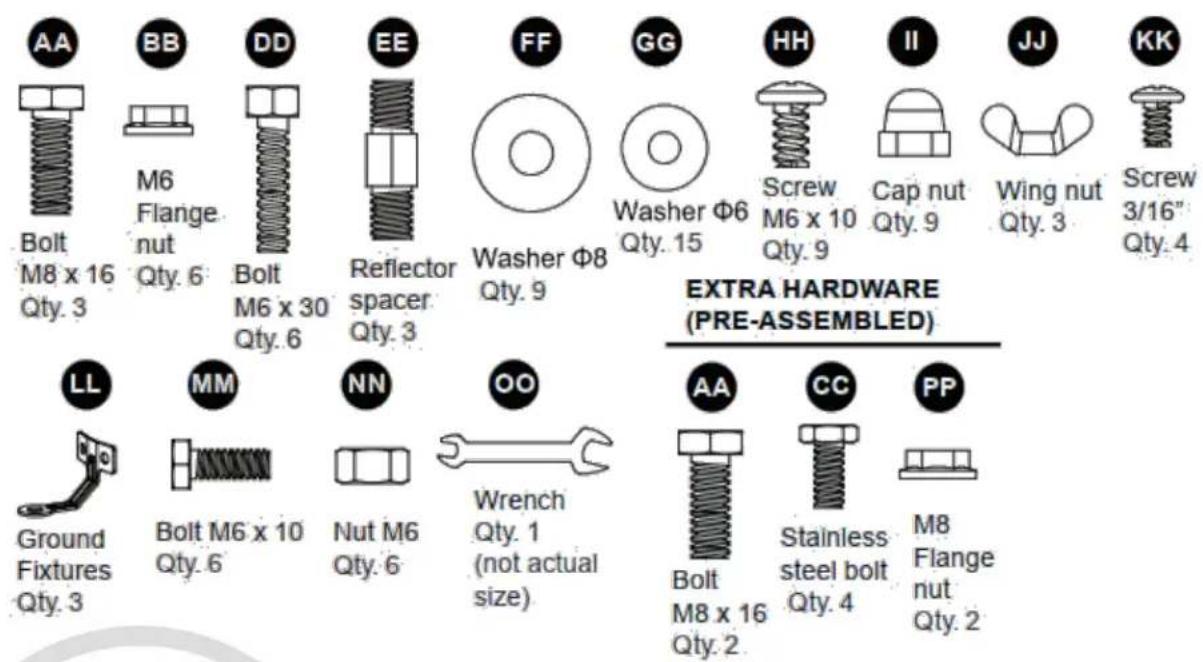

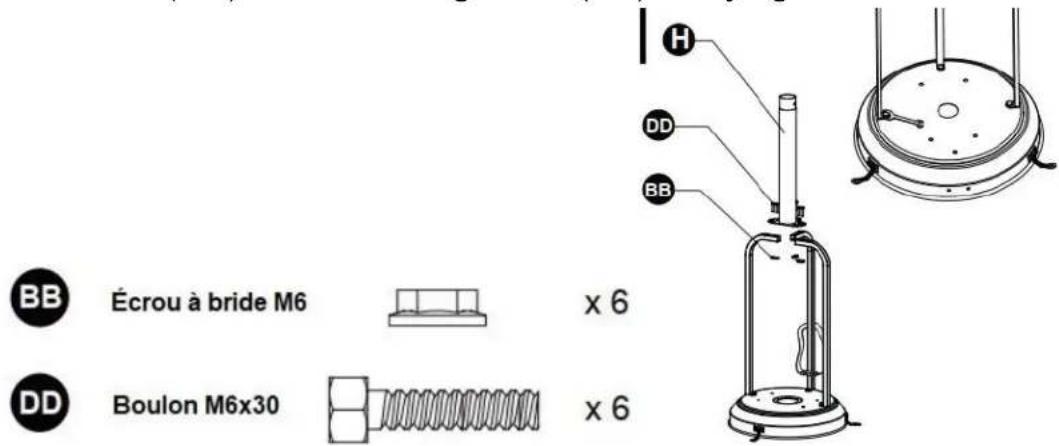

AA Bolt M8 x 16 Qty. 3 BB M6 Flange nut Qty. 6 DD Bolt M6 x 30 Qty. 6 EE Reflector spacer Qty. 3 FF Washer Φ8 Qty. 9 GG Washer Φ6 Qty. 15 HH Screw M6 x 10 Qty. 9 II Cap nut Qty. 9 JJ Wing nut Qty. 3 KK Screw 3/16" Qty. 4 LL Ground Fixtures Qty. 3 MM Bolt M6 x 10 Qty. 6 NN Nut M6 Qty. 6 OO Wrench Qty. 1 (not actual size) EXTRA HARDWARE (PRE-ASSEMBLED) AA Bolt M8 x 16 Qty. 2 CC Stainless steel bolt Qty. 4 PP M8 Flange nut Qty. 2

IMPORTANT SAFEGUARDS

Please read and understand this entire manual before attempting to assemble, operate or install the product.

This manual contains important information about the assembly, operation and maintenance of this patio heater. General safety information is presented in these first few pages and is also located throughout the manual. Keep this manual for future reference and to educate new users of this product. This manual should be read in conjunction with the labeling on the product. Safety precautions are essential when any mechanical or propane fueled equipment is involved. These precautions are necessary when using, storing, and servicing. Using this equipment with the respect and caution demanded will reduce the possibilities of personal injury or property damage. The following symbols shown below are used extensively throughout this manual. Always heed these precautions, as they are essential when using any mechanical or fueled equipment. Installation of this appliance at altitudes above 2000 ft (610 m) shall be in accordance with local codes, or in the absence of local codes, ANSI Z223.1/NFPA 54 or CSA B149.1

Do not operate after the appliance malfunctions or has been damaged in any manner. Call customer service: 1-833-895-7333.

The use of accessory attachments is not recommended as they may cause injuries.

! DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

! DANGER

Failure to comply with the precautions and instructions provided with this heater can result in death, serious bodily injury and property loss or damage from hazards of fire, explosion, burn, asphyxiation, and/or carbon monoxide poisoning. Only people who can understand and follow the instructions should use or service this heater.

! DANGER

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and immediately call your gas supplier or fire department

! DANGER

EXPLOSION - FIRE HAZARD

• Keep solid combustibles, such as building materials, paper or cardboard, a safe distance away from the heater as recommended by the instructions.
• Provide adequate clearances around air openings into the combustion chamber.
• Never use the heater in spaces which do or may contain volatile or airborne combustibles, or products such as gasoline, solvents, paint thinner, dust particles or unknown chemicals.
• During operation, this product can be a source of ignition. Keep heater area clear and free from combustible materials, gasoline, paint thinner, cleaning solvents and other flammable vapors and liquids. Do not use this heater in areas with high dust content. Minimum heater clearances from combustible materials: three (3) feet from the sides & three (3) feet from the top.

! DANGER

CARBON MONOXIDE HAZARD

• This heater is a combustion appliance. All combustion appliances produce carbon monoxide (CO) during the combustion process. This product is designed to produce extremely minute, non-hazardous amounts of CO if used and maintained in accordance with all warnings and instructions. Do not block air flow into or out of the heater.
• Carbon Monoxide (CO) poisoning produces flu-like symptoms, watery eyes, headaches, dizziness, fatigue and possibly death. You can't see it and you can't smell it. It's an invisible killer. If these symptoms are present during operation of this product get fresh air immediately!
• For outdoor use only.
• Never use inside a house, or other unventilated or enclosed areas.
• This heater consumes air (oxygen). Do not use it in unventilated or enclosed areas to avoid endangering your life.

! DANGER

EXPLOSION - FIRE HAZARD

• Never store propane near high heat, open flames, pilot lights, direct sunlight, other ignition sources or where temperatures exceed 120 degrees F (49°C).
  • Propane vapors are heavier than air and can accumulate in low places. If you smell gas, leave the area immediately.
• Never install or remove propane cylinder while heater is lighted, near flame, pilot lights, other ignition sources or while heater is hot to touch.
• This heater is red hot during use and can ignite flammables too close to the burner. Keep flammables at least 3 feet from sides & 3 feet from top. Keep gasoline and other flammable liquids and vapors well away from heater.
• Store the propane cylinder outdoors in a well-ventilated space out of reach of children. Never store the propane cylinder in an enclosed area (house, garage, etc.). If heater is to be stored indoors, disconnect the propane cylinder for outdoor storage.

WARNING

We cannot foresee every use which may be made of our heaters.

Check with your local fire safety authority if you have questions about heater use.

Other standards govern the use of fuel gases and heat producing products for specific uses. Your local authorities can advise you about this.

If no local codes exist, follow the National Fuel Gas Code, ANS Z223.1. In Canada, installation must conform to local codes. If no local codes exist, follow the current National standards of CANADA CAN/CGA-B 149.2.

WARNING

WARNING indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

A propane cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

DANGER

Prohibition sign with pictograms and warning symbols, indicating no liability or insecurity

CARBON MONOXIDE HAZARD

This appliance can produce carbon monoxide which has no odor.

Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car or home.

WARNING

Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. Read the installation, operation and maintenance instructions thoroughly before installing or servicing this equipment.

WARNING

California Proposition 65

Combustion by-products produced when using this product contain chemicals known to the State of California to cause cancer, birth defects, and other reproductive harm.

WARNING

BURN HAZARD

• Never leave heater unattended when hot or in use.
• Keep out of reach of children.

WARNING

Certain materials or items, when stored under the heater, will be subjected to radiant heat and could be seriously damaged.

WARNING

- This product is fueled by propane gas. Propane gas is invisible, odorless, and flammable. An odorant is normally added to help detect leaks and can be described as a “rotten egg” smell. The odorant can fade over time so leaking gas is not always

detectable by smell alone.

• Propane gas is heavier than air and leaking propane will sink to the lowest level possible. It can ignite by ignition sources including matches, lighters, sparks or open flames of any kind many feet away from the original leak. Use only propane gas set up for vapor withdrawal.

- Store or use propane gas in compliance with local ordinances and codes or with ANS/NFPA 58. Turn off propane when not in use.

WARNING

• Alert children and adults to the hazards of high surface temperatures. Stay away from these surfaces to avoid burning skin or igniting clothing.
• Carefully supervise young children when in the vicinity of the heater.
• Do not hang clothing or any other flammable materials from the heater or place them on or near the heater.
• Replace any guard or protective device removed for servicing the appliance prior to placing it back in service.
• Installation and repair should be done by a qualified service person. The heater should be inspected before use and annually by a qualified service person.
  More frequent cleaning may be required as necessary. It is imperative that the control compartment, burners, and circulating air passageway of the appliance be kept clean.

WARNING

CAUTION indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate personal injury, or property damage.

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents above. If any part is missing or damaged, do not attempt to assemble the product. Contact our customer service for replacement parts.

Estimated Assembly Time: 60 minutes

Tools Required for Assembly (not included):

Phillips screwdriver w/ medium blade. Leak Detection Solution. To prevent any injuries, please put on gloves before installation.

WARNING

This product contains sharp edges on the panels, cylinder housing and handle please install with care.

ASSEMBLY INSTRUCTIONS

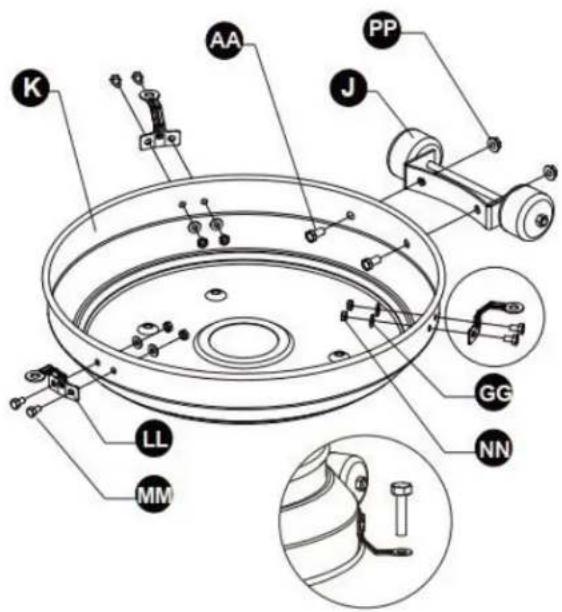

1. Attach wheel kit (J) to base (K). Line up holes in wheel bracket with corresponding holes in base, insert two bolts M8 x 16 (AA) through holes, and finger tighten two M8 flange nuts (PP). Reverse the base (K), fix the ground fixer (LL) to the base with two boltsM6X10 (MM) and two washers 6 (GG), Secure the ground fixer (LL) with two nuts M6 (NN). Fix another two-ground fixer (LL) with bolts and nuts, and reverse the base (K).

Note: To secure the unit, please use three nails M8x100 (not included) to nail the unit to the ground

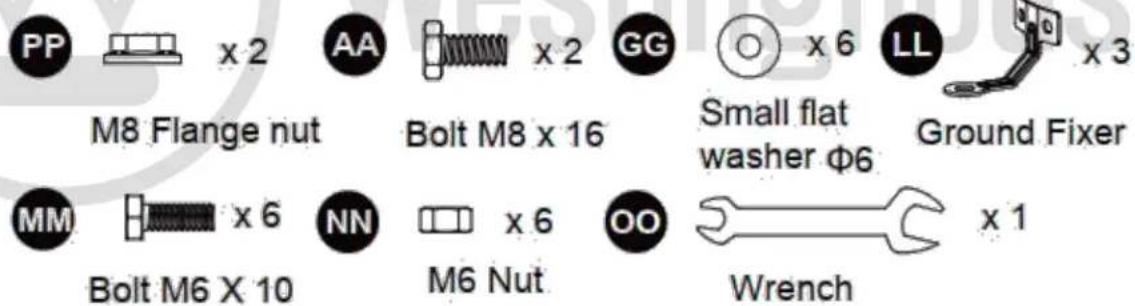

PP x 2 AA x 2 GG x 6 LL x 3 M8 Flange nut Bolt M8 x 16 Small flat washer φ6 Ground Fixer MM x 6 NN x 6 OO x 1 Bolt M6 x 10 M6 Nut Wrench

Note: AA PP pre-assembled in J

K AA PP J GG NN LL MM

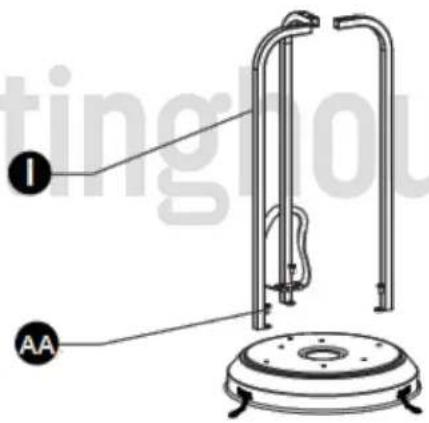

1. Attach three support brackets (I) loosely to base with 2 three bolts M8 x 16 (AA) downward through support brackets into the Base.

Bolt M8 x 16

x 3

tinghou I AA

1. Install pole onto three support brackets. Attach pole to support brackets using six bolts M6 x 30 (DD) & six M6 flange nuts (BB). Fully tighten all the screws.

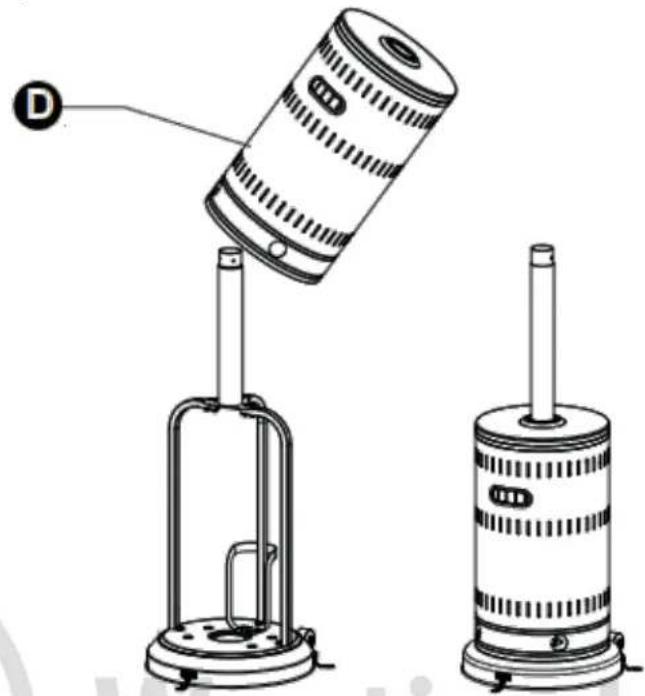

1. Load cylinder housing (D) onto pole.

Slide cylinder housing down.

Technical line drawing of a mechanical device with two cylindrical components and a labeled component (D), no text or symbols present.

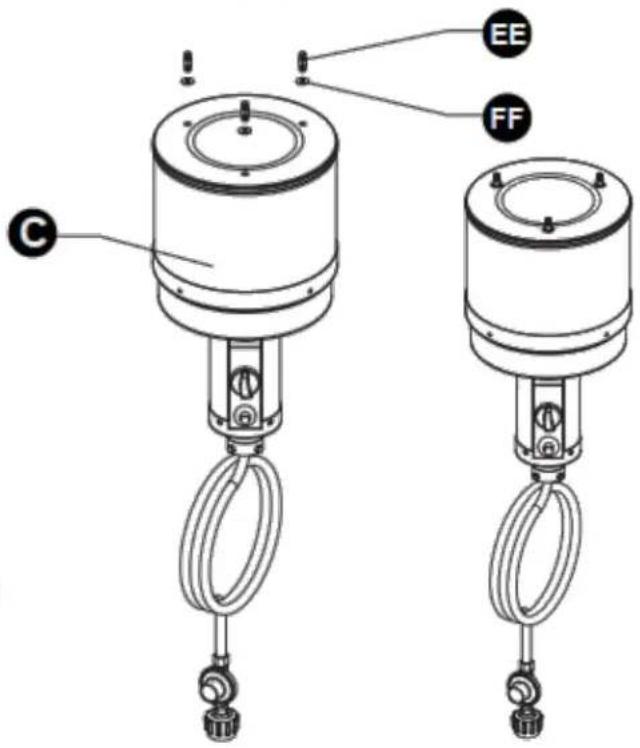

1. Attach three Reflector Spacers (EE) and three Washers 8 (FF) to the top of Head Assembly (C).

Tighten the Reflector Spacers.

C EE FF

Reflector Spacer

× 3

Washer Φ8

x 3

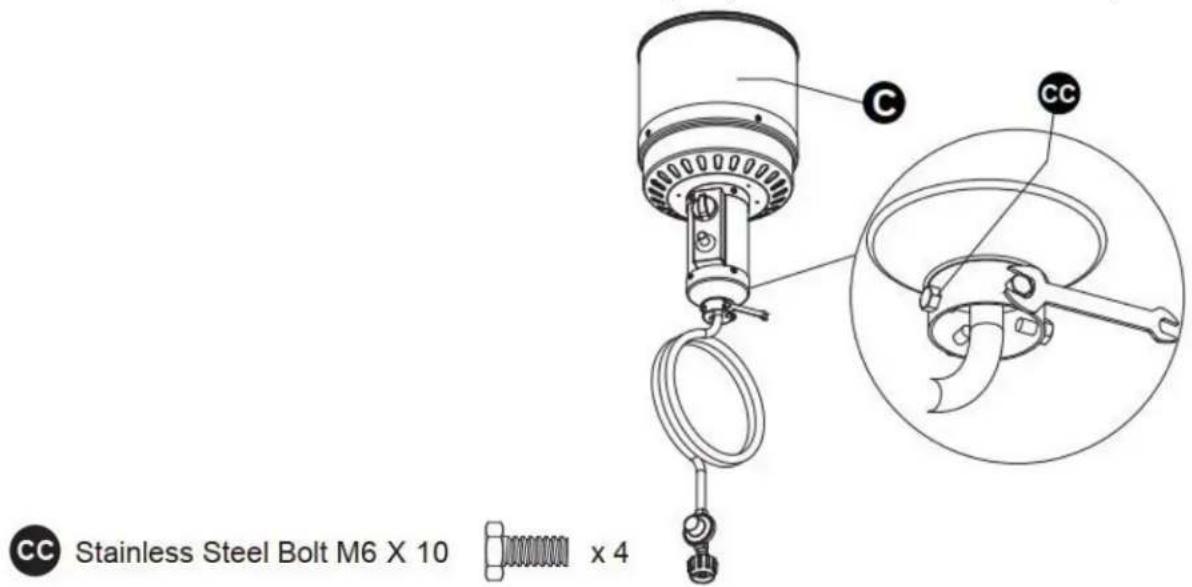

1. Unscrew the stainless-steel bolts M6 X 10 (CC) from the head assembly.

CC Stainless Steel Bolt M6 X 10 x 4

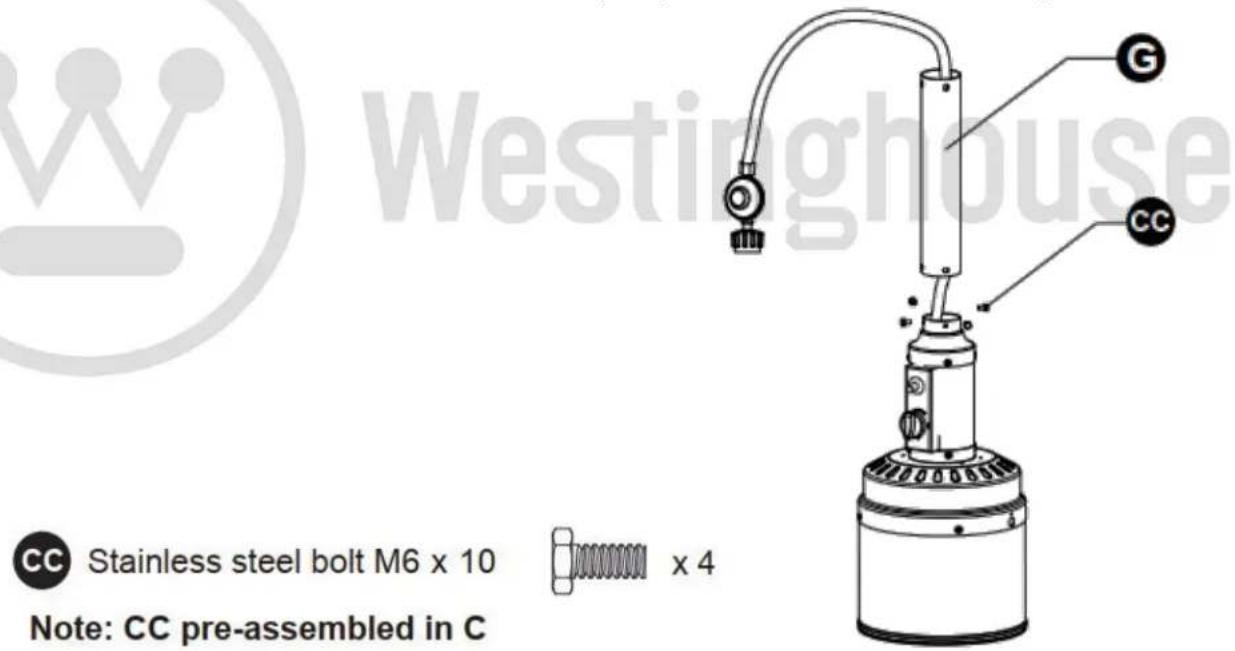

1. Unscrew stainless steel bolts M6 x 10 (CC) from the head assembly.

CC Stainless steel bolt M6 x 10 x 4 Note: CC pre-assembled in C Westinghouse

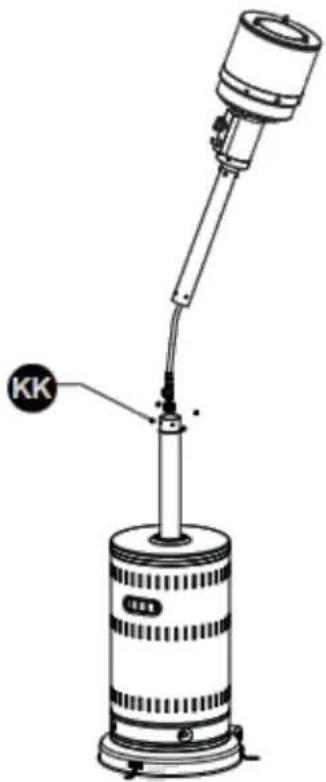

1. Put the upper pole onto the lower pole, using 4pcs. Screw 3/16" (KK) to firmly secure 2pcs pole. Tighten with a Phillips screwdriver (bring your own). The warning label on the upper pole should be on the same side as the flat plate of the lower pole.

Note1: The control knob on head assembly should be above the decal on pole. When applicable, visually check the portions of the hose assembly located within the confines of the heater post.

Note2: Insert the regulator through the lower pole.

3/16" Screw

Phillips screwdriver (bring your own)

x4

Technical line drawing of a mechanical device with labeled component KK (no text or symbols beyond label)

1. WARNING: Remove protective cover before assembling.

Note: If necessary for proper alignment of reflector sections, loosen each bolt prior to further assembly and retighten after sections are aligned.

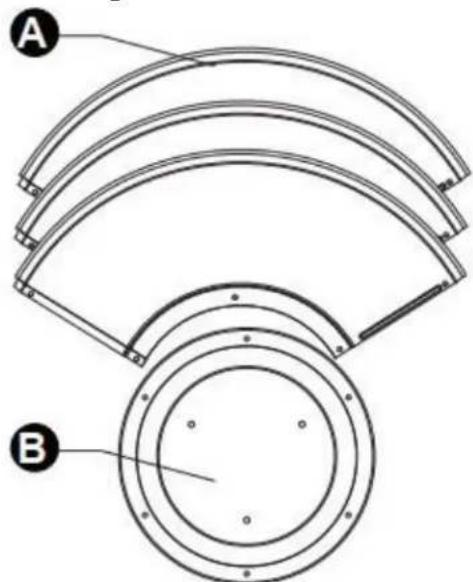

A B

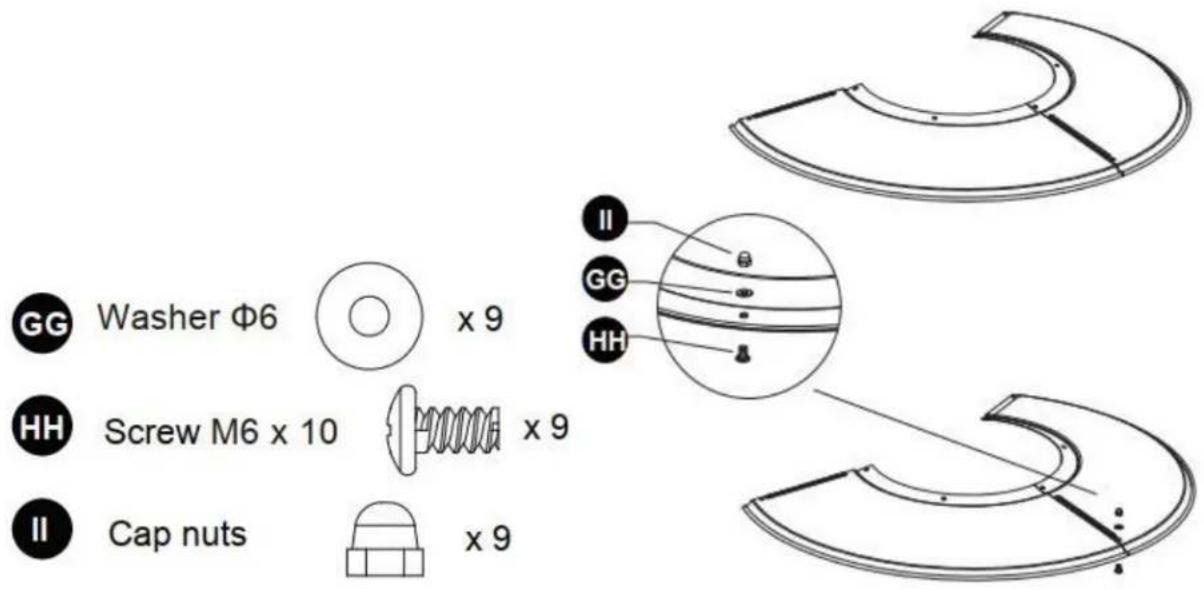

1. Slide two reflector panels together. Insert one screw M6 x 10 (HH). Slide one washer 6 (GG) over threaded end of screw M6 x 10 (HH) and screw on cap nut (II) loosely.

GG Washer Φ6 x 9 HH Screw M6 x 10 x 9 II Cap nuts x 9

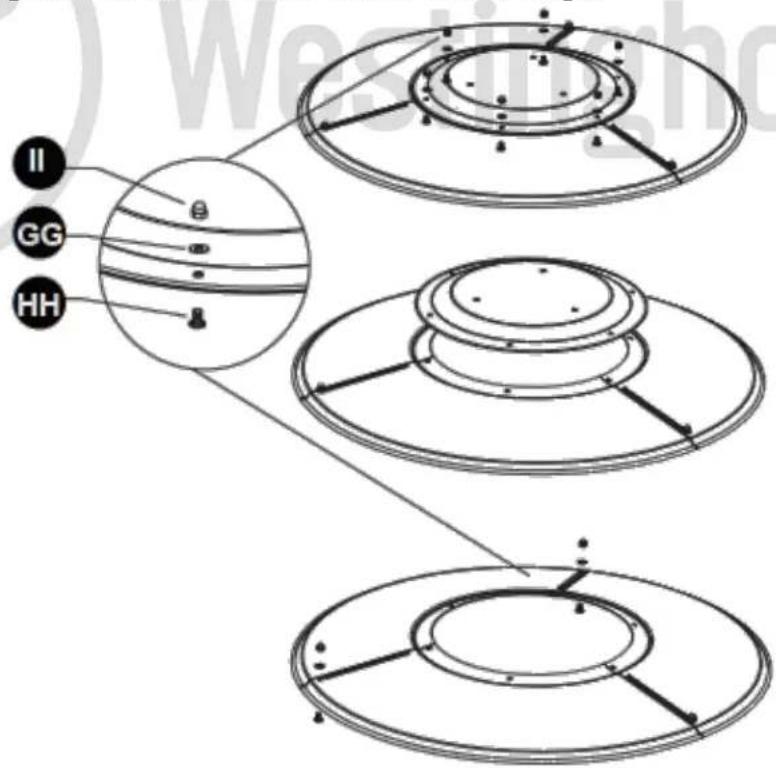

1. Slide reflector plate onto reflector panels. Insert one screw M6 x 10 (HH). Slide one washer 6 (GG) over threaded end of screw M6 x 10 (HH) and screw on the cap nut (II) loosely. Repeat procedure to complete the assembly of all four sections. Fully tighten all the screws in the rolled edge.

II GG HH

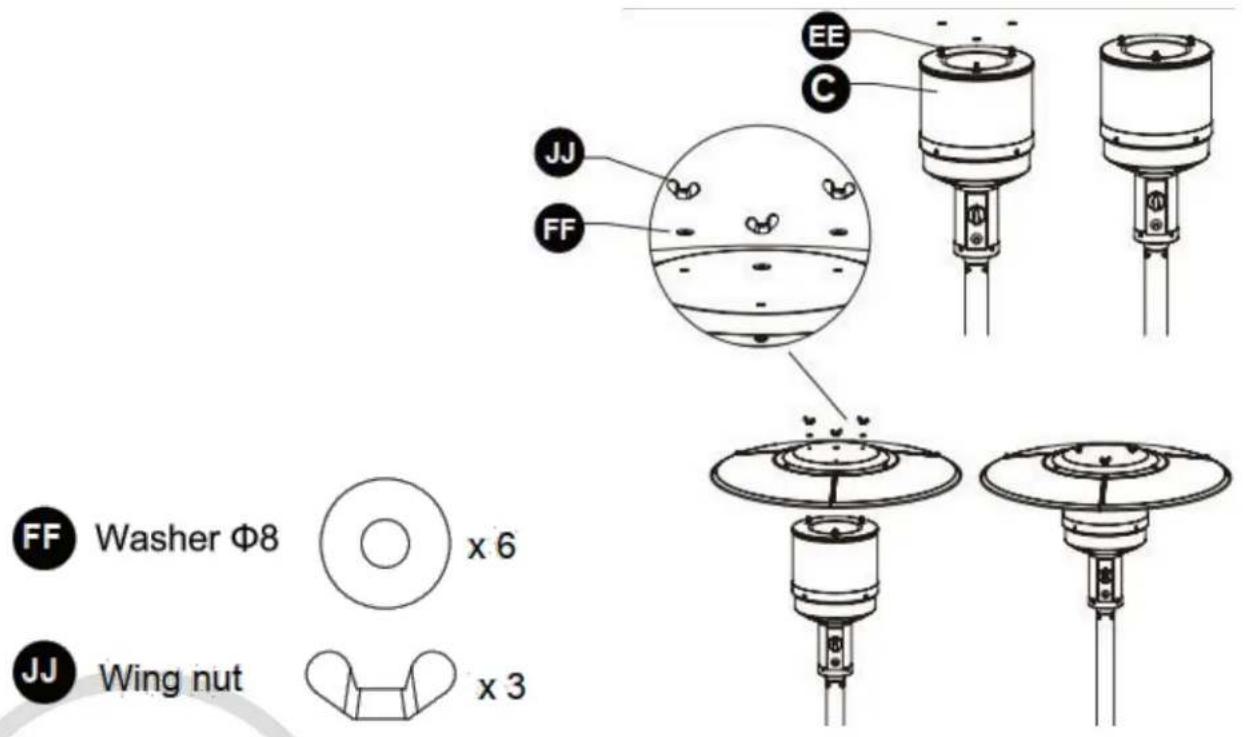

1. Support heater. Slide three washers 8 (FF) over threaded end of spacer. Locate reflector assembly on 3 spacers. Install three washers 8 on spacers and securely tighten wing nuts (JJ) but do not overtighten.

FF Washer Φ8 x 6 JJ Wing nut x 3

1. Connect hose and regulator to cylinder.

Propane gas and the cylinder are sold separately.

Every part of the heater shall be secure against displacement and shall be constructed to maintain a fixed relationship between essential parts under normal and reasonable conditions of handling and usage. Parts not permanently secured shall be designed so they cannot be incorrectly assembled and cannot be improperly located or misaligned in removing or replacing during cleaning or other servicing.

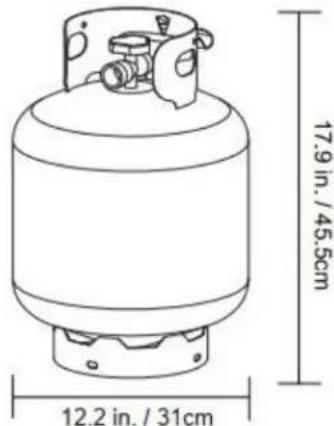

Use a standard 20 lb. propane cylinder only (approximately 12.2 in. / 31cm. in diameter and 17.9 in. / 45.5cm high).

17.9 in. / 45.5cm 12.2 in. / 31cm

Standard 20 lb. tank

Use this heater only with a propane vapor withdrawal supply system. See chapter 5 of the standard for storage and handling of liquefied petroleum gas, ANS/NFPA 58. Your local library or fire department should have this book.

Storage of an appliance indoors is permissible only if the cylinder is disconnected and removed from the appliance. A cylinder must be stored outdoors in a well-ventilated area out of the reach of children.

A disconnected cylinder must have dust caps tightly installed and must not be stored in a building, garage or any other enclosed area. The maximum inlet gas supply pressure: 250 psi /1750 kPa.

The minimum inlet gas supply pressure: 5 psi /35kPa. Manifold pressure with regulator provided: 11-inch W.C/ 2.74 kPa. The minimum hourly of 17000 Btu /4.98 kW is required input rating for an appliance for automatic operation at ratings less than full input rating.

The pressure regulator and hose assembly supplied with the appliance must be used.

The installation must conform with local codes, or in the absence of local codes, with national fuel gas code, ANS Z223.1/NFPA54, natural gas and propane Installation Code, CSA B149.1, or propane storage and handling code, B149.2.

The knob on the propane tank must be closed. Make sure that the knob is turned clockwise to a full stop. The cylinder supply system must be arranged for vapor withdrawal. Check that the control knob on the control unit is turned off. Hold the regulator in one hand and insert the nipple into the valve outlet. Be sure the nipple is centered in the valve outlet. The coupling nut connects to the large outside threads on the valve outlet. Hand-tighten the coupling nut clockwise until it comes to a full stop. Firmly tighten by hand only.

To Disconnect: Fully close the tank valve by turning clockwise. Turn the coupling nut counterclockwise until the regulator assembly detaches.

A dented, rusted or damaged propane cylinder may be hazardous and should be checked by your cylinder supplier. Never use a propane cylinder with a damaged valve connection.

The propane cylinder must be constructed and marked in accordance with the specifications for propane gas cylinders of the U.S. Department of Transportation (DOT) or the standard for cylinders, spheres and tubes for transportation of dangerous goods and commission, CAN/CSA-B339.

Technical line drawing of a mechanical assembly with no visible text or symbols

The cylinder must have a listed overfilling prevention device.

The cylinder must have a connection device compatible with the connection for the appliance.

The cylinder used must include a collar to protect the cylinder valve.

Never connect an unregulated propane cylinder to the heater.

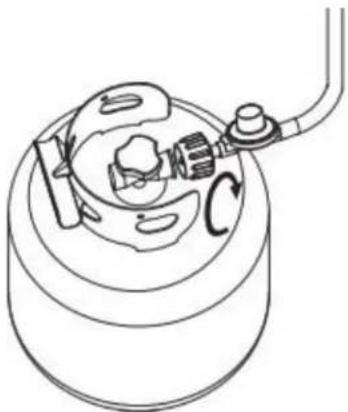

Attach the regulator to the cylinder. Complete attachment.

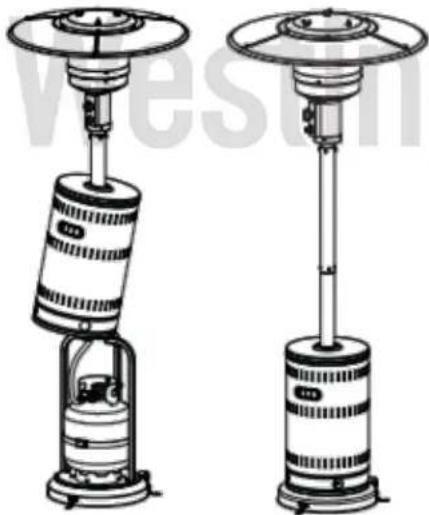

Install the cylinder.

Fasten cylinder with propane tank strap.

Technical line drawing of two outdoor lawn payers with adjustable arm and base (no text or symbols)

Do not store a spare propane gas cylinder under or near this appliance.

Never fill the cylinder beyond 80 percent full.

Place the dust cap on the cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve that is provided with the cylinder valve. Other types of caps or plugs may result in leakage of propane.

WARNING

Leak Check

• Perform all leak tests outdoors.
• Extinguish all open flames.
• NEVER leak test when smoking.
- Do not use the heater until all connections have been leak tested and do not leak.

Pure technical diagram of a pipe fitting with no text or symbols

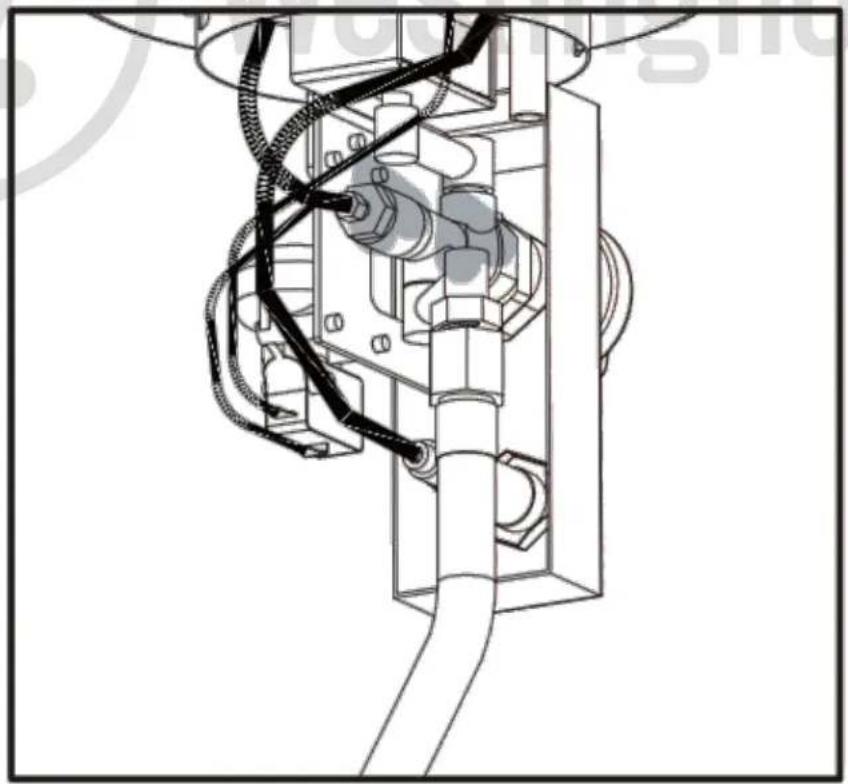

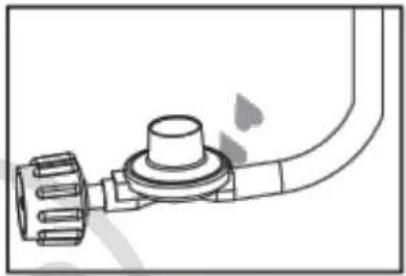

Hose / Regulator connection

Technical line drawing of a mechanical assembly with no visible text or symbols

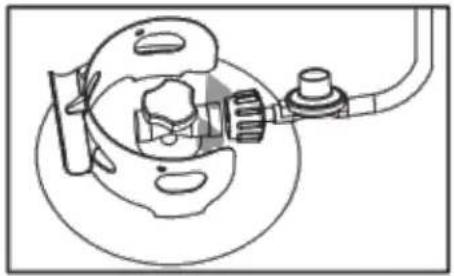

Regulator / Cylinder connection

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

1. Make 2-3 oz. of leak check solution (one part liquid dishwashing detergent and three parts water).
2. Apply several drops of solution where hose attaches to regulator.
3. Apply several drops of solution where regulator connects to cylinder.
4. Make sure the patio heater and light valves are OFF.
5. Turn cylinder valve ON.

If bubbles appear at any connection, there is a leak.

1. Turn the cylinder valve OFF.
2. If a leak is at hose/regulator connection: tighten connection and perform another leak test. If bubbles continue appearing, the hose should be returned to the place of purchase.
3. If a leak is at regulator/cylinder valve connection: disconnect, reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be returned to cylinder's place of purchase.

If NO bubbles appear at any connection, the connections are secure.

NOTE: Whenever gas connections are loosened or removed, you must perform a complete leak test.

DANGER

• CARBON MONOXIDE HAZARD
- For outdoor use only. Never use inside a house, or other unventilated or enclosed areas. This heater consumes air (oxygen). Do not use it in unventilated or enclosed areas to avoid endangering your life.

Caution: Do not attempt to operate until you have read and understand all General Safety Information in this manual and all assembly is complete, and leak checks have been performed.

This appliance shall be used only in a well-ventilated space and shall not be used in a building, garage or any other enclosed area.

An appliance may be installed with shelter no more inclusive than:

1) With walls on all sides, but with no overhead cover.
2) Within a partial enclosure which includes an overhead cover and no more than two side walls. These side walls may be parallel, as in a breezeway, or at right angles to each other.

3) Within a partial enclosure which includes an overhead cover and three side walls, if 30 percent or more of the horizontal periphery of the enclosure is permanently open.

OPERATION INSTRUCTIONS

Before Turning on the Gas Supply:

1. Your heater was designed and approved for outdoor use only. Do NOT use it inside a building, garage, or any other enclosed area.
2. Make sure surrounding areas are free of combustible materials, gasoline, and other flammable vapors or liquids.
3. Ensure that there is no obstruction to air ventilation. Be sure all gas connections are tight and there are no leaks.
4. Be sure the cylinder cover is clear of debris. Be sure any component removed during assembly or servicing is replaced and fastened prior to starting.

Before Lighting:

1. Heater should be thoroughly inspected before each use, and by a qualified service person at least annually. If relighting a hot heater, always wait at least 5 minutes.
2. Inspect the visible portion of the hose before each use of the appliance. If the hose leaks, it must be replaced prior to operation. Only use the replacement hose assembly specified by manufacturer.
3. The pressure regulator and hose assembly supplied with the appliance must be used. Replacement pressure regulators and hose assemblies must be those specified by the appliance manufacturer.

Lighting:

Lighting:

1. Turn on the valve on the gas cylinder.

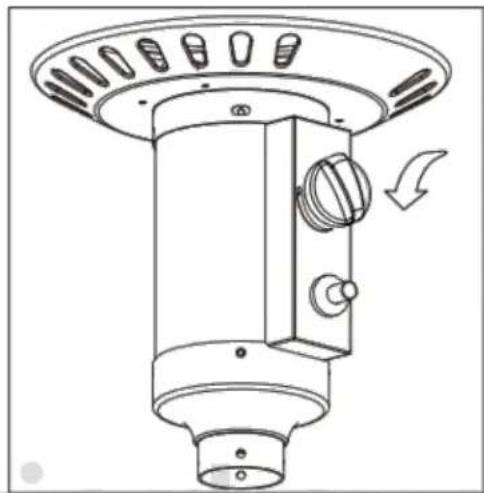

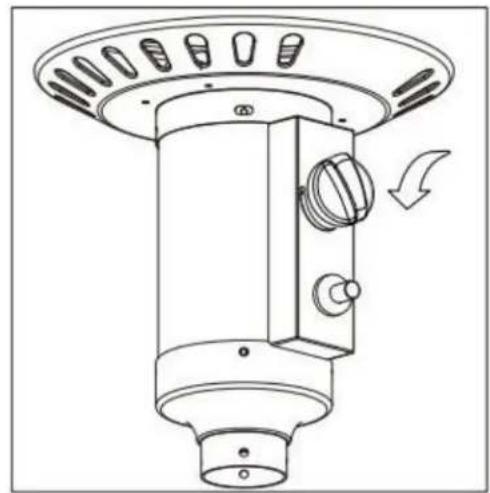

2. Press and turn the control knob to HIGH (maximum) position (counterclockwise 90°). (Figure 1)
3. Holding down the control knob, press the igniter button several times until the main flame is ignited.

Release the control knob 10 seconds after the ignition.

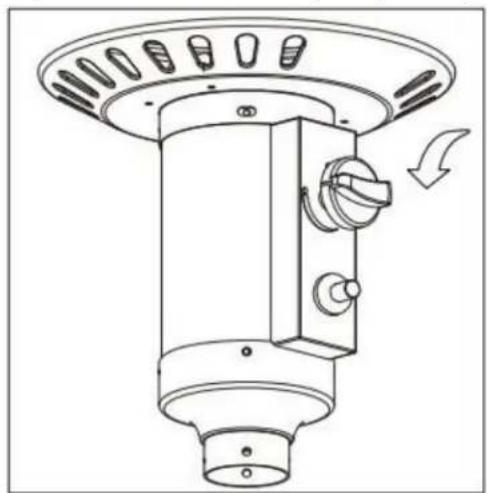

1. Turn the control knob to LOW (minimum) and leave it there for 5 minutes or more before turning the knob to the desired temperature setting. (Figure 2)
2. If the burner flame goes out, turn off the heater and wait at least 5 minutes or more to let the gas dissipate before re-lighting to avoid gas explosion.
   Repeat steps 2 to 4.

Note: Improper operation can cause injury or property damage. If burner fails to remain lit, all valves should be closed and a waiting period of at least 5 minutes should pass before attempting to light.

Technical line drawing of a mechanical device with a rotating knob and housing (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

If you experience any ignition problem, please consult "Troubleshooting" on page 18.

Caution: Avoid inhaling fumes emitted from the heater's first use. Smoke and odor from the burning of oils used in manufacturing will appear. Both smoke and odor will dissipate after approximately 30 minutes. The heater should NOT produce thick black smoke.

Note: The burner may be noisy when initially turned on. Turn the knob to the level of heat desired.

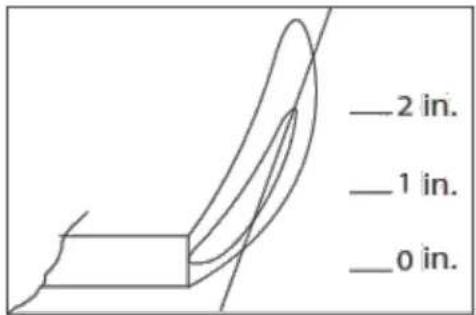

-2 in. -1 in. -0 in.

Normal

-2 in. -1 in. -0 in.

Abnormal

! WARNING

FOR YOUR SAFETY

Be careful when attempting to manually ignite this heater. Holding in the control knob for more than 10 seconds before igniting the gas will cause a ball of flame upon

ignition.

When the heater is ON:

The emitter screen will become bright red due to intense heat. The color is more visible at night. The burner will display tongues of blue and yellow flame. These flames should not be yellow or produce thick black smoke, indicating an obstruction of airflow through the burners. The flame should be blue with straight yellow tops. If excessive yellow flame is detected, turn off heater and consult “Troubleshooting” on page 18.

Re-lighting:

1. Turn control knob to OFF.
2. Repeat the "Lighting" steps on prior page.

WARNING

FOR YOUR SAFETY

The heater will be hot after use. Handle it with extreme care.

Shut Down:

Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.

Note: After use, some discoloration of the emitter screen is normal.

Operation Checklist

For a safe and pleasurable heating experience, perform this check before each use.

Before Operating:

1. Be familiar with the entire owner's manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efficiency below 40^ F.

7. Heater is outdoors (outside any enclosure).

8. There is adequate fresh air ventilation.

9. Heater is away from gasoline or other flammable liquids or vapors.
10. Heater is away from windows, air intake openings, sprinklers and other water sources.
11. Heater is at least 36 in. on top and at least 36 in. on sides from combustible materials.
12. Heater is on a hard and level surface.
13. There are no signs of spiders or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and should stay away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are near the heater.
18. Clothing or other protective material should not be hung from the heater or placed on or near the heater.
19. Any guard or other protective device removed for servicing the heater must be replaced prior to operating the heater.
20. Installation and repair should be done by a qualified service person. The heater should be inspected before use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that the control compartment, burner and circulating air passageways of the heater be kept clean.

After Operation

1. The gas control is in OFF position.
2. The gas tank valve is OFF.
3. Disconnect the gas line.

WARNING

FOR YOUR SAFETY:

- Do NOT touch or move heater for at least 45 minutes after use.

• Reflector is hot to the touch.
• Allow reflector to cool before touching.

To enjoy years of outstanding performance from your heater, make sure you perform the following maintenance activities on a regular basis:

Keep exterior surfaces clean.

1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.

2. While cleaning your unit, be sure to keep the area around the burner and pilot assembly always dry. Do not submerge the control valve assembly. If the gas control is submerged in water, do NOT use it. It must be replaced.
   a. Keep the appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids.
   b. Do not obstruct the flow of combustion and ventilation air.
   c. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.

3. Air flow must be unobstructed. Keep controls, burners, and circulating air passageways clean.

CARE AND MAINTENANCE

Visually checking portions of the hose assembly located within the confines of the heater post. Inspect the entire hose assembly at least annually, disassembling the reflector and burner. Inspect the hose assembly for evidence of excessive abrasion, cuts, or wear. Suspected areas should be leak tested.

Then assembling the reflector and burner again following with step 8 and 12.

Signs of possible blockage include:

Gas odor with extreme yellow tipping of flame.

The heater does NOT reach the desired temperature.

The heater glow is excessively uneven.

Teater makes popping noises.

Spiders and insects can nest in burner or orifices. This dangerous condition can damage the heater and render it unsafe for use. Clean burner holes by using a heavy-duty pipe cleaner. Compressed air may help clear away

smaller particles.

Carbon deposits may create a fire hazard. Disassembly the reflector, unscrew the reflector spacer, take off the screen, take down one side of protective guards. Then take the glass tube from the heater and wash and clear. After that assembly the glass tube and the rest of parts.

Note: In a salt-air environment (such as near an ocean), corrosion occurs more quickly than normal.

Frequently check for corroded areas and repair them promptly.

TIP:

Use high-quality automobile wax to help maintain the appearance of your heater. Apply to exterior surfaces from the pole down. Do not apply to emitter screen or domes.

Storage

Between uses:

Turn the control knob OFF.

Disconnect the propane cylinder.

Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).

If desired, cover the heater to protect exterior surfaces and to help prevent build-up in air passages.

Note: Wait until the heater is cool before covering.

During periods of extended inactivity or when transporting: Turn the control knob to OFF.

Disconnect the propane cylinder and move to a secure, well-ventilated location outdoors.

Store heater upright in an area sheltered from direct contact with inclement weather (such as rain, sleet, hail, snow, dust and debris).

If desired, cover the heater to protect exterior surfaces and to help prevent build-up in air passages.

Never leave propane cylinder exposed to direct sunlight or excessive heat.

Note: Wait until heater is cool before covering.

Service

Only a qualified service person should repair gas passages and associated components.

Caution: Always allow heater to cool before attempting service.

TROUBLESHOOTING

Pilot won't lightNote: Heater operates at reduced efficiency below 40°F (5°C)	Cylinder valve is closed	Open valve
	Blockage in orifice or pilot tube	Clean or replace orifice or pilot tube
	Air in gas line	Open gas line and bleed it (pressing control knob in) for not more than 1 - 2 minutes or until you smell gas
	Low gas pressure with cylinder valve fully open	Turn cylinder valve OFF and replace cylinder
	Igniter fails	Use match to light pilot; obtain new igniter and replace
Pilot won't stay lit	Dirt built up around pilot	Clean dirt from around pilot
	Connection between gas valve and pilot assembly is loose	Tighten connection and perform leak check
	Thermocouple is not operating correctly	Replace thermocouple
Burner won't light	Propane cylinder is frosted over	Wait until the propane cylinder warms up and becomes unfrosted
	Blockage in orifice	Clear blockage
	Control knob is not in ON position	Turn control knob to ON
Burner flame is low	Gas pressure is low	Turn cylinder valve OFF and replace cylinder
	Outdoor temperature is less than 40°F and tank is less than 1/4 full	Use a full cylinder
	Control knob fully ON	Check burner and orifices for blockage
Carbon build-upThick black smoke	Dirt or film on reflector and burner screen	Clean reflector and burner screen
	Blockage in burner	Remove blockage and clean burner inside and outside

Warranty

ONE-YEAR LIMITED WARRANTY

This product is inspected, tested and carefully packaged to minimize the chance of damage during shipment. If a part within one year from the date of purchase proves to be defective in material or fabrication under normal use, the part will be repaired or replaced. The Company's obligation under the warranty is to replace

or repair defective parts at our discretion. Any expenses or damage resulting from the installation, removal or transportation of the product will the responsibility of the owner and are not covered by this warranty. The owner assumes all other risks arising out from the use or misuse of the product. The warranty will be void if the product damage or failure is deemed by the Company to be caused by accident, alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect power source by the owner. The Company neither assumes, nor authorizes any person or entity to assume for it any obligation or liability associated with its products.

* Light bulbs and fuses are not covered under this warranty.

We also disclaim any liability for incidental or consequential damage. Some Canadian provinces do not allow the limitation of incidental or consequential damages. Therefore, these limitations may not apply to you. This warranty gives you specific legal rights. You may also have other legal rights which vary from province to province.

CUSTOMER SERVICE: 1-833-895-7333

We will be happy to help you!

It will be our pleasure to help you!

FRANÇAIS

A B C D E F G H I J K

PIÈCE DESCRIPTION QUANTITÉ

AA Boulon M8x16 x 3 I AA

Technical line drawing of a cylindrical device with labeled component D, mounted on two base devices (no text or symbols present)

Technical diagram of a mechanical device with labeled components G and CC

Technical line drawing of a mechanical device with labeled component 'KK' (no text or symbols beyond label)

17.9 in. / 45.5cm 12.2 in. / 31cm

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of two outdoor air purifiers with cooling fans (no text or symbols)

Diagram of a pipe fitting with a central knob and a leaf symbol, no text or labels present

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with hoses and components (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

-2 in. -1 in. -0 in.

Normal

-2 in. -1 in. -0 in.

Anormal

AVERTISSEMENT

POUR VOTRE SÉCURITÉ

GARANTIE LIMITÉE D'UN AN
