USER MANUAL WES311892 WESTINGHOUSE

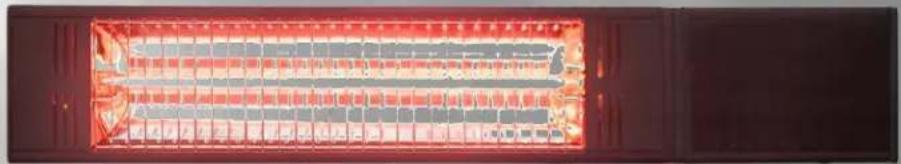

INFRARED WALLMOUNT PATIO RADIATOR WITH REMOTE CONTROL

RADIATEUR INFRAROUGE MURAL POUR TERRASSE AVEC TÉLECOMMANDE

USER MANUAL

MANUEL DE L'UTILISATEUR

Please read instructions carefully before assembly Veuillez lire attentivement les instructions avant l'assemblage

Retain this manual for reference
Conserve ce manuel pour-reference

CONTENT

1. Assembly
2. Operation
3. For your safety
4. Cleaning and storage
5. Specifications
6. Grounding instructions
7. Warranty FRANÇAIS

Please empty the packing box thoroughly, and make sure that there are no missing parts.

MAKE SURE THERE IS NO DAMAGE TO THE UNIT AND POWER CORD. IF THERE IS ANY DAMAGE OR IF THERE ARE MISSING PARTS, PLEASE CONTACT 1-866-967-7333 ext 227.

2. ASSEMBLY

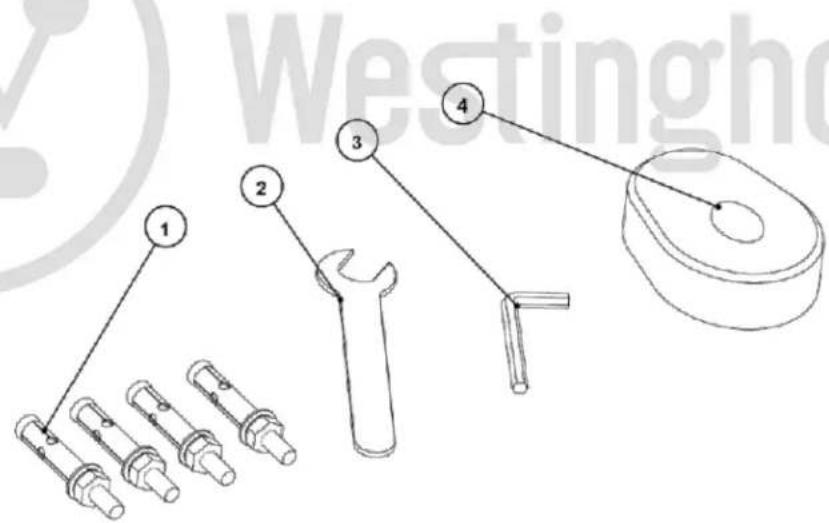

Components

Ref.	Name	Qty
1	Expansible Bolt M6*50	4
2	M6 spanner	1
3	‘L’ hexagonal wrench	1
4	Remote control	1

Wall mounted: Brick or Concrete

Step 1: Using the wall mount bracket as a template mark the four holes where you plan to install the radiator. Drill four holes into the wall and hammer the supplied four M6*50 expansion bolts into the wall.

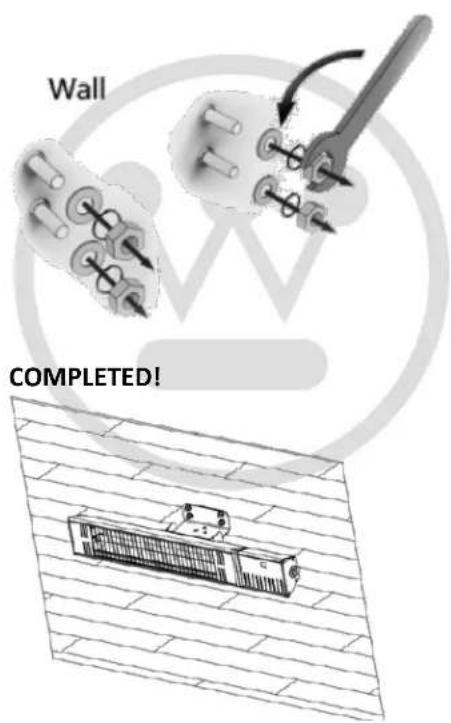

Step 2:

Unscrew the four nuts, spring locks washers and plain washers from the four expansion bolts. Keep them for the next step.

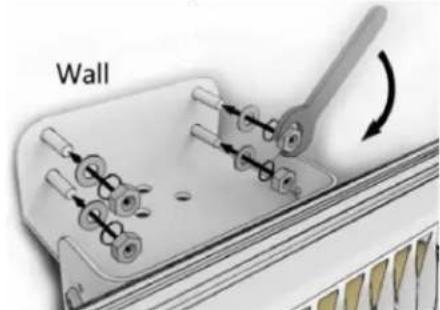

Step 3:

Fix the mounting bracket over the four expansion bolts.

Step 4

Once installed, you can adjust the heater to the desired angle.

DANGER FIRE HAZARD: This product must not be assembled vertically.

Wall mounted (Other surfaces):

Step 1: Using the wall mount bracket as a template mark the four screw holes where you plan to install the radiator.
Step 2: Place the radiator with the mounting bracket on the four marks and tighten four screws (not included).

Step 3

Once installed, you can adjust the heater to the desired angle.

3. OPERATION

MAKE SURE THE HEATER IS NOT FUNCTIONING BEFORE YOU HANG IT ON A GAZEBO, OR UNDERNEATH A BALCONY OR A ROOF.

NOTE: Wait until the heater's heating element has cooled down before moving it.

REMEMBER: Portable electric heaters are designed for spot heating or as a supplementary heat source. They are not intended to be the main source of heat during cold months.

Caution:

You must always make sure that there is at least 9.8'' (25 cm) of empty space above the heater, 5.9'' (15 cm) from the side and 5' (1.8 m) below the heater.

Control Panel

Activation button

The switch on the heater is used to control the Heater. When you press on the "I" button, the heater is in standby mode. Press on the "O" to turn off the Heater.

Remote control

Press the standby switch "l" to activate the heater.

Press the remote control once to operate the heater on 1500W power. Press again to deactivate it.

IMPORTANT: To operate properly, the remote must be pointed toward the remote control sensor.

4. FOR YOUR SAFETY

IMPORTANT INSTRUCTIONS

1. ONLY USE THE UNIT ON A SECURED AND SOLID ATTACHMENT POINT.
2. This heater is not intended for use in bathrooms, laundry areas or similar indoor locations where there may be moisture. Never place heater where it may fall into a pool, bathtub or another water receptacle.
3. This unit is intended for household use only. DO NOT use the unit in such areas as construction sites, greenhouses, barns or stables or any place that has flammable materials.
4. DO NOT use the unit in an unventilated area.
5. A heater has hot, arcing and sparking parts inside. DO NOT use it in areas where gasoline, paint or flammable liquids are used or stored.
6. DO NOT move the unit when it is still connected to an electrical outlet, and always wait for the unit to cool down before moving, cleaning and storing it.
7. DO NOT touch the heater when in use. Please wait at least 10 minutes after it has been turned off before touching it.
8. Extreme caution is necessary when any heater is used near a child or someone physically disabled.
9. DO NOT LEAVE THE UNIT UNATTENDED WHEN IN OPERATION.
10. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handles (not provided) when moving this heater. Keep combustible materials such as furniture, pillows, bedding, papers, clothes and curtains at least 3^ (0.9m) from the front of the heater.
11. DO NOT cover the unit with any type of cloth material while in operation or a short time after turning the unit off.
12. DO NOT wrap the power cord around the unit.
13. DO NOT insert or allow foreign objects to enter any ventilation or exhaust opening of the unit as this may cause electric shock, fire or damage to the heater.
14. PLEASE HANDLE THE UNIT WITH CARE.
15. DO NOT operate the heater with a damaged power cord or a damaged AC wall outlet. DO NOT operate the heater if it has been dropped or damaged in any manner.
16. DO NOT USE THE UNIT AS A ROOM HEATER.
17. DO NOT run the power cord under carpeting. DO NOT cover the cord with throw rugs, runners or the like. Position the cord away from traffic areas where it may be tripped over.
18. To disconnect the heater, turn the power switch to off, then unplug the unit.
19. To prevent the possibility of fire, DO NOT block air intakes or exhaust openings in any manner. DO NOT use on soft surfaces such as a bed where openings may become blocked.
20. Use this heater only as described in this manual; any other use not recommended by the manufacturer may cause fire, electric shock or injury to persons.

SAVE THESE INSTRUCTIONS.

5. CLEANING AND STORAGE

1. Turn the unit OFF and unplug the unit before cleaning.

2. Use only a soft cloth to clean the exterior. An air compressor or a vacuum cleaner can be used to clean the interior.

3. Do not use gasoline, paint thinner or other chemicals to clean the heater

4. Store the heater in its original box and keep in a cool, dry place.

6. SPECIFICATIONS

7. GROUNDING INSTRUCTIONS

This product is for use on a nominal 120 V circuit with a grounding plug that looks like the plug illustrated below. Make sure that the product is connected to an outlet having the same configuration as the plug. If you use an extension cord, make sure it also has a grounding plug. No adaptor should be used with this product.

DANGER

Improper connection of the equipment-grounding conductor may result in a risk of electrocution. Check with a qualified electrician or other service personnel if you doubt the outlet is properly grounded. Do not modify the power cord provided with the product. If it does not fit the wall outlet, have a proper outlet installed by a qualified electrician. Do not use any type of adaptor with this product.

8. WARRANTY

LIMITED ONE (1) YEAR WARRANTY

This product is guaranteed against all manufactured faults and defects for a period of one (1) year from the date of purchase. For repairs or product defects, please call our customer service department at: 1-866-967-7333. Please have your proof of purchase on hand. We will repair or replace defective units at our discretion.

Important notes: Any damage caused by an accident or an abusive usage is NOT covered under warranty. We also decline all responsibility concerning indirect or consecutive damages. In certain Canadian provinces or USA States, it is not permitted to limit indirect or consecutive damages. Therefore, it is possible these limitations are not applicable to you. This warranty gives you specific legal rights. You may also have other legal rights which vary from one province or State to another.

CUSTOMER SERVICE: 1-866-967-7333 ext 227
