USER MANUAL BT 3017 Orbegozo

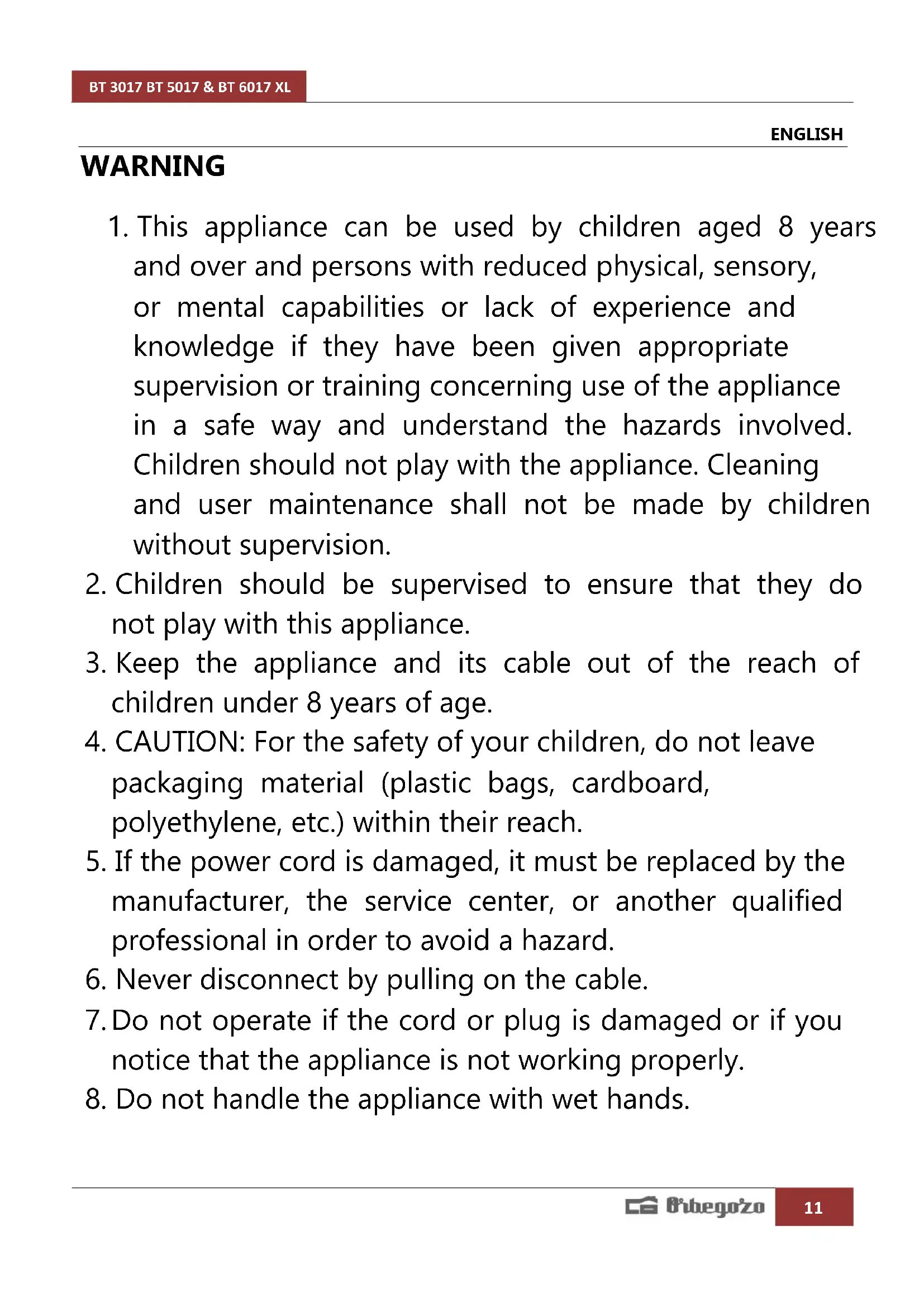

1. This appliance can be used by children aged 8 years

and over and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given appropriate supervision or training concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

2. Children should be supervised to ensure that they do

not play with this appliance.

3. Keep the appliance and its cable out of the reach of

children under 8 years of age.

4. CAUTION: For the safety of your children, do not leave

packaging material (plastic bags, cardboard, polyethylene, etc.) within their reach.

5. If the power cord is damaged, it must be replaced by the

manufacturer, the service center, or another qualified professional in order to avoid a hazard.

6. Never disconnect by pulling on the cable.

7. Do not operate if the cord or plug is damaged or if you

notice that the appliance is not working properly.

9. Do not immerse the appliance in water or any other

10. Before cleaning, make sure the appliance is

11. The appliance must be installed in accordance with

national regulations for electrical installations.

12. This appliance is for domestic use only.

13. In case you need a copy of the manual instructions, you

can find it at www.orbegozo.com.

14. WARNING: In case of misuse, there is a risk of possible

injury. Always unplug the appliance before assembling, disassembling or cleaning it. Before plugging it in, check that your installation voltage corresponds to the appliance's power. The appliance poses a risk of injury if misused. Take care when handling the cutting blades, emptying the container, and cleaning it. Do not plug the appliance into the mains power supply until fully assembled and always unplug before disassembling the appliance or handling the blade. Do not allow the motor unit, cable, or plug to get wet. Never use a damaged appliance. If the appliance breaks down, take it to an authorized service center for inspection or repair.BT 3017 BT 5017 & BT 6017 XL

Do not let the cord hang over the edge of a table or counter or touch hot surfaces. Do not use the appliance on hot ingredients. This appliance is built to process normal household quantities. Short operating time. Do not use the appliance for more than 1 minute and do not handle hard foods for more than 10 seconds. If you press switch I, you can activate the speed control to suit your needs. But switch II is immutable. Always unplug the mixer from the power supply if you leave it unattended and before assembling, disassembling, or cleaning it. If not used correctly someone can be injured. You will need to be careful when handling the sharp cutting blades, emptying the container, or during cleaning. If any of the appliance casings are broken, unplug it immediately from the mains to avoid possible electric shock. Do not use the appliance with wet hands or feet, or when barefoot. Do not force the power cord. Never use the power cord to lift, carry, or unplug the appliance. Do not wrap the power cord around the appliance.BT 3017 BT 5017 & BT 6017 XL

Check the condition of the power cord. Damaged or tangled cords increase the risk of electric shock. Do not use or store the appliance outdoors. Before using the appliance, make sure the blade is properly secured. The temperature of accessible surfaces may be high during use of the appliance.

o Completely unwind the power cord from the appliance before each use. o Do not use the appliance if its accessories are not correctly installed. o Do not use the appliance if it is empty. o Do not use the appliance if the on/off switch does not work. o Do not force the working capacity of the device. o Observe the MAX level indicator (Fig. 2.1) o When using hot liquids, do not fill the pitcher more than half full. Always select the slowest speed on the speed selector when blending hot liquids in the pitcher. o This appliance is for domestic use only, not for professional or industrial use. o This appliance must be stored out of the reach of children and/or disabled persons. o Do not expose the appliance to extreme temperatures. o Maintain the appliance in good condition. Check that moving parts are not misaligned or binding, and make sure there are no broken parts or abnormalities that could prevent the appliance from functioning properly. o Use the appliance, its accessories, and tools according to these instructions, taking into account the working conditions and the task to be performed. Using the appliance for operations other than those intended could result in a hazardous situation. o Never leave the appliance plugged in and unattended when not in use. This saves energy and prolongs its lifespan. o Do not use the appliance for more than 1 minute at a time. If operating cyclically, allow the appliance to rest for at least 1 minute between each cycle. Under no circumstances should the appliance be used longer than necessary. o Several recipes are included, including the amount of food to be processed, the recommended operating time for each recipe, and the maximum operating time of the appliance under each of these load conditions.

o Do not use the device on any part of the body of people or animals. o Do not use the appliance with frozen products or products containing bones. o Any misuse or failure to follow the instructions for use voids the manufacturer's warranty and liability.

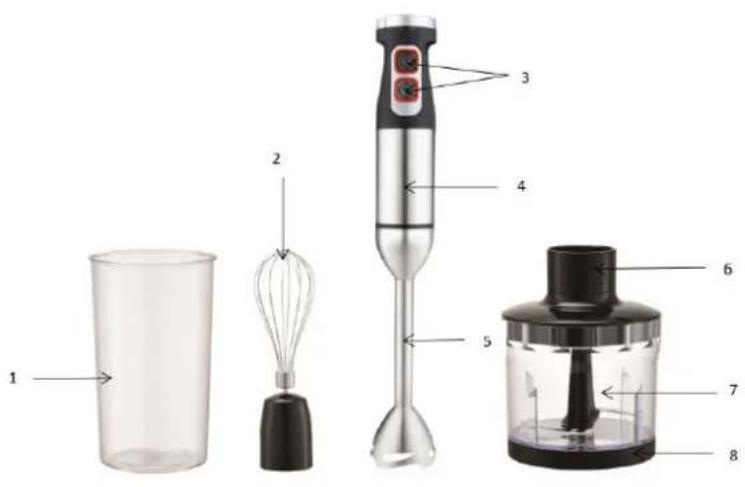

3. Operation buttons

5. Stainless steel arm

*Only available on the BT 5017 model Before use: o Make sure you have removed all packaging from the product. o Before using the product for the first time, clean the parts that will come into contact with food as described in the cleaning section. o Prepare the appliance according to the function you want to use. Use: o Unwind the cable completely before plugging it in. o Connect the appliance to the mains power supply. o Select the desired function.

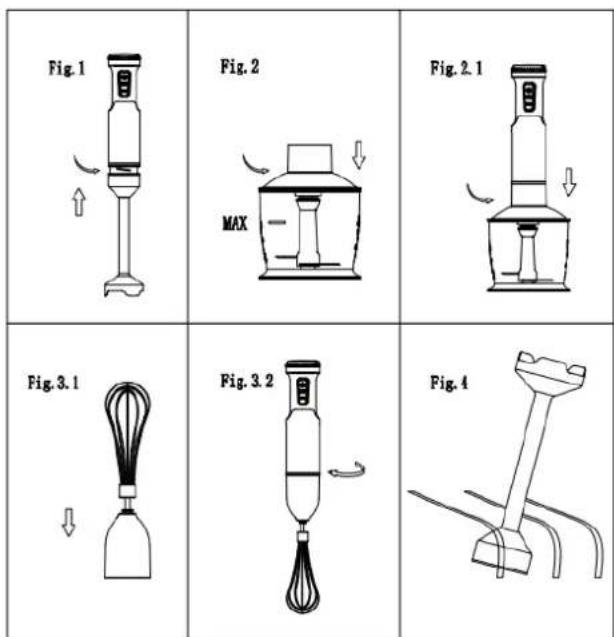

o Select the desired speed. o Work with the foods you want to process. Once you have finished using the appliance: o Turn off the device by releasing the on/off button. o Unplug the appliance from the mains. o Pick up the cable. o Clean the appliance. Mixer (Fig. 1): o This accessory is used to prepare sauces, soups, mayonnaise, smoothies, baby food, etc. o Place the arm on the motor body and rotate it in the direction of the arrow (Fig. 1). o Place the food you are going to prepare in the bowl and turn on the appliance. o For deeper cleaning, unlatch and remove the handle by turning it in the opposite direction of the arrow (Fig. 1). Chopper attachment (Fig. 2.1) (BT 5015): o This accessory is used to chop vegetables, meat, etc. o Place the food you are going to prepare in the chopping bowl with the blades inside and close the lid tightly. o Attach the adapter to the motor unit by turning it in the direction of the arrow. o Place the unit into the lid and turn on the appliance (Attention: Do not turn on the appliance until the entire unit is properly placed and connected). o Stop the appliance when the food reaches the desired texture. o Separate the unit from the cover and release the adapter. Rod accessory (Fig. 3.1): o This accessory is used to whip cream, beat egg whites, etc. o Insert the whisk into the motor unit (Fig. 3.1). Attach the adapter to the motor unit by turning it in the direction of the arrow (Fig. 3.2). o Place the food in a large bowl and turn on the appliance. For easier cleaning, detach the whisk from the adapter and pull out the whisk ring.

o Disconnect the appliance from the mains and allow it to cool before cleaning. o Clean the appliance with a damp cloth containing a few drops of dish soap and dry it. o Do not use solvents or products with an acidic or basic pH, such as bleach, or abrasive products, to clean the appliance. o Never immerse the appliance in water or any other liquid, or place it under the tap. o When cleaning, be especially careful with the blades, as they are very sharp. o It is recommended to clean the appliance regularly and remove any food residue. o If the appliance is not kept clean, its surface may deteriorate, which will negatively affect its lifespan and may make it unsafe. o The appliance can be washed in warm soapy water or in the dishwasher (gentle cleaning program). o The following parts can be washed in the dishwasher (gentle cleaning program): - Mixer arm - Glass - Rods o The draining/drying position of washable items in the dishwasher or sink should allow water to drain easily (Fig. 4). o Dry all parts before assembling and storing. Take the appliance to an authorized service center if it is damaged or any other problem arises. Do not attempt to disassemble or repair the appliance yourself, as this could be dangerous.

Recipe Recommended accessory Amount Steps to follow Time Mayonnaise

250ml Add an egg, salt, and a few drops of vinegar or lemon to the container. Fill with oil to the indicated level and turn on. Do not move or shake until the oil has combined. 35 s Fruit smoothie

Add the fruit and blend until smooth. 15 s CLEANING

600ML Melt 30g of butter in a saucepan over low heat, add 100g of flour and 30g of fried onion (previously chopped with the chopper attachment) and gradually add 500ml of milk. 4 5 s Beaten egg whites

3 egg whites Add the egg whites to a bowl and beat with a mixer, using vertical movements. 2 min Baby food

300g Cut 100g of apple, 100g of banana, 40g of oat flakes, a splash of water and blend. 25 s Oatmeal and banana pancakes

5 units Add one egg, one ripe banana, 40g of oat flakes, and cinnamon to taste, and blend well. Cook in a pan, turning over when bubbles begin to appear. 30-50 s Grated cheese

100g Cut into 1cm cubes and blend until desired consistency. 30-50 s Carrot

200g Peel, dice and blend until desired consistency. 30 sBT 3017 BT 5017 & BT 6017 XL

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU. GUARANTEE This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/asistencia-tecnica/ For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/ Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.BT 3017 BT 5017 & BT 6017 XL

• NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.

• NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.
