USER MANUAL BT 2770 Orbegozo

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

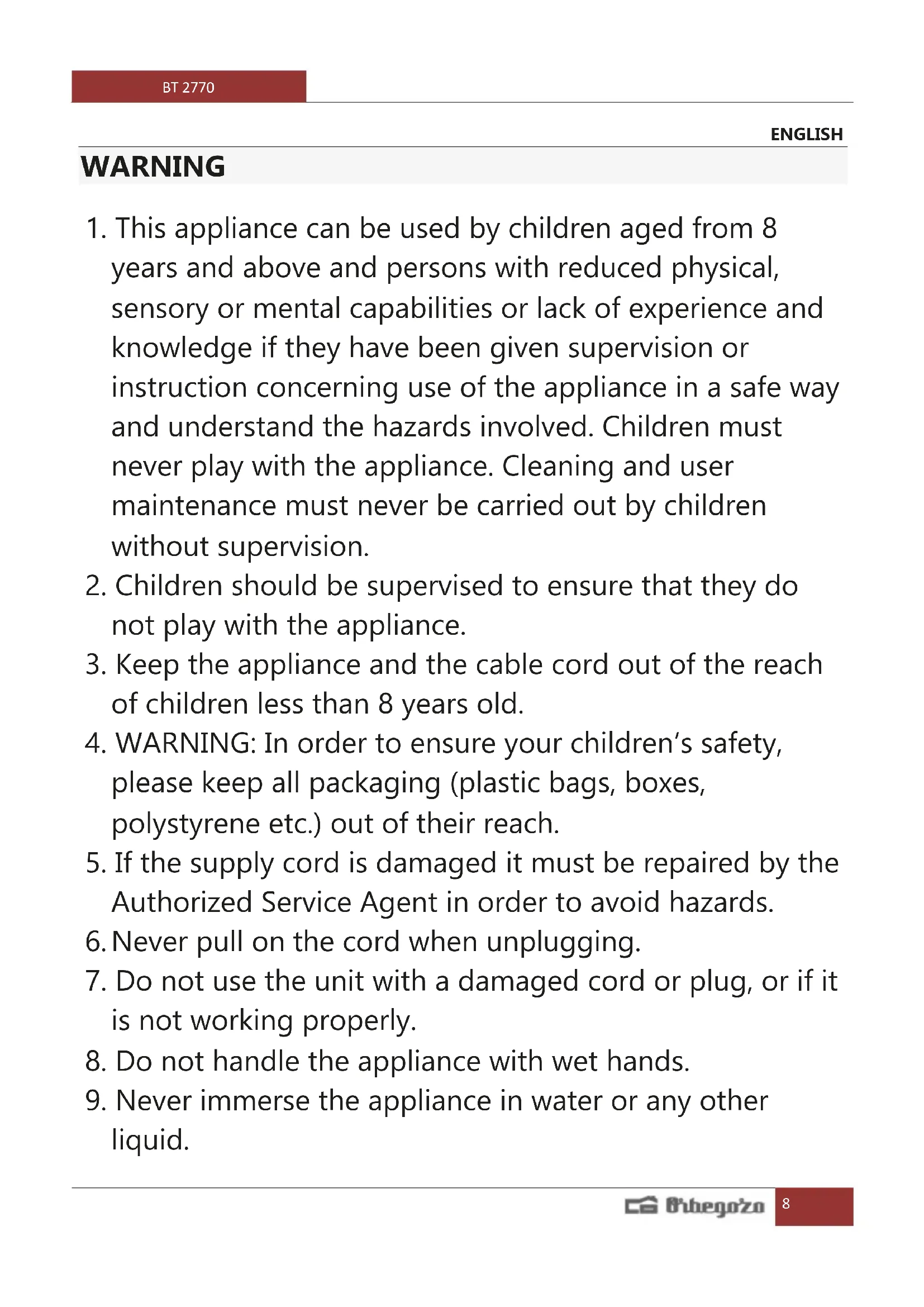

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach of children less than 8 years old.
4. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
5. If the supply cord is damaged it must be repaired by the Authorized Service Agent in order to avoid hazards.
6. Never pull on the cord when unplugging.
7. Do not use the unit with a damaged cord or plug, or if it is not working properly.
8. Do not handle the appliance with wet hands.

9. Never immerse the appliance in water or any other liquid.

10. Make sure the appliance has been unplugged before cleaning.

11. This appliance must be installed following the national regulations for electrical installations.
12. This appliance is for household use only.
13. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com

14. WARNING: In case of misuse, there is a risk of possible injury.

15. Always unplug the appliance from the mains before you assemble, disassemble, clean or make adjustments to any of the accessories.

16. Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance.
17. The appliance is at risk for injury in the event of misuse. Care should be taken when handling the cutting blades when the glass is empty and during cleaning.
18. Do not plug the appliance into the mains supply until it is fully assembled and always unplug before disassembling the appliance or handle the blade.
19. Do not let the motor unit, cord or plug get wet.

20. Never use a damaged appliance. If the appliance is damaged, take it to an authorized service center to check or repair it.

21. Do not let cord hang over the edge of table, counter or touch hot surfaces.

22. Do not use the appliance in hot ingredients.
23. This appliance is designed to process normal household quantities.
24. Short-time operating. Use the appliance for no longer than 1 minute and don't operate hard food for no longer than 15 seconds.
25. Pressing the switch I, you can implement the speed control to fit the speed you need. But switch II is immutable.
26. Always unplug blender if left unattended and before assembling, disassembling or cleaning.
27. If not used properly someone might get hurt.
28. You will need to take care when handling sharp blades, empty the container or during cleaning.

DESCRIPTION

1. Speed control.
2. Button I, normal speed.
3. Button II, turbo.
4. Motor unit.
5. Button for assembling stick
6. Stick
7. Stainless steel blade
8. Beaker
9. Whisk
10. Chopper
11. Chopper bowl.

BEFORE FIRST USE

Thoroughly clean the parts that come into contact with food before you use the appliance for the first time.

PREPARE FOR USE

1 Let hot ingredients cool down before you chop them, blend them or pour them into the beaker (max. temperature 80^ ).
2 Cut large ingredients into pieces of approximately 2cm before you process them.
3 Assemble the appliance properly before you put the plug in the wall socket.

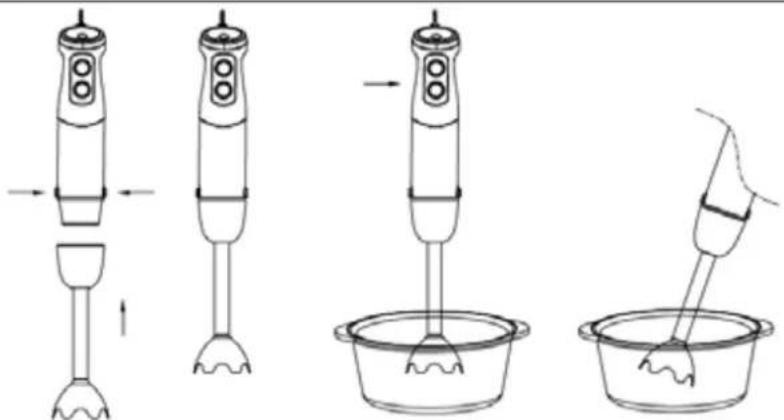

USING THE APPLIANCE

The hand blender is perfectly suited for preparing dips, sauces, soups, mayonnaise as well as for mixing and milkshakes.

1. Insert the blender stick onto the motor unit until it locks.
2. Introduce the hand blender in the vessel, then transfer inching switch and press the switch to operate it. Press the switch I or switch II to operate it.
3. Use the hand blender for no longer than 1 minute.
4. Caution: the blade is very sharp!
5. Caution: Don't operate food without water!

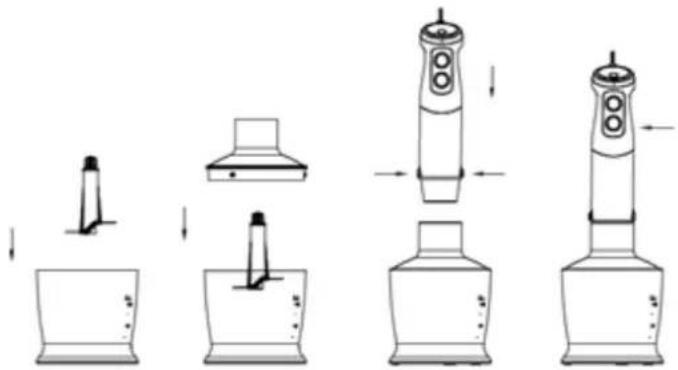

HOW TO USE THE CHOPPER

Chopper is perfectly suited for hard food, such as chopping meat, cheese, onion, herbs, garlic, carrots, walnuts, almonds, prunes etc.

1. Don't chop extremely hard food, such as ice cubes, nutmeg, coffee beans and grains.

Before chopping...

1. Carefully remove the plastic cover from the blade. Caution: the blade is very sharp! Always hold it by the upper plastic part.
2. Place the blade on the center pin of the chopper bowl. Press down the blade and lock bowl. Always place

the chopper bowl on the anti-slip base.

1. Place the food in the chopper bowl.
2. Place the chopping bowl lid on the chopper bowl.
3. Turn the motor unit on the chopping bowl lid until it locks.
4. Then transfer inching switch and Press switch I or switch II to operate the chopper. During processing, hold the motor unit with on hand and the chopper bowl the other.
5. After use, turn the motor unit off the chopping bowl lid.
6. Then remove the chopping bowl lid. Carefully take out the blade.
7. Carefully take out the blade.
8. Remove the processed food from the chopper bowl.
9. Don't operate hard food for no longer than 10 seconds.

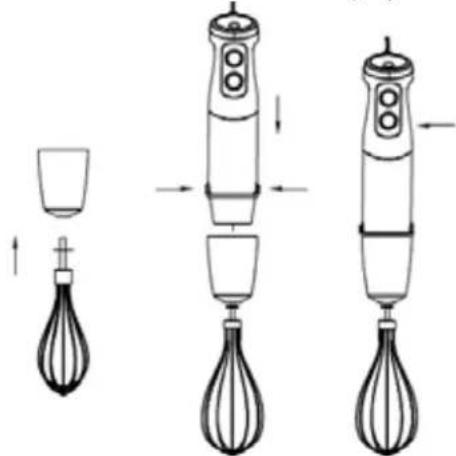

HOW TO USE THE WHISK

Use the whisk only for whipping cream, beating egg whites and mixing sponges and Ready-mix desserts.

1. Insert the whisk into the whisk holder, and then turn the gear box on the motor unit until it locks.

2. Place the whisk in a vessel and then transfer inching switch and press the switch I or switch II to operate it.

3. Use the whisk for no longer than 2 minute.

4. Turn the gear box off the motor unit after use. Then pull the whisk out of the gear box.

CLEANING

Cleaning the motor unit and chopping bowl lid only with a damp cloth only. Do not immerse the motor unit in water!

1. All other parts can be cleaned in the dish washer. However, after processing very salty food, you should rinse the blades right away.
2. Also, be careful not to use an overdose of cleaner or decalcified in your dishwasher.
3. When processing food with color, the plastic parts of the appliance may become discolored wipe these parts with vegetable oil before placing them in the dishwasher.
4. The blades are very sharp, please attention.
5. Unplug the appliance before cleaning.

Processing Guide

Ingredients	Maximum	Operation		Preparation	Speed
500ml chopper bowl
Meat	250g	15-20sec		1~2cm	II
Nut	100g	15-20sec		/	II
cheese	100g	15-20sec		1~2cm	II
bread	80g	8sec		1~2cm	II
onions	150g	8sec		1~2cm	II
biscuits	150g	8sec		1~2cm	II
Whisk
Egg white	2 eggs	2 minutes		/	II
Cream(37% fat)	250ml	2 minutes		/	II
Hand Blender
Vegetables soup	potatoes	100g	1 minute	2cm	II
	onion	100g		2cm	II
	carrots	100g		2cm	II
	Water	450g		/	II
Mayonnaise	Vegetable oil	150g	30sec	/	II
	egg	1		/	II
	vinegar	14g		/	II
Carrot juice	Carrot	300g	1 minute	2cm	II
	sugar	20g		/	II
	water	480g		/	II

Disposal of old electrical appliances.

The European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and

the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY: This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

FRANÇAIS

ATTENTION

We hereby certify that the equipment stated in this Guarantee Card has gone through strict quality control checks and bears a full Guarantee of 24 months, which shall come in force from the date of purchase.

During the 24-month guarantee period, the present certificate covers repairs, workmanship and spare parts for all manufacturing defects, however this guarantee does not cover those defects that have been caused due to the following: defects of installation, blows, bad use, breakage of plastic parts and external causes not related to the equipment. This guarantee does not include installation and maintenance.

This certificate of guarantee is cancelled on those accessories and components which are worn due to continuous use. Those which are perishable, such as plastic components, glass, lamps, filters, rubber or enamelworks which get worn due to wrongful use or reaction to outside agents such as heating, water or chemical products.

The present certificate of guarantee shall be nullified if the equipment is handled by any unauthorised personnel.

Customer's rights:

The seller should be responsible over the customer in the event of lack of conformity when the product is purchased. It is recognised the right of the customer to get the product repaired, substituted, decreased its price or the resolution of the contract.

The present certificate is only valid if it is accompanied by the receipt or invoice of purchase.
