USER MANUAL 67451 Lund

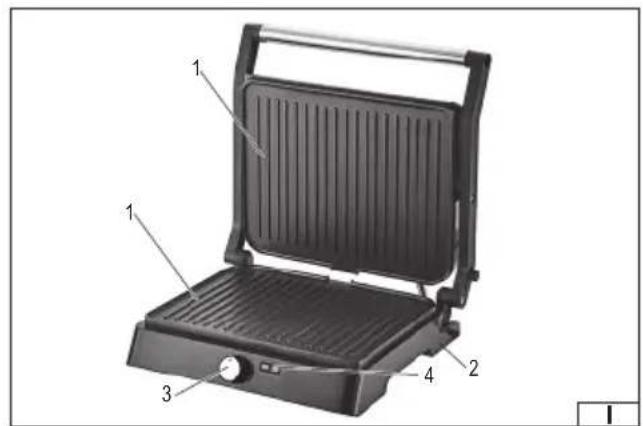

3. temperature control

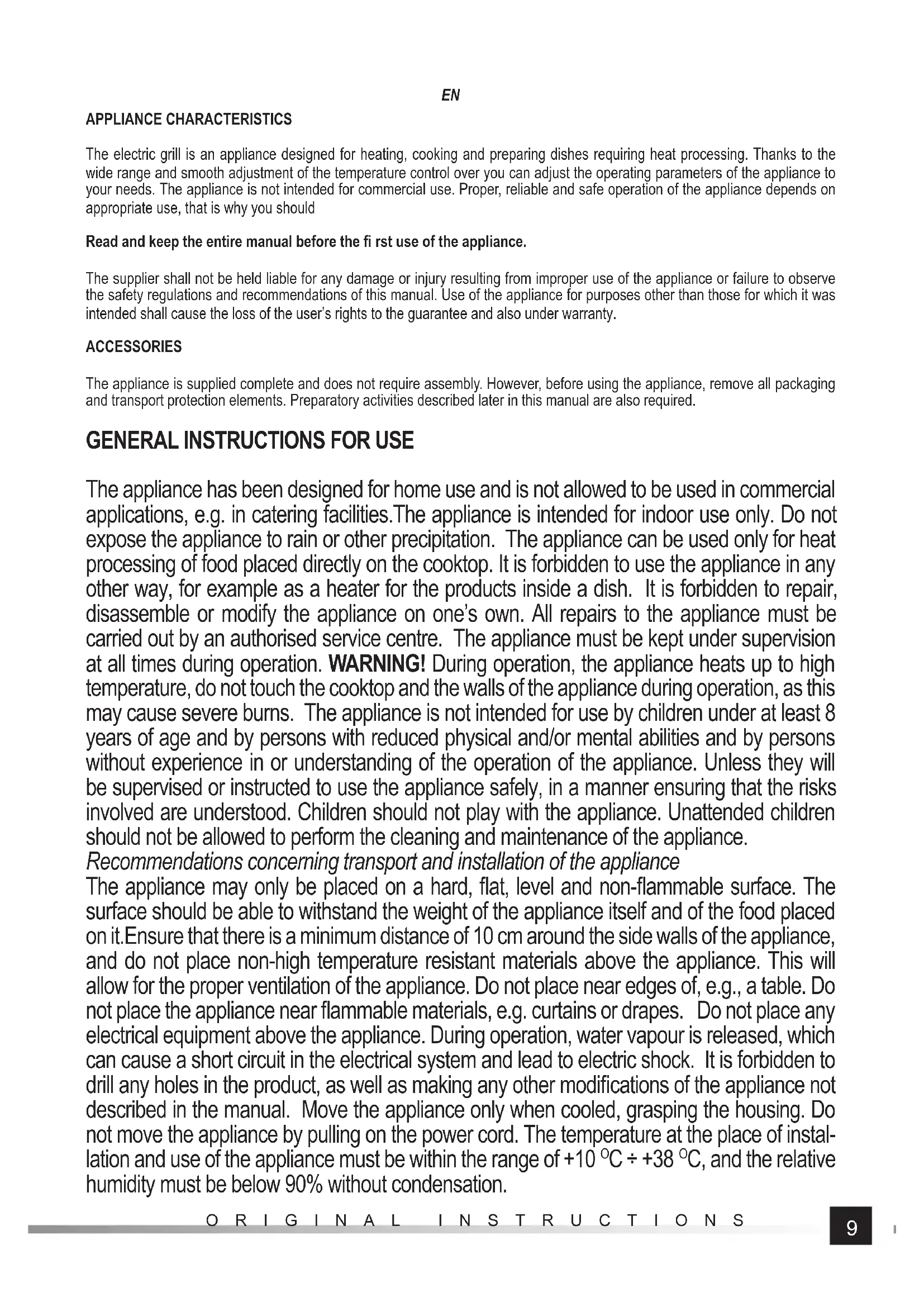

ORIGINAL INSTRUCTIONS APPLIANCE CHARACTERISTICS The electric grill is an appliance designed for heating, cooking and preparing dishes requiring heat processing. Thanks to the wide range and smooth adjustment of the temperature control over you can adjust the operating parameters of the appliance to your needs. The appliance is not intended for commercial use. Proper, reliable and safe operation of the appliance depends on appropriate use, that is why you should Read and keep the entire manual before the fi rst use of the appliance. The supplier shall not be held liable for any damage or injury resulting from improper use of the appliance or failure to observe the safety regulations and recommendations of this manual. Use of the appliance for purposes other than those for which it was intended shall cause the loss of the user’s rights to the guarantee and also under warranty. ACCESSORIES The appliance is supplied complete and does not require assembly. However, before using the appliance, remove all packaging and transport protection elements. Preparatory activities described later in this manual are also required.

GENERAL INSTRUCTIONS FOR USE

The appliance has been designed for home use and is not allowed to be used in commercial applications, e.g. in catering facilities.The appliance is intended for indoor use only. Do not expose the appliance to rain or other precipitation. The appliance can be used only for heat processing of food placed directly on the cooktop. It is forbidden to use the appliance in any other way, for example as a heater for the products inside a dish. It is forbidden to repair, disassemble or modify the appliance on one’s own. All repairs to the appliance must be carried out by an authorised service centre. The appliance must be kept under supervision at all times during operation. WARNING! During operation, the appliance heats up to high temperature, do not touch the cooktop and the walls of the appliance during operation, as this may cause severe burns. The appliance is not intended for use by children under at least 8 years of age and by persons with reduced physical and/or mental abilities and by persons without experience in or understanding of the operation of the appliance. Unless they will be supervised or instructed to use the appliance safely, in a manner ensuring that the risks involved are understood. Children should not play with the appliance. Unattended children should not be allowed to perform the cleaning and maintenance of the appliance. Recommendations concerning transport and installation of the appliance The appliance may only be placed on a hard, fl at, level and non-fl ammable surface. The surface should be able to withstand the weight of the appliance itself and of the food placed on it.Ensure that there is a minimum distance of 10 cm around the side walls of the appliance, and do not place non-high temperature resistant materials above the appliance. This will allow for the proper ventilation of the appliance. Do not place near edges of, e.g., a table. Do not place the appliance near fl ammable materials, e.g. curtains or drapes. Do not place any electrical equipment above the appliance. During operation, water vapour is released, which can cause a short circuit in the electrical system and lead to electric shock. It is forbidden to drill any holes in the product, as well as making any other modifi cations of the appliance not described in the manual. Move the appliance only when cooled, grasping the housing. Do not move the appliance by pulling on the power cord. The temperature at the place of instal- lation and use of the appliance must be within the range of +10

C, and the relative humidity must be below 90% without condensation.10

ORIGINAL INSTRUCTIONS Recommendations for connecting the appliance to the power supply Before connecting the appliance to the power supply, make sure that the voltage, frequency and performance of the power supply corresponds to the values shown on the appliance’s rating plate. The plug must fi t into the outlet. It is forbidden to modify the plug in any way.The appliance must be connected directly to a single power supply socket. It is forbidden to use extension cords, adapters or double sockets. The power supply circuit must be fi tted with a protective conductor and at least a 16 A protective device. Avoid contact of the power cord with sharp edges, hot objects or surfaces. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during operation. The power cord shall not be placed a manner that would pose a risk of tripping. The power supply socket should be located in a place where it is always pos- sible to quickly remove the appliance power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord. If the power cord or the plug are damaged, immediately disconnect it from the power supply and contact an authorised service centre of the manufacturer for replacement. Do not use the appliance with a damaged power cord or plug. The power cord or plug cannot be repaired and must be replaced with a new one that is free of defects if these components are damaged. Replacement of the power cord and plug must be carried out by an authorised service centre of the manufacturer. Instructions for the use of the appliance WARNING! The cooktop surface can be hot after use. Do not touch it, as it may cause se- vere burns. Allow the cooktop to cool down. When preparing dishes which may spread hot food fragments, personal protective equipment should be worn to protect from burns. Make sure that the fl oor near the appliance is not slippery. This will prevent slipping, which can cause serious injuries. Observe the food at all times and prevent it from burning during its preparation. Food left unattended can burn, which can cause fi re and serious burns. When preparing dishes, touch the cooktop surface only with utensils made of wood or plastic. The utensils should be able to withstand the temperature generated by the cooktop. It is forbidden to remove and distribute food using hands. If any food is left on the cooktop during or after preparation, remove the food remains before preparing another dish. Food remains can be burned, causing smoke, unpleasant smell, and aff ect the taste of the prepared food. They may also be the cause of fi re. Use utensils made of wood or plastic able withstand the tem- perature generated by the cooktop. Do not use sharp or metal utensils. Such utensils can damage the cooktop surface. If the preparation of a dish requires the use of oil, spread it on the surface of the cooktop with a soft brush. The appliance is not used for preparing dishes by deep-frying. APPLIANCE OPERATION Installation, start-up and operation of the appliance The appliance must be unpacked and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful for further transport and storage of the appliance. Prepare the appliance according to the instructions specifi ed in the “Product Maintenance” section. The appliance is activated by means of the temperature control knob. Turning the knob until it stops in the direction of the minimum temperature mark, “Min”, and setting it in the position marked with “0” means that the cooktop heating is switched off . After connecting the product to the power supply, the light marked “Power” will light, it means that the device is properly powered.11

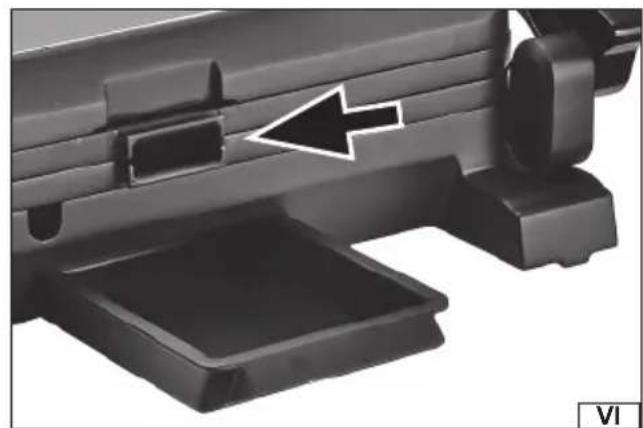

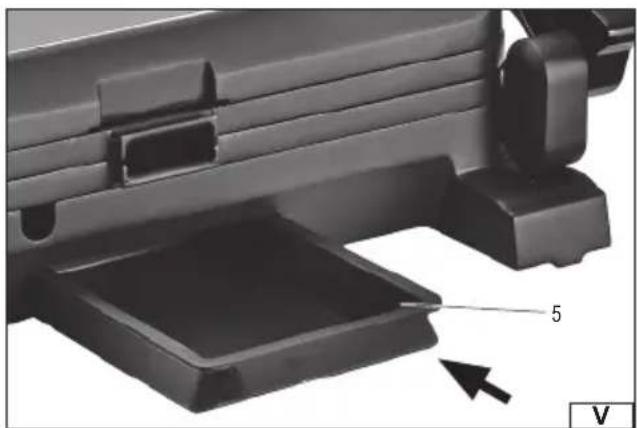

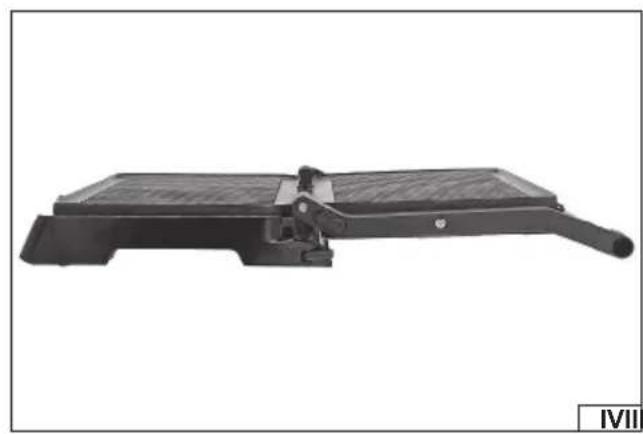

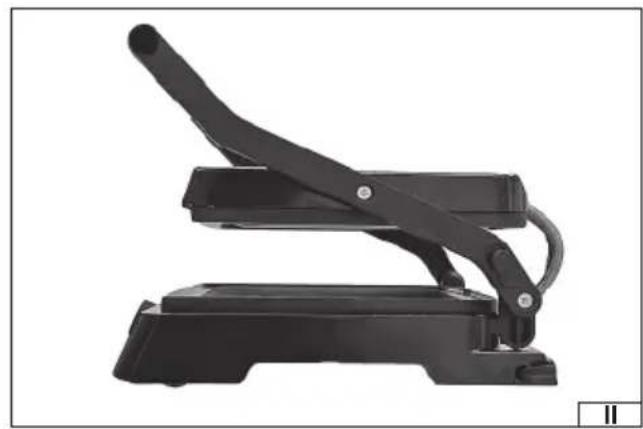

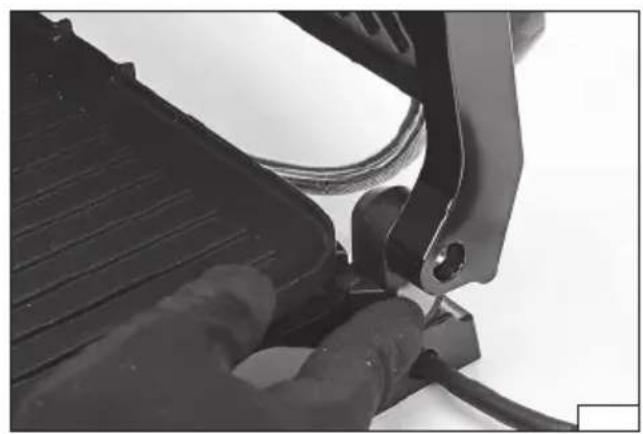

ORIGINAL INSTRUCTIONS Turn the temperature control knob in the direction of the “Max” temperature. It will start heating the heating plate, which will be signaled by the lighting of the “Ready” indicator. When the hob has reached the set temperature, the “Ready” indicator light will turn off . The device has a built-in thermostat that allows it to automatically maintain the set temperature. Each time the plate starts heating up, the “Ready” indicator lights up. The frequency at which the heater switches is determined by the set temperature and the ambient temperature. The higher the set temperature and the lower the ambient temperature, the more often the heater will be switched on. The grill has a lid which can be used in two ways. Closed lid allows food to be cooked on both sides. The lid is attached to the handle by means of a hinge, which allows the height of the lid to be adjusted to the prepared food (II). After sliding and holding the lid opening lock button (III), it is possible to open the lid at an angle of 180 degrees, which makes it possible to double the area of the cooktop (IV). The lid handle then acts as the base of the lid. The grill has a pull-out drip tray, which allows for temporary storage of e.g. fat melted from food during heating. The tray is slid into a special place in the base of the appliance (V). The cooktop has a gap in the edge (VI), which allows fat to fl ow from the cooktop to the tray. If the lid is fully opened, make sure that the drip tray is under the gap of both cooktops. WARNING! Special care should be taken when opening the heated lid. Use gloves which protect against high temperatures. The cooktop heats up to a high temperature, contact with unprotected body can lead to serious burns. When preparing food, care should be taken not to touch the cooktop, and the cooked food should checked using appropriate utensils, e.g. pliers or paddles made of plastic or wood. When selecting utensils, it is important to take into account whether they can withstand the temperature generated by the cooktop. Do not use metal utensils or utensils with sharp edges. Such utensils can damage the cooktop surface. Appliance maintenance CAUTION! All maintenance must be carried out with the appliance switched off . To do this, unplug the power cord from the socket. The appliance is used to prepare food placed directly on the cooktop, therefore care must be taken to maintain proper hygiene so that the preparation of food is safe. The cooktop can be protected with a preservative agent for transport and storage. Before fi rst use, after cleaning, heat the cooktop to its maximum temperature and allow all residues of the preservative agent to evaporate. The evaporating preservative agent can cause smoke, which is a normal phenomenon. Therefore, evaporation should be carried out in a place with effi cient ventilation. Do not inhale the vapours of the preservative agent. After the evaporation is fi nished and the smoke stops fl owing, disconnect the appliance from the power supply, wait until the cooktop cools down completely and clean it again with a cleaning agent. Only then can the cooktop be used for food preparation. Clean the cooktop and other parts of the appliance with a cloth soaked in a water solution of a mild dishwashing detergent. Remove any residues of the solution with a cloth soaked in water. After cleaning, wipe the appliance dry. The cooktop should be cleaned after each use, once it cooled down completely. Clean any food residue remaining on the cooktop to prevent it from burning when used again, and to prevent the machine’s performance from being impaired. Do not use solvents, caustics, alcohol, petrol or abrasives for cleaning. Clean the ventilation openings with a vacuum cleaner. Caution! Never immerse the appliance in water or any other liquid. The drip trays should be removed from the unit and cleaned with dishwashing liquid under running water or in a dishwasher. Appliance storage If the appliance will not be used for an extended period of time, disconnect it from the power supply. During storage, keep the appliance indoors, and make sure it is not exposed to dust, dirt, or moisture. It is recommended to store the appliance in its original packaging. Store the appliance in working position. Do not stack products in layers. Do not place anything on the product during storage. SPECIFICATION Parameter Units Value Catalogue No. 67451 Rated voltage [V~] 220 – 240 Rated frequency [Hz] 50 / 60 Rated power [W] 2200 Protection class I Cooktop size [mm] 290 x 230 Net weight [kg] 2.912 ORIGINALANLEITUNG
