USER MANUAL JBWFNR24RX JENN-AIR

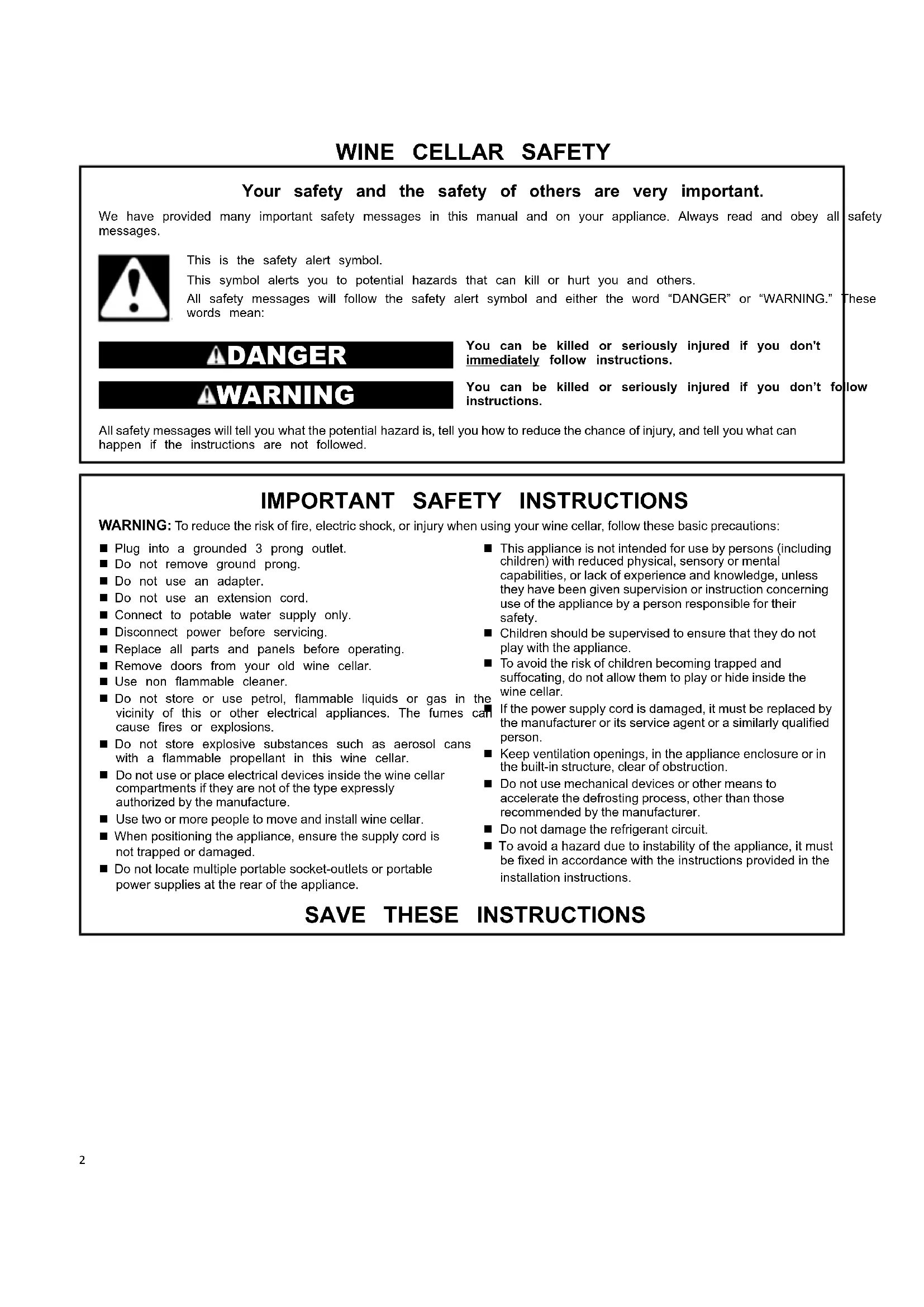

WINE CELLAR COLUMN OWNER’S MANUAL

Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean: DANGER You can be killed or seriously injured if you don't immediately follow instructions. WARNING You can be killed or seriously injured if you don’t follow instructions. All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of fire, electric shock, or injury when using your wine cellar, follow these basic precautions: Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Connect to potable water supply only. Disconnect power before servicing. Replace all parts and panels before operating. Remove doors from your old wine cellar. Use non flammable cleaner. Do not store or use petrol, flammable liquids or gas in the vicinity of this or other electrical appliances. The fumes can cause fires or explosions. Do not store explosive substances such as aerosol cans with a flammable propellant in this wine cellar. Do not use or place electrical devices inside the wine cellar compartments if they are not of the type expressly authorized by the manufacture. Use two or more people to move and install wine cellar. When positioning the appliance, ensure the supply cord is not trapped or damaged. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. To avoid the risk of children becoming trapped and suffocating, do not allow them to play or hide inside the wine cellar. If the power supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit. To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions provided in the installation instructions.

SAVE THESE INSTRUCTIONS3

Proper Disposal of Your Old Wine Cellar WARNING Suffocation Hazard Remove doors or lid from your old appliance. Failure to do so can result in death or brain damage. IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned wine cellars are still dangerous – even if they will sit for “just a few days.” If you are getting rid of your old wine cellar, please follow these instructions to help prevent accidents. Before You Throw Away Your Old Wine Cellar: Take off the doors. Leave the shelves in place so that children may not easily climb inside. Important information to know about disposal of refrigerants: Dispose of wine cellar in accordance with federal and local regulations. Refrigerants must be evacuated by a licensed, EPA-certified refrigerant technician in accordance with established procedures.

MAINTENANCE AND CARE

Cleaning WARNING Explosion Hazard Risk of Fire or Explosion. Flammable Refrigerant Used. Do Not Use Mechanical Devices to Defrost Refrigerator. Do Not Puncture Refrigerant Tubing. Clean the wine cellar once a month to avoid odor buildup. Wipe up spills immediately. IMPORTANT: Because air circulates between both sections, any odors formed in one section will transfer to the other. You must thoroughly clean both sections to eliminate odors. To avoid odor transfer and drying out of food, wrap or cover foods tightly. For stainless steel models, stainless steel is corrosion- resistant and not corrosion-proof. To help avoid corrosion of your stainless steel, keep your surfaces clean by using the following cleaning instructions. To Clean Your Wine Cellar:

1. Unplug wine cellar or disconnect power.

2. Remove all racks from inside the wine cellar.

3. Hand-wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a mild detergent in warm water. Always use the cloth and sponge in the direction of the steel’s satin finish. Do not bring cold glass parts into contact with hot water. Do not wash any parts of the wine cellar in a dishwashing machine since this could damage or irreparably deform the parts. Do not use abrasive or harsh cleaners such as window sprays, scouring cleansers, flammable fluids, muriatic acid, cleaning waxes, concentrated detergents, bleaches, or cleansers containing petroleum products on exterior surfaces (doors and cabinet), plastic parts, interior, and door liners or gaskets. Do not use paper towels, scouring pads, or other harsh cleaning tools. These can scratch or damage materials. To help remove odors, you can wash interior walls with a mixture of warm water and baking soda (2 tbs to 1 qt [26 g to 0.95 L] of water).

4. Clean the exterior surfaces.

5. Replace the racks.

Painted metal: Wash painted metal exteriors with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots. Stainless steel: Wash stainless steel surfaces with a clean, soft cloth or sponge and a mild detergent in warm water. Rinse surfaces with clean, warm water and dry immediately to avoid water spots. NOTE: When cleaning stainless steel, always wipe with the grain to avoid cross-grain scratching.4 Cleaning Of The Ventilation Grille, Filter, And Condenser WARNING Explosion Hazard Risk of Fire or Explosion due to Puncture of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used. In order for the unit to operate correctly, the ventilation grille, filter and condenser must be cleaned periodically. Clean the wine cellar once in six months. A reminder for this periodic cleaning is provided through sound alerts and a notification shown on the display. The condenser is located behind the lower or upper front ventilation grille, depending on the model. To clean it use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits. In the event of significant dust build up, the ventilation grille can be removed to allow a more thorough cleaning of the filter. After cleaning the condenser, touch the RESET icon in order to reactivate the warning signal in 6 months. To clean the condenser in the models Classic, Integrated or Brilliance follow the instructions:

1. Unplug wine cellar or disconnect power.

2. Wait for 30 minutes until the condenser cools down to ambient

3. Remove the removable grille under the door.

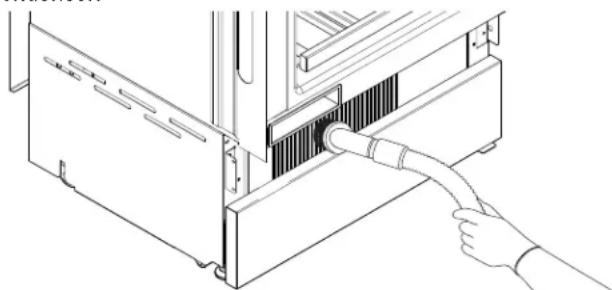

4. Use a vacuum cleaner with a soft brush to clean the grille, the

open areas behind the grille, and the front surface area of the condenser.

5. Replace the grille when finished.

6. Plug in wine cellar or reconnect power.

NOTE: If you are unable to clean the condenser, please call for service. Changing the LED Module IMPORTANT: The lights in wine cellar compartment use LED technology. If an LED module(s) do not illuminate when the wine cellar door is opened, call for assistance or service. See “Quick Start Guide” for contact information. Vacation and Moving Care Vacations Care If You Choose to turn the wine cellar off before you leave, follow these steps:

1. Remove all wine bottles from the wine cellar.

2. Unplug the wine cellar.

3. Clean the wine cellar.

4. Tape a rubber or wood block to the top of the door to prop it

open far enough for air to get in. This stops odor and mold from building up. Moving Care When you are moving your wine cellar to a new home, follow these steps to prepare it for the move.

1. Remove all wine bottles from the wine cellar.

2. Unplug the wine cellar.

3. Clean, wipe, and dry it thoroughly.

4. Take out all removable parts, wrap them well, and tape them

together so they don’t shift and rattle during the move.

5. Tape the door shut and tape the power cord to the wine cellar.

When you get to your new home, put everything back and refer to “Installation Instructions”. Wine Cellar Drawers and Shelves Wine Cellar Shelf To remove a shelf:

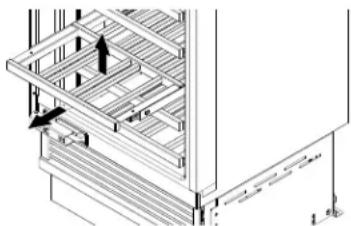

1. Remove wine bottles from the shelf.

2. Open the shelf to its full extension.

3. Tilt it upward until the wheels are free of their seat and extract

it. INSTALLATION REQUIREMENTS Tools and Parts IMPORTANT: Installer: Leave Installation Instructions with the homeowner. Homeowner: Keep Installation Instructions for future reference. Save these Installation Instructions for the local electrical inspector’s use.5 Tools Needed: Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here. Phillips screwdriver Wood drill 1/8" (2.5 mm) bit for Wood 5/16" (8 mm) bit for Walls 3/8" (10 mm) bit for Walls 11/16" (17 mm) Wrench 3/4" (19 mm) Wrench 1/2" (13 mm) socket for adjusting the rear leveling legs

2.5 mm Allen Wrench for installing handles

Parts Supplied: Cleaning Kit Anti-tipping kit Overlay panel mounting kit Product Dimensions

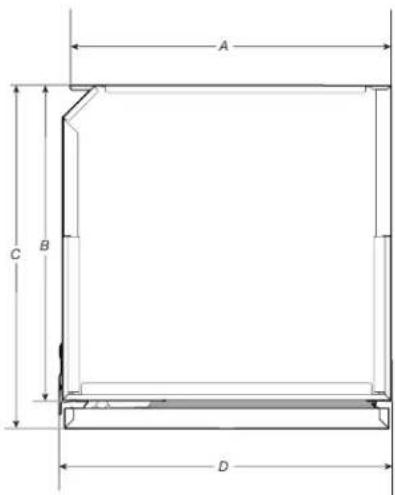

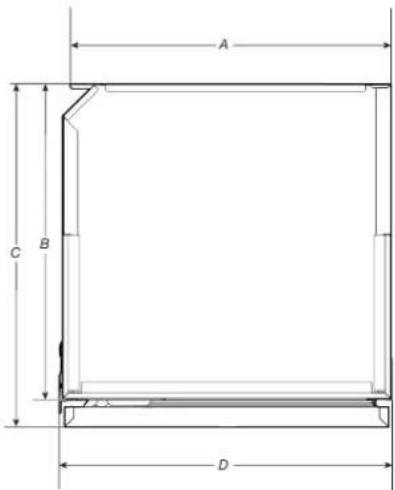

" (435 mm) and 24" model: 23" (585 mm) B. 22" (560 mm) C. 24" (610 mm) D. Width of appliance with mounting brackets installed (effective width) 18" model: 17

" (455 mm) and 24" model: 23

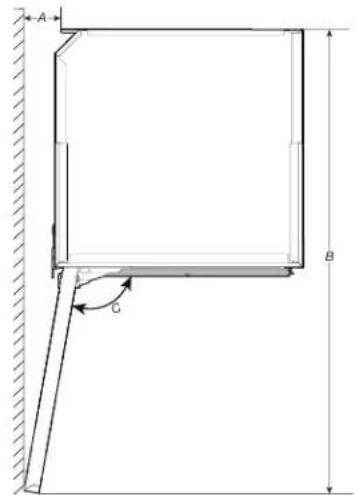

" (608 mm) Door Swing Dimensions The location must permit door to open to a minimum of 90°. Allow 1/4" (15 mm) minimum space between the side of the wine cellar and a corner wall. NOTE: More clearance may be required if you are using wood overlay panels, custom handles, or extended handles. ABC A. Minimum distance from the wall (hinge side) 18" model: 3

" (82 mm) and 24" model: 4

" (1036 mm) and 24" model: 46

" (1187 mm) C. 105°6 Location Requirements WARNING Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from appliance. Use nonflammable cleaner. Failure to do so can result in death, explosion, or fire. IMPORTANT: This wine cellar is designed for indoor, household use only. This wine cellar is intended to be used in a household and similar applications such as: Staff kitchen areas in shops, offices and other working environments. Farm houses and by clients in hotels, motels and other residential type environments. Bed and breakfast type environments. Catering and similar non-retail applications. NOTEs: For the wine cellar to be flush with the front of the base cabinets, remove any baseboards or moldings from the rear of the opening. See “Product Dimensions” and later in this section, “Opening Dimensions.” It is recommended that you do not install the wine cellar near an oven, radiator, or other heat source. Do not install in a location where the temperature will fall below 55°F (13°C). For best performance, do not install the wine cellar behind a cabinet door or block the base grille. Catering and similar non-retail applications. Single Unit - Opening Dimensions

A. Area to be left clear to install Anti-tip brackets B. 3

" (82 mm)C. Area to be left clear for the anti-tipping brackets 5" (127 mm)D. Cutout height 84" (2134 mm) FDAEBC A. SoffitB. 25" (635 mm)C. 8" (203 mm)D. 14" (356 mm) Upper furniture returnE. Wine Cellar Width 18" (457 mm) or 24" (610 mm)F. Furniture return Area above wine cellar must be clear to attach the anti-tip brackets and identify the stud location within this area A. The minimum gap between the panels and cavity should be 1/16" (1 mm). Multiple Unit - Opening Dimensions A B

18" 24" 18" 36" (914 mm) 42" (1067 mm) 24" 42" (1067 mm) 48" (1220 mm) If wine cellar A is 18" (457 mm) and wine cellar B is 24" (610 mm) the required opening width will be 18"+24" = 42"7 Electrical Requirements WARNING Electrical Shock Hazard Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter. Do not use an extension cord. Failure to follow these instructions can result in death, fire, or electrical shock. Before you move your wine cellar into its final location, it is important to make sure you have the proper electrical connection. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person. Do not use a cord that shows cracks or abrasion damage along its length or at either the plug or connector end. Recommended Grounding Method A 110 V-120 V, 60 Hz AC only, 15 A fused, grounded electrical supply is required. Use a dedicated 15 A circuit breaker that is easy to reach, so it can be turned off quickly before installation or during maintenance. Electrical connections located directly behind the wine cellar must be recessed. NOTE: Before performing any type of installation, cleaning, or removing a light bulb, turn the wine cellar to OFF. Depending on your model, turn the wine cellar control to the word OFF, or press the wine cellar down arrow touch pad until a dash (–) appears in wine cellar displays as shown. Disconnect the wine cellar from the electrical source. When you are finished, reconnect the wine cellar to the electrical source and reset the temperature controls to the desired setting. See “Quick Start Guide.” AEWEWEEE EEEE A. Electrical connection INSTALLATION PREPARATION Unpack the Wine Cellar WARNING Excessive Weight Hazard Use two or more people to move and install or uninstall appliance. Failure to do so can result in back or other injury. Remove the Packaging Dispose of/recycle all packaging materials. Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your wine cellar. For more information, see “Wine Cellar Safety.” Wine cellar is attached to the packaging base with four bolts. Follow the below steps to release the wine cellar from base. ABCADE A. BoltsB. Adjusting boltC. Front fixing bracketsD. Back fixing bracketsE. Screw

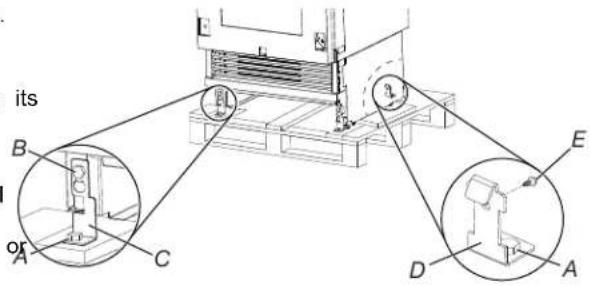

1. Unscrew the four bolts (A) by using 3/4" (19 mm) wrench.

2. To release the front fixing bracket (C), loosen the rear wheel

adjusting bolt (B) using a 13 mm (1/2") wrench. Avoid straining this bolt one way or the other at its stop points so as to avoid damaging the rear leveling system. Ensure that the front leveling legs are retracted, so that all four wheels are able to contact the floor for easiest maneuvering.

3. Remove the screws (E) to release the fixing bracket (D).

4. Remove the fixing brackets (C) and (D).

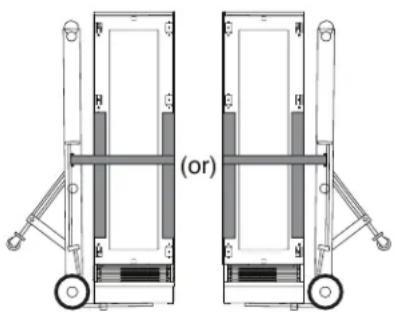

5. Remove the wine cellar and place it on the floor using a

suitable, heavy-duty hand truck from the back of the unit.

6. Adjust the rear rollers down [clockwise on the leveling rod (B)]

until they make contact with the floor, and raise the rear of the wine cellar enough so that it will roll freely.

7. Unscrew the rear wheel adjusting bolt (B) to release the fixing

bracket (C) by using 3/4" (19 mm) wrench. When Moving Your Wine Cellar:8 The appliance must always be transported upright. If this is notpossible it should be laid flat, resting on its back.IMPORTANT:• If transported on its back, the unit must be placed uprightfor a minimum of 24 hours prior to plugging it in and turningit on to allow lubricating oils to return to the compressor(s).Your wine cellar is heavy. When moving the wine cellar forcleaning or service, be sure to cover the floor withcardboard or hardboard to avoid floor damage. Always pullthe wine cellar straight out when moving it. Do not wiggle or“walk” the wine cellar when trying to move it, as floordamage could occur.• All four leveling legs must contact the floor to support andstabilize the full weight of the wine cellar. Clean Before Using After you remove all of the package materials, clean the inside ofyour wine cellar before using it. See the “Cleaning” section in thismanual. Move Wine Cellar To Final Location WARNING Tip Over HazardWine cellar is top heavy and tips easily when notcompletely installed.Keep doors taped closed until wine cellar is completelyinstalled.Use two or more people to move and install wine cellar.Failure to do so can result in death or serious injury. When Moving Your Wine Cellar: Your wine cellar is heavy. When moving the wine cellar forcleaning or service, be sure to cover the floor with cardboardor hardboard to avoid floor damage. Always pull the wine cellarstraight out when moving it. Do not wiggle or “walk” the winecellar when trying to move it, as floor damage could occur.IMPORTANT: All four leveling legs must contact the floor tosupport and stabilize the full weight of the wine cellar.1. Place an appliance dolly under the ether side of the winecellar as shown. Place the corner posts from the packingmaterials over the trims as appropriate. Slowly tighten thestrap. (or)

2. Move the wine cellar to the installation structure.

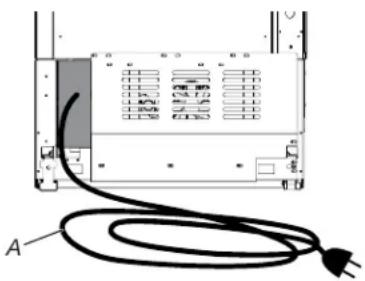

Connect to the Electrical Power Supply WARNING Electrical Shock HazardPlug into a grounded 3 prong outlet.Do not remove ground prong.Do not use an adapter.Do not use an extension cord.Failure to follow these instructions can result in death,fire, or electrical shock.

A. Power Cord1. Unwind the electric cable, and connect it directly tothe wall socket.2. Make sure the wine cellar is in Stand-by mode and that alllights are off; if required, press the power button to turn off thewine cellar. Leveling WARNING Excessive Weight HazardUse two or more people to move and install or uninstallappliance.Failure to do so can result in back or other injury.IMPORTANT: All four leveling legs must contact the floor tosupport and stabilize the full weight of wine cellar. Rollers are formoving the wine cellar, not for permanent support.9 After moving the wine cellar to its final location:

1. Remove the bottom grille.

2. Use a 11/16" (17 mm) socket driver to turn the leveling bolts

clockwise or counterclockwise to adjust the legs to the floor as shown. The rollers should be off the floor. ABBA A. Leveling legs B. Adjusting bolts

3. Adjust the leveling legs to level and align the wine cellar from

left to right and front to back so that the wine cellar is level and aligned with the cabinets.

4. Continue adjusting the leveling legs until the top of the wine

cellar is making contact with the bottom of the solid soffit, or the bottom of the anti-tip boards, if anti-tip boards were used.

5. Re-install the bottom grille.

IMPORTANT: Adjust in small increments to keep from damaging the cabinet trim and causing problems with the door alignment or top grille fit. Custom Wood Panel Preparation Dimensions

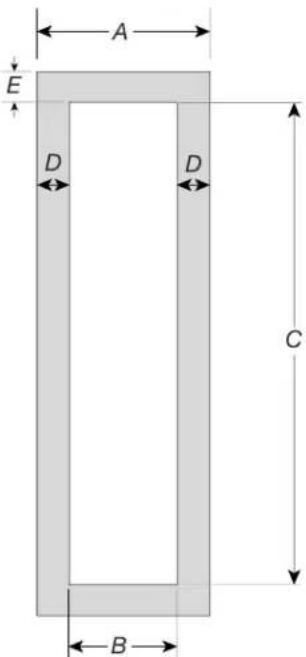

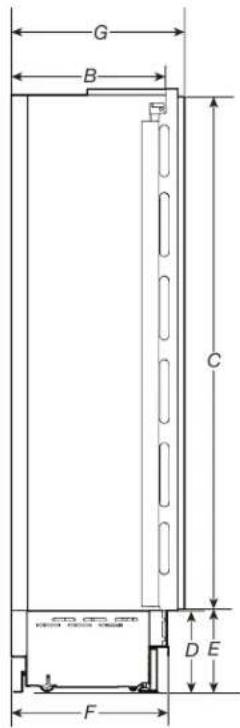

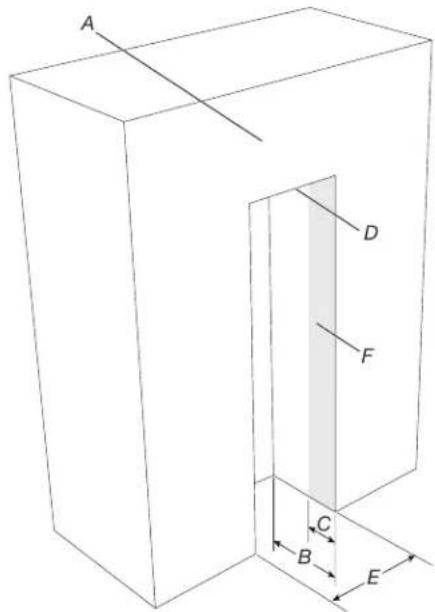

" (1929 mm) minimum and 79

" (451 mm) for 18" model and 23

" (604 mm) for 24" model B. 6

" (173 mm) for 18" model and 12

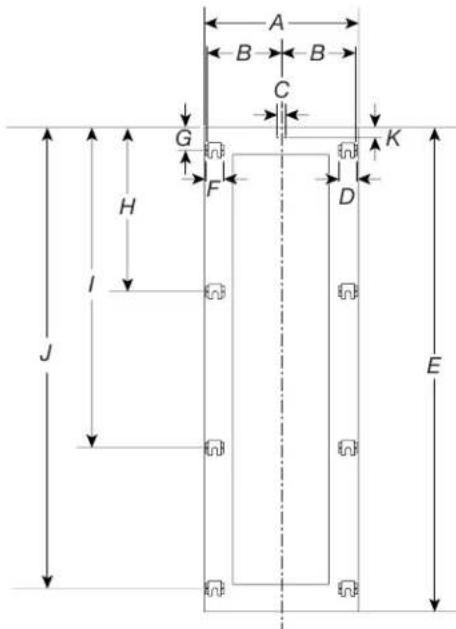

" (200 mm) Mounting Brackets Hole positions:

" (451 mm) for 18"model and 23

" (604 mm)for 24" model B. 7

" (200 mm) for 18"model and 10

" (275 mm)for 24" modelC. 1/4" (6.4 mm) from centeron both the sides (1/2"[12.7 mm] total) D. 1

" (1929 mm) minimum and

" (690.5 mm)I. 50" (1271.5 mm)J. 70

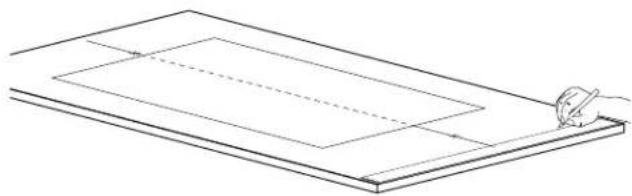

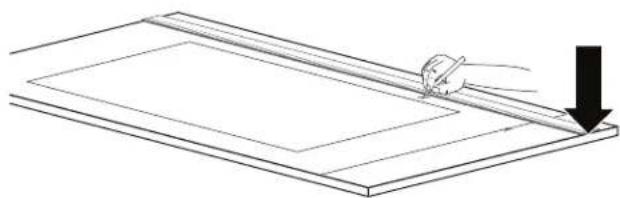

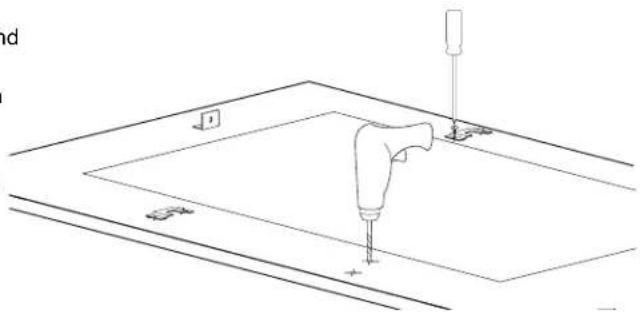

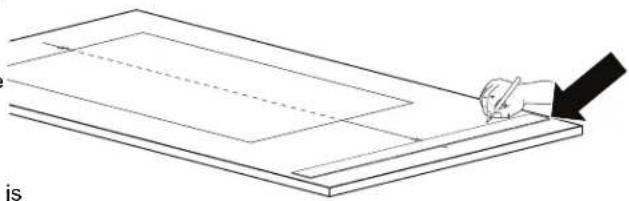

" (112 mm)10 Panels can have thickness ranging between 3/4" (19 mm) and

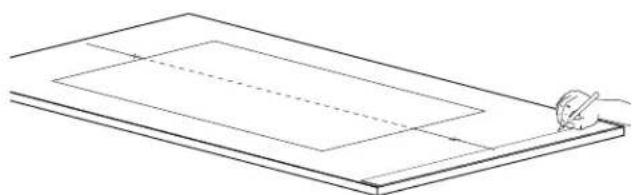

"(28 mm). IMPORTANT: Custom wood panels must have a minimum of 3/4" (19 mm) material at all the hardware locations. Maximum allowable door panel weight is 34 kg (75 lbs). Exceeding these weights could void your warranty for any service issues which can be attributed to overweight panels. The hinging mechanism on wine cellar is considered to be ‘Zero-clearance’. The door width specified below assume the minimum niche width is being used and a 1/8" (3.5 mm) reveal is desired around the panels. Adjust your panel dimensions accordingly to your own design criteria considering your niche width and your reveal. Minimum distance should not be less than 1/16" (1.5 mm). INSTALLATION INSTRUCTIONS Custom Wood Panel Installation Pinch Hazard CAUTION: Installation of door panels with less than a 3/8" (905 mm) gap between the door panel and the adjacent cabinet increases the risk of potential pinching. The dimensions of the panels are indicated in the table and drawings on below pages. According to the requirements for aligning with other kitchen structures, the door panel can be higher than the upper edge and lower edge of the wine cellar door. The panels must be mounted using special brackets which attach to adjustable devices provided on the door with brackets that anchor and adjust the panel’s vertical direction. Brackets and fixing screws are provided with the wine cellar and must be applied to the panel as indicated. Follow the instructions: To prepare the panels to be mounted on the wine cellar, follow these steps, working on the back of the panel. Door Panel Use the dimensions shown in the ‘Holes positions’ section on page TBD for the following steps. Draw a vertical center line on the panel from top to bottom. Starting from the bottom edge of the panel, mark the position of the brackets. Mark the external and then the internal hole. Position the brackets on each set of marks to make sure they are aligned, if you choose to drill small pilot holes for the screws pay special attention to not pass through the panel entirely. Screw the brackets in place. Prepare The Wine Cellar Door For Panel Installation Prepare the Wine cellar door for panel mounting by threading the shoulder bolts into the recessed receivers and the set screws into the other hole. Ensure the end with the hex key socket is threaded into the door and not on the visible end. Thread this in far enough that it is flush with refrigerator door face so as not to interference with hanging the panel. You will adjust these later from the inside of the door.

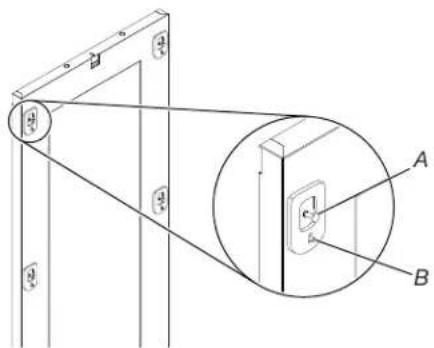

A. Shoulder bolt for hanging brackets B. Set screw to adjust the depth of panel11 Mount The Custom Wood Panel On The Door

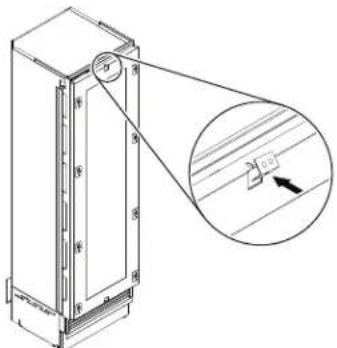

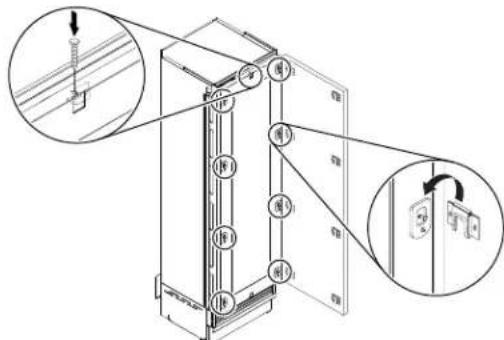

1. Attach the panel to the fixing devices starting from the top

2. At this point, alignment between the panel and adjacent

cabinets can be adjusted using the alignment brackets and small brackets.

3. Vertical alignment: Tighten or loosen the wine cellar top

adjustment screw to raise or lower the panel.

4. Depth alignment: Working from the inside of the door, after

lifting up the magnetic seal on the handle side and rotating the plastic covers on the hinge side, adjust the panel position in the Z-direction by adjusting the shoulder bolts and setscrews with the 4 mm hex key in conjunction with each other finally locking each mounting position in place.

A. Shoulder Screw adjustment B. Locking Screw adjustment NOTE: Once the front panel has been adjusted, check that the gasket has been repositioned correctly to assure the door is closing correctly and avoid operational errors of the unit. To ensure proper ventilation for your wine cellar, allow for 5 mm of space behind the wine cellar to avoid overheating. To avoid floor damage, make sure levelers are raised (not touching floor) and wine cellar is on rollers before moving. Single Unit Installation

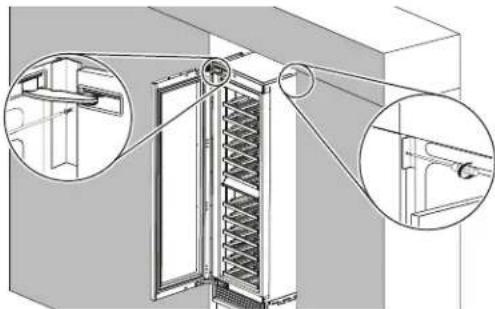

1. Push the wine cellar into the opening.

2. Always install front panel on door before pushing the wine

cellar into its final position inside the cutout or structure.

3. Check the leveling of the wine cellar, and correct it by

adjusting its feet and wheels.

4. Open the door and secure the appliance to the adjacent

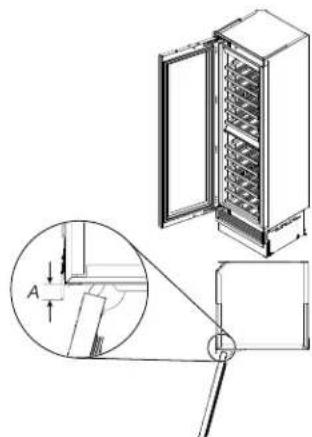

cabinets using the (x10) spacer brackets. Maximum cabinet depth over “Integrated” wine cellar with single door panel It is possible to design a panel which will be the same for the structure where wine cellar is going to be place and the cabinet on the top of the same structure. In this case, the total depth of the cabinet without the door (above the wine cellar) must not exceed the total depth of the wine cellar itself.

" (47 mm) + front panel thickness This will allow the panel attached to the wine cellar door to open correctly without interference during its rotation up to 105°.12 Multiple Unit Installation These JennAir

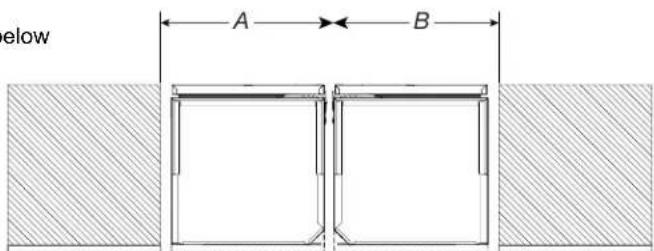

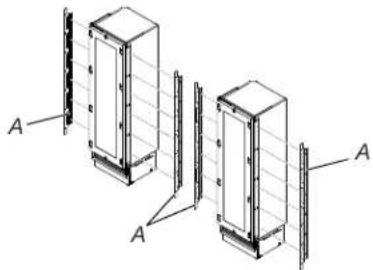

wine cellar columns can be installed along with JennAir

NOTE: When installing a pair of wine cellar columns, the heater is not needed.

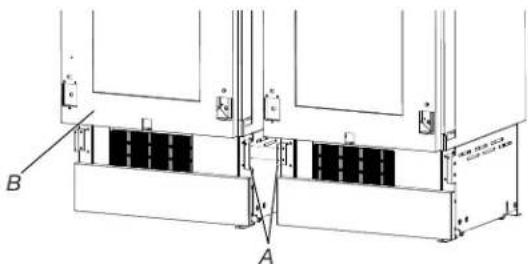

2. Remove bottom grilles and toe-kicks. Then, attach lower front

A. Bolts B. Front of the unit

3. Install the top joining bracket, and bracket on the back-side.

A. Joining bracket B. Back of the unit

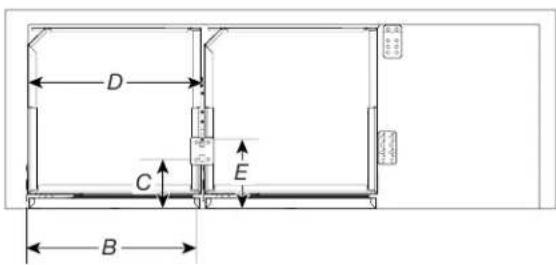

" (430 mm) for 18" model and 22

" (583 mm) for 24" model C. 4

" (454 mm) for 18" model and 23

" (607 mm) for 24" model E. 8

5. Push the wine cellars into the opening.

6. Push the wine cellars until the joining brackets (front) and the

anti-tip bracket (rear) are in contact with the stopper pin.

A. Joining bracket14

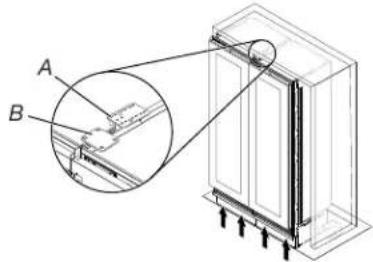

7. Raise the wine cellars so that the pin on the anti-tip bracket is

inserted into the hole of the front union bracket.

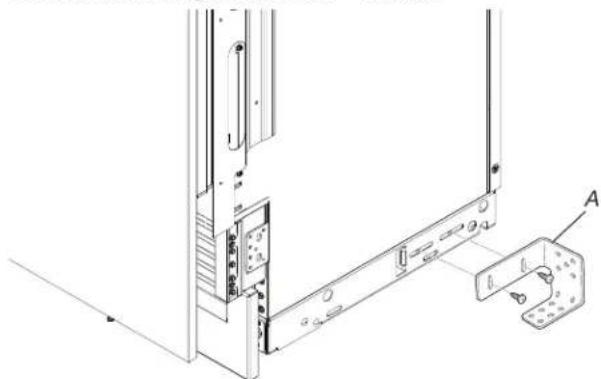

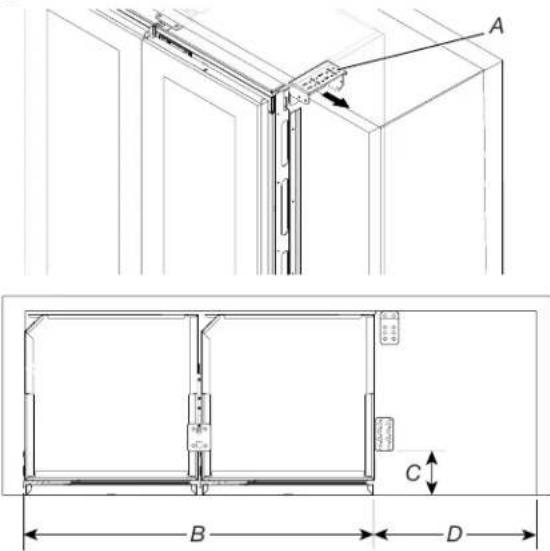

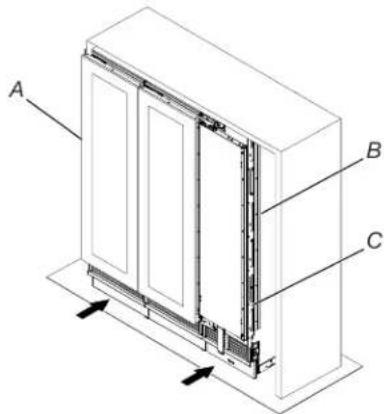

A. Anti-tip bracket B. Joining bracket Joining Wine Cellar Columns To Refrigeration/Freezer Column NOTE: When installing refrigerator/freezer column with wine cellar columns, please install the heater according to the instructions provided with refrigerator/freezer columns.

1. Secure the bracket to the wine cellar unit, ensuring proper

alignment with designated mounting points.

2. Install the bottom anti-tip bracket in between the wine cellar

3. Install the top anti-tip bracket (Refrigerator/Freezer Column to

Wine Cellar Column) between the wine cellar column and refrigerator/freezer column.

" (902.5 mm) for 18" model and 47

" (1208.5 mm) for 24" model C. 4

4. Install the wine cellar column(s) as per “Single Unit

Installation” section.

5. Push the refrigerator/freezer column into the opening.

6. Secure the wine cellar columns to the top anti-tip bracket.

A. Top anti-tip bracket

7. Adjust the refrigerator/ freezer column height.15

8. Secure the refrigerator/ freezer column with the wine cellar

9. Secure the side trims with the opening.

WINE CELLAR FEATURES

Operating Your Wine Cellar

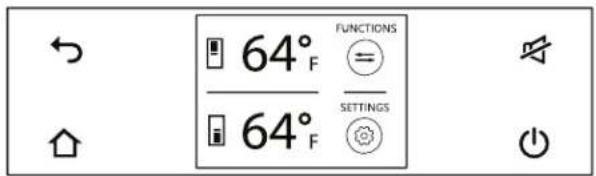

A. Upper storage area B. User interface C. Lower storage area User Interface BACK Touch the BACK icon to go back to the previous screen. HOME Touch the HOME icon to go back to the home screen ALARM Touch the ALARM icon to view the alarm tone functions and to deactivate them. ON/OFF Touch the icon to turn the unit ON or OFF Turning ON

1. Touch the ON/OFF button.

2. During the start up, Wait for 3 minutes. The initial tests will run

3. After the startup, the display will show the main screen with

the ambient temperature measured from the inside the compartments. The unit will automatically start to cool down until reaching the preset temperatures.

4. When the appliance is first switched on, it is recommended to

wait at least 12 hours before placing any wines inside the unit. During this time, remove any error messages by touching the ALARM button. Turning OFF

1. Touch the ON/OFF button.

2. Touch YES to confirm the action.

3. Touch YES to confirm again.

Adjust Compartment Temperatures The wine cellar columns come with factory-preset optimum temperatures for each compartment.

1. Touch desired compartment icon.

ABC A. Upper storage area B. Lower storage area C. Present temperatures

2. To adjust the upper compartment temperature, touch the

desired compartment icon and scroll through the temperature values up or down to select desired temperature.

3. To adjust the lower compartment temperature, touch the

desired compartment icon and scroll through the temperature values up or down to select desired temperature.

4. Touch OK to confirm the selected temperature.16

NOTE: The displayed temperature may vary slightly with respect to the set temperature if the doors are continuously opened or if large quantities of wines at ambient temperature are placed inside the wine cellar. It takes 6 to 12 hours to reach the selected temperature. Recommended Temperatures Time of conservation Improvement of wine over time and its duration usually depends on the character of the variety and its type. The following chart shows the best period of conservation and aging for various types in ideal conservation conditions offered by your appliance. In any case, follow the suggestions offered by the bottle producer, in particular for the finest wines.

TYPE OF WINE CONSERVATION

TEMPERATURE TIME OF CONSERVATION New wines (Vin Nouveau) from 12°C (54°F) to 14°C (57°F) 6 months Sweet sparkling wines from 8°C (46°F) to 10°C (50°F) 1 year Rosé from 10°C (50°F) to 14°C (57°F) 1 year Semi-sparkling wines from 10°C (50°F) to 12°C (54°F) 1-2 years Normal white wines from 10°C (50°F) to 14°C (57°F) 1-2 years Light red wines from 12°C (54°F) to 14°C (57°F) 2 years Dry sparkling wines from 8°C (46°F) to 10°C (50°F) 2 years Classic sparkling wines from 8°C (46°F) to 10°C (50°F) 3-4 years Barrique and Vigorous white wines from 8°C (46°F) to 12°C (54°F) 3-5 years Normal red wines from 14°C (57°F) to 16°C (61°F) 3-5 years Barrique and Vigorous red wines from 14°C (57°F) to 18°C (64°F) 7-10 years Straw wines or Liquorous wines from 16°C (61°F) to 18°C (64°F) 10-15 years SETTINGS Touch the SETTINGS icon on the home screen. You will find the following menu options under the settings. DATE TIME °C/°F LANGUAGE DEMO MODE RESET INFO SYSTEM SERVICE DATE

3. Scroll up and down to select the desired day and touch OK.

4. Scroll up or down to select the desired month, then touch OK.

5. Scroll up or down to select the desired year, then touch OK.17

3. Touch 12 hour or 24 hour clock type as per requirement.

4. Scroll up or down to select the hours and then touch OK.

5. Scroll up or down and select the minutes and then touch OK.

3. Scroll up or down to select the degrees in Centigrade or

3. Scroll up or down to select the desired language and press

3. Enter the PASSWORD necessary to activate, that must be

requested from the Manufacturer. Default password: 1–1–3–4

4. Touch the ON or the OFF icon.

RESET This offers the possibility to reset default factory settings and cancel any previous changes.

3. Information about the appliance is displayed.

SERVICE The Service function is reserved for the Manufacturer’s Customer Service. FUNCTIONS

When this function is turned on, the lights inside the wine cellar column stay on even when the door is closed. When the door is open, the lights are white to maximize visibility; when the door is closed, the wine cellar will illuminate with amber colored light. The long wave length of amber colored light helps filter out the shorter wave length of UV light, aiding in wine preservation. To turn ON/OFF Ambra Lighting:

lighting. Stocking The Wine Cellar Columns To Stock the Wine Cellar Column NOTE: The wine rack can be stocked with the bottles facing either direction, however, to optimize storage adjacent bottles should be facing in opposite.

1. Starting on the left-hand side, place the first bottle on the

bottom of the rack with the neck of the bottle facing the front of the wine cellar.

2. Place the next bottle on its side with the neck of the bottle

facing the back of the wine cellar. Alternate the direction of the bottles, in this manner, until the rack is full.19
