| Product Type | Wine Cellar |
| Brand | JENN-AIR |
| Model | JUW24FRERS |
| Height (without leveling feet) | 34½" (868 mm) |
| Width | 30½" (766 mm) |
| Electrical Supply | 115 V, 60 Hz, 15 A |
| Number of Temperature Zones | 2 (upper and lower compartments) |
| Upper Temperature Range | 42°F to 54°F (5°C to 12°C) |
| Lower Temperature Range | 42°F to 64°F (5°C to 17°C) |
| Preset Settings | Assortment, Champagne, Red Wine, Sweet Wine, White Wine |
| Lighting | LED with motion sensor |
| Control Panel | Touch |
| Special Features | Sabbath Mode, Lock, Door Open Alarm, Over Temperature Alarm |
| Decorative Panel | Custom, thickness 3/4" (19 mm), max weight 10 lb (4.54 kg) |
| Condenser Maintenance | Every 2 months |
| Interior Cleaning | Monthly |
| Electrical Safety | 3-prong grounded outlet, do not use extension cord |
| Warranty | 2 years parts and labor, additional 3 years on sealed system |
Frequently Asked Questions - JUW24FRERS JENN-AIR

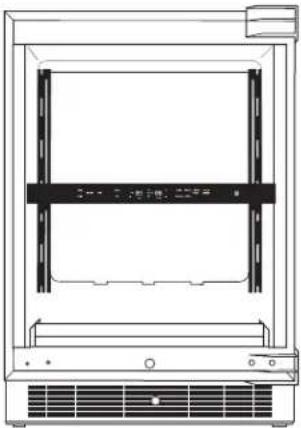

How do I adjust the temperature of my JENN-AIR JUW24FRERS wine cellar?
Use the '+' and '-' touch keys on the control panel. The default setting is 50°F (10°C) for both compartments. The upper compartment can be set from 42°F to 54°F (5°C to 12°C) and the lower compartment from 42°F to 64°F (5°C to 17°C). Wait at least 24 hours between adjustments for the temperature to stabilize.
What should I do if the wine cellar is not cooling?
First check that the unit is plugged into a 3-prong grounded outlet and that the fuse or circuit breaker is working. Ensure the wine cellar is not in 'Cool Off' mode. If the problem persists, check that the condenser coils are not dirty and that the base grille is not blocked.
How do I install a custom decorative panel?

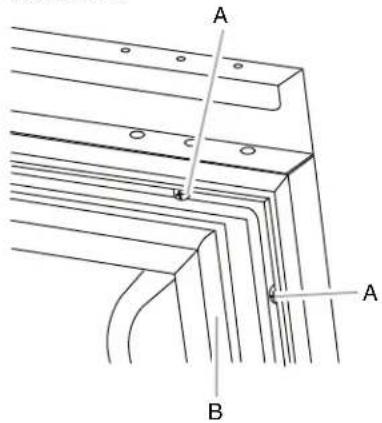

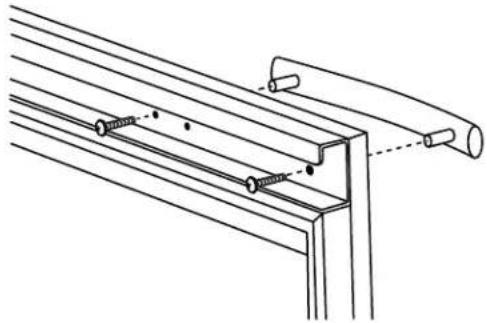

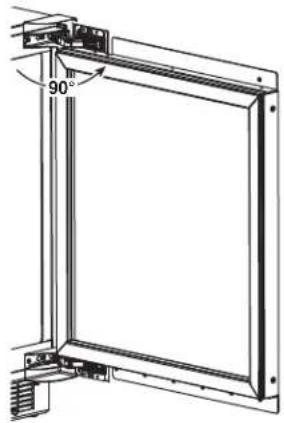

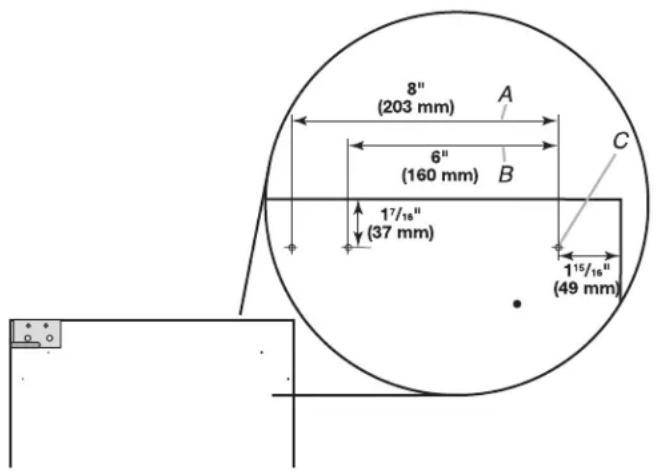

The panel must be 3/4" (19 mm) thick and weigh a maximum of 10 lb (4.54 kg). Open the door 90°, remove the gasket from the corners to access the screws, then remove the four pairs of screws. Place the panel aligned with the holes and secure it with the provided M4 x 14 mm wood screws (eight screws). Reinstall the gasket. If installing a custom handle, drill holes according to the specified dimensions (8" or 6½" center-to-center).
Why is the door not closing completely?
Check that the racks are properly in place. If the gasket is sticking, clean it with a mild detergent and apply a thin layer of paraffin. Make sure the wine cellar is level by adjusting the front leveling feet.
How do I clean the condenser coils?
Remove the base grille by unscrewing the two screws and pushing the tabs toward the center. Use a vacuum cleaner with a long attachment to clean the coils every two months. Replace the grille and screw it back on.
What does the over temperature alarm mean?
The alarm activates when the wine cellar temperature exceeds 70°F (21°C) for more than 4 hours. An indicator light flashes. Press 'Reset Alarm' to reset. If the temperature remains high, the alarm reactivates every 4 hours until the temperature drops below 70°F.
How do I activate Sabbath mode?
Press the 'Sabbath' key for 3 seconds. All displays and lights turn off, but the temperature remains set. To deactivate, press 'Sabbath' again for 3 seconds.
Can I use an extension cord?
No. The wine cellar must be plugged directly into a 3-prong grounded outlet. Do not use an extension cord or adapter, as this poses a risk of electric shock or fire.
How do I replace the LED lighting?
The lighting is an LED that is not user-replaceable. If the light does not come on, contact Jenn-Air service at 1-800-JENNAIR for a check.
What is the warranty for this unit?
The Jenn-Air limited warranty covers 2 years of parts and labor. From the 3rd to the 5th year, the warranty covers the cavity liner and the sealed refrigeration system (compressor, evaporator, condenser, dryer, and lines).
