JENN-AIR JUW24FLERS - Wine cellar

JUW24FLERS - Wine cellar JENN-AIR - Free user manual and instructions

Find the device manual for free JUW24FLERS JENN-AIR in PDF.

English EN ⬇ Download 💬 AI Question ❓ 10 questions ⚙️ Specs
📄

Document temporarily unavailable

The manual is currently being transferred to our new server. It will be accessible again in a few hours. Thank you for your patience.

View the manual : Français FR English EN Español ES
Pick your language and provide your email: we'll send you a specifically translated version.
Product Type Built-in Wine Cellar
Brand JENN-AIR
Model JUW24FLERS

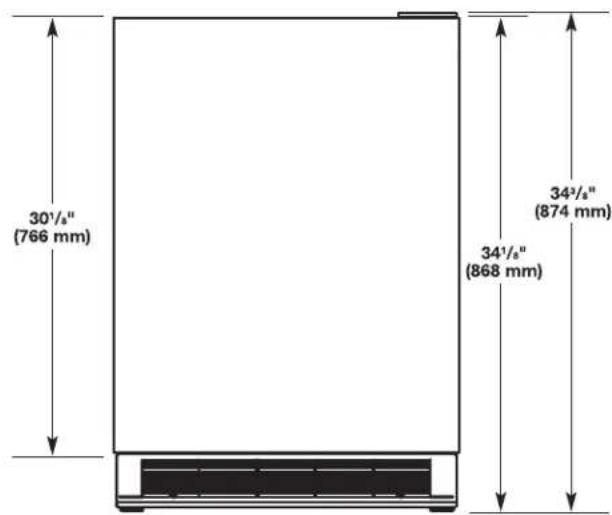

Dimensions (H x W x D) 876 mm x 596 mm x 610 mm (without handle)
Storage Capacity Approximately 24 bottles (estimated)
Electrical Supply 115 V, 60 Hz, 15-20 A, 3-prong grounded outlet
Temperature Range (Upper Compartment) 5 °C to 12 °C (42 °F to 54 °F)
Temperature Range (Lower Compartment) 5 °C to 17 °C (42 °F to 64 °F)
Refrigerant Type R-134a or equivalent (not specified)
Special Features Touch controls, presets by wine type, automatic lighting, Sabbath mode, door open alarm, overheat alarm, lock mode
Interior Lighting LED (not user-replaceable)
Exterior Material Stainless steel (also painted finishes)
Included Accessories 8 M4 x 14 mm wood screws, removable wine racks
Installation Built-in, custom decorative panel accepted (max 4.54 kg)
Warranty 2 years limited (parts and labor), 5 years on sealed refrigeration system
Cleaning Use mild detergent and soft cloth; clean condenser coils every 2 months

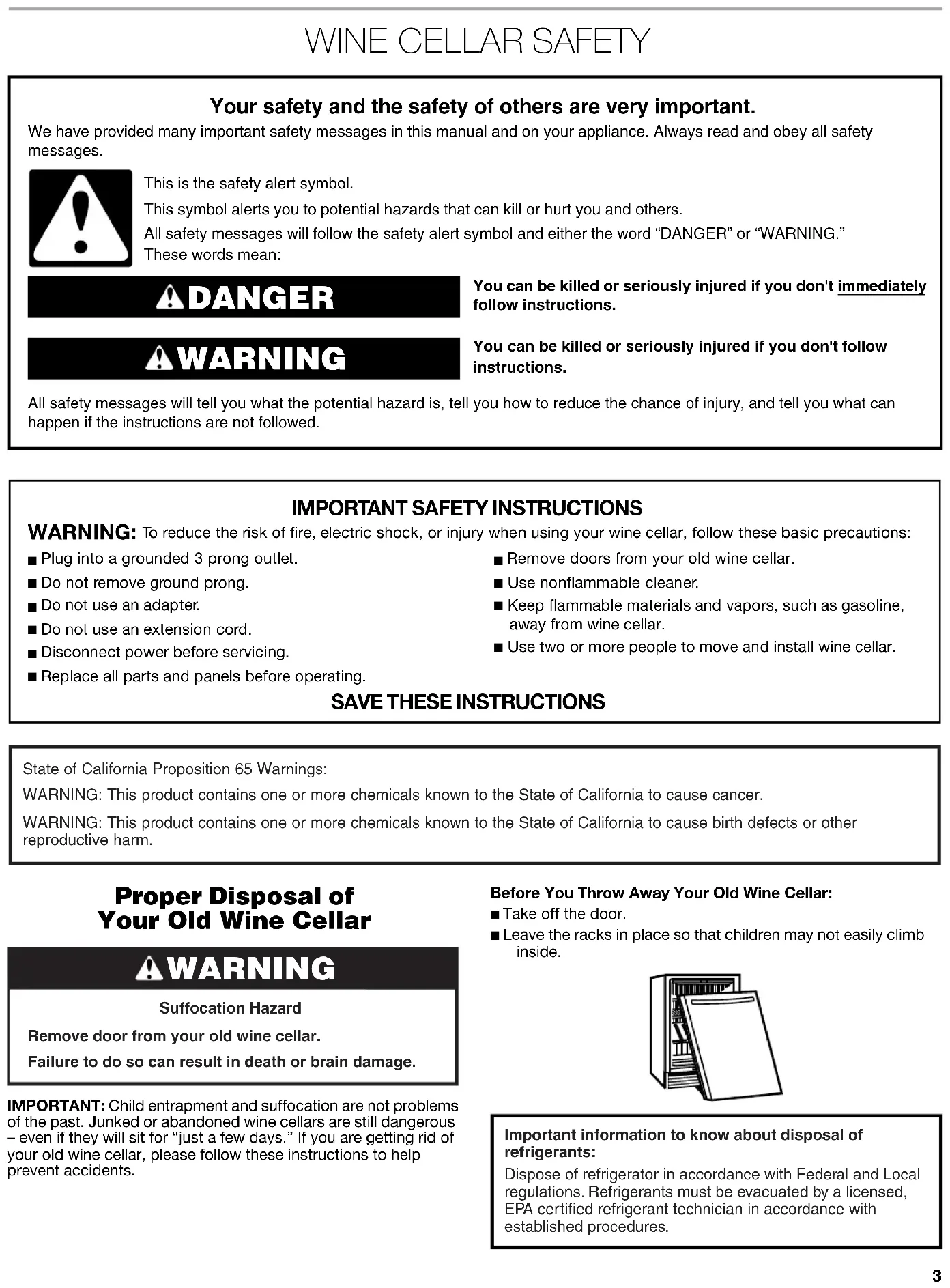

Safety Mandatory grounding, do not use extension cord, disconnect before servicing

Frequently Asked Questions - JUW24FLERS JENN-AIR

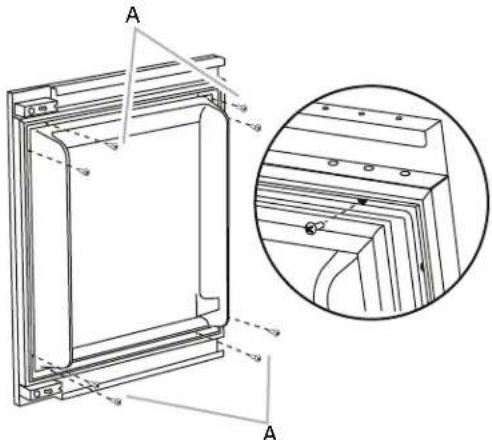

How to install a custom decorative panel?

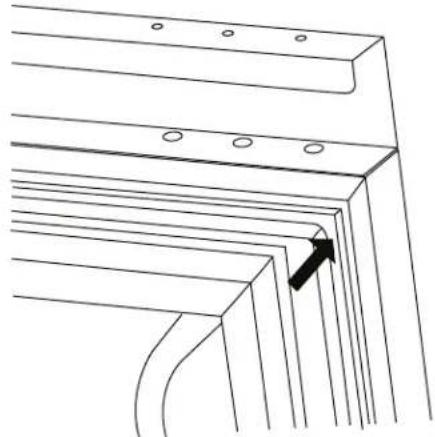

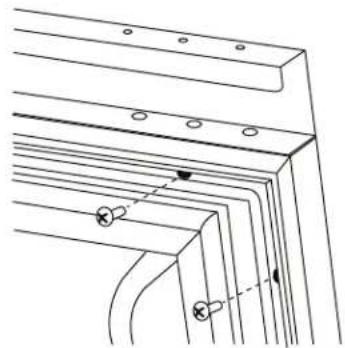

Remove the gasket from the door corners, remove the 4 pairs of screws, then attach the panel using the supplied M4 x 14 mm wood screws. Replace the gasket.
How to adjust the temperature of the wine cellar?
Use the + or - buttons on the control panel. The default temperature is 10 °C (50 °F). Wait 24 hours before adjusting again.
What to do if the wine cellar is not cooling?
Check that the appliance is plugged into a 3-prong grounded outlet, the fuse is not blown, and it is not in Cool Off mode. See Troubleshooting section.
How to clean the condenser coils?
Remove the base grille by unscrewing the 2 screws and pushing the tabs. Use a vacuum cleaner with a long attachment to clean the coils. Replace the grille.
What is the meaning of the temperature presets?
The presets are: Assortment 12 °C, Champagne 7 °C, Red Wine 17 °C, Sweet Wine 5 °C, White Wine 10 °C.
How to activate Sabbath mode?
Press the SABBATH button for 3 seconds. Lights and sounds are disabled. To deactivate, press again for 3 seconds.
What to do if the door does not close completely?
Check that the racks are in place and the gasket is not dirty or sticky. Clean the gasket with warm water and apply a thin layer of paraffin.
How to unlock the control?
Press the LOCK button for 3 seconds to enable or disable lock mode.
What is the ideal temperature for red wine?
The recommended temperature for red wine is 17 °C (64 °F). Use the Red Wine preset.
How to change the interior light bulb?
The lighting is a built-in LED not user-replaceable. If it does not work, contact Jenn-Air service.
