USER MANUAL R38717 Vollrath

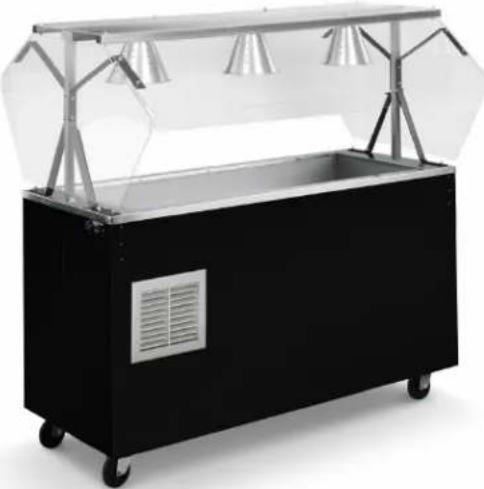

AffordablePortable™ RefrigeratedColdFoodStation

Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions.SAVETHESEINSTRUCTIONSFORFUTUREREFERENCE.

DescriptionBlack		Walnut Woodgrain	Cherry Woodgrain	Granite	White	American Natural	Brushed Aluminum
3Pan(46")NSF2BuffetBreathGuardColdFoodStation-120V
SolidBaseR38713R38950R38773R38733R38733WR38733NR3873A
SolidBasew/LightsR3871346R3895046R3877346R3873346R3873346R3873346R3873346A
OpenStorageBase R38714R38951R38774R38734R38734WR38734NR38734A
OpenStoragew/Lights R3871446R3895146R3877446R3873446WR3873446R3873446A
StorageBasew/Door R38715R38952R38775R38735R38735WR38735NR38735A
Storagew/Door,w/Lights R3871546R3895246R3877546R3873546WR3873546A
3Pan(46")NSF2CaferiaBreathGuardColdFoodStation-120V
SolidBaseR39713R39950R39773R39733R39733NR3973A
OpenStorageBase R39714R39951R39774R39734R39734WR39734NR39734A
StorageBasew/Door R39715R39952R39775R39735R39735WR39735NR39735A
4Pan(60")NSF2BuffetBreathGuardColdFoodStation-120V
SolidBaseR38716R38960R38776R38736R38736NR38736A
SolidBasew/LightsR3871660R3896060R3877660R3873660R3873660R3873660A
OpenStorageBase R38717R38961R38777R38737R38737WR38737NR38737A
OpenStoragew/Lights R3871760R3896160R3877760R3873760R3873760760WR3873760A
StorageBasew/Door R38718R38962R38778R38738R38738WR38738NR38738A
Storagew/Door,w/Lights R3871860R3896260R3877860R3873860R3873860R3873860A
4Pan(60")NSF2CaferiaBreathGuardColdFoodStation-120V
SolidBaseR39716R39959R39776R39736R39736NR39736A
OpenStorageBase R39717R39961R39777R39737R39737WR39737NR39737A
StorageBasew/Door R39718R39962R39778R39738R39738WR39738NR39738A

SAFETYPRECAUTIONS

Toensuresafeoperation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warningisusedtoindicate the presence ofahazardthatwillorca causeseverepersonaljuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcauseminorormajorpersonalinjuryifthecautionisignored.

NOTICE:Noticeisusedtonoteinformationthatisimportantbutnot hazard-related.

Toreduceriskofinjuryordamagetotheequipment

Plugonlyintogroundedelectricaloutletsthatmatchthevoltage ratingonthenameplate.
- Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
- Equipmentsshouldonlybeusedinaflat,levelposition.
- Unplugequipmentmandletitcoolbeforecleaningormoving.
- Donotspraycontrolswithliquidsorcleaningagents.
-Unplugwhennotinuse.
-Keepequipmentandpowercordawayfromopenflames,electric burnersorexccessiveheat.
- Donotoperatunattended.
Closelysuperviseequipmentoperatinginpublicareasand/or aroundchildren.
Donotusefoodpansdeeperthan6" (15.2cm).
- Donotoperatiefequipmenthasbeendamagedorismalfunctioning.
- Donotplaceanyobjectsinsidetheairintakeorexiaustpanels.

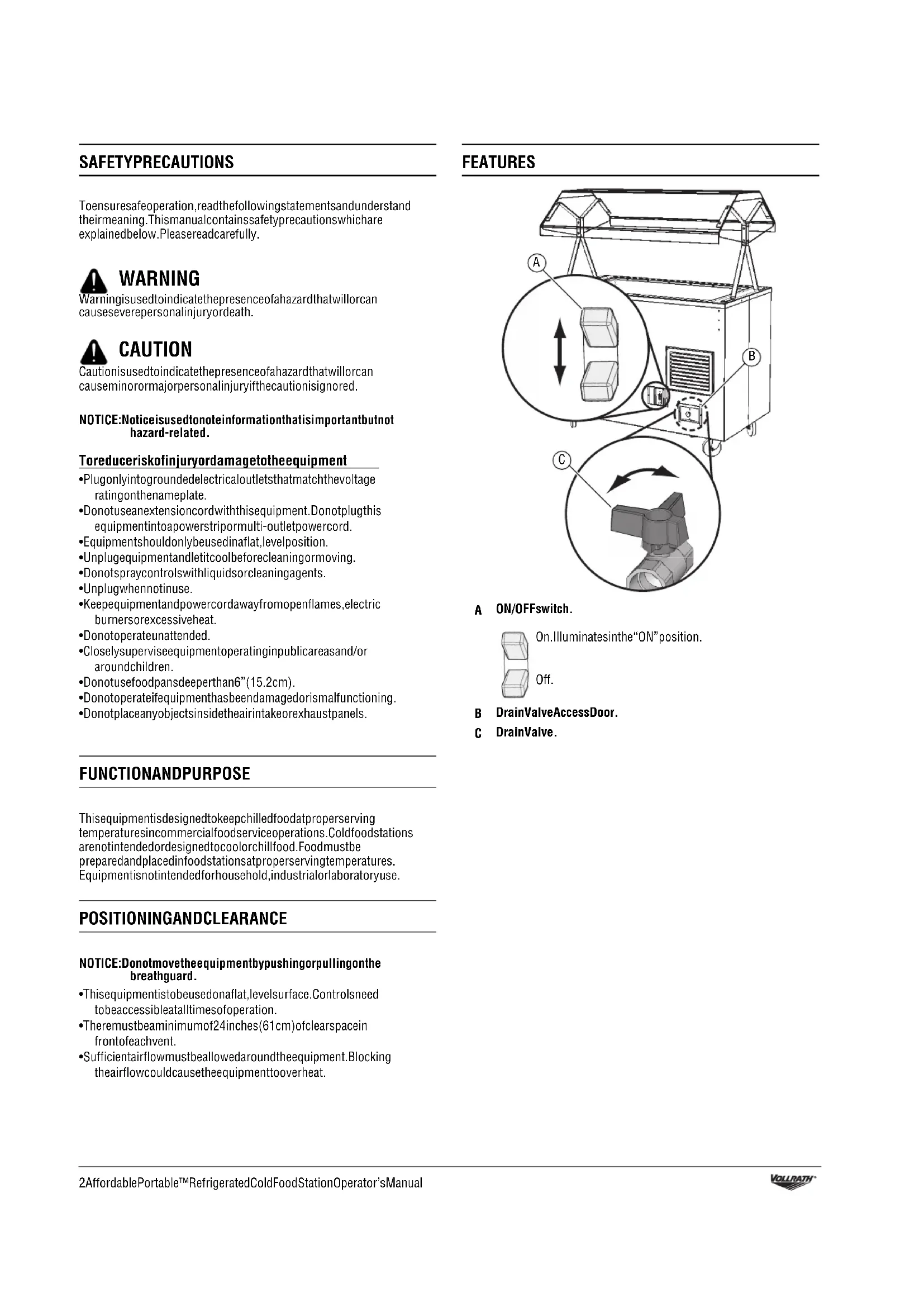

FUNCTIONANDPURPOSE

Thisequipmentisdesignedtokeepchilledfoodatproperserving temperaturesincommercialfoodserviceoperations.Coldfoodstations arenotintendedordesigntedocoolorchillfood.Foodmustbe preparedandplacedinfoodstationsatproperservingtemperatures. Equipmentisnotintendedforhousehold,industrialorlaboratoryuse.

POSITIONINGANDCLEARANCE

NOTICE: Donotmovethequipmentbypushingorpullingonthe breathguard.

• This equipmentistobeusedonaflat, levelsurface. Controlsneed to be accessible at all times of operation.
• Theremustbeamimumof24inches(61cm)ofclearspacein frontofeachvent.
  Sufficientairflowmustbeallowedaroundtheequipment.Blocking theairflowcouldcausetheequipmenttooverheat.

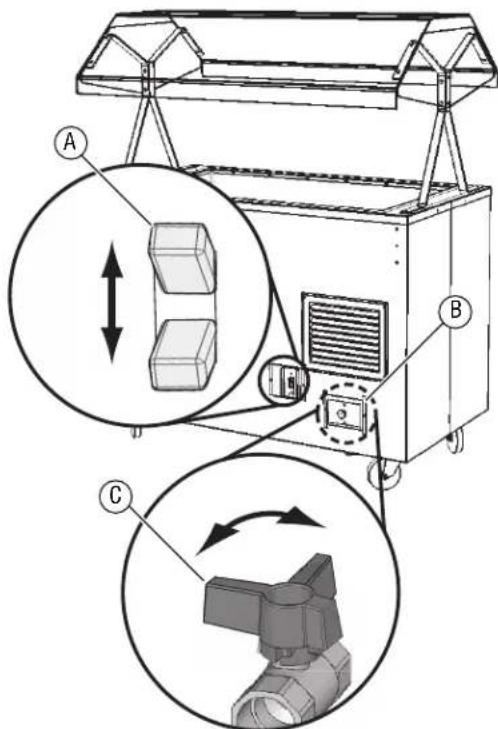

FEATURES

A ON/OFFswitch.

On.Illuminatesinthe"ON"position.

Off.

B DrainValveAccessDoor.
C DrainValve.

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthunit.Liquidinsidetheunitcouldcauseanelectricalshock.

Donotoverfillpansortrays.Liquidcouldcontacttheelectrical componentsandcauseashortcircuitoranelectricalshock.

NOTICE:Usingavoltageotherthanenameplateratedvoltagewill causedamage totheunit. Incorrect voltage, modification tothepowercordorelectricalcomponentscandamage unitandwillvoidthewarranty.

NOTICE: Donotusefoodpansdeeperthan6' (15.2cm).

1. Open the access door and check that the drain valve is in the closed position.
2. Plugelectricalpowercordintoagroundedoutletmatchingthe nameplateratedvoltage.
3. PlacethepowerswitchtheONposition. Thisequipmentdoesnot haveanadjustabletemperaturesetting.
4. Allow the equipment torun for approximately 30 minutes. Forthe best performance when usingicewiththisequipment, allow equipment torun for approximately 2hoursbeforeaddingice. This will help the icer remainsolid.
5. Place containers of properly chilled food into the pre-chilled equipment.
6. Regularly check the food temperature.

NOTICE: Monitor food temperature closely for food safety. The United States Public Health Service recommends that foodbeheldatamaximumof 41^(5^) tohelpprevent bacteriagrowth.

1. When finished using the equipment, place the power switch in the OFF position.

CLEANING

WARNING

ElectricalShockHazard

Donotspraywaterorcleaningproducts.Liquidcouldcontact theelectricalcomponentsandcauseashortcircuitoranelectricalshock.

Tomaintaintheappearanceandincreaseservice life,clean your equipmentdaily.

NOTICE: Donotusecausticcleaningchemicals,steelwoolor commerciallimeremovalproductstocleanthequipment. Thoroughlyrinseequipmentwithwateraftercleaning.

1.PlacethepowerswitchtheOFFposition.
2.Unplugtheequipment.
3. Open the access door and rotatethrainvaltotheopen position. Drainthewater.

4.Useadampclothspongedippedinsoapywatertcleanthe insideofthewellandtheoutsideofthequipment.
5. Thoroughlyrinsequipmentwithcleanwateraftercleaning.
6.Rotatethedrainvalvetotheclosedposition.

CleanTheBreathGuard

Alwaysuseacleansoftmintfreeclothormicrofibercloth.

Cleanwithaneutralcleanerssuchasolutionofwarmwateranda smallamountofdishdetergentorproductsspecificallymadefor cleaningPlexiglas®andacrylicplastic.

RecommendedcleanersforPlexiglas®andacrylicinclude:

Novus#1
- Plexi-Clear
Brillianize®

WhatNotToDo

• Donotusecleanerscontainingammonia,alcohol,acetoneordry cleaningproducts.Cleaningswiththesechemicalswilldamage Plexiglas®,acrylicandotherplastics.
• Donotusepapertowels, abrasivematerials, scratchingcleansers, razorblades, brushes, steelwoolorscouringpads, such asScotch Brite™ pads.
• DonotuseWD-40® or petroleum, industrial or commercial cleaning products.

RemovingMinorScratches

Finescratchescanberemovedwithaspecializedmildabrasivepolish suchasNovus#2,orNovus#3.Heavierscratchesmayrequiresanding andbuffing.Handsandwithseriesofsandpaperswithincreasingly finergrits(250,400,600).Thenuseabuffingwheelandbuffing compound.

TROUBLESHOOTING

ProblemMightbeCausedByCourse	SeoreofAction
Switchdoesnotilluminate whenintheONposition.	Equipmentisnotpluggedin Pluginthearquipment.
Wellisnotgettingcold.Lowerincorrectvolttagetoequipment.		Verifythesourcevoltagematchestheratedvoltageonthenameplate onthearquipment.Ifitdoesnot,havequalifiedelectricalpersonal installpropersourcevoltage

WARRANTYSTATEMENTFORTHEVOLLRATHCO.L.L.C.

This warranty does not apply to products purchased for personal, family or household use, and The Vollrath Company LLC does not offer a written warranty to purchasersforsuchuses.

The Volrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

Forcompletewarrantyinformation,productregistrationandnewproductannouncement,visitwww.vollrath.com.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to TheVollrathCompanyLLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchaseshowingthedatetheunitwaspurchased.
