Product Type	Display Refrigerator (refrigerated showcase)
Brand	Vollrath
Model	RDE7136
Category	Refrigerator
Main Function	Holding prepared foods cold (serving temperature between 0 and 20 °C)
Power Supply	IEC socket, supplied with 3 cords (UK, Schuko, China); rated voltage according to nameplate
Dimensions (countertop models)	Width: 36" (86.3 cm), 48" (114.3 cm) or 60" (147.3 cm) depending on model
Weight supported by bottom shelf	36" model: 40 lbs (18.1 kg); 48": 48 lbs (21.7 kg); 60": 55 lbs (24.9 kg)
Minimum clearances (countertop model)	4" (10.2 cm) between the unit and adjacent walls
Minimum clearances (built-in model)	Countertop at least 4" (10.2 cm) thick; 15.2 cm on each side for air circulation
Ventilation (built-in model)	Minimum 80 square inches for air intake and exhaust; louvered registers required
Controls	Illuminated power switch, lamp switch, multifunction button, adjustment button, digital display, indicators
Special Functions	Glass heating (defrosting), manual defrost, non-refrigerated mode (ambient temperature)
Serving temperature range	0 to 20 °C (holding already refrigerated foods)
Daily maintenance	Clean with a damp cloth and soapy water; non-toxic glass cleaner
Periodic maintenance	Cleaning of condenser coils, evaporator and fans twice a year by a professional
Safety	Use on grounded outlet; do not use extension cord; disconnect before cleaning; do not spray liquids
Spare parts	Available at Vollrath.com
Repairability	Do not repair yourself; contact Vollrath technical services for repairs
Warranty	Vollrath warranty for material and workmanship defects; not valid for personal use
Intended use	Display of prepared foods in a commercial setting; no overnight storage of perishable foods

Frequently Asked Questions - RDE7136 Vollrath

What is the serving temperature of the Vollrath RDE7136 showcase?

The showcase maintains a serving temperature between 0 and 20 °C. It is not designed to cool or refrigerate food, but to keep it cold.

What clearances are required for installing the countertop model?

Leave at least 4 inches (10.2 cm) between the showcase and adjacent walls. Walls must be made of non-combustible materials.

How to adjust the temperature on the RDE7136 model?

Press the adjustment button for 2 seconds. The set temperature flashes. Use the up/down arrows to adjust, then press the adjustment button again to confirm.

How to use the defrost function?

Press the multifunction button for 3 seconds to start the defrost cycle. The defrost indicator flashes. The cycle lasts about 2 hours. To stop it manually, press again for 3 seconds.

Can I use the showcase without refrigeration?

Yes, turn off the controller by pressing the multifunction button for 3 seconds until "OFF" flashes. The showcase can then be used at ambient temperature.

How to clean the RDE7136 showcase?

Unplug the unit. Clean with a damp cloth and soapy water, rinse and dry. For glass, use a high-quality non-toxic cleaner. Do not use steel wool or harsh chemicals.

What to do if the compressor doesn't start?

Check that the unit is plugged in and the circuit breaker hasn't tripped. Wait 2 minutes (delay cycle). If the problem persists, the controller or compressor may be defective; contact a professional.

What type of electrical outlet is needed?

The showcase comes with an IEC socket and three power cords (UK, Schuko or China plugs). Use a grounded outlet matching the voltage on the nameplate.

Where can I find spare parts for the Vollrath RDE7136 showcase?

Spare parts are available on the Vollrath.com website. Do not attempt to repair yourself; contact Vollrath technical services.

Is the showcase suitable for domestic use?

No, the showcase is designed for commercial use (display of prepared foods). The warranty does not cover personal, family or household use.

USER MANUAL RDE7136 Vollrath

RefrigeratedDisplayCases

ThankyouforpurchasingthisVollrathequipment.Beforeoperatingthe equipment,readandfamiliarizeyourselfwiththefollowingoperating andsafetyinstructions.SAVETHESEINSTRUCTIONSFORFUTURE REFERENCE.Savetheoriginalboxandpackaging.Usethispackaging toshiptheequipmentifrepairsareneeded.

SAFETYPRECAUTIONS

Toensuresafeoperation,readthefollowingstatementsandunderstand theirmeaning.Thismanualcontainssafetyprecautionswhichare explainedbelow.Pleasereadcarefully.

WARNING

Warningisusedtoindicatethepresenceofahazardthatwillorcan causeseverepersonalinjuryordeath.

CAUTION

Cautionisusedtoindicatethepresenceofahazardthatwillorcan causeminorormajorpersonalinjuryifthecautionisignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

Toreduceriskofinjuryordamagetotheequipment:

• Useonlygroundedelectricaloutletsmatchingthenameplaterated voltage.
• Have a qualified person install the equipment in accordance with local codes and ordinances.
• Use equipmentinaflat, levelposition.
• Donotuseanextensioncordwiththisequipment.Donotplugthis equipmentintoapowerstripormulti-outletpowercord.
• Unplugequipmentandturnoffbeforecleaningormoving.
• Donotspraycontrolsoroutsideofequipmentwithliquidsor cleaningagents.
• Donotcleantheequipmentwithsteelwool.
• Keepequipmentandpowercordawayfromopenflames,electric burnersorexcessiveheat.
  •Donotoperateunattended.
• Donotoperateequipmentinpublicareasand/oraroundchildren.
• Donotoperateifequipmenthasbeendamagedorismalfunctioning inanyway.

Exterior view of a modern glass-walled restaurant counter with multiple food items on the side (no visible text or labels)

Drop-inCase

Exterior view of a modern glass display case with curved top and side panels (no visible text or symbols)

CurvedCase

Exterior view of a modern glass-wrapped food display case (no visible text or symbols)

Self-ServeCurvedCase

Exterior view of a modern glass-walled refrigerator with black tray and side shelves (no text or symbols visible)

CubedCase

ItemNo.	Model	Description	Voltage	Amps	HPHz	Plug
40842RD	E7136	Drop-In	48"	36"	1204.24.4	3.4 14		60	NEMA5-15P
40843RD	E7148
40844RD	E7160
4084205	RDE1136		36"	220-240	2.2 38			50/60	UK/Schuko/China*
4084305	RDE1148		48"		2.8 12
4084405	RDE1160		60"
40852RD	E8136	48" Countertop Curved	36"	1204.64.9	3.6 18			60	NEMA5-15P
40853RD	E8148
40854RD	E8160
4085205	RDE1236		36"	220-240	2.6 38			50/60	UK/Schuko/China*
4085305	RDE1248		48"		3.1		12
4085405	RDE1260		60"		3.3
40862RD	E8236	48" Countertop Cubed	36"	1205.06.0 13	3.9		14	60	NEMA5-15P
40863RD	E8248
40864RD	E8260
4086205	RDE1336		36"	220-240	2.8 38			50/60	UK/Schuko/China*
4086305	RDE1348		48"		3.3		12
4086405	RDE1360		60"		3.7
40880RD	E8336	48" Self-Serv 60" Countertop Curved	36"	1207.48.1	4.2 14			60	NEMA5-15P
40881RD	E8348
40882RD	E8360
4088005	RDE1436		36"	220-240	3.4 14			50/60	UK/Schuko/China*
4088105	RDE1448		48"		5.2		13
4088205	RDE1460		60"		5.4
40886RD	E8436	48" SelfServ 60" Countertop Cubed	36"	1207.68.2	4.3 14			60	NEMA5-15P
40887RD	E8448
40889RD	E8460
4088605	RDE1536		36"	220-240	3.9 38			50/60	UK/Schuko/China*
4088705	RDE1548		48"		4.8		13
4088905	RDE1560		60"		5.0

*DisplayCasehasIECinlet.Shipswiththreeelectricalcords,oneeachwithUK, SchukoorChinaplug.

FUNCTIONANDPURPOSE

Thisequipmentisdesignedforilluminateddisplayoffoodproductsat temperaturesbetween32°F(0°C)and68°F(20°C).Thisequipmentis intendedanddesignedtokeepchilledfoodatproperserving temperatureswhileitisdisplayforsale.Foodmustbepreparedand placedindisplaycabinetsatproperservingtemperatures.Display casesnotintendedordesignedtocoolorchillfood.Theyarenot intendedforovernightstorageofperishablefood.Theyarenot intendedforhousehold,industrialorlaboratoryuse.

UNPACKTHEEQUIPMENT

If the unithas been transported in an on- vertical position allow at least one hour before operating.

1. Remove all packing material and tape, as well as any protective plastic from the equipment.
2. Remove bolt that secure the equipment to the pallet.
3. Removeanyglueresidueleftoverfromtheplasticortape.
4. Cleantheequipmentbeforeuse.SeeCleaningprocedureinthis document.

COUNTERTOPMODELINSTALLATION

ClearanceRequirements

- Countertopcasesrequireaminimumof4"(10.2cm)between the equipmentandanysurroundingwalls.Surroundingwallsmustbe madeofnon-combustiblematerials.

Installation

1. Placetheequipmentonaflatstablesurface.
2. Plugtheequipmentintoaproperlygroundedelectricalsupply matchingthenameplaterating.Damagetotheequipmentcanoccur ifincorrectpowerissuppliedtoequipment.
   NOTICE: Usingavoltageotherthanthenameplateratedvoltage willcausedamagetotheunit.Incorrectvoltage, modificationtothepowercordorelectricalcomponents candamageunitandwillvoidthewarranty.
3. After the installation is complete the thin breather wires on the top of the side glass panels may be trimmed and crimped closed.

DROP-INMODELINSTALLATION

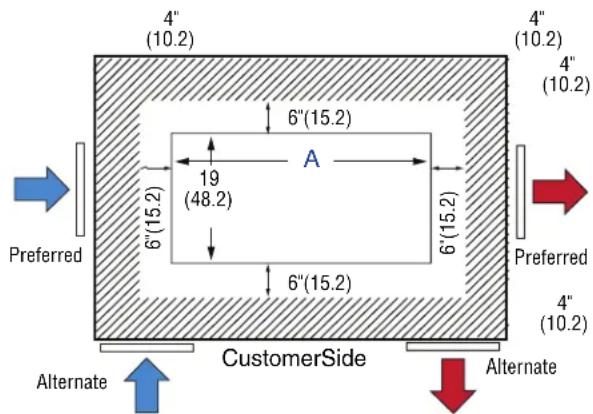

Clearance, CutoutandVentilation

- Drop-incasesrequireaminimumof4"(10.2cm)ofnoncombustiblecountertoptosupporttheunitandaminimumof6"(15.2cm)clearanceonallsidesofthedrop-inforproperair circulation.

- Drop-incaserequiresaminimumof80squareinchesforfreshair intakeandaminimumof80squareinchesforexhaust.Customer suppliedlouversmustbeinstalledinthesurroundingcabinetto ensureadequateventilation.Oneintakeandonedischargelouverare required.Preferredlouverlocationistheshortendsofthecabinet.

Installation

1. Choose a flat, level countertop for themountings surface.
2. Measure the area for the cutout. See aboved drawing.

DisplayCabinetA
36"34"(86.3cm)
48"45"(114.3cm)
60"58"(147.3cm)

3.Sealthebaseoftheunittothecountertopwithfood-gradesilicone seal.
4. Plugtheequipmentintoaproperlygroundedelectricalsupply matchingthenameplaterating. Damagetothequipmentcanoccur ifincorrectpowerissuppliedtoequipment.
NOTICE: Usingavoltageotherthanthenameplateratedvoltage willcausedamagetotheunit.Incorrectvoltage, modificationtothepowercordorelectricalcomponents candamageunitandwillvoidthewarranty.
5. After the installation is complete the thin breather wires on the top of the side glass panels may be trimmed and crimped closed.

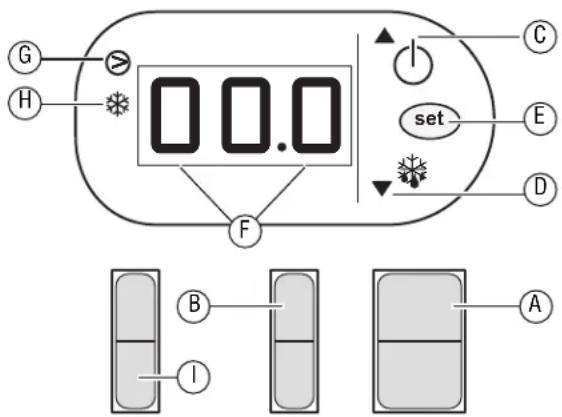

FEATURESANDCONTROLS

AMainPowerSwitch.IlluminatedswitchturnsthepowerONor OFFtotheequipment.

BLightSwitch.SwitchesthelightsONorOFF.

CMulti-FunctionButton. Dependingonthemodethisbutton turnsthepowerONorOFFtothecontrollerorincreases the temperature.

DMulti-FunctionButton. Depending on themodethisbutton activates the defrost function or decreases the temperature.

ESetButton.SwitchesthetemperaturesettingmodeONorOFF.

FDisplay. Display the current temperature or the temperature being programmed.

GCompressorCycleLight. Illuminatessteadilywhen the compressorisrunning.Flasheswhenthecompressorisinthe delaycycle, thislastsforabouttwominutesandisanormalpart ofcompressorcycling.

HDefrostLight.Flasheswhentheequipmentisinthedefrost mode.

IGlassHeaterSwitch. Available on countertop display cases with-only operatorside access. Not available on drop-incases or cases with customer-side (self-serve) access. Switch the glass defrost ON or OFF.

OPERATION

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment.Liquidinsidetheequipmentcouldcausean electricalshock.

Donotspraytheunitorcontrolswithwaterorcleaningproducts. Liquidcouldcontacttheelectricalcomponentsandcauseashort circuitoranelectricalshock.Donotuseunitifpowercordisdamaged orhasbeenmodified.

NOTICE: Before using, clean this equipment as described in the CLEANING section of this document.

NOTICE: Allowthedisplaycasetochillforapproximately30 minutesbeforeplacingfoodintothecase.

NOTICE: Foodmustbepreparedandplacedindisplaycasesat properservingtemperatures. Thisequipmentisnot intendedordesignedtocoolorchillfood. Regularlycheck thefoodtemperature.

NOTICE:Monitorfoodtemperaturecloselyforfoodsafety. The UnitedStatesPublicHealthServicerecommendsthathot foodbeheldataminimumof140°F(60°C)tohelpprevent bacteriagrowth.

BottomShelfWeightCapacity

Weightmustbedistributedevenlyoverthebottomshelf.

36"models48" models60"models
40lbs.(18.1Kg)	48lbs.(21.7Kg)	55lbs.(24.9Kg)

Prepared, ColdFoodDisplayUse

1. SwitchthemainpowerswitchtotheONposition.
   2.SwitchthelightswitchtotheONpositionifdesired.

TurnontheController

Pressandholdthemulti-functionbuttonforthreeseconds.Whenthe displayshowsatemperature,thecontrollerisONandwillrefrigerate.

SettheTemperature

1. Pressandholdthesetbuttonfortwoseconds. The controller is now switched ON. Thedisplayflashestheprogrammed temperature.
2. To adjust the temperature, press them multi-function button to increase the temperature, or press the down button to decrease the temperature.
3. Pressthesetbutton. Thenumberdisplayisconstant, showing the currenttemperature.
4. The unit will now operate to the temperature.
5. Allow the display case to chill for approximately 30 minutes before placing food into the case.

GlassHeater(defrost)Function

1. Switch the glass heaters switch to the ON position.
2. Whenglasshasdefrosted, switch the glass defrost switch to the OFF position.

CaseDefrostFunction

1. Pressandholdthemulti-functionbuttonforthreeseconds. The defrostcyclewillbeginandthedefrostlightwillflash. Thedefrost cycletakesapproximatelytwohours.
2. Tomanuallystop, pressandholdthemulti-functionbuttonforthree seconds. Thedefrostcyclewillend.

AmbientTemperature, Non-ChilledDisplayUse

1. TurnthecontrollertotheOFFmode.
2. Pressandholdthemulti-functionbuttonforthreeseconds.When thenumberdisplayflashes "OFF", thecontrollerisintheOFFmode andwillnotrefrigerate.Theunitmaybeusedforambient temperaturedisplay.

CLEANING

WARNING

ElectricalShockHazard

Keepwaterandotherliquidsfromenteringtheinsideofthe equipment. Liquidinsidetheequipmentcouldcausean electricalshock.

Donotspraytheunitorcontrolswithwaterorcleaningproducts. Liquidcouldcontacttheelectricalcomponentsandcauseashort circuitoranelectricalshock.Donotuseunitifpowercordisdamaged orhasbeenmodified.

NOTICE: Donotusecleaningproductscontainingaggressive chemicals, acids, orthatcontainchlorine.

Tomaintaintheappearanceandincreasetheservicelife,cleanyour equipmentdaily.

1. Unplugtheequipment.
2. Useadampclothorspongedippedinsoapywatertocleanthe equipment; rinseanddrythoroughly.
3. A high quality non-toxic glass cleanerm maybe used to clean the glass component so the unit.
4. Periodically removetherearpanelandcleanthecoilfinswithastiff brush.

PREVENTATIVE MAINTENANCE

Haveaqualifiedpersoncleanthecondensercoils,evaporatorandfans twiceayearorasnecessary.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Nopowertotheequipment.	Faultyoutlet.Haveaqualifiedpersonreplacetheoutlet.
	Circuitbreakertripped.Resetthecircuitbreaker.
	Compressorin“delay”cycle.Waittwominutesforcompressortorun.
Compressordoesnotrun.	Faultycontroller.	Haveaqualifiedpersonrepairtheequipment.
	Faultycompressor.
	Faultycompressorstarterorcapacitor.
Compressorruns,temperatureinsidetoowarm.	Ambienttemperaturetoohigh.Lowerambienttemperature.
	Excessiveice/frostbuilduponevaporator.	Usemanualdefrostfunction.
	Faultycontroller.	Usemanualdefrostfunction.Dirtyorfaultycondenserfan.
	Dirtyorfaultyevaporatorfan.

SERVICEANDREPAIR

ServiceablepartsareavailableonVollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace damaged power cord yourself. Donots end units directly to The Vollrath Company LLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please beready with the item number, model number (if applicable), serial number, and proof of purchases showing the date the unit was purchased.

WARRANTYSTATEMENTFORTHEVOLLRATHCO. L.L.C.

Thiswarrantydoesnotapplytoproductspurchasedforpersonal, familyorhouseholduse,andTheVollrathCompanyLLCdoesnotoffer awrittenwarrantytopurchasersforsuchuses.

TheVollrathCompanyLLCwarrantstheproductsitmanufacturesor distributesagainstdefectsinmaterialsandworkmanshipaspecifically describedinourfullwarrantystatement. Inallcases, the warrantyruns from the date of the end user's original purchased date found on the receipt. Any damages from improper use, abuse, modification or damages resulting from improper packaging during return shipment for warranty repair will not be covered under warranty.

Forcomplete warranty information, product registration and new product announcement, visit www.vollrath.com.

TheVollrathCompany,L.L.C.Headquarters1236North18thStreetSheboygan,Wisconsin53081-3201USAMainTel:800-624-2051or920-457-4851MainFax:800-752-5620or920-459-6573CanadaCustomerService:800-695-8560TechServices:[e-mail]

VollrathEuropeBVBeneluxbaan75121ADRIJENTheNetherlands+31161870005

VollrathofChinaVollrathShanghaiTradingLimited23A,TimeSquarePlaza|500ZhangYangRoadPudong,Shanghai200122Tel:[phone]

VollrathdeMexicoS.deR.L.deC.V.PerifericoSurNo.7980Edificio4-ECol.SantaMariaTequepexpan45600Tlaquepaque,Jalisco|MexicoTel:(52)333-133-6767Tel:[phone]Fax:[phone]

Vitrinesréfrigérées

Exterior view of a modern glass-walled kitchen appliance with multiple food items on the side (no visible text or labels)

Vitrineencastrable

Exterior view of a modern glass-wrapped display case (no visible text or symbols)

Vitrineincurvée

Exterior view of a modern glass-wrapped display case (no text or symbols visible)

Vitrineincurvéepourselves

Exterior view of a modern glass-walled refrigerator with three shelves (no visible text or symbols)

Vitrinecarrée

Num.art.	ModèleDescription	Tension	AWHzFiche
40842RDE7136		48"Encastrable	36"	1204,2	3,4%		60	NEMA5-15P
40843RDE7148					2	14
40844RDE7160					4
4084205	RDE1136		36"	220-240	2,2%		50/60	R.-U/Schuko/Chine*
4084305	RDE1148		48"		2,8 12
4084405	RDE1160		60"
40852RDE8136		48"Incurvée sur comptoir	36"	1204,6	3,6%		60	NEMA5-15P
40853RDE8148					6	14
40854RDE8160					9
4085205	RDE1236		36"	220-240	2,6%		50/60	R.-U/Schuko/Chine*
4085305	RDE1248		48"		3,1	12
4085405	RDE1260		60"		3,3
40862RDE8236		48"Carréesu 60comptoir	36"	1205,0	3,9		60	NEMA5-15P
40863RDE8248					0
40864RDE8260					0 13
4086205	RDE1336		36"	220-240	2,8%		50/60	R.-U/Schuko/Chine*
4086305	RDE1348		48"		3,3	12
4086405	RDE1360		60"		3,7
40880RDE8336		Incurvée 48"sur 60comptoirpourselves	36"	1207,4	4,2%		60	NEMA5-15P
40881RDE8348					8,1	13
40882RDE8360
4088005	RDE1436		36"	220-240	3,4 14		50/60	R.-U/Schuko/Chine*
4088105	RDE1448		48"		5,2	13
4088205	RDE1460		60"		5,4
40886RDE8436		48"Carréesu 50comptoirpourselves	36"	1207,6	4,3%		60	NEMA5-15P
40887RDE8448					6	13
40889RDE8460					2
4088605	RDE1536		36"	220-240	3,9%		50/60	R.-U/Schuko/Chine*
4088705	RDE1548		48"		4,8	13
4088905	RDE1560		60"		5,0

Exterior view of a modern glass-walled kitchen appliance with multiple food items on the side (no visible text or labels)

Vitrinaempotrada

Exterior view of a modern glass-wrapped display case (no visible text or symbols)

Vitrinacurva

Exterior view of a modern glass-wrapped kitchen appliance (no visible text or symbols)

Vitrinacurvaparaautoservicio

Exterior view of a modern glass-walled refrigerator with three shelves (no visible text or symbols)

Vitrinacúbica

Num.art.ModeloDescripciónVoltajeAHPHz Erchufe
40842	RDE7136	Empotrada	36"	120	3,4	Z	60	NEMA 5-15P
40843	RDE7148		48"		4,2	1/4
40844	RDE7160		60"		4,4
4084205	RDE1136		36"	220-240	2,2	3/8	50/60	RU/ Schuko/ China*
4084305	RDE1148		48"		2,8	1/2
4084405	RDE1160		60"
40852	RDE8136	Curvapara mostrador	36"	120	3,6	Z	60	NEMA 5-15P
40853	RDE8148		48"		4,6	1/4
40854	RDE8160		60"		4,9
4085205	RDE1236		36"	220-240	2,6	3/8	50/60	RU/ Schuko/ China*
4085305	RDE1248		48"		3,1	1/2
4085405	RDE1260		60"		3,3
40862	RDE8236	Cúbicapara mostrador	36"	120	3,9	X	60	NEMA 5-15P
40863	RDE8248		48"		5,0
40864	RDE8260		60"		6,0	1/3
4086205	RDE1336		36"	220-240	2,8	3/8	50/60	RU/ Schuko/ China*
4086305	RDE1348		48"		3,3	1/2
4086405	RDE1360		60"		3,7
40880	RDE8336	Curvade autoservicio para mostrador	36"	120	4,2	X	60	NEMA 5-15P
40881	RDE8348		48"		7,4	1/3
40882	RDE8360		60"		8,1
4088005	RDE1436		36"	220-240	3,4	1/4	50/60	RU/ Schuko/ China*
4088105	RDE1448		48"		5,2	1/3
4088205	RDE1460		60"		5,4
40886	RDE8436	Cúbicade autoservicio para mostrador	36"	120	4,3	X	60	NEMA 5-15P
40887	RDE8448		48"		7,6	1/3
40889	RDE8460		60"		8,2
4088605	RDE1536		36"	220-240	3,9	3/8	50/60	RU/ Schuko/ China*
4088705	RDE1548		48"		4,8	1/3
4088905	RDE1560		60"		5,0
