USER MANUAL TP715D47 SIEMENS

You can find additional information and explanations online. Scan the QR code on the title page.

Table of contents

1 Safety 35

1.1 General information 35
1.2 Intended use 35
1.3 Restriction on user group 35
1.4 Safety information 36

2 Environmental protection and saving energy 38

2.1 Disposing of packaging 38
2.2 Tips for saving energy 38

3 Installation and connection .... 39

3.1 Scope of delivery 39
3.2 Installing and connecting the appliance 39

4 Familiarising yourself with your appliance 39

4.1 Appliance 39
4.2 Controls 40

5 Accessories 40

6 Before using for the first time .. 41

6.1 Preparing and cleaning the appliance 41
6.2 Checking the water hardness 41
6.3 Overview of water hardness levels 42
6.4 Water filter 42
6.5 Performing initial start-up 42
6.6 General information 43

7 Basic operation 43

7.1 Switch the appliance on or down. 43
7.2 Dispensing beverages 44
7.3 "doubleShot" and "tripleShot" 44

7.4 Slow Brew and Cold Brew 44
7.5 Dispensing a coffee beverage with milk 44
7.6 Dispensing two cups at once 45

8Grinder 45

8.1 Adjusting the grinding level .... 45

9 Childproof lock 46

9.1 Activating the child-proof lock 46
9.2 Deactivating the childproof lock 46

10 Cup heater 46

10.1 Activating and deactivating the cup heater¹ 46

11 Favourites 46

11.1 Saving beverages from the beverage selection 46
11.2 Saving the beverage in the menu 46
11.3 Changing beverage settings 47
11.4 Deleting favourites 47
11.5 Sorting favourites 47

12 Home Connect 47

12.1 Setting up Home Connect .... 47
12.2 Home Connect settings 48
12.3 Remote diagnostics 48
12.4 Data protection 48

13 Basic settings 49

13.1 Changing the basic settings 49
13.2 Overview of the basic settings 49

14 Cleaning and servicing 50
14.1 Dishwasher-safe components 50
14.2 Cleaning agent 51
14.3 Cleaning the appliance 51
14.4 Cleaning the drip tray and coffee dregs container 52
14.5 Service programmes 52
15 Troubleshooting 53
16 Transportation, storage and disposal 58
16.1 Activating "Frost protection" 58

16.2 Disposing of old appliance ... 58
17 Customer Service 58
17.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.) 59
18 Technical specifications 59
18.1 Information regarding Free and Open Source Software 59
19 Declaration of Conformity 60
19.1 Statement of Compliance for Great Britain 60

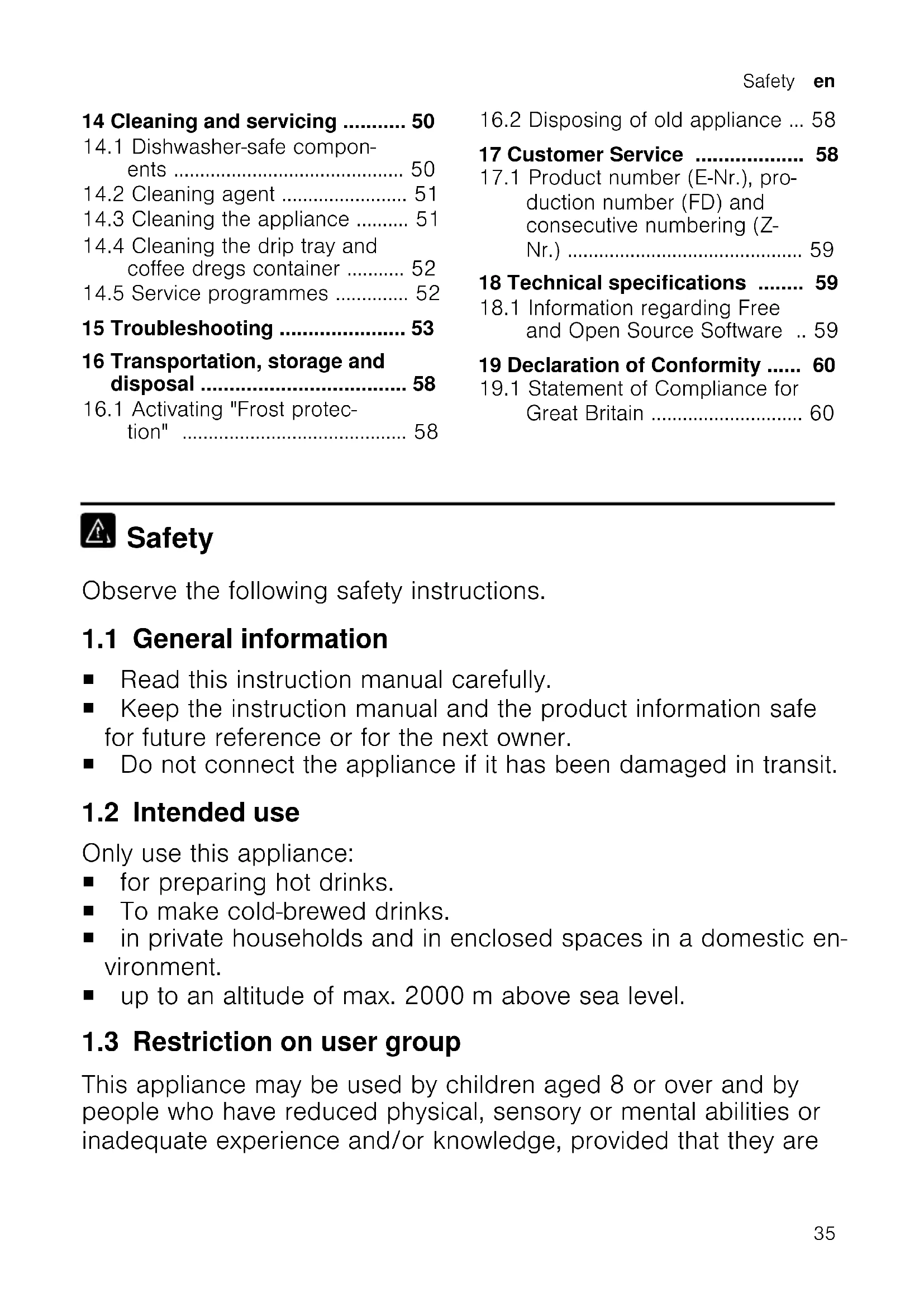

Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
• Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

for preparing hot drinks.
To make cold-brewed drinks.
- in private households and in enclosed spaces in a domestic environment.
up to an altitude of max. 2000m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are

en Safety

supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

1.4 Safety information

WARNING - Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
• Do not let children play with packaging material.

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
• Do not let children play with small parts.

WARNING - Risk of electric shock!

Incorrect installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.

If the appliance or the power cord is damaged, this is dangerous.
- Never operate a damaged appliance.
- Never operate an appliance with a cracked or fractured surface.
- Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
- If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
- Call customer service. Page 58

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.

• Only use genuine spare parts when repairing the appliance.

• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk. An ingress of moisture can cause an electric shock.

• Never immerse the appliance or the power cord in water.

• Liquids must not be spilled on the appliance plug connection.
• Only use the appliance in enclosed spaces.
• Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING - Risk of fire!

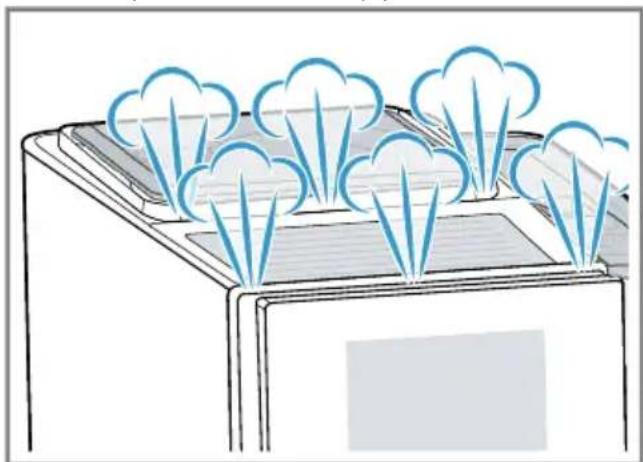

The appliance will become hot.

• Ventilate the appliance adequately.
• Never operate the appliance in a cabinet.

It is dangerous to use an extended power cord and non-approved adapters.

• Do not use extension cables or multiple socket strips.
• Only use adapters and power cords approved by the manufacturer.
• If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

WARNING - Risk of burns!

Some parts of the appliance become very hot.

• Never touch hot appliance parts.
  After use, allow hot appliance parts to cool down before touching.

WARNING - Risk of scalding!

Freshly prepared drinks are very hot.

• Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.

A remote start via the Home Connect app while the appliance is unattended may cause scalding to third parties.

• Do not reach under the beverage outlet when dispensing drinks.
• Keep persons, particularly children, away from the appliance.

WARNING - Risk of injury!

Improper use of the appliance may endanger the user.

• To avoid injuries, only use the appliance for its intended purpose.

Trapped fingers when closing the appliance door.

• Be careful of your fingers when closing the appliance door. The grinder rotates.
• Never reach into the grinder.

WARNING - Danger: Magnetism!

The appliance contains permanent magnets. These may affect electronic implants, e.g. pacemakers or insulin pumps.

• People with electronic implants must stand at least 10 cm away from the appliance.
• This minimum distance of 10cm must also be observed for the water tank when removed.

WARNING - Risk of harm to health!

During filtering there may be a slight increase in the potassium level, which is possibly not good for dialysis patients and people with kidney disease.

• Consult a doctor before use if you have kidney disease or follow a special potassium diet.
  Soiling on the appliance may be harmful to health.
  To ensure hygiene, follow the cleaning instructions for the appliance.
  Water from the hot water circuit can be harmful to health.
• Only ever use the appliance with fresh, cold, non-carbonated drinking water.

2 Environmental protection and saving energy

2.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

• Sort the individual components by type and dispose of them separately.

2.2 Tips for saving energy

If you follow these instructions, your appliance will use less energy.

Set the interval for automatic switchoff to the smallest value.

• If the appliance is not being used, it will switch itself off earlier.

"Basic settings", Page 49

Do not interrupt the dispensing process prematurely.

• The amount of water or milk that is heated is used optimally.
  Descale the appliance regularly.
  Limescale deposits increase the appliance's energy consumption.

3 Installation and connection

3.1 Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: Different accessories are enclosed depending on the appliance model. This accessory is shown in a frame with a dashed line.

Fig. 1

A Fully automatic coffee machine
B Milk tube
C User manual
D Insertion aid for water filter
E Milk container, glass
F Descaling tablet 1
Cleaning tablet
Water filter
Water hardness testing strip

3.2 Installing and connecting the appliance

ATTENTION

Risk of damage to the appliance. If the appliance is not started up correctly, it may be damaged.

Use the appliance in frost-free rooms only.
If the appliance has been transported or stored below 0^ , wait 3 hours at room temperature before starting it up.
After plugging in, always wait approx. 5 seconds.
1. Place the appliance on a level, water-resistant surface that is capable of bearing its weight.
2. Using the mains plug, connect the appliance to an earthed socket that has been correctly installed.

4 Familiarising yourself with your appliance

4.1 Appliance

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

Fig. 2

1 Touch fields
2 Cup heater
3 Aroma lid
4 Bean container
5 Rotary selector for grinder setting

6	Tablet compartment
7	Cover for water tank
8	Water tank
9	Touch display
10	Cup lighting
11	Brewing chamber door
12	Rating plate
13	Milk system
14	Beverage outlet cover
15	Milk hose and suction pipe
16	Drip tray

4.2 Controls

You can find an overview of the controls for your appliance here.

Touch fields

Here you can find an overview of the symbols that are always visible.

①	Switch the appliance on or down.
②	Dispense two cups

	Open or close the service programmes.
	Open or exit the settings.
Touch display The touch display functions both as a display and a control.
Favourites	Select saved beverages with personal settings. →Page 46
Classic	Select standard beverages.
coffee- World	Select basic beverages which can be extended in conjunction with Home Connect.
	Cup warmer is switched on.
	Appliance is connected to Home Connect.

Note: When the appliance is switched on, you have additional operating options with relevant displays and messages, e.g. beverage settings.

∅	Set strength.
	Set per-cup quantity.
	Set milk ratio.
	Set aroma.
	Set temperature.

5 Accessories

Use original accessories. These have been made especially for your appliance.

Accessories Retail Customer Service
Insulated coffee jug TZ40001 -
Water filter TZ70003 00575491
Water filter pack of 3 TZ70033A -
Water filter pack of 6 TZ70063A -
Cleaning tablets TZ80001A	00312097
TZ80001B	00312098
Descaling tablets TZ80002A	00312094
TZ80002B	00312095
Care set TZ80004A	00312105
TZ80004B	00312106
Descaling multipack TZ80032A -
Descaling/cleaning mul- TZ80003A -
tipack

6 Before using for the first time

Prepare the appliance for use.

6.1 Preparing and cleaning the appliance

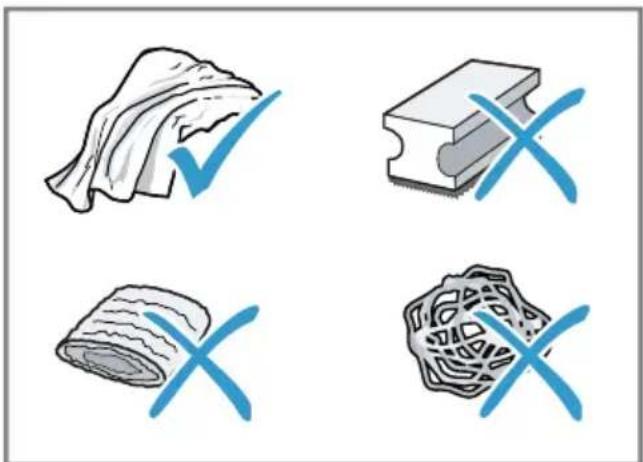

Remove the protective foils and clean the appliance and individual parts. Follow the illustrated instructions at the beginning of this manual.

ATTENTION

Unsuitable beans can block the grinder.

• Only use pure, roasted bean mixes that are suitable for use in fully automatic coffee or espresso machines.
• Do not use glazed coffee beans.
  Do not use caramelised coffee beans.
• Do not use coffee beans that have been treated with additives containing sugar.
• Do not add instant coffee.

Fig. 3 - 16

Note: Fill the water tank with fresh, cold, non-carbonated drinking water every day.

Tip: To keep the coffee beans at their best, store them in a sealed container in a cool place.

You can keep the coffee beans in the bean container for several days without them losing their aroma.

6.2 Checking the water hardness

It is important to set the water hardness correctly so that your appliance indicates in good time that it needs descaling. You can use the enclosed test strip to check the water hardness or ask your local water company.

1. Briefly dip the test strip in fresh tap water
2. Allow the water to drain off the test strip.
3. Read the water hardness off the test strip after 1 minute.

"Overview of water hardness levels", Page 42

Note: Please use the test strip even if you have a water softening system installed as they generate different water hardnesses.

Tips

• You can change the settings at any time.
  → "Basic settings", Page 49
  If the water hardness exceeds 21^ (3.8 mmol/l), you can fill the water tank with prefiltered water to reduce limescale deposits.

6.3 Overview of water hardness levels

The table shows allocation of the levels to the different degrees of water hardness.

Setting Ring setting on INTENZA filter	German degrees in °dH	Total hardness in mmol/l
1 A 1 - 7 < 1.3
2 A 8 - 14 1.3 - 2.5
3 B 15 - 21 2.5 - 3.8
4¹	C 22 - 30 > 3.8

6.4 Water filter

You can use a water filter to minimise limescale deposits and reduce impurities in the water.

The limescale content of the water influences the aroma and crema of coffee. There is an aroma ring on the underside of the BRITA INTENZA water filter. Turn the aroma ring to set the optimum aroma level for your mains water.

Inserting the water filter

ATTENTION

Possible damage to the appliance due to limescale build-up.

• Change the water filter in good time.

• Change the water filter after 2 months at the latest.
  Observe the display messages.

• Press

• Press "INTENZA filter" and follow the instructions on the display.

Changing or removing the water filter

You can also operate your appliance without a water filter.

1. Press

2. Press "INTENZA filter".

3. Press "Replace" or "Remove" and follow the instructions on the display.

Notes

• Dispose of spent water filters according to local regulations.
  Always store replacement water filters in a cool and dry place in their original sealed packaging.

Tips

• You should also change your water filter for reasons of hygiene.
• With a water filter you need to descale your appliance less frequently.
  If you use a water filter, your coffee will be more flavoursome.
  If your appliance has not been used for a long time, for example if you were on holiday, you should rinse the water filter before use by dispensing a cup of hot water.
  The water filter can be purchased from retailers or customer service. "Accessories", Page 40

6.5 Performing initial start-up

After connecting the appliance to the power supply, configure the settings

for first use. First use appears when switching on for the first time or after resetting to the factory settings.

1. Press to switch the appliance on.
2. Follow the instructions on the display.
3. The display will guide you through the programme.

Notes

If you want to set up Home Connect now, follow the instructions in the Home Connect app.
- If "Demo mode" is selected, only the displays will work. You cannot dispense a beverage or run a programme.

6.6 General information

Please bear this information in mind so that you can get the best out of your appliance.

Notes

The appliance has been programmed at the factory with standard settings for optimum operation.
The grinder has been factory-set for optimum operation. If coffee is only dispensed drop by drop or is too thin and with too little crema, you can adjust the grinding level when the grinder is running. "Adjusting the grinding level", Page 45
- During operation water droplets may form at the ventilation slits and on the lid of the tablet compartment.
If you do not perform any actions on the appliance for a certain period, it will switch off automatically. You can change the duration in the basic settings. Page 49

• For technical reasons steam can escape from the appliance.

The first beverage will not yet have its full aroma if:

• You are using the appliance for the first time.
• You have run a service programme.
• You have not used the appliance for a long time.

Do not drink the beverage.

Tip: You will get a stable, fine-pored crema after you have started up your appliance and dispensed a few cups.

7 Basic operation

7.1 Switch the appliance on or down.

• Press When the appliance switches on, the display shows the logo. When the appliance is switched on or off, it will rinse automatically. When switched off, the appliance will emit steam into the drip tray for cleaning. The appliance will not rinse itself if it is still warm when switched on, or if no beverage was dispensed before it was switched off.

7.2 Dispensing beverages

Find out how to prepare a drink of your choice.

WARNING

Risk of scalding!

Freshly prepared drinks are very hot.

Leave drinks to cool down if necessary.
- Do not let escaping liquids or steam come into contact with your skin.

Notes

• With a number of settings your coffee is prepared in several steps. Wait until the process is fully completed.
  If you are dispensing a beverage with milk, always connect a container filled with milk to the milk hose and suction pipe.
  If the milk system has not been cleaned, small amounts of milk may escape when hot water is dispensed.

7.3 "doubleShot" and "tripleShot"

Your appliance grinds the coffee two or three times.

To ensure that only pleasant-tasting and easily digestible aromatic substances are released, coffee beans are freshly ground and brewed again by the appliance.

The longer coffee brews, the more bitter substances and undesirable aromas are released. These bitter substances and undesirable aromas affect the taste and digestibility of coffee.

Note: The functions "doubleShot" and "tripleShot" depend on the beverage strength and beverage size selected.

7.4 Slow Brew and Cold Brew

Slow Brew and Cold Brew are slowly brewed beverages that your appliance dispenses in a pulsating beverage flow that is not continuous. This type of coffee preparation exists as a hot and a cold version. Dispensing of the beverage takes several minutes.

Note: Fill the water tank with fresh, cold, non-carbonated drinking water before dispensing drinks.

7.5 Dispensing a coffee beverage with milk

An example explains how to make a latte macchiato.

WARNING

Risk of burns!

The milk system can become extremely hot.

• Never touch the milk system when it is hot.
• Allow the hot milk system to cool down before touching it.

Requirements

• The milk hose with the suction pipe is connected to the milk system.

• The suction pipe is immersed in milk.

• Place a glass underneath the beverage outlet.

• Press "Classic".
• Select and press the beverage symbol for latte macchiato.

To change the strength, press
To change the per-cup quantity, press
To change the milk ratio, press

1. Press "Start".

To completely stop dispensing the beverage, press "Stop".

To only stop the current dispensing step, press "Skip". After preparing the beverage, the milk system will automatically clean itself with a short jet of steam.
- The beverage is prepared and then runs into the glass.

Notes

If you do not change any settings for approx. 30 seconds, the appliance will exit settings mode.
The appliance saves the settings automatically.

Tips

• You can also pre-heat cups before dispensing using hot water or the cup heater¹.
• You can also use plant-based alternatives to milk, e.g. soya milk.
• The quality of the milk froth depends on the type of milk or plant-based alternative used.

7.6 Dispensing two cups at once

Depending on your beverage, you can make 2 cups at the same time.

Note: If the "doubleShot" or "tripleShot" function is active, the function for dispensing two cups at once is not possible.

1. Press the symbol for your desired drink.
2. Press
   The display shows the setting

3. Place two cups on the left and right underneath the beverage outlet.

4. Press "Start".
   The drink is prepared in 2 steps. The beans are ground in 2 grinding operations.

5. The beverage is brewed and then runs into the cups.
6. Wait until the process is complete.

8Grinder

Your appliance has an adjustable grinder, which you can use to customise the grinding level of your coffee beans.

8.1 Adjusting the grinding level

Set the desired grinding level while the coffee beans are being ground.

WARNING

Risk of injury!

The grinder rotates.
- Never reach into the grinder.

ATTENTION

Risk of damage to the grinder. The grinder may be damaged if the grinding level is not set properly.

• Only set the grinding level when the grinder is running.
• Select the grinding level using the rotary selector step by step.

Grinding level Setting

Fine grinding level for lightly roasted beans

Turn rotary selector anticlockwise.

Coarse grinding level for

Turn rotary selector clockwise.

Grinding level Setting

dark-roasted beans

The grinding level setting only takes effect after the second cup.

Tip: If the coffee is only dispensed drop by drop, set a coarser grinding level.
If the coffee is dispensed too quickly and with too little crema, set a finer grinding level.

9 Childproof lock

You can lock the appliance, to protect children against scalding and burns.

9.1 Activating the child-proof lock

Requirement: The appliance is switched on.

Press and hold for at least 3 seconds.
- The childproof lock is activated.

9.2 Deactivating the childproof lock

Press and hold for at least 3 seconds.
- The childproof lock is deactivated.

10 Cup heater¹

You can use the cup heater to preheat your cups.

10.1 Activating and deactivat ing the cup heater

WARNING Risk of burns!

The cup heater can become very hot.

• Never touch the cup heater ^1 while hot.
• Allow the hot cup heater to cool down before touching it.

Tip: Place the cups with their base on the cup heater to warm them to optimum effect ^1 .

11 Favourites

Save beverages with your personal settings as a favourite.

You can mark your favourites with a colour. A favourite is a beverage with personal settings. You can change the settings at any time.

Note: To exit the settings, press or start dispensing the beverage.

11.1 Saving beverages from the beverage selection

1. Select a beverage from "Classic" or "coffeeWorld".
2. Select the personal beverage settings.
3. Press "Favourite".
4. Select the required colour for the beverage.
5. Press "Save".

11.2 Saving the beverage in the menu

1. Press "Favourites".

2. Press

3. The display shows all available beverages.

4. Select the required beverage.
5. Select the personal beverage settings.
6. Press "Next".
7. Select the required colour for the beverage.
8. Press "Save".

11.3 Changing beverage settings

1. Press "Favourites".
2. Select the beverage and press briefly.
3. Change the beverage settings.
4. Press "Apply".
5. The new settings are saved.

11.4 Deleting favourites

1. Press "Favourites".
2. Select the beverage.
3. Press the beverage for at least 3 seconds.
4. Confirm "Delete".

11.5 Sorting favourites

1. Press "Settings".
2. Press "Personalisation".
3. Press "Sort favourites".
4. Sort favourites, e.g. by name or colour.

12 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status.

The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com. To be able to use Home Connect, you must first set up the connection to the WLAN home network (Wi-Fi¹) and to the Home Connect app. The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tip: Please also follow the instructions in the Home Connect app.

Notes

• Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. "Safety", Page 35
• Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

12.1 Setting up Home Connect

Requirements

• The Home Connect app has been installed on your mobile device.
  The appliance is receiving signals from the WLAN home network (WiFi) at its installation location.

• Open the Home Connect app and scan the following QR code. Fig. 17

• Follow the instructions in the Home Connect app.

12.2 Home Connect settings

Adapt Home Connect to your needs. You can find the Home Connect settings in the basic settings for your ap

pliance. Which settings the display shows will depend on whether Home Connect has been set up and whether the appliance is connected to your home network.

Overview of the Home Connect settings

You can find an overview of the Home Connect settings and network settings here.

Basic setting Selection Description
WiFi connection On	Switch off the wireless module during long absences or to save energy.
	Note: In networked standby mode your appliance requires max. 2 W.
Remote start On	Switch remote start on the appliance on and off.
	Note: With the Home Connect app only switch-off is possible.
Add mobile device	- Connect the appliance to the "Home Connect" app or additional accounts.
Network information	- Display network information and appliance information.
Delete network settings	- Note: You cannot operate your appliance via the "Home Connect" app without a network connection.
Software update -	Note: This setting is only available with a software update.

12.3 Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.homeconnect.com.

12.4 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

• Unique appliance identification (consisting of appliance codes as well as the MAC address of the installed Wi-Fi communication module).

• Security certificate of the Wi-Fi communication module (to ensure a secure data connection).

• The current software and hardware version of your appliance.
• Status of any previous resetting to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

13 Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

13.1 Changing the basic settings

1. Press
2. The display shows the list of basic settings.
3. Change the required basic setting.
4. The appliance saves the basic setting automatically.
5. To exit the basic settings, press

13.2 Overview of the basic settings

You can find an overview of the basic settings here.

Beverage setting Brewing temperature Set the brewing tempera-ure.
Milk sequence Select the sequence for milk and coffee.
Latte macchiato pause Select the pause between milk and coffee.
Resetting beverage para-meters	Reset the beverage set-tings.
Appliance setting Cup heater1	Switch the cup heater1 on or off.
Automatic switch-off Set the time after which the appliance switches off.
Display brightness Set the brightness in steps.
Sounds Switch sounds on and off. Set the volume.
Water hardness Set the water hardness.
Language Set the language.
	Factory settings Reset the appliance to the factory settings.
Personalisation
	Operation after switch-on Set the display screen for "Favourites", "Classic" or "coffeeWorld".
	Sort favourites Set the sequence of favours.
Home Connect Information about Home Connect
Appliance information Beverage counter Display the number of beverages dispensed.
	Cleaning information Time until the water filter should next be changed or a service programme started.
	Version information Display network information and appliance information.
	Licence information Display FOSS licence text.
	Mode for demo purposes Switch "Demo mode" on or off.

14 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

14.1 Dishwasher-safe components

Here you can find an overview of the components you can clean in the dishwasher.

ATTENTION

Some components are sensitive to heat and may be damaged if they are cleaned in a dishwasher.

• Follow the operating instructions of the dishwasher.
• Only clean dishwasher-safe components in the dishwasher.
  Only use programmes that do not heat the components above 60^

Suitable:

• Drip tray
• Drip plate
• Coffee dregs container
• Milk system with adapter

Not suitable:

Water tank
Water tank lid
- Brewing unit
- Beverage dispenser cover

14.2 Cleaning agent

Only use suitable cleaning agents.

ATTENTION

Unsuitable cleaning products may damage the surfaces of the appliance.

• Do not use harsh or abrasive detergents.
  Do not use cleaning agents containing alcohol or spirits.
• Do not use hard scouring pads or cleaning sponges.

Unsuitable cleaning and descaling agents may damage the appliance.

• Do not use pure citric acid, vinegar or any vinegar-based agents to descale the appliance.
  Do not use descending agent with phosphoric acid.
• Only use cleaning tablets and descaling tablets that have been specially developed for the appliance.

"Accessories", Page 40

Tips

• Wash new sponge cloths thoroughly to remove any salt adhering to them. Salt can cause rust

film to develop on stainless steel surfaces.
Always remove any residues of limescale, coffee, milk and cleaning/descaling solutions immediately to prevent corrosion.

14.3 Cleaning the appliance

WARNING

Risk of electric shock!

An ingress of moisture can cause an electric shock.

• Never immerse the appliance or the power cord in water.
• Liquids must not be spilled on the appliance plug connection.
  Do not use steam- or high-pressure cleaners to clean the appliance.

WARNING

Risk of burns!

Some parts of the appliance become very hot.

• Never touch hot appliance parts.
  After use, allow hot appliance parts to cool down before touching.

• Clean the housing, the high-gloss surfaces and the control panel with a microfibre cloth.

• Clean the outlet system with a soft, damp cloth after beverages have been dispensed.
• Rinse the water tank with fresh, clean water.
• If the appliance has not been used for a long time, e.g. after a holiday, clean the entire appliance, includ

en Cleaning and servicing

ing moving parts such as the brewing unit or water tank.

Note: The appliance will rinse itself automatically if you switch it on when it is cold or switch it off after it has dispensed coffee. The system is therefore self-cleaning.

14.4 Cleaning the drip tray and coffee dregs container

Clean and empty the drip tray and coffee dregs container every day to prevent deposits.

1. Pull the drip tray and the coffe dregs container forwards and out.

2. Remove the coffee dregs container from the drip tray and take off the drip plate.

Fig. 18

1. Clean and dry all parts.

2. Insert the coffee dregs container in the drip tray and put the drip plate on top.

3. Insert the drip tray with the coffee dregs container in the appliance.

Fig. 19

14.5 Service programmes

Use the service programmes if you insert or remove a water filter or in order to clean your appliance thoroughly. Your appliance will tell you

when you need to perform a service programme, e.g. cleaning.

ATTENTION

Improper cleaning and descaling or a delay in doing so may damage the appliance.

• Immediately perform the descending process in accordance with the instructions.
• Only use cleaning tablets in the tablet compartment.
• Do not put descending tablets or other products in the tablet compartment.

Notes

• The display indicates the progress of the descending or cleaning process.
• If your appliance has been locked, you can only operate it again once the descending process has been carried out.

Tips

• In addition to the automatic rinsing process, also remove and clean the brewing unit regularly.
• Use lukewarm water for the service programmes.

Using the service programmes

1. Press
2. Press the symbol for the required programme.
   Display indicates progress of the programme.

Overview of service programmes

You can find an overview of the service programmes here.

Note: The start image shows the remaining number of beverages that can be dispensed until running the programme and the duration.

INTENZA filter Insert, replace or remove the water filter

Milk system cleaning Rinse the milk system automatically.
calc'nClean Combine cleaning and descaling Remove residues of limescale and coffee from the pipes
Cleaning Remove residues of coffee from the pipes
Descaling Remove residues of limescale from the pipes
Brewing unit cleaning The display shows optimum cleaning of the brewing unit step by step.
Beverage outlet cleaning The display shows optimum cleaning of the outlet step by step.
Frost protection Drain the pipes to protect the appliance during transport or storage
Special rinsing If a service programme is interrupted, e.g. due to a power failure, the appliance will rinse itself automatically. The appliance is then ready for use again.
Tips If you are starting the "Descaling" or "calc'nClean" programme, keep a container with a capacity of min. 1 l at the ready.	If you use a water filter, this will prolong the time until you have to run a service programme. You can combine "Descaling" and "Cleaning" with the "calc'nClean" service programme.

15 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Improper repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.

• Only use genuine spare parts when repairing the appliance.

• If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting
Appliance no longer responds.	Appliance has a fault. 1. Pull out the mains plug and wait 60 seconds. 2. Re-insert the mains plug.
Home Connect is not working properly.	Different causes are possible. • Go to www.home-connect.com.
Appliance only dis-penses water, not cofee.	Empty bean container is not detected by the appliance. • Pour in coffee beans.
	Coffee shaft on brewing unit is blocked. • Clean the brewing unit.
	Coffee beans are too oily and do not fall into the grinder. • Gently tap the bean container. • Change the coffee variety. • Do not use oily beans. • Clean the empty bean container with a damp cloth.
	Brewing unit is not inserted properly. 1. Check whether the brewing unit is inserted correctly and is securely locked. 2. Push the red lever up to the left. 3. Insert the brewing unit cover.
Appliance is not dis-pensing milk froth.	Milk system is soiled. • Clean the milk system in the dishwasher.
	Milk tube not immersed in milk. • Use more milk. • Check whether the milk tube is immersed in the milk.
	Heavy build-up of limescale in the appliance. • Descale the appliance.
No milk intake by the milk system.	The milk system is assembled incorrectly. • Assemble the milk system correctly.
	Milk tube not immersed in milk. • Use more milk. • Check whether the milk tube is immersed in the milk.
Milk froth is too cold. Milk is too cold. • Use lukewarm milk.
Fault Cause and troubleshooting
Cold-brewed beverage is not cold enough.	Water in water tank is warm. 1. Fill the water tank with fresh, cold, non-carbonated drinking water. 2. You can add ice cubes to cool the beverage down even more.
Appliance is not dis-pensing hot water.	Milk system is soiled. ► Clean the milk system in the dishwasher.
Appliance is not dis-pensing drinks.	Air is in the water filter. 1. Immerse the water filter in water with the opening fa-cing upwards until no more air bubbles escape. 2. Reinsert the filter. ► Firmly press the water filter straight down into the tank connection.
	Residues of limescale remover are blocking the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.
There is dripping wa-ter on the inner floor of the appliance.	Drip tray was removed too soon. ► Wait a few seconds after the last drink was dis-pensed before removing the drip tray.
Brewing unit cannot be removed.	Locking device cannot be released, brewing unit is jammed. ► Switch the appliance off and back on after 3 minutes.
Grinder won't start. Appliance is too hot. 1. Disconnect the appliance from the mains. 2. Wait 1 hour so the appliance can cool down.
Grinder is not grinding any coffee beans despite full bean container.	Coffee beans are too oily and do not fall into the grinder. ► Gently tap the bean container. ► Change the coffee variety. ► Do not use oily beans. ► Clean the empty bean container with a damp cloth.
Coffee or milk froth quality varies widely.	Build-up of limescale in the appliance. ► Descale the appliance.
Milk froth quality varies widely.	Milk froth quality depends on the type of milk or plant-based alternative used. ► Optimise the result through the selection of the milk or vegetable-based drink type.
Coffee is not dis-pensed or has slowed to a trickle. Set quantity is not reached.	Grinding level is set too fine. • Set a coarser grinding level. → "Adjusting the grinding level", Page 45
	Heavy build-up of limescale in the appliance. • Descale the appliance.
	Air is in the water filter. 1. Immerse the water filter in water with the opening fa-cing upwards until no more air bubbles escape. 2. Reinsert the filter.
	Appliance is soiled. • Clean the brewing unit. • Descale and clean the appliance.
Coffee has no crema. Type of coffee is not optimal. • Use a coffee variety with a higher proportion of Ro-busta beans. • Use beans with a darker roast.
		Coffee beans are no longer freshly roasted. • Use fresh coffee beans.
		Grinding level is not appropriate for coffee beans. • Adjust the grinder to a finer setting. → "Adjusting the grinding level", Page 45
Coffee is too acidic. Grinding level is set too coarse. • Adjust the grinder to a finer setting. → "Adjusting the grinding level", Page 45
		Type of coffee is not optimal. • Use a coffee variety with a higher proportion of Ro-busta beans. • Use beans with a darker roast.
Coffee is too bitter. Grinding level is set too fine. • Set a coarser grinding level. → "Adjusting the grinding level", Page 45
		Type of coffee is not optimal. • Change the coffee variety.
Coffee tastes burnt. Grinding level is set too fine. • Set a coarser grinding level. → "Adjusting the grinding level", Page 45
		Type of coffee is not optimal. • Change the coffee variety.
		Brewing temperature is too high. • Set the brewing temperature lower.

Fault Cause and troubleshooting
Coffee grounds are not compact and are too wet.	The grinding level is not set optimally. • Adjust the grinder to a coarser or finer setting. → "Adjusting the grinding level", Page 45
	Coffee beans are too oily. • Use a different type of bean.
Display shows "Please insert brewing unit".	Cover is wrongly inserted. 1. Check whether the brewing unit is inserted correctly and is securely locked. 2. Push the red lever up to the left. 3. Insert the brewing unit cover.
Display shows "Please fill water tank." despite the fact that the water tank is full.	Water tank is wrongly inserted. • Insert the water tank correctly.
	Carbonated water is in the water tank. • Fill the water tank with fresh drinking water.
	Float is stuck in the water tank. 1. Remove the water tank. 2. Clean the water tank thoroughly.
	New water filter was not rinsed as per instructions. 1. Rinse the water filter according to the instructions. 2. Place the water filter into operation.
	Air is in the water filter. 1. Immerse the water filter in water with the opening facing upwards until no more air bubbles escape. 2. Reinsert the filter.
	Water filter is old. • Insert a new water filter.
	Limescale deposits in the water tank are blocking the system. 1. Clean the water tank thoroughly. 2. Start the descaling programme.
Display shows "Please clean brewing unit".	Brewing unit is soiled. • Clean the brewing unit.
	Mechanism of brewing unit is stiff. • Clean the brewing unit.
Display shows "Over-voltage or under-voltage".	There are problems with the power supply. • Only operate the appliance at 220-240 V ~.
Display shows "Error in water system. Please restart appliance".	Appliance has a fault. 1. Pull out the mains plug and wait 60 seconds. 2. Re-insert the mains plug.

Fault Cause and troubleshooting

Display very frequently shows "Please run calc'nClean pro-gramme!".	Decalcified water still contains small amounts of lime. 1. Insert a new water filter. 2. Set the corresponding water hardness.
	Incorrect or too little descaling agent used. • When descaling, only use suitable tablets.
	Service programme has not been carried out in its entirety. • Start the "Special rinsing" service programme. → "Service programmes", Page 52

16 Transportation, storage and disposal

16.1 Activating "Frost protection"

Protect your appliance from frost during transport and storage.

ATTENTION

Residues of liquid in the appliance may damage it during transport or storage.

• Empty the pipe system before transport or storage.

• Run the "Frost protection" programme.

"Overview of service programmes", Page 52

1. Disconnect the appliance from mains power supply.

16.2 Disposing of old appliance

Valuable raw materials can be reused by recycling.

1. Unplug the appliance from the mains.

2. Cut through the power cord.

3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

17 Customer Service

BSH Hausgeräte GmbH is extending the availability of spare parts to 10 years. This refers to all functionally relevant and storable parts for appliances produced after 1st January 2023.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

If you contact Customer Service, you will require the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) of your appliance.

You can find the contact details for our customer service via the QR code on the enclosed document on service contacts and warranty conditions or on our website.

You can find the information required as per Regulation (EU) 2023/826 online at siemens-home.bsh-group.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

17.1 Product number (E-Nr.), production number (FD) and consecutive numbering (Z-Nr.)

You can find the product number (E-Nr.), the production number (FD) and the consecutive numbering (Z-Nr.) on the appliance's rating plate.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

18 Technical specifications

Voltage 220-

240V\~

Frequency 50 Hz
Connection rating 1500 W
Maximum static pump pressure	20 bar
Maximum capacity of water tank (without filter)	2,6 l
Maximum capacity of bean container	350 g
Length of the power cable	100 cm
Appliance height 38 cm
Appliance width 30 cm
Appliance depth 46,7 cm
Weight, empty 9 kg
Type of grinder Ceramic

18.1 Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free or open source software.

The applicable licence information is stored on your home appliance. You can also access the applicable licence information via your Home Connect app: "Profile -> Legal information -> Licence Information".¹ You can download the licence information on the brand product website. (Please search on the product website for your appliance model and additional documents). Alternatively, you can request the relevant information from oss-

The source code will be made available to you on request.

Please send your request to [e-mail] or BSH Hausgeräte GmbH, Carl-Wery-Str.34, 81739

Munich, Germany.

Subject: „OSSREQUEST“

The cost of performing your request will be charged to you. This offer is valid for three years from the date of purchase or at least as long as we offer support and spare parts for the relevant appliance.

19 Declaration of Conformity

BSH Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the essential requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at siemens-home.bsh-group.com among the additional documents on the product page for your appliance.

C E

Hereby, BSH Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements.

A detailed Declaration of Conformity can be found online at siemens-home.bshgroup.com/uk/ among the additional documents on the product page for your appliance.

UK CA

2.4 GHz band (2400-2483.5 MHz): Max. 100 mW

5 GHz band (5150-5350 MHz + 5470-5725 MHz): max. 200 mW

BE BG CZ DK DE EE IE EL ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

5 GHz WLAN (Wi-Fi): For indoor use only.

AL	BA	MD	ME	MK	RS	UK	UA
5 GHz WLAN (Wi-Fi): For indoor use only.

19.1 Statement of Compliance for Great Britain

The full Statement of Compliance according to the Product Security and

Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 can be found online at

www.siemens-home.bsh-group.com/uk/home among the additional documents on the product page for your appliance.

Product type

This statement of compliance covers the products described in this information for use whose model identifier group is seen on the title page. The full model identifier is made up of the characters before the slash in the product number (E no.) which can be found on the rating plate. Alternatively, you can also find the model identifier in the first line of the UK Energy Label.

Name and address of manufacturer

This statement of compliance is prepared by the manufacturer.

The manufacturer, BSH Hausgeräte GmbH deems that it has complied with

provision 5.1-1 of ETSI EN 303 645 v2.1.1 and, where relevant, provision 5.1-2 of ETSI EN 303 645 v2.1.1;
provision 5.2-1 of ETSI EN 303 645 v2.1.1;
provision 5.3-13 of ETSI EN 303 645 v2.1.1.

Support period

BSH Hausgeräte GmbH will provide security updates that are necessary to maintain the main functions free of charge until at least 28/02/2034.

12.1 Configurer Home Connect Conditions

7.3 "doubleShot" e "triple-Shot"

7.4 Slow Brew e Cold Brew

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

BSH Hausgeräte GmbH

Carl-Wery-StraBe 34

81739 Munchen, GERMANY

siemens-home.bsh-group.com

8001348874 (050610)

de, en, fr, it
