USER MANUAL ULG 3.8 B1 ULTIMATE SPEED

KFZ-BATTERIELADEGERÄT ULG 3.8 B1

DE AT CH

KFZ-BATTERIELADEGERÄT

Bedienungsanleitung

IT CH

CARICABATTERIE PER AUTO EMOTO

Operating instructions

IAN 274400

DE AT CH

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

GB Operating instructions Page 31

Inhaltsverzeichnis

Einleitung 2

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Entsorgung

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Mise au rebut

Directive RoHS (2011/65/EU)

Semi Uguzlu - Responsible qualite

Spia LED "Modalitya 2"

Spia LED "Modality 3"

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Smaltimento

Intended use 32
Package contents 32
Description of components 32
Technical details 32

Safety 33

Safety information 33
Additional safety instructions 3 3

Operation 35

Before use 35
Connecting 35
Disconnecting 35
Select charging mode 35
Reset/deleting settings 35
Switching between modes 1, 2, 3 and 4 35
Mode 1 "6 V" (7.3 V/0.8 A) 36
Mode 2 "12 V" (14.4 V/0.8 A). 36
Mode 3 "12 V" (14.4 V/3.8 A). 36
Mode 4 "12 V" (14.7 V/3.8 A). 36
Automatic battery recognition 37
Pulse charging mode 37
Trickle charging 37
Protective function of the appliance 37

Maintenance and cleaning 37

Warranty. 38

Service 38

Importer 38

Disposal 38

Translation of the original Conformity Declaration 39

CAR BATTERY CHARGER ULG 3.8 B1

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.

Intended use

The Ultimate Speed ULG 3.8 B1 is a multi-stage car battery charger that is suitable for charging and trickle-charging 6V or 12V lead-acid batteries (batteries) with electrolyte solution (WET), electrolyte absorbent mats (AGM) or gel electrolyte (GEL). This appliance is not suitable for charging lithium-ion batteries. This appliance is not intended for commercial use and must be used indoors only.

The manufacturer accepts no responsibility for damage(s) attributable to misuse.

Package contents

Car battery charger ULG 3.8 B1

These operating instructions

Description of components

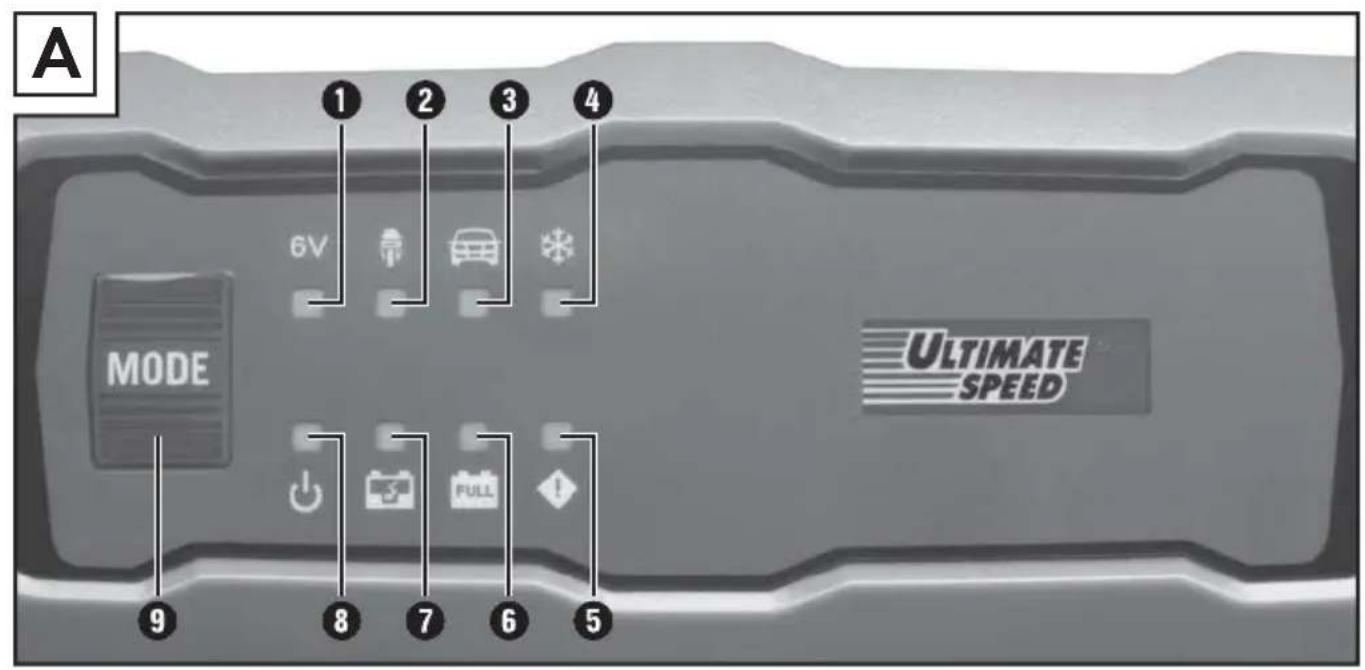

See Figure A:

LED display "Mode 1"6V
LED display "Mode 2"
3 LED display "Mode 3"
4 LED display "Mode 4"
5 LED display "Error"
6 LED display "Fully charged"FULL
7 LED display "Charging"
LED display "Standby mode"
9 "MODE" selection button

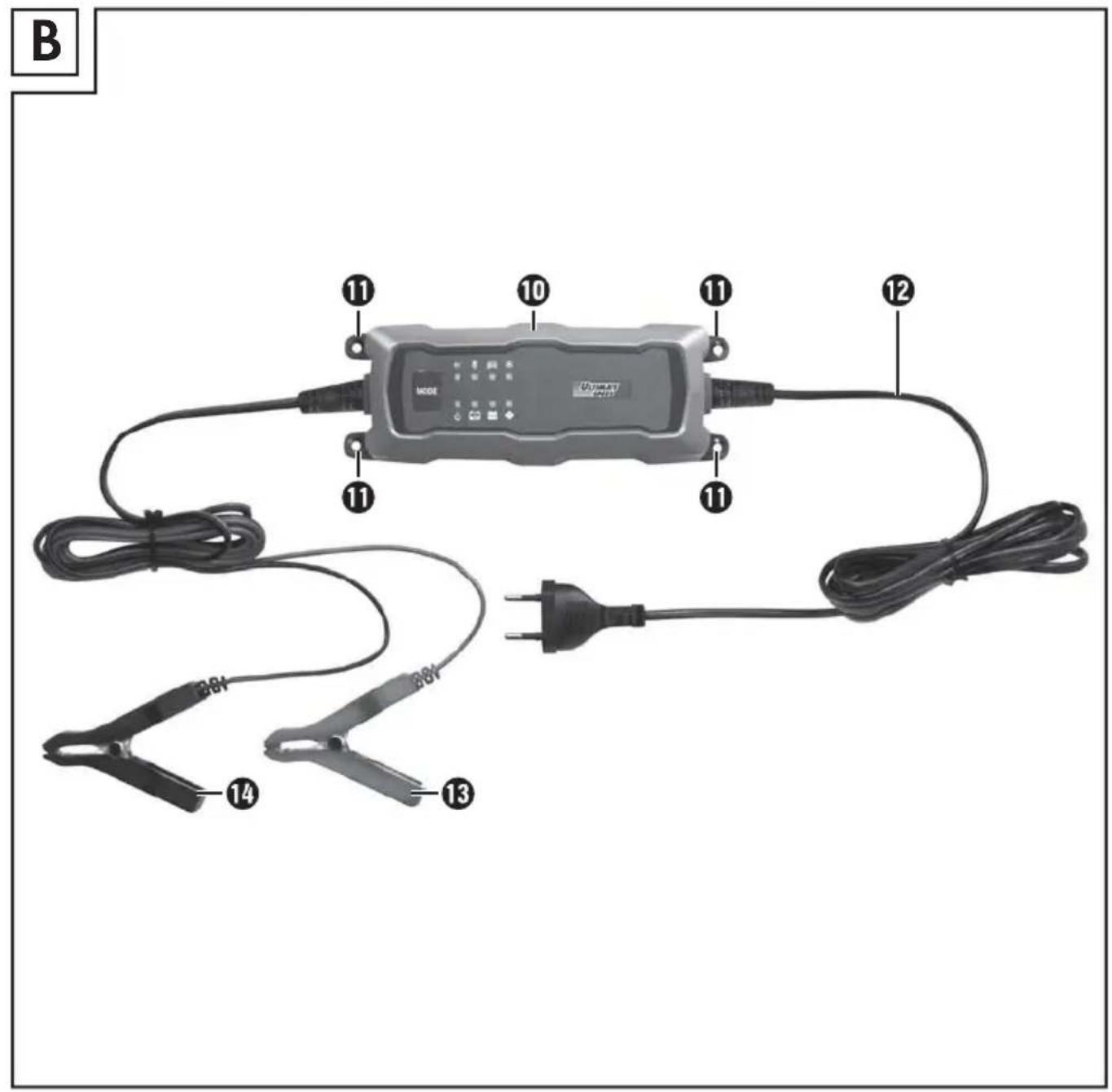

See Figure B:

10 Charger
Fixing holes
12 Mains power cable
Positive terminal clamp
Negative terminal clamp

Technical details

Rated voltage: 220 - 240V 50 / 60Hz (alternating current)

Rated power

consumption: 60 W

Rated DC output

voltage: = = / 12V = e = V (direct current)

Rated DC

output current: 0.8 A/3.8 A

Fuse (internal): 2 A

Ambient temperature: 0^ to 40^

Protection type: IP 65

Protection class: II / (double insulation)

Battery type: 6 V lead-acid battery
1.2 Ah-14
12 V lead-acid battery
1.2 Ah-120

Safety

WARNING!

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Safety information

The charger is suitable for indoor use only.

This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Children must not play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

To avoid potential risks, damaged mains cables should be replaced by the manufacturer, their customer service department or a similarly qualified person.

Additional safety instructions

• Do not use the charger for charging non-rechargeable batteries.

• Do not use the charger for charging lithium-ion batteries.

Place the removed battery in a well-ventilated location during charging.

The automatic mode of operation and usage restrictions are explained below in these operating instructions.

RISK OF ELECTRIC SHOCK!

• Do not operate the appliance with a damaged cable, power cord or mains plug. Damaged power cords are hazardous to life due to the risk of electric shock.

Before connecting to the mains, make sure that the mains current is a standard 230V 50Hz equipped with an earthed neutral conductor, a 16 A fuse and a residual-current circuit breaker (RCCB).

• Disconnect the charger from the mains before making connections to the battery.

Always connect the positive terminal clamp (red) 13 first.

The negative pole terminal clamp (black) must be connected to the chassis at a distance of at least 10cm from the battery and the fuel line.
Now connect the charger to the power supply.
- Disconnect the charger from the mains power supply after charging. Only then remove the terminal clamp from the chassis. Then remove the terminal clamp from the chassis.

RISK OF EXPLOSION AND FIRE!

Protect yourself from a highly explosive oxyhydrogen gas reaction!

Make sure that there are no sources of open fire (flames, embers or sparks) in the vicinity when charging or discharging batteries!
Make sure that the positive terminal connecting cable has no contact with a fuel line (e.g. petrol line)!
Make sure that no explosive and flammable substances, e.g. petrol or solvents, can be ignited when using the charger!
Ensure that there is adequate ventilation during charging.

RISK OF CHEMICAL BURNS!

Wear safety goggles! Wear protective gloves! If your eyes or skin come into contact with battery acid, rinse the affected part of the body with plenty of clear running water and seek immediate medical assistance!
Avoid an electric short-circuit when connecting the charger to the battery. Connect the negative terminal connecting cable only to the negative terminal of the battery or to the coachwork. Connect the positive terminal connecting cable only to the positive terminal of the battery!
- Do not set up the charger near a fire or subject it to heat or temperatures exceeding 50^ for long periods of time!
When attaching the charger, be sure not to damage any lines for fuel, electricity, braking system, hydraulics or water with screws!
Do not cover the charger with objects of any kind!
- Protect the electrical contacts of the battery against short-circuiting!

Use the charger exclusively for charging or trickle charging undamaged 6 V/12 V lead batteries! Frozen batteries may not be charged.

Operation

Before use

Before connecting the battery charger, read the operating instructions of the battery thoroughly.
In addition, observe the vehicle manufacturer's instructions for a permanently connected battery. Secure the vehicle; turn off the ignition.
Clean the battery terminals. Ensure that your eyes do not come in contact with the dirt in the process.
Ensure sufficient ventilation.

Connecting

NOTE

There are two options for connecting the charger. Connect the negative terminal connecting cable (black) either directly to the negative terminal of the battery or to the chassis. Please also bear in mind the vehicle manufacturer's instructions.
Before starting the charging or trickle charging procedure on a permanently installed battery in a vehicle, first disconnect the negative terminal connecting cable (black) of the vehicle from the negative terminal of the battery. The negative terminal of the battery is usually connected to the vehicle's chassis.
Then disconnect the positive terminal connecting cable (red) of the vehicle from the positive terminal of the battery.
Clamp the positive terminal clamp (red) of the charger to the positive terminal on the battery.
Clamp the negative terminal clamp (black) of the charger to the negative terminal on the battery.

Connect the mains cable of the battery charger to the power socket.
If the terminal clamps are connected incorrectly, the LED display "ERROR" will light up.

Disconnecting

Disconnect the appliance from the power supply.
Remove the negative terminal clamp (black) of the charger from the negative terminal on the battery or from the chassis.
Remove the positive terminal clamp (red3 of the charger from the positive terminal on the battery.

Select charging mode

You can choose between different charging modes for charging various batteries at different ambient temperatures. Unlike standard battery chargers, this appliance has a special function for reusing an empty rechargeable battery. You can recharge a completely discharged battery. A protection function against incorrect connection and short circuiting ensures safe charging. Due to the installed electronics, the charger does not begin operation directly after connecting the battery, but only starts after a charging mode has been selected. This prevents sparking, which often occurs when connecting. In addition, the battery charger is controlled by an internal MCU (microcomputer unit).

Reset/deleting settings

After connection to the power supply, the appliance automatically returns to its initial state and remains in Standby mode

Switching between modes 1, 2, 3 and 4

Press the MODE selection button corresponding amount of times.

The appliance switches through the modes in the following order: Standby Mode 1 (Mode 2), Mode 3 (Mode 4) and then starts the next cycle.

NOTE

If you press the MODE selection button, the charging mode automatically switches to the next mode and begins operation in that mode. If a 12 V battery is connected, Mode 1 (6V) is not selectable. If a 6 V battery is connected, Mode 2 (3) 3 (4) and 4 (*) are not selectable. If a battery is not disconnected from the charging station after a full charge, the appliance remains in trickle-charge mode, even if the user switches over to another mode. This protects the fully charged battery from being damaged.

Mode 1 "6 V" (7.3 V/0.8 A)

This mode is suitable for charging 6 V lead-acid batteries with a capacity below 14 Ah.

Press the MODE selection button, to activate Mode 1 (6). After doing so, the corresponding LED display 6Vi1ts up. If you do not activate another process afterwards, the electronic system will automatically activate together with the LED display 3a7 starts the charging process. If the procedure runs without any problems, the LED display 3a7 gains on during the entire charging process, until the battery is fully charged to 7.3V / ± 0.25V . When the battery is fully charged, the LED display full lights up and the LED display 3 goes out. The appliance now switches automatically to trickle charging mode.

Mode 2 "12 V" (14.4 V/0.8 A)

This mode is suitable for charging 12V lead-acid batteries with a capacity below 14 Ah.

Press the MODE selection button, to activate Mode 2 (After doing so, the corresponding LED display lights up. If you do not activate another process afterwards, the electronic system will automatically activate together with the LED display starts the charging process. If the procedure runs without any problems, the LED display gains on during the entire charging process until the battery is fully charged. When the battery is fully charged, the LED display pulls up and the LED display out.

The appliance now switches automatically to trickle charging mode.

Mode 3 "12 V" (14.4 V/3.8 A)

This mode is mainly used for charging 12V lead-acid batteries with a large capacity of more than 14 Ah under normal conditions.

Press the MODE selection button, to activate Mode 3. If you do not activate another process afterwards, the electronic system and the LED display will activate and start the charging process. If the procedure runs without any problems, the LED display remains on during the entire charging process until the battery is fully charged. When the battery is fully charged, the LED display lights up and the LED display is out. The appliance now switches automatically to trickle charging mode.

Mode 4 "12 V" (14.7 V/3.8 A)

This mode is used for charging 12V lead-acid batteries with a capacity of more than 14 Ah in cold conditions or for some AGM batteries with a capacity of more than 14 Ah.

Press the MODE selection button, to activate Mode 4. If you do not activate another process afterwards, the electronic system and the LED display will activate and start the charging process. In this mode, the charging current is identical to that of "Mode 3". If the procedure runs without any problems, the LED display aains on during the entire charging process until the battery is fully charged. When the battery is fully charged, the LED display full its up and the LED display ends out. The appliance now switches automatically to trickle charging mode.

Automatic battery recognition

As soon as the charger is connected to the mains power supply, the LED display on the device lights up.

The charger recognises the battery on the basis of the following criteria:

If the voltage of the battery is less than 3.8V or greater than 1.5V , the battery is not suitable for charging or defective. In this case, the LED Displays 6V 1, 2, 3 and flash. The charger remains in "Standby mode" and cannot be switched to another charging mode by means of the MODE selection button

Pulse charging mode

The mode is suitable for the charging/regeneration of empty, used and overcharged 12 V lead-acid batteries.

When the charger is connected to a battery and the charging process starts it automatically recognises the battery voltage. It will switch to pulse charging mode if the voltage is in the range of 7.5V± 0.5 to 10.5V± 0.5V

This pulse charging process is continued until the battery voltage has increased to 10.5V± 0.5V

As soon as this state is reached, the charger switches over to the previously selected normal charging mode.

Now the battery can be charged quickly and safely. Most empty, used or overcharged batteries can be regenerated and reused using this procedure.

NOTE

During the pulse charging process, the LED display flashes.

Trickle charging

The charge is equipped with an automatic trickle charging function. Depending on the voltage of the battery, the charger reacts by supplying different charging current. The battery can remain connected to the charger for a long period of time.

Protective function of the appliance

In the case of an incident such as short circuiting, a critical voltage drop during the charging process, an open circuit or reversed connection of the output terminals, the charger deactivates the electronic system and immediately switches back to its basic state to avoid damage.

If you do not activate any settings, the system will remain in Standby mode. If the terminals are incorrectly connected (reverse polarity), the LED display "ERROR" 5 also lights up.

If the appliance becomes too hot during charging, the power output is automatically reduced. This also protects the appliance from damage.

Maintenance and cleaning

WARNING! Always remove the power plug from the wall socket before carrying out any work on the battery charger.

The appliance is maintenance-free.

Under no circumstances should solvents or other aggressive cleaning agents be used.

Clean the plastic surfaces of the appliance with a soft, dry cloth.

Warranty

This appliance is provided with a 3-year warranty valid from the date of purchase. The appliance has been manufactured with care and inspected meticulously prior to delivery. Please retain your receipt as proof of purchase. In the event of a warranty claim, please contact your Customer Service unit by telephone. This is the only way to guarantee free return of your goods.

The warranty only covers claims for material and manufacturing defects, not for damage sustained during transport, wearing parts or damage to fragile components such as switches or batteries. This appliance is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres. Your statutory rights are not restricted by this warranty. The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking, but no later than two days after the date of purchase. Repairs carried out after expiry of the warranty period shall be subject to charge.

Service

GB Service Great Britain

Tel.: [phone] (£ 0.10/Min.)

E-Mail: [e-mail]

IAN274400

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Disposal

packaging is made from environmen-tally friendly material and can be disposed of at your local recycling plant.

dispose of power tools in your normal household waste!

European Directive 2012/19/EU requires that worn-out power tools be collected separately and recycled in an environmentally compatible manner. Your local community or municipal authorities can provide information on how to dispose of the worn-out appliance.

Translation of the original Conformity Declaration

We, KOMPERNASS HANDELS GMBH, documents officer: Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby declare that this product complies with the following standards, normative documents and EC directives:

EC Low Voltage Directive (2014/35/EU)

EMC (Electromagnetic Compatibility) (2014/30/EU)

RoHS Directive (2011/65/EU)

Related harmonised standards:

EN 60335-2-29/A2:2010

EN 60335-1:2012

EN 62233:2008

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013

Type designation of machine:

Car battery charger ULG 3.8 B1

Year of manufacture: 05 - 2016

Serial number: IAN 274400

Bochum, 01/02/2016

CE

Semi Uguzlu

Quality Manager

The right to effect technical changes in the context of further development is reserved.
