CG130861 - Waffle Maker Emerio - Free user manual and instructions

Product type	Waffle maker / Meat grill
Brand	Emerio
Model	CG130861
Voltage	220-240 V ~ 50/60 Hz
Power	750 W
Plate coating	Non-stick
Thermostat	Adjustable
Indicator light	Yes (indicates heating and reached temperature)
Fat collection tray	Yes, removable
Open grill function	Yes, via hinge release button
Dimensions (approx.)	30 x 25 x 15 cm
Weight (approx.)	2.5 kg
Cable length	Approximately 0.8 m
Maintenance	Clean with a damp cloth; do not immerse
Warranty	2 years
Safety	Automatic shut-off not specified; hot surface during use

Frequently Asked Questions - CG130861 Emerio

How to use the waffle maker for the first time?

Before first use, remove all packaging. Unlock the locking latch. Wipe the plates with a soft, damp cloth, then dry them. Fully unwind the cord. Heat the appliance empty for about 3-4 minutes to eliminate any new smell.

How to adjust the temperature?

Turn the thermostat knob to the desired setting. For waffles, start with the Max setting. The light turns on during heating and turns off when temperature is reached. Adjust according to your preferences.

How long to cook waffles?

Cooking takes about 3 to 8 minutes depending on the thickness and type of batter. Monitor the browning and adjust time to your taste.

Can I use cooking sprays?

Yes, you can lightly brush the plates with oil or use a cooking spray to prevent food from sticking. This also protects the non-stick coating.

How to clean the non-stick plates?

Let the appliance cool down. Wipe the plates with a soft cloth. For baked-on residues, spray warm water with a little detergent, then clean with a non-abrasive pad. Never use metal objects or abrasive products.

What if the indicator light does not turn on?

Check that the appliance is plugged into a working socket. If the light remains off, the thermal fuse may have blown. Contact after-sales service. Do not attempt to repair yourself.

Can I cook meat with this appliance?

Yes, the appliance can be used as a grill to cook hamburgers, steaks, fish, vegetables. Use the open grill function for a double cooking surface.

How to open the grill for flat cooking?

Press and hold the hinge release button while lowering the upper plate to horizontal. The appliance remains in open position. To return to closed position, raise the handle.

Are the plates removable?

No, the cooking plates are fixed. They cannot be removed for cleaning. Clean them in place with a damp cloth.

What if the appliance does not heat up?

Ensure the thermostat is set to a temperature and the light turns on. If after 5 minutes the appliance remains cold, unplug it and contact customer service. Do not use if damaged.

USER MANUAL CG130861 Emerio

Exterior view of a black and silver grater with a control knob (no text or symbols visible)

Multi Grill (EN)

Multi-Grill (DE)

Multigrill (FR)

Multigrill (SE)

Multi Grill (NL)

Instruction manual – English ...... - 2 -

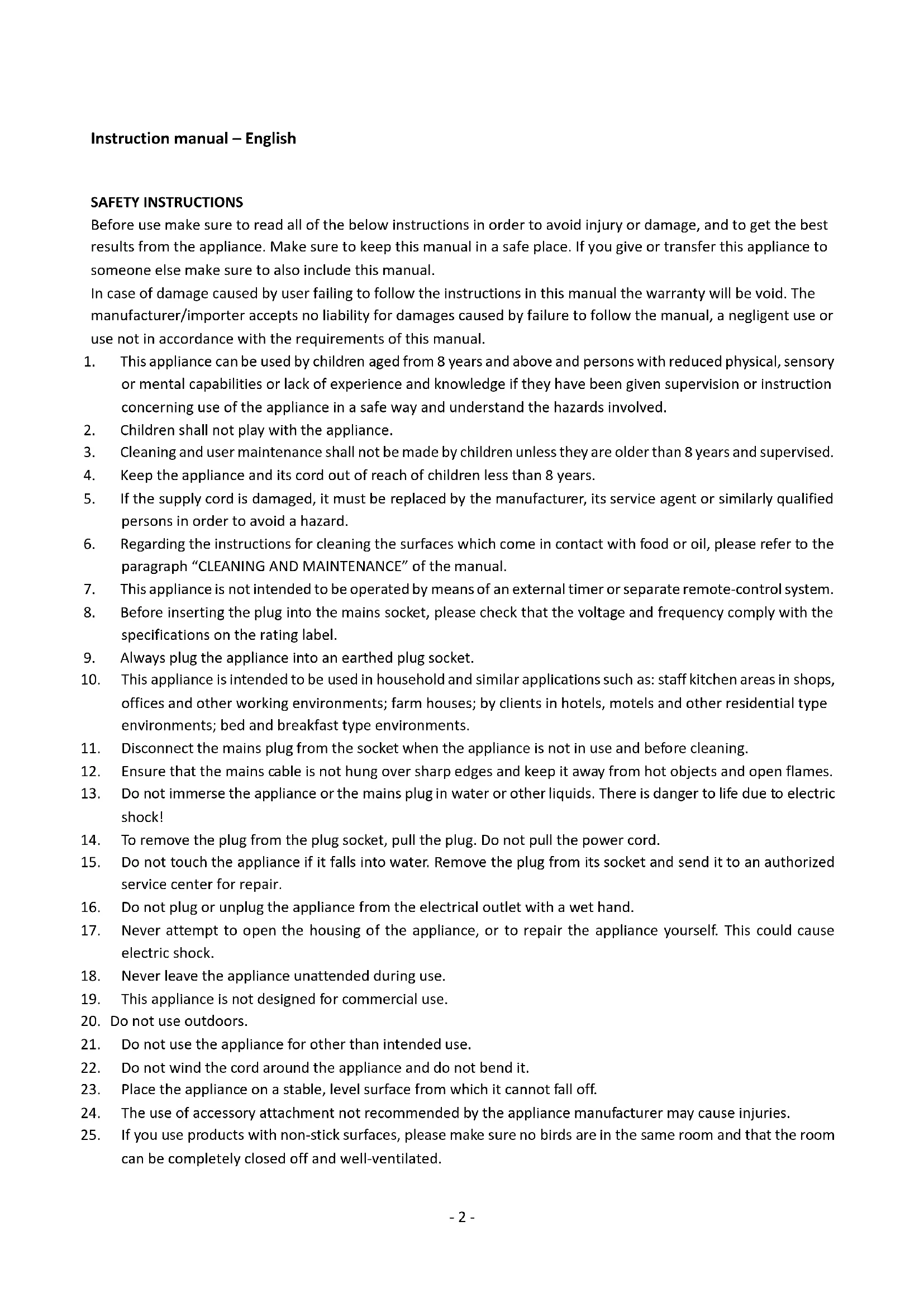

Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
2. Children shall not play with the appliance.
3. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.
4. Keep the appliance and its cord out of reach of children less than 8 years.
5. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
6. Regarding the instructions for cleaning the surfaces which come in contact with food or oil, please refer to the paragraph "CLEANING AND MAINTENANCE" of the manual.
7. This appliance is not intended to be operated by means of an external timer or separate remote-control system.
8. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.
9. Always plug the appliance into an earthed plug socket.
10. This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels and other residential type environments; bed and breakfast type environments.
11. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.
12. Ensure that the mains cable is not hung over sharp edges and keep it away from hot objects and open flames.
13. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!
14. To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
15. Do not touch the appliance if it falls into water. Remove the plug from its socket and send it to an authorized service center for repair.
16. Do not plug or unplug the appliance from the electrical outlet with a wet hand.
17. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
18. Never leave the appliance unattended during use.
19. This appliance is not designed for commercial use.
20. Do not use outdoors.
21. Do not use the appliance for other than intended use.
22. Do not wind the cord around the appliance and do not bend it.
23. Place the appliance on a stable, level surface from which it cannot fall off.
24. The use of accessory attachment not recommended by the appliance manufacturer may cause injuries.
25. If you use products with non-stick surfaces, please make sure no birds are in the same room and that the room can be completely closed off and well-ventilated.

1. Caution, hot surface.

WARNING!! Please do not touch surface while in use. The temperature of accessible surfaces may be high when the appliance is operating.

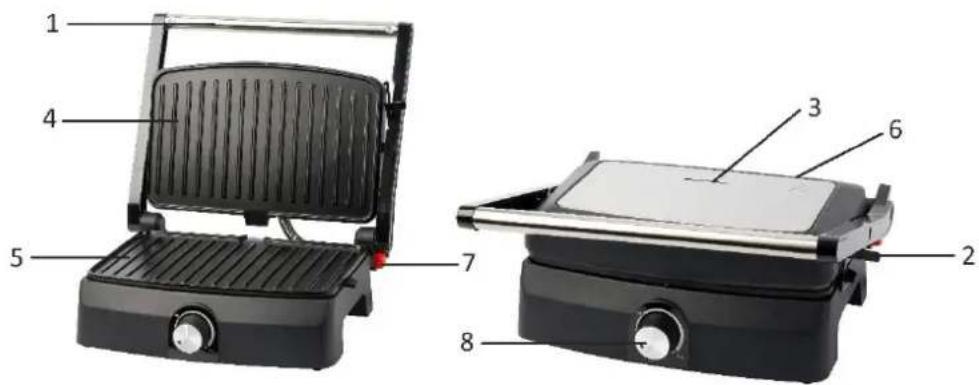

PARTS IDENTIFICATION

1. Handle
2. Securing latch
3. Indicator light
4. Upper cooking plate
5. Bottom cooking plate
6. Oil drip tray
7. Hinge release button
8. Thermostat knob

BEFORE INITIAL USE

1. Remove all packaging. The appliance is closed and locked by the securing latch on the side of the unit. Turn the securing latch to unlock the appliance.
2. Wipe the surfaces and non-stick grill plates with a soft damp cloth, and then dry them. DO NOT IMMERSE THE UNIT AND DO NOT RUN WATER DIRECTLY ON THE COOKING SURFACES.
3. Unwind the mains cable completely.

Note: When your grill is heated for the first time, it may emit slight smoke or odor. This is normal and harmless.

HOW TO USE

1. For best results, lightly coat the cooking plates with a little cooking oil or cooking spray.
2. Close the grill and plug it into the power socket.
3. Rotate the thermostat knob to your desired setting. At first, try a setting in the Max position. You may adjust it lower or higher according to your preference.
4. The appliance will start preheating and the indicator light will illuminate.
5. It will take approximately 3-4 minutes to finish preheating, then the indicator light will turn off.
6. Open the grill and put the prepared ingredients on the bottom cooking plate. Close up the grill. The indicator light will turn on again.

7. During cooking, the indicator light will turn on to indicate the grill is heating and turn off to indicate the set temperature has been reached.

8. The cooking will take about 3-8 minutes depending on different food. Check if the food is golden brown. Adjust the cooking time to suit the individual taste.

9. When cooking is finished, use the handle to open the lid. Remove food by using a wooden or plastic spatula to protect the non-stick coating of the cooking plates.
10. Disconnect the plug from the outlet after use and leave the appliance open to cool.

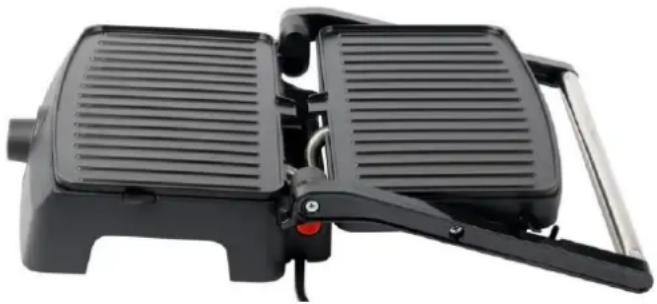

USE AS OPEN GRILL

• Place the grill on a clean flat surface where you intend to cook. The grill can be positioned in flat position.
• To make the upper plate be leveled with the bottom plate, push and hold the hinge release button with one hand, and make the upper plate rest flat with the other hand. The appliance will stay in this position until you lift the handle and cover to return it to the closed position.
• Use the grill as an open grill to cook burgers, steak, poultry (we do not recommend cooking bone-in chicken, since it does not cook evenly on an open grill), fish and vegetables.
• In the open position, you have double the surface area for grill. You have the option of cooking different types of foods on separates without combining their flavors, or cooking large amounts of the same type of food. The open position also accommodates different cuts of meat with varying thicknesses, allowing you to cook each piece to your like.

Black and white photo of a flat-screen grater with ventilation grilles and handle mechanism (no text or symbols visible)

CLEANING AND MAINTENANCE

1. Always unplug the appliance after use. Allow it to cool down before cleaning. The unit is easier to clean when slightly warm. There is no need to disassemble the appliance for cleaning.
2. Clean the housing with a soft damp cloth and then dry it thoroughly.
3. Wipe the cooking plates with a soft cloth to remove the food residue. For baked food residue squeeze some warm water mixed with detergent over the food residue and then clean with a non-abrasive plastic scouring pad or place wet kitchen paper over the surface to moisten the food residue.
4. Remove and empty the oil drip tray. Wash it in warm soapy water. Avoid the use of scouring pads or harsh detergents as they may damage the surface. Rinse and dry thoroughly with a clean, soft cloth and replace.
5. Never use abrasive cleaning agents or sharp objects (e.g. scrubbing brush or knife) for cleaning.
   Caution: Do not immerse the appliance in water or other liquids. There is danger to life due to electric shock!

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power: 750W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

The crossed out wheelie bin symbol means that this product shall not be disposed of with normal household waste. Electronic and Electrical Equipment not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances. Please dispose of responsibly at an approved waste or recycling facility.

Emerio B.V.

Oudeweg 115

2031 CC Haarlem

The Netherlands

Customer service:

T: [phone]

www.emerio.eu/service

Kundeninformation:

T: [phone]

www.emerio.eu/service

Klantenservice:

T: [phone]

www.emerio.eu/service

Looking for spare parts? Have a look at https://spareparts.emerio.eu

CUSTOMER SERVICE

SPARE PARTS

Black and white photo of a flat-screen grater with side panels and handle (no text or symbols visible)

Looking for spare parts? Have a look at https://spareparts.emerio.eu

KUNDENDIENST

ERSATZTEILE

1. Attention, surface chaude.

Black and white photo of a flat-screen grater with ventilation grilles and handle mechanism (no text or symbols visible)

NETTOYAGE ET ENTRETIEN

Looking for spare parts? Have a look at https://spareparts.emerio.eu

SERVICE CLIENT

PIÈCES DÉTACHÉES

Bruksanvisning – Swedish

SÄKERHETSANVISNINGAR

Black and white photo of a flat-screen grater with ventilation grilles and handle (no text or symbols visible)

RENGÖ RING OCH UNDERHÅLL

Looking for spare parts? Have a look at https://spareparts.emerio.eu

KUNDTJÄNST

RESERVDELAR

Black and white photo of a flat-screen grater with side panels and handle (no text or symbols visible)

REINIGING EN ONDERHOUD

Looking for spare parts? Have a look at https://spareparts.emerio.eu

KLANTENSERVICE

RESERVEONDERDELEN

INSTRUKCJE DOTYCZĄCE BEZPIECZEŃSTWA

Black and white photo of a flat-screen grater with ventilation grilles and handle mechanism (no text or symbols visible)

CZYSZCZENIE I KONSERWACJA

Looking for spare parts? Have a look at https://spareparts.emerio.eu

OBSŁUGA KLIENTA

CZEŚCI ZAMIENNE

Black and white photo of a flat-screen grater with ventilation grilles and handle (no text or symbols visible)

LIMPIEZA Y MANTENIMIENTO

Looking for spare parts? Have a look at https://spareparts.emerio.eu

PIEZAS DE RECAMBIO
