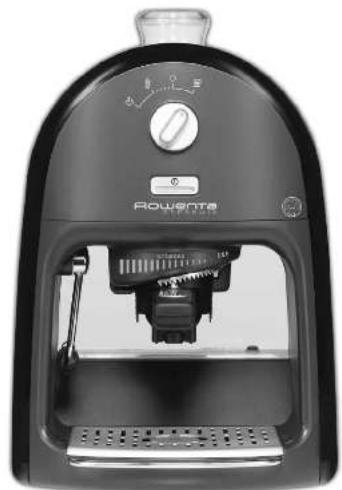

USER MANUAL Espremio ES6200 ROWENTA

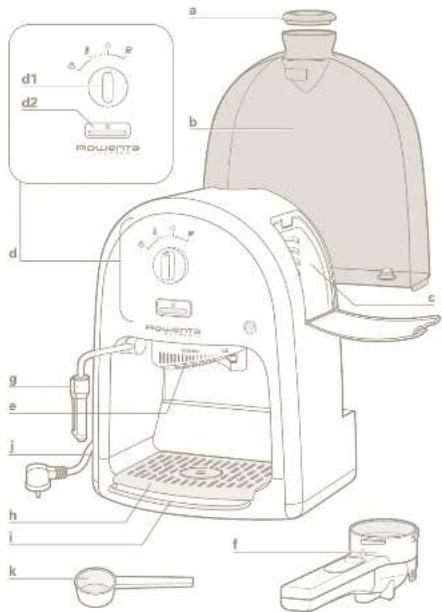

a Water tank cover b Removable water tank c Spaces for storing cups and keeping them warm d Control panel: d.1 Selection knob (coffee or steam) d.2 ON/OFF button with LED e Position for the filter holder f Filter holder with ejection system for the used coffee or pod and progressive compression of the ground coffee or pod: OPTIPRESS system. g Removable steam nozzle h Drip tray grill i Drip tray, with level gauge fitted j Power cord k Measuring spoon Thank you for purchasing this ROWENTA product. You have just purchased the latest innovation in terms of espresso machines. Your machine is equipped with a filter holder that has three exclusive systems:

• One is for the progressive compression of the ground coffee when positioning the filter holder. (OPTIPRESS system).

• The second is for ejecting the used coffee.

• The last one is for the use of E.S.E. (Easy Serving Espresso) pods or soft pods. It can also be removed, so that you can clean it regularly to keep it in perfect working order. For your safety, the filter holder is fitted with a locking system so that it remains in place when the pressure rises. Before leaving the factory your machine has been checked and tested using real coffee grounds. Although the appliance has then been thoroughly cleaned it is possible that traces of coffee and drops of water may have remained inside the machine. We guarantee that these machines are brand new. IMPORTANT! Operating voltage: This appliance is designed to operate solely with an alternating current of 220-240 V. Type of use: This product has been des- igned for domestic use only. Any commer- cial use, inappropriate use or failure to comply with the instructions, the manufac- turer accepts no responsibility and the gua- rantee will not apply.

• Filter holder with used coffee ejection system

• Compatible with all types of pods, E.S.E or soft

• Two spaces for storing cups and keeping them warm (when the appliance Is operating ), dimensions are as follows: Diameter 60 mm, Height 60 mm

• Removable tank (capacity: 2 litres)

• Power rating: 1450 W

• Tension: 220-240 V – 50 Hz

• Overheating safety devices

• Before using your espresso machine, please read the instructions carefully.

• Only plug the appliance in to a socket with an earth pin. Check that the voltage on the rating plate of the appliance matches that of your electrical installation. ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 1314

• Do not place your espresso machine on a hot surface (an electric hob for example) or close to flames.

• Do not remove the filter holder containing the ground coffee when water is passing through it as the appliance is pressurised at that time.

• Do not use the appliance unless the drip tray and the grill are fitted.

• Always unplug your appliance in the case of problems when making coffee or before cleaning your appliance.

• Do not unplug the appliance by pulling on the power cord and do not place the power cord on a sharp edge or corner.

• Avoid contact between the power cord or your hands with the hot parts of the appliance (cups warming tray, filter holder, steam nozzle).

• Do not immerse the appliance in water.

• Keep out of the reach of children and do not allow the power cord to dangle.

• Follow the instructions for descaling operations.

• Do not use the appliance if it is damaged or if the power cord has been damaged.

• If the power cord or any other specific element is damaged or does not operate correctly, they must only be replaced by the approved ROWENTA service centre. Under no circumstances must you open the appliance yourself.

• Check that the filter holder has been tightened before making the coffee.

• This appliance is not designed to be used by persons (including children) with reduced physical, sensorial or mental capacities or persons with no experience or knowledge unless they have been provided with suitable instructions concerning the use of the appliance from a person responsible for their safety. Children should be watched so that they do not play with the appliance.

• The accessories and removable parts of the appliance are not dishwasher proof.

• Place on a flat, stable, heat-resistant work surface away from water splashes and sources of heat.

Remember to release the filter holder while pressing the “EJECT” button lightly before removing it from the appliance (fig. 1).

• To obtain an espresso with an intense aroma, we recommend that you use freshly ground special espresso coffee that is suited to the delicate preparation of this type of coffee, as well as cups that are not bigger than 50 ml.

• Keep the ground coffee in the refrigerator, it will conserve its aroma for longer.

• Do not fill your filter holder to the top, use the measuring spoon (1 spoon per cup). Remove any excess ground coffee from the edge of the filter holder.

• If the appliance is not used for more than 5 days, empty and rinse the water tank.

• Before removing the tank to fill or empty it, always remember to switch off the appliance.

• Always ensure that the appliance is placed on a flat, stable, heat-resistant surface.

To obtain a better temperature of the coffee in the cup, we recommend keeping the cups warm in the spaces provided for this purpose.

Rinsing before first use Before using your coffee machine, clean all of the accessories in water and washing up liquid then dry them.

• Fill the tank with cold water and fit it onto the appliance, ensuring that it is fitted correctly.

• Switch on the appliance by pressing the ON/OFF button d2.

• The temperature light flashes then remains lit. The appliance is ready for use (fig. 2).

• Insert the filter holder (without ground coffee) into the appliance: turn it towards the right as far as possible (fig. 3).

• Place a recipient with a volume of more than _ litre underneath the filter holder (fig. 4). Turn the selector d1 to the position (coffee) (fig.

• Let the water run from the tank. To stop the ENG IMPORTANT! Before first use, after prolonged periods of non-use or after descaling, the appliance must be cleaned as described in the para- graph: “FIRST USE” ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 14flow of water, turn the selector d1 to the position “0” (fig. 6) and unplug the appliance.

• Remove the tank, empty it and rinse it carefully and fit it back onto the appliance (fig. 7 and 8).

• Before removing the removable tank, place the selector d1 in the “0” position (fig. 6).

• Fill the tank with cold water and fit it back onto the appliance (fig. 7 and 8).

• Switch on the appliance by pressing the ON/OFF button d2.

• The LED flashes while the machine is warming up, then remains lit. The appliance is then ready for use. For best results, we recommend warming up the accessories beforehand (filter holder and cups) without adding any ground coffee. Proceed as follows:

• Fit the empty filter holder, and place the espresso cups underneath it. As soon as the appliance has reached the right temperature, the orange LED stops flashing.

• Press the 2 cup or 1 cup button according to what you require.

• Once the cup(s) are filled with hot water, move the selector back to the "0" position.

• Release the filter holder by pressing the "EJECT" button lightly and turning it towards the left (fig. 1). Using the measuring spoon, place the ground coffee into the filter holder: one measuring spoon (filled to the top) per cup for a good espresso (fig. 9).

• Remove the excess ground coffee from the edge of the filter holder (fig. 9).

• Insert the filter holder into the appliance and turn it towards the right (fig. 3) until the desired compression of the ground coffee is reached. The more it is compressed, the stronger the espresso.

• Place a cup on the grill of the drip tray under the filter holder (fig. 10).

• Turn the selector d1 to the position (coffee) (fig. 5).

• After a few moments, the coffee stars to flow.

• When your cup is as full as you want, move the selector d1 to the position "0" (fig. 6).

• Release the filter holder: press the "EJECT" button lightly while turning the filter holder towards the left and remove it from the appliance. Throw away the used coffee using the ejection system by pressing the "EJECT" button on the handle fully (fig. 11). Wash the filter holder under running water, while pressing the "EJECT" button to eliminate the remains of ground coffee (see also paragraph 8.B for deeper cleaning). It is normal that each time the control selector d1 returns to the position "0" there is a low noise of running water or steam, due to a specific device which eliminates the pressure from the circuits. Once you have prepared your first espresso and the appliance is hot, you can keep your cups at the right temperature In the spaces provided. With an E.S.E espresso pod

• Before removing the removable tank, remember to place the selector d1 in the position "0".

• Fill the tank with cold water and fit it back onto the appliance (fig. 7 and 8).

• Switch on the appliance by pressing the ON/OFF button d2.

• The LED flashes during preheating, then remains lit. The appliance is then ready for use. For best results, we recommend warming up the accessories beforehand (filter holder and cups) without adding any ground coffee.

ENG IMPORTANT! If the espresso machine is being used for the first time, the appliance must be clea- ned as described in paragraph 5 “FIRST USE”. The type of ground coffee that you use will determine the strength and taste of your espresso: the finer your coffee is ground, the stronger the espresso. "ESE" for "Easy Serving Espresso" is a pod (44 mm in diameter) of 7g of coffee that has been selected, ground and com- pacted between two filter papers especially designed to make Italian style espresso ("ristretto" short coffee). This system permits easy, simple, clean and comfortable use of your machine. ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 15Proceed as follows:

• Fit the empty filter holder, and place the espresso cups underneath it. As soon as the appliance has reached the right temperature, the orange LED stops flashing.

• Press the 2 cup or 1 cup button according to what you require.

• Once the cup(s) are filled with hot water, move the selector back to the "0" position

• Release the filter holder by pressing the "EJECT" button lightly and turning it towards the left (fig. 1). If required, remove the paper around the pod following the dotted lines (fig. 12). Place the E.S.E pod with the red writing facing downwards (fold the corners of the filter paper back). Ensure that the paper is placed inside the filter, otherwise this could cause leaks. For creamier and thicker froth, the E.S.E pod must be positioned correctly. The pod is designed to make one cup of coffee. The use of 2 E.S.E pods on top of one another is not recommended.

• Insert the filter holder into the appliance tightening it by turning it towards the right as far as possible (fig. 3).

• To prepare your espresso, follow the same procedure as for the preparation of an espresso with ground coffee. With a soft pod

• Before removing the removable tank, remember to place the selector d1 in the position "0".

• Fill the tank with cold water and fit it back onto the appliance (fig. 7 and 8).

• Switch on the appliance by pressing the ON/OFF button d2.

• The LED flashes during preheating, then remains lit. The appliance is then ready for use. For best results, we recommend warming up the accessories beforehand (filter holder and cups) without adding any ground coffee. Proceed as follows:

• Fit the empty filter holder, and place the espresso cups underneath it. As soon as the appliance has reached the right temperature, the orange LED stops flashing.

• Press the 2 cup or 1 cup button according to what you require.

• Once the cup(s) are filled with hot water, move the selector back to the "0" position

• Release the filter holder by pressing the "EJECT" button lightly and turning it towards the left (fig. 1). Place a soft pod into the filter holder. The pod is designed to make one cup of coffee. The use of 2 pods on top of one another is not recommended.

• Insert the filter holder into the appliance tightening it by turning it towards the right (fig. 3). The more it is compressed, the stronger the espresso will be.

• To prepare your espresso, follow the same procedure as for the preparation of an espresso with ground coffee.

7. PREPARING THE STEAM

The steam is used to froth the milk (for example when preparing cappuccinos or hot chocolate) and heating water (for tea and other hot drinks).

Turn the selector d1 to the position (fig. 13) (to obtain more steam, the temperature needs to be higher than when making coffee).

• The ON/OFF button LED flashes again then remains lit. The appliance is then ready for use.

• Place the liquid to be heated into a recipient. For best results, we recommend pouring the liquid to be heated or frothed into a recipient with a narrow neck (a small jug for example).

• Plunge the steam nozzle into the liquid.

• Turn the selector d1 to the position (steam) (fig. 14): the steam pours into the liquid.

• For good frothy milk, use circular movements and move from top to bottom (fig. 15). The pump operates intermittently, this is normal.

ENG Your machine is also compatible with soft pods (generally 60 mm in diameter). As this type of pod is not specifically des- igned for espresso machines, you will obtain a weaker espresso than with an E.S.E. pod. ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 1617 ENG

• In order to obtain good frothy milk, the milk should be very fresh and very cold. We recommend using pasteurised or UHT milk, and not using untreated milk.

• During operation, it is normal for the temperature light of the ON/OFF button to light up and then extinguish.

• When the liquid is hot and/or frothy, switch off the appliance (selector d1 in the position "0").

• When the selector d1 is in the position "0", the appliance cools down automatically. During the cooling down phase, the LED of the ON/OFF button flashes, and hot water runs into the drip tray. When the optimal temperature for preparing an espresso is reached, the LED remains lit.

8. MAINTENANCE AND CLEA-

NING The accessories and removable parts of the appliance are not dishwasher proof. A. The appliance

• Unplug the machine each time before cleaning and leave the appliance to cool down.

• Clean the outside of the appliance from time to time with a damp sponge. Wash the tank, the drip tray and its grill regularly and dry them.

• Rinse the inside of the tank regularly.

• When a fine white film obscures the tank, carry out a descaling operation. (see paragraph 9. DESCALING).

• Do not use alcohol or solvent based cleaning products.

• Once the appliance has been unplugged, clean the hot water grill and the seal regularly, using a damp sponge (fig. 16). B. The filter holder The appliance that you have purchased is equipped with a removable ejecting filter holder, which allows you to maintain it in perfect working order. We recommend that you clean it each time after use. These removal/fitting operations must be carried out when the machine has cooled down.

1. Removal of the filter holder:

• Remove the filter holder from your machine.

• Dispose of the used coffee or pod by pressing the ejection button (fig. 11).

• Rinse in clear water.

• Hold the bottom of the filter holder between your thumb and index finger.

• Exert pressure on it with the thumb and index finger at the same time, then pull it downwards (fig. 17).

2. Cleaning and rinsing the filter holder:

The filter holder may then be cleaned using a household detergent and a scouring pad, but must be rinsed afterwards in clear water. For best results, you may actuate the ejection button several times while rinsing. We recommend shaking your filter holder vigorously in order to evacuate all water.

3. Fitting the filter holder:

First inset the bottom of the filter holder into the slot provided for this purpose, then push it in until you hear a "click" which ensures that it is locked into place (fig. 18). C. The drip tray As soon as the level gauge appears, the drip tray must be emptied after first removing the grill (fig. 19 and 20). The presence of water is normal and is not the sign of a leak. If required, clean the drip tray and its grill with water and a little non aggressive detergent. Rinse and dry. IMPORTANT! Once the steam has been stopped, clean the steam nozzle immediately and tho- roughly using a damp sponge (to avoid residues from sticking) and let a little more steam run through into free air to rinse the inside of the nozzle. WARNING! The steam nozzle is still hot! Be careful not to burn yourself. ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 1718

• Regular descaling of your appliance, as mentioned in paragraphs A and B for the coffee and steam functions, is the best guarantee of your machine's long life. The frequency of the descaling operations must be adapted to suit the hardness of your water. Ask for advice from your local water authority.

• During the operation, do not stand your appliance on a marble surface. The descaler could affect it.

• To make this clearer, please find below a summary table of the frequencies of the descaling operations according to the hardness of water and use: If in doubt, we recommend carrying out a descaling operation every month. No repairs to your machine will be carried out due to:

• descaling not being carried out,

• scale. A. Descaling of the coffee function

• Unplug the appliance.

• Insert the filter holder (without ground coffee) into the appliance and lock it into place by turning it towards the right as far as possible (fig. 3).

• Place a recipient with a volume of more than 1/2 litre under the filter holder (fig. 4).

• Check that the selector d1 is in the position "0".

• Empty the tank and put it in place.

• Fill the tank with a mixture of three parts water to one part vinegar or citric acid.

• Switch on the appliance.

• When the temperature light of the ON/OFF button remains lit, you can then switch to the position (coffee) (fig. 5).

• Let the mixture flow through.

• Wait for 2 minutes then repeat the operation twice.

• Turn the selector to the position "0".

• Now follow the instructions for descaling the steam function. B. Descaling the steam function

• Next place the recipient under the steam nozzle.

• Turn the selector d1 to the position (steam heat) (fig. 13) (to obtain steam, the temperature must be higher than that required for coffee).

• the LED of the ON/OFF button flashes then remains lit.

• Turn the selector d1 to the position (steam extraction) (fig. 14): the steam pours into the liquid. Let the rest of the mixture flow for 2 minutes.

• During the operation, it is normal for the water temperature light to light up and then go out.

• After a few moments, stop the appliance (position "0").

• When the selector d1 is in the position "0", the appliance cools down automatically. During the cooling down phase, the LED of the ON/OFF button flashes and hot water runs into the drip tray. C. Rinsing ENG DESCALING FREQUENCY Av. number of coffees per week Soft water (<19°th) Hard water (19-30°th) Very hard water (>30°th) Less than 7 Once a year Every 8 months Every 6 months From 7 to 20 Every 4 months Every 3 months Every 2 months More than 20 Every 3 months Every 2 months Every month IMPORTANT!

• After descaling, rinse 2-3 times with clear water (without ground coffee), as described in paragraph "First use".

• Don't forget to rinse the steam nozzle. The appliance is descaled and ready to use again. ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 1819

Your appliance is supplied with a guarantee but any incorrect connection, handling or use other than those described in the instructions will invalidate this guarantee. This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. No repairs due to scale are covered by the guarantee For any after sales or spare parts problems, contact your dealer or an approved service centre. ENG

Problems Possible causes Solutions The filter holder is blocked. The "EJECT" button is too stiff to move. You have forgotten to release the filter holder. Move the filter holder slightly to the right before pressing the "EJECT" button. The coffee is not dry after the water has passed through. You have not tightened the filter holder correctly. Tighten the filter holder more. The espresso flows too slowly. You have over tightened the filter holder The coffee is too finely ground, too oily or powdery. The filter holder is dirty. The water grill is dirty. Untighten it Choose a more coarsely ground coffee. Clean your filter holder according to the instructions in paragraph 8.B. When the appliance has cooled down, clean the water grill with a damp sponge (fig. 16). Water flows from the filter holder after the espresso has been made. The selection knob has not been placed in the position "0". Premature formation of scale due to very hard water. Switch off the appliance by moving the selection knob D1 to the opposition "0" (fig. 6). Descale the espresso machine according to the instructions (paragraph 9). Ground coffee in the cup. The filter holder is dirty. The coffee is too finely ground. Clean the filter holder with hot water. Press the "EJECT" button to eliminate any remaining coffee. Shake it to get rid of any water (also refer to paragraph 8.B. Use a more coarsely ground coffee, and only use Espresso ground coffee The espresso is not frothy. The coffee is too old. The coffee is not suited to making espresso. There is not enough coffee in the filter holder. Use a more recently ground coffee. Use a more finely ground coffee. Add more coffee. ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 1920 ENG If the cause of the problem cannot be determined, contact an approved service centre. Do not dismantle the appliance yourself! (If dismantled, this will invalidate the guarantee).

12. ELECTRICAL OR ELECTRONIC PRODUCT TO BE DISPOSED OF

Do your part to protect the environment! Your appliance contains many materials that may be recovered or recycled. Please take it to a local civic waste collection point Problems Possible causes Solutions The water tank leaks when it is moved. The valve at the bottom of the tank is dirty or faulty. The valve is blocked by scale Wash the water tank and actuate the valve at the bottom of the tank with your finger. Descale the appliance as described in paragraph 9. Water leaking underneath the appliance. Inside leak. Check that the tank is fitted correctly. If the problem continues, do not use the appliance, contact an approved service centre. Cracking noises are heard from the filter holder. This is normal: safety lock on the filter holder. The pump is abnormally noisy. No water in the tank. Switch off the appliance (position "0"), fill the water tank and switch back on. The cups are not filled equally. The filter holder is dirty. Refer to paragraph 8.B for the maintenance of the filter holder. The espresso leaks from the sides of the filter holder. The filter holder is not fitted correctly. The edge of the filter holder has coffee on it. Fit the filter holder in place and lock it (turn it from left to right as far as possible) (fig. 3). Remove the excess coffee (fig. 9). Your espresso has a bad taste. After descaling, the appliance has not been rinsed correctly. Rinse the appliance according to the instructions (paragraph 8). The appliance will not work. The pump has been drained due to lack of water. The removable water tank is not fitted correctly. Fill the water tank and restart the pump (see paragraph 5. "FIRST USE"). Avoid emptying the water tank completely. Push the water tank firmly to fit it correctly. The steam nozzle does not froth the milk. The steam nozzle is blocked or scaled. The milk is too warm or not fresh. The recipient is not the right shape. Descale the steam nozzle as described in the paragraph "DESCALING" or unblock it with a needle (fig. 21). Use very cold, very fresh milk. Use a small jug. ROWENTA 6200 - EO:0828112 9/07/08 9:48 Page 202-
