USER MANUAL WH7PA15AM60 WHIRLPOOL

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.

In order to receive a more complete assistance, please register your appliance on: www.whirlpool.eu/register

Before using the appliance carefully read Safety and Installation Instructions.

After installation, please remember to remove all transport protection parts from the dishwasher.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO HAVE MORE DETAILED INFORMATION

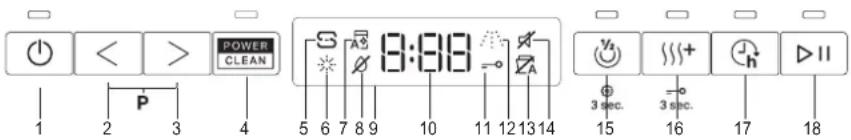

CONTROL PANEL

1. ON-OFF/Reset button with indicator light
2. PREVIOUS program button
3. NEXT program button
4. Power Clean® option button with indicator light
5. Salt reservoir empty indicator light
6. Rinse Aid reservoir empty indicator light
7. DESCALE indicator light
8. Closed Water Tap indicator light
9. Display
10. Program number and remaining time indicator
11. Keylock indicator light
12. Prewash phase indicator light (lights up when the phase is active)

POWER CLEAN 1 2 3 4 P 5 6 7 8 9 10 11 12 13 14 3 sec. 3 sec.

1. Natural Dry indicator light (lights up when not active or not available in the program)
2. Sound indicator light
3. Half Load option button with indicator light / Settings - 3 sec. press
4. Extra Dry option button with indicator light / Keylock - 3 sec. press
5. Delay option button with indicator light
6. START/Pause button with indicator light

FIRST TIME USE

More information in the Daily Reference Guide on website.

SETTING MENU

1. Switch on the appliance by pressing the ON-OFF button.
2. Hold the Settings ✪ (Half Load ⏻) button for 3 seconds, until you hear a beep and the display shows „SEt”.
3. After one second the first available setting (letter „4“) will be displayed.
4. Press PREVIOUS to scroll through the list of available settings (see table below), then press START/Pause ▷II to view and change the value of the currently selected setting.
5. Press PREVIOUS to change the value, then press START/Pause ▶II to save the new value and return to the main menu.
6. To change another setting, repeat points 4 and 5.
7. Press ON-OFF or wait 30 seconds to exit the menu.

LETTER	SETTING	VALUES(Default - in bold)*
	Cycle Counter - number of washing cycles carried out by the dishwasher.	Eq. 25 cycles: 25;Eg. 13.947 cycles: 13_947 (scrolling for 3 times)
	Water Hardness Level (see "SETTING THE WATER HARDNESS" and "WATER HARDNESS TABLE")	1 | 2 | 3 | 4 | 5
	Rinse Aid Level(see "ADJUSTING THE DOSAGE OF RINSE AID")	0 | 1 | 2 | 3 | 4 | 5
	NaturalDry (see "OPTIONS AND FUNCTIONS")“1" = On , "0" = Off	1 | 0
	Sound“1" = On , "0" = Off	1 | 0
	Factory Settings - press START/Pause to re-store to the factory default all the values of the settings included in the settings menu.	-

*) The default value does not apply to the Cycle Counter.

FILLING THE SALT RESERVOIR

The use of salt prevents the formation of LIMESCALE on the dishes and on the machine's functional components.

The salt reservoir is located in the lower part of the dishwasher (under the lower rack on the left side).

• It is mandatory that the salt reservoir never be empty.
• It is important to set the water hardness.

• Salt must be filled when the SALT REFILL indicator light on the control panel is lit.

• Remove the lower rack and unscrew the reservoir cap (anticlockwise).

• Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 0,5 kg); it is not unusual for a little water to leak out.

• Only the first time you do this: fill the salt reservoir with water.

• Remove the funnel and wipe any salt residue away from the opening. Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Run a program every time as soon as you completed refilling the salt reservoir to avoid corrosion.

WATER SOFTENING SYSTEM

Water softener automatically reduces water hardness, consequently preventing scale buildup on the heater, contributing also to better cleaning efficiency. This system regenerates itself with salt, therefore it is required to refill the salt container when empty.

The frequency of regeneration depends on the water hardness level setting - regeneration takes place once per 4-6 Eco cycles with the water hardness level set to 3. The regeneration process occurs at the beginning of the cycle with additional fresh water.

• Single regeneration consumes 3 L of water;
  • Takes up to 5 additional minutes for the cycle;
• Consumes below 0.005kWh of energy.

FILLING THE RINSE AID DISPENSER

Rinse aid makes dish DRYING easier. The rinse aid dispenser A should be filled when the RINSE AID REFILL indicator light in the control panel is lit.

1. Open the dispenser B by pressing and pulling up the tab on the lid.
2. Pour in the rinse aid (max. 110 ml), making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.
3. Press the lid down until you hear a click to close it.
   NEVER pour the rinse aid directly into the appliance tub.

FILLING THE DETERGENT DISPENSER

To open the detergent dispenser use the opening device C. Introduce the detergent into the dry dispenser D only. Place the amount of detergent for pre-washing directly inside the tub.

1. When measuring out the detergent refer to the mentioned earlier information to add the proper quantity. Inside the dispenser D, there are indications to help the detergent dosing.

2. Remove detergent residues from the edges of the dispenser and close the cover until it clicks.

3. Close the lid of the detergent dispenser by pulling it up until the closing device is secured in place.

The detergent dispenser automatically opens up at the right time according to the program.

Usage of detergent not designed for dishwashers may cause malfunction or damage to the appliance.

1. Remove the lower rack and unscrew the reservoir cap (anticlockwise).
2. Position the funnel (see figure) and fill the salt reservoir right up to its edge (approximately 0,5 kg); it is not unusual for a little water to leak out.

3. Only the first time you do this: fill the salt reservoir with water.

4. Remove the funnel and wipe any salt residue away from the opening. Make sure the cap is screwed on tightly so that no detergent can get into the container during the wash program (this could damage the water softener beyond repair).

Run a program every time as soon as you completed refilling the salt reservoir to avoid corrosion.

PROGRAMS TABLE

Program		Programs description		Drying phase	NaturalDry	Available options*)	Duration of wash program (h:min)*)	Water consumption (litres/cycle)	Energy consumption (kWh/cycle)
P1	Eco	Eco 50°- Program is suitable to clean normally soiled tableware, that for this use, it is the most efficient program in terms of its combined energy and water consumption, and that it is used to assess compliance with the EU Ecodesign legislation.		√	√	POWER CLEAN ^1/2 ### + J_h	4:30 9.9	0.55
P2		Auto Intensive 65° - Automatic program for heavily soiled dishes and pans.	Senses the level of soil-ing on the dishes and adjusts the program accordingly. When the sensor is detecting the soil level an animation appears in the display and the cycle duration is updated.	√	√	POWER CLEAN ^1/2 ### + J_h	2:25-3:10	15.5-24.5 1.30-	1.70
P3		Auto Mixed 55° - Automatic program for nor-mally soiled dishes with dried food residues.		√	√	POWER CLEAN ^1/2 ### + J_h	1:20-3:00	7.5-19.5	0.75-1.20
P4		Auto Fast 50° - Automatic program for nor-mally and lightly soiled dishes. The everyday cycle that ensures optimal cleaning and drying performance in a shorter time.		√	√	POWER CLEAN ^1/2 ### + J_h	1:00-1:50	7.5-15.5	0.70-1.10
P5		Rapid 45° - Program is recommended for limited amount of lightly-soiled dishes with no dried food residues. Does not include the drying phase.		-	√	^1/2 ### + J_h	0:30-0:40	10.0-12.0 0.55-	0.65
P6		Crystals 45° - Program for delicate items, which are more sensitive to high temperatures, for example, glasses and cups.		√	√	^1/2 ### + J_h	1:40-1:50	12.5-16.5 0.95-	1.20
P7		Silent 55° - Suitable for night-time operation of the appliance. Ensures optimal cleaning and drying performance with the lowest noise emission.		√	√	### + J_h	3:50-4:10	10.5-14.5 0.80-	1.15
P8		Sanitizing 65° - Normally or heavily soiled crockery, with additional anti-bacterial wash. Can be used to perform maintenance of the dishwasher.		√	-	POWER CLEAN ^1/2 ### + J_h	1:55-2:10	12.0-19.0 1.40-	1.80
P9		Prewash - Used to refresh crockery planned to be washed later. No detergent is to be used with this program.		-	√	^1/2 J_h	0:12 4.5	0.10
P10		Self Clean 65° - Program to be used to perform maintenance of the dishwasher, to be carried out only when the dishwasher is EMPTY using specific detergents designed for dishwasher maintenance.		-	-	J_h	1:15	11.0	1.10

ECO program data is measured under laboratory conditions according to European Standard EN 60436:2020.

Note for Test Laboratories:

For information on comparative EN testing conditions, please send an email to the following address: [e-mail] Pre-treatment of the dishes is not needed before any of the programs.

*) Not all options can be used simultaneously.

**) Values given for programs other than the program Eco are indicative only. The actual time may vary depending on many factors such as temperature and pressure of the incoming water, room temperature, amount of detergent, quantity and type of load, load balancing, additional selected options and sensor calibration. The sensor calibration can increase program duration by up to 20 min.

OPTIONS AND FUNCTIONS

Please scan the QR code on your product in order to have more detailed information.

OPTIONS can be selected/ deselected, after choosing the program, directly by pressing the corresponding button (if available - the indicator lights up) (see CONTROL PANEL). If an option is not compatible with the selected program (see PROGRAMS TABLE), the corresponding LED flashes rapidly 3 times and beeps will sound. The option will not be enabled. An option can change time or water or energy consumption for the program.

POWER CLEAN® - Thanks to the additional power jets this option provides a more intensive and powerful wash in the lower rack, in the specific area. This option is recommended for washing pots and casseroles (see refer to the Power Clean® loading section).

HALF LOAD - If there are not many dishes to be washed, HALF LOAD is used to save water, electricity or time, depending on the selected gram. Remember to halve the amount of detergent.

EXTRA DRY - The higher temperature during the final rinse and the extended drying phase allow improved drying. The EXTRA DRY option ts in the lengthening of the wash cycle.

DELAY - The start of the program may be delayed for a period of time between 0:30 and 24 hours.

The DELAY function cannot be set once a program has been started.

WATER TAP CLOSED – Alarm - Flashes when there is no inlet water or water tap is closed.

=O KEYLOCK - A long press (for 3 seconds) of EXTRA DRY button, will activate the KEYLOCK function. The KEYLOCK function will block the control panel except for the ON/OFF button. To deactivate the KEYLOCK, long press again.

NaturalDry - It is a convection drying system which automatically opens the door during/after drying phase to ensure exceptional drying performance every day. Door opens at the temperature that is safe to your kitchen furniture. As additional steam protection, special designed protection foil is added together with the dishwasher.

SENSING - When the sensor is detecting the soil level an animation appears in the display (around 20 min.) and the cycle duration is updated. SENSING is for the level of soiling on the dishes and is all cycles (excepting Eco) adjusting the program accordingly.

DESCALE - Alarm - Limescale accumulation was detected on the internal components of the appliance. Check if the Water Hardness Setting is at the correct value and salt is present in the salt container (see FIRST TIME USE), then use a descaling product (WPro brand is recommended) with Self-Clean program. After a successful descaling, the icon will stop being displayed.

If the actions above are not performed, product performance will deteriorate. DESCALE warning will start blinking and «dES» alarm will appear on the display. If still no action is taken, the appliance will only allow a certain number of cycles to be started (indicated during «dES» alarm display) and then will be BLOCKED to prevent component damage, with only the Self-Clean program available. Performing a full descaling will unblock the product. In the case of extremely high amounts of limescale, descaling may have to be performed twice to be efficient.

CYCLE COUNTER - This feature shows the number of cycles the dishwasher has performed.

For the number of cycles from 0-999, a fixed number will be displayed.

Example for 25 cycles.

When the cycle number is higher than 1000, the number will scroll in the display. The “_” represents the “.”, as for instance: 1.000 = 1_000, 13.947 = 13_947 (the number will scroll for 3 times).

1 13 13_3_9_9494747 Example for 13.947 cycles:

After the cycle visualization, the display will return to visualize "r"NOTE: The dishwasher may have already performed about 30 cycles. This is due to the extended quality process carried out during production. It guarantees higher product quality.

LOADING THE RACKS

CAPACITY: 15 standard place-settings

CUTLERY RACK

The third rack was designed to house the cutlery. Arrange the cutlery as shown in the figure.

A separate arrangement of the cutlery makes collection

Architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural floor plan showing room layouts and structural elements (no text or labels)

easier after washing and improves washing and drying performance.

Knives and other utensils with sharp edges must be positioned with the blades facing downwards.

The cutlery rack is equipped with two sliding side trays to make the most of the height of the space below and enable the loading of high items into the upper rack.

UPPER RACK

Load delicate and light dishes: glasses, cups, saucers, low salad bowls.

The upper rack has tip-up supports which can be used in a vertical position when arranging tea/ dessert saucers or in a lower position to load bowls and food containers.

Diagram of a multi-level industrial or mechanical system with circular components and structural elements (no visible text or labels)

(loading example for the upper rack)

ADJUSTING THE HEIGHT OF THE UPPER RACK

The height of the upper rack can be adjusted: a high position to place bulky crockery in the lower basket and a low position to make the most of the tip-up supports by creating more space upwards and avoiding collision with the items loaded into the lower rack.

We strongly recommend that you do not adjust the height of the rack when it is loaded. NEVER raise or lower the basket on one side only.

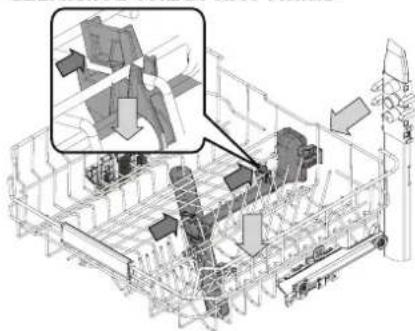

FOLDABLE FLAPS WITH ADJUSTABLE POSITION

The side foldable flaps can be folded or unfolded to optimize the arrangement of crockery inside the rack. Wine glasses can be placed safely in the foldable flaps by inserting the stem of each glass into the corresponding slots.

LOWER RACK

For pots, lids, plates, salad bowls, cutlery etc. Large plates and lids should ideally be placed at the sides to avoid interferences with the spray arm. The lower rack has tip-up supports which can be used in a vertical position when arranging plates or in a horizontal position (lower) to load pans and salad bowls easily.

(loading example for the lower rack)

Technical line drawing of a mechanical assembly or housing with internal components (no text or symbols)

POWER CLEAN®

Power Clean ^® uses the special water jets in the rear of cavity to wash more intensively the high dirty items. The lower rack has a Space Zone, a special pull-out support in the rear of the rack that can be used to support frying pans or baking pans in upright position, thus taking up less space. Placing the pots/casseroles faced to the Power Clean® component please activate the POWER CLEAN on the panel.

CARE AND MAINTENANCE

More information in the Daily Reference Guide on website.

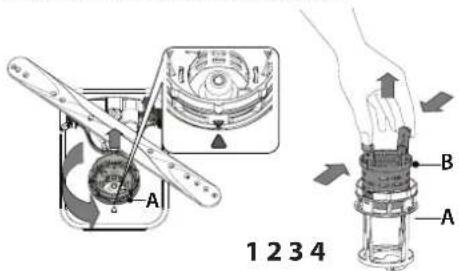

CLEANING THE FILTER ASSEMBLY

A 1 2 3 4 B A

Mechanical device diagram showing a lever mechanism with a hand pressing a circular component (no text or symbols visible)

Technical diagram of a mechanical assembly with no visible text or symbols

The dishwasher must not be used without filters or if the filter is loose.

It is important when reinstalling the filter that the two triangles shown on the zoom meet (Fig 1). In case you find foreign objects (such as broken glass, porcelain, bones, fruit seeds etc.) please remove them carefully.

Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection (shown by an arrow) (Fig 4).

CLEANING THE SPRAY ARMS

Technical line drawing of a mechanical assembly with no visible text or symbols

On occasions, food residue may become encrusted onto the spray arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.

To remove the upper spray you must remove it together with the manifold.

Mechanical assembly diagram showing a rotating fan or blade mechanism with directional arrows (no text or symbols)

The lower spray arm may be removed by pulling it upwards and rotating it anti-clockwise. Mounting back the spray arm is by pulling it down and rotating it clockwise.

Illustration of a person using a propeller to lift a curved blade, with motion arrows indicating speed (no text or symbols)

The top spray arm may be removed by pressing it up and then rotating it anti-clockwise. Mounting back the spray arm is by pulling it upwards and rotating it clockwise.

TROUBLESHOOTING

Please scan the QR code on your product in order to have more detailed information.

In case your dishwasher doesn't work properly, check if the problem can be solved by going through the following list. For other errors or issues please contact authorized After-sales Service whose contact details can be found in the warranty booklet. Spare parts will be available for a period of either up to 7 or up to 10 years, according to the specific Regulation requirements.

PROBLEMS POSSIBLE CAUSES SOLUTIONS
Descale indicator is lit or blinking;"dES" alarm is displayed.	Limescale is accumulating on internal components of the appliance.	Descal the appliance immediately using the Self Clean program and a commercially available descaling product (see OPTIONS AND FUNCTIONS). Refill the reservoir with salt. Check the water hardness setting. If the appliance is not descaled, it will stop functioning.
The dishwasher won't drain. Display shows: F7 E3 or F9 E1	The filter is clogged with food residues or limescale	Clean the filter and descale the appliance (see CLEANING THE FILTER ASSEMBLY and DESCALE INSTRUCTION).
	The drain hose is kinked. Check the drain hose	(see INSTALLATION INSTRUCTION).
	The sink drain pipe is blocked. Clean the sink	drain pipe.
The dishwasher does not fill the water. The display shows: H20 and is lit; acoustic alarm sounds.	No water in the water supply or the tap is closed.	Make sure there is water in the water supply and the water tap is open.
	The water inlet hose is kinked.	Check the inlet hose (see INSTALLATION). Close the door and press START/Pause button.
	The screen in the water inlet hose is clogged; it is necessary to clean it.	Check and clean the screen in the water inlet hose. Close the door and press START/Pause button.
The dishwasher finishes the cycle prematurely. The display shows: F8 E3	The filter is clogged with food residues or limescale.	Clean the filter and descale the appliance (see CLEANING THE FILTER ASSEMBLY and DESCALE INSTRUCTION).
	Drain hose positioned too low or siphoning into the home sewage system.	Check if the end of the drain hose is placed at the correct height (see INSTALLATION). Check for siphoning into the home sewage system, and install a siphon breaker/air admittance valve if necessary.
	An excessive amount of foam is present.	The detergent has not been measured out correctly or it is not suitable for use in dishwashers (see FILLING THE DETERGENT DISPENSER).
	Air in the water supply. Check water supply for leaks or other issues letting air inside.
The dishes are not dried well.	Rinse aid is not present or the dosage is too low.	Make sure the rinse aid dispenser is filled (see FILLING THE RINSE AID DISPENSER). Multifunctional tablets only will not provide as good drying effects as the actual use of liquid rinse aid.
	The dishes have been unloaded after the door was opened automatically but before the actual cycle end.	Make sure the cycle has ended before starting to unload the dishes (see DAILY USE). For even better drying results, it is recommended to let the dishes sit inside the dish-washer with the door open for additional 15 minutes after the cycle ends.
	The dishes are sitting too flat.	If you notice puddles of water inside cavities of cups, mugs or bowls, try loading the dishes (especially in the upper rack) providing more inclination to let larger amounts of water drip down before drying starts.
	The selected cycle does not have the drying phase.	Please check in the PROGRAMS TABLE if the selected program is equipped in the drying phase.A cycle without the drying phase may not deliver desired drying efficiency, so it is recommended to change cycle selection for the one that has the drying phase.
	The dishes are made of non-stick or plastic.	Some water drops remaining on this type of material are normal.
Dishes and glass- es are covered with limescale or a whitish film.	The salt reservoir is empty.	Refill the reservoir with salt as soon as possible. Using the appliance without salt may cause damage to its internal components.
	The water hardness setting is too low.	Increase the setting (see WATER HARDNESS TABLE).
	The cap of the salt reservoir is not properly closed.	Check and close the salt reservoir cap.
	The rinse aid reservoir is empty or the rinse aid dosage is insufficient.	Refill the dispenser with rinse aid and check the dosage setting (for more information - see FILLING THE RINSE AID DISPENSER).
The dishwasher shows F8 E5	Valve is blocked or faulty. Close the water tap, if possible. Do not switch off the power supply. Call the service.
Detergent leaks.	Depends on the liquid detergent used and can be emphasized in case of delay option is activated.	Small leaks will not cause machine malfunction and can be avoided by changing liquid detergent type or using tablets.

Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Using QR code on your product.
• Visiting our website docs.whirlpool.eu/docs and parts-selfservice.europeanappliances.com
- Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

The model information can be retrieved using the QR-Code reported in the energy label.

The label also includes the model identifier that can be used to consult the portal of the registry at https://eprel.ec.europa.eu.

Weight: 100 mm Temperature: 25°C Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0000 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0001 Balance: 0.0002 Balance: 0.0002 Balance: 0.0002 Balance: 0.0002 Balance: 0.0002 Balance: 0.0002 Balance: 0.001 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Balance: 1.5 Pressure: - Temperature: -12.5°C - Pressure: -12.5°C

®/TM/ © 2024 Whirlpool. Produced under license

Diagram of a refrigerator interior with labeled parts A and B, showing front and side views of the refrigerator.

DOPLNĚNÍ DÁVKOVAČE LEŠTIDLA

Architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural floor plan showing building layouts and structural elements (no text or labels)

Architectural floor plan showing room layouts and structural elements (no text or labels)

NASTAVENÍ VÝŠKY HORNÍHO KOŠE

Technical line drawing of a mechanical assembly with no visible text or symbols

POWER CLEAN®

Diagram of a mechanical device with labeled components and a hand operating the dial indicator

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a magnified inset (no text or symbols)

Mechanical assembly diagram showing a rotating fan and housing with blades (no text or symbols)

Diagram of a helicopter with directional arrows indicating flight or movement (no text or labels)

TÄNAME, ET OSTSITE WHIRLPOOL TOOTE.

Architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural floor plan showing room layouts and structural elements (no text or labels)

Cross-sectional diagram of a mechanical or architectural component with layered structures and no visible text or symbols

ÜLEMISE RESTI KÖRGUSE REGULEERIMINE

Technical line drawing of a mechanical component or assembly (no visible text or symbols)

POWER CLEAN®

Mechanical device with lever and circular dial (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly or structural frame with no visible text or symbols

Mechanical assembly diagram showing two rotating blades mounted on a base with directional arrows indicating motion (no text or symbols)

Diagram of a propeller blade with directional arrows indicating motion (no text or symbols)

MERCI D'AVOIR CHOISI UN PRODUIT WHIRLPOOL.

OPTIONS ET FONCTIONS

Cross-sectional diagram of a mechanical or architectural structure with internal components (no visible text or labels)

Architectural floor plan showing grid layout and building layout (no text or labels)

Cross-sectional diagram of a mechanical or electrical component with layered structures and no visible text or symbols

AJUSTER LA HAUTEUR DU PANIER SUPÉRIEUR

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical device with a hand operating a circular component labeled 'C', no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a magnified inset (no text or symbols)

Mechanical assembly diagram showing a rotating fan and housing with blades (no text or symbols)

Diagram of a propeller blade with rotating blades and motion arrows indicating rotation (no text or symbols)

Diagram of a refrigerator interior with labeled parts A and B, showing hand positioning and component layout.

AZ ÖBLÍTŐSZER-ADAGOLÓ FELTÖLTÉSE

Architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural floor plan showing building layouts and structural elements (no text or labels)

Architectural floor plan showing room layouts and furniture layout (no text or labels)

Technical diagram showing labeled components A and E with directional arrows and structural elements

ÁLLÍTHATÓ MAGASSÁGÚ LEHAJTHATÓ POLCOK

Technical line drawing of a mechanical assembly or housing with layered components (no text or symbols)

Diagram of a mechanical device with labeled components and a hand operating the dial indicator

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a magnified inset showing structural details (no text or symbols)

Mechanical assembly diagram showing a three-blade propeller with internal components (no text or symbols)

Illustration of a person using a wind turbine to lift a propeller (no text or symbols)

Wear Pie 100mm Control Panel 100mm 250mm 350mm 450mm 550mm 650mm 750mm 850mm 950mm 1050mm 1150mm 1250mm 1350mm 1450mm 1550mm 1650mm 1750mm 1850mm 1950mm 2050mm 2150mm 2250mm 2350mm 2450mm 2550mm 2650mm 2750mm 2850mm 2950mm 3050mm 3150mm 3250mm 3350mm 3450mm 3550mm 3650mm 3750mm 3850mm 3950mm 4050mm 4150mm 4250mm 4350mm 4450mm 4550mm 4650mm 4750mm 4850mm 4950mm 5050mm 5150mm 5250mm 5350mm 5450mm 5550mm 5650mm 5750mm 5850mm 5950mm 6050mm 6150mm 6250mm 6350mm 6450mm 6550mm 6650mm 6750mm 6850mm 6950mm 7050mm 7150mm 7250mm 7350mm 7450mm 7550mm 7650mm 7750mm 7850mm 7950mm 8050mm 8150mm 8250mm 8350mm 8450mm 8550mm 8650mm 8750mm 8850mm 8950mm 9050mm 9150mm 9250mm 9350mm 9450mm 9550mm 9650mm 9750mm 9850mm 9950mm

DĖKOJAME, KAD ISIGIJOTE WHIRLPOOL GAMINI.

Kad galétumète tinkamai pasinaudoti pagalba, užregistruokite

Diagram of a refrigerator interior with labeled parts A and B, showing hand positioning and seating arrangement.

Architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural floor plan showing building layouts and a directional arrow (no text or labels)

Cross-sectional diagram of a mechanical or architectural component with layered structures and no visible text or symbols

VIRŠUTINĖS LENTYNĖLĖS AUKŠČIO REGULIAVIMAS

Technical line drawing of a mechanical component or enclosure with internal components (no text or symbols)

POWER CLEAN®

Mechanical device with lever and dial (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Architectural floor plan of a building with structural elements and a magnified inset showing internal components (no text or labels visible)

Diagram of a mechanical device with rotating blades and central hub (no text or symbols)

Illustration of a hand holding a wooden airplane with directional arrows indicating motion (no text or symbols)

Wiley Class 100000x Wiley 100000x Class 100000x Class 100000x Class 100000x Class 100000x Class 100000x Class 100000x Class 100000x Class 100000x Class 100000x Class 100000x Classification 2.5 mmHg Classification 3.5 mmHg Classification 4.5 mmHg Classification 5.5 mmHg Classification 6.5 mmHg Classification 7.5 mmHg Classification 8.5 mmHg Classification 9.5 mmHg Classification 10.5 mmHg Classification 11.5 mmHg Classification 12.5 mmHg Classification 13.5 mmHg Classification 14.5 mmHg Classification 15.5 mmHg Classification 16.5 mmHg Classification 17.5 mmHg Classification 18.5 mmHg Classification 19.5 mmHg Classification 20.5 mmHg Classification 21.5 mmHg Classification 22.5 mmHg Classification 23.5 mmHg Classification 24.5 mmHg Classification 25.5 mmHg Classification 26.5 mmHg Classification 27.5 mmHg Classification 28.5 mmHg Classification 29.5 mmHg Classification 30.5 mmHg Classification 31.5 mmHg Classification 32.5 mmHg Classification 33.5 mmHg Classification 34.5 mmHg Classification 35.5 mmHg Classification 36.5 mmHg Classification 37.5 mmHg Classification 38.5 mmHg Classification 39.5 mmHg Classification 40.5 mmHg Classification 41.5 mmHg Classification 42.5 mmHg Classification 43.5 mmHg Classification 44.5 mmHg Classification 45.5 mmHg Classification 46.5 mmHg Classification 47.5 mmHg Classification 48.5 mmHg Classification 49.5 mmHg Classification 50.5 mmHg Classification 51.5 mmHg Classification 52.5 mmHg Classification 53.5 mmHg Classification 54.5 mmHg Classification 55.5 mmHg Classification 56.5 mmHg Classification 57.5 mmHg Classification 58.5 mmHg Classification 59.5 mmHg Classification 60.5 mmHg Classification 61.5 mmHg Classification 62.5 mmHg Classification 63.5 mmHg Classification 64.5 mmHg Classification 65.5 mmHg Classification 66.5 mmHg Classification 67.5 mmHg Classification 68.5 mmHg Classification 69.5 mmHg Classification 70.5 mmHg Classification 71.5 mmHg Classification 72.5 mmHg Classification 73.5 mmHg Classification 74.5 mmHg Classification 75.5 mmHg Classification 76.5 mmHg Classification 77.5 mmHg Classification 78.5 mmHg Classification 79.5 mmHg Classification 80.5 mmHg Classification 81.5 mmHg Classification 82.5 mmHg Classification 83.5 mmHg Classification 84.5 mmHg Classification 85.5 mmHg Classification 86.5 mmHg Classification 87.5 mmHg Classification 88.5 mmHg Classification 89.5 mmHg Classification 90.5 mmHg Classification 91.5 mmHg Classification 92.5 mmHg Classification 93.5 mmHg Classification 94.5 mmHg Classification 95.5 mmHg Classification 96.5 mmHg Classification 97.5 mmHg Classification 98.5 mmHg Classification 99.5 mmHg

PALDIES, KA IEGÄDÄJÄTIES WHIRLPOOL IZSTRÄDÄJUMU.

Architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural floor plan showing building layouts and a directional arrow (no text or labels)

bûs vieglâk savâkt, kâ arî tie tiks labâk nomazgâti.

Architectural floor plan showing room layouts and structural elements (no text or labels)

Technical line drawing of a mechanical assembly with no visible text or symbols

POWER CLEAN®

Technical line drawing of a mechanical device with two views (top and side), no visible text or symbols

Technical line drawing of a mechanical assembly with internal components and a magnified inset (no text or symbols)

Mechanical assembly diagram showing a rotating fan and housing components (no text or labels)

Illustration of a hand holding a propeller with airflow lines indicating wind direction (no text or symbols)

POWER CLEAN P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 8:38 3 sec. 3 sec. 15 16 17 18

Architectural floor plan showing room layouts and structural elements (no text or labels)

Diagram showing a grid layout with labeled sections and directional arrow, likely illustrating a technical or architectural layout.

Cross-sectional diagram of a mechanical or electrical component with layered structures and no visible text or symbols

AJUSTAR A ALTURA DO CESTO SUPERIOR

Technical line drawing of a mechanical assembly with layered components (no text or symbols)

POWER CLEAN®

Mechanical device with a lever and circular dial (no visible text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

Mechanical diagram showing a rotating fan assembly with blades and housing (no text or symbols)

Diagram of a propeller with fan blades and airflow indicators (no text or symbols)

Weighted 3mm000m Name: 1.5mm Size: 2.5mm Capacity: 1000000000 Rating: 100% Rating: 100% Rating: 100%

ĐAKUJEME, ŽE STE SI KÚPILI VÝROBOK WHIRLPOOL.

Ak chcete získat komplexnejšiu pomoc a podporu, zaregistrujte, prosím, svoj spotrebič na: www.whirlpool.eu/register

POWER CLEAN P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 8:38 3 sec. 3 sec.

Architectural floor plan showing room layouts and structural elements (no text or labels)

Architectural floor plan showing building layouts and a directional arrow (no text or labels)

Technical diagram of a mechanical assembly with multiple components and no visible text or labels

NASTAVENIE VÝŠKY VRCHNÉHO KOŠA

Diagram of a mechanical or architectural component with layered structure and central circular feature (no text or symbols)

Illustration of a mechanical device with a hand operating the button (no text or symbols visible)

Technical line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a 3D mechanical assembly with internal components and a magnified inset showing detail (no text or symbols)

Mechanical assembly diagram showing a rotating fan and housing mechanism (no text or symbols)

Diagram of a propeller with rotating blades and motion arrows indicating rotation (no text or symbols)

Wear Air Condition Air Condition 100% Air Condition 100%

400020018702

12/2024 as - Xerox Fabriano
