SHN 3.7 B1 - Electric callus remover SILVERCREST - Free user manual and instructions
Find the device manual for free SHN 3.7 B1 SILVERCREST in PDF.
| Product type | Electric callus remover |
| Brand | SilverCrest |
| Model | SHN 3.7 B1 |
| Power supply | Lithium-ion battery 3.7 V, 1000 mAh; mains adapter 100-240 V~, 50/60 Hz, output 5 V ⎓, 500 mA |
| Speeds | 2 levels: approx. 1900 rpm (level I), approx. 2300 rpm (level II) |
| Emery heads | 2 types: coarse gray (thick callus), fine turquoise (light callus and smoothing) |
| Protection rating (device) | IPX7 (protection against temporary immersion) |
| Protection rating (charger) | IP44 (protection against water splashes and solid objects >1 mm) |
| Battery life | Approx. 2 hours after full charge (charging time: approx. 3 hours) |
| Included accessories | Charger, mains adapter, cleaning brush, protective cap, instruction manual |
| Usage | Can be used in the shower or bath (do not fully immerse) |
| Cleaning and maintenance | Cleaning brush included; recommended disinfectant for heads; do not immerse charger |
| Warranty | 3 years |
| Spare parts | Emery heads available via after-sales service (IAN number required) |
| Safety | Do not use on injured or irritated skin; avoid long hair and loose clothing; shutdown in case of overheating? Not specified, but follow instructions |
| Compliance | WEEE Directive 2012/19/EU |
Frequently Asked Questions - SHN 3.7 B1 SILVERCREST
User questions about SHN 3.7 B1 SILVERCREST
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Electric callus remover in PDF format for free! Find your manual SHN 3.7 B1 - SILVERCREST and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SHN 3.7 B1 by SILVERCREST.
USER MANUAL SHN 3.7 B1 SILVERCREST
ELEKTRISCHER HORNHAUTENTFERNER ELECTRIC HARD SKIN REMOVER RÂPE ÉLECTRIQUE ANTI-CALLOSITÉS SHN 3.7 B1
DE AT CH
Operating instructions
NL BE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
FR BE
GB/IE Operating instructions Page 17
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
DEUTSCHLAND
www.kompernass.com
Disposal of the packaging....20
Appliance description....20
Technical data 21
Safety instructions 22
General 25
Use....25
Charging the battery 25
Inserting/replacing the pumice attachment 25
Using the appliance 26
Cleaning and care....27
Storage 28
Disposal....28
Disposal of the appliance 28
Kompernass Handels GmbH warranty....29
Service....30
Importer....30

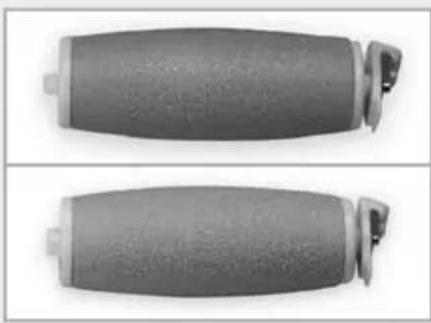

Ordering spare parts ....31
Introduction
Congratulations on the purchase of your new appliance.
You have selected a high-quality product. The operating instructions are part of this product. They contain important information about safety, use and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the range of applications specified. Please also pass these operating instructions on to any future owner.
Copyright
This documentation is protected by copyright.
Any copying or reproduction, including in the form of extracts, or any reproduction of images (even in a modified state), is permitted only with the written authorisation of the manufacturer.
Intended use
This appliance is intended exclusively for the removal of hard skin (calluses) on your feet. It is intended for domestic use only. Not for commercial use.
The appliance is not intended for any other purpose, nor for use beyond the scope described.
WARNING
Danger if not used as intended!
Failure to use the appliance for its intended purpose and/or any other type of use can be hazardous.
▶ Use the appliance only for its intended purpose.
▶ Observe the procedures described in these operating instructions.
No claims of any kind will be accepted for damage arising as a result of incorrect use.
The risk shall be borne solely by the user.
Package contents
The appliance is supplied with the following components as standard:
- Hand element
- Protective cap
- Charger with mains adapter
• Coarse pumice attachment (grey)
● Fine pumice attachment (turquoise) - Cleaning brush
- Operating instructions
◆ Remove all parts of the appliance from the packaging and remove all packaging materials.
WARNING
Risk of suffocation!
▶ Do not allow children to play with packaging materials. There is a risk of suffocation.
NOTE
▶ Check the package for completeness and for signs of visible damage.
If any items are missing or damaged as a result of defective packaging or transportation, contact the service hotline (see section "Service").
Disposal of the packaging
The packaging protects the appliance from damage during transport. The packaging materials have been selected for their environmental friendliness and ease of disposal, and are therefore recyclable.
Returning the packaging to the material cycle conserves raw materials and reduces the amount of waste that is generated. Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.
NOTE
▶ If possible, keep the original packaging during the warranty period so that the appliance can be properly packed for returning in the event of a warranty claim.
Note the labelling on the packaging and separate the packaging material components for disposal if necessary. The packaging material is labelled with abbreviations (b) and numbers (a) with the following meanings:
1-7: Plastics
20-22: Paper and cardboard
80-98: Composites
Appliance description
① Protective cap
② Catch
③ Coarse pumice attachment (grey)
4 Release
5 Speed switch
6 On/Off switch
⑦ Charge level LED (visible only in charging mode/when battery is weak)
8 Contact points of the callus remover
9 Drive shaft socket
10 Fine pumice attachment (turquoise)
11 Drive shaft
12 Contact points of the charger
13 Charger
14 Cleaning brush
15 Mains adapter
Technical data
| Mains adapter | |
| Type ZDM050050EU | |
| Input voltage 100 - 240 V | ~ (AC), 50/60 Hz |
| Current consumption 0.2 A | |
| Output voltage 5 V | ---(DC) |
| Output current 500 mA | |
| Protection class |  |
| Protection type | IP44Protection against splashes; protection against solid objects with a diameter of more than 1.00 mm |
| Switched-mode power supply |  |
| Safety transformer |  |
| Efficiency class 5 |  |
| Nominal ambient temperature Ta = 40°C | |
| Protection type (charger) | IP44Protection against splashes; protection against solid objects with a diameter of more than 1.00 mm |
| Callus remover | |
| Input voltage 5 V | --- |
| Current consumption 500 mA | |
| Rotations per minute on level I approx. 1900 (+/-10%) | |
| Rotations per minute on level II approx. 2300 (+/-10%) | |
| Rechargeable battery 3.7 V | ---1000 mAh Li-ion battery |
| Protection type | IPX7Protection against water penetration during submersion |
Callus remover
| Input voltage 5 V | --- |
| Current consumption 500 mA | |
| Rotations per minute on level I approx. 1900 (+/-10%) | |
| Rotations per minute on level II approx. 2300 (+/-10%) | |
| Rechargeable battery 3.7 V | --- 1000 mAh Li-ion battery |
| Protection type | IPX7Protection against water penetration during submersion |
Safety instructions
RISK OF ELECTRIC SHOCK
- Connect the appliance only to mains power sockets supplying a mains power voltage of 100 - 240 V \~, 50/60 Hz.
The power cable on this appliance cannot be replaced. If the cable is damaged, the whole appliance must be scrapped.
In the event of a malfunction and before cleaning, disconnect the plug from the mains power socket.
▶ Always pull on the plug to disconnect the appliance from the mains; never pull on the power cable itself.
▶ Do not kink or crush the power cable, and route the cable so that it cannot be stepped on or tripped over.
▶ Make sure that the power cable does not become wet or moist during use. Route the cable in such a way that it cannot be crushed or damaged.
▶ To prevent risks, stop using the appliance immediately if it is damaged.
Do not use the mains adapter outside.
- Do not wrap the power cable around the appliance, and protect it from being damaged.
▶ Never touch the power cable or power plug with wet hands.
▶ ATTENTION! Keep the charger, power cable and adapter dry.
RISK OF ELECTRIC SHOCK
Never use the mains adapter near water, and keep it away from sinks, baths and other similar containers. The proximity of water is hazardous, even if the appliance is switched off. Always disconnect the plug from the mains power socket after use. For additional protection, we re commend that you install a residual current circuit breaker with an activation power rating of no more than 30 mA for the power circuit in the bathroom. Ask your electrician for advice.
WARNING! RISK OF INJURY!
This appliance may be used by children aged 8 and above and by persons with limited physical, sensory, or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks. Do not allow children to use the appliance as a toy. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.
This appliance may be used by children aged 3 and upwards if they are supervised.
▶ Extended use may cause extreme warming of the skin. Therefore, take frequent breaks. Otherwise, there is a risk of burns!
▶ During operation, keep long hair and clothes at a safe distance to the appliance.
WARNING! RISK OF INJURY!
- Do not operate the appliance if it has been dropped or is damaged in any way. Have the appliance checked and/or repaired by qualified technicians if necessary.
▶ Use the appliance only with the supplied power adapter.
▶ Do not use on injured, sore or irritated skin.
- Do not open the housing or attempt to repair the appliance yourself. This can lead to hazards and also invalidates the warranty. Defective appliances should be repaired by authorized specialists or customer service staff only.
CAUTION - PROPERTY DAMAGE!
▶ Use the appliance only indoors.
▶ Defective components must always be replaced with original replacement parts. Compliance with safety requirements can only be guaranteed if original replacement parts are used.
- Protect the appliance from impacts, dust, chemicals, extreme temperature fluctuations, etc. and keep it away from sources of heat (ovens, radiators).
▶ Never use the appliance under blankets, pillows, etc.
▶ Ensure that the drive can always rotate freely. Otherwise, the appliance may overheat and be damaged beyond repair.
The callus remover is suitable for use in the shower or bath tub. However, do not submerge the appliance entirely in water.
General
Hard skin (calluses) can form where the skin is exposed to particular stress due to rubbing and pressure.
If the hard skin becomes too thick, e.g. due to ill-fitting shoes or very dry skin, this can lead to pain.
If necessary, clarify the cause of excessive callus formation with your doctor.
Use
Charging the battery
1) Connect the mains adapter ⑮ of the charger ⑬ to a power socket.
2) Place the callus remover on the charger ⑬ so that the two contact points ⑧ on the underside of the callus remover are aligned with the contact points of the charger ⑫. Ensure that the contact points ⑧/⑫ are completely dry.
3) The green, flashing charge level LED ⑦ on top of the appliance indicates that charging is in process. Once the appliance is fully charged, the green charge level LED ⑦ on top of the appliance lights up green.
NOTE
The appliance needs around 3 hours to fully charge the first time.
▶ When the appliance is fully charged, you can use it for approx. 2 hours.
▶ If the charge level of the integrated battery runs low during operation, the charge level LED ⑦ flashes. Charge the battery as described.
Inserting/replacing the pumice attachment
NOTE
To order new pumice attachments 3/10, please contact the service department (see section "Service"). Please have the IAN number ready (see operating manual cover).
To remove a pumice attachment ③/⑩:
1) Press the release ④ downwards and, at the same time, pull the side of the pumice attachment ③/⑩ next to the release ④ upwards.
2) You can then pull the pumice attachment ③/⑩ out of the drive shaft socket ⑨.

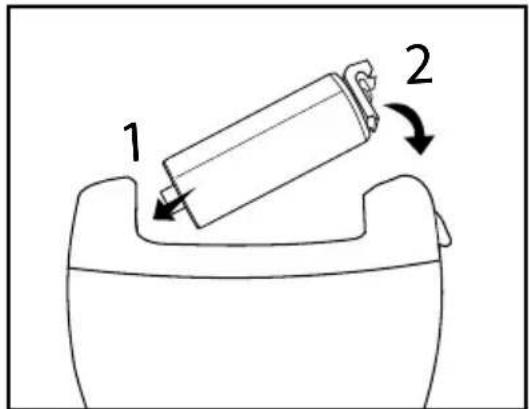

To fit a pumice attachment ③/⑩ (see fig. 1):
1) Push the pumice attachment ③/⑩ with the drive shaft ⑪ into the drive shaft socket ⑨.
2) Press the other side of the pumice attachment ③/⑩ downwards. Ensure that the catch ② slides correctly into the groove and clicks into place.
Figure 1
Using the appliance
WARNING - RISK OF INJURY!
Excessively long or intensive treatment can also injure deeper layers of skin. Therefore, check the treatment progress and results regularly. Diabetics in particular are less sensitive on their hands and feet.
NOTE
The appliance will not be so effective on softened skin. Therefore, do not carry out any pretreatment in a water bath before using the appliance.
▶ Stop treatment immediately if it becomes uncomfortable or painful.
1) Select the desired pumice attachment ③/⑩:
- coarse pumice attachment ③ (grey): for particularly thick calluses
- fine pumice attachment ⑩ (turquoise): for mild calluses and to smooth the skin.
2) Fit the pumice attachment ③/10 as described in the section "Use".
3) Press the On/Off switch ⑥. The pumice attachment ③/⑩ starts to turn. Press the speed switch ⑤ to choose between a high and low rotation speed.
4) Applying light pressure, move the appliance slowly over the hard skin that you want to remove. Move the appliance in different directions. During the treatment, do not linger in one particular place. The friction can cause unpleasant heat.
5) Once you have completed the treatment, push the On/Off switch ⑥.
6) Remove any skin residue and dust from the pumice attachment ③/⑩ and the hand element using the supplied cleaning brush ⑭.
NOTE
▶ After the treatment, massage the skin with a skincare cream.
Cleaning and care
RISK OF ELECTRIC SHOCK
Before cleaning the charger 13, disconnect the mains adapter 15.
CAUTION - PROPERTY DAMAGE
▶ Do not use chemical, aggressive or abrasive cleaning agents. These can damage the surface of the appliance.
▶ Never immerse the charger 13 or mains adapter 15 in water or other liquids.
Clean the appliance, especially the pumice attachments 3/10, with the cleaning brush 14 after every use.
Clean the appliance and the pumice attachments 3/10 with a moist cloth. Afterwards, dry the appliance with a clean, dry cloth.
For hygienic reasons, we recommend cleaning the attachments with a clean cloth or brush moistened with a disinfectant after every use. Afterwards, dry the appliance with a clean, dry cloth.
Clean the charger 13 with a damp cloth. Afterwards, dry it with a clean, dry cloth. Ensure that the charger 13 is completely dry before using the appliance again.
Storage
◆ Store the appliance in a dry and clean location.
Disposal
NOTE
The integrated rechargeable battery in this appliance cannot be removed for disposal.
Disposal of the appliance
Never dispose of the appliance in your normal domestic waste. This product is subject to the provisions of the European WEEE (Waste Electrical and Electronic Equipment) Directive 2012/19/EU.
Dispose of the appliance via an approved disposal company or your municipal waste facility. Please observe the currently applicable regulations. Please contact your waste disposal facility if you are in any doubt.
Do not dispose of the mains adapter in your normal domestic waste. This product is subject to the provisions of the European WEEE (Waste Electrical and Electronic Equipment) Directive 2012/19/EU.
Dispose of the mains adapter via an approved disposal centre or at your community waste facility. Please observe the currently applicable regulations. Please contact your waste disposal facility if you are in any doubt.
This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.
Warranty conditions
The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.
If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.
If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.
Scope of the warranty
This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.
The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.
Warranty claim procedure
To ensure quick processing of your case, please observe the following instructions:
■ Please have the till receipt and the item number (e.g. IAN 12345) available as proof of purchase.
■ You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.
You can download these instructions along with many other manuals, product videos and software on www.lidl-service.com.
Service
GB Service Great Britain
Tel.: 0871 5000 720 (£ 0.10/Min.)
E-Mail: kompernass@lidl.co.uk
IE Service Ireland
Tel.: 1890 930 034
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kompernass@lidl.ie
IAN 290065
Importer
Please note that the following address is not the service address. Please use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
GERMANY
www.kompernass.com
Ordering spare parts
You can order the following replacement parts for the product SHN 3.7 B1:
Order the replacement parts via the service hotline (see section "Service") or simply visit our website at www.kompernass.com.
NOTE
▶ Have the IAN number of the appliance ready (can be found on the cover of these operating instructions) when you place your order.
Table des matières
Introduction....34
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
ALLEMAGNE
www.kompernass.com
WAARSCHUWING! GEVAAR VOOR LETSELS!
⚠ WAARSCHUWING! GEVAAR VOOR LETSELS!
⚠ WAARSCHUWING - GEVAAR VOOR LETSELS
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
DUITSLAND
www.kompernass.com
Reserveonderdelen bestellen
POZOR – HMOTNÉ ŠKODY!
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
NĚMECKO
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
ALEMANIA
www.kompernass.com
Pedido de recambios
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
ALEMANHA
www.kompernass.com
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
DE-44867 BOCHUM
GERMANY
www.kompernass.com
Stand der Informationen · Last Information Update · Version des informations
Stand van de informatie · Stav informaci · Estado de las informaciones · Estado das informações:
12 / 2017 · Ident.-No.: SHN3.7B1-102017-1
- ELEKTRISCHER HORNHAUTENTFERNER ELECTRIC HARD SKIN REMOVER RÂPE ÉLECTRIQUE ANTI-CALLOSITÉS SHN 3.7 B1
- HINWEIS
- Introduction
- Copyright
- Intended use
- WARNING
- Danger if not used as intended!
- Package contents
- Risk of suffocation!
- NOTE
- Disposal of the packaging
- Appliance description
- Safety instructions
- RISK OF ELECTRIC SHOCK
- WARNING! RISK OF INJURY!
- CAUTION - PROPERTY DAMAGE!
- General
- Use
- Charging the battery
- Inserting/replacing the pumice attachment
- Using the appliance
- WARNING - RISK OF INJURY!
- Cleaning and care
- CAUTION - PROPERTY DAMAGE
- Storage
- Disposal
- Disposal of the appliance
- Warranty conditions
- Warranty period and statutory claims for defects
- Scope of the warranty
- Warranty claim procedure
- Service
- Importer
- Ordering spare parts
- Table des matières
- REMARQUE
- WAARSCHUWING! GEVAAR VOOR LETSELS!
- ⚠ WAARSCHUWING! GEVAAR VOOR LETSELS!
- ⚠ WAARSCHUWING - GEVAAR VOOR LETSELS
- Reserveonderdelen bestellen
- OPMERKING
- POZOR – HMOTNÉ ŠKODY!
- UPOZORNĚNÍ
- Pedido de recambios
- INDICACIÓN
- NOTA
- KOMPERNASS HANDELS GMBH
Brand : SILVERCREST
Model : SHN 3.7 B1
Category : Electric callus remover
