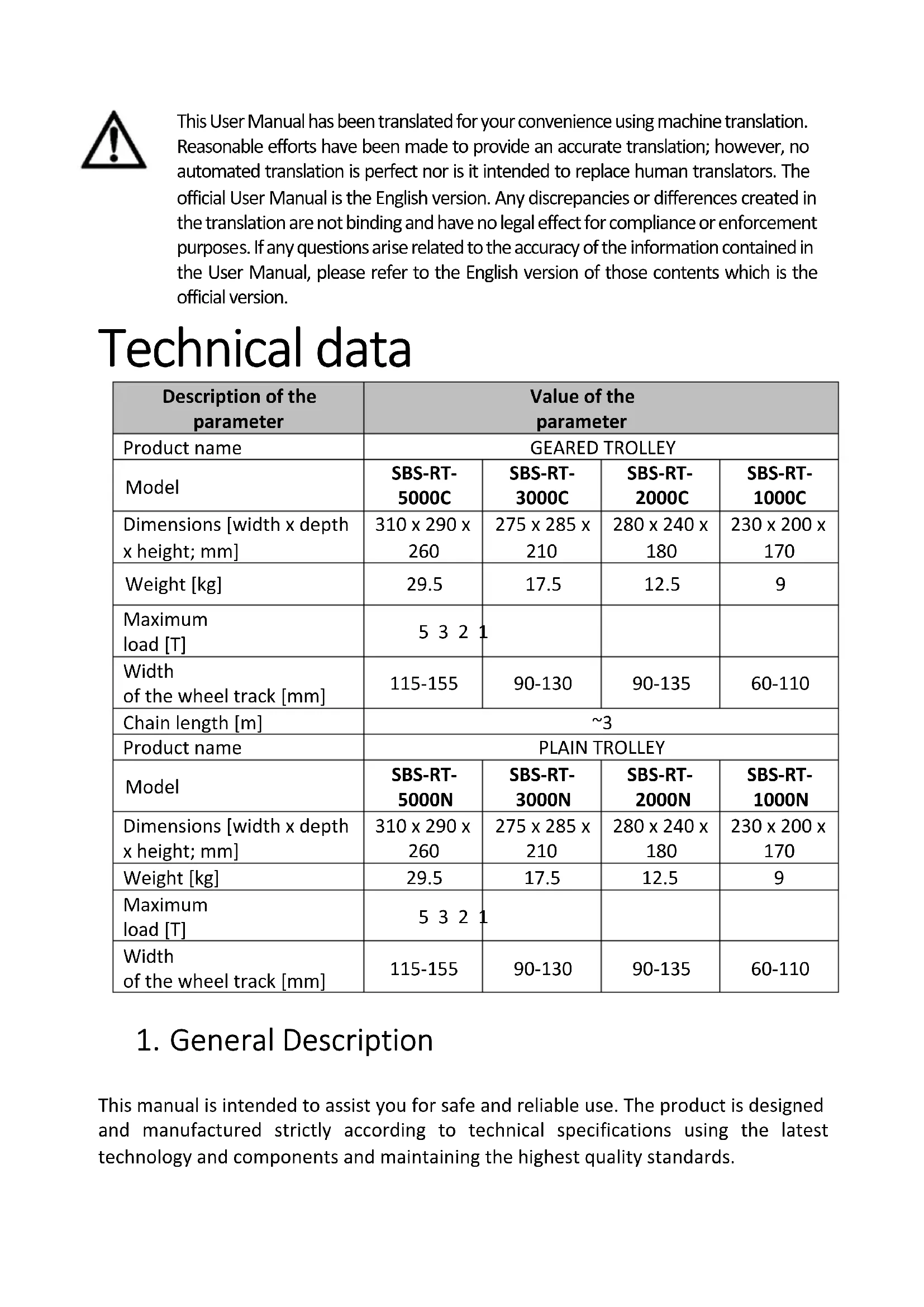

Weight [kg] 29.5 17.5 12.5 9 Maximum load [T]

This manual is intended to assist you for safe and reliable use. The product is designed and manufactured strictly according to technical specifications using the latest technology and components and maintaining the highest quality standards. This User Manual has been translated for your convenience using machine translation. Reasonable efforts have been made to provide an accurate translation; however, no automated translation is perfect nor is it intended to replace human translators. The official User Manual is the English version. Any discrepancies or differences created in the translation are not binding and have no legal effect for compliance or enforcement purposes. If any questions arise related to the accuracy of the information contained in the User Manual, please refer to the English version of those contents which is the official version.CAREFULLY READ AND UNDERSTAND THIS MANUAL BEFORE STARTING THE WORK. To ensure long and reliable operation of the device, make sure to operate and maintain it properly in accordance with the guidelines in this instruction manual. The technical data and specifications in this manual are up-to-date. The manufacturer reserves the right to make changes in order to improve the quality. Taking the technical progress and the possibility of reducing noise into account, the unit is designed and built in such a way so that risks resulting from noise emissions are reduced to the lowest possible level. Explanation of symbols

The product complies with applicable safety standards. Read the manual before use.

Wear protective head gear.

CAUTION! Danger of crushing your hand!!

CAUTION! The figures in this manual are illustrative only and may vary in some details from the actual appearance of the product.2. Safety of use CAUTION! Read all safety warnings and instructions. Failure to follow warnings and instructions could result in serious injury or even death. The term "device" or "product" in the warnings and in the description of the manual refers to Geared/Plain Trolley.

2.1. Safety in the workplace a) Keep the work area tidy and well lit. Disorder or poor lighting can lead to accidents. Be foresighted, watch what you are doing and use common sense when using the unit. b) In the event of damage or malfunction of the machine, immediately remove it from service and report the incident to authorised personnel. c) If you have any doubts as to whether the product is working properly or if it is damaged, contact the manufacturer's service department. d) Repairs to the device may only be carried out by the manufacturer's service. Do not attempt to repair the product on your own! e) No children or unauthorized persons are allowed in the work area. (Inattention may result in loss of control of the unit.) f) Check the condition of the safety stickers regularly. Replace them if they are illegible. g) Keep these instructions for use for future reference. If the product is to be handed over to a third party, hand it over with this user manual. h) Keep packaging components and small installation parts out of the reach of children.

i) Keep the device away from children and animals.

j) When using this product together with other devices, also follow the other instructions for use.

Remember! Keep children and other bystanders safe while operating the equipment.

2.2. Personal safetya) Do not operate this device if you are tired, ill or under the influence of alcohol, drugs or medication that could impair your ability to operate the device. b) The device is not intended to be used by persons (including children) with reduced mental, sensory or intellectual functions or persons who lack experience and/or knowledge unless they are supervised or have been instructed by a person responsible for their safety on how to operate the device. c) The unit may be operated by persons who are physically fit, capable of operating it and appropriately trained, and who have read this instruction manual and have been trained in occupational safety and health. d) Use caution and common sense when operating this unit. A moment's inattention during operation may result in serious personal injury. e) Use personal protective equipment as required when operating the unit as specified in Section 1 of the explanation of symbols. The use of appropriate, approved personal protective equipment reduces the risk of injury. f) Do not overestimate your capabilities. Maintain body balance and equilibrium at all times during operation. This allows for better control of the machine in unexpected situations. g) The product is not a toy. Children should be watched to ensure that they do not play with the appliance. 2.3. Safe use of the product a) Keep unused appliance out of the reach of children and anyone unfamiliar with the appliance or this manual. Products are dangerous when used by inexperienced users. b) Keep the product in good working order. Check before each use for general damage or damage to moving parts (cracks in parts and components or any other condition that may affect the safe operation of the device). If damaged, have the device repaired before use. c) Keep the product out of the reach of children. d) Repairs and maintenance should be carried out by qualified personnel using only original spare parts. This will ensure the safety of use. e) To ensure the designed operational integrity of the device, do not remove factory-installed covers or loosen screws. f) Clean the device regularly to prevent permanent dirt build-up. g) Do not tamper with the device to alter its performance or design. h) Using the unit to carry weights exceeding its maximum load is forbidden.

i) Do not allow people or animals to stand under suspended loads.

j) Transporting the load by means of the unit over people or animals is prohibited.k) Transporting people or animals by means of this unit is prohibited. l) Do not use excessive force and jerk the chain when resistance is felt (applies to the SBS-RT-5000C, SBS-RT-3000C, SBS-RT-2000C, SBS-RT-1000C models). m) Pulling the chain in any direction other than along the travel path when using this unit is prohibited. Pulling sideways may damage the unit (applies to SBS- RT-5000C, SBS-RT-3000C, SBS-RT-2000C, SBS-RT-1000C). n) When transporting with the unit, avoid shocks, impacts and sudden changes in speed. This will reduce the risk of the load falling from a height. o) Before suspending the load, always ensure that the space in which it will be transported is clear of obstructions. p) Bystanders should be warned of the operation of the equipment and should stay at a safe distance from the load. q) Always pay close attention to the load. r) Do not leave suspended loads unattended. s) Avoid rocking the load. t) Do not perform mechanical or similar work (welding, cutting, etc.) on suspended loads. u) Make sure that the load is stable and properly secured on the load ring.

v) If the load falls, there is a risk of injury or death.

CAUTION! Although the product has been designed to be safe and has adequate safeguards and despite the additional safety features provided to the user, there is still a slight risk of accident or injury when handling the product. Caution and common sense are advised when using the product.

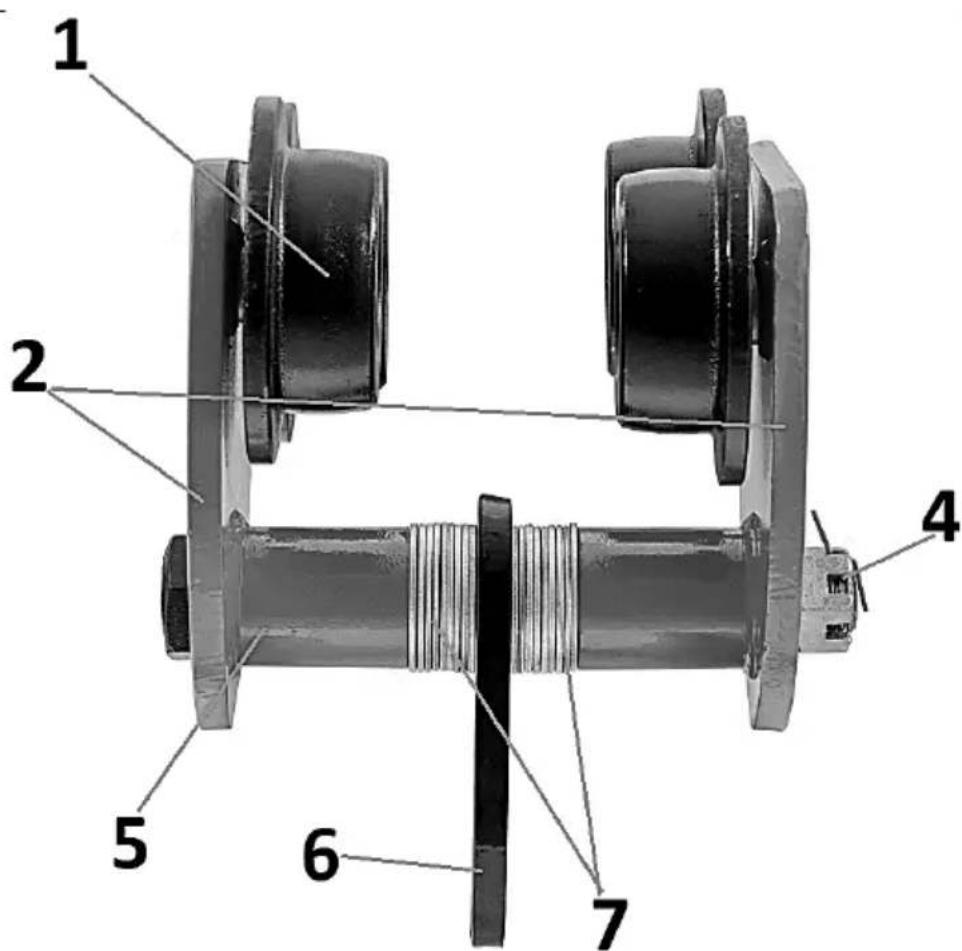

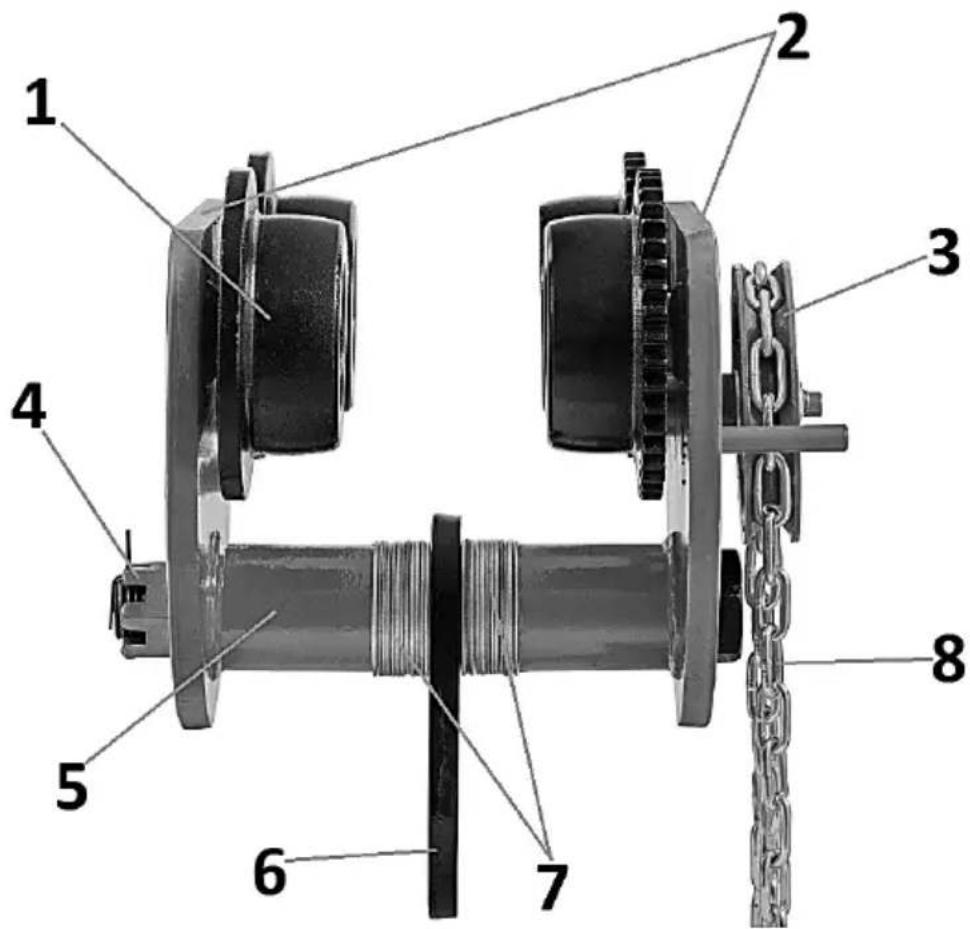

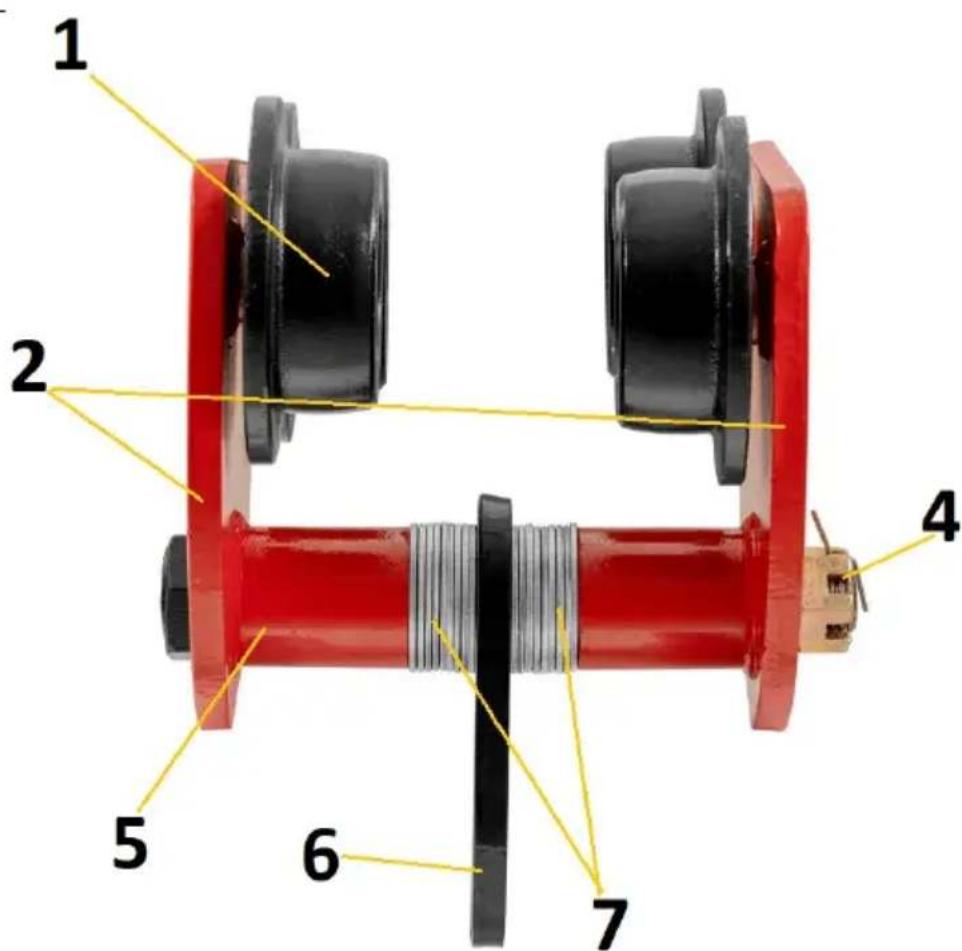

The device is designed for transport on a monorail track. It can be used as a suspension point for lifting equipment. The user is responsible for any damage resulting from misuse. 3.1. Product overview SBS-RT-5000C / SBS-RT-3000C / SBS-RT-2000C / SBS-RT-1000CSBS-RT-5000N / SBS-RT-3000N / SBS-RT-2000N / SBS-RT-1000N1. Feed wheel

4. Lace nut with a safety clip

3.2. Preparation for work/Working with the device

POSITIONING OF THE UNIT

CAUTION! Make sure that the support structure on which the unit will move is strong enough to withstand the weight of the load and the unit. Do not mount the unit on a support structure that cannot be verified as to its load-bearing capacity and strength. Responsibility for mounting the device on the supporting structure and for the supporting structure itself falls on the user. When suspending the device on the supporting structure, it is necessary to exercise extreme caution and ensure all conditions are suitable for safe work - this will allow you to avoid the risks associated with possible personal injuries.Responsibility for the preparation of the conditions for the installation of the device and for the installation of the device itself lies with the user.

ASSEMBLY OF THE UNIT

• Check the technical condition of the device. Pay attention to any damage, cracks and loose parts. Only a fully operational device may be used.

• Measure the width of the rail on which the device will run.

• Evenly space the side plates, filling the free spaces on the shaft with spacers. The track width should be (maximum) 6 mm larger than the width of the rail on which the device will run. IMPORTANT: there should be at least 1 spacer on each side of the plate.

• Tighten both hex nuts securely.

• Make sure that the unit is properly close to the rail, each wheel rolls freely and maintains good contact with the rail surface, and that the side plates are parallel.

• The lower part of the chain should be at a height of 100-500 mm from the ground (only for models with their own chain drive: SBS-RT-5000C, SBS-RT-3000C, SBS-RT- 2000C, SBS-RT-1000C). NOTE: Before first use, after assembling the unit, verify its operation by suspending a light load and rolling the unit along the rail. 3.3. Cleaning and maintenance a) Wait for the rotating parts to stop. b) Use only non-corrosive cleaning agents for cleaning the surfaces. c) After each cleaning, all the parts should be dried well before the unit is used again. d) Store the unit in a dry and cool place protected from moisture and direct sunlight. e) Do not spray the unit with a stream of water or immerse it in water. f) Perform regular inspections of the unit, checking technical fitness and any damages. g) The bearing and track surface (as well as the gearbox on SBS-RT-5000C / SBS- RT-3000C / SBS-RT-2000C / SBS-RT-1000C) should be periodically lubricated with grease. h) Make sure that the unit is kept clean and that its moving parts are lubricated.Dane techniczne Opis parametru Wartość parametru Nazwa produktu
