USER MANUAL Puzzi 81 C Kärcher

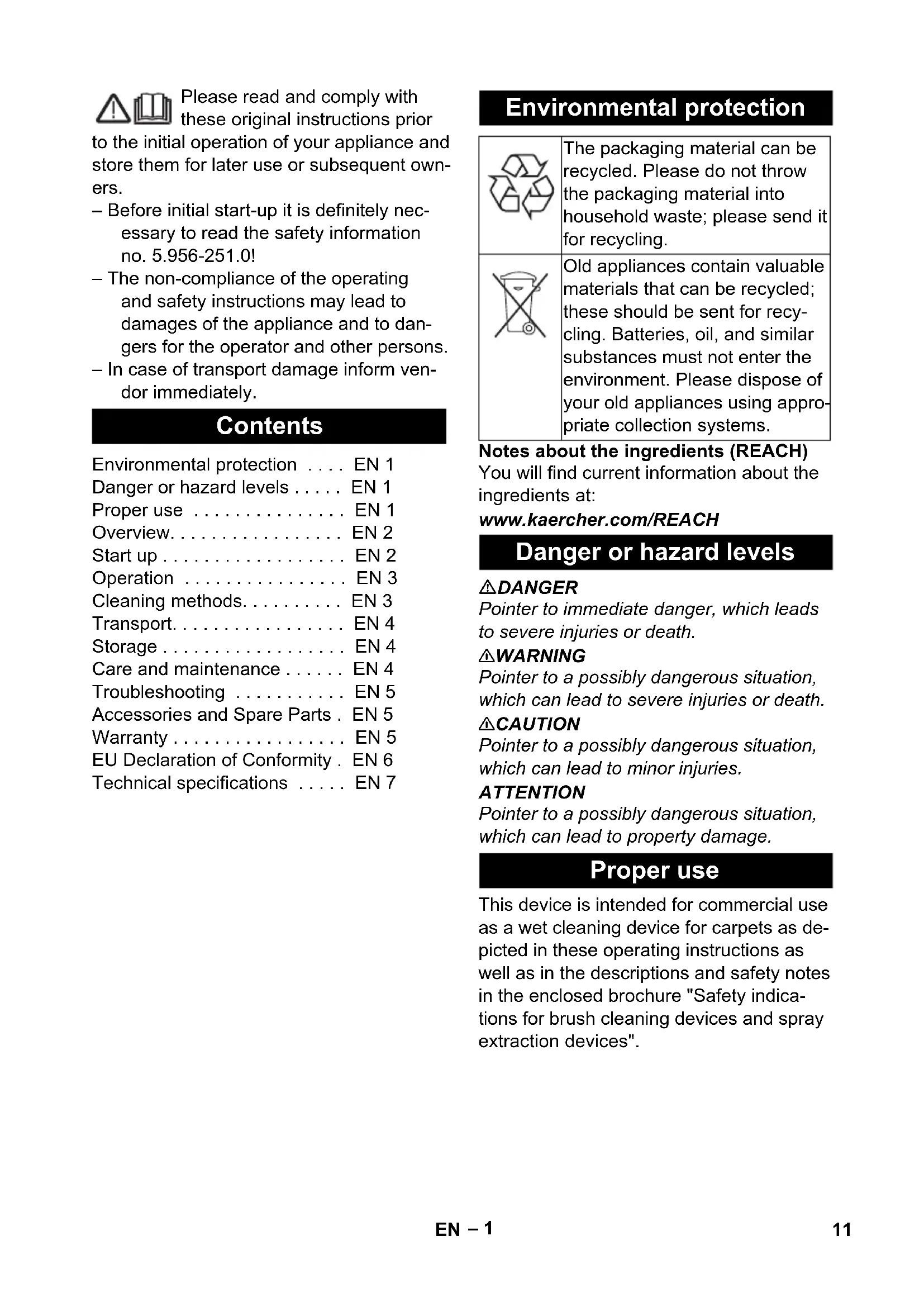

Teile-Nr. Kabellänge EU 6.647-263.0 7,5 m GB 6.647-264.0 7,5 m CH 6.647-265.0 7,5 m 10 DE– 1 Please read and comply with these original instructions prior to the initial operation of your appliance and store them for later use or subsequent own- ers. – Before initial start-up it is definitely nec- essary to read the safety information no. 5.956-251.0! – The non-compliance of the operating and safety instructions may lead to damages of the appliance and to dan- gers for the operator and other persons. – In case of transport damage inform ven- dor immediately. Notes about the ingredients (REACH) You will find current information about the ingredients at: www.kaercher.com/REACH DANGER Pointer to immediate danger, which leads to severe injuries or death. 몇 WARNING Pointer to a possibly dangerous situation, which can lead to severe injuries or death. 몇 CAUTION Pointer to a possibly dangerous situation, which can lead to minor injuries. ATTENTION Pointer to a possibly dangerous situation, which can lead to property damage. This device is intended for commercial use as a wet cleaning device for carpets as de- picted in these operating instructions as well as in the descriptions and safety notes in the enclosed brochure "Safety indica- tions for brush cleaning devices and spray extraction devices". Contents Environmental protection ... EN 1 Danger or hazard levels ... EN 1 Proper use ... EN 1 Overview... EN 2 Start up ... EN 2 Operation ... EN 3 Cleaning methods... EN 3 Transport... EN 4 Storage ... EN 4 Care and maintenance ... EN 4 Troubleshooting ... EN 5 Accessories and Spare Parts . EN 5 Warranty ... EN 5 EU Declaration of Conformity . EN 6 Technical specifications ... EN 7 Environmental protection The packaging material can be recycled. Please do not throw the packaging material into household waste; please send it for recycling. Old appliances contain valuable materials that can be recycled; these should be sent for recy- cling. Batteries, oil, and similar substances must not enter the environment. Please dispose of your old appliances using appro- priate collection systems. Danger or hazard levels Proper use 11EN– 2 Illustration 1 Connect spray/suction hose to the el- bow, Connect spray/suction hose to the ap- pliance 2 Prepare cleaning solution, Fill up the fresh water tank 3 Select operating mode 4 Cleaning 5 Empty the fresh water tank 6 Empty wastewater container 7 Fill fresh water tank (without detergent), Flush appliance 8 Clean lint trap, Clean fresh water sieve 9 Allow appliance to dry Illustration 1 Manual nozzle for upholstery cleaning 2 Hook for spray/suction hose 3 Holder for accessories 4 Power cord 5 Quick start instructions 6 Switch for spraying 7 Switch for vacuuming 8 Fresh water sieve 9Casing 10 Nameplate 11 Steering roller 12 Spray hose connection 13 Suction hose connection 14 Nozzle mouth piece 15 Union joint 16 Cover 17 Fresh water tank 18 Carrying handle of the appliance 19 Bender 20 Lever on the manifold 21 Spray hose 22 Suction hose 23 Spray/suction hose 24 Dirt water reservoir, detachable 25 Carrying handle of the wastewater con- tainer 26 Seal on the lid 27 Fluff filter Check high power cable, extension ca- bles and hoses for damage every time before use. Attach the elbow to the hand nozzle and hand-tighten the union nut on the el- bow. Insert the suction hose into the suction hose connection on the appliance. Attach the coupling of the spray hose to the spray hose connection of the appli- ance and snap in place. Connect the suction hose to the elbow. Connect the coupling of the spray hose with the manifold and snap in place. DANGER Health risk, risk of damage. Observe all in- dications on the detergent used. Mix fresh water and detergent in a clean container (use the concentration rec- ommended for the detergent). Dissolve detergent in the water. Note: Warm water (max. 50°C) will in- crease the cleaning effect. Verify the tem- perature resistance of the surface to be cleaned. Note: For considerate treatment of the en- vironment use detergent economically. Fill detergent solution into the fresh wa- ter reservoir. The fill level must not ex- ceed the "MAX" mark. Note: When cleaning previously sham- pooed carpets, foam is generated in the wastewater container. This formation of foam can be prevented by adding a de- foaming agent. Put defoaming agent (optional accesso- ry) into the wastewater container. Overview Quick start instructions Device elements Start up Attaching the Accessories Prepare cleaning solution Fill up fresh water reservoir Defoaming agent 12 EN– 3 Plug in the mains plug. Press the suction switch to turn on the suction turbine. Press the spray switch to switch on the spray pump. ATTENTION Risk of damage. Check the object to be cleaned prior to using the appliance in an inconspicuous place for colour fastness and water resistance. Operate the lever on the manifold in or- der to spray the cleaning solution. Run across the surface to be cleaned in overlapping paths. Pull the nozzle back- wards (do not push). When changing nozzles, the hand noz- zle can be put into the accessories holder. Switch off the spray and suction switch- es. Pull out the mains plug. If the dirt water reservoir is full, switch off the suction and spray switches. Remove the lid. Remove the wastewater container from the appliance and drain it. Turn off the appliance. Shortly activate the lever on bender to decrease the pressure. Separate bender from the spray/suction hose. Insert the suction hose into the fresh water reservoir. Press the suction switch to turn on the suction turbine. Empty the fresh water reservoir and switch the appliance off. Remove the lid. Remove the wastewater container from the appliance and drain it. Connect the elbow (with hand nozzle) to the suction hose. Connect the coupling of the spray hose with the manifold and snap in place. Fill approx. 2 litres of fresh water into the fresh water reservoir. Do not add any detergents. Press the spray switch to switch on the spray pump. Hold hand nozzle over a drain. Activate lever on bender and flush the appliance for appr. 1 to 2 minutes. Turn off the appliance. Flush appliance. Empty the wastewater container and clean it under running water. Empty the fresh water reservoir. Clean the outside of the appliance with a damp cloth. Remove all water from the appliance prior to longer periods of non-use to avoid offensive odours. Allow appliance to dry thoroughly: Re- move or move lid sideways. Illustration Coil the power cable around the carry- ing handle and the lid of the appliance. Place the appliance in a dry room and secure it from unauthorized use. Spray and suction off detergent solution in one work cycle. Note: Repeated suctioning without spray- ing will shorten the drying time. Operation Turning on the Appliance Cleaning Turn off the appliance Empty wastewater container Empty the fresh water reservoir Flush appliance After each operation Storing the Appliance Cleaning methods Normal soiling 13EN– 4 Apply detergent solution with suction turbine turned off and soak for 10 to 15 minutes. Clean the surface just like with normal soiling. In order to further improve the cleaning result, the surface can be recleaned us- ing clear, warm water. With sensitive materials, use less deter- gent and spray the surface at a distance of approx. 200 mm. Then simply vacu- um off. – Highly soiled spots should be pre- soaked and the detergent solution should soak 5 to 10 minutes. – Always work from the light to the shade (from the window to the door). – Always work from the cleaned to the un- cleaned surface. – The more sensitive the surface (oriental rugs, berbers, upholstery material) the lower the cleaning solution concentra- tion should be. – Rugs with jute backing can shrink if too much water is used and can bleed col- ours. – Brush high-fiber rugs in the direction of the weave after cleaning (using a fiber brush or a scrubber). – Water-proofing the fabric using Care Tex RM 762 after the wet cleaning pre- vents a quick resoiling of the textile sur- face. – Do not step on cleaned surfaces until they have dried and do not place furni- ture on them to avoid pressure spots or rust stains. For further information, please request product information sheet and EU safety data sheet of the relevant detergent. 몇 CAUTION Risk of injury and damage! Observe the weight of the appliance when you transport it. Illustration Insert the spray/suction hose into the hook. When transporting in vehicles, secure the appliance according to the guide- lines from slipping and tipping over. 몇 CAUTION Risk of injury and damage! Note the weight of the appliance in case of storage. This appliance must only be stored in inte- rior rooms. DANGER Danger of injury by electric shock. First pull out the plug from the mains before carrying out any tasks on the machine. Remove the lid. Remove the wastewater container from the appliance. Regularly clean the lint trap using a brush. Unscrew the fresh water sieve. Regularly clean the fresh water sieve under running water. Strong soiling or stains Upholstery cleaning Cleaning tips Detergent Carpet and upholstery cleaning RM 760 powder RM 760 tabs RM 764 liquid Defoaming RM 761 Waterproofing carpets RM 762 Transport Storage Care and maintenance Clean the fluff filter Cleaning the fresh water sieve 14 EN– 5 Unscrew the covering nut. Clean nozzle mouthpiece. DANGER – Danger of injury by electric shock. First pull out the plug from the mains be- fore carrying out any tasks on the ma- chine. – Get the electrical components checked and repaired only by authorised cus- tomer service persons. Check the receptacle and the fuse of the power supply. Check the power cable and the power plug of the device. Turn on the appliance. Fill up fresh water reservoir. Check the couplings on the spray hose for proper seating. Clean or replace nozzle tip. Clean the sieve in the fresh water reser- voir. Spray pump defective, contact after- sales service. Clean nozzle mouthpiece. Check the correct positioning of the lid. Clean seal on lid and surface on the ap- pliance. Clean the fluff filter. Check suction hose for blockages; clean if required. Fill up fresh water reservoir. Put defoaming agent (optional accesso- ry) into the wastewater container. If malfunction can not be fixed, the de- vice must be checked by customer ser- vice. Only use original accessories and spare parts, they ensure the safe and trouble-free operation of the device. For information about accessories and spare parts, please visit www.kaercher.com. The warranty terms published by the rele- vant sales company are applicable in each country. We will repair potential failures of your appliance within the warranty period free of charge, provided that such failure is caused by faulty material or defects in man- ufacturing. In the event of a warranty claim please contact your dealer or the nearest authorized Customer Service centre. Please submit the proof of purchase. Cleaning the nozzle Troubleshooting Appliance is not working No water exiting from nozzle Spray stream one-sided Insufficient vacuum performance Spray pump loud Heavy formation of foam in the wastewater container Customer Service Accessories and Spare Parts Warranty 15EN– 6 We hereby declare that the machine de- scribed below complies with the relevant basic safety and health requirements of the EU Directives, both in its basic design and construction as well as in the version put into circulation by us. This declaration shall cease to be valid if the machine is modified without our prior approval. The undersigned act on behalf and under the power of attorney of the company man- agement. Authorised Documentation Representative S. Reiser Alfred Kärcher GmbH Co. KG Alfred-Kärcher-Str. 28 - 40 71364 Winnenden (Germany) Phone: +49 7195 14-0 Fax: +49 7195 14-2212 Winnenden, 2016/01/01 EU Declaration of Conformity Product: Spray extraction device Type: 1.100-xxx Relevant EU Directives 2006/42/EC (+2009/127/EC) 2014/30/EU 2011/65/EU Applied harmonized standards EN 55014–1: 2006+A1: 2009+A2: 2011 EN 55014–2: 2015 EN 60335–1 EN 60335–2–68 EN 61000–3–2: 2014 EN 61000–3–3: 2013 EN 62233: 2008 EN 50581 Applied national standards
