USER MANUAL SS5260 Sogo

Close-up of a SOGO 400W stainless steel kitchen blender with visible internal components (no text or symbols on the device itself)

PICADORA CON RECIPIENTE DE VIDRIO FOOD CHOPPER WITH GLASS BOWL HACHOIR AVEC BOL EN VERRE

Caution: please read and preserve these important instructions

ÍNDICE

1. Important Note P. 11

2. Symbol definition P. 11

3. Safety instructions for the user P. 11

I. General precautions during the use of electrical equipment P. 11

II. Restrictions on use to avoid personal injury P. 12

III. Product use restrictions due to poor condition or breakdown P. 13

IV. Restrictions on use when used with children and elders P. 14

V. IMPORTANT WARNING P. 14

VI. Instructions to follow when using the device P. 15

1. Product features P. 16

2. Technical specification P. 16

3. Parts description P. 16

4. Instructions for use P. 16

5. Cleaning and maintenance P. 17

6. Declaration of conformity P. 50

7. Responsibility for disposal, details of the manufacturer and after-sales service P. 51

ÍNDICE

Technical diagram of a coffee maker with labeled parts in Chinese

• Always read the instruction book carefully before using.
- This manual can be downloaded from our web page www.sogo.es
- Keep these instructions for future reference.

2. Symbol definition

1

1- Important information and useful hinds on use
2- Warning against dangerous situations in terms of life and property
3- Cautions while using electrical and electronic equipment.

3. Safety instructions for the user

1.

GENERAL

PRECAUTIONS

General precautions during the use of electrical equipment

• Do not use the appliance for any other purpose than described in this manual.
• Do not use or store the appliance outdoors.
  • Always place the appliance on to the flat an even surface.
• This product is intended for indoor, non-industrial, non-commercial and only for household use. Do not use the item outdoors or for any other purpose. Misuse or improper handling may cause problems in the appliance and cause injury to the user.
• The unit must be used only for the intended

purposes. No liability is accepted for damages arising from improper use or wrong handling.

• Ensure that the voltage indicated on the name-plate matches the mains voltage before plugging in the appliance.
  • Always remove the plug from the power socket when the appliance is not in use. Do not leave the appliance unattended when switched on.
• Close supervision is necessary when any appliance is being used by or near children.
• Before cleaning or storing your appliance, always unplug the appliance from the power supply and let it cool down.
• The device is not completely disconnected from the power source, even after it has been turned off. To disconnect it completely, disconnect it from the mains plug.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.
• Avoid spillage on the connector
• This appliance is intended to be used in household and similar applications such as
• Staff kitchen areas in shops, offices and ot working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
• Bed and breakfast type environments;
• Catering and similar non-retail applications.

II. Restrictions on use to avoid personal injury

- Do not let the appliance operate unattended.

- Do not place or operate this appliance near water sources.

• Do not place or operate the appliance and its power cord on or near hot surfaces (e.g., stove plates) or open flames
• Do not leave the power cord hanging from sharp edges and keep away from hot objects and fl - mes. Do not wind the cord around the appliance and do not bend it.
• Neither immerse the housing, which contains electrical components and the heating elements in water, nor rinse it under the tap.
• Never use accessories that are not recommended by the manufacturer.
• The use of accessories not recommended or sold by the appliance manufacturer may result in fire, electric shock or injury to persons
• When you want to remove the plug from the wall contact, please do this at the plug itself and not by pulling on the cable or the appliance itself.
• To avoid electric shock, make sure your hands are dry before plugging or unplugging.
• Do not use the device with wet hands, on damp floors or when the atmosphere is humid, there is a risk of electric shock.
• While using the appliance, make sure that the power cord must not be caught or crushed.
• Do not let the motor unit, cord or plug get wet to protect against risk of electric shock.

III. ⚠️ Product use restrictions due to poor condition or breakdown

- Never immerse the appliance or the plug-in water or any other liquid. In the event of the appliance falling in water, disconnect immediately from the mains supply and take it to an authorized service agent for repair before reusing.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance if the cable or plug is damaged. In case of the cord be damaged, it must be replaced only by the manufacturer, its service agent or similarly qualified persons i order to avoid Hazard.
• In case of appliance malfunction, or if it has been damaged in any manner, return the appliance to the nearest authorized service facility for examination, repair or adjustment.
• In case of hardware problems, do not attempt to repair the product yourself. Repairs should only be carried out by qualified technicians

IV. ⚠️! Restrictions on use when used with children and elders

• The appliance is not to be used children.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of the reach of the children.
  • Children shall not play with the appliance.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

V. △! Important Warning

- To avoid a circuit overload when using this product, do not operate another high-wattage

product on the same electrical circuit.

• A short power supply cord is provided with this product. An extension cord is not recommended for use with this product, but if one must be used:
• The marked electrical rating of the cord must be at least as great as that of the product.
• Arrange the extension cord so that it does not hang where it can be tripped over or pulled unintentionally.

VI. Instructions to follow when using the device

• The appliance cannot be used for chopping hard and dry substance, otherwise the blades might get blunt.
• WARNING: The blades are very sharp!
• Avoid contacting moving parts of the appliance while in function.
• Turn off the appliance and disconnect from th mains supply before changing accessories or approaching movable parts in use.
• Care must be taken when handling the sharp blades, emptying the bowl and during cleaning.
• Do not connect the appliance to the mains until it is completely assembled and always disconnect the appliance before disassembling or handling the blade.
• Keep hands and utensils out of bowl while chopping to reduce the risk of severe injury to persons or damage to the chopper. A scraper may be used but must be used only when the chopper is not working.
• Be careful if hot liquid is poured into the food processor or blender, as it can be ejected out of the appliance due to the sudden steaming.

NOTE: To avoid overheating the motor, do not use it more than 60 seconds.

CLEANING AND MAINTENANCE

Kindly refer to the cleaning and maintenance section for details on how to clean surfaces which comes in the contact of food.

4. Product features

• Perfect for chopping all types of meat, vegetables, nuts, pepper and even for crushing ice
  • Glass bowl of 1.5L for better hygiene
  • 4 titanium coated blades
• Metal gear
  • Overheat protection
  • Big lid press button
• Easy cleaning

• Anti-skid base

• Technical specification

Voltage Power		Frequency	Capacity
220-240V 400W		50-60Hz	1.5L

Continuous Operating Time: 1 Min. max.

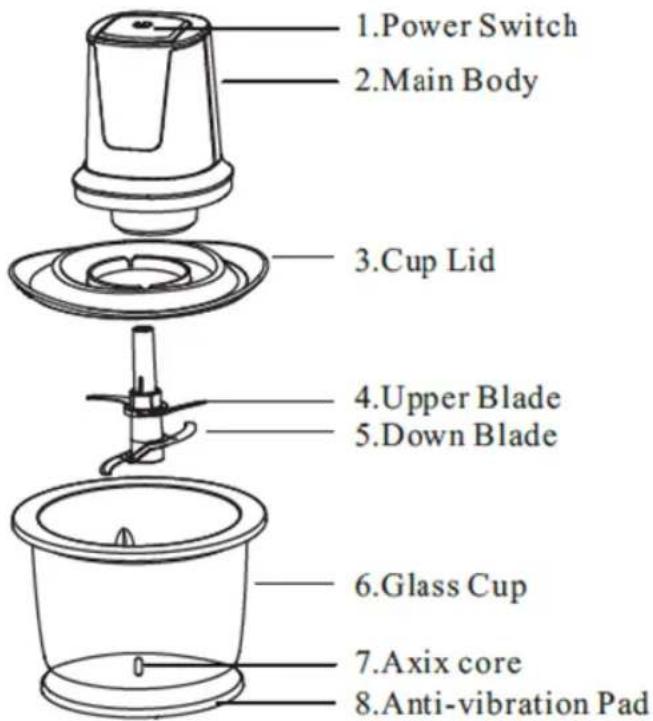

6. Parts description

FOOD CHOPPER PARTS

1.Power Switch 2.Main Body 3.Cup Lid 4.Upper Blade 5.Down Blade 6.Glass Cup 7.Axix core 8.Anti-vibration Pad

7. Instructions for use

BEFORE THE FIRST USE

Before using this appliance for the first time, wash the bowl and blade assembly in soapy water and dry thoroughly, all of these parts are dishwasher safe except motor part. Wipe the motor unit with a damp cloth, do not immerse the motor unit in water.

How to use

1. Before the first use, the bowl, lid and blade should be washed with hot soapy water.
2. Place the blades over the shaft.
3. Fill the ingredients into the bowl.
4. Place the lid on the container.
5. Place the motor unit on top and match the arrow on the motor with the arrow on the lid (If the unit is not properly closed, the appliance cannot be turned on)
6. Plug the power cord into an electrical socket.
7. Hold the container with one hand and press down the switch with the other hand and the appliance startup immediately.
8. The chopper is designed for only a short time to work up to a 30 – 40 seconds. If you wish to use for more than that, Let it cool down for 2 minutes to room temperature before the operation continues.
9. Unplug the appliance and wait until the blade has come to a complete stop.
10. Remove the power unit, lid and blade.

Hints

Food Quantity Time
Meats 500g (about	1/2 of the bowl) 30 secs
Vegetables like cabbage 4/5	of the bowl 5-10 secs
Carrot, Cucumber, Onion 1/2	of the bowl 5-10 secs
Ice, Chilli, Pepper 1/3 of the bowl 5-10 secs

Helpful Hints

1. Make sure that the blades are in place before filling with food.
2. If the blade does not move free, and even stops, immediately release the start button, unplug, dismantle and remove the obstruction.
3. If the blade does not reach full speed instantly stop, unplug and remove some of the food.
4. Even chopping is achieved by using of uniformly sized pieces of food.

8. Cleaning and maintenance

Always disconnect the appliance from the power outlet before cleaning.

Wash the bowl, blade assembly immediately after every single use either with warm/soapy water or in the dishwasher. Wipe off the motor unit with a damp cloth- do not immerse in wate.

To clean, wipe the surface of the appliance with a damp cloth, if necessary, add a bit of washing liquid, then dry thoroughly. Never immerse in water and do not use an aggressive cleaner.

Do not immerse or rinse the power unit. Clean only with a damp cloth.

The blade can be washed with hot running water, the container and the dish with warm water.

NOTE: Do not use chemical, steel, wooden or abrasive cleaners to clean the unit to prevent the gloss loss.

1. IMPORTANT:

Grand bouton-poussoir

Nettoyage facile

Base antidérapante

Exploded view diagram of a kitchen appliance showing internal components (no text or labels)

Technical diagram of a coffee maker with labeled parts in Chinese

DECLARATION OF CONFORMITY

This device complies with EU Low Voltage Directive 2014/35/EC.

Electromagnetic Compatibility Directive 2014/30/EU. Directive 2015/863/EU on the restriction of the use of certain hazardous substances in electrical.

Directive 2009/125/EC on the eco-design requirements applicable to energy-related products.

This symbol on the product or on the packaging indicates that this product can't be disposed as normal rubbish or household waste. All the electrical, electronic equipment's and battery-operated units must recycle in proper manner and according to the local municipal laws. You can recycle them by taking them to government authorized disposal centres or specialized bins which you can find in any nearby big super markets, electronics or electro domestics products stores or malls who have these types of facilities available.

Designed by: SOGO based on European quality standards
Imported by: Sanysan Appliances S.L, NIF: B98753056, C/ Barcas 2, 2, 46002 Valencia, Spain
Product manufactured in CHINA After-sales service: www.sogosat.com [e-mail] / 0034 902 222 161
