USER MANUAL PWS2258 KODAK

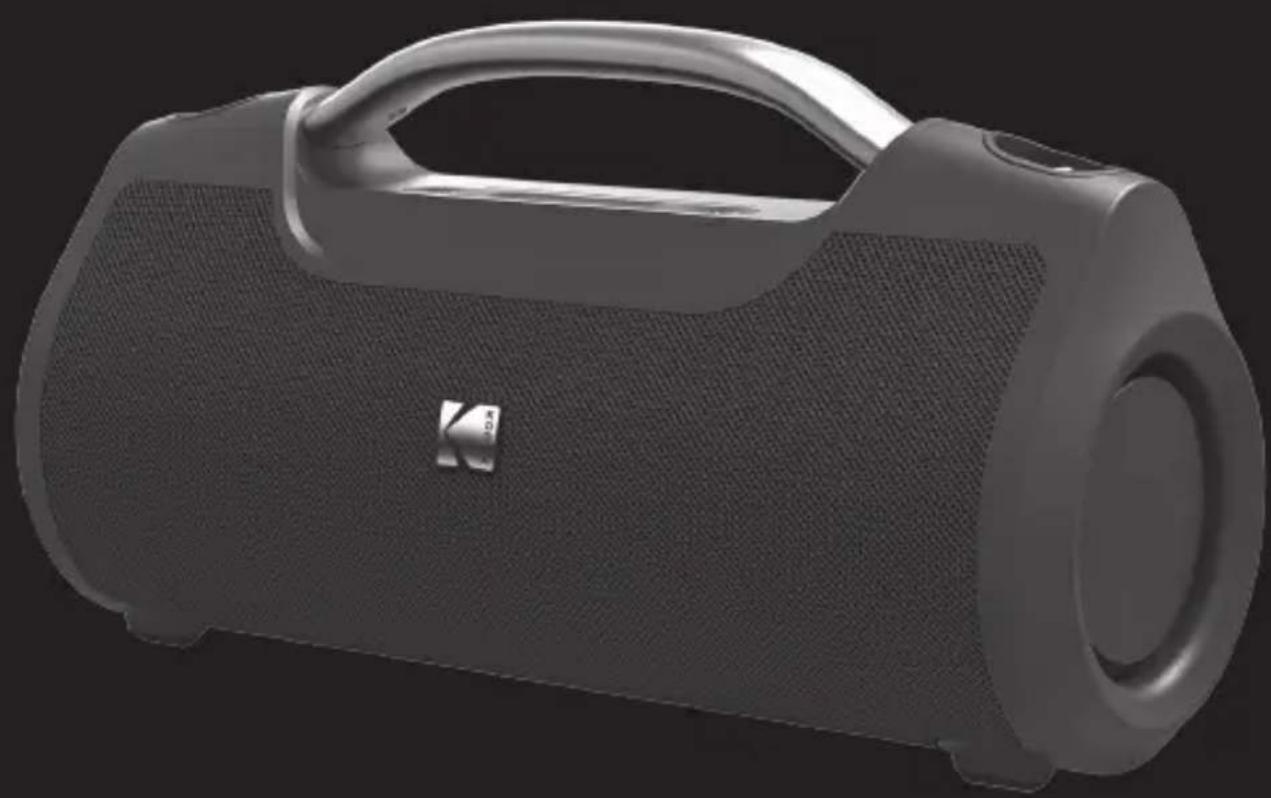

KODAK Portable Wireless Speaker

IPX6 Water Resistant with True Wireless Technology PWS-2258

Black and white photo of a portable electronic device with a handle and textured body (no visible text or symbols)

KODAK

User Manual

Please read this manual carefully before operating the speaker. Please keep this manual with you for further reference.

INTRODUCTION

Thank you for choosing this product as your source for entertainment!

You can use this item with tablets, laptops and many types of smartphones to stream music and enjoy hands-free calling. In order to get the best results, please read this manual before using the product.

IMPORTANT SAFETY INSTRUCTIONS

1. Read all warnings.
2. Follow all instructions.
3. Do not drop, disassemble, deform, modify or insert any objects into this product.
4. Do not attempt to repair, modify or disassemble the product yourself.
5. For the first use, fully charge the product.
6. Please charge the battery once a month if speaker is not used for long time.
7. This product does not contain any user-serviceable components and tampering with it may void the warranty.
8. Do not clean the product with alcohol, ammonia-based cleaners or abrasive cleaners.
9. Do not place this product in contact with any sharp objects as this may cause scratches and operating damage.
10. Do not attempt to replace the product battery, it is built-in and is not user changeable.
11. Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas.
12. Dispose of the product and the product's battery in accordance with local laws and regulations.
13. Avoid using in damp or corrosive environment.

WHAT'S INSIDE

Line drawing of a rectangular electronic device casing with a handle and mounting feet (no text or symbols)

A

Line drawing of a USB cable with connector port (no text or symbols)

B

Line drawing of a U-shaped audio jack with two leads (no text or symbols)

C

USER MANUAL

D

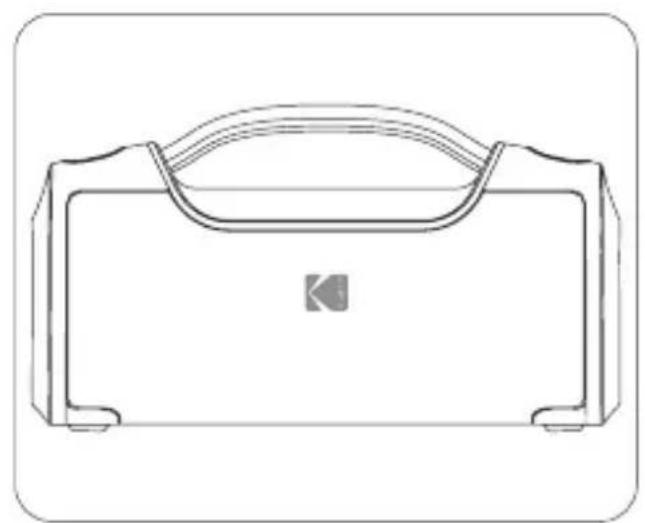

A. BLUETOOTH speaker

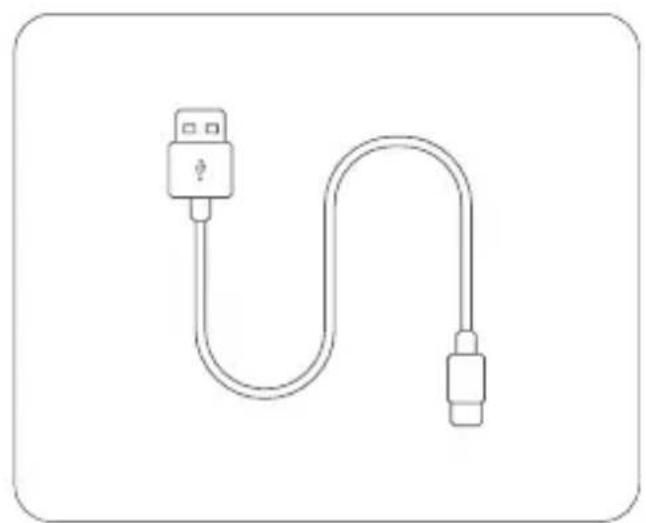

B. Charging cable

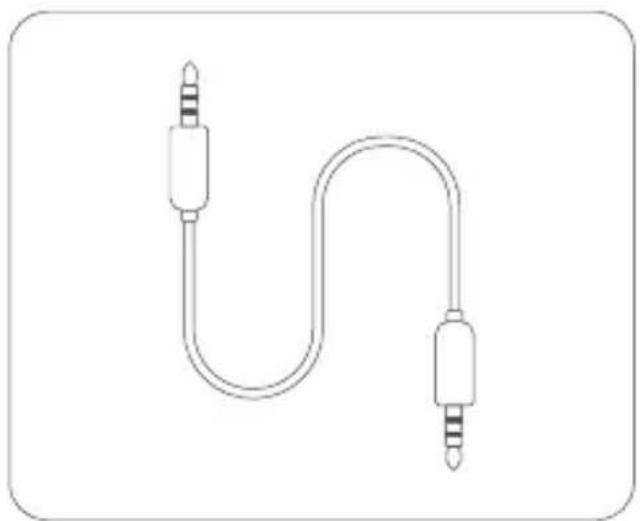

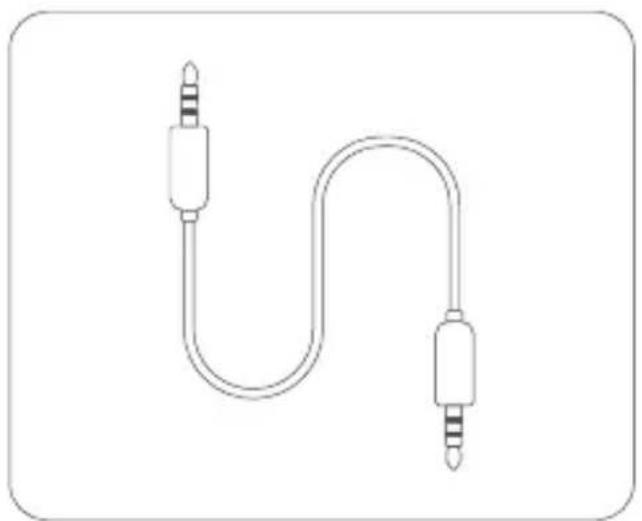

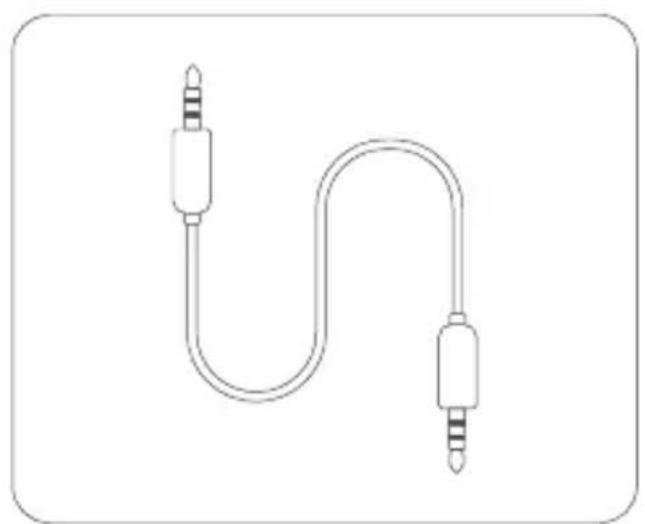

C. 3.5mm AUX cable
D. Shoulder strap

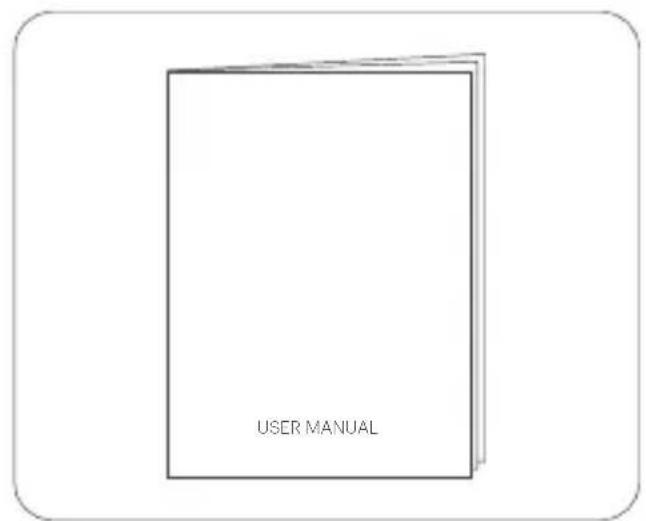

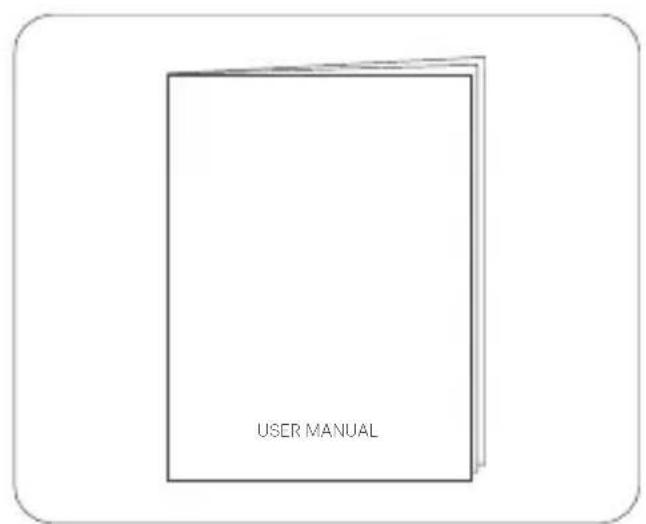

E. User manual

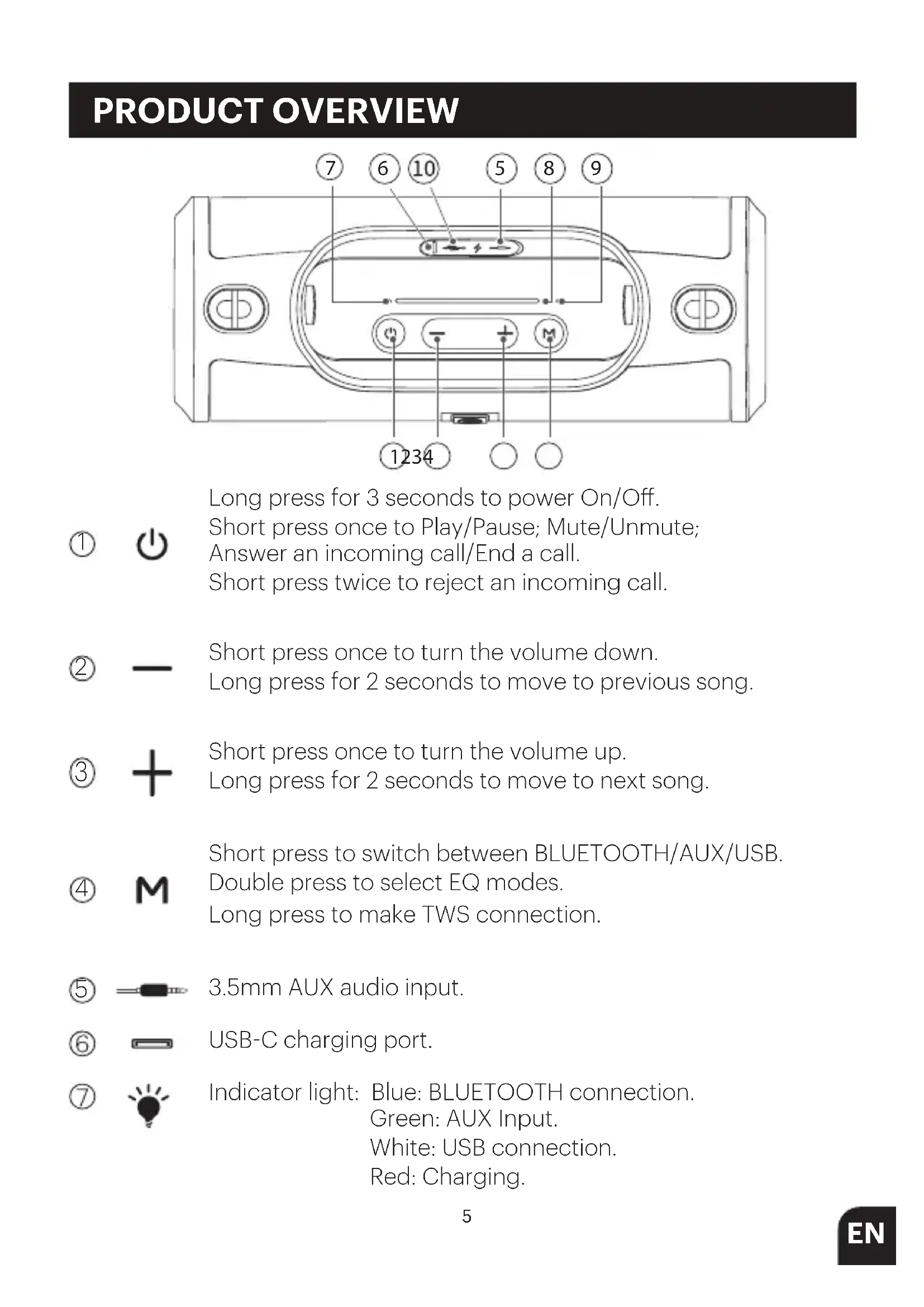

PRODUCT OVERVIEW

⑦ ⑥ ⑩ ⑤ ⑧ ⑨ ①234

Long press for 3 seconds to power On/Off.
Short press once to Play/Pause; Mute/Unmute;
Answer an incoming call/End a call.
Short press twice to reject an incoming call.

② — Short press once to turn the volume down. Long press for 2 seconds to move to previous song.

③ + Short press once to turn the volume up. Long press for 2 seconds to move to next song.

Short press to switch between BLUETOOTH/AUX/USB. ④ M Double press to select EQ modes. Long press to make TWS connection.

⑤ 3.5mm AUX audio input.

⑥ USB-C charging port.

⑦ Indicator light: Blue: BLUETOOTH connection.

Green: AUX Input.

White: USB connection.

Red: Charging.

TWS Indicator: White light will stay on when pairing is successful.

Microphone.

USB-A port for charge out / music playback.

1. Power Button

Long press “ ⏻” button for 3 seconds to power on, long press for 3 seconds again to power off. In BLUETOOTH mode, short press to Play/Pause. Double press to disconnect BLUETOOTH connection. In AUX mode, short press to mute/un-mute. When receiving call, short press “ ⏻” to answer call and press again to hang up. Double press to reject a call.

2. BLUETOOTH Connection

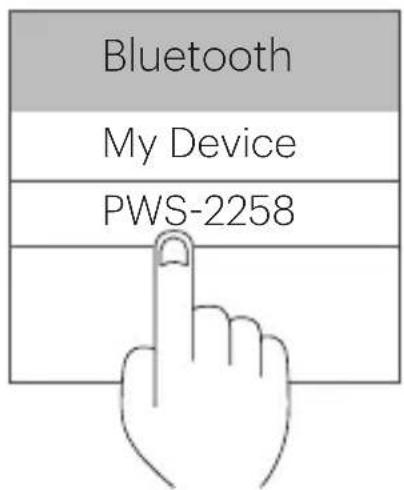

When the speaker is powered on it will enter BLUETOOTH pairing mode and the blue indicator light will start flashing. Select "PWS-2258" on your BLUETOOTH device and connect. Upon successful connection, indicator light will stop flashing and stay on. Speaker will start to play music from your play list. Double press " 🔊 " button to disconnect BLUETOOTH connection.

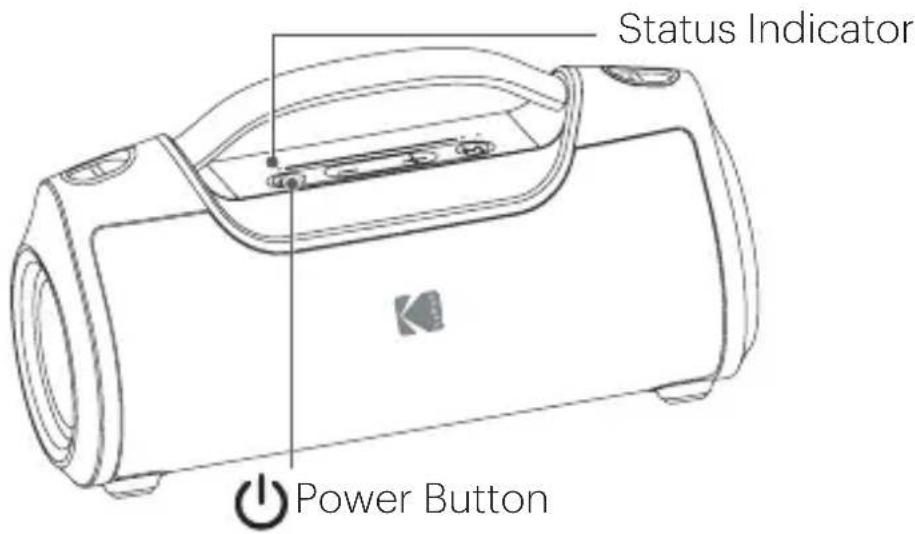

Status Indicator Power Button

Bluetooth My Device PWS-2258

3. Volume Control

Short press “ +” to increase volume; long press for 2 seconds to play next song. When it reaches the maximum volume, you will hear a voice prompt. Short press “ —” to decrease volume; long press for 2 seconds to play previous song.

4. EQ

This speaker supports three EQ modes (Standard, Outdoor, 3D). Standard is set as default sound effect. Double press “M” to switch to your desired EQ mode.

Standard: This mode is suitable for normal usage; it has balanced sound. High/Mid/Low frequency is all balanced.

Outdoor: This mode has better bass and louder sound, suitable for outdoor listening.

3D: This mode is more focused on Mid and High frequency, suitable when listening to TV and movies sound on the speaker.

5. MODE

Short press "M to switch between BLUETOOTH - AUX - USB modes. BLUETOOTH mode is set as default.

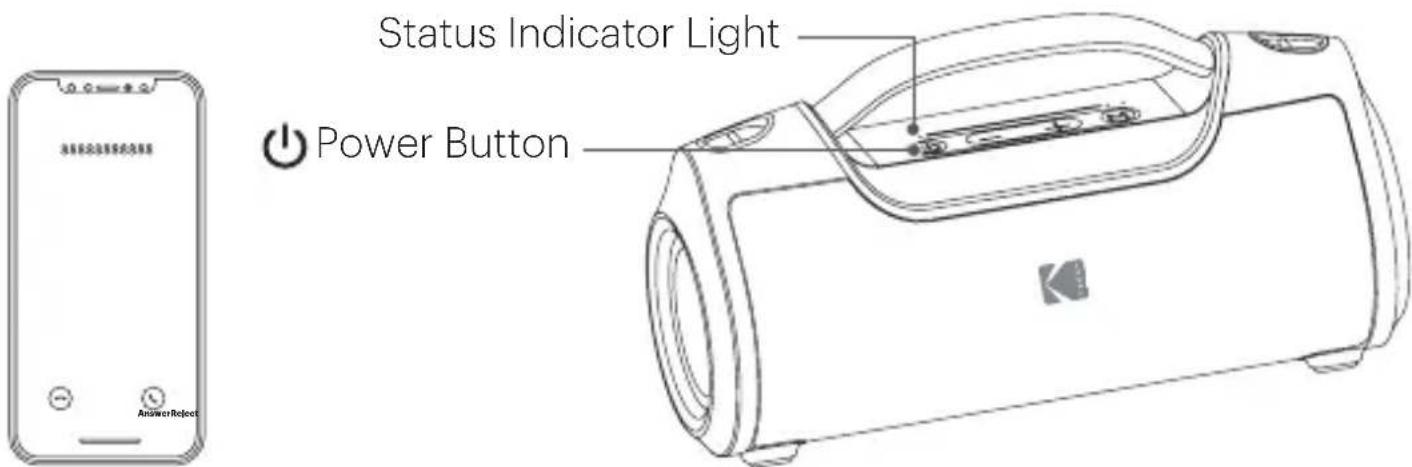

6. Hands-free Calling

When your smartphone is paired to the speaker and you receive an incoming call, short press " 🔊" button once to answer the call and press again to hang up. Double press to reject the call.

Status Indicator Light Power Button Answer/Reject

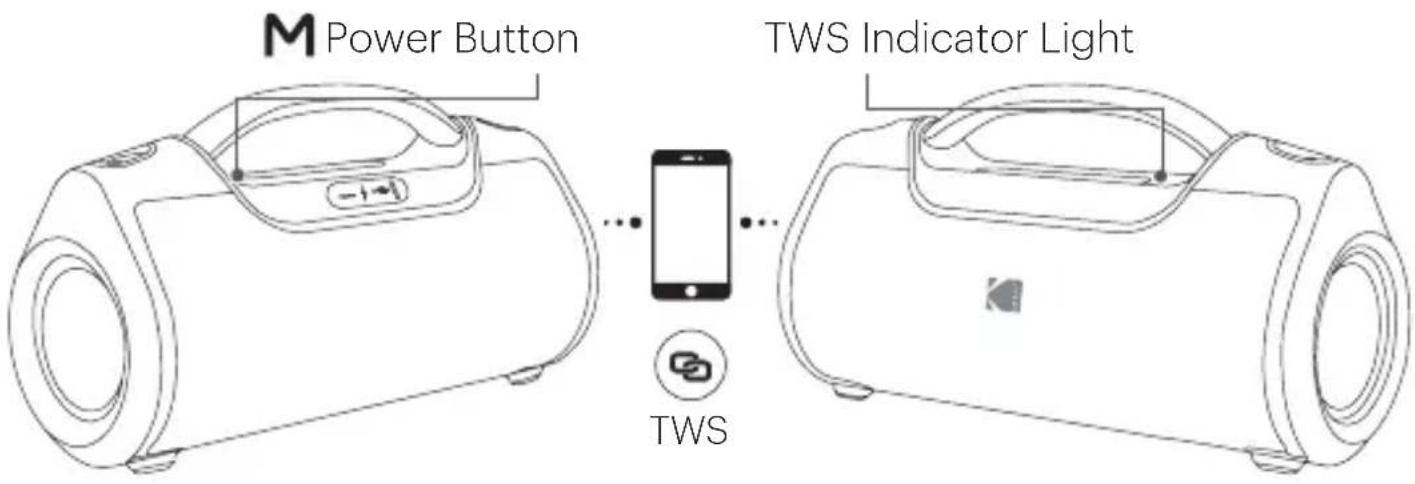

7. TWS Connection

a. Power on two "PWS-2258" speakers, both speakers enter in BLUETOOTH mode.
b. Long press "M" button simultaneously on both speaker to enter TWS pairing mode.

The two speakers will connect automatically. Upon successful connection white TWS indicator light will stay on.

c. Under TWS connection choose "PWS-2258" on your device list to make BLUETOOTH pairing with the master speaker. Upon successful connection music will be played on both the speakers simultaneously.
d. To disconnect TWS pairing short press "M" button on either speaker and the white TWS indicator light will turn off.

Note: Please make TWS connection before pairing the speaker to a BLUETOOTH device.

M Power Button TWS Indicator Light TWS

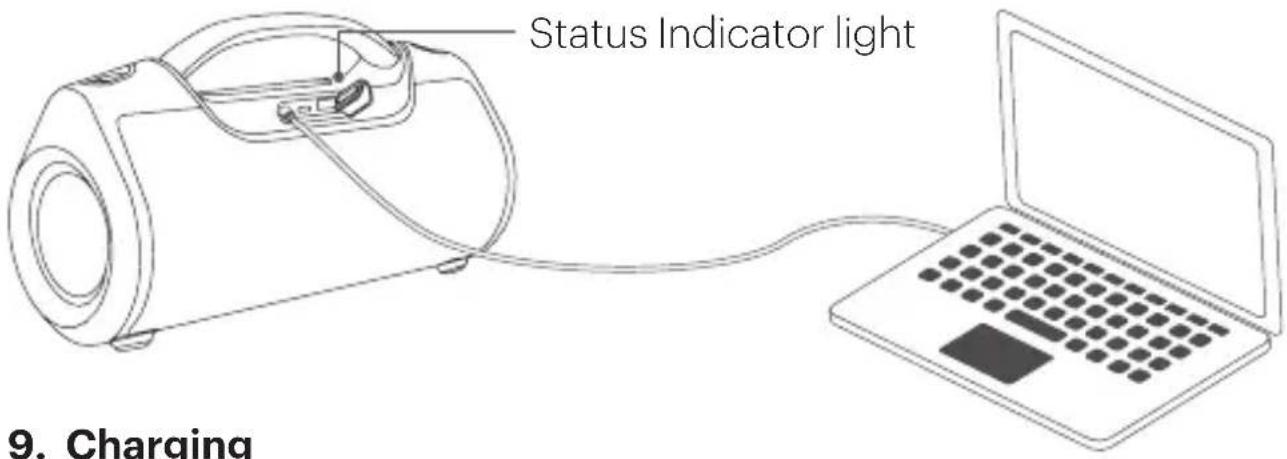

8. AUX Input

Connect the speaker with your smartphone/MP3 player/PC/Laptop with 3.5mm jack audio cable. The green indicator will turn on and you can play music via wired connection.

Note: In AUX mode, the stereo sound will not be played.

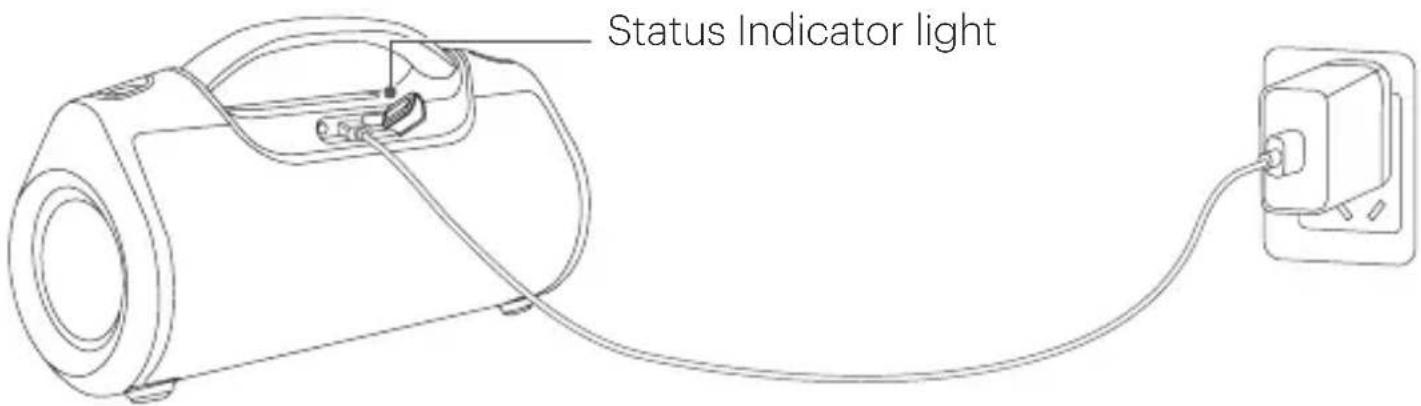

Status Indicator light 9. Charging

Only use safety approved adapters with 5V/2A or above.

1. Please charge the speaker when hearing the low battery prompt voice.

2. While the speaker is charging red indicator light turns on and it will turn off when speaker is fully charged.

Status Indicator light

10. Power Saving

Speaker will power off automatically to save battery when there is no device connected for 10 minutes.

Long press " 🔊 for 2-3 seconds to power on again.

11. USB Charging/Playback

Your speaker has an integrated USB port which has two functions:

A. The USB playback: Insert the USB drive into USB port and the speaker will automatically read and playpre-loaded MP3/audio files.

A white LED will illuminate when the unit is in USB mode.

B. USB Charging out: This speaker can be used as a power bank to charge your smartphones / USB powered devices. Plug in your device with the charging cable and short press power button to charge your device. The charging out current is 2A.

Note: When you charge your phone it will deplete the speaker battery and the music playback time for the speaker will reduce accordingly.

LED INDICATION

Power On Status	Blue indicator light will power on and enter into BLUETOOTH mode automatically, it will flash rapidly indicating that the device is ready to pair.
AUX IN Mode	When connected to 3.5mm AUX cable, green indicator light will turn on.
USB Mode	When USB is connected white indicator light will turn on.
BLUETOOTH Status	Indicator light keeps blue when BLUETOOTH is connected.
	Blue indicator keeps flashing if your BLUETOOTH device is out of range or disconnected, indicating the speaker is in searching status.
Charging Status	Red indicator will be on while speaker is charging and will turn off when speaker is fully charged.
Low Battery Red	Red indicator flashes rapidly when the battery is low.
TWS Mode	When two speakers are paired successfully TWS indicator light will turn on and will turn off when disconnected.

SPECIFICATIONS

Wireless version 5.0
Format Supports A2DP/HFP/HSP/AVRCP
Battery Capacity 7.4V/3600mAh
Charging Current 5V/2A
Playtime 10~12 hours (70% Volume)
Charging Time 5~6 hours
Speaker Unit 60 Watts (20 W x 2 + 10W x 2)
Freq. Response 150~16KHz
S/N Ratio: ≥70dB
Product Size 310 x 152 x 118mm
Product Weight 1730g±10
