USER MANUAL PWS-2252 KODAK

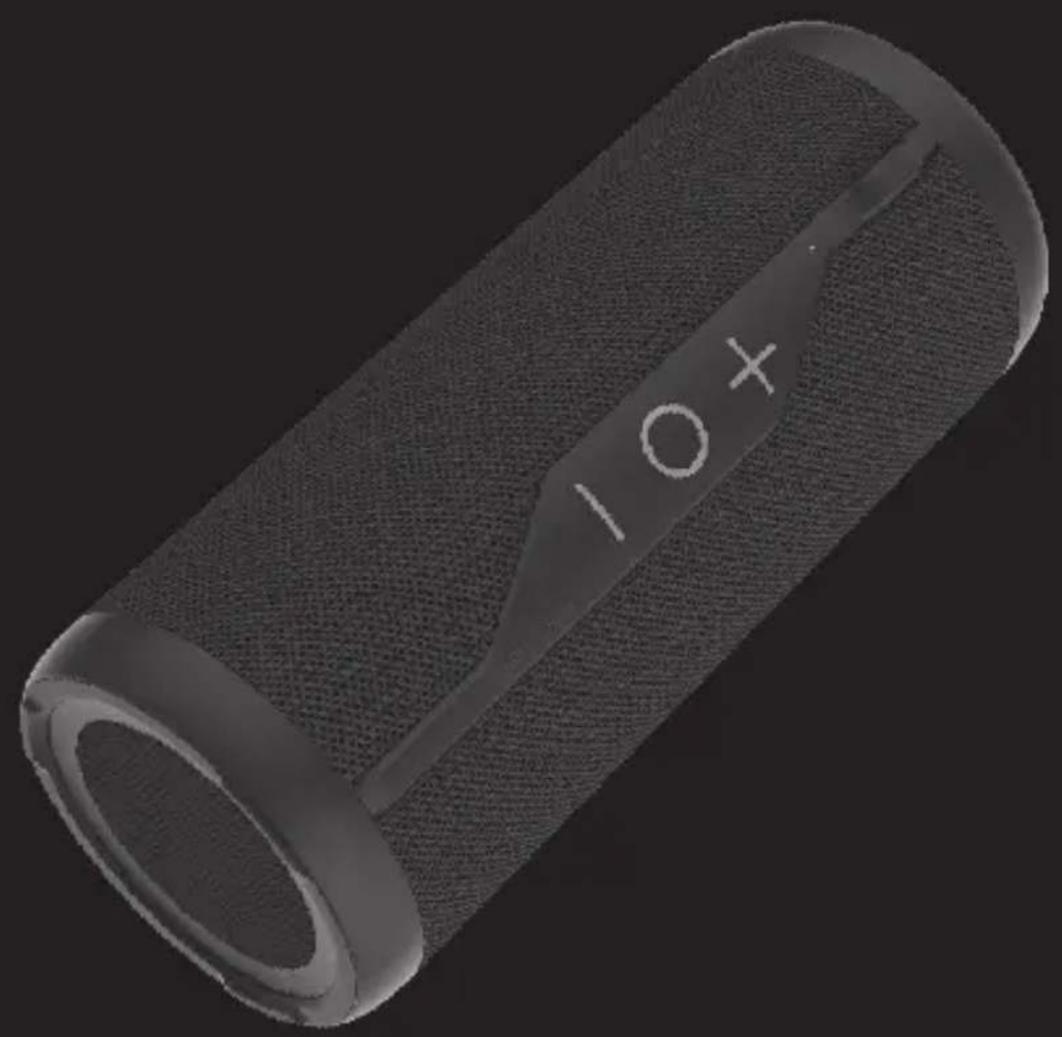

KODAK Portable Wireless Speaker

IPX5 Water Resistant with True Wireless Technology PWS-2252

10x

KODAK

User Manual

Please read this manual carefully before operating the speaker. Please keep this manual with you for further reference.

INTRODUCTION

Thank you for choosing this product as your source for entertainment!

You can use this item with tablets, laptops and many types of smartphones to stream music and enjoy hands-free calling. In order to get the best results, please read this manual before using the product.

IMPORTANT SAFETY INSTRUCTIONS

1. Read all warnings.
2. Follow all instructions.
3. Do not drop, disassemble, deform, modify or insert any objects into this product.
4. Do not attempt to repair, modify or disassemble the product yourself.
5. For the first use, fully charge the product.
6. Please charge the battery once a month if speaker is not used for long time.
7. This product does not contain any user-serviceable components and tampering with it may void the warranty.
8. Do not clean the product with alcohol, ammonia-based cleaners or abrasive cleaners.
9. Do not place this product in contact with any sharp objects as this may cause scratches and operating damage.
10. Do not attempt to replace the product battery, it is built-in and is not user changeable.
11. Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas.
12. Dispose of the product and the product's battery in accordance with local laws and regulations.
13. Avoid using in damp or corrosive environment.

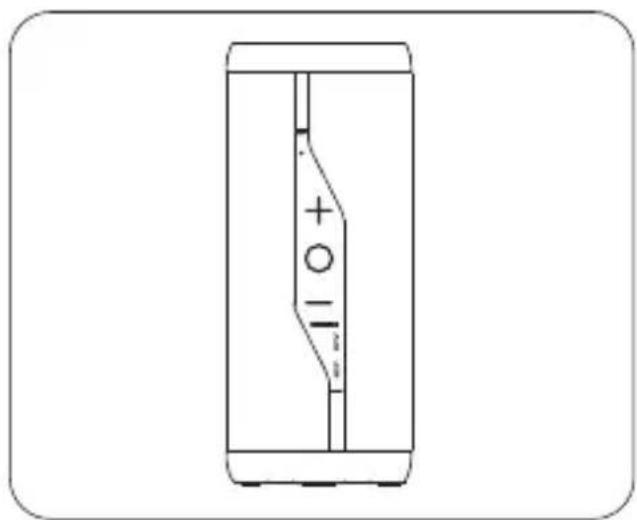

WHAT'S INSIDE

Line drawing of a cylindrical device with internal components and a plus/minus signs (no text or symbols)

A

Line drawing of a USB cable with connector port (no text or symbols)

B

Line drawing of a U-shaped audio jack with two leads (no text or symbols)

C

USER MANUAL

D

A. BLUETOOTH speaker

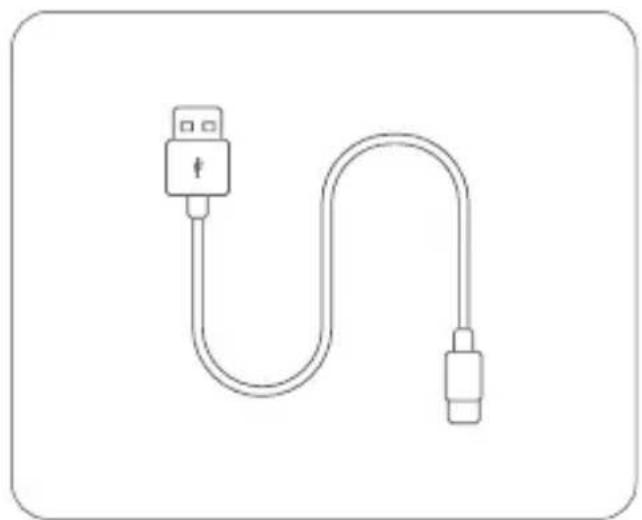

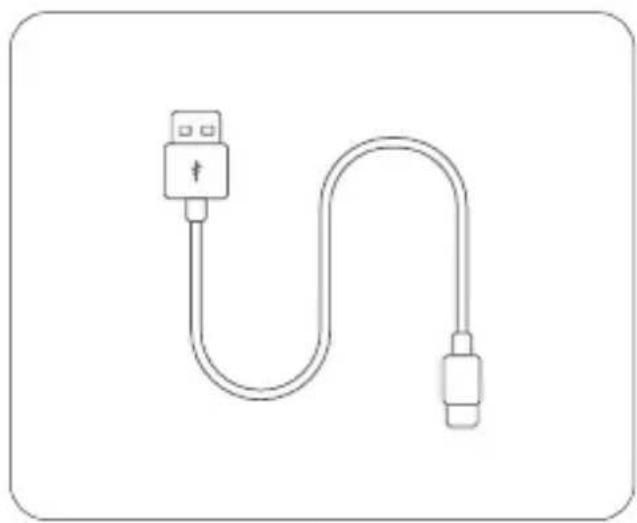

B. Charging cable

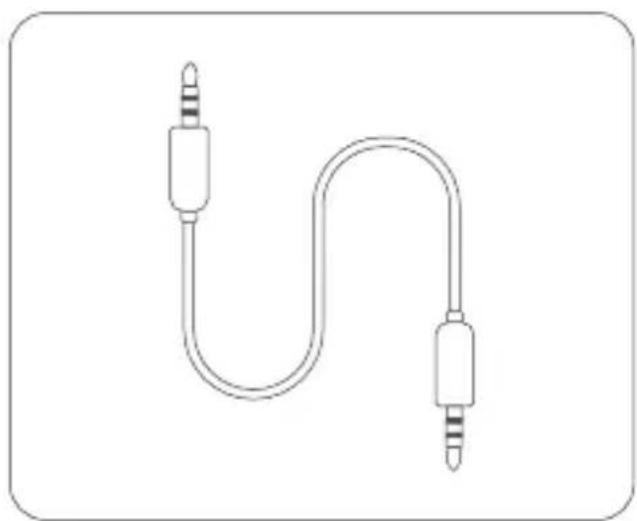

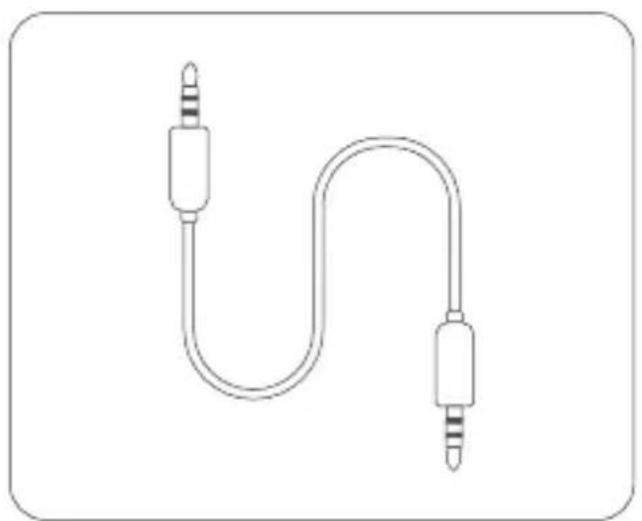

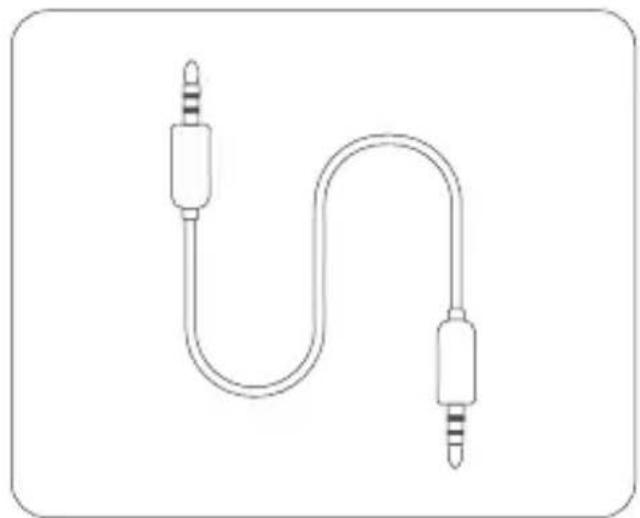

C. 3.5mm AUX cable
D. User manual

PRODUCT OVERVIEW

AUX USB ④ ②13 ○ ○ ⑤

① Long press for 3 seconds to power On/Off. Short press once to Play/Pause; Mute/Unmute; Answer an incoming call/End a call. Short press twice to reject an incoming call. Short press thrice to disconnect BLUETOOTH pairing.
② + Short press once to turn the volume up. Long press for 2 seconds to move to next song.
③ — Short press once to turn the volume down. Long press for 2 seconds to move to previous song.
④ 3.5mm AUX audio input/USB audio input and charging USB port.
⑤ Indicator lights: BLUETOOTH/Battery Charging/Low Battery.

OPERATION

1. Power On/Off

Long press " ○" button for 3 seconds to power on, long press for 3 seconds again to power off.

2. BLUETOOTH Connection

When the speaker is powered on it will enter BLUETOOTH pairing mode and blue indicator light will start flashing. Select "PWS-2252" on your BLUETOOTH device and connect. Upon successful connection, indicator light will stop flashing and stay on; speaker will start to play music from your play list. Short press " ○ button three times to disconnect BLUETOOTH connection.

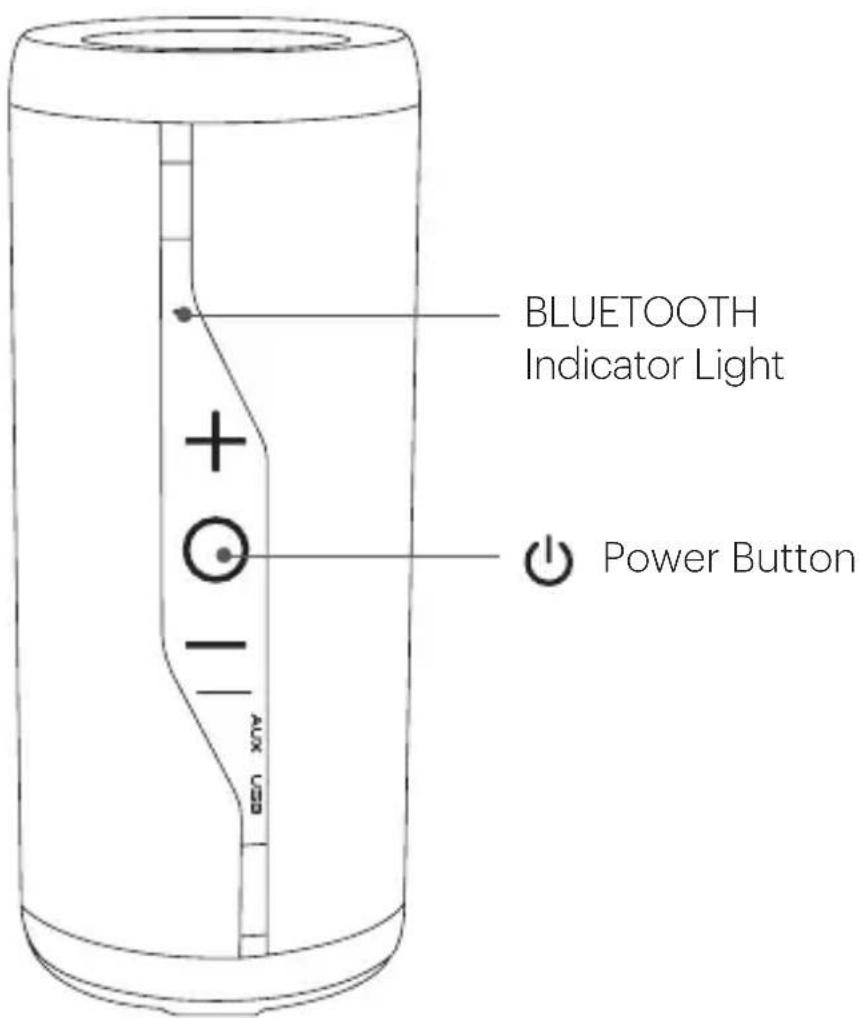

BLUETOOTH Indicator Light Power Button AUX USB

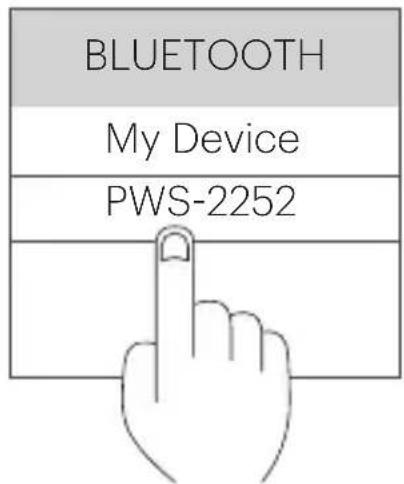

BLUETOOTH My Device PWS-2252

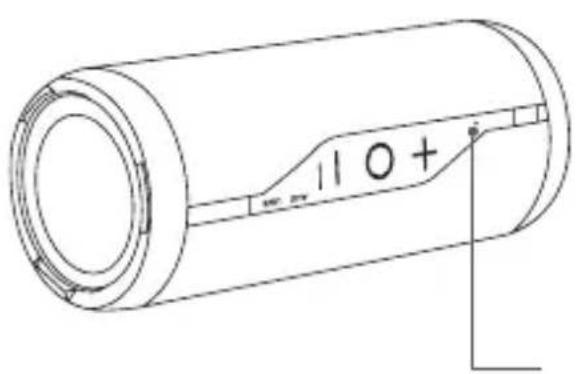

3. TWS Connection

a. Power on two "PWS-2252" speakers. Both speakers will enter in BLUETOOTH mode.
b. Long press " + " and " - " button simultaneously on either speaker to enter TWS pairing mode.

Both speakers will connect automatically and you will hear a "du" voice prompt once TWS connection is successful. Indicator light on the master speaker will keep flashing and the sub-master speaker will stay on.

c. Under TWS connection choose "PWS-2252" from your device list to make BLUETOOTH pairing with the master speaker. Upon successful connection you will hear a voice prompt and music will be played on both the speakers simultaneously.
d. To disconnect TWS pairing long press “+” and “-” button twice on each speaker.

110+

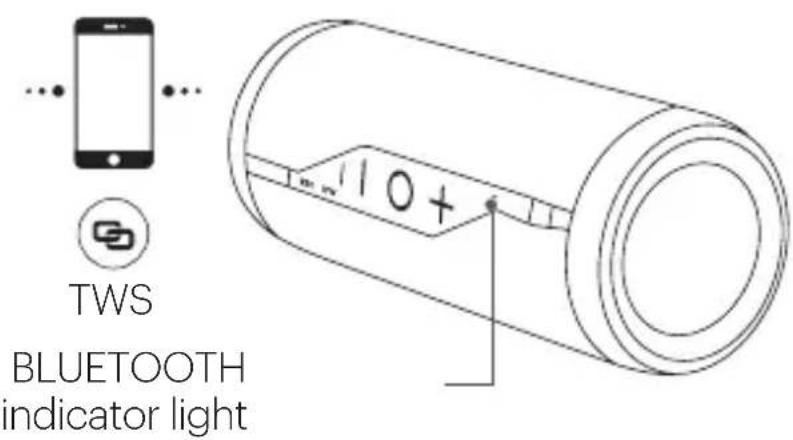

TWS BLUETOOTH indicator light

Note: Please make TWS connection before pairing the speaker to a BLUETOOTH device.

4. Volume Control

Short press “ +” to increase volume; long press for 2 second to play next song. When it reaches the maximum volume, you will hear a voice prompt. Short press “ -” to decrease volume; long press for 2 second to play previous song.

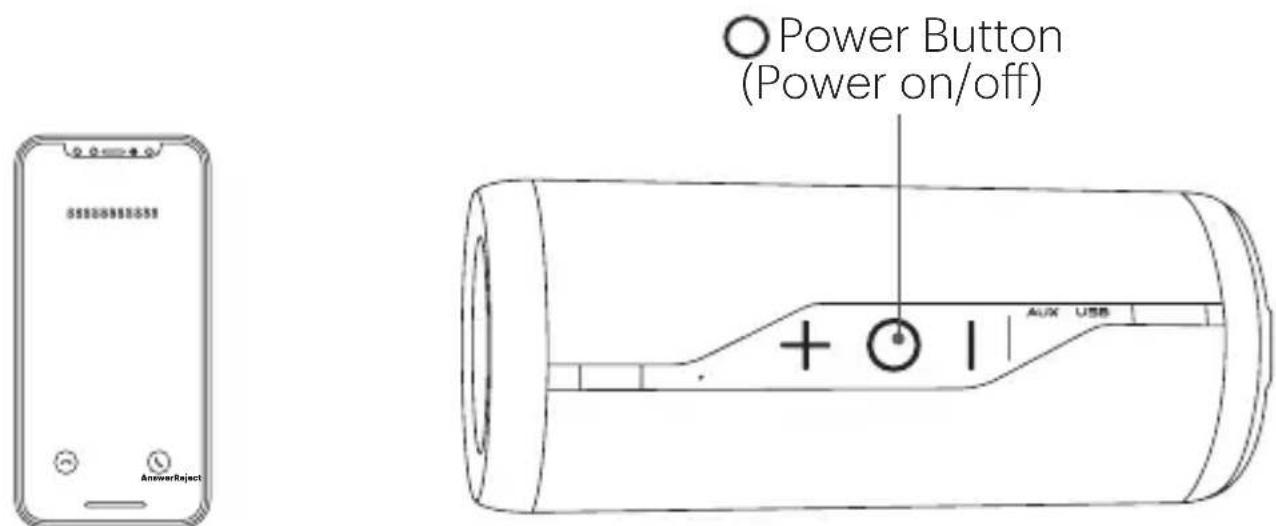

5. Hands-free Calling

When your smartphone is paired to the speaker and you receive incoming call, short press " ○ button once to answer the call, double press to reject the call. During the call, short press to hang up.

Power Button (Power on/off) AnswerReject + 1 AUX U信息

6. AUX Input

Connect the speaker with your Smartphone/MP3 player/PC/Laptop with 3.5mm jack audio cable. The green indicator will turn on and you can play music via wired connection.

Note: In AUX mode, the stereo sound will not be played.

7. Mode

When 3.5mm AUX cable is connected to speaker, press "○" button to switch between BLUETOOTH-AUX modes.

Note: AUX function will only work when the AUX cable is plugged into the speaker.

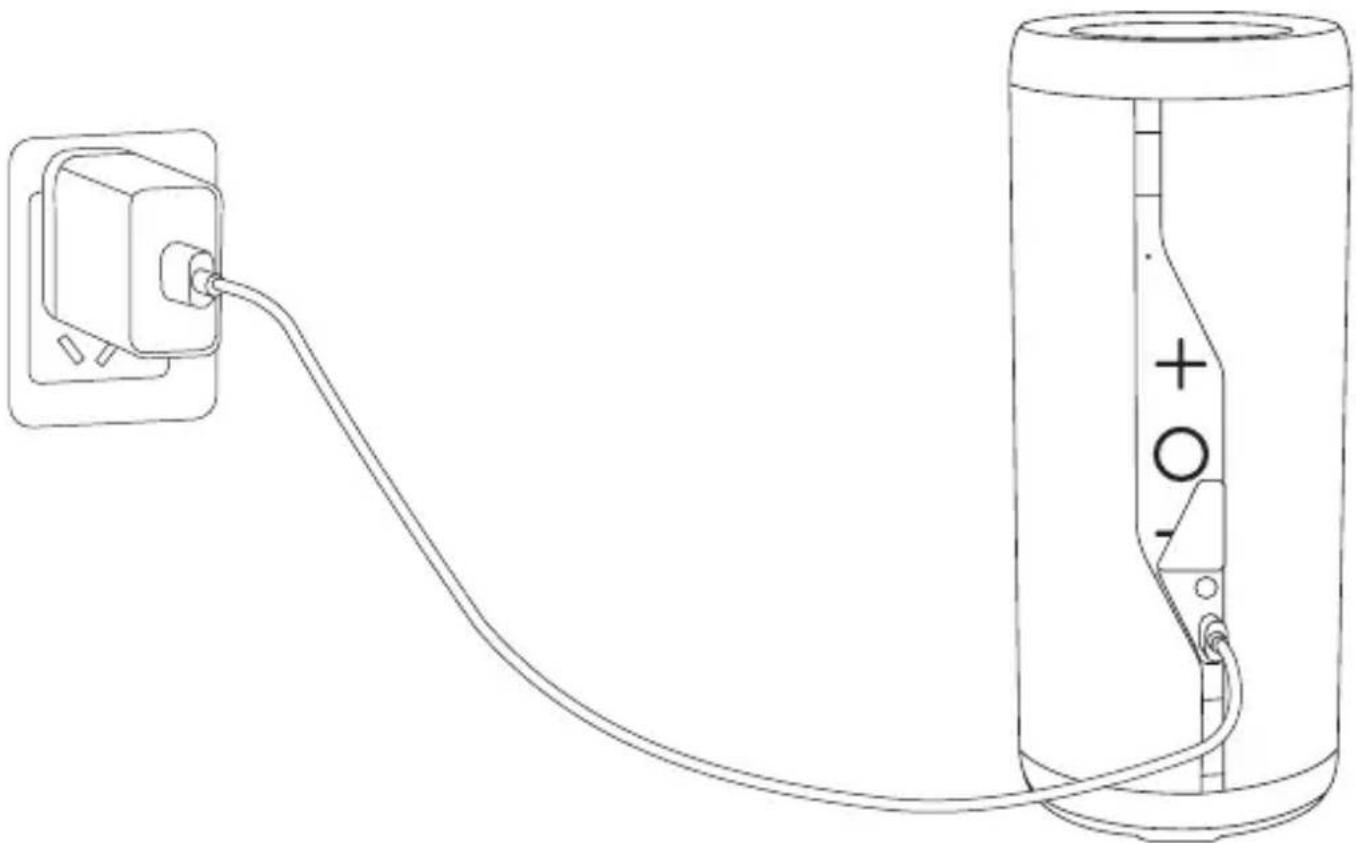

8. Charging

Only use safety approved adapters with 5V/1A or above.

1. Please charge the speaker when hearing the low battery prompt voice.

2. While the speaker is charging red indicator light turns on and it will turn off when speaker is fully charged.

Line drawing of a cable being inserted into a cylindrical device (no text or symbols)

9. Power Saving

Under below situations, the speaker will automatically power off to save battery power:

- In BLUETOOTH mode, without any connection with any device for 10 minutes. Long press " " for 2-3 seconds to power on again.

LED INDICATION

Power On Status	Blue indicator light will power on and enter in BLUETOOTH mode automatically. It will flash rapidly indicating that the device is ready to pair.
AUX IN Mode	When connected to 3.5mm AUX cable, there will be a voice prompt and blue indicator light will flash slowly while playing.
BLUETOOTH Status	Indicator light keeps blue when BLUETOOTH is connected.
	Blue indicator keeps flashing if your BLUETOOTH device is out of range or disconnected, indicating the speaker is in searching status.
TWS	When TWS pairing is successful there will be a prompt tone and the blue indicator light on the master speaker will flash on and the sub-master indicator light will stay solid.
Charging Status	Red indicator will be on while speaker is charging and will turn off when speaker is fully charged.
Low Battery Red	d indicator will flash rapidly when the battery is low.

SPECIFICATIONS

Wireless Version 5.0
Format Supports A2DP/HFP/HSP/AVRCP
Battery Capacity 3.7V/2000mAh
Charging Current 5V/1A
Playtime 10~12 hours (50% Volume)
Charging Time 2~3 hours
Speaker Unit 16Watts (8W x 2) 4Ω (RMS)
Freq. Response 150~16KHz
S/N Ratio:	75dB
Product Size 180 x 75 x 75mm
Product Weight 573.5g±50
