USER MANUAL PWS-2248 KODAK

Please read this manual carefully before operating the speaker. Please keep this manual with you for further reference.

INTRODUCTION

Thank you for choosing this product as your source for entertainment!

You can use this item with tablets, laptops and many types of smartphones to stream music and enjoy hands-free calling. In order to get the best results, please read this manual before using the product.

IMPORTANT SAFETY INSTRUCTIONS

1. Read all warnings.
2. Follow all instructions.
3. Do not drop, disassemble, deform, modify or insert any objects into this product.
4. Do not attempt to repair, modify or disassemble the product yourself.
5. For the first use, fully charge the product.
6. Please charge the battery once a month if speaker is not used for long time.
7. This product does not contain any user-serviceable components and tampering with it may void the warranty.
8. Do not clean the product with alcohol, ammonia-based cleaners or abrasive cleaners.
9. Do not place this product in contact with any sharp objects as this may cause scratches and operating damage.
10. Do not attempt to replace the product battery, it is built-in and is not user changeable.
11. Observe all signs and displays that require an electrical device or RF radio product to be switched off in designated areas.
12. Dispose of the product and the product's battery in accordance with local laws and regulations.
13. Avoid using in damp or corrosive environment.

WHAT'S INSIDE

BLUETOOTH speaker

Type-C charging cable

AUX audio cable

User manual

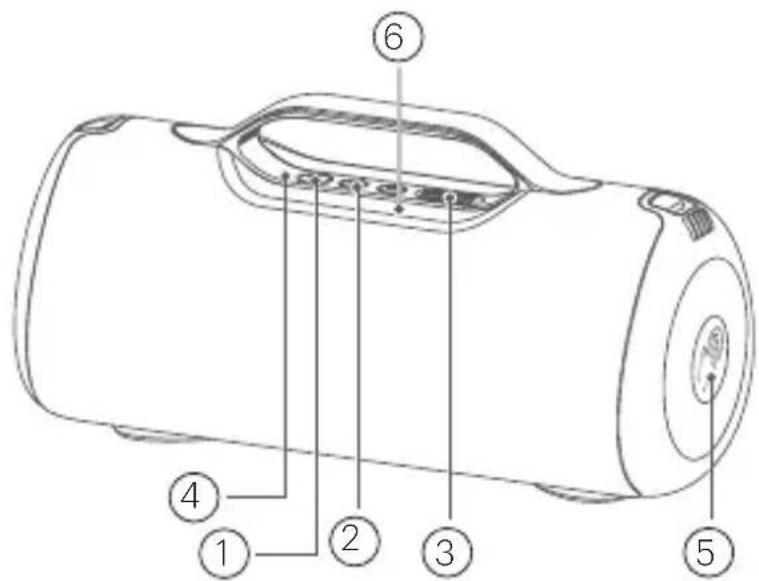

PRODUCT OVERVIEW

① 0

Long press for 2 seconds: Power on/off.
Short press thrice to restore factory settings.

②

Short press for TWS connection, press again to disconnect TWS. Long press to disconnect BLUETOOTH pairing.

③

Roll to the left to turn Volume down. Roll to the right to turn Volume up.

④

Short press to switch between different LED modes. Long press 2 seconds to turn off the LED light.

⑤ 摇

Short tap 1 time to Pause/play music; Pick up/hang up the call.
Short tap 2 times to Next track/when receive phone call short tap 2 times to cancel sound on speaker and have conversation privately.
Short tap 3 times to Previous track.
Long tap 2 seconds to Reject the call.
Long tap 4 seconds to switch to different EQ modes.

⑥

Microphone.

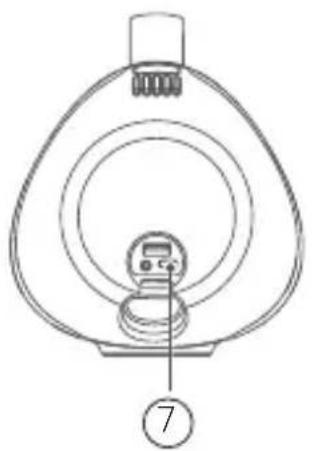

⑦

3.5mm AUX IN, Type-C.
USB-A (Support U disk music and software upgrade).

OPERATION

1. Power On/Off

Long press " button for 2 seconds to power on, long press it for 2 seconds again to power off

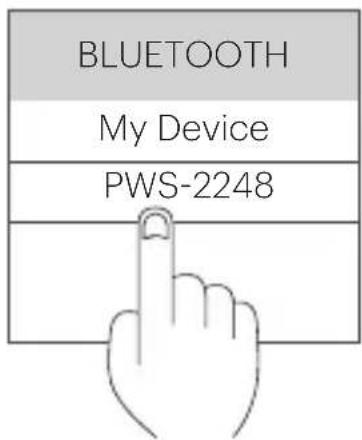

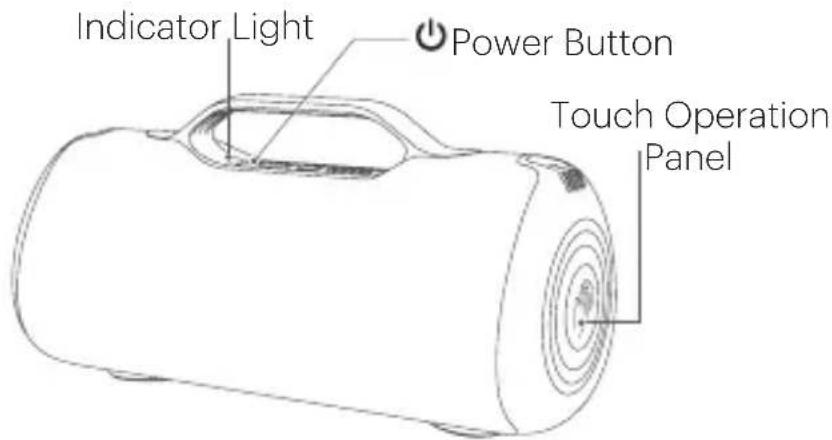

2. BLUETOOTH Connection

When you power on the speaker it will enter BLUETOOTH pairing mode and the blue indicator light will start flashing. Select "PWS-2248" on your BLUETOOTH device and connect. Upon successful connection, indicator light will stop flashing and stay on; speaker will start to play music from your play list. Short press " button three times to disconnect BLUETOOTH connection.

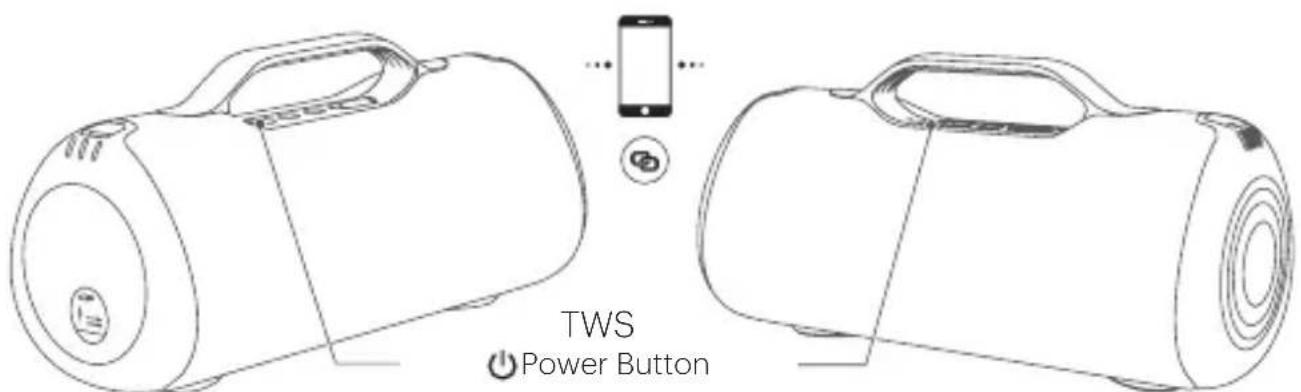

3. TWS Connection

a. Power on two "PWS-2248" speakers. Both speakers will enter in BLUETOOTH mode.
b. Short press " button on either speaker to enter TWS pairing mode. The two speakers will connect automatically and you will hear a voice prompt once TWS connection is successful.

The master speaker's blue indicator will keep flashing and the sub-master speaker's blue indicator will stay on.

c. Under connection choose "PWS-2248" from your device list to make BLUETOOTH pairing with the master speaker. Upon successful connection you will hear a voice prompt and music will be played on both speakers simultaneously.
d. To disconnect TWS pairing short press " " button twice on each speaker.

4. Volume Control

Rotate the volume control knob to the right to increase volume and rotate to left to decrease the volume. There will be a voice prompt when the volume is adjusted to the maximum.

5. Touch Panel Operation

In BLUETOOTH, USB mode, tap once to pause the speaker. Tap once again to resume play; tap twice to move to next track, tap three times to move to previous track. In AUX mode, tap once to mute, tap once again to unmute.

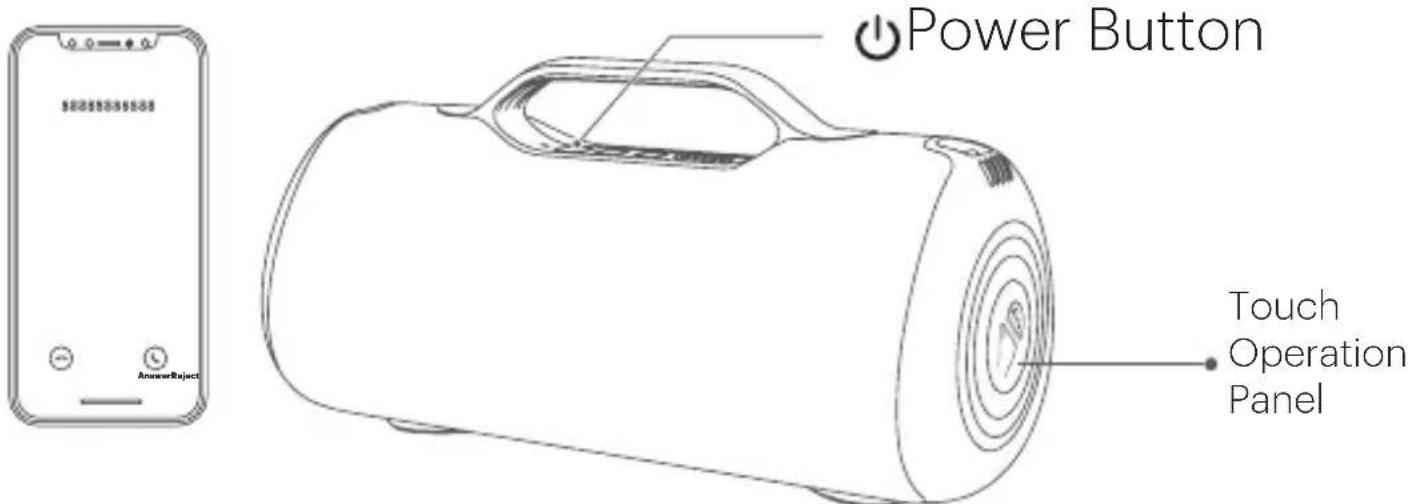

6. Hands-free Calling

When your smartphone is paired to the speaker and you receive an incoming call, tap the touch panel once to answer the call and tap it again to hang up the call. Tap the touch panel and hold for 2-3 seconds to reject the call. Short tap the area twice to transfer the call from the speaker to the phone for private answering.

7. AUX

Plug in AUX audio cable to the speaker, it will switch to AUX mode automatically.

8. LED Lighting Mode

This speaker supports 10 different LED lighting modes. Short press " " once to switch to next lighting effect. (Mode 1, Mode 2, Mode 3, Mode 4, Mode 5, Mode 6, Mode 7, Mode 8, Mode 9, Mode 10, Off. These 10 modes will loop). Mode 1 is default lighting mode.

9. EQ Mode

When your smartphone is paired to the speaker and you receive an incoming call, tap the touch panel once to answer the call and tap it again to hang up the call. Tap the touch panel and hold for 2-3 seconds to reject the call. Short tap the area twice to transfer the call from

10. Power Saving

Speaker will power off automatically to save battery when there is no device connected for 10 minutes. Long press " for 2-3 seconds to power on again.

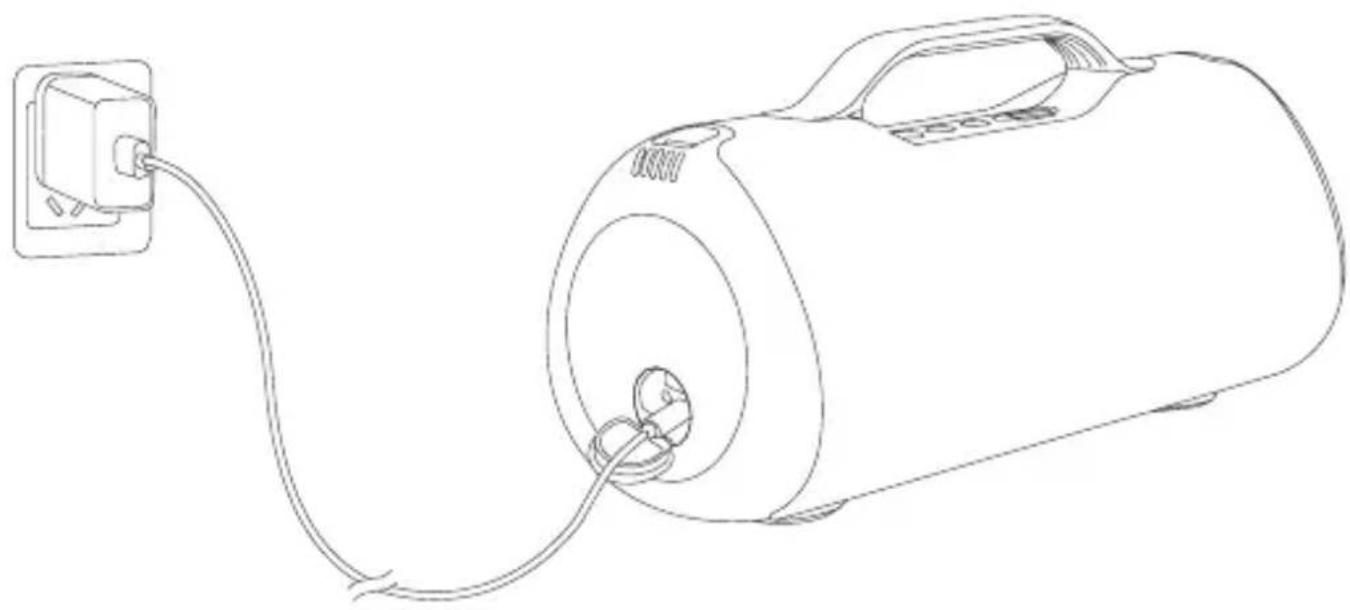

11. Charging

Only use Adapters with proper safety approvals.

Suggest to use 5V/2A or above 2A adapter to charge the speaker.

1. Please charge the speaker when hearing the low battery prompt voice.
2. While the speaker is charging Red indicator light turns on and will turn off when speaker is fully charged.

LED INDICATION

Power On Status	Blue indicator light will power on and enter in BLUETOOTH mode automatically. It will flash rapidly indicating that the device is ready to pair.
AUX In AUX	In mode, indicator light will keep Green.
BLUETOOTH Status	Indicator light keeps Blue when BLUETOOTH is connected.
	Blue indicator keeps flashing if your BLUETOOTH device is out of range or disconnected, indicating the speaker is in searching status.
Maximum Volume	When the speaker volume is increased to maximum, the indicator light will flash 3 times quickly.
Charging Status	Red indicator will be on while speaker is charging and will turn off when speaker is fully charged.
Low Battery Red Indicator	Red indicator will flash rapidly when the battery is low.

SPECIFICATIONS

Wireless Version 5.0
Format Supports A2DP/A VRCP
Battery Capacity 7.4V/3600mAh
Charging Current 5V/2A
Playtime 8~10 hours (50% Volume)
Charging Time 4 hours
Speaker Unit Mid-Bass 20W×2, tweeter 10W×2
USB-A Output 5V 1.5A (Support U-disk)
Freq. Response 150~16KHz
S/N Ratio: 70dB
Product Size 336 x 146 x 172mm
Product Weight 2650g±50

INTRODUCCION

You can use this item with tablets, laptops and many types of smartphones to stream music and enjoy hands-free calling. In order to get the best results, please read this manual before using the product.

© 2024 Made in China for Star Glory Ltd

Room 905-907, 9/F., Cheung Sha Wan Plaza, Tower 1,

833 Cheung Sha Wan Road, Lai Chi Kok, Kowloon, Hong Kong.

The Kodak trademark, logo, and trade dress are used under license from Kodak.

All information contained in this document is subject to change without notice.

CUSTOMER SERVICE: [e-mail]
