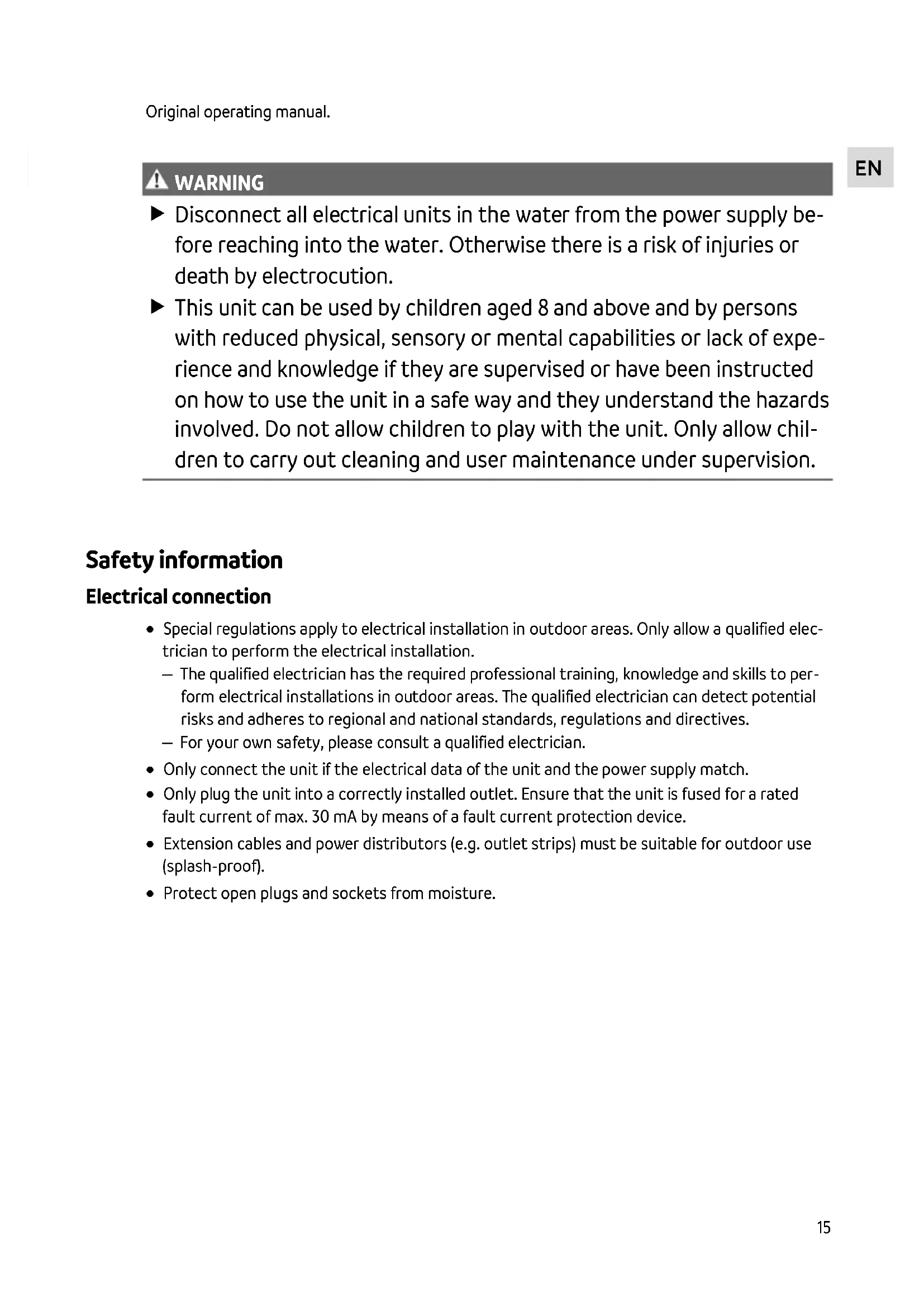

• Disconnect all electrical units in the water from the power supply before reaching into the water. Otherwise there is a risk of injuries or death by electrocution.
  This unit can be used by children aged 8 and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved. Do not allow children to play with the unit. Only allow children to carry out cleaning and user maintenance under supervision.

EN

Safety information

Electrical connection

• Special regulations apply to electrical installation in outdoor areas. Only allow a qualified electrician to perform the electrical installation.
• The qualified electrician has the required professional training, knowledge and skills to perform electrical installations in outdoor areas. The qualified electrician can detect potential risks and adheres to regional and national standards, regulations and directives.
• For your own safety, please consult a qualified electrician.
• Only connect the unit if the electrical data of the unit and the power supply match.
• Only plug the unit into a correctly installed outlet. Ensure that the unit is fused for a rated fault current of max. 30mA by means of a fault current protection device.
• Extension cables and power distributors (e.g. outlet strips) must be suitable for outdoor use (splash-proof).
• Protect open plugs and sockets from moisture.

Safe operation

• Do not use the unit, if electrical lines or the housing are damaged.
• A damaged connection cable cannot be replaced. Dispose of the unit.
• Do not carry or pull the unit by its power cable.
• Route lines so that they are protected from damage and nobody can trip over them.
• Never make technical modifications to the unit.
• Only carry out work on the unit that is described in this manual.
• Only use original spare parts and accessories.

Intended use

Only use the product described in this manual as follows:

• For cleaning garden ponds.
• For operation with clean water.
• Operate the product in compliance with the technical data. ( Technical data)

The following restrictions apply to the unit:

This product is not suitable for general lighting, but is only intended for the purpose described here.
- Never operate the UVC lamp outside the casing or use it for any other purpose. The UVC radiation is harmful to the eyes and skin even in small doses.
- Do not use for commercial or industrial purposes.
- Never run the unit without water.
- Never use the unit with fluids other than water.
- Not to be used for sterilizing drinking water or other fluids.
- Do not use in conjunction with chemicals, foodstuff, easily flammable or explosive substances.

Product description

Scope of delivery

EN

VTCD001

Vitronic		11 W	18 W, 24 W, 36 W, 55 W
Description		Quantity	Quantity

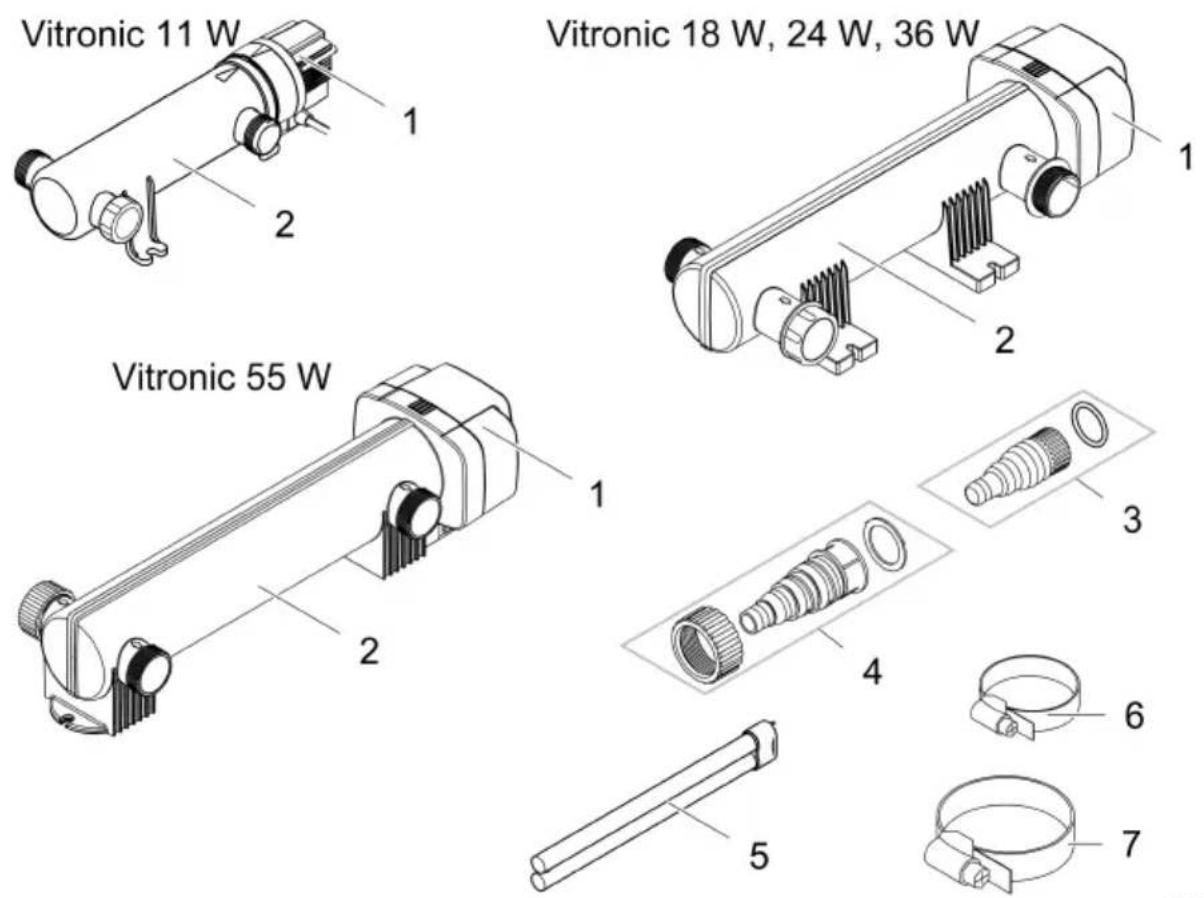

1	Unit head	1	1
2	Casing	1	1
3	Transparent stepped hose adapter with O-ring	2	-
	• For hose diameter 19 ... 38 mm
4	Transparent stepped hose adapter with union nut and flat seal	-	2
	• For hose diameter 25 ... 38 mm
5	UVC lamp	-	1
	• Vitronic 11 W: pre-installed at factory
6	Hose clip 20 ... 32 mm	-	2
7	Hose clip 35 ... 50 mm	-	2

Properties

The UV radiation of the UVC clarifier removes suspended algae, bacteria and germs. The UVC clarifier is integrated in the water circuit, ideally upstream of a pond filter.

Symbols on the unit

IP 24	The unit is protected against splash water and against contact with dangerous compo- nents.
	Dangerous UVC radiation.
	Protect the unit from direct sunlight.
F	The lamp is suitable for direct fastening to normally flammable mounting surfaces.
	Protect the unit from freezing temperatures.
	Do not dispose of the unit with normal household waste.
	Read the operating instructions.

Installation and connection

Vitronic 11W

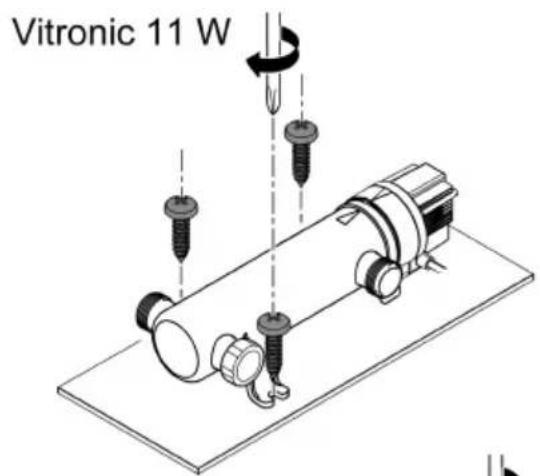

• It is not necessary to remove the unit head in order to fasten the casing on the ground.
• The UVC lamp has been pre-installed at the factory.

Vitronic 18 W, 24 W, 36 W, 55 W

• It is necessary to remove the unit head before fastening the casing on the ground. ( Dismantling the unit head)
• The UVC lamp was not pre-installed at the factory. Insert the UVC lamp in the unit head before reinstalling the unit head. () Cleaning the quartz glass / Replacing the UVC lamp)

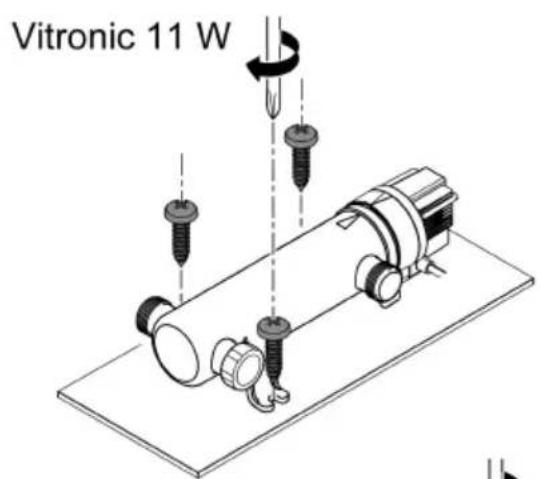

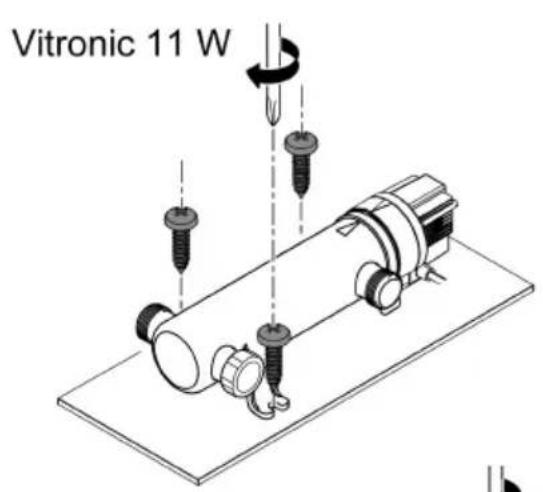

Installing the unit

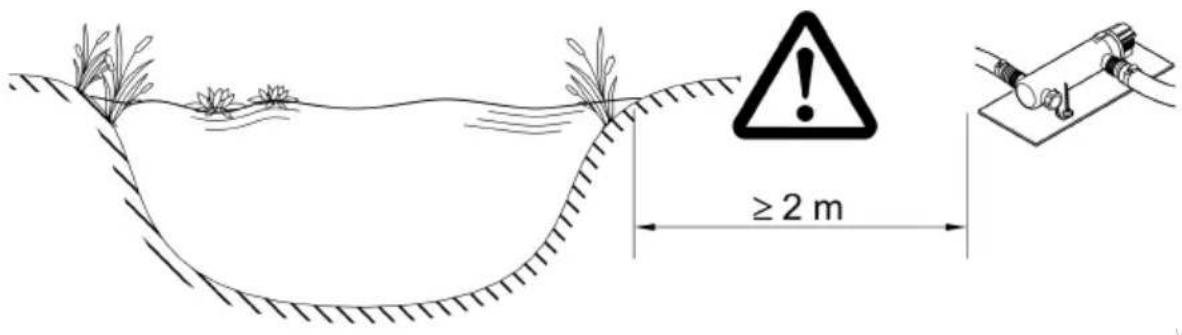

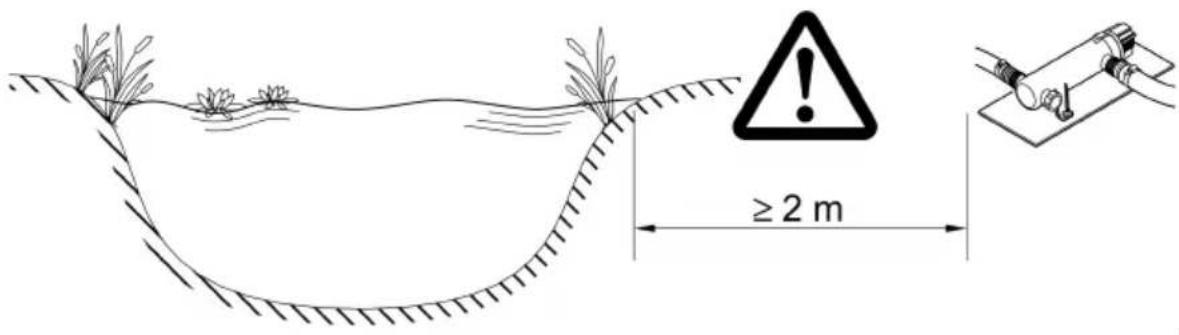

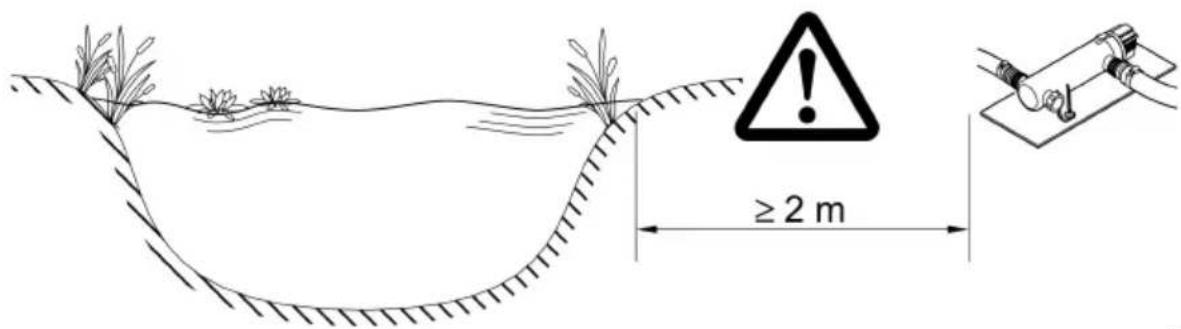

• Install the unit at least 2m from the edge of the pond.

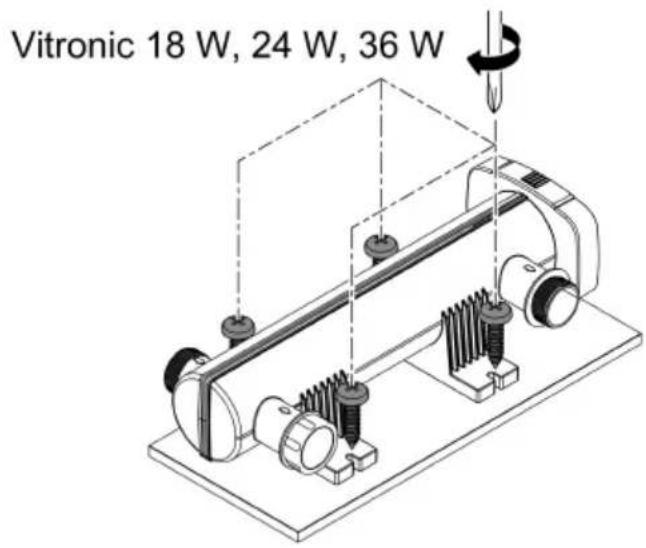

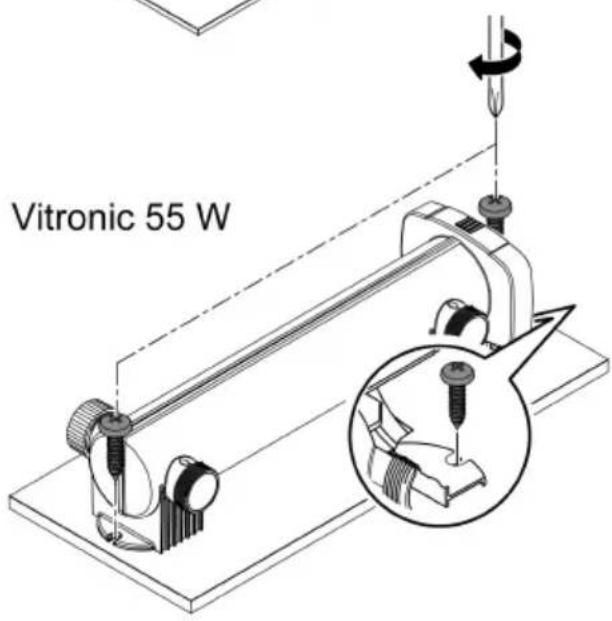

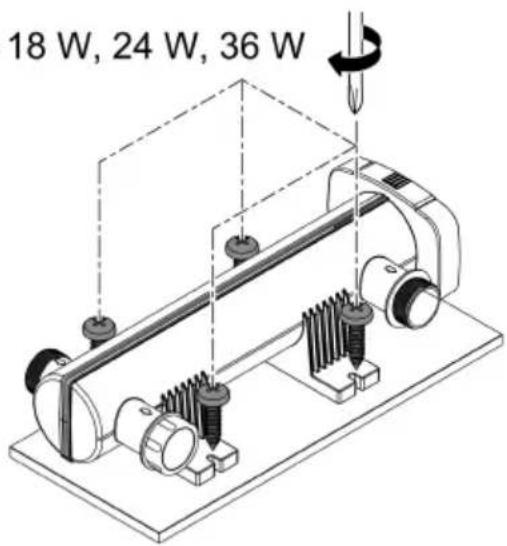

• Only install the unit in the permitted positions. This ensures fault-free operation.
• Allow sufficient space for carrying out maintenance work.

EN

YTC001

VTC000E

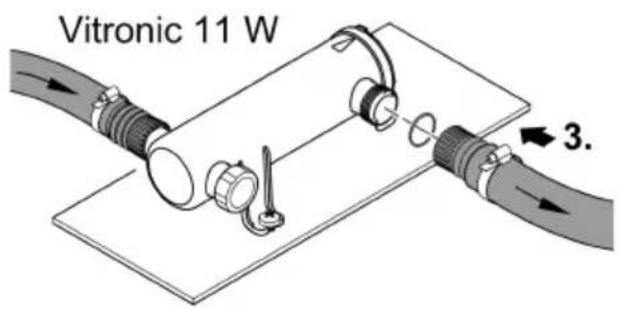

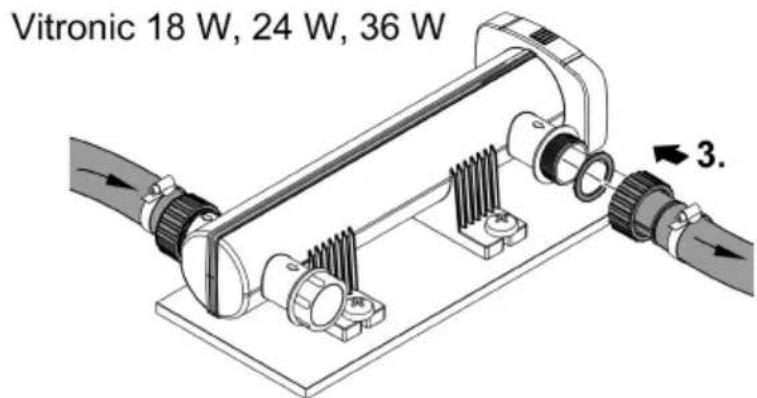

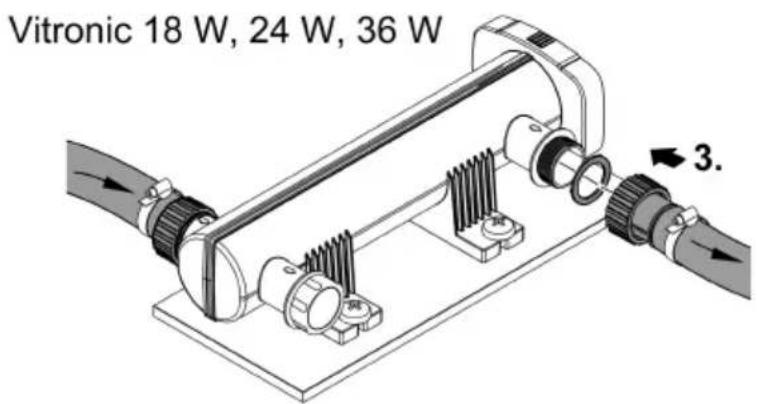

Establishing the connections

• Use hoses that are suitable for a pressure of at least 1 bar.

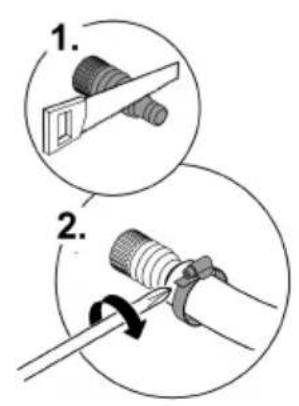

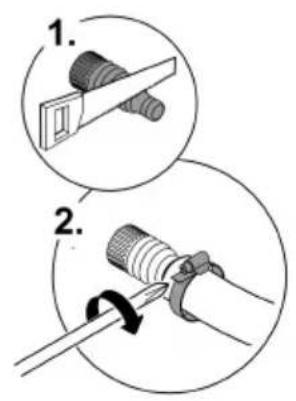

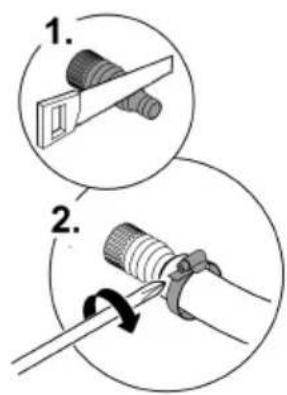

• Shorten the stepped hose adapters according to the hose diameter in use.
• Secure the hose with a hose clip.
• Hand-tighten the union nut of the stepped hose adapter.

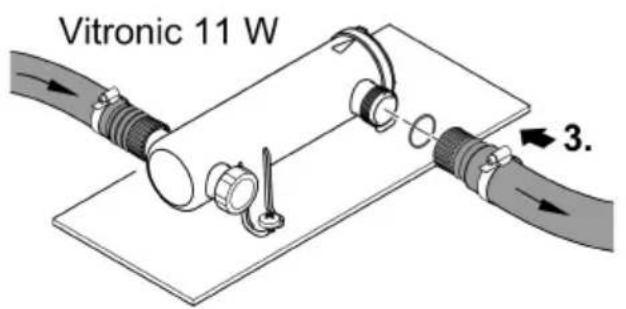

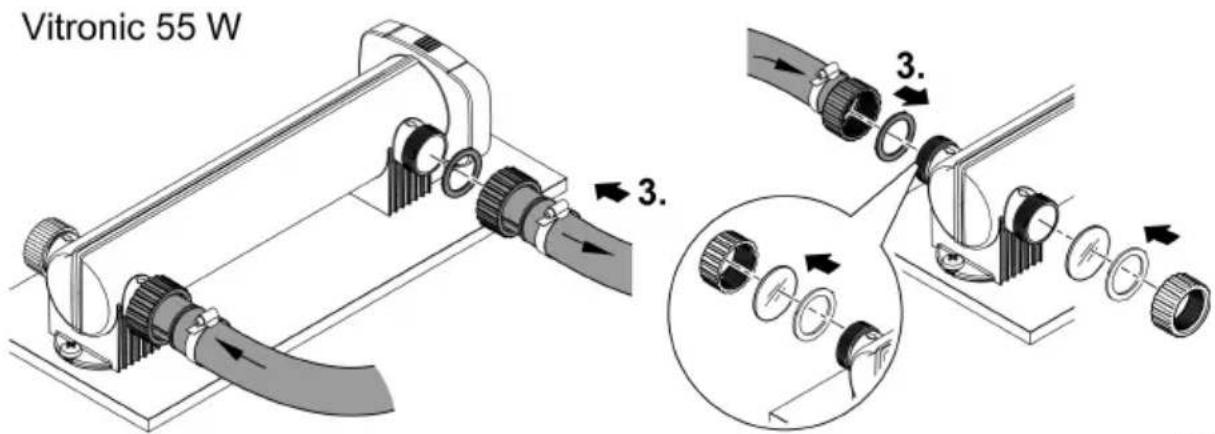

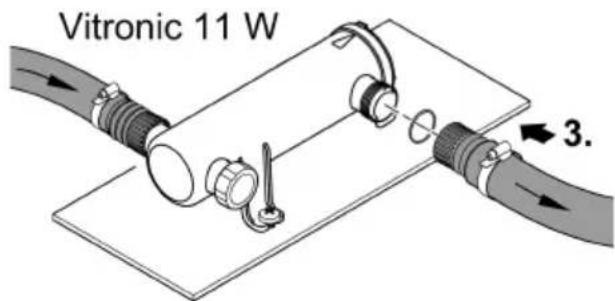

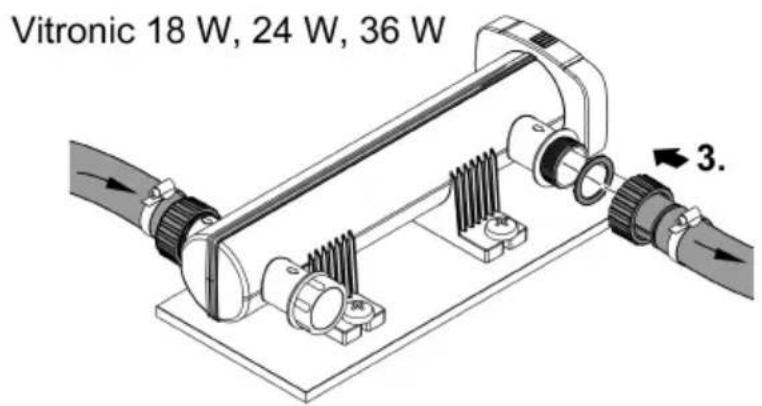

• Screw the stepped hose adapter with the flat seal or O-ring onto the connection so that the connection is leak-tight.

• You can choose from the two connections arranged opposite each other to ensure that the hose is routed optimally.

• Use the closing cap to close the connection that is not in use.

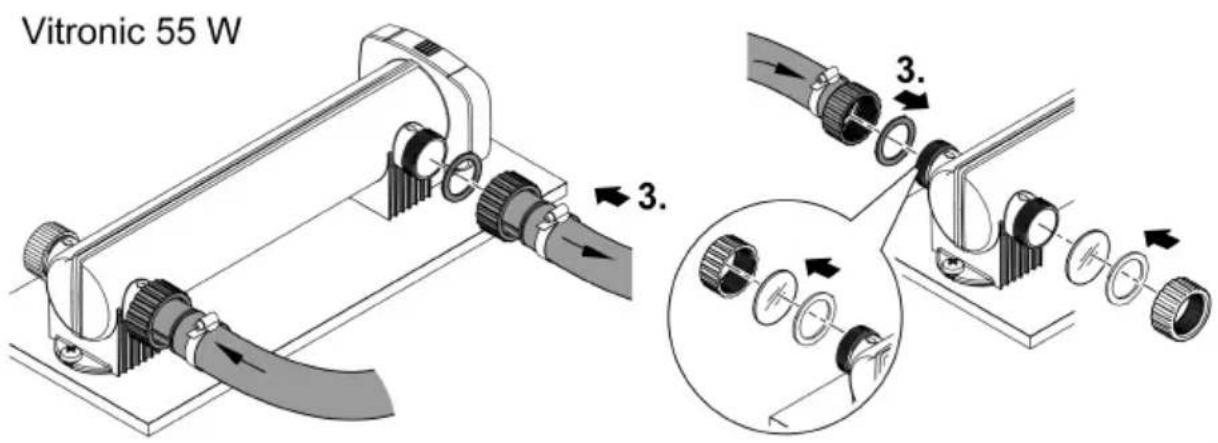

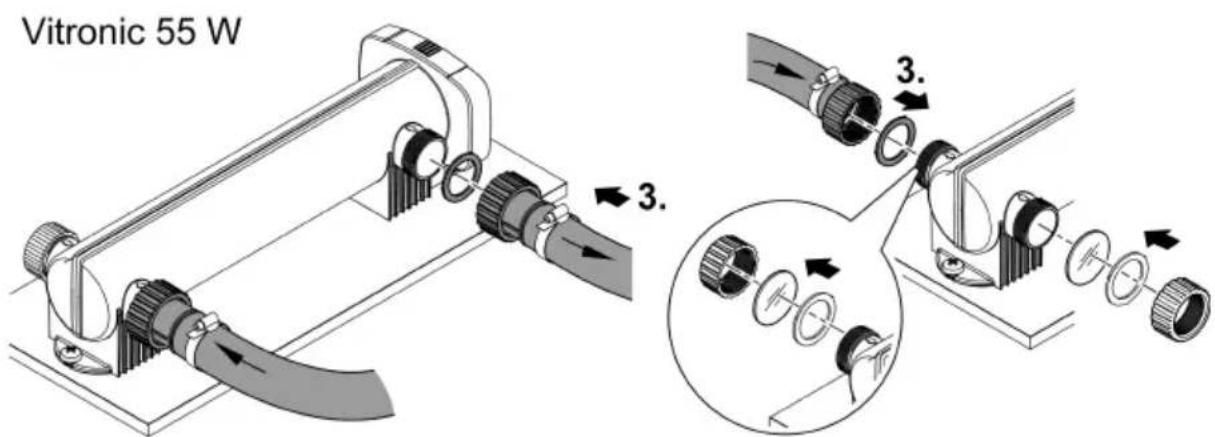

  Vitronic 55 W: The closing cap has an inspection glass for function checks.

Connecting the unit to the flow-through filter.

Vitronic 18 W, 24 W, 36 W

The unit is suitable for connection to flow-through filters. Both outlet sockets are screwed to the inlet nozzles on the flow-through filter. Adhere to the instructions for use of the flow-through filter.

How to proceed:

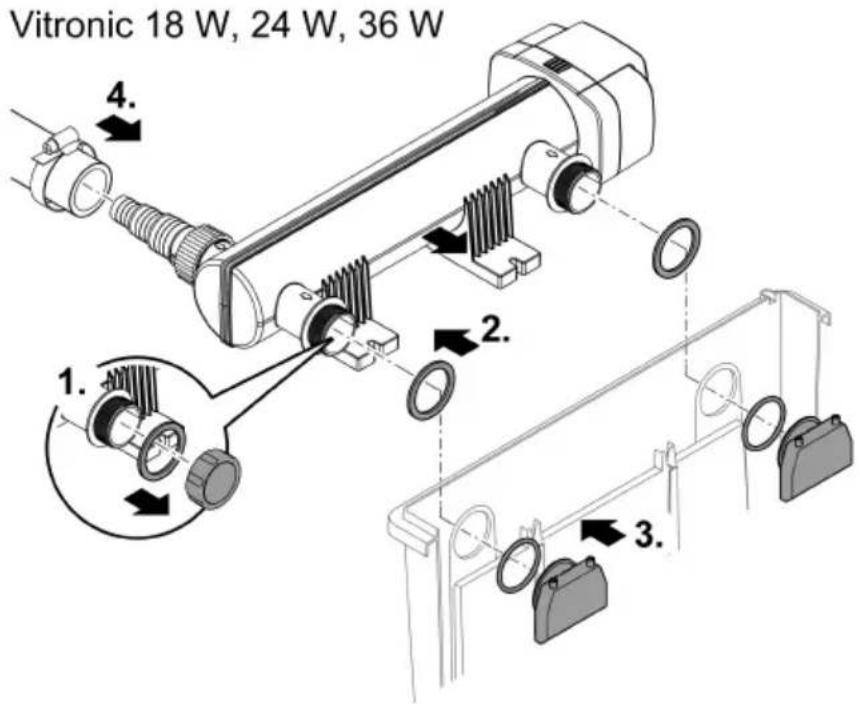

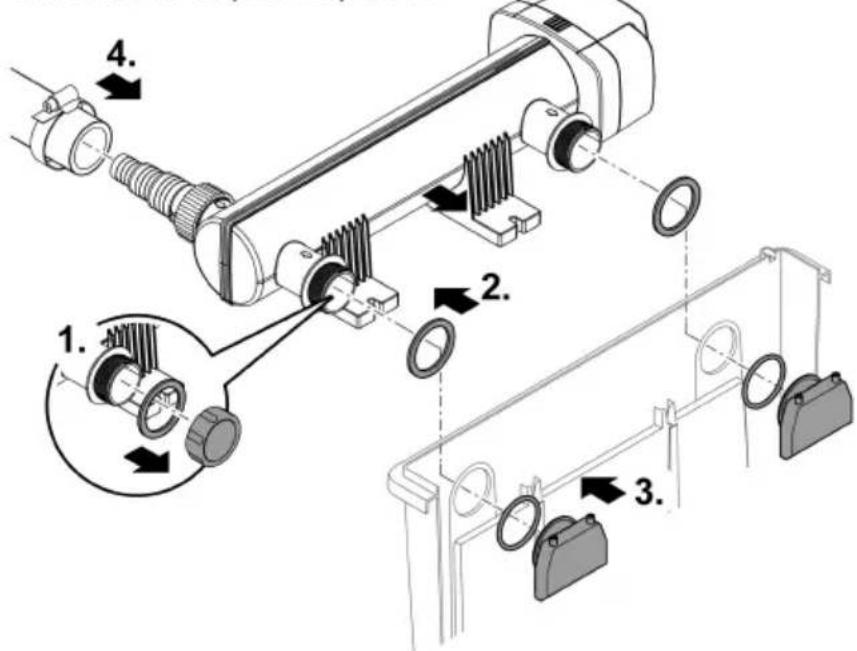

1. Unscrew the closing cap.

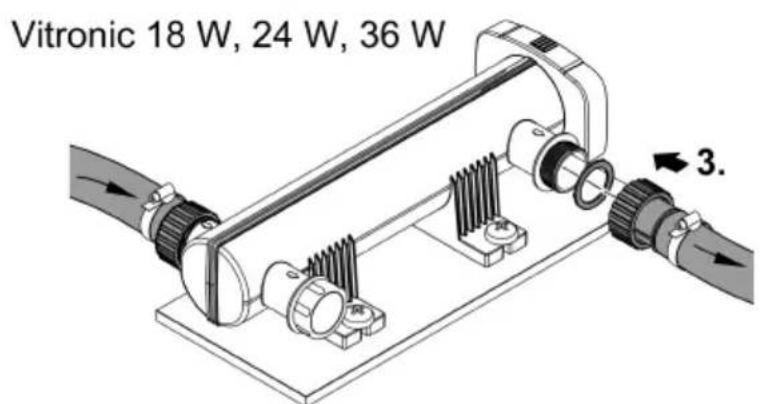

2. Guide the two outlet sockets with the flat seal through the two holes in the container wall of the flow-through filter.
3. Screw the inlet nozzle with the O-ring onto the outlet socket and hand-tighten the inlet nozzle.
4. Connect the supply hose to the inlet socket. ( Establishing the connections)

VTC0011

Commissioning/start-up

Start-up sequence:

1. Switch on the pump and wait until the casing of the UVC clarifier is filled with water.

2. Switch on the UVC clarifier.

3. Never run the UVC clarifier without water flowing through.

4. Check the UVC clarifier function.

5. Check all connections for leaks.

Switching ON/OFF

• Switching on: Plug the power plug into the outlet.
• The unit switches on immediately.
• Switching off: Pull the power plug from the outlet.

Checking the function

Function check	Vitronic
	11 W	18 W, 24 W, 36 W	55 W

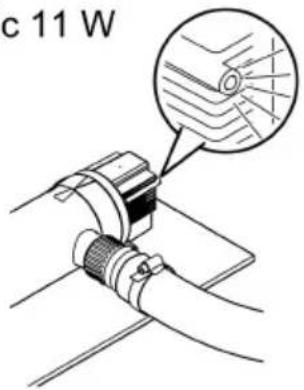

The function display is lit when the UVC lamp is switched on.	✓	✓	✓

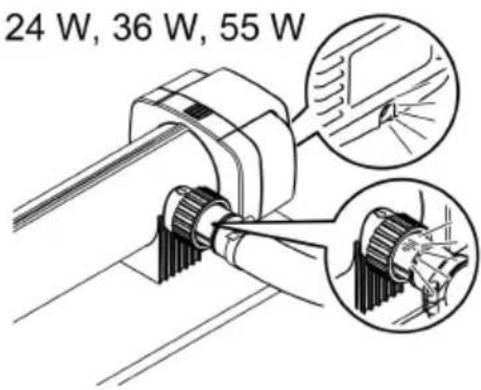

The UV light shines through the transparent stepped hose adapter when the UVC lamp is switched on.	✕	✓	✓
The UV light shines through the closing cap when the UV lamp is switched on.	✕	✕	✓

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Maintenance and cleaning

NOTE

Do not use aggressive cleaning agents or chemical solutions. These agents can damage the housing, impair the function of the device and harm animals, plants and the environment.

Only clean the unit from the outside with clear water and a soft brush.

• Recommended cleaning agent for removing stubborn limescale deposits:

Pump cleaning agent PumpClean from OASE.
Vinegar- and chlorine-free household cleaning agent.

Dismantling the unit head

CAUTION

The ultra-violet radiation of the UVC lamp can burn your eyes and skin.

• Never operate the UVC lamp outside out the casing or in a damaged casing.
• Disconnect the unit from the power grid before starting any maintenance work or before replacing the UVC lamp.

CAUTION

The quartz glass and UVC lamp could break and cause cuts.

Act with caution when performing work on the UVC clarifier in order to avoid cuts.
Avoid shocks, impacts and abrupt movements to prevent the glass from breaking.

For safety reasons, the UVC lamp can only be turned on when the UVC clarifier is properly installed in the unit.

Vitronic 11 W

How to proceed:

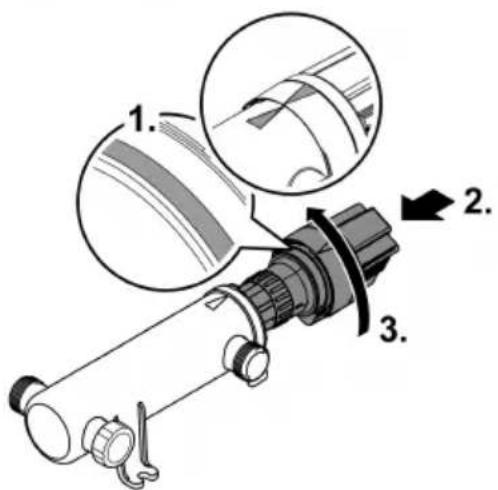

• Turn the unit head counter-clockwise up to the stop and carefully pull it out of the casing together with the O ring.

Vitronic 18 W, 24 W, 36 W, 55 W

How to proceed:

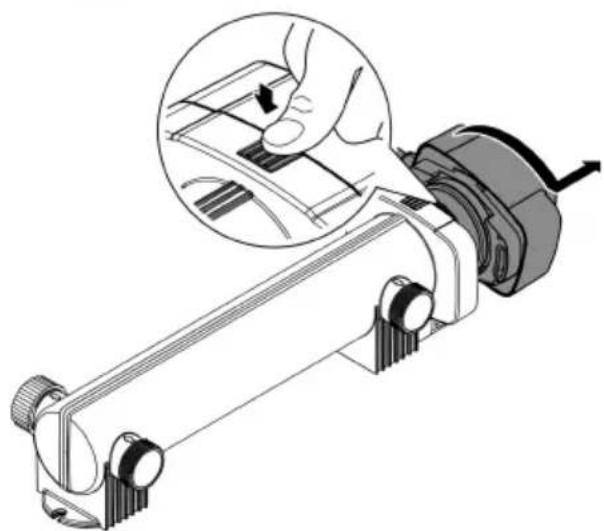

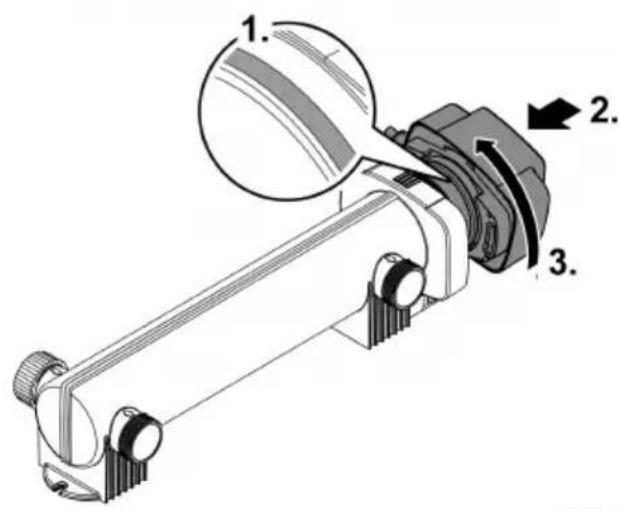

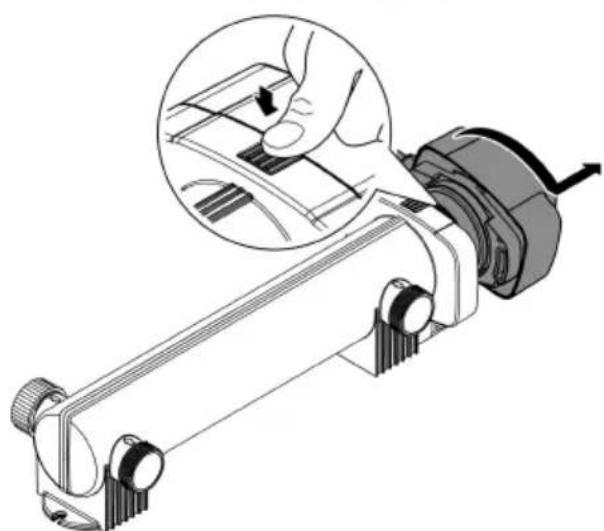

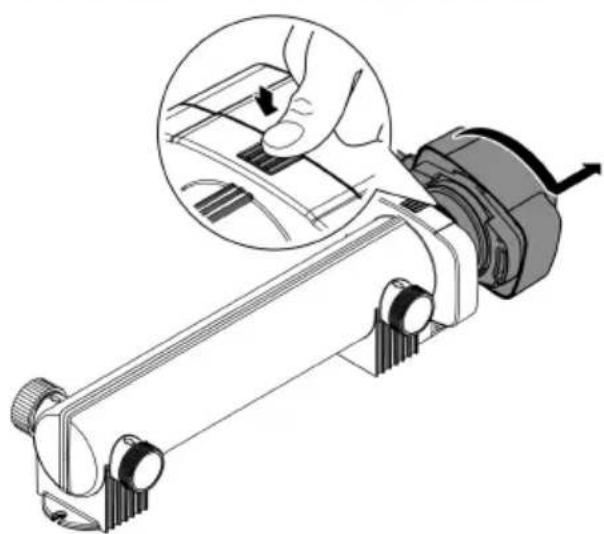

• Push down the snap-fit hook, then turn the unit head counter-clockwise up to the stop and carefully pull the unit head out of the casing.

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

Fitting the unit head

How to proceed:

1. Check the O-ring on the unit head for correct fit.

Clean the O-ring, replace it if it is damaged.

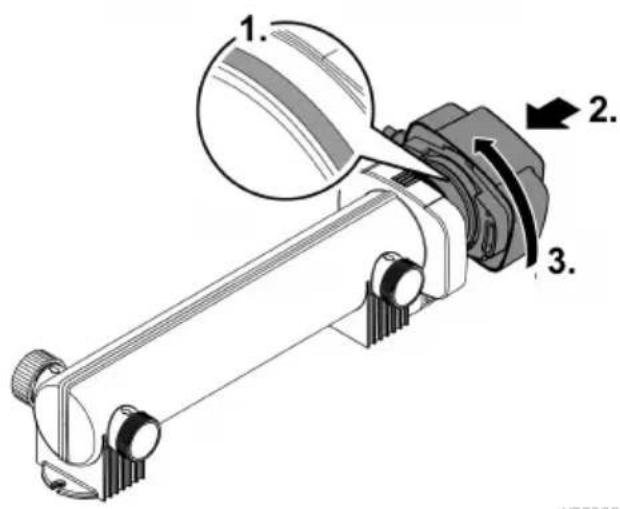

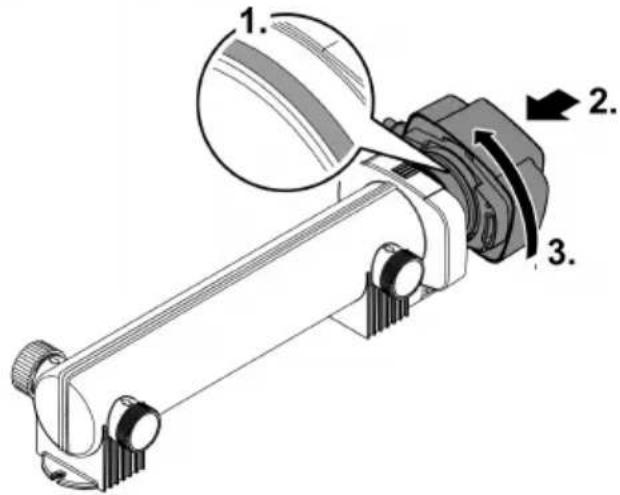

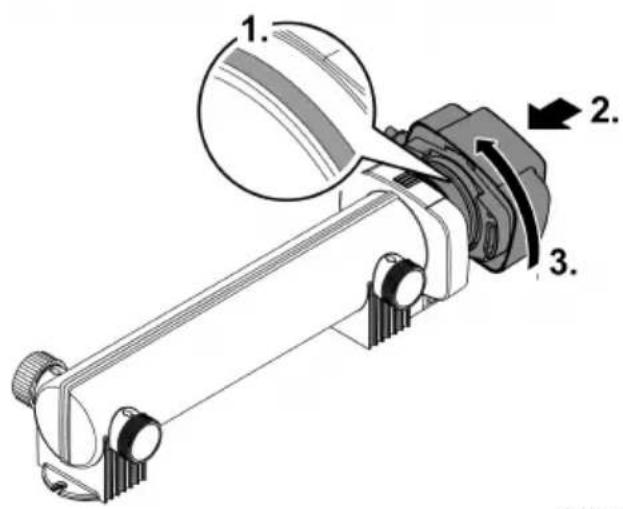

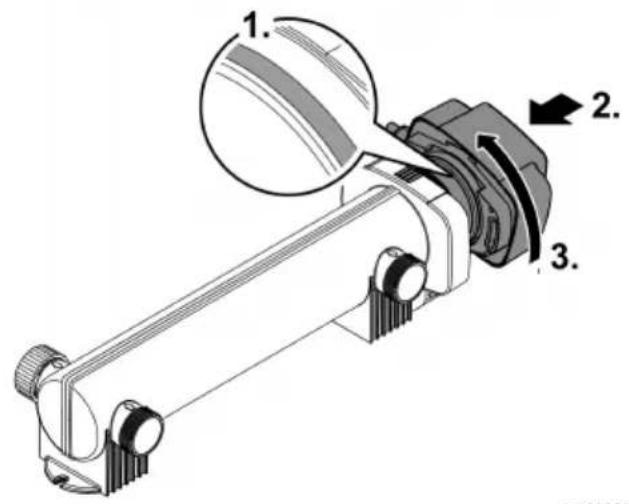

1. Carefully push the unit head into the casing up to the stop while applying slight pressure.
2. While doing so, slightly turn the unit head to ensure that the tenons and the grooves of the bayonet closure mesh.

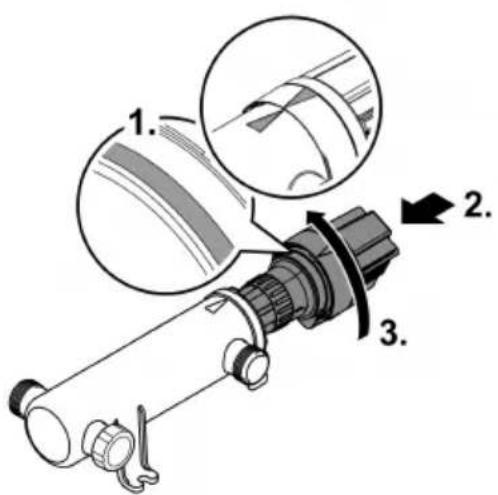

3. Turn the unit head clockwise up to the stop.

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC000E

Cleaning the quartz glass / Replacing the UVC lamp

Replace the UVC lamp after no more than 8000 operating hours. With constant operation, this corresponds approximately to one pond season. This ensures optimum filtering performance.

CAUTION

The quartz glass and UVC lamp could break and cause cuts.

Act with caution when performing work on the UVC clarifier in order to avoid cuts.
Avoid shocks, impacts and abrupt movements to prevent the glass from breaking.

Prerequisite

• The unit head is removed. ( Dismantling the unit head)
• Only use UVC lamps, the identification and power data of which correspond to the information on the type plate. ( Technical data)

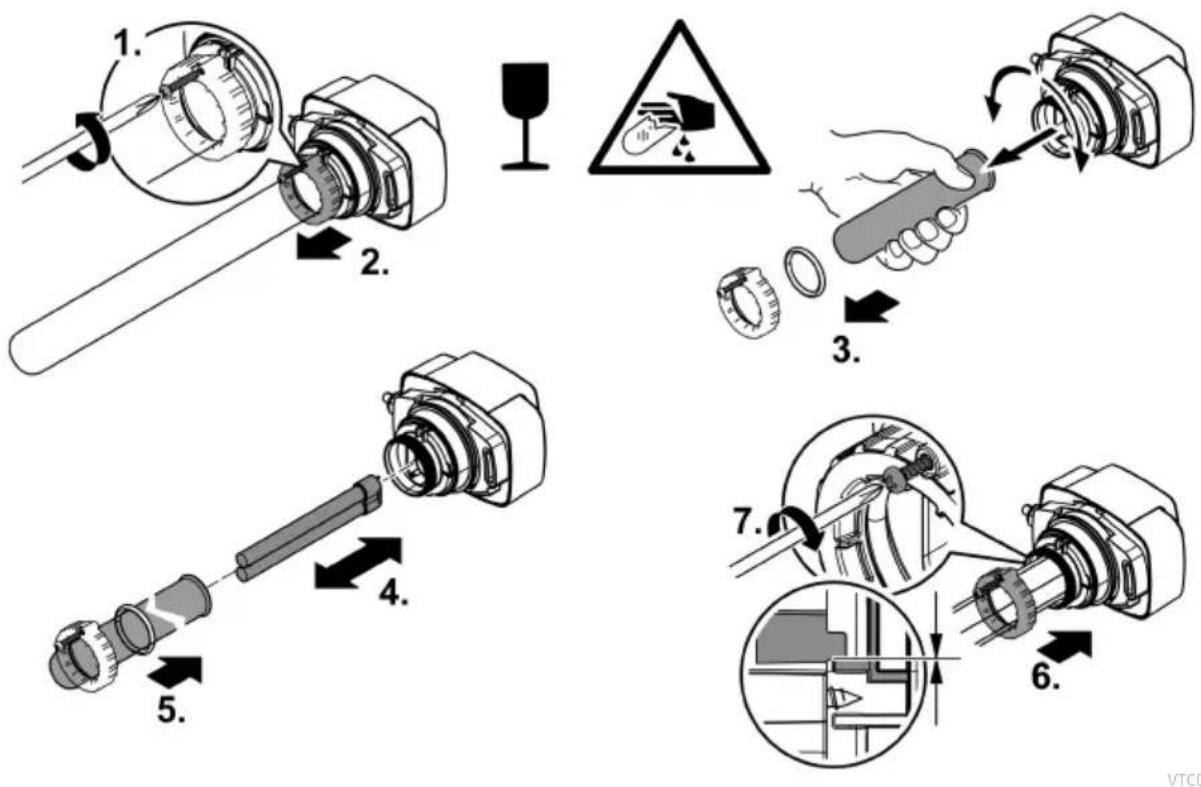

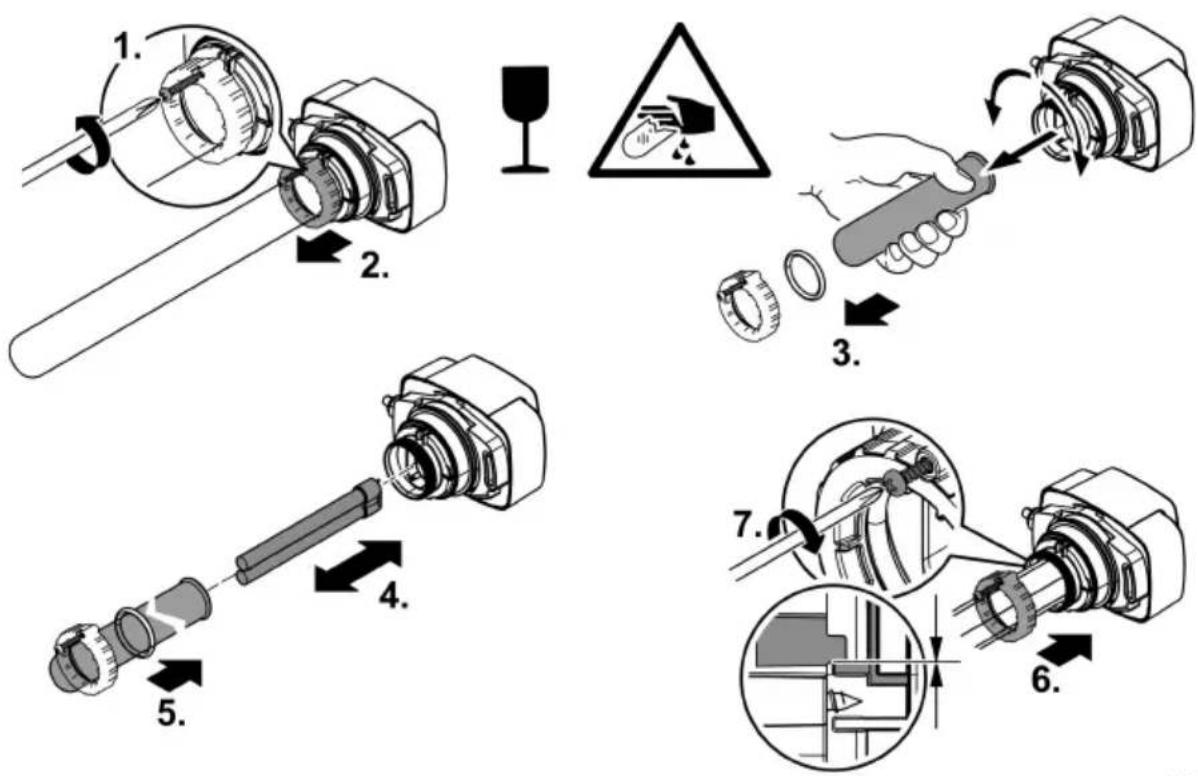

How to proceed:

• Loosen the self-tapping screw until the screw tip is sunk into the casing of the clamping screw.
• Carefully remove the quartz glass by pulling it forward with a slight turning movement.

• Carefully push the quartz glass with the O-ring as far as the stop in the unit head during installation.

• Ensure that the O ring is located in the gap between the unit head and the quartz glass.

• Tighten the clamping screw up to the stop.

• Wipe the quartz glass with a damp cloth to remove dirt and fingerprints.

EN

Storage/overwintering

The unit is not frost-proof and has to be removed and put into storage if freezing temperatures are expected.

How to correctly store the unit:

• Thoroughly clean the unit and replace damaged components.
• Store the unit in a dry and frost-free place.

Troubleshooting

Malfunction	Possible cause	Remedy
The performance of the unit is not satisfactory	The water is extremely soiled	Remove algae and leaves from the pond
		Replace the water in the pond
	The quartz glass is soiled	Clean the quartz glass
	The UVC lamp has lost its filter effect	Replace the UVC lamp. The filter effect is exhausted after 8000 operating hours.
	The flow rate is too high	Reduce the pump output
The UVC lamp does not light up	The power plug is not connected	Plug the power plug into the outlet
	The UVC lamp is defective	Replace the UVC lamp
	The power connection is defective	Check the electrical connection
	Vitronic 55 W: The UVC clarifier has shut down due to overheating	The UVC clarifier will automatically switch on again once it has cooled down

Technical data

Description			Vitronic
			11 W	18 W	24 W	36 W	55 W
Connection voltage		V AC	220 ... 240	220 ... 240	220 ... 240	220 ... 240	220 ... 240
Mains frequency		Hz	50/60	50/60	50/60	50/60	50/60
Power consumption		W	14	18	24	36	55
Length of power cable		m	5	5	5	5	5
Protection type			IP24	IP24	IP24	IP24	IP24
UVC lamp	Type		11 W TC-S (UV-C)	18 W TC-S (UV-C)	24 W TC-S (UV-C)	36 W TC-S (UV-C)	55 W TC-S (UV-C)
Flow rate	Max.	l/h	1700	3500	4500	6000	8500
Operating pres-sure	Max.	bar	0.5	0.6	0.6	0.6	0.6
Connections			3 × G1	3 × G1½	3 × G1½	3 × G1½	3 × G1½
Hose diameter		mm	19, 25, 32, 38	25, 32, 38	25, 32, 38	25, 32, 38	25, 32, 38
Suitable for max. pond volume	Without fish po-p-pation	m³	10.0	20.0	25.0	40.0	60.0
	With fish popula-tion	m³	5.0	10.0	12.5	20.0	30.0
	Including koi carp	m³	2.5	5.0	6.5	10.0	15.0
Dimensions	Length	mm	330	529	529	529	660
	Width	mm	120	186	186	186	155
	Height	mm	100	130	130	130	130
Weight		kg	1.3	2.1	2.3	2.3	2.3

Permissible water values

Type		Fresh water, pond wa-ter	Pool water
pH value		6.8 ... 8.5	7.2 ... 8.3
Hardness	DH	8 ... 15	8 ... 15
Free chlorine	mg/l	<0.3	<0.6
Chloride content	mg/l	<250	<250
Salt content	%	<0.4	<0.4
Overall dry residue	mg/l	<50	<50
Temperature	°C	+4 ... +35	+4 ... +30

Wear parts

• UVC lamp, quartz glass and O-ring for quartz glass

Disposal

NOTE

Do not dispose of this unit with household waste.

• Dispose of the UVC lamp and the unit by using the return system provided for this purpose.
  ▶ Render the unit unusable by cutting the cables.

A AVENTISSEMENT

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

Vitronic 18 W, 24 W, 36 W, 55 W

VTCD005

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Zogautewerk:

Vitronic 18 W, 24 W, 36 W, 55 W

Apparaatkop monteren

Zogautewerk:

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Kwartsglas reinigen / UVC-lamp verrangen

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTCDO03

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

Montaracabeça

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Limpar vidro de silica / Substituir lampada UVC

Vitronic 11W 18W,24W,36W,55W

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTCDOO0

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W

DA

VTC0011

Ibrugtagning

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Sadan gR du:

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0002

Montering af apparathoved

Sadan gR du:

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

För du kan feste huset til overflaten, mä du fjerne enchetshodet. (→ Ta av apparathodet)
- UV-lampen er/DDke formontert pfa fabrik. Plasser UVC-lampen i enchetshodet fdr du installerer enchetshodet pa nytt.(Rengjor kvartsglass / Erstatt UVC-lampe)

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Slik gár du frem:

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0002

Vitronic 18 W, 24 W, 36 W, 55 W

VTCDD05

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Gor sa har:

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0002

Montera apparatusens ovandel

Gor sa hare:

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Puhdistus ja houlto

OHJE

Vitronic 18 W, 24 W, 36 W, 55 W

Toimit nain:

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

Laitepaan asennus

Toimit nain:

Vitronic 18 W, 24 W, 36 W, 55 W

VTCDD05

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

HU

Vitronic 55 W

VTC0006

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTCD002

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC001

PL

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Cistění a Údržba

UPOZORNENI

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

Montáž hlavy pristroje

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Cistenie a udržba

UPOZORNENIE

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTCDO03

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Vitronic 18 W, 24 W, 36 W, 55 W

• P Rome nogo sto mozete priocrstiti podlogu ne morate demontirati glavu ureada. ( Demontiranje glave ureada)
• UVC svjetiljka nije tvornicki prethodno montirana. Postavite UVC svjetiljku u glavu uredajaPrije nego sto uradite glavu uredaja. ( Cijscenje kvarcnog staia/zamjena UVC svjetiljke)

HR

Postavljanje uredaja

Postavite uredaj najmanje 2m od ruba jezerca.
- Postavite uredaj samo u dopustenim položajima. Time ćete osiguratis besprijekoran rad.
- Ostavite dovoljno slobodnog prostora za radove održavanja.

VTC0016

VTC000E

Vitronic 18 W, 24 W, 36 W

Urešaj je namijenjen priključivanju na protočni filtrar. Oba izlazna nastavka vijčano se spajaju s ulaznim mlaznicama na protočni filtrar. Pogledajte upute za upotrebu protočnog filtra.

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Cisćenje i održavanje

NAPOMENA

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTCDO03

Montiranje glave uredaja

Postupite na sljedeci nacin:

Vitronic 18 W, 24 W, 36 W, 55 W

VTCDD05

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

Procedati dupacumurmeaza:

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W, 55 W

A I P E D U N P E X K D E H N E

ПразддбьркATE BbB BOdaTа,ИЗКЛЮчЕТЕ BCИЧКЕеКТрпческУурази ВБВ BOdaTа OT eLEKТрпческATA Мржа.В пotиbehСлуна Има ONaCHOCT OT TeЖКн НаранЯВаня Или CBpT NOpaДи TOKOB ydap.
To3n ypei moKe da ce n3noJ3Ba OT deca OT 8 -rOiunHa Bb3pact n HaRoPe, KaKTo n OT Xopa C HamaJIeHn fN3nueCKn, CEH3OpHN nIIN yMCTBeHn Bb3MOxHOCTn IINI TaKNBa, KOINT OAMT ONIT N PO3HaHnA, cAmO aKO ca Na6JIoDaBaHn IINI INCTpykTIpaHn 3a 6e3OpacHaTa yNoTpe6a n pa36npat npOn3-TnuaHTe OT TOBa OnaCHocTn. DecaTa He nIgparT c ypeDa. Po-NCtBaHeTO n POndPbXkKaTa He Tp8Ba Da ce n3BbPswBaT OT Deca 6e3 NaD3Op.

Yka3aHn8 3a 6e30nacHOCT

EneKtpnuecko CBbp3BaHe

• ПО OTHOWEHHe Ha eIeKtpnueckaTa nHCTanaZnaHa OTKpnto BaxKaT cneuaHn npaBnla. EIeKtpnueckaTa nHCTanaZna Tp8Ba Da ce n3NbHraBa camO OT eIeKtpOTexHnK.
• EneKtpoTeXnKbT e KBaIuΦuIpaH Bb3 OCHOBa Ha CBOeTO npOΦecNoHaJIHO o6pa3OBaHHe, 3HaHnI y ONIT, n IMa npABo Da n3PbJIHbA eJeKtpnueCKn IHCTaJIaCn H a OKpnto. ToJ MoKeJa pa3No3HaBa Bb3MOxHn ONaCHOCTn N Cna3Ba peRnoHaJIHNTe n HaCuNOrHaJIHNTe cTaHdApTn, npaBnla n PpeDnncAHnIy.
• Pp n Bbnpocn npo6nemc ce o6pbuaTe KbmeKtpocneuaHCT.
• Cbbp3BaIte ypeDa cMo aKO eJeKtpnueCKnte daHnn Ha ypeDa n eJeKtpo3aXpaHbaHeTo CbBnaT.
• CBbp3BaIte ypeDa cAmo KbM INHCTaIIpaHa cNopei npeIINcaHnraTa KOHTaKTHa KyTna. YpeBbT Tp6Ba Da e oBe3ONaCe HcBc 3aUInTHo CbOpBXeHne 3a TOK Ha yTeuKa C HomnHaJIen TOK Ha yTeuKa OT MaKcIMyM 30 mA.
• YdbljkaBau n Ka6eHn TOKOBn pa3npedeHnTeHn (Ha np. MHororHe3IOBn KOHTaKTn) Tpa6Ba Da ca NODXoJn 3a H3NoJ3BaHe Ha OTKpNTo (3aUteHn OT npbckn B0da).
  3aunteteOTBOpENTEIeNIOKHTaKTNOTBnaTa.

Be3onacha pa6ota

He n3noJ3BaIte ypeDa, aKO eJneKtpnueCKnte npOBoHnCn nn KOpnyCbT ca NOBpeDeHN.
- Поврениясьрзвац поюнк He полеси Ha смана.ИЗХьрлеуpeда.
He Hocete, cboTBeTHo He terIeTe ypeDa 3a eJekTpueckn npOBoHNK.
- Плагаши рpoвodнцite tak, Ye da ca 3auntehn OT nobpeu HNKoJ da He ce cnTbBa B T8X.
- HnKora He n3BbPbBaIe Te XeHnueckn npomEn no ypea.
- Ito ypea n3BbPbBaIe cAmo pa6OTnTe, KOnTO ca ONuCAHn B HAcToATo pKOBODCTBO.
- I3nol3BaIte cAmO opuHauHn pe3epBHN qactn aKcecoapn.

YnOTope6a no npEHa3HaueHne

I3noI3BaIte npOdyKta, OINcaH B TOBa pBKOBOcTBO, CaMO KaKTO CneDbA:

3a nouICTBaHe Ha rpaDnHcN e3epa.
- YpeBc e n3NoJ3Ba C uNCTa BOJa.
- YnpabIbIaIte yCTpOcTBOTo B CbOTBeTCTBnE c TexHnuecknTe daHHn. ( TexHnueckn DaHHn)

3a ypeda ca BaHnH n CneHNte orpaHnueHna:

To3n npOyKT He e nOxOJa 3a o6uO OCBtJeHne, a e npEHa3HaueH cAmo 3a onNcaHaTa uel Ha npUJoxHe.
- Hukora He noJI3BaIte UVC-lamnata n3BbH HeHHa KOpNyc nII 3a dpyu ueJIN. IN B HNCKn I03N UVC-n3IbYBaHETo e ONaCHO 3a OUYTe N KOXkata.
He n3noJIbAaIe ypeDa 3a npOn3BOJCTBeHn IJI npOMuJIeHN ueJI.
- HnKora He n3POn3BaIte ypea 6e3 BOJa.
- HnKOra He n3IOn3BaIe DpyrTeuHOCTN,OCBeH BOJa.
He n3noJ3BaIte 3a cTepeuN3aunHa nTteuHa Boda uIn dpyr TeuHOCTn.
He n3noI3BaIte ypeDa 3aeIHO c xHmIKaI, XpaHnTeHN npOyKTn, IecHO 3aIaNIMN nn B3pNUBOONaCH N BeueCTBa.

Описане на порукта

06em Ha dOCTaBkata

VTC0001

Vitronic 18 W, 24 W, 36 W, 55 W

• Ппдд може Te Да зakpenite Корпуca Вьрху ochOBaTa, Трябвд д демоHTираTe rnaBaTа Ha уpeД. (→ДемоHTЯж Ha rnaBaTа Ha уpeД)
• UVC-lamnata He e npedBapntelno MOtnupaHa a6pnuHo. NocTabe UVC-lamnata B rnaBata Ha ypea, npedJa moHTnPate OTHOBrnaBata Ha ypea. ( NocCTBaHe Ha KBapOBOTo CTbKIO/CMraHa Ha UVC-lamnata)

Инстампаны урEDA

• Инсталпайуpeда на минимално pa3стаянne 2 m ot рба на 6aceина.
• MoNTnpaIte ypeDa camo B pa3peSeHnte no3nun. NToTOn HaunCe rapaHTnpa 6e3rpeuHaTa pa6ota.
• Octabete doctaTbUHO CBO6OJHO MxCTo 3a pa6OTne NO noIdpbXkata.

VTC0016

Vitronic 18 W, 24 W, 36 W

Vitronic 55 W

VTC0006

Cbbp3BaHe

• I3noJ3BaIte Mapkyu, noXoJaI 3a haJaRaHe OT ha-JMaJIko 1 bar.
• HamaIeTe CTbnaIOBnIHnAaIaTep 3a MapKyu CnprMo N3PON3BaHnA DnAmEtbp HaMapKyua.
• 06e30nacTe MapKyuça cbc cko6a 3a MapKyu.
  3aterheHa pbKa shapHnphata raKa Ha CTbnaIOBnHnra aanTepe 3a Mapky.
  3aterheTe cTbnaIOBnIHn aIaNTep 3a Mapkyc nlocko ynlbTHHeHne, pecn. OnpbcTeH Bbpxv Bpb3KaTa, Taka Ye Bpb3kAta da e ynlbTheHa.

• 3a ONTUMaHHTO CBbP3BaHe Ha MapkyuTe MoKeTe da N36npaTe MeKdy DBeTe cpeVNOJOKHN BpB3KN.

• 3aTbOpete C KaNaUKa Bpb3KaTa, KOrTo He N3N0J3BaTe.
  Vitronic 55 W: KanaykaTa IMa Ha6IIOdaTeJIHO CTbKIO 3aФyHKUHOHaJIeH KOHTpOJ.

VTC0007

Cbbp3BaHe Ha ypeDa KbM npoxoHnA fNITbP

Vitronic 18 W, 24 W, 36 W

YpeBt e NOxOJa3a CBp3BaHe KbM npoxoJen HnTbp. Dbata n3XoHN HaKpaHnKa ce 3aBnHTBaT KbM BxOJHnTe IIO3n Ha npoxoHn JnTbp. Cna3BaIe pBkoBOdCTBOTO 3a ynotpe6a Ha npoxoHn JnTbp.

PpoeepaTe no cneHnHaunH:

1. OTbInTe KaNaUKaTa.
2. Прokаite Двata ИЗхODи На Крайнka с плockOTO упьт themselves npe3 Двata OTbopa B CTehata Ha pe3epBoapa Ha npoxOДИЯ ФиNTbp.
3. 3aBnIe BxOHaTa IIO3a c O- npbCTeHa Bbpxy n3XoHnHa HApaiHnK n 3aTeHHe Ha pbKa BxOHaTa IIO3a.
4. CbpbjKeTe nOdaBauJn MapKyu KbM BXOJaun HaKpaHnK. ( Cbpb3BaHe)

Vitronic 18 W, 24 W, 36 W

VTC0011

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Vitronic 18 W, 24 W, 36 W, 55 W

PpoeepaTe no cneHnHaunH:

HaTnchete cTOnOpHaTa Kyka, 3aBbptTe Do ynp rnaBaTa Ha ypeHa o6paTHo Ha YacOBHNKOBaTa cTpeNka H3aeHcO O- npbCTeHa BHMMaTeHNo I3TerIeTe OT Kopnyca.

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

YpeT He e 3aunTeH OT 3ampb3BaHe n Tp86Ba Da ce demoHTnpn npn ouakBaan MInhycobn TemnepaTpyn.

YpeBc Ce cBxpaHbA npabnNo no CJeHNHaunH:

• Почистусяа осовно и заMuHeTe NOBpeHnTe qaCTN.
  CbxpaHbAaTe ypeDa Ha cyxo n 3aunTeHO OT 3ampb3BaHe MxCTO.

3axncttb npictpiBid nonaHaHH npamix coHnyHx npomeHB.

OcbitIIOBaIbHn npIcTpi npuaTHn dna npaMOro KpInneHHa 3BnuaHnx Ierko3aIMCTNX NOBepxHax.

PnncpiHneo6xioH03axuataNbIDMopo3y.

3a6b0pOHeNo yTuNl3yBaTu npncTpi i3 3BnuaHnM n6yTOBnM cMITTAM.

PpouHTaIe IHCTpyKciio 3 ekcnlyaTaacii.

BctaHOBJIeHHa Ta NidkIIOUcHHeHH

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

BctaHOBJIeHHI npMCtpoIO

BCTaHOBIT npicpti Ha BiDcTaHHe MeHne 2 M BiKpaIO CTaBka.
BcTaHOBIOIte npncptpi Jnwe y npabunbHomy noJoxeHHi. Ce rapaHTy6e3nepe6iHy po6Oty.
Cniip nepei6aHTNIOCTaTHbO Micra IINrTexHHyHO 06cnyroByBaHH npictpoio.

VTC0016

VTC0006

yctahOBJIeHHa3'€dHaHb

BukopncToByte uHaHn, kI MOkyb BHTpmyBaTu TnCK He MeHne 16apa.
Bkopoitb ctyiHacti hakoHeuHKn 7naHrib BiDIOHO Do diametpa 7naHra, 0o BnKOpNCTOByETbcra.
3aKpiTb WJHaHr XOMYTOm.
PykoIO 3aTgHItb HauNHy raiKy cTyniHcaTOro HaKOHeHnKa IlaHra.
- ΚιnbHo npɪkpyɪtɪb CTyɪnɪhʊactɪn ḤaʊHeʊnɪk Šɪlaɪræ 3 PⅡOCKɪm yɪsɪbHeɪnɪm a60 yɪsɪbHɒBɑBʌHm Kɪnbæm D0 3'ɛdHaHŋ.
- Дя ONТIMальбHorO npOKlaДaHЯшаHRIB NOEДHyЛTe ДВа npOTnLEЖHi 3'ЕДHaHHЯ. - 3'ЕДнHaHHЯ, як He ВИКОриСТОВуETьСЯ, ЗakPиBAIte 3aRлУшkoю. - Vitronic 55 W: 3aRlnyшka MaE orlaIDObe CkNo ДЯ KOHTpoJILO ФунКцIOhyBaHHЯ.

VTC0007

UK

PpueHaHn npncptpoI do npotoHoro iInbTpa

Vitronic 18 W, 24 W, 36 W

Pnncptpi MoxHa NiKluoyatn Do npotoHoro fInbtpa. OndBa 3nBHi naTppy6kn 3akpy- cyIbca Ha Bxidi Conla npotoHoro fInbtpa. DOnpymyTecb iNcTpykui 3 ekcnnyatai npotoHoro fInbtpa.

Heo6xIDHO BIKOHaTu NaCTynHii:

1. BiDkpyTITb 3aRnyuKy.
   2.ПрocуньTe 3иВи NaTpy6Kn 3 ПLOCKIMN yuINbHeHЯM N Yepe3 DBa OTBOPN B CTInci pe3epByapa npoTOUHorO fInbTpA.
   3.ПикргтВпсКнecолno 3уцьнваьнm кьчemdo 3nBHoro naTpy6ka i 3a- TargHtB pykoI.
   4.Приедниerte BnyckншаHRdo BnyckHoro naTpy6ka. ( YctaHOBHeHHra3'EDHaHb)

VTC0011

BveeHnB eKcnnyataciio

PocniobHictb dii niid yac BBeDeHHB Eeknlyatauio:

1. Ybimkhitb hacoc i noeKaite, nOKn KOpnyc yO-ouuSyBaay 3aNoBHNtbcr BOIOJ.
2. yBIMKHiTb yΦ-ouuSyBaq.

-3a6oPoHENo BnKOpncTObyBaTu YΦ-ouHnyBauch6e3 BOAn.

1. IpepeBipTe po60Ty yΦ-ounnyBaay.
2. IpepeBipTe Bci 3'eHaHHa Ha repMeTnUHicTB.

BmkaHHBmkaHH

• YbimKHeHHa: BCTaBTe wTeKepeB po3eTkY.

-Ппст piB BMnKaETbCЯ OДpa3y.
BumKHeHHa: BuTarHItb wTeKepe 3 po3eTKn.

Ipebeipka yHKcioHaIbHocTi

Ipebipka fynkuiohybaHHa
Vitronic

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

Ynctka iDorna

ПРИМITKA

He BnKOpNCTOBuYTe arpeCnBHI MnIOUci 3acO6n a6o ximiuHi po3uHH. Li 3acO6n MoKyTb N0sKOJNTu KOpNyc, noripuHTn fynKcioHyBaHH npncIpoTo Ta 3aBdaTu WKOJn TBapHnHaM, pocnHAM Ta HABKoJIuShbOMy cepeIOBnu.

OunuynTe Kopnyc TINbKn 3OBHi NCTOIO BOIO Ta M'AKOIO uTkoHO.

• PekomeHdoBahi 3ac06n dIy uIuSeHH npi cTIKOMy BaIIHOMy BiIKnlaeHHI:
• Φιλθτρ Ḁαcoca PumpClean Biδ OASE.
• Ino6yTOBI 3ac06n dny uHneHHa oCHOBi ouTBOoi KNCOTn Ta XnOpy.

UK

Vitronic 18 W, 24 W, 36 W, 55 W

Heo6xio HOBKohATn HAcTyNHi ii:

• Hatnchitb Ha φikcaTOp, notim nobepHITb roJOBky npncTpoI npOTn rOHHNKOBoi cTpiKN do ynpoy i o6epeXHO BNTaRHiB roJOBky npncTpoI 3 Kopnyca.

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

Mоnt tax rοιвкnpuctpoI

Heo6xioBukohatnHaCtynHii:
1. IpebipTe, u npabnBHO BCTaHOBne He yuInbHOBaIbHe KInbcE Ha rONOBi npNcTPOU.
- Nounctitb yuijIbHIOBaJIbHe kiIbue, 3amHITb Ioro y pa3i NowKOJxehn.
2. 06epexHo, Ierko HaTnCKaUOnu, BCTaBTe rOLOBky npncToPO B KOpNc Do ynpOy.
- Tpoxn nokpytib roiBky npncptpo, nOKn uTnOu Ta na3n 6aohHOro 3'eHaHHHe 3aikcyotbcra.
3. Поверніт b roJIOBky npистpoю 3a roДИNHINKOBOI CTpiJIKOJO Do ynpoy.

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

OuHneHHKbapcOboRcKla/3amHaYΦ- lamnn

3amihb yΦ-lamny he ni3hiue hix uepe3 8000 royn po6otn. Pnp noctihi po6oti ce BiDIOBIAe np6n3HO oNDOMy ce3OHy y cTbKy. TaKIM uHOM 3a6e3neUyETcR ONmAlbHn pe3yIbTaT fInbTpYBaHHa.

OBEPEXKHO

KbapcOBe ckNo Ta yIbIpafoJeToBa lamMa moKytb po36ntncb Ta cnpuHHTn nopizn.

Bybte o6epxhi n iac po60n 3 yIbtpafoJeTOBm OunuBaueM, 0o6 yHnKHytn nopizib.
▶Унkaи Te yapib,стсь Ta panTOBux pyxib, lo6 He po36nIOcb ckno.

PiIroTobKa

• TOnOBky npucTpoHO 3HЯTO. ( DeMOHTaxK roJIbKN npucTpoHO)
  BnKOpNCTOByIe Iiue YΦ-lamnn, nO3HaueHnra Ta NotyXHiCTb JkNX 36iraIoTBc 3 daHmHa nacnpTHi Ta6nuiCi. ( TexhiHi xapaKTepeNtKu)

Heo6xio HOBKohATn HAcTyNHi ii:

• BiiKpyTitb caMOHApi3Hn I RBNHT, NOKN KIHcNK I RBNHTa He CXOBAeTbcB KOpnyci 3aTnCK-HORO I RBNHTa.
• 06epexHNO BHTaRHiTb KBapObe cKJIo JERKIM o6eptaJIbHm pyxOM.

• Ppi BCTaHOBneHHi ObepeXHo BCTaTBe KBaPcOBe cKNo 3 yuJIbHIOBaJbHIM KINbCem y roIobKy npIcTpOo Do ynopy.

• YsIbHOBaJIbHe KInbue NOBnHHO 3HaXoIITnC8 B 3a3Opi MIX ROnOBKOIO npNCtpoIO Ta KBapUOBIM CKlOM.

3akpytib 3aTnCKHn rBnHT do ynpy.
- PpOtpiB KBapCOb cKnIO BONoro TKAHNHO, 0o6 BnDaJIntN 6pyd i BiD6NTKn naIbciB.

VTC0008

36epiraHn npncToIO, B T. 4. B3mKy

IpnctpiH He Mop03octiKn i B yMObax OuykBaHHaMop03y Ioro Heo6xIDHO BNTaHTa 36epiratn.

36epiraTe npicptiB iDnOBiHm cnocobom:

• PeTeJbHO ouNCTiTb npNCtpi i 3amHItb nowKOdXeHi Detani.
  36epiraTe npuJaD y cyxomy 3axnueHomy BID MOpO3y Micui.

YcyHeHH HeCnpaBHOCTeI

A I P E D U N P E X K D E H N E

Перед Контамс ВODОДОТКLOЧИТЕ OTЭл ektpocetи ВсЕнховшпесьВВODEэл ektpoyctpoicTBa.ИначeВpe3yltateПороженя TOKOM BO3MOЖнbl Серbe3HbI TpaBMbl Или CmepTb.
DeTN OTe 8 let n CTapSe, a TaKKe IIOJn C OrpaHnueHHbIMn H3NueCKnMn, OpraHOJIeNTnueCKmN IIN MeHTaJIbHbIMn BO3MOXHOCTaMn, IIOJn C He6OJIbShm ONbITOM N O6bEmOM 3HaHn MOrT NOJIb3OBaTBcR 3TtM yCTPOICTBOM, HaxOJaCb Pn 3TOM IOKoHTPOJeM B3PocNbIX IIN NOLyuNB OT HIX COBeMbI NO 6e3OnacHOMy O6paSeHnIO C yCTPOICTBOM IN NOHAB ONaCHOCTN pRn pa-6OTE c Hm. DeTN He DOJIxHbI INrPaTb C yCTPOICTBOM. DeTN He DOJIxHbI YIcHTtB IIN peMOHTnpOBaTB yCTPOICTBO 6e3 NaJIe-JkaUeRO KOHTPOJIa CO CTOpOHbI B3PocNbIX.

Yka3aHnI NO TexHnke 6e30NaCHOCTN

3JIeKtpnueckoe coeHHeHne

• Дялесгпогдддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддддд徳укци. Pa6otbl NOлесгпоглоченюdoJxHbINONHЯrToJbKO KBaJIuΦNupOBaHHbIлесгпИK.
• KBaIIuΦIuPobAHbI 3JIeKTPNK DOJIxKeH IMeTb CneIaJIbHOe O6pa3OBAHHe, O6JaDaTb 3HaHnAIMN IObITOM N DOJIxKeH IMeTb PpABO BbIIOJIHrTa Pa6OTb I NO 3JIeKTPoIPOJKNUoyEHnB He NOMEuEHN. KBaIIuΦIuPobAHbI 3JIeKTPNK DOJIxKeH 6bITb OCBeIOMLeH O HAIuYIN BO3MOXhBIX ONaCHOCTe N DOJIxKeH CO6JIuDAtb MeCTHbIe IN O6UeOCyDapCTBeHHbIe HOpMbI, INHCTpyKUnN IN OocTaHOBJeHnA.
• Пи ВОЗнКовень Ворpoсов И пробlem образаайтесь К спецалicitу-элькТрику.
• Пождюа Te yctpoiCTBO K cetn TOnbKO B TOM Cnyae, Korda 3neKtpnueckne xapaK-TePncTNk YcTPOiCTBa COOTBeTCTByIOT daHHbIM CeTeBOrO 3neKTPoNtAHn.
• ПОДКЛЮЧАЕ устючТВО TOЛьК O К розтKE, установленHо NO ИНСТРУКЦИ. YстючТВО ДOLЖНО 6ыТь 3ашишно abTomatиесКIM BblKЛЮЧАЕЛEM C MaKCIMaJIb-HbIM paCyETHBIM TOKOM yTeUKN 30 mA.
• YdHnHnteN n paCnpedeNtEn (Ha npImep, KOIoKn) dOJXhbl 6bItb npEHa3HaueHbI dJI NcPOnb3OBaHn Ha OTKpbITOM BO3dyXe (3aunuHbI OT BOJHbIX 6pb13r).
  3aunuataeOTBnIOnOTKpbITbIe WTeKepeN rHe3da po3eTOK.

Bezonaacha ekcnnyatazaia

• Henb3a nOlb3OBaTbC8 yCTpOoiCTBOM, eCIn erO KOpnyc nll əJleKtpnueckne Ka6e nn noBpeXdEhbl.
• Повөрөдөнгий Ka6eЛь 3aMeHntb HeIb3я. CdaɪTe yctpoɪCTBO bYtɪnɪzəciɪNo.
  He nepeHocnte n He TAHnTe yCTpOiCTBO, depka er0 3a 3JIeKtpuueckn ka6eIb!
• YknaDbBaIte 3JIeKTpOka6eHn TaK, yTO6bI OHN 6blN 3aUuIeHbI OT BO3MOXHbIX NOBpeJxDeHn IyTO6bI NIOHn He MoRIn Uepe3 HNX CNOTKHytbcra.
  3aPpeaetcBHOCTbN3MeHHeNBA KOHCTpyKuIO yctpOJCTBa.
• ByctpoiCTBe pa3peWaeTcBbINONHrToIbKO Te pa6Otbl, KOtOpbl OINCAHbl B daH-HOM pyKOBODCTBe NO 3KcnnyaTaun.
• IcnoIb3yIte ToIbKO opuHaJIbHbIe 3aIpaCTn I npHaJdNexKHOCTn.

IcnoIb3OBAHne np6opa no Ha3HaueHnIO

OncaHoe B daHOM pyKOoDCTBe NO 3KcNpyaTuu N3dEne pa3peaetc NcNoIb30BaTb TOnbKO CNeDuUzIM O6pa3OM:

-ДячNTк caIOBbIX npyID.
-ДяэкрлуatauNiCчntoBdoi.
- Θκπηγατηργιte ΑaHHOe yCTpOιCTBO TɔlβKO B ΠpeДeλx yKa3aHHbIX TexHnuecknx npapametpoB. (→ TexHnueckne napametpbI)

Ha np6op pacnpoctpaHOTc cIeDyOuNe oRpaHnueHn:

• ΘTOT npodykt He npedHa3Hauen dny o6eero OCBeueHnra, ero HxKHO nCNoIb3OBaTb TOnbKO dny ONiCaHHbIX ueen npimHeHnra.
  3anpeaetcnaonb3oBaTb yΦ-namny BHe Kopnyca nnn dIpynx 1x. yΦ-ntnyeHne daKe b MaBix Do3ax ONaCHO nIra I KOx!
  He pa3pewaaetc nCnoB3OBaHne Hn IJRA pON3BOdCTBeHHoro, HN IJRA npOMblJeHHoro Ha3HaueHn.
• HnKOrJa He 3KcNlIyatnpuYTe 6e3 npoToKa BoDbI.
  Pa60TaTb c npyroj KnKocTbIO, KpOme BoDbl, 3anpeuaetca.
  3anpeaetcnaonb3oBaTb dny cTeepnun3aun nNTbeBOB BOblnnn HbIX KNDKoCTeN.
  He nCNoIb3OBaTb B KOHTaKTe C XUMKaTaMn, NIIeBbIMN npOdyKTamN, IerKOBOcPnaMeHraUoIIMNCra IIN B3pbIBaTbIMN MaTePnaJaMn.

OnucaHne u3dennr

06bem noCTaBKn

VTC0001

YCTPOIcTB0 3aunueHO OT 6pbI3r BOdbI N OT npNKoCHOBeHn K ONaChbIM YaCTaM.

Vitronic 18 W, 24 W, 36 W, 55 W

-ДяЗakpenileHЯКорпуcaHaONOPHOM OCHOBaHnI ROnOBHyO yAcTb yCTpoiCTBa HxKHOДeMOHTnpOBaTb. ( DeMOHTaxK TOnOBKn yCTpoiCTBa)
- Φ-лamma Na 3aBOe-N3ROTOBNTe He yCTaHOBNeHa. BCTaBBte cHauJa YΦ-лamnyВ rOIOBHyU qAcTb yCTPOIcTBa N pOcNe 3TOrO rOLOBHyU qAcTb COeDINHTe C KOpNycOM. (→ПочИСТиTe KBapCseBOe CTeKNo / 3aMeHInTe YΦ-лamny)

Pa3MeueHne yctpoiCTBa

Pa3MeaIte yCTPOINCTBO Ha paCCTOHN He MeHee 2 M OT KpaB ODoema.
Pa3meaIte yctpoiCTBO TOnbKO B pa3peeHbIX N03uXx. BnaOapra 3TOMy rapaHTnpyeTcNcPpABHbI peKIM pa60Tbl.
- OctaBbTe IOCTaTOUHO MeCTa IINBAINHHeNRA TexHaIaNouHbIX pa6oT.

VTC0016

VTC0006

BbInonHHTb coeHHHeHn

• NcnoJb3yIte 7aHn, npedHa3NaeHHbIe Ira daBJIeHHe MeHee 16ap.
• YKOPOTnte shnaHRObIshTycep-eJIOUky B COOTBeTCTBUN C NcNoJIb3yeMbIM dHaMeTpOM shnaHra.
  3aΦHKcpyTe WJIaHr WJIaHROBbIM 3aXIMOM.
• Почно затян'te руков накдную raйky shанговoroштуер-eлочkn.
• PpHKpyTnte 7nAHOBbI 7Tuep-eNoUky BMeCTe C NIOCKIM IIN Kpyrblm yNIOTHHeHnEM K aAnTepy TaK, UTO6bl 3TO MeCTO CTANO RepMeTnUHbIM.
• Дя ONТIMально укладишална можно Вьбраь OДИн ИЗ DBух HaxОДУnxСЯ дуг

• НарOTINБ ДPyra aДАNTeРОВ.

• HencnoJb3yeMbI aadTep HxHIO 3aKpbITb 3aunTHbIM KOJIpaKOM.

Vitronic 55 W: Y 3aunTHoro KONnauka ectb cMOTPOBoe CTeKIO dIa KOHTpOJIa 3a pa60toi.

VTC0007

RU

Vitronic 18 W, 24 W, 36 W

YcTpoIcTB O npirodHO nna NOKJIoueHn K npOTOHMy fNbTpY. O6a BblNyCKhBix TTyUcepa cKpePnIaHT Ha BNHT C BnYCKHbIMn CoIaMn Ha npOTOHm fNbTpE. Co6JIoJaTe pyKOBoDCTBO NO 3KcIIyatau nn npOTOHOr oNlbTpA!

Heo6xOIMO BbIOpHnTb CneDyUoune DeiCTBna:

1. OTKpyTnte 3aunTHbI KOLInaYOK.
2. BbInyckHbIe 7TuEepa c NIOCKnM yNIOThHeHem npocYhbTe uepe3 dBa OTBepCTnB CTeHKe EMKoCTn pOToUHO rO hJbTpa.
3. Bnyckhoe conno c kpyblm KOJIbOcHn KaKpyTInTe Ha BblNyCKHOI StTyuep I npOuHO 3aTAHnte conno pykoJ.
   4.ПОДКЛЮЧИТЕ ПИТАЮШМУЛАНГ KВПУСКΗМΥ ΜΤΥЕР.（→ВыПОЛНИТБ COЕДИЗЕНИ）

VTC0011

ПускВэкплyaТацию

IocneioBaTeBHOCTb NcKa B 3KcnnyaTaunio:

1. BkIIOUHTe Haoc n IIOOJNTe, Noka KOpNc YΦ-OuHCTnTeJI HAnOIHTc BOIOJ.
   2.BKIOUHTe YΦ-ouHCTIeTb.

-3anpeaaeTcNcnoJb3OBaTb yΦ-ouHCTnTeJIb 6e3 NOTOKA BObl.

3.Поверп Te pa6Oу YФ-очntTeЯ.
4.Поверпга repmetuHOCb BCE MeCTa COeINHeHnI.

BkIIOueHne/BbIKIOueHne

BkIIOuHTb:BCTaBBTe WTEKepe Bpo3eTKy.
- YcTpoIcTBo BkIIOuaeTcH HeMeJIeHHO.
- BbIKIouHTb: BbIHbTe WTeKepe n3 po3eTkn.

Поберпь работу

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

OuNTka n yxOa

YKA3AHME

He nCnoB3yIte arpeccnBhble cpeCTBa IJIyNCTKN IIN XIMNueckne paCTBOpNTeIN. 3TN cpeCTBa MOrYT NOBpeINTb KOpNc HAcOca, OTRpuCaTeNbHO NOBNIaTb Ha erO pa6o- ue yHKuIN HaHeCTN uSeP6 XINBOTbIM, pAcTeHNm IN OKpyKaIOUe CpeDe.

• YnCTNTb yCTPOIcTBO HxHIO TOnbKO C HApXHOI CTOpOHBI YnCTOIN BODOI MMRKoi ⅢETKOI.
• PeKOMeHnyeMOe YnCTaJIe eCpeIcTBO npi CTOIKNX OTIOJKeHNJX N3BeCTN:
  OuHCTnTeJIb Hacoca PumpClean OASE.
  -БыITOBoe MOIOUe cpeCTBO 6e3 coepKaHnXIopa n YKcyca.

Демонтaj roJOBkn yctpoiCTBa

OCTOPOXHO

YnbtpafoJeTOBOe n3nyueHne y-naMnbl moKeT o6xeuyra3a nn Koxy.

yΦ-naMny He pa3peaetc nCnOb3OBaTb 6e3 Kopnyca nIN B NOBpeJdeHHOM KOpnyce.
Do hauana pa6oT no texo6cnyxnbAHnIO nn nepey yctaHOBKOYΦ-naMnbl OTcoeHNHTe yCTPOIcTBO OT 3JIeKTPocETN.

OCTOPOXHO

Kbapueboe cTeKnO u YΦ-λamna Moryr pa36ntbca N Bbl3BaTb NOpe3bl.

Bce pa60tbc yΦ-ounctnteHm HxKHO BbINoHrTb OCTopoXHo, TTo6bl He nope3aTbca.
UTo6bI He pa36nTb cTeKNo n36eraIte COTpaeHn, TOnUkOB n pe3Knx DBrJxeHn.

I3 coo6paXeHn 6e30NaacHOCTn YΦ-naMna BkIIOaETcra TOnbKO TOrda, KOrda yOuNCTnteNb npabunbHo yCTaHOBNeH B yCTpoNCTBe.

Vitronic 11 W

Heo6xOIMO BbIOpHnTb cneDuOuNe JeIcTBnI:

Vitronic 18 W, 24 W, 36 W, 55 W

Heo6xOIMO BbIIOHnTb CneDyIOuNe JeIcTBnI:

• HaxmTe Ha 6KCaOpHbI KpOcK, NOBepHnte rONOBky yCTpoNCTBa npOTnB YacOBOn CTpeKN Do ynpa n OCTOPoXHO BbIHbTe rONOBHyO qAcTb yCTpoNCTBa N3 Kopnyca.

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0003

MoHTaX roJIOBkn yCTpoIcTba

Heo6xOIMO BbIOpHHTb CneDyUuNe DeiCTBnA:
1. Поберп правиьhoe поожене кругноулnotнельного Кльца в головни чати устюсва.
-Почитite Крглoe улOTнITEьHoe KOLbUO,В сLуаe NOBpeXdEHHa 3aMeHHTeero.
2. Головский уость устордва OCTOPОЖно И с Легким Нжимом BCTaBbTeВ Корпс доунoga.
-При NTOM rOIOBHyU qaCTb yCTpOiCTBa CneIeT HEMHOro NOBOpaUNBaTb, YTO6bl o6ecneuHTb XopoOoee 3auePJIeHne 7tBIPbKOB N KaHABOK 6aNoHETHoro 3aTBopa.
3.ПоворачиBaTe roJOBHyU qaCTb yCTpoIcTba no yacOBoi cTpeJIke do ynopa.

Vitronic 11 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0005

Почитite KBapцeBoe cTeKno / 3amehnte yФ-лamny

MeHrB YΦ-naMny cIeMyet MaKcMym Yepe3 8 000 pa6OuX yacOB. Pn HEn3MeHHbIX ycNoBnx EKcNpyaTcuIN 3TO COOTBeTCTBye T npIMepHO OndHomy ce3OHy pa6Otbl npya. BnaRopaA 3TOMy rapaHTnpyeTc ONTImaJIbHa NpON3BOIDntelbHOCTb fNlbTpA.

OCTOPOXHO

Kbapueboe cTeKIO n YΦ-λamna Moryr pa36ntbca N Bbl3BaTb Nope3bl.

Bce pa60tbc yΦ-ouncnttelem HxKHO BblONHrTb OCTopoXHo, TTo6bl He nope3aTbca.
Yto6bI He pa36uTb cTeKNO u36eraIte COTpcHn, TOnUkOB upe3Knx DBrJxehn.

IcxoJHoe yCNoBne

• TOLOBHЯЧаftы усточь сны. (→Демонох Голobк усточь)
  Pa3pewaeTcNcNoB3OBaTb TOnbKO JaMnbl, 6o3HaueHne N MoUHOCTb KOTOpbIX COOTBeCTBYOT DaHHbIM Ha TInNOBOI Ta6nUyKe. ( TexHnueckne napameTpbl)

Heo6xOIMO BbIOnHnTb CneDyUuNe DeiCTBn:

• OTKpyuBaIte BnHT-cAMope3 Do Tex nop, NOKa OCTpne BnHTa OCTaETcB KOpnyce 3aJXUMHOrO BnHTa.
• CHIMITE KBAPUEBOE CTEKNO JERKIM BPAUaTeHbIM DUNXeHNEM BnpeIHa Ce6ra.

• Ppi c6opKe octopoXHO BdaBnTe KBapceBoe CteKIO C yNIOHTHnTeHBHbIM KpyrIbIM KOJIbCuOM B rOJOBHyU YaCTb YCTpOuCTBa Do yNopa.

• YIIOHTHInTeHbHOe Kpyrnoe KOJIbO DOJXHO HaxoINTbC8 B 3a3OpE MeKdy rONOBHOuACTbU yCTPOINCTBa I KBapueBbIM CTEKlOM.

• Почно 3аян'te pyкои зжIMьи BnHT.
  -Почntte KBapueBoe CTeKNo BnaXHoTprnOuKo,уTO6bl ydaNTb rpy3b n OTne- YATKN NaIbueB.

VTC0008

XpaHeHne Ha cKlaje/xpaHeHne B 3mHee BpeMa

YcTpoIcTBO He yCTOuHBO K Hn3KIM TeMpepaTypam, npn OxNJaembIX 3amOp03kax ero HyxHo dEmOHtupOBaTb n y6paTb Ha xpaHeHne.

PpaBnIbHoe xpaHeHne yctpOcTBA:

TuaTeJIbHO NOUHCTHTe YCTPOJCTBO N 3aMeHNTe NOBpeXDeHHbIe YaCTN.
XpaHntb npu6Op B cyxom Bnde, He donyckar ero 3amep3aHna.

YcTpaHHeNHeNCnPaBHOCTN

Vitronic 18 W, 24 W, 36 W, 55 W

Vitronic 18 W, 24 W, 36 W

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0010

清洁和保养

提示

Vitronic 18 W, 24 W, 36 W, 55 W

步骤如下：

Vitronic 18 W, 24 W, 36 W, 55 W

VTC0001

安装设备头

步骤如下：
