USER MANUAL CV1100T AEG

Language codes are dened based on ISO 639 standard - read more

Appendix 2. Other cover’s versions are placed in Appendix 5.

Language codes are dened based on ISO 639 standard - read more

Appendix 2. Other cover’s versions are placed in Appendix 5.

Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not 󰘰nd on ordinary appliances. Please spend a few minutes reading to get the very best from it. We recommend always using original spare parts. Always have the following information at hand when you contact the authorised Assistance Centre: Model, PNC and serial number. You can 󰘰nd the information on the rating plate.

Warning/Attention - Important safety information. Information and general recommendations. Environmental information. Subject to change without notice. Visit our website to: Receive advice, download our brochures, solve any anomaly and 󰘰nd information on technical support: www.aeg.com Register your product and receive a better service: www.aeg.com/productregistration Purchase accessories, consumables and original spare parts for your appliance: www.aeg.com/shop3ENGLISH

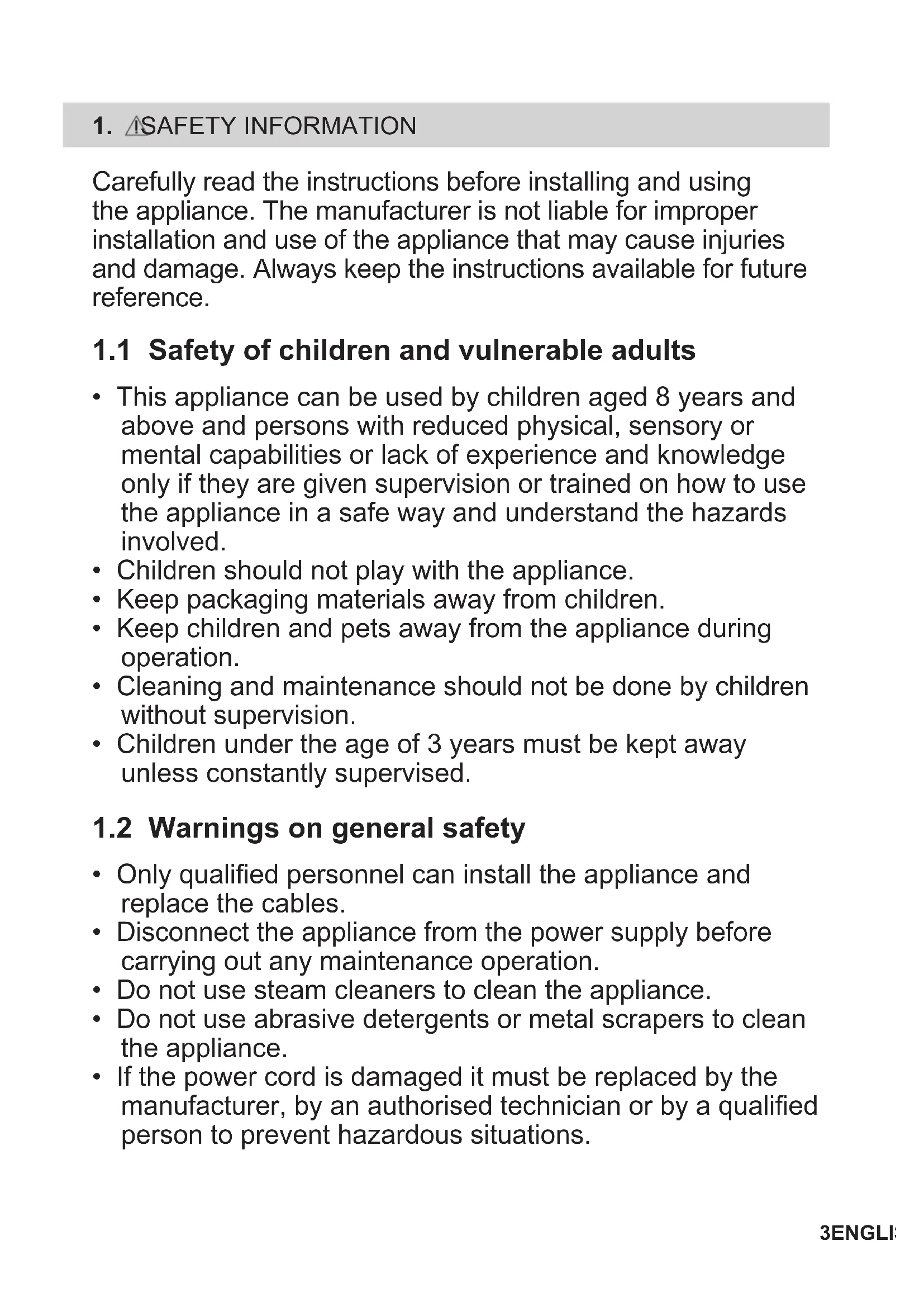

1. SAFETY INFORMATION

Carefully read the instructions before installing and using the appliance. The manufacturer is not liable for improper installation and use of the appliance that may cause injuries and damage. Always keep the instructions available for future reference.

1.1 Safety of children and vulnerable adults

• This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge only if they are given supervision or trained on how to use the appliance in a safe way and understand the hazards involved.

• Children should not play with the appliance.

• Keep packaging materials away from children.

• Keep children and pets away from the appliance during operation.

• Cleaning and maintenance should not be done by children without supervision.

• Children under the age of 3 years must be kept away unless constantly supervised.

1.2 Warnings on general safety

• Only quali󰘰ed personnel can install the appliance and replace the cables.

• Disconnect the appliance from the power supply before carrying out any maintenance operation.

• Do not use steam cleaners to clean the appliance.

• Do not use abrasive detergents or metal scrapers to clean the appliance.

• If the power cord is damaged it must be replaced by the manufacturer, by an authorised technician or by a quali󰘰ed person to prevent hazardous situations.4 ENGLISH

1.3 Environments of use

This appliance is intended to be used in household and similar applications such as:

• Sta󰘯 kitchen areas in shops, o󰘲ces and other working environments.

• By clients in hotels, motels and other residential type environments.

• Bed and breakfast type environments.

CAUTION! The appliance must be installed by quali󰘰ed personnel only.

• Remove the packaging material.

• Do not install or use the appliance if damaged.

• Comply with the instructions supplied with the appliance.

• Always pay attention when moving the appliance.

• Always wear safety gloves.

• Do not turn the appliance upside down or tilt it! This may cause oil to leak from the pump and damage the equipment.

• Respect the minimum distance from other appliances.

• Make sure the appliance is installed and secured to a 󰘰xed structure.

• The sides of the appliance must be adjacent to other equipment or units having the same height.

2.2 Electrical connection

CAUTION! Risk of 󰘰re and electric shock.

• All the electrical connections must be made by a quali󰘰ed electrician.

• The appliance must be earthed.

• Make sure that all the electrical data shown on the data plate correspond to those of the system. Otherwise, contact an electrician.

• Always use an electrical outlet with a correctly installed protective contact.

• Do not use multi-plug adapters or extension cables.

• Make sure not to damage the mains plug and the mains cable. If the power cable must be replaced, this should be carried out by our Assistance Centre.

• Shock protection devices must be fastened in such a way that they cannot be removed without tools.

• Connect the mains plug to the mains socket only once installation has been completed.

• Do not connect the mains plug if the mains socket is loose.

• Do not pull the mains cable to disconnect the appliance. Pull only the mains plug.

• Use only suitable isolation devices: circuit breakers, fuses (screw type fuses must be removed from the fuse holder), earth fault current releases and relays.

• The electric system must be equipped with an isolation device that allows you to disconnect the appliance from the mains at every pole. The isolation device must have a contact opening width of a minimum 3 mm.

• This appliance complies with the EEC directives.5ENGLISH

CAUTION! Risk of injury, burns, electric shock or explosion.

• Do not touch the sealing bar after use. Residual heat can cause burns.

• Use this appliance only in a household environment.

• Do not modify the speci󰘰cations of this appliance.

• Do not leave the appliance unattended during operation.

• Turn the appliance o󰘯 after use.

• Do not use the appliance with wet hands or when it could come into contact with water.

• Do not apply pressure on the drawer.

• Do not use the appliance as a work surface or as a support surface.

• Avoid the presence of sparks or open 󰘱ames near the appliance when you open the drawer.

• Do not place or keep 󰘱ammable liquids, materials or objects on the appliance, or inside or close to it. CAUTION! You may damage the appliance.

• Pay attention when you remove or insert the accessories.

• Do not force the lid open during the work cycle.

• Do not force the lid open during the work cycle in the case of a power cut.

• Do not place any weight on the lid.

• Prevent any object from falling on the lid! This can compromise the integrity, causing cracks or damage.

• Close the drawer gently, without slamming or forcing it unnecessarily.

2.4 Cleaning and maintenance

CAUTION! There is a risk of injury, 󰘰re or damage.

• Before carrying out any maintenance operation, turn the appliance o󰘯 and disconnect the plug from the mains socket.

• Check that the appliance is cold.

2.5 Disposing of the appliance

CAUTION! Risk of injury and choking.

• Disconnect the plug from the power supply.

• Remove the mains cable and dispose of it.

2.6 Technical Assistance

• Contact the authorised Assistance Centre to repair the appliance.

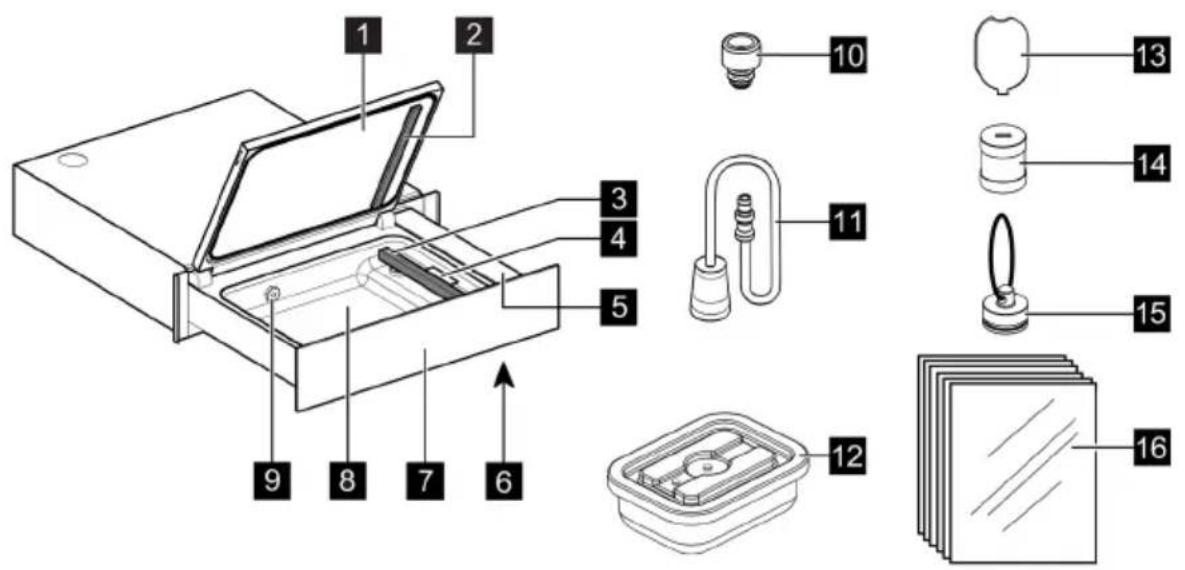

External vacuum accessory

Glass vacuum container *

Key to unscrew 󰘰lter

Vacuum bags for storage and SousVide cooking (*) Available on selected models

3.1 Product Introduction

This product uses the so-called “bell” vacuum technology capable of reaching up to 99.9% vacuum, a much higher value than that of traditional vacuum machines. The more air that is extracted inside the bag or container, the less oxidation the food will undergo. The almost total extraction (up to 99.9%) of the air will therefore be able to guarantee the preservation of the food for a longer period than traditional vacuum machines and to prepare the food for vacuum cooking in an optimal way.

This technology also makes it easy to preserve liquid foods such as soups, marinated foods, in bags or containers. You will 󰘰nd on this product additional innovative functions that are not feasible with traditional vacuum sealers, such as fast marinating that will allow you to save a lot of time, fast preparation of pickles, vacuum packing in containers useful for reducing food waste, the cold extraction technique for the preparation of infusions and many others.7ENGLISH

ON / OFF button Press Move Touch the surface with 󰘰ngertip Slide 󰘰ngertip over the surface

• Refer to the chapters on safety.

removed during installation must be kept for future assistance.

• Comply with the instructions supplied with the appliance.

5.1 Cleaning for the 󰄈rst time

• Refer to the “CLEANING AND MAINTENANCE” chapter.

• Wipe all parts with a damp cloth before the 󰘰rst use.

Turn the appliance on by holding down the button until the display turns on. The appliance performs a 󰘰rst setup cycle to ensure good product performances.8 ENGLISH

• Push the front panel to open the drawer.

• Turn the appliance on by holding down the button until the display turns on.

• Press Functions and select the desired program (see table below).

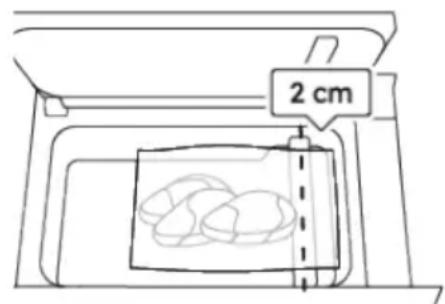

• Open the lid and place the bag or container inside the chamber. For packaging with bags, leave at least 2 cm beyond the sealing bar. Use if needed the bag holding clip

Fold down the edge of the bag outwards by 4-5 cm to ensure a clean and dry sealing area. Once the food is inside the bag, fold back the edge of the bag again in its initial condition.

• Touch the START button. The packaging cycle will then begin.

• At the end of the cycle, open the lid and remove the bag/container. Do not touch the sealing bar after use. Residual heat can cause burns. If the appliance is not used for 20 minutes it switches o󰘯 automatically. Vacuum seal For keeping food fresh longer or prepare it for SousVide cooking. Preserving food in vacuum bags extends the time the food is kept fresh in storage. SousVide is a cooking technique where the food is cooked slowly at low temperature. The bene󰘰ts with SousVide cooking are many:

• Flavour and texture remain unaltered.

• Nutrients and moist is kept in the food.

• No need for oils or fats for cooking. Set Food type and Bag type depending on the food that you intend to vacuum seal and the bag used. In case of Liquids (such as soups, etc) 󰘰ll the bag with Max 1/3 of the bag’s volume. Risk of liquid spillage from the bag. Do not use hot liquids. Seal For sealing or resealing bags to keep food fresh longer. Suitable for foods that may deform easily such as crisps, biscuits, fresh salad etc. This method does not involve vacuum. Set Bag type based on the thickness of the bag used.9ENGLISH Containers For keeping food fresh in airtight containers or jars. This function works for a variety of di󰘯erent types of containers and jars. Re-sealing jars with twist-o󰘯 lid: Put the lid in place, but make sure the lid is NOT turned tightly before the function is started, for the vacuum to be created properly. To ensure a perfect air-tight seal, use new twist-o󰘯 lid every time. Note: when vacuuming Liquids, 󰘰ll max 1/2 of the container’s volume. Do not use hot liquids. External vacuum For vacuum sealing bigger containers or bottles that do not 󰄈t inside the chamber. Make sure the container or bottle cork has a vacuum valve. Set Container type depending on container material or bottle. Connect the external vacuum accessory

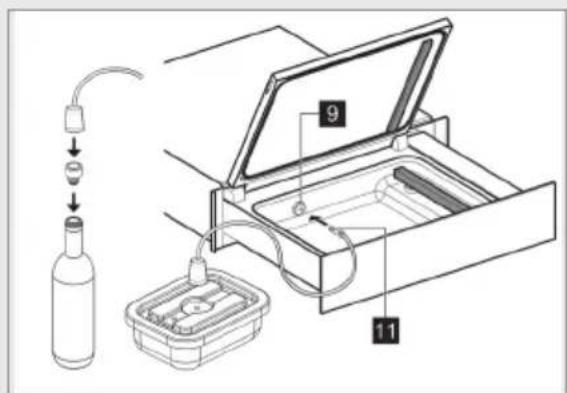

to the suction nozzle

inside the chamber. Make sure it is fully inserted. With the drawer lid open, press START to start the function. Note: do not use hot liquids. Marinate For quick marination of food for the best taste. This technique allows the seasoning to penetrate the surface of the food in less time. Set Intensity and Bag type based on desired 󰘱avour intensity and the use of either an open container or a bag of varying thickness. Tenderise For e󰓐ortlessly making meat more tender before cooking. Set Bag type depending on the use of either an open container or a bag with varying thickness.10 ENGLISH Infuse For extracting the best 󰄉avours by soaking ingredients in liquid. Good for oils, vinegars, and cold brew co󰘯ee. Place liquid and ingredients to provide the 󰘱avours in an open container or a bag. Set Intensity and Bag type based on desired 󰘱avour intensity and the use of either an open container or a bag of varying thickness. Pickle For preserving food in pickle brine. Good for vegetables and fruits. Set Container/Bag type depending on the use of a container (either closed with lid, or open without lid), or a bag of varying thickness. Dehydrate For quick drying after baking to create a crispier crust. Good for bread and pastry. Place the food openly in the chamber. Clean shells For cleaning mussels and clams to prepare them for cooking. Place shell󰘰sh in an open container and cover it with a solution of water and salt using the following proportions: - max 500 grams shell󰘰sh - 0.5 litres of water - 1 tablespoon of salt Note: The water will bubble during the process. After the function 󰘰nishes, dry the chamber carefully in case of any water spillage. NOTE: During the program the drawer can be closed.

7. CLEANING AND MAINTENANCE

CAUTION! Refer to the chapters on safety.

• Clean the appliance after each use with a damp and soft cloth.

• Follow the safety instructions indicated on the packaging when using products to clean the steel chamber

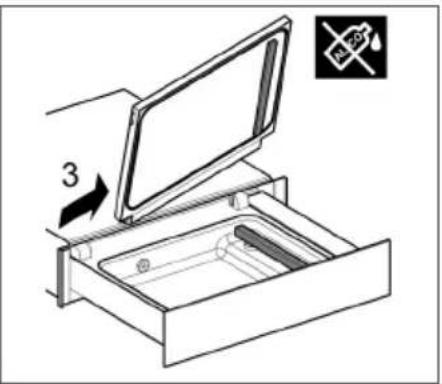

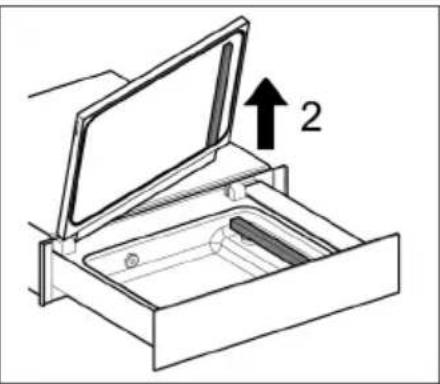

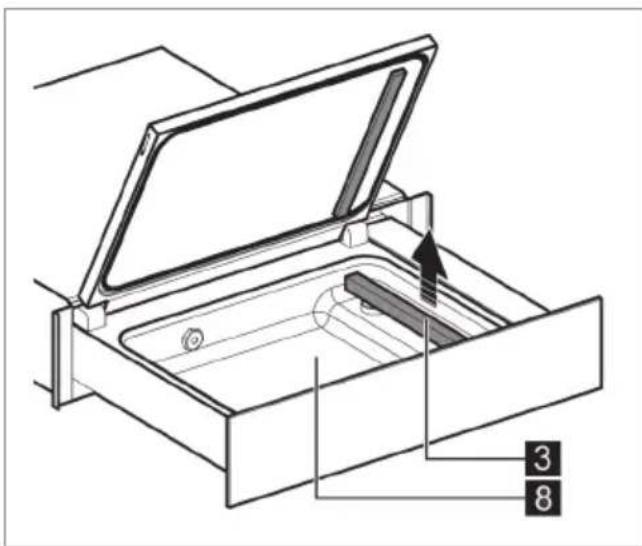

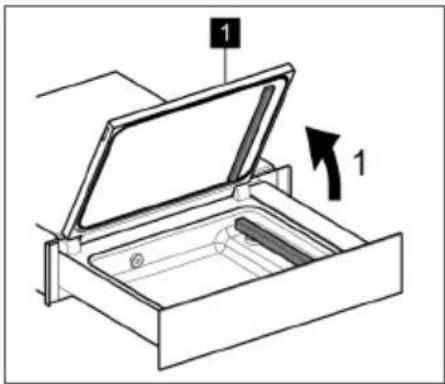

, especially in the case of residue liquid, it is advisable to remove the sealing bar

• Clean the sealing bar

with a dry cloth. Remove any residue that deposits on the bar.

• Clean the metal surfaces using mild detergents suitable for stainless steel.

• Keep the control panel clean and dry.11ENGLISH

inside and out using only neutral detergents (water and soap).

• Do not use abrasive products, alcohol- based detergents, abrasive sponges, solvents or metal objects.

The oil maintenance is an automatic program that checks and cleans the oil pump used to create vacuum. The program can be found under “Maintenance” when turning on the machine. CAUTION! The chamber must be empty. The machine will notify when oil maintenance is necessary: - During 󰘰rst use (5.2) - Every 200 cycles

CAUTION! Refer to the chapters on safety.

Problem Possible cause Solution The bag is not sealed correctly. The bag type thickness selected is not correct. Change the bag type thickness. The lid gasket is dirty or worn. Clean or replace the lid gasket (contact the Technical Assistance Service for a replacement). The bag is not placed correctly on the sealing bar. Position the bag correctly. The sealing bar is worn (the Te󰘱on coating is burnt). Replace the sealing bar (contact the Technical Assistance Service for a replacement). The blade placed under the Te󰘱on of the sealing bar is broken. Replace the sealing bar (contact the Technical Assistance Service for a replacement). The bag is not sealed. Thermal safety intervention. Press the thermal switch button

the bottom, front right corner.12 ENGLISH Problem Possible cause Solution Final vacuum is poor. The lid gasket is dirty or worn. Clean or replace the lid gasket (contact the Technical Assistance Service for a replacement). The lid is not closed correctly. Close the lid correctly. Make sure that objects or dirt are not found between the lid and chamber. The lid does not open. No power supply. Wait until the power supply is restored. The lid is cracked or broken. Damaged lid. Replace the lid (contact the Technical Assistance Service for a replacement). Alarm messages Alarm Possible cause Solution Press lid to create vacuum The lid is not closed correctly. Close the lid correctly. Oil change needed The pump oil needs to be changed. Contact the Technical Assistance Service. Oil maintenance needed A pump oil maintenance cycle is required. Perform an oil maintenance cycle. Error occurred An error occurred. Contact the Technical Assistance Service.

If it is not possible to 󰘰nd a solution to the problem, contact the authorised Assistance Centre. The information required for the Assistance Centre is found on the data plate on the left side of the appliance. Do not remove the data plate.

9. ENERGY EFFICIENCY

9.1 Product Information for power consumption and maximum time to

reach applicable low power mode Power consumption in o󰘯 mode 0,3 W Maximum time needed for the equipment to automatically reach the applicable low power mode 20 min13ENGLISH

10. ENVIRONMENTAL CONCERNS

Recycle materials with the symbol

Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do not dispose appliances marked with the symbol with the household waste. Return the product to your local recycling facility or contact your municipal o󰘲ce. For Switzerland: Where should you take your old equipment? Anywhere that sells new equipment or hand it in to o󰘲cial SENS collection points or o󰘲cial SENS recycling 󰘰rms. The list of o󰘲cial SENS collection points can be found at www.erecycling.ch14 ENGLISH

Important Notice Before calling for service, please ensure that the steps listed in clause 8 above have been followed. FOR SERVICE or to 󰘰nd the address of your nearest authorised service centre in Australia PLEASE CALL 1300 363 664 OR EMAIL customercare@aegaustralia.com.au For the cost of a local call (Australia only) SERVICE AUSTRALIA aeg.com/au

or to 󰘰nd the address of your nearest spare parts centre in Australia PLEASE CALL 13 13 50 OR EMAIL customercare@aegaustralia.com.au For the cost of a local call (Australia only) FOR SERVICE or to 󰘰nd the address of your nearest authorised service centre in New Zealand PLEASE CALL 0800 234 234 OR EMAIL customercare@electrolux.co.nz (New Zealand only)

or to 󰘰nd the address of your nearest spare parts centre in New Zealand PLEASE CALL 0800 10 66 20 OR EMAIL customercare@electrolux.co.nz (New Zealand only) FOR SALES IN AUSTRALIA AND NEW ZEALAND

ALL AEG BRANDED APPLIANCES

This document sets out the terms and conditions of the product warranties for AEG Appliances. It is an important document. Please keep it with your proof of purchase documents in a safe place for future reference should there be a manufacturing defect in your Appliance. This warranty is in addition to other rights you may have under the Australian Consumer Law.

1. In this warranty:

a) ‘ACL’ or ‘Australian Consumer Law’ means Schedule 2 to the Competition and Consumer Act 2010; b) ‘Appliance’ means any Electrolux product purchased by you and accompanied by this document; c) ‘ASC’ means Electrolux’s authorised serviced centres; d) ‘AEG’ is the brand controlled by Electrolux Home Products Pty Ltd of 163 O’Riordan Street, Mascot NSW 2020, ABN 51 004 762 341 in respect of Appliances purchased in Australia and Electrolux (NZ) Limited (collectively “Electrolux”) of 3-5 Niall Burgess Road, Mount Wellington, in respect of Appliances purchased in New Zealand; e) ‘Warranty Period’ means the period speci󰘰ed in clause 3 of this warranty; f) ‘you’ means the purchaser of the Appliance not having purchased the Appliance for re-sale, and ‘your’ has a corresponding meaning.

2. Application: This warranty only applies to new Appliances, purchased

and used in Australia or New Zealand and is in addition to (and does not exclude, restrict, or modify in any way) other rights and remedies under a law to which the Appliances or services relate, including any non-excludable statutory guarantees in Australia and New Zealand.

3. Warranty Period: Subject to these terms and conditions, this

warranty continues for in Australia for a period of 60 months and in New Zealand for a period of 60 months, following the date of original purchase of the Appliance.

4. Repair or replace warranty: During the Warranty Period, Electrolux

or its ASC will, at no extra charge if your Appliance is readily accessible for service, without special equipment and subject to these terms and conditions, repair or replace any parts which it considers to be defective. Electrolux may, in its absolute discretion, choose whether the remedy o󰘯ered for a valid warranty claim is repair or replacement. Electrolux or its ASC may use refurbished parts to repair your Appliance. You agree that any replaced Appliances or parts become the property of Electrolux.

5. Travel and transportation costs: Subject to clause 7, Electrolux will

bear the reasonable cost of transportation, travel and delivery of the Appliance to and from Electrolux or its ASC. Travel and transportation will be arranged by Electrolux as part of any valid warranty claim.

6. Proof of purchase is required before you can make a claim under

7. Exclusions: You may not make a claim under this warranty unless

the defect claimed is due to faulty or defective parts or workmanship. This warranty does not cover: a) light globes, batteries, 󰘰lters or similar perishable parts; b) parts and Appliances not supplied by Electrolux; c) cosmetic damage which does not a󰘯ect the operation of the Appliance; d) damage to the Appliance caused by:

i. negligence or accident;

ii. misuse or abuse, including failure to properly maintain or

iii. improper, negligent or faulty servicing or repair works done

by anyone other than an Electrolux authorised repairer or ASC;

iv. normal wear and tear;

v. power surges, electrical storm damage or incorrect power

vii. incorrect, improper or inappropriate operation;

viii. insect or vermin infestation;

ix. failure to comply with any additional instructions supplied

with the Appliance; In addition, Electrolux is not liable under this warranty if: a) the Appliance has been, or Electrolux reasonably believes that the Appliance has been, used for purposes other than those for which the Appliance was intended, including where the Appliance has been used for any non-domestic purpose; b) the Appliance is modi󰘰ed without authority from Electrolux in writing; c) the Appliance’s serial number or warranty seal has been removed or defaced.

8. How to claim under this warranty: To enquire about claiming under

this warranty, please follow these steps: a) carefully check the operating instructions, user manual and the terms of this warranty; b) have the model and serial number of the Appliance available; c) have the proof of purchase (e.g. an invoice) available; d) telephone the numbers shown below.

9. Australia: For Appliances and services provided by Electrolux in

Australia: Electrolux goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the Appliance repaired or replaced if the Appliance fails to be of acceptable quality and the failure does not amount to a major failure. ‘Acceptable quality’ and ‘major failure’ have the same meaning as referred to in the ACL.

10. New Zealand: For Appliances and services provided by Electrolux in

New Zealand, the Appliances come with a guarantee by Electrolux pursuant to the provisions of the Consumer Guarantees Act, the Sale of Goods Act and the Fair Trading Act. Where the Appliance was purchased in New Zealand for commercial purposes the Consumer Guarantee Act does not apply.

11. Con󰄈dentiality: You accept that if you make a warranty claim,

Electrolux and its agents including ASC may exchange information in relation to you to enable Electrolux to meet its obligations under this warranty. AEG_Warr_May1715FRANÇAIS
