USER MANUAL DOC296 LIVOO

Thank you for choosing a Livoo product! Your blender, your plancha, and your headphones are not just objects, they are extensions of yourself, allowing you to get closer to your friends and family, to bring them together, to laugh and to share experiences. Livoo's aim is to help you live your life to the fullest, whatever wishes you have throughout the year. Winter raclette, summer plancha. Or the other way around. It's up to you. Take advantage of this freedom for feel good moments every day. That's why we're constantly innovating and creating clever products full of zest, but most of all, accessible. Find our entire collection on our website www.livoo.en. ENwww.livoo.fr Livoo, your daily companion till social networks

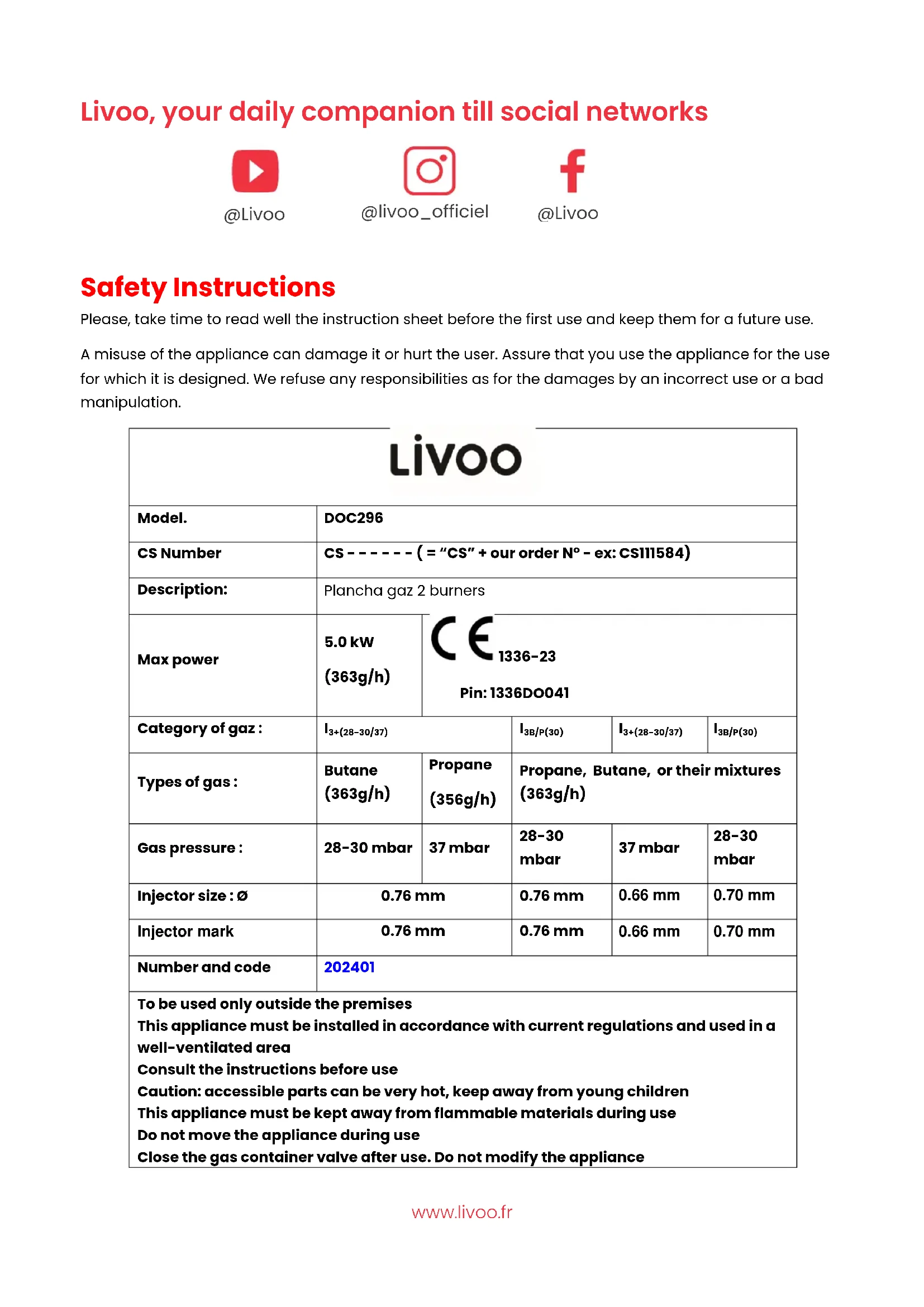

Safety Instructions Please, take time to read well the instruction sheet before the first use and keep them for a future use. A misuse of the appliance can damage it or hurt the user. Assure that you use the appliance for the use for which it is designed. We refuse any responsibilities as for the damages by an incorrect use or a bad manipulation.

To be used only outside the premises This appliance must be installed in accordance with current regulations and used in a well-ventilated area Consult the instructions before use Caution: accessible parts can be very hot, keep away from young children This appliance must be kept away from flammable materials during use Do not move the appliance during use Close the gas container valve after use. Do not modify the appliance @livoo_officiel @Livoo @Livoowww.livoo.fr

1. CAUTION: This appliance will become very hot.

Do not move it during use.

2. Do not move the unit while in use.

3. CAUTION: Do not leave the appliance within

the reach of children and pets.

4. Never leave the appliance unattended during

5. Do not allow children to use or play with the

6. Use the appliance only for its intended purpose.

7. WARNING! Do not use in closed or confined

spaces. Make sure it is placed in a well ventilated DESTINATION LAND

8. The appliance is intended for outdoor use only

and in accordance with local regulations.

9. Incorrect use or action and non-compliance with

the safety instructions in this manual can result in serious injury or death.

10. Incorrect use or action and failure to observe the

safety instructions in this manual may result in fire or explosion, causing serious material damage.

11. Carry out a leak test every year and whenever the

gas cylinder is changed or disconnected. Check that the gas hose connections are tight and in good condition.

12. The appliance must be installed on a flat, level,

stable and heat-resistant surface or floor before and during use.

13. Do not obstruct the ventilation openings of the

14. Do not use near flammable materials or

substances. Do not store unplugged gas cylinders or aerosol cans near this appliance. Do not use within 1.5 metres of combustible material.www.livoo.fr

15. No ignition products should be used with this

16. Do not lean over the appliance during lighting or

17. This appliance is for private use only. Do not use

at events or in public places.

18. Do not modify the appliance. This gas grill must

be assembled according to the assembly instructions provided. If the appliance has been assembled in a shop, make sure that the assembly has been carried out correctly and carry out a leak test before using the grill. Incorrect assembly of the appliance can be dangerous.

19. Do not use the plancha in strong winds.

20. Do not use the plancha if all parts are not in place.

Be sure to follow the assembly instructions to properly assemble this plancha. Incorrect assembly can be dangerous.

21. Use appropriate heat-resistant plancha utensils

to handle cooking food. Wear protective gloves when using the plancha to avoid burns. Some accessible parts can be very hot.www.livoo.fr

22. Do not cover the cooking grate with foil, dish or

container to avoid heat build-up. Do not cook in foil.

23. Allow the plancha, the ashes and its accessories

or parts to cool down completely before cleaning and storing it. It is recommended to empty the ashes 24 hours after using the plancha.

24. Always allow to cool before storing or cleaning.

25. Clean the appliance and its accessories after

each use to avoid the accumulation of grease (risk of fire).

26. Please store the appliance in a dry and sheltered

27. For details on how to clean food contact surfaces,

refer to the following paragraph of the manual.

28. If you detect a smell of gas:

- Turn off the gas supply to the appliance - Open the lid if the model has one - Extinguish any open flame - If the smell persists, stop using the appliance, move away from the appliance and contact your dealer or the fire brigade immediately. A gas leak may cause a fire or explosion whichwww.livoo.fr could result in serious injury or death or damage to property.

29. Always close the gas cylinder when you are not

30. Please purchase gas connection accessories

(hose, regulator and gasket) that comply with the national regulations in force in the country of destination. These components must be replaced periodically, according to the date indicated on the body of each of them, or according to the national regulations in force in the country of destination.

31. The gas supply pipe (not provided) must be

installed so that it does not come into contact with the hot surfaces of the grill during operation or during storage and travel.

32. Never attempt to disconnect the pressure

regulator or any gas connection while using the plancha.

33. Follow the instructions for connecting the

regulator for your gas plancha.

34. Inspect the gas supply hose before each use. If it

is excessively cracked, worn or cut, it must bewww.livoo.fr replaced with a pressure regulator and hose assembly specified by the manufacturer before using the grill hose with a replacement assembly specified by the manufacturer before using the grill.

35. Do not overtighten connections. Do not use Teflon

tape or sealing fluids on connections.

36. Warning. Never connect your appliance to

town gas (natural gas). The gas circuit is designed exclusively for butane/propane gas (G30/G31).

37. Ensure that the gas cylinder is placed outside the

appliance during use.

38. Gas cylinders must never be used or stored lying

39. After each use, ensure that all control levers are

in the off position and that the gas cylinder supply is closed.

40. The parts sealed by the manufacturer or his

agent shall not be manipulated by the user. Although this appliance has been manufactured to avoid sharp edges, care should be taken when handling all parts to avoid the risk of injury. Remove all protective packaging and keep it away from children. Read the safety instructions carefully before you start using your plancha.www.livoo.fr Refer to the parts list and assembly diagrams to assemble your plancha. Make sure that no parts or pieces are missing or damaged/broken, which could impair the proper functioning of the appliance. The guarantee for this appliance cannot be applied for abnormal conditions of use, incorrect storage conditions, lack of maintenance, modification of the product, use for professional purposes, etc. Ignition Make sure that the appliance is positioned on a stable, flat surface. Wear protective gloves and open the vents wide (if the model has them) so that the air can flow in and accelerate the combustion. CAUTION: This plancha will become very hot. Do not move it during use. This product is intended for use with bottled gas only. A regulator in accordance with EN :2013 of 28 mbar must be used for butane gas or 37 mbar for propane gas. Never use an adjustable regulator with the product. Make sure that the regulator is correctly set so that the supply pipe and valves are filled with gas. Otherwise, the burners will not have enough power and will not light or will cut out regularly. If you need to replace the gas cylinder, make sure that the appliance is switched off and that there is no source of ignition nearby (spark, cigarette, open flame, etc.). Make sure that the gas hose is not twisted, stretched, bent or kinked to allow free flow of gas.

• Use only spare parts supplied by your distributor. The failure to respect the modifications or the replacements of spare parts would pull the cancellation of the guarantee.

• Never connect your appliance directly on your gas cylinder; use a regulator and a NF typical pipe.

• Never cover the device before it is not completely cooled.

• Use no spray near your device.

• Use no product of ignition while you light the device. Assembly

THANKS TO CHECK JOINED ASSEMBLY DOCUMENT

Before use: Make sure the hose has no nicks, cracks or signs of heavy wear. Make sure that the expiry date is not exceeded. Perform a leak test at the beginning of each season and each bottle replacement to ensure the proper functioning of your device and its connections. NEVER USE AN OPEN FLAME TO DETECT GAS LEAKS. DO NOT LIGHT THE UNIT DURING THE TEST. Set all unit controls to off (OFF), Properly connect your gas cylinder, Open the gas cylinder valve. To detect a leak, apply a solution of equal parts liquid soap and water to all connections in the gas circuit (valves, hose, regulator and hex nut) with a brush. If bubbles form anywhere, it indicates a leak. Gas cylinder The appliance can be used with any gas cylinder of weights between 4.5KGS and 15KGS butane and 3.9KGS to 13KGS propane. The gas cylinder should not be dropped or handled roughly! If the appliance iswww.livoo.fr not in use, the cylinder must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance. The maximum weight of cylinder is 6.75KGS. Cylinders must be stored outdoors in an upright position and out of the reach of children. The cylinder must never be stored where temperatures can reach over 50C. Do not store the cylinder near flames, pilot lights or other sources of ignition. DO NOT SMOKE.The cylinder should be changed away from any source of ignition. The height of the gas cylinder is below the 80cm, and the width is within 35cm. Installation Connect the gas cylinder hose and regulator on the left side of the plancha. Keep in mind that the gas cylinder must be kept away from heat and must be positioned stably . The diameter of the pipe should be 10mm. The recommended length of the hose should not exceed 1.5 m. Please choose a flexible hose resistant to heat above 80 Connecting the gas cylinder to the appliance This appliance is only suitable for use with low-pressure butane, propane or their mixture gas and used with the appropriate low-pressure regulator via a flexible hose. The hose should be secured to the regulator and the appliance with hose clips. - Using 28mbar regulator with category I3+ for butane gas and a 37mbar regulator with category I3+ for propane gas; - Using a 30mbar regulator with category I3B/P (30); - Using a 37mbar regulator with category I3B/P (37); - Using a 50mbar regulator with category I3B/P (50); Use a suitable regulator certified to BSEN 16129:2013. Please consult your LPG dealer for information regarding a suitable regulator for the gas cylinder. How to disconnect a gas cylinder Close the gas cylinder valve. Wait until the burner is off. Replace the safety cap (if existing) on the empty bottle. To check for leaks Make 2-3 fluid ounces of leak detecting solution by mixing one part washing up liquid with 3 parts water. Ensure the control valve is “OFF”. Connect the regulator to the cylinder and connect regulator with hose and outdoor gas grill, ensure the connections are secure then turn ON the gas. Brush the soapy solution on to the hose and all joints. If bubbles appear you have a leak, which must be rectified before use.Turn off the gas supply in the event of gas leak. Retest after fixing the fault. Turn OFF the gas at the cylinder after testing. If detected leakage cannot be rectified, do not attempt to cure leakage but consult your gas dealer. Regulator and hose Use only regulators and hose approved for LPG at the above pressures (See Page 6). The life expectancy of the regulator is estimated as 10 years. It is recommended that the regulator is changed within 10 years of the date of manufacture. The use of the wrong regulator or hose is unsafe; always check that you have the correct items before operating the plancha. The hose used must conform to the relevant standard for the country of use. The length of the hose must be 1.5 meters (maximum). Worn or damaged hose must be replaced. Ensure that the hose is not obstructed, kinked, or in contact with any part of the plancha other than at its connection. Change the hose when the national conditions require it and/or depending on it validity. The hose should not be twisted or kinked when attached to the regulator and outdoor gas grill. No part of the hose should touch any part of the appliance. So site the cylinder out to the left hand side of the appliance at the maximum distant permitted by the hose length.www.livoo.fr Use of the device Tips Never grill your food in flames. Flames can be caused by residues of grease and dripping juice on the burners. To mimic flames, clean the burners regularly, out of use and when the appliance is fully cooled. The burners should ALWAYS be in the low position during cooking. Protect your hands when cooking with protective gloves. Do not use the appliance in strong winds. Do not use charcoal or lava stone. Follow these instructions correctly to avoid serious injury or property damage and to preserve the device. Carefully follow the assembly instructions of the device. Connect the gas pipe to the plancha. Connect the regulator to the pipe. Connect the regulator to the gas cylinder valve following the instructions provided with the regulator. Turn all control knobs to the off position before opening the gas supply. Lighting instructions: main burners Connect the gas cylinder to the plancha following the instructions supplied with the regulator.

1. Turn all the control knobs to the ‘OFF’ position.

2. Turn ‘ON’ the gas supply at the cylinder or regulator switch following the regulator connection and

operating instructions.

3. Push down and turn on the burner, at the same time, press on the red button of ignition, an audible

click will be heard and then the burners will be light.

4. If the burner has not lit after two attempts, turn ‘OFF’ the gas tap and wait 5 minutes before retrying

the ignition sequence. If the problem persists after turning the appliance back on, ask your gas supplier, dealer, or gas technician for help. Never try to repair the problem yourself, it could lead to serious bodily and/or material damage.

5. If the burner does not stay lit, repeat step 4.

6. When the burner has lit, the burner rate can be adjusted by turning the knob anticlockwise to any

position between the full and low rate positions.

7. To switch off the plancha, cut the gas inlet by turning the button of the valve or the regulator in

position "Stop", by following the instructions supplied with the regulator. Turn the buttons of all the burners in the directions of watch hands, in position "Stop" switched off,(faded), when flames are switched off. Cleaning and maintenance Rust spots may appear on the product due to the metallic particles contained in the stainless steel used in the manufacture of this product. We recommend that you brush them off quickly to limit their spread. After each firing, wait for the product to cool down completely. Empty the grease trap and clean your appliance and utensils after each use to avoid a highly flammable and toxic grease deposit on the cooking surfaces. Do not use sharp objects or abrasive cleaners on the cooking surface. It is preferable to use a heavy- duty degreaser. Do not leave standing water in the appliance; this can lead to rust and rapid deterioration of the materials. Protect your appliance with a cover if you leave it outside in fine weather. Protect from rain and moisture during extended periods of non-use.www.livoo.fr Cleaning “Burning off” the plancha after every use (for approx 15 minutes) will keep excessive food residue to a minimum. Outside surface Use mild detergent or baking soda and hot water solution. Non-abrasive scouring powder can be used on stubborn stains, then rinse with water. If the inside surface of the plancha lid has the appearance of pealing paint, baked on grease build up has turned to carbon and is flaking off. Clean thoroughly with strong hot soapy water solution. Rinse with water and allow to completely dry. Never use oven cleaner. Interior of plancha bottom Remove residue using brush, scraper and/or cleaning pad then wash with a soapy water solution. Rinse with water and allow dry it. Cooking plate Use a mild soapy water solution. Non-abrasive scouring powder can be used on stubborn stains then rinse with water. Grease tray Please do not open the grease tray during use. When clean the grease tray, take it away. Please check it on time and take away the oil when 1/3 full. Cleaning the burner assembly Turn the gas OFF at the control knob and disconnect the cylinder. Remove cooling grate. Clean the burner with a soft brush or blow clean with compressed air and wipe with a cloth. Clean any clogged ports with a pipe cleaner or stiff wire (such as an opened paper clip). Inspect burner for any damage (cracks or holes). If damage is found, replace with a new burner. Reinstall the burner, check to ensure that the Gas valve orifices are correctly positioned and secured inside the burner inlet (venturi). In some cases your plancha will light back because of an insect crawling inside the burner venturi or a spider spinning its web inside the burner. This can be rectified by using a bottle brush inserted through the burner venturi and pushing it into the burner over the burner length. If condition persists consult your gas dealer.

UE DECLARATION OF CONFORMITY

DELTA BP61071 67452 Mundolsheim – France Declare under our own responsibility that the article : - Description : 2 burners gas plancha - Reference : DOC296 to which this declaration applies, is in conformity with the applicable EU harmonization legislation : DIRECTIVES NORMES ou Exigences 2016/426 (appareils brûlant des combustibles gazeux) EN498 2012 Mundolsheim Le 31/10/2023 David Bousquet, CEO Signature:www.livoo.fr Correct disposal of the unit (Electrical and Electronic Equipment). (Applicable in the European Union and the rest of Europe that have adopted separate collection systems countries). The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal household waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment. The symbol of the crossed out dustbin is marked on all products to remind the obligations of separate collection. Consumers should contact their local authority or retailer for information concerning the correct disposal of their product.

• Non contractual illustration

• Product information is subject to change without prior notice.
