LE2462CA - TV Engel - Free user manual and instructions

Product type	LED Television
Brand	Engel
Model	LE2462CA
Screen size	24 inches (61 cm)
Screen resolution	1366 x 768 pixels (HD)
Power consumption	36 W
Power supply	110-240 V, 50/60 Hz
Connectors	1 x HDMI, 1 x USB, 1 x RCA (AV), 1 x Coaxial (SPDIF), 1 x CI, 1 x Antenna (75 Ω), 1 x Headphones
Main functions	DVB-T2 reception, Dolby Audio, PVR (USB recording), Timeshift, Multimedia (photo, music, video, text), Parental control, Hotel mode, HDMI CEC
Reception	Analog (PAL/SECAM) and digital (DVB-T/T2) via antenna
Audio system	Dolby Audio, built-in speakers
Wall mounting	VESA compatible (M4 screws)
Included accessories	Remote control, power cable, user manual, table stand (not included for wall mounting), AAA batteries not included
Maintenance and cleaning	Clean with a soft dry cloth. Do not use liquid or abrasive products.
Safety	Double insulation (class II), surge protection, automatic shutdown in standby, child lock, earthing not required
Operating temperature	0 °C to 45 °C
Maximum altitude	2000 m
Spare parts available	Remote control, power cable, optional wall mount
Repairability	Entrust to a qualified technician. Do not open the TV yourself.

Frequently Asked Questions - LE2462CA Engel

What should I do if the TV does not turn on?

Check that the power cord is properly plugged in. If the red LED (standby) is off, unplug the power, wait 60 seconds, then plug it back in. If the problem persists, contact after-sales service.

How to install the table stand?

Place a soft cloth on a stable surface, lay the TV face down on the cloth. Align the base with the screw holes on the back of the TV and tighten the provided screws. For some models, simply snap the stand into the slot.

How to auto-tune channels?

Press MENU, select CHANNEL, then Auto tuning. The TV will search for analog (ATV) and digital (DTV) channels. You can skip a step by pressing MENU and left arrow.

Why is there no sound?

Check that the volume is not at 0 or muted. Press MUTE to reactivate. Make sure the Sound mode is not set to 'Off' in the menu. Try increasing the volume with the remote control.

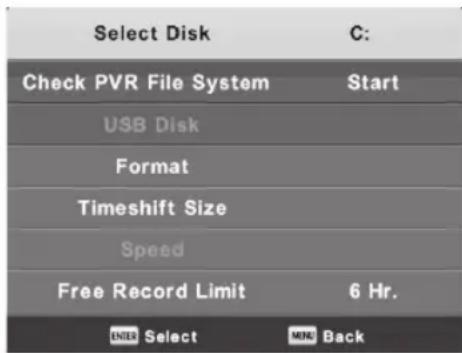

How to record a program using the PVR function?

Plug a USB drive into the USB port. During digital TV (DTV) broadcast, press REC on the remote. To schedule a recording, use the EPG GUIDE (GUIDE button) and select the desired event.

The remote control does not work, what should I do?

Check the batteries: remove the cover, check their orientation (+/-) and replace if necessary. Point the remote directly at the TV's infrared sensor (within 8 meters). Remove any objects blocking the sensor.

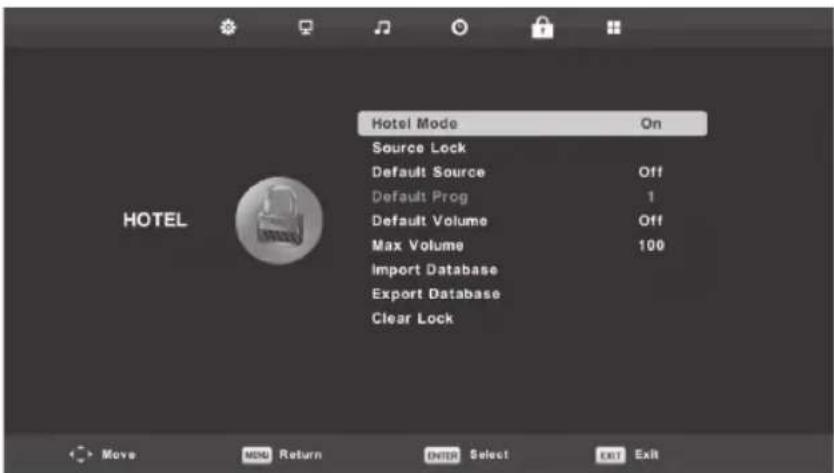

How to use Hotel mode?

Go to MENU → LOCK → Hotel Mode. Turn it ON. You can then set a maximum volume, default source, and lock certain sources. The default password is 0000 or 8888.

How to connect headphones?

Insert the headphone plug into the EARPHONE jack on the back of the TV. The internal speakers will be automatically disabled. You can adjust the volume separately via the remote.

What if the picture is distorted or flickers?

Check the antenna or HDMI cable connection. Try adjusting the Noise Reduction in the IMAGE menu (OFF/LOW/MEDIUM/HIGH). For PC mode, adjust the resolution in the computer settings (recommended: 1366x768).

How to update the TV software?

Download the update file from the manufacturer's website to a USB drive. Plug the USB drive into the USB port. Go to MENU → SETUP → Software update (USB) and follow the instructions. Do not unplug the power during the update.

USER MANUAL LE2462CA Engel

Installed and Connected TV

TV Bracket Assemble 108
TV Buttons and Terminal Interface 109
- External Device Connection Diagram 110
Install and Connect TV 111
TV Stand Installation Instructions 111

TV Menu

• First Time Installation 112
  · Channel Menu 113
• Picture Menu 118
  Sound Menu 120
  Time Menu 121
• Lock Menu 123
  Hotel Mode 124
• Setup Menu 125

PC Menu

• Screen Menu 128

Media Menu

Media Operation 129
- Photo Menu 130
Music Menu 131
- Movie Menu 132
- Text Menu 133

Other Information

• Help 134
• Specifications 135
  Remote Controller 136

This user manual for reference only.

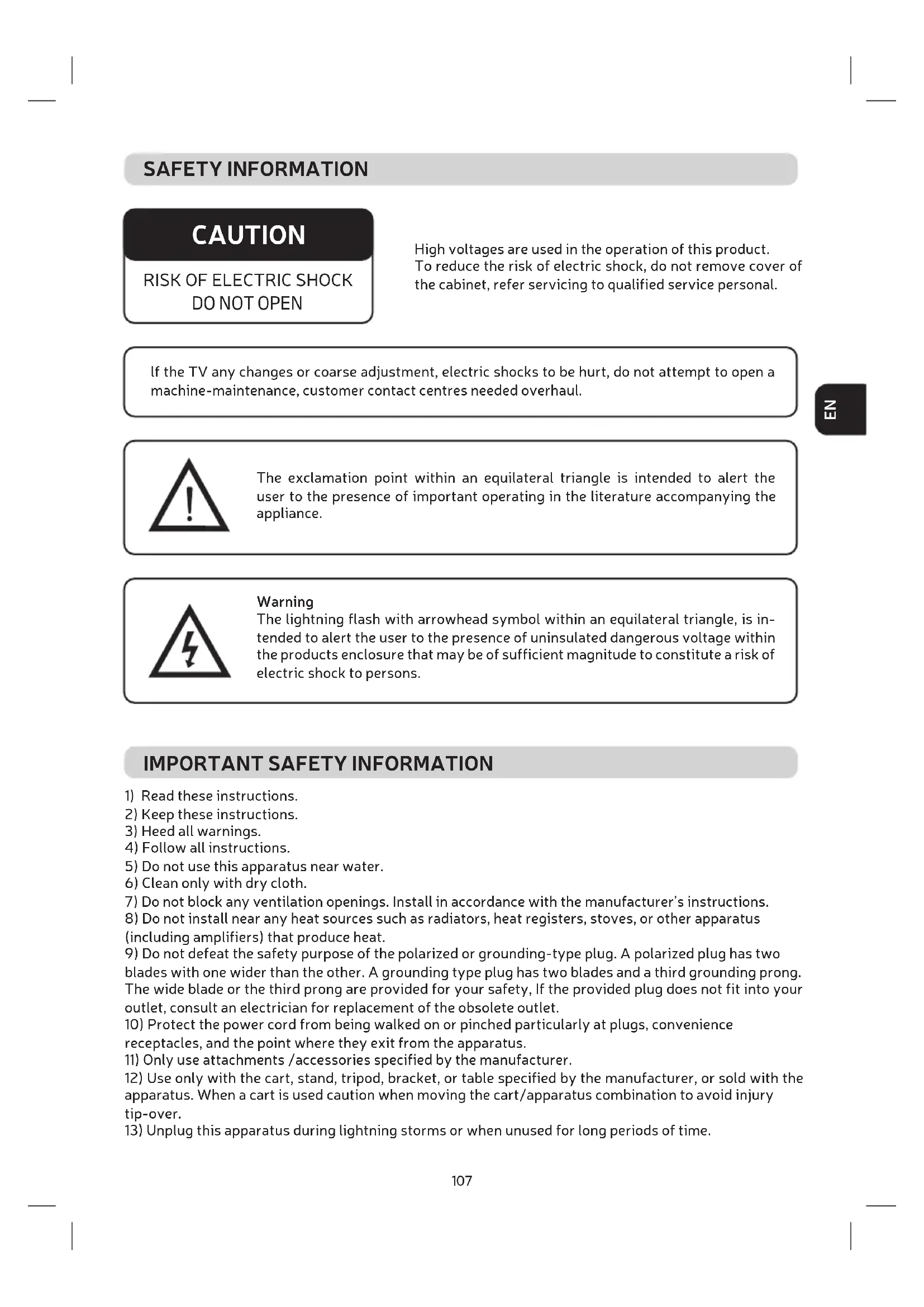

SAFETY INFORMATION

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. To reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal.

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning

The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

IMPORTANT SAFETY INFORMATION

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments /accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.

IMPORTANT SAFETY INFORMATION

Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21) Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remate control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth.

25) The maximum using environment temperature is 45 degrees.

The Maximum using altitude is 2000 meters.

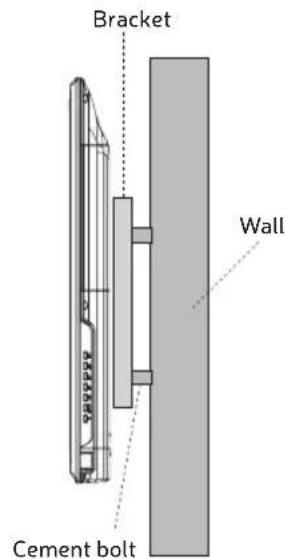

TV BRACKET ASSEMBLE

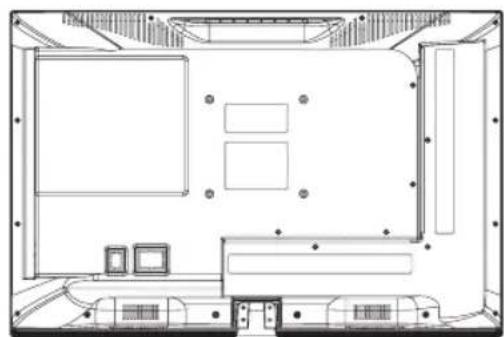

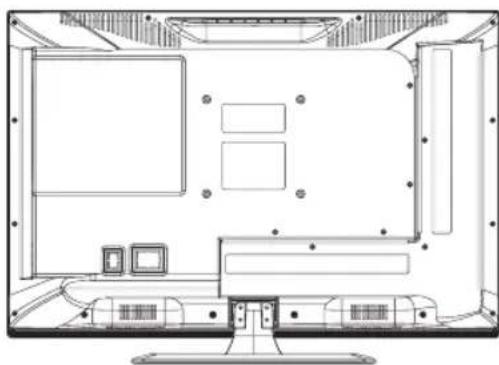

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.
2. Use the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the proto 1). And take off the bottom stand (please take off the screws and bottom stand carefully).
3. Make one bracket which can fix on the wall according to the size of arrow direction of photo 2 and photo3.

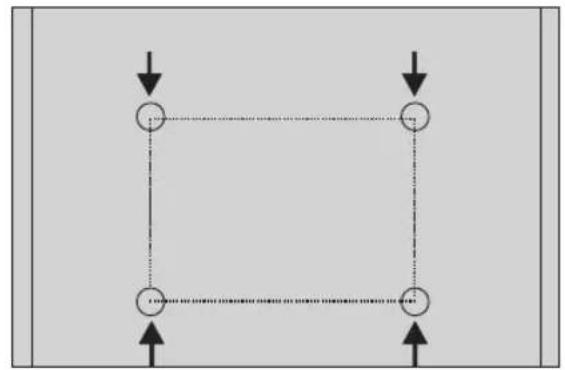

4. Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts)
5. According to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

TV BRACKET ASSEMBLE

Note:

1. The bracket fixed on the wall is optional part.
2. When you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only tor reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

TV BUTTONS AND TERMINAL INTERFACE

TV Buttons

Note: The key instructions are subject to below.

目

Display \ Hide key icon : When there is no button icon popping up, press the key, the key icon will pop up like the picture shows above, the key icon will automatically turn off after 5 seconds of inactivity.

Icon selection : Short press the button, move the loop to the right, select the icon.

Icon function selection : Long press the key to achieve the function of the selected icon. Icon Description :

:Power off Icon : Corresponding to the "POWER" button of remote .

: Menu Icon : Corresponding to the "MENU" button of remote.

: Source Icon : Corresponding to the "SOURCE" button of remote.

:CH+Icon:Corresponding to the“CH+"button of remote.

:CH- Icon : Corresponding to the "CH-" button of remote.

:Volume+Icon:Corresponding to the“VOL ^+ ”button of remote.

:Volume-Icon:Corresponding to the“VOL-”button of remote.

TV BUTTONS AND TERMINAL INTERFACE

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

INPUT VIDEO L R C	AV input External AV Signal Input and Relevant Right/Left Sound Channel	EARPHONE	EARPHONE output When earphones are plugged in, speakers are disabled
CI	CI SLOT The card reader input CI (comon interface) this requires CAM (conditional access module) used for pay TV	USB	USB input Connect a USB device here to play its media files or to record programs via the PVR function.
ANT 75Ω	ANT75 Connect the antennal/ cable tv input (75VHF/ UHF)	COAXIAL	COAXIAL Connect the SPDIF receiver.
HDMI	HDMI input Digital signal input from HDMI video connector.

*Do not touch or be close to the HDMI, USB terminals, and prevent electrostatic discharge to disturb these terminals while in USB operation mode, or it will cause the TV to stop working or abnormal status.

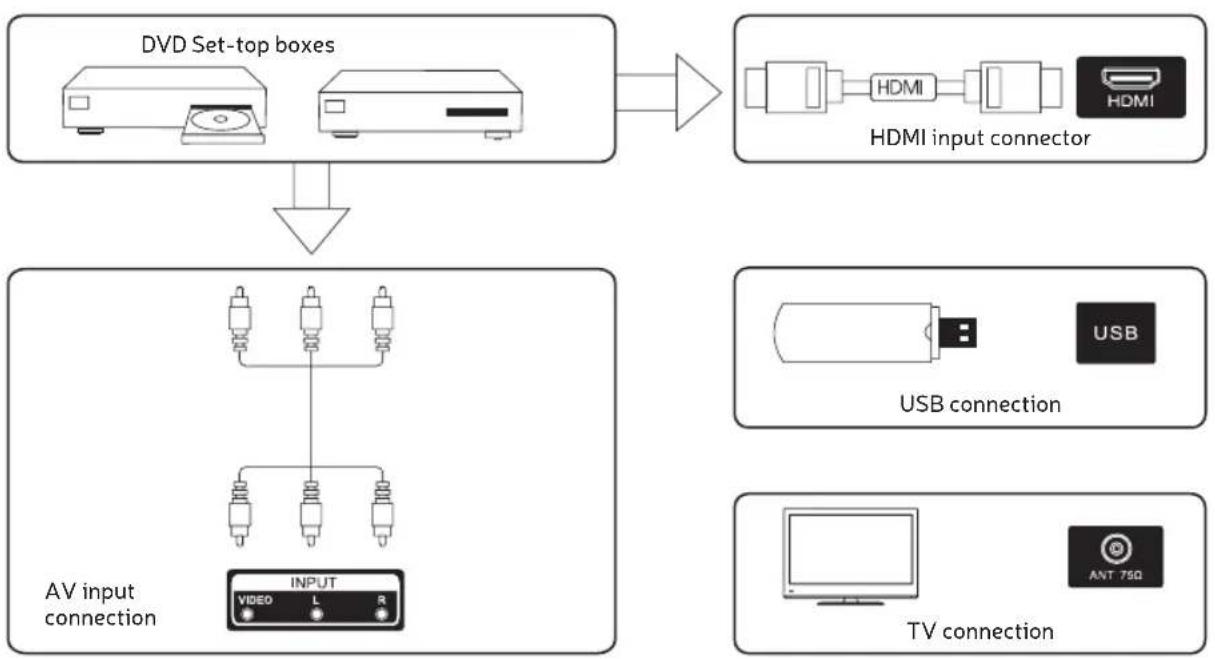

EXTERNAL DEVICE CONNECTION DIAGRAM

INSTALL AND CONNECT TV

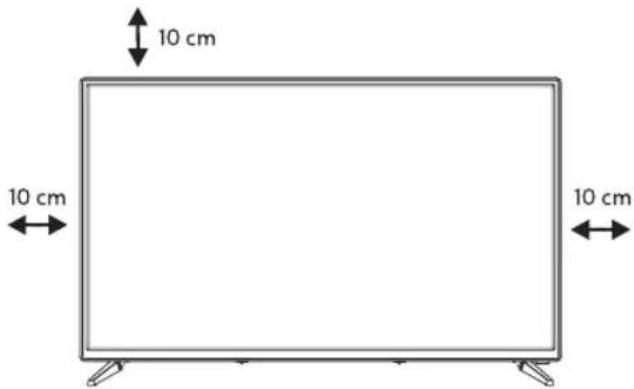

Set your TV

To put your TV in a firm place which can bear the weight of the TV.

To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

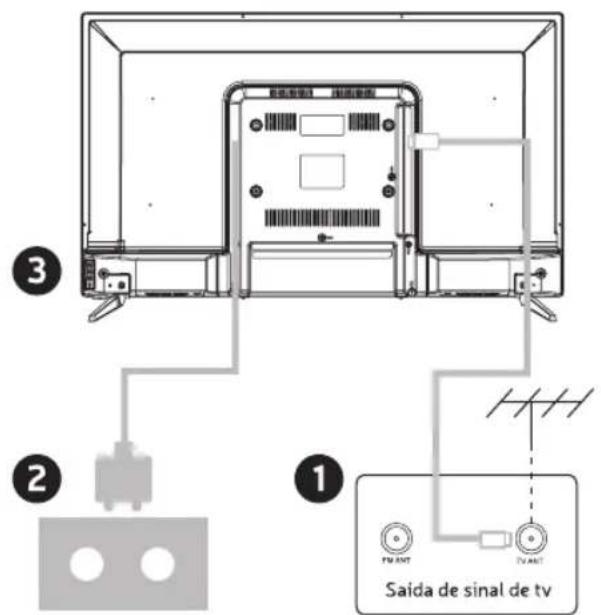

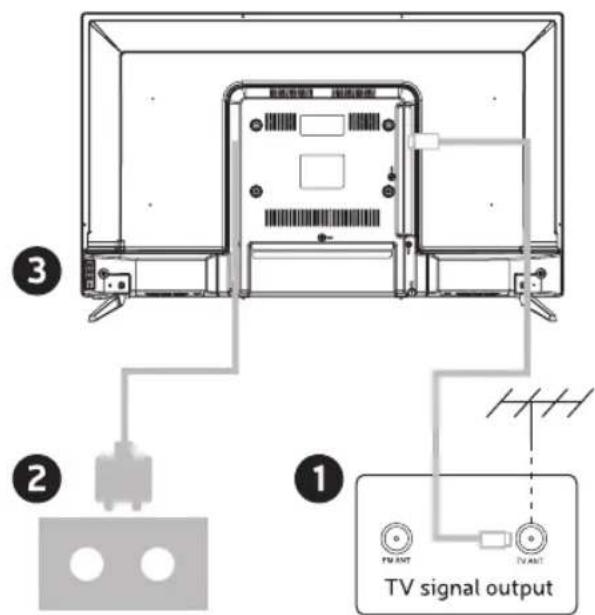

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV.

Turn on TV

1. Connect the power supply, enter the standby mode (red light), press the power button of the TV or the power button on the remote control to turn on the TV.

Note: If the model has a CI card slot on its top, a silicone plug for the CI card slot can be found in the accessory bag (for models without CI card slot, there is no such silicone plug), please insert the silicone plug into the slot when the CI card is not in use.

Note: Picture for reference purposes only.

TV STAND INSTALLATION INSTRUCTIONS

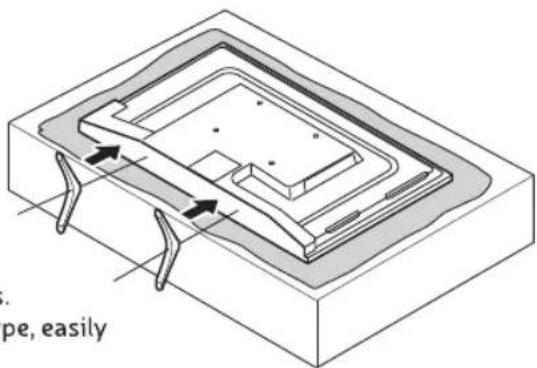

Stand Installation Guide

The TV is packaged with the TV stand separated from the cabinet. To setup the TV table stand, please carry out the installation according to the instructions below.

1. The panel can be scratched easily, so please:

Place a soft cloth on the table and place the TV face down on the cloth. Note: Always unplug the AC cord first when installing / removing the stand.

1. Take the base. Please align the screw holes of the base and the TV, and then insert the screws into the holes on the base and tighten them.

Note: To ensure that the TV is stable, please lock all screws.

The stand of some TV models are designed with snap-in type, easily installed by snapping into stand groove, instead of screw.

TV STAND INSTALLATION INSTRUCTIONS

Please take note of the base direction:

The bottom view of the TV (Front cabinet faces down)

(The illustration is for reference only, please prevail in kind)

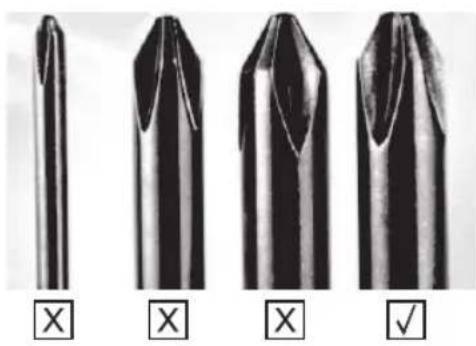

Suggestion:

To make it more convenient for base installation and to avoid any risk of scratches and damage, we advise you using the type of PH2 screwdriver.

FIRST TIME INSTALLATION

Connect an RF cable from the TV's input called "RF-IN" and to your TV Aerial socket.

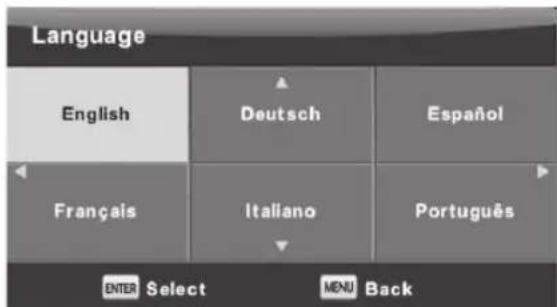

Select Language

Press button to select the language to be used for menus and message.

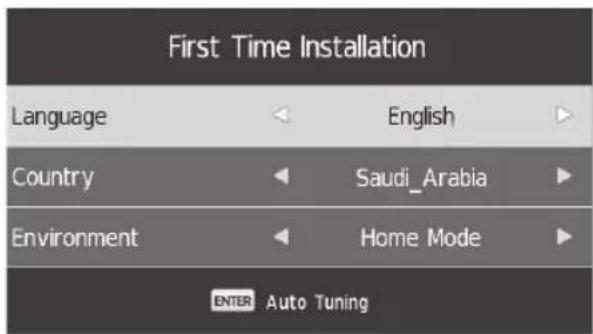

Select Country

Press button to highlight country menu.

Press button to select the country you want to.

FIRST TIME INSTALLATION

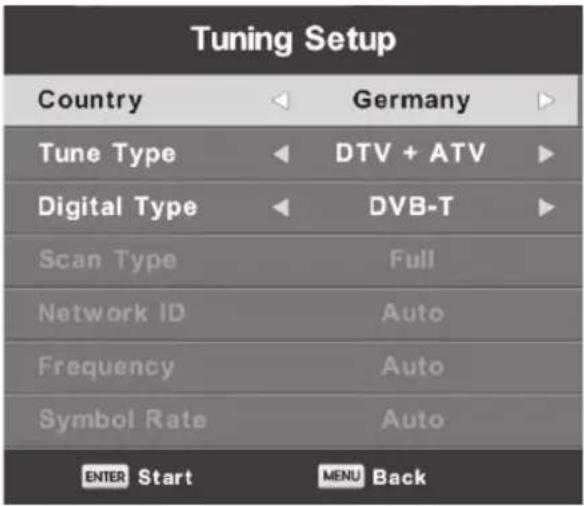

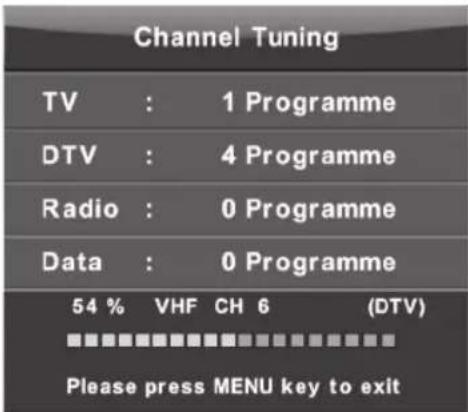

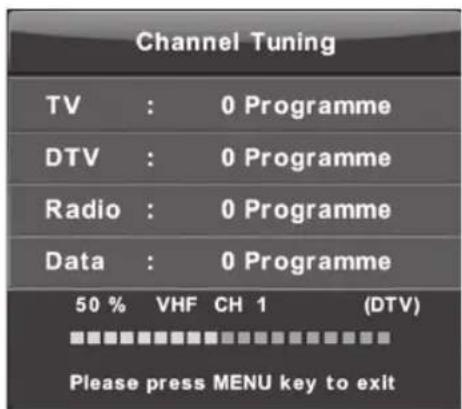

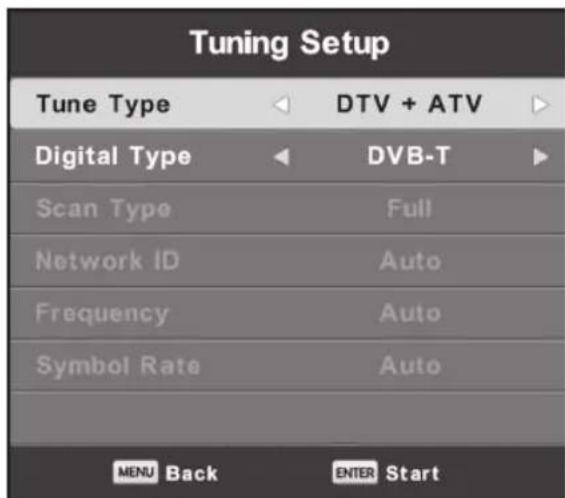

Auto Tuning

First tuning ATV, press Menu and left arrow button to skip ATV tuning.

Second tuning DTV, press Menu and left arrow button to skip DTV tuning.

MAIN MENU OPERATION

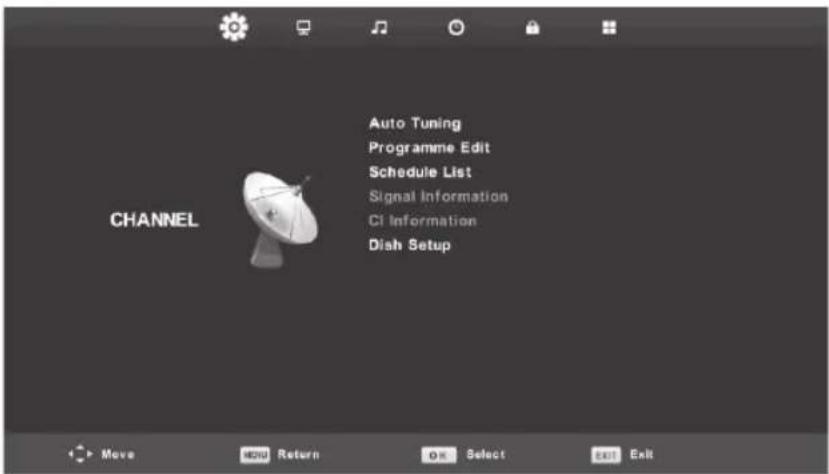

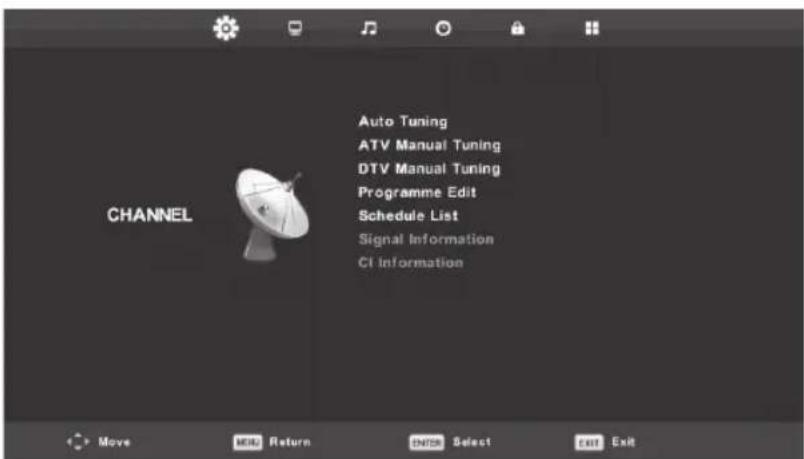

Channel Menu

Press MENU button to display the main menu.

Press button to select CHANNEL in the main menu.

MAIN MENU OPERATION

1. Press button to select the option that you want to adjust in the CHANNEL menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, press Enter button to save and return to the previous menu.

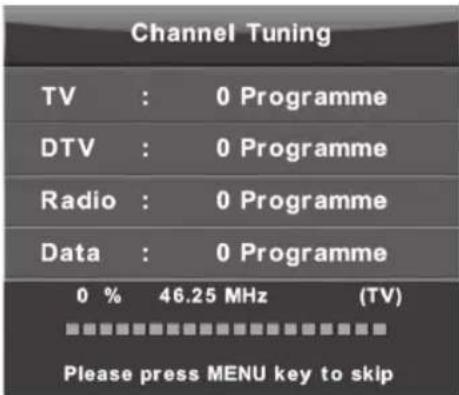

Auto Tuning

Press / button to select Auto Tuning, then press Enter/ button to enter.

MAIN MENU OPERATION

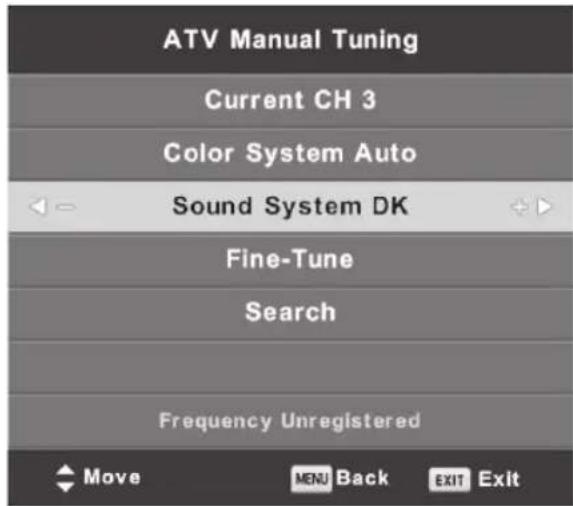

ATV Manual Tuning

Current CH

Set the channel number.

Color System

Select the color system

(Available System: AUTO, PAL, SECAM)

Sound System

Select the Sound system

Fine-Tune

Adjust the frequency of the channel finely.

Search

Start searching channel.

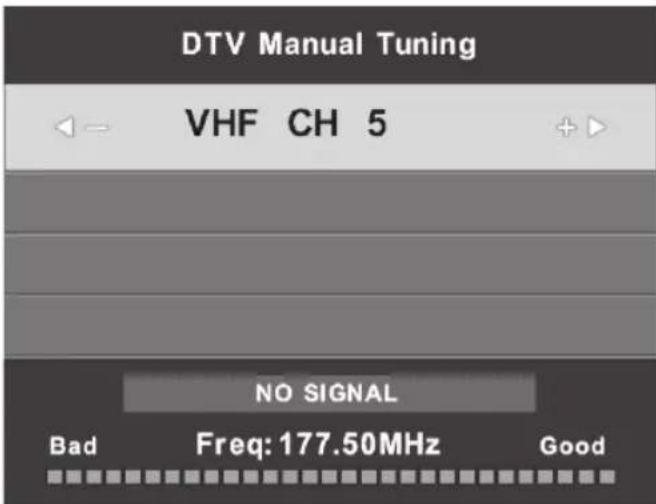

DTV Manual Tuning

Press / button to select DTV Manual Tuning, then press Enter button to enter sub-menu.

Press / button to select channel, then press Enter button to search program.

Program Edit

Press / button to select Program Edit, then press Enter button to enter sub-menu.

The three colored key is the shortcut key for programming the channel.

First press / o highlight the channel you want to select, then:

Press the Red button to delete the program in the list.

Press the Yellow button to move the channel in the list.

Press the Blue button to skip the selected channel.

Press Fav button to add or remove the channel to your favorite list.

(Your TV set will skip the channel automatically when using CH + / - to view the channels.)

MAIN MENU OPERATION

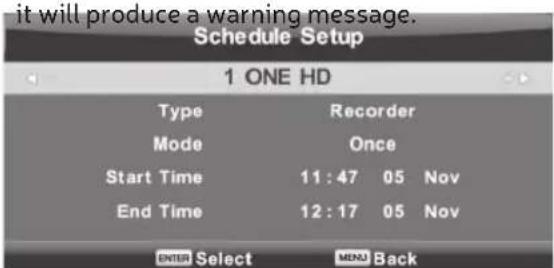

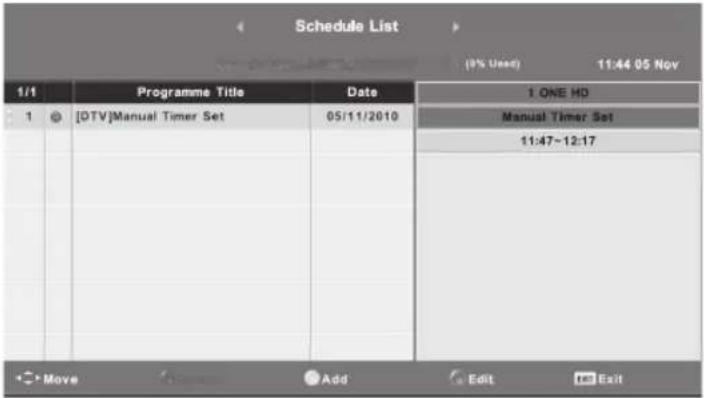

Schedule List

Press / button to select Schedule List, then press Enter button to enter sub-menu. It is available in DTV and satellite source.

Press the YELLOW button to enter the interface below. it will produce a warning message.

When the time appointment is conflict,

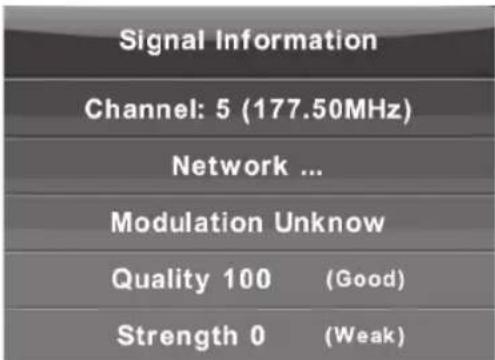

Signal Information

Press / button to select Signal Information, press the Enter button to see the detail information about the signal. Only available when there is signal in DTV.

CI Information (Need to support the CI function)

Press / button to select CI Information, then press the Enter button to display detail if you has inserted the CI card

MAIN MENU OPERATION

The CHANNEL List in Satellite Source. (Need to support the DVB-S2 function)

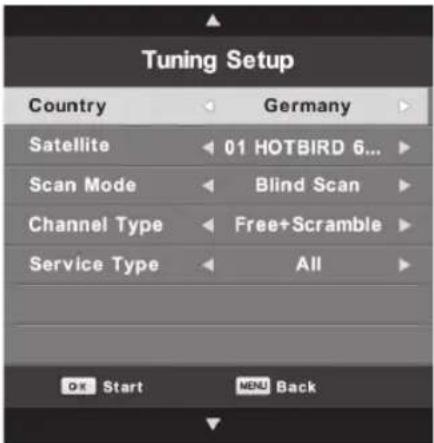

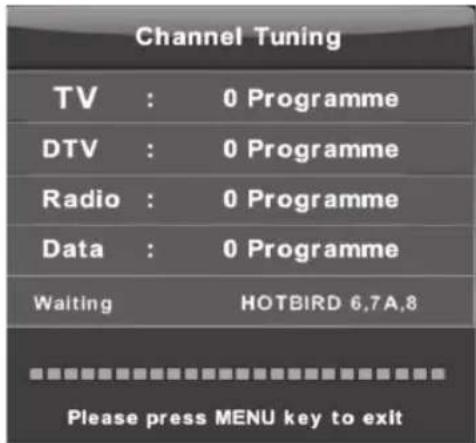

Auto Tuning

Press / button to select Auto Tuning, then press Enter/ button to enter.

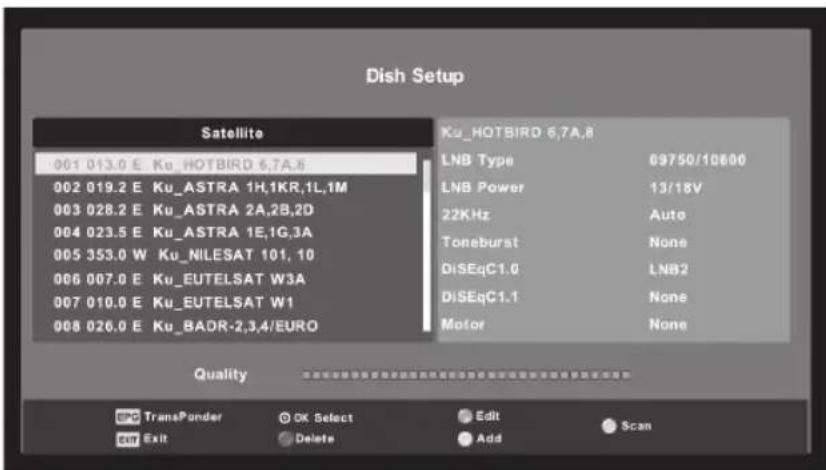

Dish Setup

Press / button to select Dish Setup, then press Enter/ button to enter.

MAIN MENU OPERATION

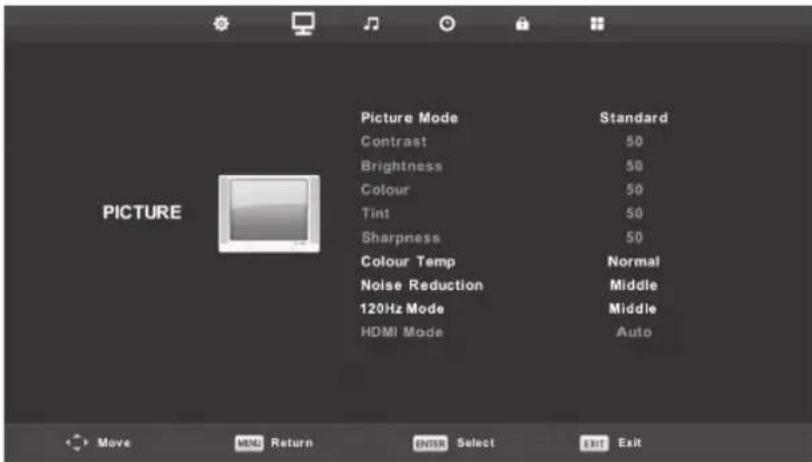

Picture Menu

Press MENU button to display the main menu.

Press / button to select PICTURE in the main menu.

Note: 120Hz MODE Function only supported with UHD TV

1. Press / button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

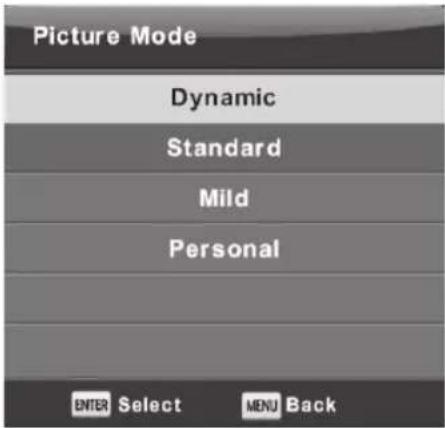

Picture Mode

Press button to select Picture Mode, then press OK button to enter sub-menu.

You can change the value of contrast, brightness, color, sharpness and tint when the picture is in Personal mode.

TIPS: You can press PMODE button to change the Picture Mode directly.

Contrast/ Brightness/ Color/ Tint / Sharpness

Press button to select option, then press Enter/ button to adjust.

Contrast: Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness: Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Color: Adjust the saturation of the color based on your own like.

Tint: Use in compensating color changed with the transmission in the NTSC code.

Sharpness: Adjust the peaking in the detail of the picture.

MAIN MENU OPERATION

Color Temp

Change the overall color cast of the picture.

Press / button to select Color Temperature, then press OK button to enter sub-menu.

Press button to select. (Available Picture mode: Cool, Medium, Warm).

Cold Increase the blue tone for the white.

Normal Average level of colors for the white.

Warm Increase the red color for the white.

Noise Reduction

To filter out and reduces the image noise and improve picture quality. Press / button to select Noise Reduction, then press OK button to enter sub-menu.

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Default Set as Default.

120Hz MODE(Only with UHD TV)

Adjust the motion compensation.

Higher setting may improve the motion performance when watching sports or playing games.

Press / button to select(Off/Low/Middle/High)

HDMI Mode

Press / button to select HDMI Mode, then press OK button to enter sub-menu.

Press / button to select.

(Available Picture mode: Auto, Video, PC).

MAIN MENU OPERATION

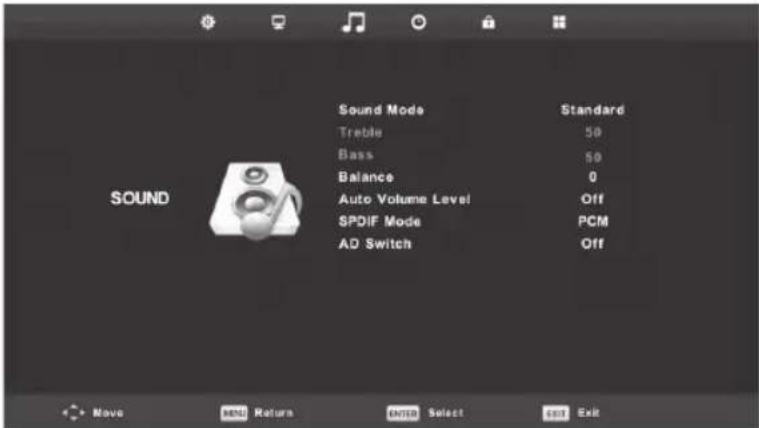

Sound Menu

Press MENU button to display the main menu.

Press / button to select SOUND in the main menu.

1. Press button to select the option that you want to adjust in the SOUND menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, press Enter button to save and return to the previous menu.

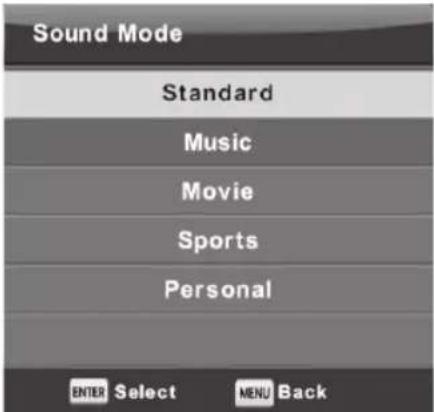

Sound Mode

Press / button to select Sound Mode, then press Enter button to enter sub-menu. Press / button to select.

You can change the value of Treble and Bass when the sound is in Personal mode.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Standard Produces a balanced sound in all environments.

Music Preserves the original sound. Good for musical programs.

Movie Enhances treble and bass for a rich sound experience.

Sports Enhances vocals for sports.

Personal Select to customize picture settings.

Note: The treble and bass are only available in personal mode, you can adjust them as you like.

MAIN MENU OPERATION

Balance

Press button to select option, Press / button to adjust.

Auto Volume level

Press button to select Auto Volume Level, then press / button to select On or Off.

SPDIF Mode

Press button to select SPDIF Mode, then press / button to select Off / PCM / Auto.

AD Switch

Press / button to select AD Switch, then press / button to select On or Off. Amblyopia function for the blind, the tracks will be mixed describe the current screen. It need codestream to support.

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best at your position. Auto Volume: This item is used for reducing the difference between channel and program's volume automatically.

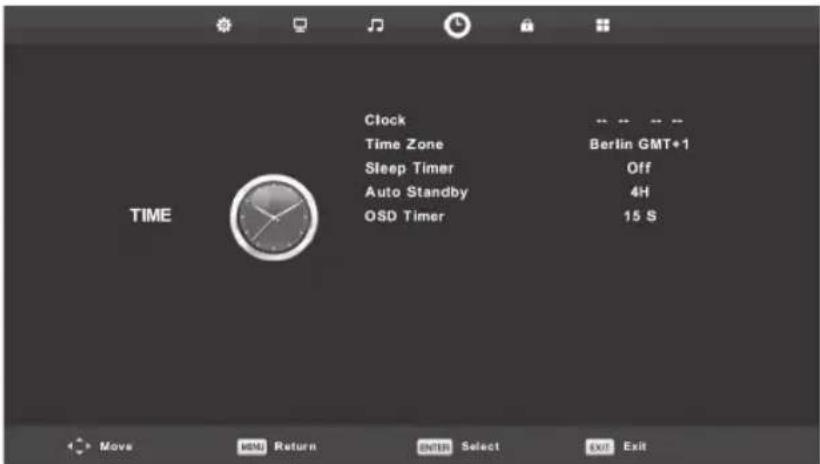

Time Menu

Press MENU button to display the main menu.

Press / button to select TIME in the main menu.

1. Press / button to select the option that you want to adjust in the TIME menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, press Enter button to save and return to the previous menu.

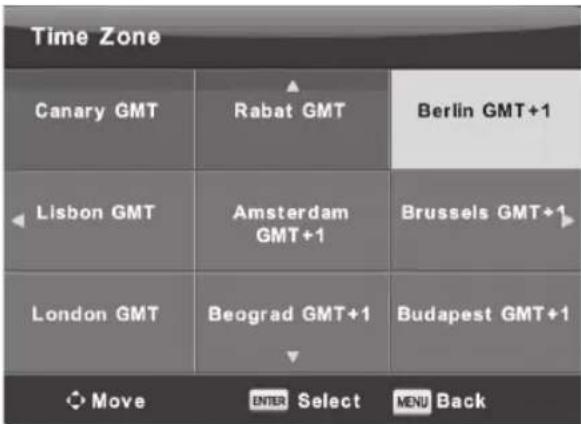

Time Zone

Press button to select Time Zone, then press Enter button to enter sub-menu.

Press / button to select time zone.

MAIN MENU OPERATION

Sleep Timer

Press / button to select Sleep Timer, then press Enter button to enter sub-menu.

Press / button to select.

Tips: The remote control does not make any operation in the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.

OSD Timer

Press / button to select OSD Timer, then press Enter button to enter sub-menu.

Press button to select.

MAIN MENU OPERATION

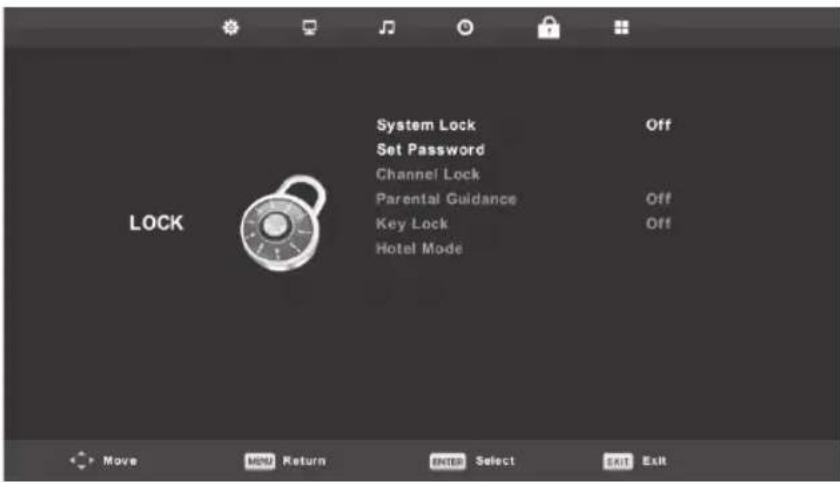

Lock Menu

Press MENU button to display the main menu.

Press / button to select Lock in the main menu.

1. Press button to select the option that you want to adjust in the LOCK SYSTEM menu.
2. Press Enter/ button to adjust.
3. After finishing your adjustment, press MENU button to return back to the previous menu

Lock System

Press / button to select System Lock, then press Enter button to make the following 3 options valid.

Default password is 0000/8888, and if forget what you set, please call the service center.

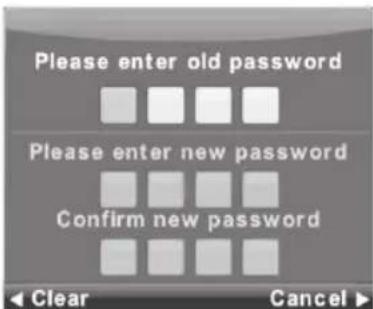

Set Password

Press / button to select Set Password, then press Enter button to enter sub-menu to set new password.

MAIN MENU OPERATION

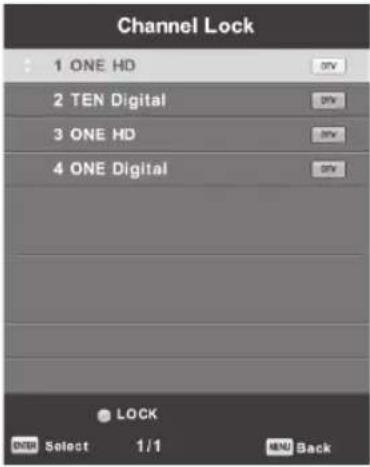

Channel Lock

Press A button to select Channel Lock then press Enter button to enter sub-menu to select. Press Green button to lock or unlock the channel.

Parental Guidance

Press / button to select Parental Guidance, then press Enter button to enter sub-menu to select the number of age which is suitable for your children.

Key Lock

Press button to select Key Lock, then press / button to select OFF or ON.

When Key Lock's statue is on, you can't use the Key panel button.

Hotel Mode (need support the Hotel Mode)

MAIN MENU OPERATION

1. Press button on the remote control to select hotel mode in the Lock menu.
2. Press Enter button on the remote control to enter the sub-menu.
3. After finishing your adjustment, press MENU button to save and return back to the previous menu.

Hotel Mode

Press / button to select Hotel Mode, then press button to select on or off.

Source Lock

Press / button to select Source Locke, then press Enter button to enter sub-menu to select.

Default Source

Press / button to select Default Source, then press Enter button to enter sub-menu to select.

Default Prog

Press / button to select Default Prog, then press / button to adjust. It is available when the default source is TV.

Max Volume

Press button to select Max Volume, then press button to adjust.

Clear Lock

Press / to select Clear Lock, then press Enter button to clear the setting you have done before.

Setup Menu

Press MENU button to display the main menu.

Press / button to select SETUP in the main menu.

1. Press button to select the option that you want to adjust in the SETUP menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, press Enter button to save and return to the previous menu.

MAIN MENU OPERATION

OSD Language

Select an OSD menu language can be displayed. Default English is selected as menu language. Press / button to select Menu Language.

TT Language

Press / button to select TT Language, then press Enter button to enter sub-menu. Press / button to select TT language.

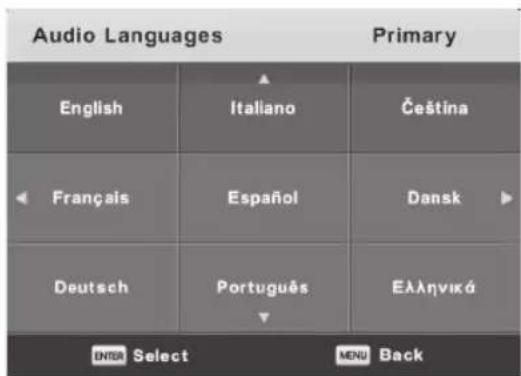

Audio Languages

Press button to select Audio Languages, then press Enter button to enter sub-menu. Press /to select the primary of Audio Languages. Press /to select the Audio Languages.

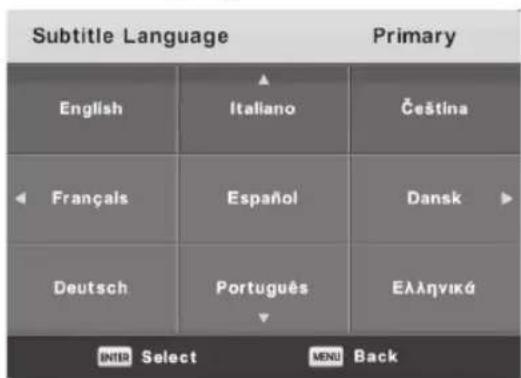

Subtitle Language

Press button to select Subtitle Language, then press Enter button to enter sub-menu. Press /to select the primary of Subtitle Language. Press / /to select the Subtitle Language.

MAIN MENU OPERATION

Hearing Impaired

Press A button to select Hearing Impaired, then press Enter button to select On or Off.

PVR File System

Press / to select PVR File System, then press Enter button to enter sub-menu. Press / button to select Check PVR File System, then press Enter button to enter. Then it will check the USB speed.

Aspect Ratio

Press / button to select Aspect Ratio, then press Enter button to enter sub-menu.

Press / button to select aspect ratio. (Available options are: Auto, 4:3, 16:9, Zoom1, Zoom2).

Blue Screen

Press button to select Blue Screen, then press Enter button to select On or Off.

First Time Installation

Press button to select First time installation, then press Enter button to enter.

Reset

Press button to select Reset, then press Enter button to enter sub-menu.

Software Update(USB)

Press / button to select Software Update (USB), plug your USB device in the USB slot, then press Enter button to update the right software.

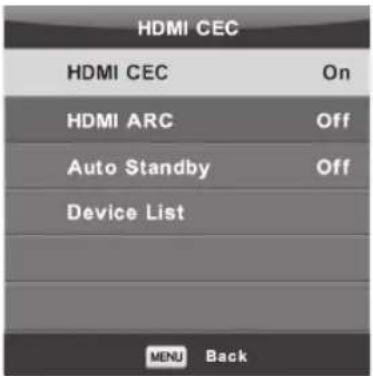

HDMI CEC(Need to support the HDMI CEC/ARC function)

Press / button to select HDMI CEC, then press Enter button to enter the sub-menu.

HDMI CEC Press / button to turn the HDMI CEC on or off.

HDMI ARC Press / button to turn the HDMI ARC on or off

Auto Standby Press / button to turn the Auto Standby on or off.

Device List Press Enter button to open the main menu of device

MAIN MENU OPERATION

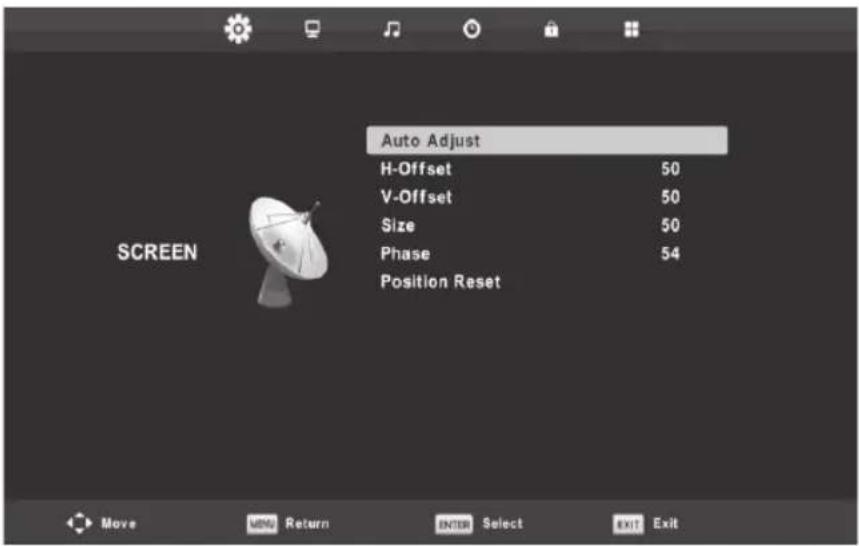

Screen Menu

Press MENU button to display the main menu.

Press / button to select SCREEN in the main menu.

1. Press A button to select the option that you want to adjust in the SCREEN menu.
2. Press Enter button to adjust.
3. After finishing your adjustment, press Enter button to save and return to the previous menu.

Auto Adjust

Press Enter button to start adjusting H-Offset / V-Offset / Size / Phase automatically.

H-Offset.

Adjust the horizontal position of the picture.

Press / button to select H-Offset, then press Enter button to enter sub-menu.

V-Offset

Adjust the vertical position of the picture.

Press / button to select V-Offset, then press Enter button to enter sub-menu.

MAIN MENU OPERATION

Size

Adjust the display size.

Press / button to select Size, then press Enter button to enter sub-menu.

Phase

Adjust the horizontal interfering lines.

Press / button to select Phase, then press Enter button to enter sub-menu.

Position Reset

Press A button to select Position Reset, then press Enter button to enter.

Notes:

1. Noise Reduction in PICTURE option is invalid.
2. AD Switch in SOUND option is invalid.
3. TIME menu and description are the same as that for Air mode.
4. Block Program and Parental Guidance in LOCK option is invalid.
5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System in SETUP option is invalid.
6. PC mode has no CHANNEL menu.

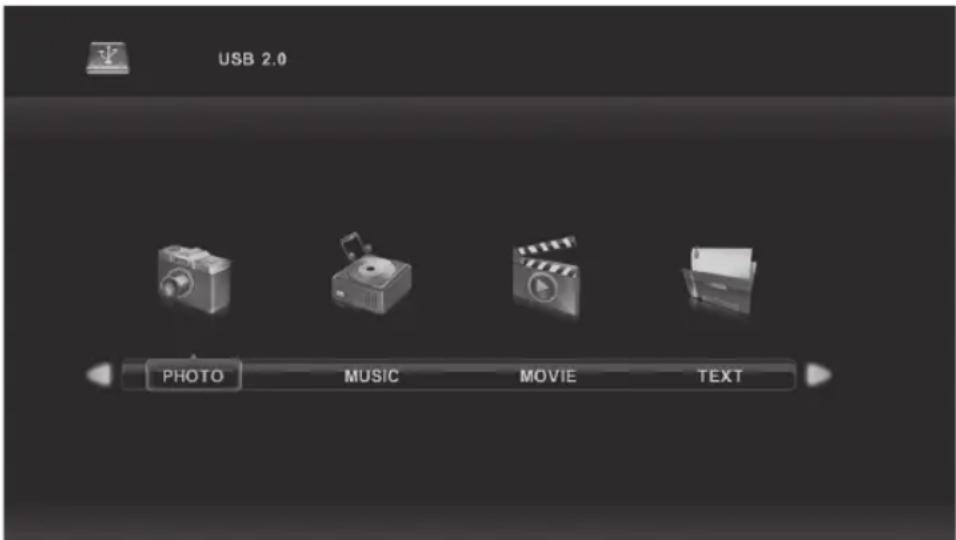

MEDIA OPERATION

Note: Before operating Media menu, plug in USB device, then press Source button to set the Input Source to Media. Press / button to select Media in the Source menu, then press Enter button to enter.

Press / button to select the option you want to adjust in the main Media menu, then press Enter button to enter.

MEDIA OPERATION

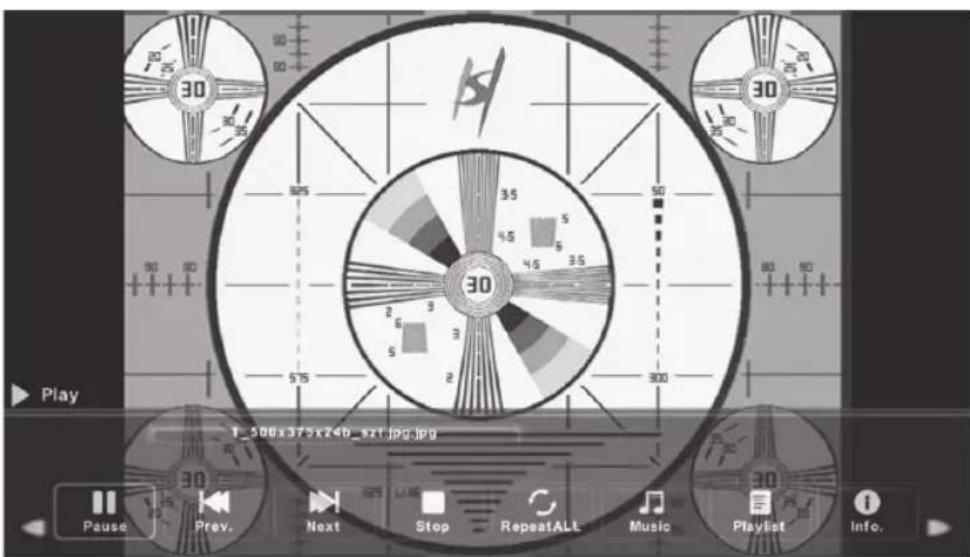

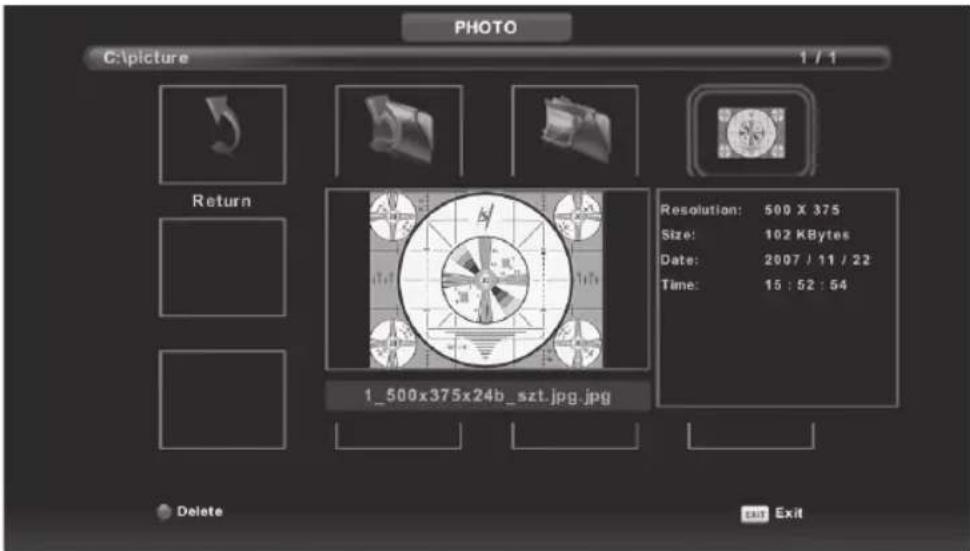

Photo Menu

Press button to select PHOTO in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit.

Press / button to select the file you want to watch in the file selecting menu, then press Enter button to display picture.

When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

MEDIA OPERATION

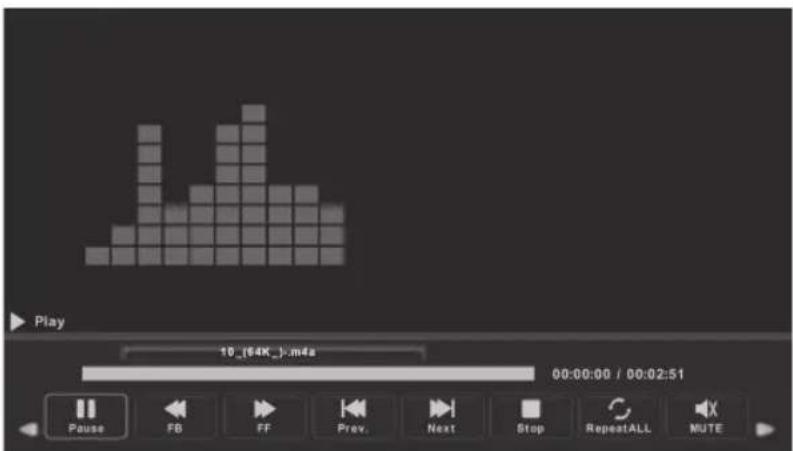

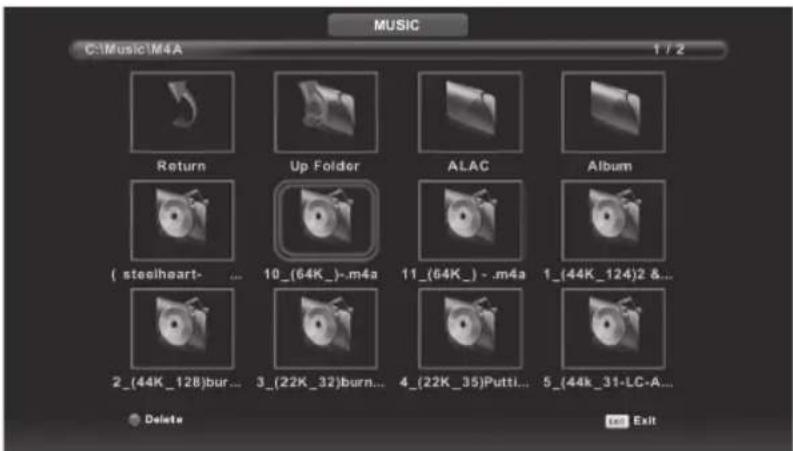

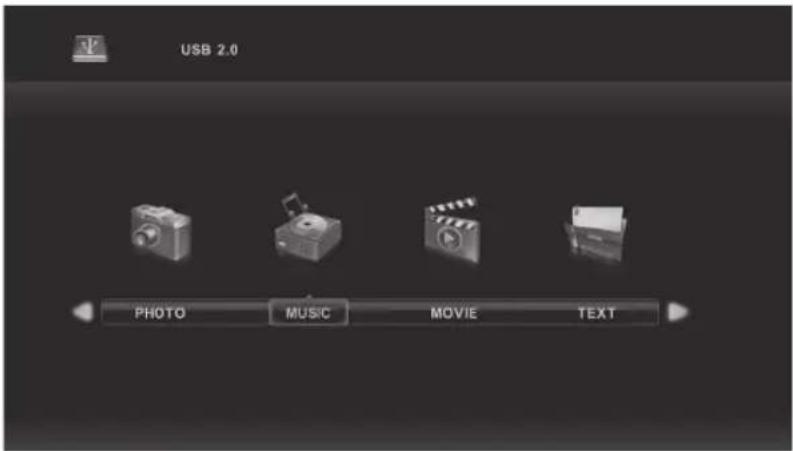

Music Menu

Press button to select MUSIC in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit.

Press / button to select drive disk you want to watch, then press Enter button to enter. Press / button to select return option to the previous menu.

MEDIA OPERATION

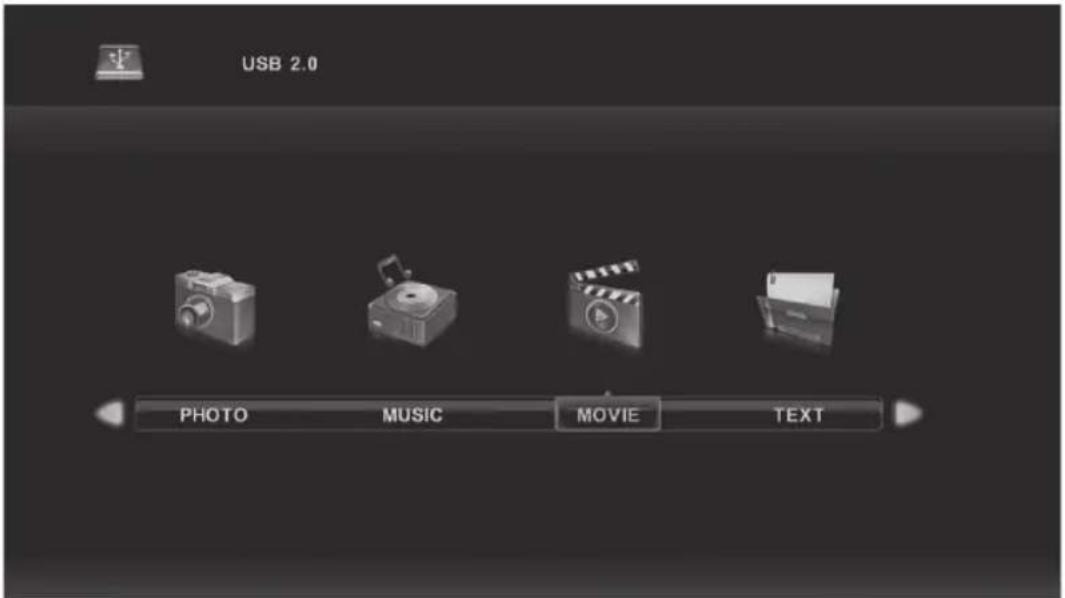

Movie Menu

Press / button to select MOVIE in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit.

Press button to select drive disk you want to watch, then press Enter button to enter. Press enter button to play the selected movie. Press display button to select menu in the bottom you want to run, then press Enter button to operate. Press Exit button to back to the previous menu and exit button to quit the entire menu.

MEDIA OPERATION

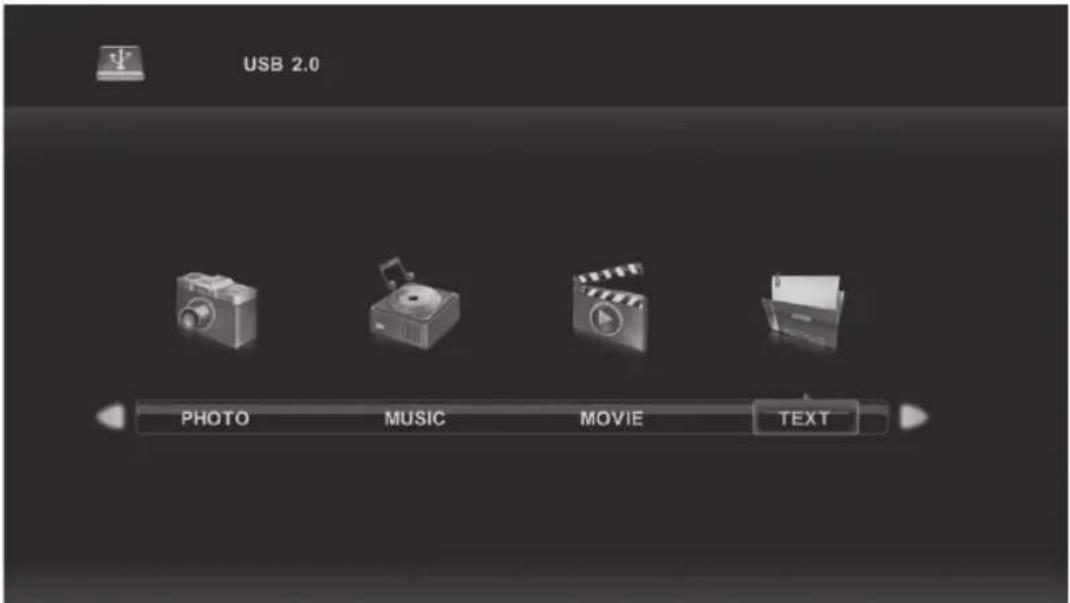

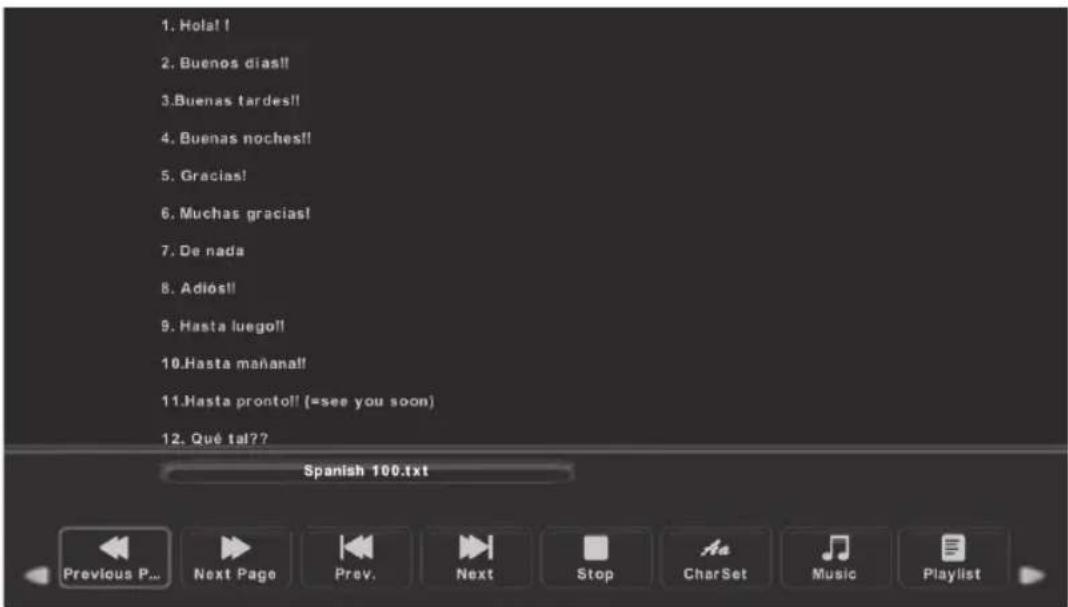

Text Menu

Press button to select TEXT in the main menu, then press Enter button to enter. Press Exit button to return to the previous menu and exit menu to quit.

Press button to select drive disk you want to watch, then press Enter button to enter. Press button to select return option to back to the previous menu.

HELP

PROBLEM SOLUTION
No power · Check if the AC cord of	TV is plugged in or not. If there's still no power, please disconnect the plug, and reconnect to the socket after 60 seconds. Turn the power back on.
Signal not received properly · Double	ble or phantom images may appear on your TV if there are high buildings or mountains close to where you are. You can adjust the image thru manual operation: consult instruction of vernier regulation, or adjust the direction of the external antenna. · If you use an indoor antenna, under certain circumstances signal reception may be more difficult. Adjust the direction of the antenna for optimum reception. If this does not improve reception, you may have to switch to an external antenna.
No picture · Check if the antenna at	the back of the TV is connected properly. · View other channels to see if the problem still occurs.
Video appears with no audio · Try	increasing the volume. · Check if the TV's sound is on mute or not.
Audio is present, but video does not appear or is discolored	· Try adjusting the contrast and brightness.
Static noise affects video and audio quality	· Check if the antenna at the back of the TV is connected properly.
Broken lines on screen · Electrical	appliances such as hair dryers or vacuums etc. may be interfering with your TV set. Switch these appliances off.
Remote doesn't work · Make sure	the plastic bag which came with the remote control is removed. Try using the remote in a shorter distance from the TV. Check if the placement of the batteries is correct, or try using new batteries with the remote control. · The TV will go into Standby mode if it receives no response in a few minutes.
No video (PC mode) · Please check	if the cable is connected to the HDMI port correctly, or if the cable is bent in some places.
Screen is too bright or dark (PC Mode)	· Adjust the brightness or contrast in the main menu.
No response from the PC · Check if	the PC's display resolution is set to a compatible resolution for the TV.
Lines appearing when a device is connected to the RCA port	· Make sure you are using a cable of good quality.
Problems are unresolved · Unplug	the power cable and wait for 30 seconds, then reconnect to the socket. If problems still persist, do not attempt to repair the TV by yourself. Kindly contact the service center.

Do not leave your TV displaying a static image, whether it is from a paused video, menu screen, etc. for an extended period of time, doing so will damage the display and may cause image burn-in.

SPECIFICATIONS

Screen Size power Consumption Main accessories
24" 36W User's manual x1
32" 56W	Remote controller x1Power cord x1AAA Batteries x2 (not included)
40" 90W

LIFE TIME:60,000 Hrs

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

WARNING

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death.
Many injuries, particularly to children, can be avoided by taking simple precautions such as:

1. Using cabinets or stands recommended by the manufacturer of the television set.
2. Only using furniture that can safely support the television set.
3. Ensuring the television set is not overhanging the edge of the supporting furniture.
4. Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
5. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture,
6. Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Wall-mounted screw: 22-24inch M4, 28-70inch M6, 75inch M8.

Note: don't hang at an angle to avoid the risk of falling off.

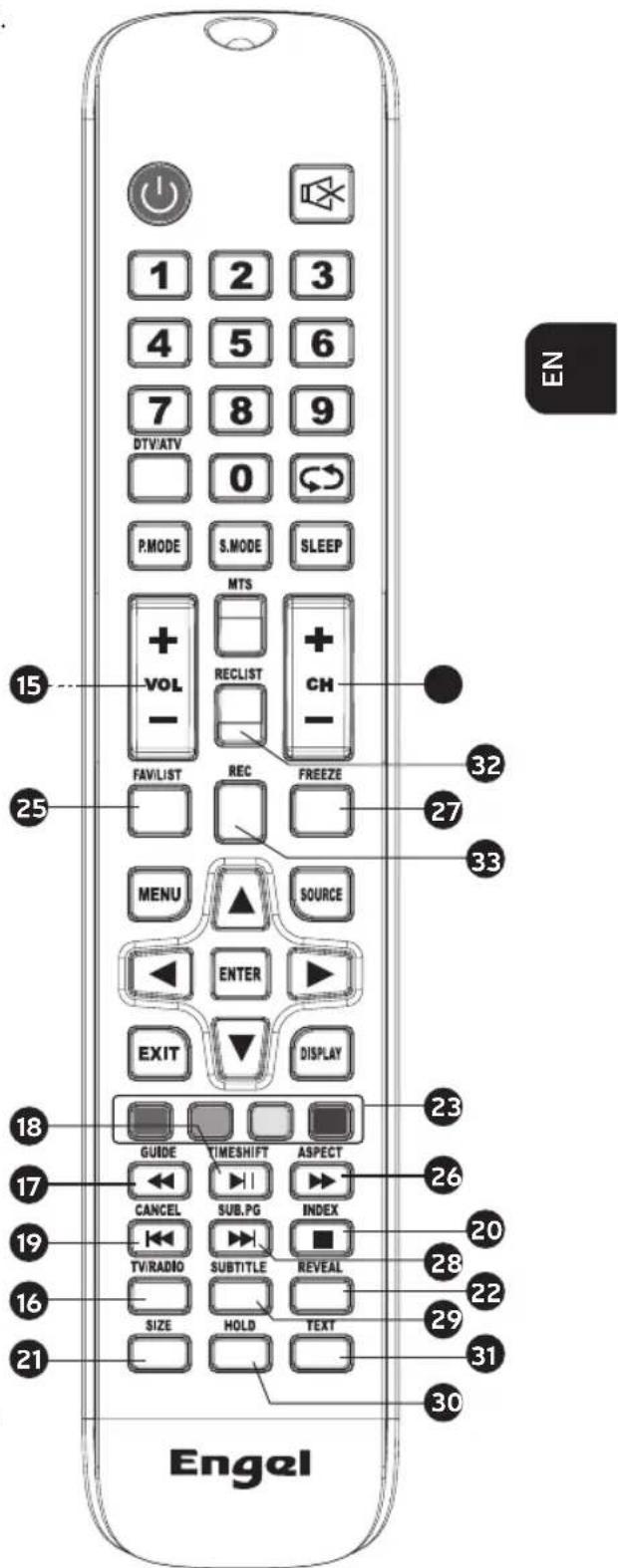

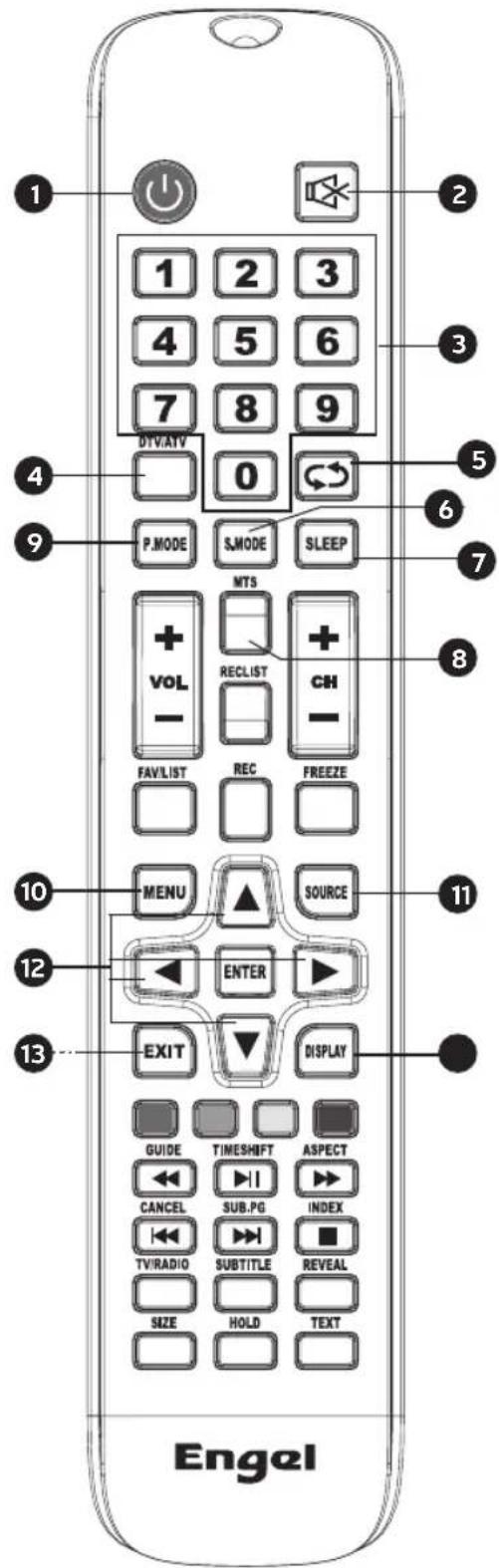

REMOTE CONTROLLER

1. POWER: Set your TV to power on or standby mode.
2. MUTE: Press to mute the sound. Press again or press VOL+ to unmute.
   3.0-9: Press 0~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds.

Applicable for entering page number in teletext mode and so on.

1. DTV/ATV: Switch between Analog and Digital TV
2. Return to the previous viewed program.
3. S.MODE: Press to cycle through the different sound settings.
4. SLEEP: Select amount of time before TV turn itself off automatically.
5. MTS: Press to search the NICAM modes.
6. P.MODE: Press to cycle through the different picture settings.
7. MENU: Allow you to navigate the on-screen menus.
8. SOURCE: Open the main menu, press to list the sources
9. A NTER: Allow you to navigate the on-screen menus and adjust the system settings to your preference.
10. EXIT: Exit from the menu or sub-menu and cancel the function in process (if applicable)
11. DISPLAY: Press to display the source and channel's info.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries.

Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

REMOTE CONTROLLER

1. VOL+/VOL-: Press to increase / decrease the sound level.
2. TV/RADIO: When watching channel, allows you to switch between TV and Radio modes.
3. GUIDE:
4. Launches the EPG (Electronic Program Guide)
5. Fast reverse in PVR or Media Player mode.
6. TIME SHIFT:
7. DTV channel timeshift Function.
8. Play on PVR or Media Player mode.
9. CANCEL:
10. When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCEL key to return to the mode of text for you to browse this page.
11. Previous chapter in PVR or Media Player mode
12. INDEX:
13. Request the Index page in Teletext mode.
14. Exit the playing function in PVR or Media Player mode.
15. SIZE: Change the size of display in Teletext mode.
16. REVEAL: Reveal or Hide the hidden words.
17. COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu.
18. CH + / CH - : Press to scan through channels.
19. FAV/LIST: press to open the favorite list, then you can select the favorite channel.
20. ASPECT:
21. Select picture scale.
22. Fast forward in PVR or Media Player mode.
23. FREEZE: press to freeze the picture
    28.SUB.PG:
24. Press to access sub page.
25. Next chapter in PVR or Media Player mode.
26. SUBTITLE: To show and set the language of current DTV.
27. HOLD: HOLD ON or OFF for current page display.
28. TEXT: Switch the teletext on and off.
29. REc LIST: Show the recorded list.
30. REC: Record begin in PVR mode.

Policy on defective pixels

Due to the complexity of the technology used in the manufacture of LCD, TFT and LED screens, it is possible that some of the pixels that make up the screen may be defective. While it is desirable for all the pixels to function correctly, this is not always possible from a production perspective. For this reason, Ersax Trade S.L certi es that its LED TV products meet the criteria of admissible defect described herein and certi es that its LED TV screens are class A.

Defective pixels 19"-20"-22"-24" 29"-32" 39"-40" 46"-50"
Bright pixel (max.) 4 4 4 4
Dark pixel (max.) 8 9 14 16
Maximum permitted sum of pixels 5 7 12 12
Double adjacent pixels (max.)	1	1	1

If an LED TV screen has dark or bright pixels, this is only considered to be a fault by Ersax Trade S.L when the ranges established herein for an LED panel to be considered defective are exceeded, thereby allowing Ersax Trade S.L to manage the replacement or warranty of the panel due to a product non-conformance. As a rule and except for limited exceptions, Ersax Trade S.L considered an LED TV product to be faulty when it has a considerable number of permanently bright or dark pixels. As a reference, an LCD/LED panel has more than 1 million pixels and a single defective pixel is therefore not considered to constitute a lack of conformance and cannot be catalogued as a fault, as this circumstance will not act the correct functioning of the product.

Bright pixel
Dark pixel

Composition of a pixel
Sub-pixels

Double adjacent bright pixels

Double adjacent dark pixels

Therefore, if an LED screen meets the above criteria, it cannot be changed or repaired as this is not considered to be a lack of product conformance and cannot be catalogues as a defect or fault.

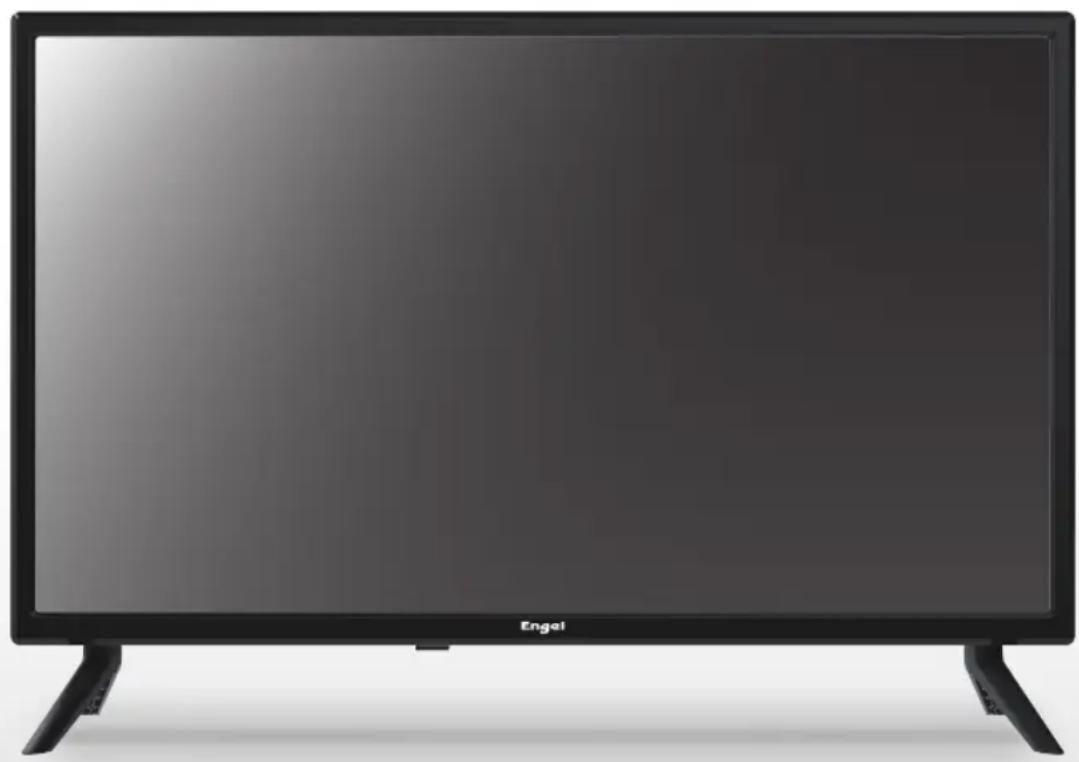

LED TV

TVLED

CONTEUDO

Guia de Preparacao

INSTALE E CONNECTA TV

Cologne sua tv

Hereby, IOTECNIA, S.L. declares that these equipments are in compliance with the essential requirements and other relevant provisions of Directives 2014/53/EU (RED) and 2009/125/EC (ERP)

Note on environmental protection:

After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste. Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices, you are making an important contribution to protecting our environment.
