USER MANUAL 72505STAC Hazet

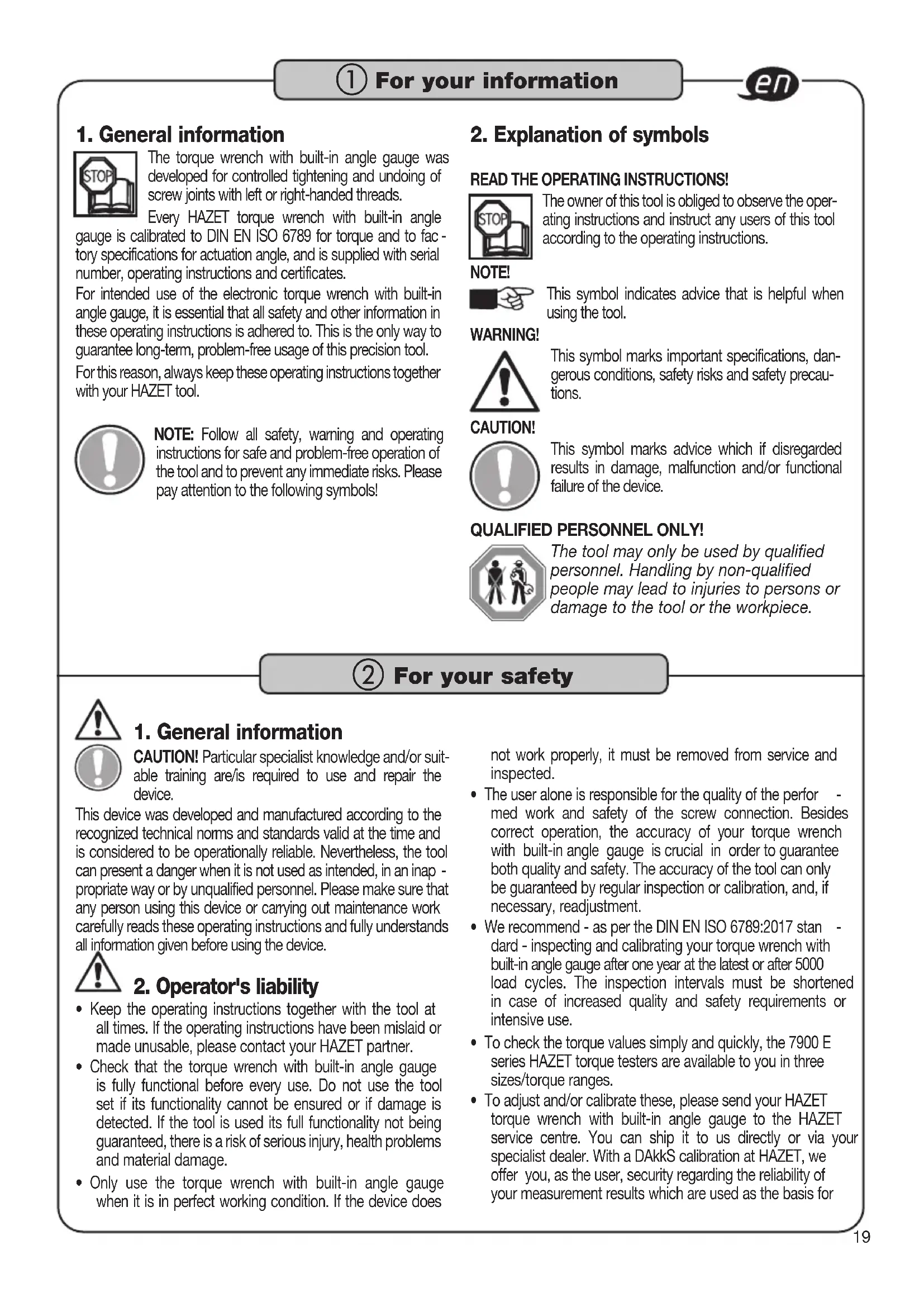

For your information

The torque wrench with built-in angle gauge was developed for controlled tightening and undoing of screw joints with left or right-handed threads. Every HAZET torque wrench with built-in angle gauge is calibrated to DIN EN ISO 6789 for torque and to fac

tory specifications for actuation angle, and is supplied with serial number, operating instructions and certificates. For intended use of the electronic torque wrench with built-in angle gauge, it is essential that all safety and other information in these operating instructions is adhered to. This is the only way to guarantee long-term, problem-free usage of this precision tool. For this reason, always keep these operating instructions together with your HAZET tool. NOTE: Follow all safety, warning and operating instructions for safe and problem-free operation of the tool and to prevent any immediate risks. Please pay attention to the following symbols!

2. Explanation of symbols

READ THE OPERATING INSTRUCTIONS! The owner of this tool is obliged to observe the oper- ating instructions and instruct any users of this tool according to the operating instructions. NOTE! This symbol indicates advice that is helpful when using the tool. WARNING! This symbol marks important specifications, dan- gerous conditions, safety risks and safety precau- tions. CAUTION! This symbol marks advice which if disregarded results in damage, malfunction and/or functional failure of the device. QUALIFIED PERSONNEL ONLY! The tool may only be used by qualified personnel. Handling by non-qualified people may lead to injuries to persons or damage to the tool or the workpiece.

1. General information

CAUTION! Particular specialist knowledge and/or suit- able training are/is required to use and repair the device. This device was developed and manufactured according to the recognized technical norms and standards valid at the time and is considered to be operationally reliable. Nevertheless, the tool can present a danger when it is not used as intended, in an inap

propriate way or by unqualified personnel. Please make sure that any person using this device or carrying out maintenance work carefully reads these operating instructions and fully understands all information given before using the device.

2. Operator's liability

• Keep the operating instructions together with the tool at all times. If the operating instructions have been mislaid or made unusable, please contact your HAZET partner.

• Check that the torque wrench with built-in angle gauge is fully functional before every use. Do not use the tool set if its functionality cannot be ensured or if damage is detected. If the tool is used its full functionality not being guaranteed, there is a risk of serious injury, health problems and material damage.

• Only use the torque wrench with built-in angle gauge when it is in perfect working condition. If the device does not work properly, it must be removed from service and inspected.

• The user alone is responsible for the quality of the perfor

med work and safety of the screw connection. Besides correct operation, the accuracy of your torque wrench with built-in angle gauge is crucial in order to guarantee both quality and safety. The accuracy of the tool can only be guaranteed by regular inspection or calibration, and, if necessary, readjustment.

• We recommend - as per the DIN EN ISO 6789:2017 stan

dard - inspecting and calibrating your torque wrench with built-in angle gauge after one year at the latest or after 5000 load cycles. The inspection intervals must be shortened in case of increased quality and safety requirements or intensive use.

• To check the torque values simply and quickly, the 7900 E series HAZET torque testers are available to you in three sizes/torque ranges.

• To adjust and/or calibrate these, please send your HAZET torque wrench with built-in angle gauge to the HAZET service centre. You can ship it to us directly or via your specialist dealer. With a DAkkS calibration at HAZET, we offer you, as the user, security regarding the reliability of your measurement results which are used as the basis for20

For your safety quality assurance and increase your competitiveness on the national and international market.

• All safety, warning and operation instructions on the tool must remain legible. Any damaged labels or stickers, as well as the display cover/membrane keyboard, must be replaced immediately.

• In addition to the safety advice given in these operat

ing instructions, the general safety regulations, accident prevention regulations and environmental protection regu

lations relevant to the application of this tool are to be observed and adhered to.

• All safety equipment must always be within reach and should be checked regularly.

• Ensure that you are familiar with how to operate the torque wrench with built-in angle gauge before use and practice how to use the tool. Check carefully to make sure all pro

gramed settings are correct before use. The quality of your screw work depends on these settings.

• Operational reliability can only be ensured, if the tool is used as intended and in compliance with the indications given in the operating instructions. Any deviation from the intended use and/or any misapplication of the tool set is not allowed and will be considered as improper use.

• Always ensure tools are used, inspected and maintained in compliance with the respective local, state, national or federal regulations.

• Torque wrenches with built-in angle gauge from HAZET are designed solely for controlled tightening and undoing of screw joints.

• The wrench is not intended to be used as a lever tool, clamping tool or impact tool under any circumstances. Incorrect use, use whilst failing to comply with the safety instructions and overloading of the HAZET torque wrench with built-in angle gauge can result in incorrect readings and/or failure of the system (and therefore death, serious injury, health problems and material damage).

• Torque wrenches with built-in angle gauge are calibrated measurement tools and must be handled with due care. Avoid any mechanical, chemical and thermal exposure that goes beyond the stresses of normal use. The torque wrench with built-in angle gauge must never be exposed to rain or moisture or immersed in liquids. Do not allow any foreign bodies to penetrate it and always ensure that unused connectors are covered. Extreme climatic condi

tions such as cold, heat and humidity can have an effect on measurement values/results. Failure to comply with these instructions can result in (irreparable) damage to the torque wrench with built-in angle gauge.

• Incorrect use of the product tools or use whilst failing to comply with the safety precautions can result in serious injury.

cation of the tool is not allowed and will be considered as improper use.

• Before using the device, check that the insert and/or the insert tool holder used are seated firmly. Position the tool so that it cannot slip from the screw joint. This poses a hazard to persons and a risk of material damage.

• When using inserts or insert tool holders, ensure their design conforms to standards and that their shape and size are correct for the screw joint to be tightened.

• Also adhere to the maximum permitted load for the insert or insert tool holder used. This can be lower than the achievable release torque for the torque/angle wrench. Custom-made tools can be dangerous and may not be used. Failure to comply can result in injury and/or material damage.

• Any claims against the manufacturer and/or its authorised agents because of damage caused by improper use of the tool are void.

• Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the operator.

4. Dangers that may arise from

• Never modify the tool. For safety reasons, any modification of the HAZET electronic torque wrench with built-in angle gauge is strictly forbidden. Do not remove safety devices and/or housing parts. Never operate the tool when a pro

tective cover is missing or when not all of the safety devices are fitted and in perfect condition.

• The maximum permitted torque may not be exceeded in either direction of operation. All indications concerning threshold values, setting values and setting ranges must be observed.

• Users must maintain a safe, balanced position when working.

• Only use the tools at places that are governed and regu

lated by applicable provisions for work areas. CAUTION! Do not use in areas susceptible to explo- sions

• Any claims against the manufacturer and/or its authorised agents because of damage caused by improper use of the tool are void. Any modification of the tool and/or improper use will result in immediate exclusion from warranty and liability. Any personal injury or material losses caused by improper use of the tool are the sole responsibility of the operator.21

Torque measuring range (Nm)

1 - 10 2.5 - 25 5 - 60 10 - 100 20 - 200 40 - 400 65 - 650 200 - 1000

Torque units Nm; lbf.ft; lbf.in; kgf.m Uncertainty of measurement for Torque measuring range ± 2% / ± 1 Digit ± 1% / ± 1 Digit Adjustable tolerance range for Torque ± 1% to ± 10% Uncertainty of measurement for rotation angle measuring range ± 1 % / ± 1 ° Adjustable tolerance range for rotation angle ± 1° to ± 90° Insert square / installed reversible ratchet* 9 x 12 9 x 12 9 x 12 9 x 12 14 x 18 14 x 18 14 x 18

Weight with/without insert tool, approx. kg

Available memory incl. date and time up to 3000 measurements Possibility to program sets of parameters / workflows 25 / 25 Low Energy Bluetooth interface x x x x x x x x USB-C interface u u u u u u u u Menu languages German, English, French, Italian, Chinese Protection rating IP 40 Rechargeable battery, can be charged directly in the device Rechargeable Li ion battery, type 14650 / 3.7 Volt / 1100 mAh

2. Included in delivery

• Torque wrench with built-in angle gauge with operating instructions, examination certificate, rechargeable Li ion battery, USB 3.1 A-C cable and insert reversible ratchets as per the table above, in the case. HAZET No. 7280-5sTAC 7281-5sTAC 7290-5sTAC 7291-5sTAC 7292-5sTAC 7294-5sTAC 7295-5sTAC 7250-5sTAC Supplied with 6401-1 (1/4")

3. Function / signal levels

• The torque wrench with built-in angle gauge has four signal levels (combined visual, audible and physical signals) that are activated when configured values are reached.

• The visible signals are shown below the matted ring on the handle, the audible signals are generated by a buzzer in the housing and the physical signals are created by a vibration motor in the handle.

• The torque wrench with built-in angle gauge has two selectable operating modes: "Torque" and "Rotation angle".

• In "Torque" mode, you can select the torque programs "Torque track" and "Torque peak".

• A snug torque (starting point for the angle measurement), a target value for the rotation angle and a ± tolerance for the rotation angle in "°" (degrees) are entered in the “Rotation angle” program.

• A yellow light flashes once upon reaching the snug torque and therefore the start of angle measurement.

• The first signal level – yellow flashing light, acoustic signal and low-frequency vibration – starts when the applied torque reaches the set threshold value, e.g. 80% of the lower value of the target value range. Once the first signal level is reached, you should reduce the tightening speed and pay closer attention to the force you are applying, the display and the signals of the torque wrench with built-in angle gauge. The lower the target value and the higher the threshold, the quicker the first signal level is exceeded.

nal and mid-frequency vibration – indicates that the applied torque is within the target value range. Once the second signal level is reached, stop screw action in this area.22

Design and function Signals table Signal levelsTorqueRotation anglePeak TrackLevel 1 (threshold value) Yellow flashing light, acoustic signal and low-frequency vibration v v Level 2 (within target value range) Green flashing light, acoustic signal and mid-frequency vibration v v Level 3 (above target value range) Red flashing light, acoustic signal and high-frequency vibration v v Level 4 (above max. torque) Permanent red light, permanent acoustic signal and permanent vibration v v v Yellow light flashes once on reaching the snug torque start of angle measurement

The lower the target value and the tolerance value, the quicker the second signal level is exceeded.

• The third signal level – red flashing light, acoustic signal and high-frequency vibration – indicates that the applied torque is above the target value range. If the third signal level is reached, the applied torque is too high. Stop the screw action. Proceed in line with the instructions for this screw-joint: e.g. undo the screw and re-tighten it, or replace it with a new one.

• The fourth signal level – permanent red light, permanent acoustic signal and permanent vibration – indicates that the applied torque is above the maximum permissible torque range of the torque wrench with built-in angle gauge. If the fourth signal level is reached, the screw action must be aborted immediately. Failure to comply with these instructions can result in (irreparable) damage to the torque wrench with built-in angle gauge.

• If no further torque or rotation angle is applied after activa

tion, the display alternates between the maximum value of this action and an OK/Not OK message.

• The “Torque track” program displays the torque currently being applied without specification of a target value or a tolerance on the display. In this program, only the fourth signal level is activated when the maximum permitted torque value has been reached. The highest torque value for this process (without validation) is displayed when no more force is being applied.

• The torque wrench with built-in angle gauge can be pro

gramed with "Direction of rotation: right (+)" and "Direction of rotation: left (-)" in the "Torque peak" and "Rotation angle" programs. NOTE! In “Torque track” and “Peak” mode, the screw action stops after 2 seconds if no torque is applied dur

ing this time. In “Rotation angle” mode, the screw action stops after 4 seconds if no torque is applied during this time.

• Every screw action is stored in the memory with a cor

responding date and time.

• Pressing a key rotates the display (in order to read the display regardless of direction of actuation).

• The torque wrench with built-in angle gauge switches off automatically after the set “stand-by” time when it is not being used.

• If necessary, a rotation angle check for torque tightening and a torque check for rotation angle tightening can be programmed in order to check the screw action and con

nection. If a check function is programed, the second signal level is only activated and the screw action is only evaluated as OK if the relevant target value and check ranges overlap with one another at the end of operation.

grams for various screw-joints. Activating a workflow ena- bles these screw-joints (parameters) to be completed one after another. The wrench display indicates the progress of the workflow.

Design and function Key assignment / Quick guide Switching on Press

button for approx. 3 seconds until acoustic signal sounds twice, then release Switching off Press

button for approx. 3 seconds until acoustic signal sounds once, then release Starting measurement Press

and at the same time Rotate the display Press

and at the same time

5. Menu structure SmartTAC - 5sTAC

1st Level 2nd Level 3rd Level 4th Level 5th Level 6th Level 7th Level 8th Level 9th Level 10th Level

serial number, calibration date, quantity, triggers15. LanguageGerman English French Italian Chinese16. Code Old 0000 New 0000

6. Before starting the operation

Always ensure tools are used, inspected and main- tained in compliance with the respective local, state, national or federal regulations. To prevent failures in the transfer of force, do not use hinge connections or extensions where possible. The torque applied to the screw joint can be changed dramatically when using hinge connections. Ensure that the insert tool holder, socket wrench inserts or other accessories in use are seated firmly. When using reversible ratchets, check the required direction of the rotation setting. The lever at the top of the insert reversible ratchet switches the ratchet between clockwise and anti-clockwise operation. When using inserts, ensure that their design conforms to stand

ards and that their shape and size are correct for screw joint con- nection. You should also ensure compliance with the maximum permitted load for the insert in use. This can be lower than the achievable torque for the torque wrench with built-in angle gauge. Modified or custom-made tools can be dangerous and may not be used. Do not use worn or damaged tools or inserts. Failure to comply can result in personal injury and/or material damage. Position the tool so that it cannot slip from the screw joint. Users must maintain a safe, balanced position when working. Failure to do so poses a hazard to persons and/or a risk of material damage. It is possible for screw joints to become loose. Do not exceed the maximum torque of the torque wrench with built-in angle gauge (such as when undoing bolts which are seized due to rust) under any circumstances. Overloading may damage the torque wrench with built-in angle gauge and falsify the release value. When tightening the rotation angle, ensure that the expected torque for the set rotation angle does not exceed the maximum permitted torque for the tool.

7.1 Insert or charge rechargeable battery

1. Open the screw cap on the end of the handle.

2. Remove the discharged rechargeable battery from the

main tube if applicable. NOTE! The battery symbol on the display indicates the current battery state of charge. "Flat battery" is displayed if the rechargeable battery is drained. Work can no longer con

3. Insert the new rechargeable battery into the main tube

(positive terminal first).

4. Gently tighten the screw cap on the end of the handle by

hand. NOTE! The torque wrench with built-in angle gauge saves date/time settings for approx. 1 min. without being connected to a power supply.

5. Charge the rechargeable battery through the USB-C inter

7.2.1 Switching on and off

Ensure that the torque wrench with built-in angle gauge is not under load when switched on. Press for approx. 3 seconds until acoustic signal sounds twice, then release – Wrench is switched on. Press for approx. 3 seconds until acoustic signal sounds once, then release – Wrench is switched off. The display shows the factory settings, battery charge state and the memory display when the wrench is switched on for the first time. NOTE! If "System test NOK" or "Service" is displayed, please refer to pages 15/16 in the "Faults" section NOTE! Simultaneously pressing

and when switched on rotates the display (in order to read the display regardless of direction of actuation).

You can always access the menu with . From there, you can select individual menu options with

and . You can then either select menu sub-options or configure settings, depending on the menu option. These must be confirmed with . Press , several times if necessary, to exit the menu/menu options.

The "Languages" menu option enables you to set the menu language (as described in 7.2.2) required for configuring the wrench settings.

You should set the date and time prior to initial use of the torque wrench with built-in angle gauge and after storing without being connected to a power supply so that data is stored with the cor

rect date and time. Select the “Date/Time” menu option as described in 7.2.2. The date and time are displayed. Use

to change the value highlighted. Change to month, year, hour, etc. by pressing

NOTE! The date/time settings are only saved if you move through all the numbers with

and leave the menu option by pressing

Please refer to the menu structure for other adjustable settings.25

If you want to program your torque wrench with built-in angle gauge using a different unit of torque, you must first modify the unit of torque and then the required torque values in the corre

sponding menu options. CAUTION! Multiple changes in unit without changing the torque values may cause deviations in rounded values. Go to the "Unit" menu option to select the unit of torque that you wish to use for programming the torque values and displaying the measurement results. Select the "Unit" menu option as described in 7.2.2. Set the highlighted unit by pressing

and confirm by pressing

7.4 Effective lengths

The gauge dimension lw of the insert tool holder used must be entered under the "Effective length" menu option. Please refer to the relevant tool catalogue for gauge dimensions of the HAZET insert tool holders. CAUTION! If the effective length programed does not match the effective length of the plug tool used, there will be a discrepancy between the torque value shown on the display and that applied to the screw joint.

1. To adjust the effective length, change to the menu with

and select the “Effective length” menu option with

2. After selecting the "Effective length" menu option with

you can adjust the effective length of the insert tool holder used with

3. Confirm the entered value with

The last programed settings are displayed when the wrench is switched on. The display of individual modes is as follows:

• Torque mode, track torque

• Torque mode, peak torque

• Torque mode, peak torque with control of rotation angle

• Rotation angle mode with torque control

• Workflow with parameter Mode The "Mode" menu option allows you to set whether you wish to work with tightening method "Torque" or "Rotation angle". The selection is as described in 7.2.2. If you select "Torque" mode, you can access the data pro

gramed under the "Torque" menu option. If you select "Rotation angle" mode, you can access the data programed under the "Rotation angle" menu option. Check if the display is showing the mode you want to work with. Check all the programed settings values carefully. If all the set

tings for the next screw joint process that you wish to carry out are correct, confirm the details by pressing . The “OK” symbol will disappear and the torque wrench is ready for use. If you do not confirm your settings/changes by pressing the

button, the torque wrench with built-in angle gauge is not ready for use. No display will appear when you switch it on.

The "Torque" menu option allows you to carry out programming for the tightening method "Torque". After pressing

in the “Torque” menu option, you are able to select the menu option "Track" or "Peak" with

. The menu option selected is shown with a yellow background.

NOTE! The “Torque track” program displays the torque currently being applied without specification of a target value or a tolerance on the display. In this program, only the fourth signal level is activated when the maximum

= Effective length (gauge dimension)

= Effective length (gauge dimension)26

The "Rotation angle" menu option enables you to carry out the programming for the tightening method "Rotation angle".

in the “Rotation angle” menu option, you can set the value for the snug torque with

2. After confirming the value with

, you can set the value for the rotation angle with

3. After confirming this value with

The direction of rotation selected is shown with a yellow background.

4. After confirming the direction of rotation with

, you can set the permitted ± tolerance in degrees (°) for the rotation angle using

NOTE! The ± tolerance in degrees (°) can be set in 1° increments from 1° up to max. 10% of the rounded- down rotation angle value. Example: Rotation angle 98° = max. tolerance 9° If, for example, a rotation angle of 75° is set in a new program, the tolerance is automatically set at ± 7°. The tolerance can then be changed from ± 7° in 1° incre

ments to ± 1°. NOTE! If the wrench in “Rotation angle” mode is acti- vated, the first value (before the slash) is the displayed rotation angle and the second value (after the slash) is the torque applied here. Initially the value after the slash (torque) is displayed on its own - until the snug torque is reached - and then the value before the slash (rotation angle) appears after the yellow signal.

5. Confirming the tolerance value with

again enables you to select whether the rotation angle to be tightened is to lie within a certain torque range or not using

6. If you do not want to perform a torque check and select

"No", you will return to the menu after pressing

7. If you wish to perform a torque check and select "Yes",

and then set the lower torque value of the check range with

8. After confirming the lower torque value with

to set the upper torque value of the check range.

9. Confirm the upper rotation torque value with

. This concludes programming. permitted torque value has been reached. The highest torque value for this process (without validation) and the direction of rotation (leading sign + = right, - = left) are displayed when no more force is being applied. NOTE! The “Track” mode is suitable for determining the breakaway torque of tightened screws, for example.

2. After confirming this value with

The direction of rotation selected is shown with a yellow background.

3. After confirming the direction of rotation with

, you can set the permitted ± tolerance in percent (%) for the target value of the torque using

A target value range is defined by entering a target value and the permitted tolerance range. For example, the tar

get value range for a target value of 100 Nm with a toler- ance of ±4% is between 96 Nm and 104 Nm. In addition to the numerical values on the display, the signals of the torque wrench with built-in angle gauge inform the user of the torque being applied.

4. Confirming the tolerance value with

again enables you to select whether the target torque value is to lie within a certain angle range or not using

5. If you do not want to perform a rotation angle check

and select "No", you will return to the menu after pressing

6. If you wish to perform a rotation angle check and select

"Yes", you can press

and then use to set the value for the snug torque.

7. After confirming the value for the snug torque with

you can set the lower rotation angle value of the check range with

8. After confirming the lower rotation angle value with

is used to set an inactive workflow to "Active" and to set an active workflow to "Inactive".

12. If the "Inactive" display is shown with a yellow back

takes you back to the menu. If the "Active" display has a yellow background, pressing

includes the required parameters in this workflow.

13. The 1st parameter (P) in the 1st step of a workflow (e.g.

A1.1) has a yellow background. Pressing

wards within the parameter selection. NOTE! Select the parameters for your workflow only once they have been checked for correct program

14. After selecting a parameter for the 1st step of a workflow,

press – this shows the parameter for the 2nd step of this workflow with a yellow background (this can be selected as described above).

to end workflow programming. You return to the "Workflow" menu option.

16. If you want to work directly with this workflow, press

again to show the start display with the workflow. After pressing

"OK" is no longer displayed, the wrench is ready to use and the workflow can be completed.

17. If you do not want to work directly with this workflow yet,

on the "Workflow"menu option and set this workflow to "Inactive", as described in 10 and 12.

The Signals menu option allows you to set the threshold, to enable/disable the buzzer and to enable/disable vibration. The threshold defines when the 1st signal level is to be activated. This value (as a percentage) refers to the lower value of the target value range. To access the Signals menu option, press

until you can access the "Signals" menu option.

for the signals setting range.

old to the required value (with

NOTE! The range for the threshold is 50% to 99%. The higher the threshold is set, the quicker the 1st signal level is exceeded.

21. Confirm the entered value with

Select the required setting using

. The selected setting is shown with a yellow background. Confirm the required setting with

. The selected setting is shown with a yellow background. Confirm the required setting with

The "Parameters" menu option enables the appropriate pro- grams to be saved for up to 25 different screw-joints. Up to 25 parameters can be stored in up to 25 workflows each in any order (and with repetitions) in the "Workflow" menu option. A workflow can also be made up of just one para

meter. Activating a workflow enables these screw-joints to be completed one after another. The activated workflow, the current position in the workflow and which parameter can be processed next appear on the wrench display. The correspon

ding parameters must first be programmed in the menu item "Parameters" in order to insert them into the workflow. Up to 25 different screw joints can be stored. Programming parameters

1. You must switch to the menu with

and select the "Parameters" menu option with

displays "Inactive" / "Active". NOTE! If the "Inactive" display has a yellow back- ground, this parameter is not currently being used in a workflow. If the "Active" display has a yellow background, this parameter is being used in at least one workflow. Check carefully whether you really want to change this parameter because the change becomes effective when a workflow containing this parameter is activated.

to display "Torque" / "Rotation angle". Here you can use

to select the mode in which this parameter should be programed. The mode selected is shown with a yellow background.

6. See page 10 (under Rotation angle) for the programming

mode "Rotation angle": from 8.2 Activating workflow

7. You must activate the parameter(s) via a workflow to work

with one or more programed parameters.

to switch to the menu and select the "Workflow" menu option with

in the "Workflow" menu option, you can select the required workflow (from 1 to 25) with . Use

to go backwards within the workflow selection.

10. Confirming the workflow selected with

displays "Inactive" / "Active". If the "Inactive" display is shown with a yellow background, the workflow is not activated. If the "Active" display is shown with a yellow background, the workflow is already activated.28

The menu and the settings of the torque wrench with built-in angle gauge can be blocked to prevent unintentional adjustment and undesired manipulation of programs by unauthorised per

sons. A code is required to block and unblock the menu. NOTE! The factory set code is "0000". Select your own 4-digit code. CAUTION! Make a note of your new 4-digit code and have it available when required. If you lose your 4-digit code, please contact your HAZET Service Centre quot

ing the serial number of the torque wrench with built-in angle gauge.

until you can access the "Code" menu option.

13. "Old, 0000" is displayed. The first digit is highlighted.

14. You must enter the old code before entering a new code.

You can change the highlighted code digit with

. Confirm the entry with , then the next digit is high- lighted. Change the other highlighted digits in the same way, by pressing

and confirming with . NOTE! When entering your new code for the very first time, confirm the factory setting of "Old 0000" by pressing four times. The positions are highlighted digit by digit.

15. "New, 0000" is displayed. The first digit is highlighted.

16. Enter your new code by changing the highlighted digits by

and confirming with .

17. After the last confirmation with

, menu option "Code" is displayed. The new code is saved.

until you can access the "Menu access" menu option.

. "Block" is displayed.

. "Code, 0000" is displayed. The first digit is highlighted.

. Confirm the entry with . The next digit is highlighted. Change the other highlighted digits the same way, by pressing

and confirming with .

23. After the last confirmation with

, you return to display: Block.

again blocks the menu. No further settings can be changed or configured. The start dis

25. You can now only work with the settings programed,

and can only switch the torque wrench with built-in angle gauge on and off and re-enable access to the menu with the appropriate code.

Every screw action is stored in the memory according to an identification number (ID) specifying the date, time, duration of the screw action, target values programed (with workflow and parameter number where applicable), actual values tightened to and the validation. The memory has 3000 memory slots. NOTE! If you work with workflows and parameters or the torque check or rotation angle check functions, each memory location has 2 pages that can be dis

NOTICE! The storage symbol on the display denotes the storage capacity. If all memory slots are full, the following is displayed along with a yellow light sig

nal: Memory full – data will be lost beginning from next measurement! This means the next measurement performed will not be dis

played, validated or stored in memory. If you confirm this mes- sage by pressing

and simultaneously, the first 150 of 3000 data records saved are deleted from the memory. The same message is displayed as soon as the memory is full again. The "Memory" menu option enables the data records in the memory to be displayed and deleted individually or to be deleted altogether.

until you can access the "Memory" menu option.

to select the required menu option. The menu option selected is shown with a yellow background.

accesses the menu option selected.

5. "Display values": displays saved data records starting

with the last value saved. You can use the identification number, the date and time to assign the data saved to your screw action. Pressing

enables you to retrieve the data for individual screw actions. NOTE! If no data is stored in the memory, "Memory empty" appears. Confirm by pressing . Use

6. "Delete values": individual data records (IDs) can be

deleted in this menu option.

and then use to select the IDs that you want to delete. Confirm the selected ID with

and "Delete values" appears.

to delete the selected ID.

9. "Delete all": this menu option allows you to delete the

entire memory contents. After confirming with , "Delete all" is displayed again so the user can be absolutely sure of the deletion. The entire memory contents are not deleted until

is pressed again. "Please wait" is dis

played and then "All deleted". Press

Design and function 8.10. Application / operation of the torque wrench with built-in angle gauge The torque wrench with built-in angle gauge must only be oper- ated with the handle at right angles to the screw joint. The hand force deployed must be applied uniformly onto the centre of the handle (ring marking). In order to avoid measurement errors when measuring the rotation angle, do not allow the screwed workpiece or its support to turn, move or sway during operation. You can also activate the dimmed display to reduce the power consumption. After approx. 30 seconds the display is dimmed slightly.

The torque wrench with built-in angle gauge is ready to be con- nected to the optionally available Smart Tool software. The sub- sequent procedures for establishing a connection, reading saved data and for programming the wrench with the software are part of the operating instructions for the SmartTAC Tool software.

8.8 Enabling menu access

26. Press to access the menu.

27. "Code, 0000" is displayed. The first digit is highlighted.

28. Enter the code by changing the highlighted code digits

with . Confirm the entry with . The next digit is highlighted. Change the other highlighted digits in the same way, by pressing and confirming with .

29. After the last confirmation with

, the "Mode" menu option in the menu is displayed. Access to the menu is re-enabled. Pressing enables you to select other menu options to configure other settings. Pressing shows the start display. 8.9. Reset The "Reset" and "Factory setting" functions are located under the "Reset" menu option. The "Reset" function activates and deactivates and/or restarts the torque wrench with built-in angle gauge. When "Reset" is selected, the system is brought to a defined starting condition. This may be necessary if the wrench no longer functions properly and does not respond to the normal inputs. The "Factory settings" function returns the torque wrench with built-in angle gauge to its status upon dispatch from the factory and activates, reactivates and/or restarts it, just as the "Reset" function does. NOTE! Warning, all self-programmed settings, param- eters sets and workflows will be deleted30

9. Adjustment / calibration

Electronic torque wrenches with built-in angle gauge should be checked and calibrated on a regular basis. After a long period of use, re-certification or re-calibration by the factory is advisable. Electronic torque wrenches with built-in angle gauge are measur

ing tools. Appropriate measurement equipment must be used to test (and where applicable, adjust) measuring tools at the time intervals laid down by Quality Management. The time gap between test dates is dependent on the frequency of use. We recommend testing after approx. 5000 screw opera

tions (but the period in-between tests should be no longer than 6 months). NOTE! The “Version” menu option provides information on the software version, the serial number, the date of the last calibration and the remaining number of releases until the next calibration of the wrench.

1. To access the information in the "Version" menu option,

you must switch to the menu with

and select the "Version" menu option with

2. The software version information is displayed after press

3. Further information is shown on the second page of the

to move to the 2nd screen and

return to the 1st. HAZET has appropriate test equipment. HAZET torque wrenches with built-in angle gauge sent in to HAZET are returned with a test certificate after they are checked and after any necessary adjust

ment/calibration work is carried out. The test equipment used by HAZET for torque wrenches with built-in angle gauge is continu

ally monitored by the German Calibration Service (DKD) and is calibrated and adjusted whenever required. This guarantees both the level of expertise necessary in the field of controlled screw joint tightening and also the quality of HAZET tools. The HAZET factory also accepts electronic torque wrenches with built-in angle gauge from your specialist dealer for inspection and calibration.

10. Torque wrench with built-in angle

gauge certificate and calibration instructions Every torque wrench with built-in angle gauge comes with a calibration certificate in compliance with DIN EN ISO 6789-2:2017 and VDI/VDE 2648 part 2. Please contact your HAZET partner if you lose the certificate or require calibration instructions.

A comprehensive range of quality accesso- ries is available for all HAZET torque/angle wrench- es. Please refer to the HAZET tool catalogue or visit: www.hazet.de or hazet.com31

Message Reason Action Nothing shown on display No rechargeable battery inserted, battery inserted incorrectly or battery is discharged Insert new, fully charged rechargeable battery correctly (see 7, Commissioning) Nothing shown on display If a new, charged battery is correctly inserted and nothing appears on the display after switching on by pressing

(3 sec. until acoustic signal sounds twice), the torque wrench with built-in angle gauge is defective. Send the torque wrench with built-in angle gauge to your HAZET partner for testing. "System test not OK" An electronic system test runs at power-on. If the torque wrench with built-in angle gauge is under load when switched on, the message "System test not OK" is displayed. Switch the torque wrench with built-in angle gauge off by pressing . Place the torque wrench with built-in angle gauge on a flat, stable surface such that no loading is applied to it. To switch on the torque wrench with built-in angle gauge, re-press

(3 sec. until acoustic signal sounds twice). "System test not OK" If it is certain that the torque wrench with built-in angle gauge was not under any load when switched on, and "System test not OK" is displayed nevertheless, the torque sensors are not working properly (e.g. fol

lowing overloading). Send the torque wrench with built-in angle gauge to your HAZET partner for testing. "Service" If "Service" is displayed after switching on the torque wrench with built-in angle gauge, this is an indication that 5000 load cycles have been performed since the last calibration. If you wish to ignore this message, press

and at the same time. Work can continue immediately. This message continues to be displayed every time the device is switched on. Send the torque wrench with built-in angle gauge to your HAZET partner for calibration. The direction of rotation, the torque target value and the tolerance specification (in %) are not displayed when swit

ched on. You are in mode "Track torque" You are able to work in program "Track torque". You are able to change the torque program. Refer to

Section 8, Programming

No value is displayed upon operating the torque/angle wrench. You are on the start display. "OK" is dis

played. Check the settings carefully. Confirm the settings by pressing . "OK" is no longer displayed. The torque wrench with built-in angle gauge is ready to use. Torque or rotation angle value not OK (alternately) The torque or rotation angle value applied was not within the programed tolerance of the target value. The torque or rotation angle value was too low. No, or only the first, signal level was activated during operation. Proceed in line with the instructions for this screw-joint: e.g. undo the screw and re-tighten it, or replace it with a new one. Carefully increase the torque. Pay attention to the actu

ation speed and the signal levels. Operate the torque wrench with built-in angle gauge in such a way that it remains in the 2nd signal level. Torque or rotation angle value not OK (alternately) The torque or rotation angle value applied was not within the programed tolerance of the target value. The torque or rotation angle value was too high. The 3rd or 4th signal level was activated during operation. Proceed in line with the instructions for this screw-joint: e.g. undo the screw and re-tighten it, or replace it with a new one. Reduce the actuating force. Pay attention to the actu

ation speed and the signal levels. Operate the torque wrench with built-in angle gauge in such a way that it remains in the 2nd signal level.32

Message Reason Action The 4th signal level with per- manent red light, permanent acoustic signal and permanent vibration is activated. "Overload error" appears. The torque applied was above the maximum permitted torque range of the torque wrench with built-in angle gauge. If the fourth signal level is reached, the screw action must be aborted immediately. Failure to comply with these instructions can result in (irreparable) damage to the torque wrench with built-in angle gauge. Confirm the message by pressing

and at the same time. Switch the torque wrench with built-in angle gauge off by pressing

and on again by pressing Code 0000 Access to the menu is blocked by a code. Enter the code to enable access to the menu. The factory set code is "0000". If you lose your code, please contact your HAZET partner quoting the serial number of the torque wrench with built-in angle gauge. Memory full – data will be lost beginning from next measu

rement! In conjunction with yellow light signal. All memory slots are full. Confirm the message by pressing

and simul- taneously. You are able to access the data in the memory or save it externally. If you continue to work, the first block with memory slots is deleted. Batteries flat The rechargeable battery is discharged. Stop using the torque wrench with built-in angle gauge. Replace or charge the rechargeable battery. See Section 7, "Commissioning" The rotation angle measure

ment / display does not conti- nue to increase during operati- on and/or drops briefly. The snug torque was exceeded at the start of the thread and/or operation, which activa- ted the rotation angle measurement. Further rotation will bring the torque below the previ- ously reached snug torque. This can happen if the thread is damaged or soiled. Proceed in line with the instructions for this screw-joint: e.g. undo the screw and re-tighten it, or replace it with a new one. If necessary, clean and/or re-cut the thread. The rotation angle is not mea

sured and/or displayed. The screw is already so firmly tightened that it will no longer rotate. This can happen if the screw has been inserted, for example, with an impact wrench. Proceed in line with the instructions for this screw-joint: e.g. undo the screw and re-tighten it, or replace it with a new one.33

Maintenance and care

• Only transport the torque wrench with built-in angle gauge in its case and ensure that it does not fall during transpor

tation. Avoid any mechanical shock effects such as hard impacts or falls. Failure to do so may result in damage to the electronic components of the torque wrench with built- in angle gauge.

2. Hotline / contact

This product has been developed and tested in accordance with our high quality standards. Should you have any questions, comments, suggestions for improvement or change requests, we would like to express our thanks to all HAZET customers for your feedback and will be glad to address your issues. Your contacts for warranty, repair, adjustment and calibration are your local HAZET partner and the HAZET International Sales department: [e-mail]

• For disposal, clean the torque wrench with built-in angle gauge and disassemble it according to the regulations for work safety and environmental protection.

• Components can be recycled. Dispose of electronic com

ponents and batteries in accordance with legal regulations and environmental directives (e.g. at scrap material collec

• Electronic waste, electronic components, lubricants and other auxiliary materials must be treated as hazardous waste and may only be disposed of by authorised specialists!

• Reducing environmental pollution and preserving the environment are at the heart of our activities!

• Any service or repair work must be carried out by qualified personnel only. To arrange this, please get in touch with your HAZET partner.

• Only the manufacturer’s original spare parts may be used.

• Unsuitable or defective spare parts may cause damage, malfunction or total failure of the tool.

• The use of unapproved spare parts will void all warranty, service and liability claims as well as all claims for compen

sation against the manufacturer or its agents, distributors and sales representatives.

• Rechargeable batteries must be replaced as required, in a timely fashion. Only use the specified models of recharge

able batteries. Note the direction of insertion.

Only store the torque wrench with built-in angle gauge in its packaging.

• Prevent the wrench from falling.

• Keep tool in a dry and dust-free place.

• Do not store the tool outdoors.

• Protect the wrench from unauthorised access.

• Storage temperature: -10°C up to +40°C.

• Relative air humidity: max. 60%. CAUTION! Remove the rechargeable battery if the torque wrench with built-in angle gauge is not being used for long periods of time. Battery leakage can damage the tool. Reprogram the date and time every time the device is reused. See 7.2.4 in Section 7, "Commissioning"

The internal mechanical and electronic functional elements do not require any maintenance.

• Only clean the torque wrench with built-in angle gauge with a dry cloth.

• Do not expose the tool to liquids and/or aggressive substances.34 Notes35
