Product Type	Portable Generator
Brand	RYOBI
Model	RY906522
Engine	420 cc, OHV, 4-stroke
Rated Power	6,800 W
Starting Power	8,500 W
Output Voltage	120 V / 240 V
Frequency	60 Hz
Rated Current	58.3 A (120 V) / 29.1 A (240 V)
Outlets	2 × 120 V 20 A GFCI duplex + 1 × 120/240 V 30 A
Fuel Tank Capacity	22.7 L (6 gal)
Fuel Type	Unleaded gasoline (max 10% ethanol)
Engine Oil Capacity	Approximately 0.9 L
Recommended Oil	SAE 10W-30 (API SJ or higher)
Spark Plug	LG F7RTC or equivalent (gap 0.7-0.8 mm)
Automatic Shutdown System	CO sensor and low oil sensor
Digital Display	Voltage, frequency, operating hours
GFCI Protection	Yes (120 V outlets)
Spark Arrestor	Integrated (removable for cleaning)
Noise Level	Not specified (outdoor use)
Weight	Not specified (approximately 95 kg)
Dimensions	Not specified
Warranty	3 years (personal use)

Frequently Asked Questions - RY906522 RYOBI

What type of gasoline to use?

Use unleaded gasoline with an octane rating of 86 or higher, containing at most 10% ethanol (E10). Do not use E15 or E85, as this will damage the engine and void the warranty.

How to check the oil level?

Place the generator on a level surface, remove the dipstick, wipe it clean, insert it without screwing, then check that the level is within the hatch zone. Add SAE 10W-30 oil if necessary.

Why won't the engine start?

Possible causes: no fuel, low oil (safety sensor), choke lever in OFF position, defective spark plug, or old fuel. Check each point and follow the starting procedure in the manual.

What to do if the red CO sensor light flashes?

This indicates a dangerous level of carbon monoxide. Leave the area immediately, ventilate, and place the generator outdoors away from windows and doors. Never use it indoors.

How to test the GFCI outlets?

Press the TEST button: the RESET button should pop out. To reset, press RESET. Perform this test monthly, and before each use if the generator is exposed to weather.

What minimum clearance around the generator?

Leave at least 3 ft (91.4 cm) of free space on each side and above. Keep the generator at least 20 ft (6 m) away from windows, doors, and vents to avoid CO poisoning.

When should the oil be drained?

After the first 25 hours of operation, then every 6 months or 100 hours according to the maintenance schedule. Drain the oil when warm (not hot) and dispose of it at an approved center.

How to store the generator for winter?

Drain fuel from the tank and carburetor, remove the spark plug and pour a tablespoon of oil into the cylinder, then replace the spark plug. Store in a dry, ventilated place.

Can I connect the generator to the house circuit?

Yes, but only via a transfer switch installed by a qualified electrician, in compliance with the National Electrical Code. Never plug directly into a wall outlet (dangerous backfeeding).

What to do in case of overload?

The AC circuit breaker will trip. Reduce the load by unplugging some appliances, then reset the breaker. Never exceed the rated power (6800 W continuous, 8500 W peak).

USER MANUAL RY906522 RYOBI

Do not use E15 or E85 fuel in this product. It is a violation of federal law and will damage the unit and void your warranty. Only use unleaded gasoline containing up to 10% ethanol.

Technical line drawing of a portable power organizer with visible internal components and wheels (no text or symbols)

LOW CO

PORTABLE

GENERATOR

REDUCED CARBON MONOXIDE (CO) EMISSIONS

NEUTRAL BONDED TO FRAME CONNECTEUR NEUTRE RELIÉ AU CADRE PUNTO NEUTRO CONECTADO AL MARCO

TABLE OF CONTENTS

■ Important Safety Instructions......3
■ Specific Safety Rules......4
■ Symbols....5-7
■ Electrical.... 8-9
■ Features....10
■ Assembly.... 11-12
■ Operation.... 12-14
■ Maintenance.... 15-17
■ Troubleshooting......18
■ Parts Ordering / Service....Back Page

WARNING: To reduce the

risk of injury, the user must read and understand the operator's manual before using this product.

SAVE THIS MANUAL FOR FUTURE REFERENCE

TABLE DES MATIÈRES

See this fold-out section for all of the figures referenced in the operator's manual.

O P B C A L N F M E G H I K T J

A - Handle lock pin (goupille de blocage de la poignée, pasador de seguro del mango)

Technical diagram of a mechanical assembly with numbered components for identification

Fig. 4

Technical illustration of two wrenches labeled A and B, showing different mechanical parts (no text or symbols present)

Technical diagram of a portable lawn mower with labeled components A, B, and C, showing internal components and airflow direction.

A - Handle (poignée, mango)
B - Handle lock pin (goupille de blocage de la poignée, pasador de seguro del mango)
C - Handle release knob (bouton de verrouillage de la poignée, perilla de liberación del mango)

Fig. 9

Technical diagram showing engine components with labeled parts A and B, including a hand operating a valve.

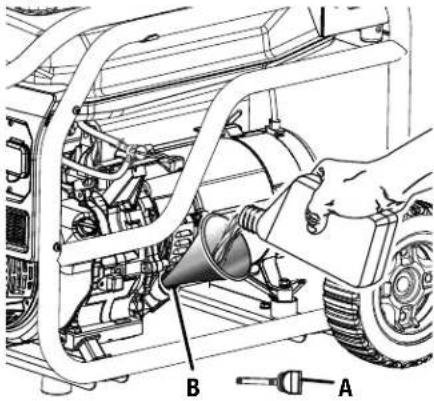

A - Oil cap/dipstick (bouchon/jauge d'huile, tapa de relleno de aceite/varilla medidora de aceite)

B - Oil fill hole (orifice de remplissage d'huile, agujero de llenado de aceite)

Fig. 10

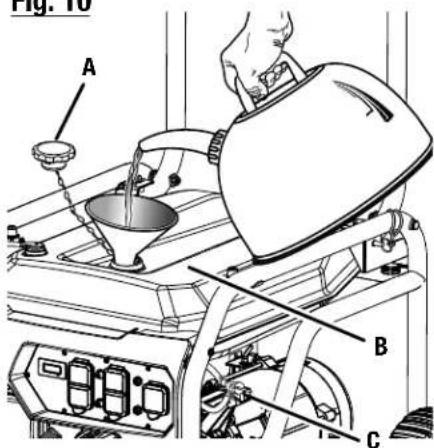

Fig. 10 A B C

A - Fuel cap (bouchon de carburant, tapa del tanque de combustible)

Technical line drawing of a mechanical device with labeled component A, showing internal components and wiring (no text or symbols beyond label)

A - Recoil starting grip (Poignée du lanceur, mango del arrancador retráctil)

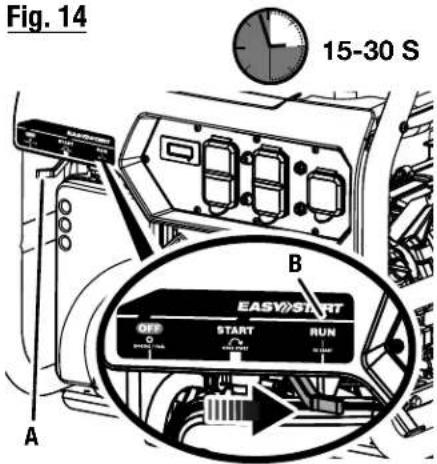

Fig. 14 15-30 S A B EASY/START OFF START RUN

Technical diagram of a vehicle engine showing internal components with labeled parts and a circular component highlighting a specific section.

To register your Ryobi product, please visit: www.ryobitools.com

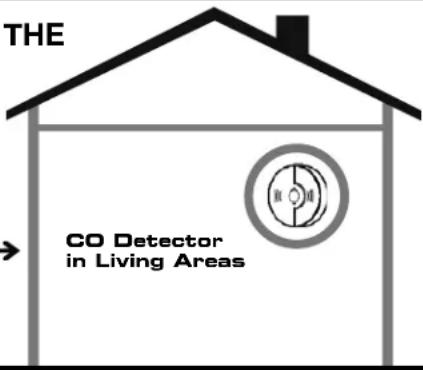

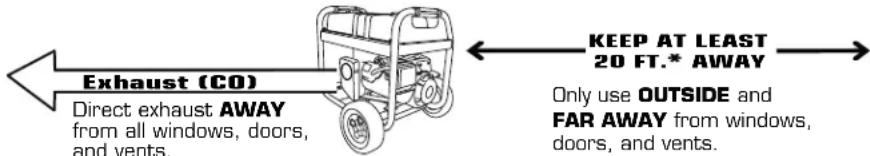

LOCATE GENERATOR AT LEAST 20 FT.\* AWAY TO REDUCE THE RISK OF CARBON MONOXIDE GETTING INSIDE THE HOME

* Minimum distance as recommended by U.S. Department of Health and Human Services Centers for Disease Control and Prevention (www.cdc.gov/co). Your specific home and/or wind conditions may require additional distance.

Exhaust (CO) Direct exhaust AWAY from all windows, doors, and vents. KEEP AT LEAST 20 FT.* AWAY Only use OUTSIDE and FAR AWAY from windows, doors, and vents.

THE CO Detector in Living Areas

WARNING:

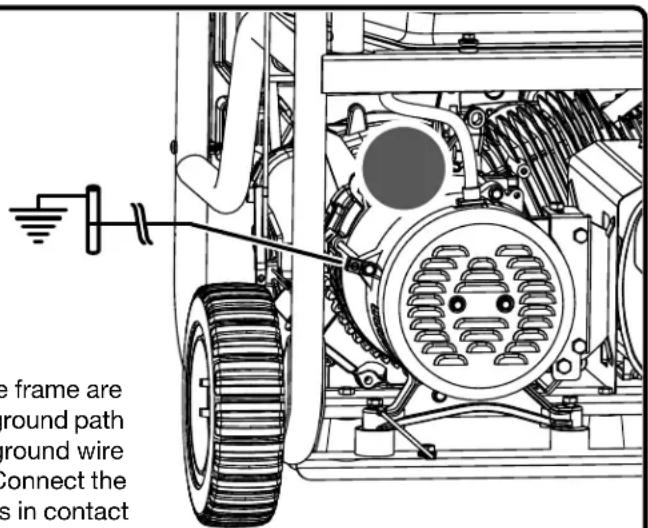

GROUNDING THE GENERATOR

If this generator will be used only with cord and plug-connected equipment, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances to find out if grounding is needed in your situation before using the generator.

When grounding is required, the nut and ground terminal on the frame are used to connect the generator to a suitable ground source. The ground path should be made with #8 size wire. Connect the terminal of the ground wire between the lock washer and the nut, and tighten the nut fully. Connect the other end of the wire securely to a suitable ground source that is in contact with the soil for a minimum distance of 8 ft.

e frame are round path round wire connect the s in contact

The National Electric Code contains several practical ways in which to establish a good ground source. If a steel or iron rod is used, it should be at least 5/8 in. diameter, and if a nonferrous rod is used, it should be at least 1/2 in. diameter and be listed as material for grounding. If a rock bottom is encountered before reaching a depth of 8 ft., drive the ground rod in at an angle of up to 45°. If the rock bottom is again encountered, the rod can be buried in a trench that is at least 30 in. deep. In all cases, the upper end of the grounding rod should either be flush with (or below) the ground or must be otherwise protected from physical damage.

All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or be "Double Insulated."

It is recommended to:

1. Use electrical devices with 3-prong grounded plugs.
2. Use an extension cord intended for outdoor use with a 3-pole receptacle and a 3-prong plug at opposite ends to ensure continuity of the ground protection from the generator to the appliance.

Check and adhere to all applicable federal, state, and local regulations relating to grounding specifications. Consult a qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as to whether the generator is properly grounded.

IMPORTANT SAFETY INSTRUCTIONS

DANGER:

Carbon Monoxide. Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.

■ Never use a generator inside homes, garages, crawl-spaces, or other partly enclosed areas. Deadly levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply enough fresh air.
■ ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can pull in generator exhaust.

Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-backup CO alarm in the home.

If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.

WARNING:

Read and understand all instructions. Failure to follow all instructions listed below could result in electrocution, fire, and/or carbon monoxide poisoning, which can cause death or serious injury.

WARNING:

In some applications, National Electric Code requires generator to be grounded to an approved earth ground. Before using the ground terminal, consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances that apply to the intended use of the generator.

SAVE THESE INSTRUCTIONS

This manual contains important instructions that should be followed during installation and maintenance of the generator.

• Do not connect to a building's electrical system unless the generator and transfer switch have been properly installed and the electrical output has been verified by a qualified electrician. The connection must isolate the generator power from utility power and must comply with all applicable laws and electrical codes.
  ■ Do not allow children or untrained individuals to use this unit.
  ■ Do not start or operate the engine in a confined space, building, near open windows, or in other unventilated space where dangerous carbon monoxide fumes can collect. Carbon monoxide, a colorless, odorless, and extremely dangerous gas, can cause unconsciousness or death.

- Keep all bystanders, children, and pets at least 10 feet away.

■ Wear sturdy and dry shoes or boots. Do not operate while barefoot.
■ Do not operate generator when you are tired or under the influence of drugs, alcohol, or medication.
- Keep all parts of your body away from any moving parts and all hot surfaces of the unit.
■ Do not touch bare wire or receptacles.

■ Do not use generator with electrical cords which are worn, frayed, bare, or otherwise damaged.

■ Before storing, allow the engine to cool for 30 minutes and drain fuel from the unit.
■ Do not operate or store the generator in rain, snow, or wet weather.
■ Store the generator in a well-ventilated area with the fuel tank empty. Fuel should not be stored near the generator.
■ Empty fuel tank, close fuel valve, and restrain the unit from moving before transporting in a vehicle.
■ Provide a plastic sheet or absorbent pad below the generator to catch any drips of fuel or lubricant when transporting.
■ To reduce the risk of fire and burn injury, handle fuel with care. It is highly flammable.
■ Do not smoke while handling fuel.
■ Store fuel in a container approved for gasoline.
■ Position the unit on level ground, stop engine, and allow to cool for five minutes before refueling.
■ Loosen fuel cap slowly to release pressure and to keep fuel from escaping around the cap.
■ Tighten the fuel cap securely after refueling.
■ Wipe spilled fuel from the unit.

■ Never attempt to burn off spilled fuel under any circumstances.

■ Generators vibrate in normal use. During and after the use of the generator, inspect the generator as well as extension cords and power supply cords connected to it for damage resulting from vibration. Have damaged items repaired or replaced as necessary. Do not use plugs or cords that show signs of damage such as broken or cracked insulation or damaged blades.

For power outages, permanently installed stationary generators are better suited for providing back-up power to the home. Even a properly connected portable generator can become overloaded. This may result in overheating or stressing the generator components, possibly leading to generator failure.

■ Use only recommended or equivalent replacement parts and accessories and follow instructions in the Maintenance section of this manual. Use of any other parts or failure to follow maintenance instructions may create a risk of shock or injury.
- Maintain the unit per maintenance instructions in this Operator's Manual.
- Inspect the unit before each use for loose fasteners, fuel leaks, etc. Replace damaged parts.

SPECIFIC SAFETY RULES

DANGER:

Risk of fire and serious burns: Never remove fuel cap when unit is running. Shut off engine and allow the unit to cool at least five minutes. Remove cap slowly.

WARNING:

When this generator is used to supply a building wiring system: generator must be installed by a qualified electrician and connected to a transfer switch as a separately derived system in accordance with NFPA 70, National Electrical Code. The generator shall be connected through a transfer switch that switches all conductors other than the equipment grounding conductor. The frame of the generator shall be connected to an approved grounding electrode. Failure to isolate the generator from power utility can result in death or injury to electric utility workers.

■ Do not use this generator to provide power for emergency medical equipment or life support devices.

This generator has a neutral bonded condition. This means the neutral conductor is electrically connected to the frame of the machine.

■ Always use a battery-powered carbon monoxide detector when running the generator. If you begin to feel sick, dizzy, or weak while using the generator, shut it off and get to fresh air immediately. See a doctor. You may have carbon monoxide poisoning.

■ Place the generator on a flat, stable surface with a slope of no more than 4^ .

■ Operate outdoors in a well-ventilated, well-lit area isolated from working areas to avoid noise interference.

■ Operating the generator in wet conditions could result in electrocution. Keep the unit dry.

- Keep the generator a minimum of 3 feet away from all types of combustible material.

■ Do not operate generator near hazardous material.

■ Do not operate generator at a gas or natural gas filling station.

■ Do not touch the muffler or cylinder during or immediately after use; they are HOT and will cause burn injury.

- Do not allow the generator's gas tank to overflow when filling. Fill to 1 in. below the top neck of the gasoline tank to allow for fuel expansion. Do not cover the fuel tank cap when the engine is running. Covering the fuel tank cap during use may cause engine failure and/or damage to the tool.

■ Do not smoke when filling the generator with gasoline.

■ Shut down the engine and allow to cool for five minutes before adding gasoline or lubricant to the generator.

■ Do not remove the lubricant dipstick or the fuel tank cap when the engine is running.

■ Pay close attention to all safety labels located on the generator.

- Keep children a minimum of 10 feet away from the generator at all times.

■ The unit operates best in temperatures between 23^ F and 104^ F with a relative humidity of 90% or less.

- Operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them into this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation, and +/- 3 hz frequency variation from the generator name plate ratings. To avoid damage, always have an additional load plugged into the generator if solid state equipment (such as a television set) is used. A power line conditioner is recommended for some solid state applications.

■ NEVER ignore an automatic shutoff event. IF AUTOMATIC SHUTOFF OCCURS – YOU MUST leave the area immediately and relocate to an open outdoor area. Ventilate the area thoroughly before occupying again. Ensure the generator is located in an open, outdoor area at least 20 feet away from all doors, windows, and occupied spaces. Always point exhaust away from occupied structures. Never run the generator in enclosed areas (e.g. not in a house or garage). Failure to follow these instructions can lead to carbon monoxide (CO) poisoning which can result in death or serious injury.

■ The carbon monoxide sensor on this generator is not designed to detect smoke, fire, or any other gas. It will only activate due to the presence of carbon monoxide gas at the sensor. Carbon monoxide gas may be present in other areas.

■ The carbon monoxide shutoff feature on this generator is not a substitute for safe generator practices. Always operate the generator in open, outdoor areas, at least 20 feet away from occupied structures. Never operate the generator in fully or partly enclosed areas or near open windows, doors, or other unventilated spaces.

■ DO NOT tamper with, adjust, or modify the carbon monoxide (CO) sensor module on your generator. Failure to follow these instructions can cause the monitor to malfunction which can result in death or serious personal injury.

■ For outdoor use only.

■ Save these instructions. Refer to them frequently and use them to instruct others who may use this product. If you loan someone this product, loan them these instructions also.

SYMBOLS

The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING
	DANGER:	Indicates a hazardous situation, which, if not avoided, will result in death or serious injury.
	WARNING:	Indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
	CAUTION:	Indicates a hazardous situation, that, if not avoided, may result in minor or moderate injury.
	NOTICE:	(Without Safety Alert Symbol) Indicates information considered important, but not related to a potential injury (e.g. messages relating to property damage).

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION
	Safety Alert Indicates a potential personal injury hazard.
	Read Operator's Manual	To reduce the risk of injury, user must read and understand operator's manual before using this product.
	Wet Conditions Alert Do not expose to rain or use in damp locations.
	Electric Shock	Failure to use in dry conditions and to observe safe practices can result in electric shock.
	Toxic Fumes	Running generator gives off carbon monoxide, an odorless, colorless, poison gas. Breathing carbon monoxide can cause nausea, fainting, or death.
	Fire/Explosion	Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause severe burns or death.
	Hot Surface and Exhaust Gases	To reduce the risk of injury or damage, avoid contact with any hot surface and do not place any body parts in the path of hot exhaust gases.
	Lifting Hazard	To reduce the risk of serious injury, avoid attempting to lift the generator alone.
	Ground	Consult with local electrician to determine grounding requirements before operation.
V Volts Voltage
A Amperes Current

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL NAME DESIGNATION/EXPLANATION

Hz Hertz Frequency (cycles per second)
W Watt Power
hrs Hours Time
gal Gallon Volume
qt Quart Volume

SAFETY LABELS

The information below can be found on the generator. For your safety, please study and understand all of the labels before starting the generator.

If any of the labels come off the unit or become hard to read, contact customer service or a qualified service center for replacement.

■ You WILL be KILLED or SERIOUSLY HURT if y do not follow the Operator's Manual instructions.
■ Risk of Fire. Do not add fuel while the product is operating.
■ Generator is a potential sour of electric shock. Do not expose to moisture, rain, or snow. Do not operate with wet hands or feet.
■ Exhaust contains poisonous carbon monoxide gas that can cause unconsciousness or DEATH. Operate in well-ventilated, outdoor areas away from open windows
■ Do not expose to rain or use in damp location
■ Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.
■ NEVER use inside a home or garage, EVEN IF doors and windows are open.
■ Only use OUTSIDE and far away from window doors, and vents.
■ CARBON MONOXIDE (CO) SENSOR
NEVER use inside a home or garage, EVEN IF doors and windows are open.

In the event of a carbon monoxide hazard, the LED on the

CO sensor will flash red and the generator will shut off. Leave the area immediately and relocate to an open outdoor area. Ventilate the area thoroughly before occupying again. Ensure the generator is located in an open, outdoor area. Always point exhaust away from occupied structures. Never run the generator in enclosed areas (e.g. not in a house or garage).

DO NOT tamper with, adjust, or modify the carbon monoxide (CO) sensor module on your generator.

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

Only use OUTSIDE and far away from windows, doors, and vents.

DANGER

This unit may experience a SHUTDOWN if CO levels exceed normal operating conditions. Please refer to the operator's manual for further instruction.

SYSTÈME DE SURVEILLANCE D'ARRÊT D'URGENCE CO DÉTECTER

Never remove fuel cap when unit is running. Shut off engine and allow the unit to cool at least five minutes. Remove cap slowly to release any pressure built up in the fuel system and to avoid the heat from the muffler igniting fuel vapors.

FUEL WARNING

No smoking when filling with gasoline. Do not overfill. Full level is 1 in. below the top of the fuel neck. Stop the engine for five minutes before refueling to avoid the heat from the muffler igniting

ENGINE LUBRICANT WARN-

You must add lubricant before first operating the generator. Always check the lubricant level before each operation. The lubricant level should always register between the hatched areas on the dipstick. The unit is equipped with a sensor which will automatically shut off the engine if the lubricant level falls below a safe limit.

GROUNDINGWARNING

This generator does not include a ground rod or copper wire. Call a qualified electrician for local grounding requirements.

SPARK ARRESTOR

Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.

HOT SURFACE WARNING

Do not touch the muffler or aluminum cylinder of the engine. They are very HOT and will cause severe burns. Don't put body parts or any flammable or combustible materials in the direct path of the exhaust.

CLEARANCE WARNING

While operating and storing, keep at least 3 feet of clearance on all sides of this product, including overhead. Allow a minimum of 30 minutes of "cool down" time before storage. Heat created by muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.

▲ DANGER RISK OF FIRE AND SERIOUS BURNS: Never remove fuel cap when unit is running. Shut off engine and allow the unit to cool at least five minutes. Remove cap slowly. USE FUEL STABILIZER FOR STORAGE

DANGER PELIGRO RISQUE D'INCENDIE ET DE BLESSURES GRAVES : Ne jamais retirer le capuchon du réservoir d'essence pendant que l'apparel fonctionne. Éleindre le moteur et laisser refroidir l'apparel pendant au moins cinq minutes. Retirer lentement le capuchon. RIESGO DE INCENDIOS Y LESIONES POR QUEMADURAS: Nunca retire la tapa de combustible mientras esté encendida la unidad. Apague el motor y deje enfriar la unidad durante al menos cinco minutos. Retire la tapa lentamente. UTILISEZ UN STABIL SATEUR DE CARBURANT POUR LE STOCKAGE EL USO DEL ESTABILIZADOR DE COMBUSTIBLE PARA EL ALMANCENAMEIENTO

▲ DANGER ▲ DANGER ▲ PELIGRO

Product does not include ground rod or copper wire. Call a qualified electrician for local grounding requirements.

Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.

Risk of Fire. Keep all objects at least 3 feet away from this machine. Heat from Muffler and Exhaust gases can ignite combustible objects.

Refer to the table below to ensure the cable size of the extension cords you use are capable of carrying the required load. Inadequate size cables can cause a voltage drop, which can burn out the appliance and overheat the cord.

Current in Amperes	Load in Watts Maximum Allowable Cord Length
	At 120V At	240V #8 Wire	#10 Wire #12 Wire	#14 Wire #16 Wire
2.5	300 600	1000 ft. 600 ft.	375 ft. 250 ft.
5	600 1200	500 ft. 300 ft.	200 ft. 125 ft.
7.5	900 1800	350 ft. 200 ft.	125 ft. 100 ft.
10 1200	2400			250 ft. 150 ft.	100 ft. 50 ft.
15 1800	3600 150 ft. 1	00 ft. 65 ft.
20 2400	4800	175 ft.	125 ft. 75 ft.
25 3000	6000	150 ft.	100 ft.
30 3600	7200	125 ft.	65 ft.
40 4800	9600	90 ft.

ELECTRIC MOTOR LOADS

It is characteristic of common electric motors in normal operation to draw up to six times their running current while starting. This table may be used to estimate the watts required to start electric motors; however, if an electric motor fails to start or reach running speed, turn off the appliance or tool immediately to avoid equipment damage. Always check the requirements of the tool or appliance being used compared to the rated output of the generator.

Motor Size (H.P.)	Running Watts	Watts Required to Start Motor
		Universal	Capacitor	Split Phase
1/8	275	N/A	850	1200
1/6	275	600	850	2050
1/4	400	800	1050	2400
1/3	450	950	1350	2700
1/2	600	1000	1800	3600
3/4	850	1200	2600	—
1	1100	N/A	3300	—

NOTICE:

Operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them into this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation, and +/- 3 Hz frequency variation from the generator name plate ratings. To avoid damage, always have an additional load plugged into the generator if solid state equipment (such as a television set) is used. A power line conditioner is recommended for some solid state applications.

GROUND FAULT CIRCUIT INTERRUPTER

See Figure 1.

The 20 amp, 120 volt receptacles on the generator are protected by a Ground Fault Circuit Interrupter (GFCI),

which guards against the hazards of ground fault currents. An example of ground fault current is the current that would flow through a person who is using an appliance with faulty insulation and, at the same time, is in contact with an electrical ground such as a plumbing fixture, wet floor, or earth.

GFCI receptacles do not protect against short circuits, overloads, or shocks.

The GFCI receptacles can be tested with the TEST and RESET buttons.

To test:

■ Depress the TEST button. This should cause the Reset button to pop out.
■ To restore power, depress the RESET button.

Perform this test monthly to ensure proper operation of the GFCI. If the generator is stored outdoors, unprotected from the weather, test the GFCI receptacle before each use.

ELECTRICAL

GENERATOR CAPACITY

Make sure the generator can supply enough continuous (running) and surge (starting) watts for the items you will power at the same time. Follow these simple steps.

1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This is the amount of power the generator must produce to keep the items running. See the wattage reference chart at right.
3. Estimate how many surge (starting) watts you will need. Surge wattage is the short burst of power needed to start electric motor-driven tools or appliances such as a circular saw or refrigerator. Because not all motors start at the same time, total surge watts can be estimated by adding only the item(s) with the highest additional surge watts to the total rated watts from step 2.

Example:

Tool or Appliance	Running Watts*	Starting Watts*
Window AC, 10,000 BTU	1200 1800
Refrigerator 700 2200
1/3 HP Well Pump	800 2000
27 in. Television 500 0
Light (75 Watts) 75 0
	3475 Total Running Watts	2200 Highest Starting Watts

Total Running Watts 3275

Highest Starting Watts + 2200

Total Starting Watts Needed 5475

POWER MANAGEMENT

To prolong the life of the generator and attached devices, it is important to take care when adding electrical loads to the generator. There should be nothing connected to the generator outlets before starting its engine. The correct and safe way to manage generator power is to sequentially add loads as follows:

1. With nothing connected to the generator, start the engine as described later in this manual.
2. Plug in and turn on the first load, preferably the largest load you have.
3. Permit the generator output to stabilize (engine runs smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.

Never add more loads than the generator capacity. Take special care to consider surge loads in generator capacity as previously described.

NOTICE:

Do not overload the generator's capacity. Exceeding the generator's wattage/amperage capacity may damage the generator and/or electrical devices connected to it.

Application/Equipment	Estimated Running Watts*	Estimated Starting Watts*
Emergency / Home Standby
Clock Radio	50	0
Lights (qty. 4 x 75 W)	300	0
Refrigerator	700	2200
Furnace Fan	800	2350
Water Well Pump	1000	2200
Microwave	1000	0
Sump Pump	1050	2200
Electric Range (per element)	2100	0
Job Site
Electric Drill – 1/2 HP	600	900
Airless Sprayer – 1/3 HP	600	1200
Quartz Halogen Work Light 1000	0
Reciprocating Saw	960	960
Air Compressor – 1 HP	1600	4500
Circular Saw – 7-1/4 in.	1400	2300
Planer/Jointer – 6 in	1800	1800
Miter Saw – 10 in.	1800	1800
Table Saw/Radial Arm Saw – 10 in.	2000	2000

*Wattages listed are approximate. Check tool or appliance for actual wattage.

FEATURES

PRODUCT SPECIFICATIONS

ENGINE

Engine Type....420cc, OHV

Replacement Spark Plug.....LG F7RTC or equivalent

Lubricant Fill Volume......approximately 32 oz.

Fuel Volume....6 gal.

*Rated output determined by PGMA Standard G300

GENERATOR

Rated Voltage....120V/240V

Rated Amps....58.3A/29.1A

Rated Output ^* 6800 W

Starting Watts....8500 W

Rated Frequency....60 Hz

KNOW YOUR GENERATOR

See Figure 2.

The safe use of this product requires an understanding of the information on the product and in this operator's manual as well as a knowledge of the project you are attempting. Before use of this product, familiarize yourself with all operating features and safety rules.

AC CIRCUIT BREAKERS

The circuit breakers are provided to protect the generator against electrical overload. The circuit breaker may be reset by pressing the circuit breaker reset button.

AIR FILTER

The air filter helps to limit the amount of dirt and dust drawn into the unit during operation.

ANSI/UL-2201 CERTIFIED

This generator complies with the ANSI/UL-2201 Standard for Low Carbon Monoxide (CO) Emission Rates for portable generators. When used properly, portable generators with lowered CO emissions and CO shutoff capability mitigate the risk of CO related poisoning.

DANGER:

ANSI/UL 2201 compliance is not a substitute for safe generator practices. Always operate the generator in open, outdoor areas, at least 20 feet away from occupied structures. Never operate the generator near open windows, doors, or other unventilated spaces.

CHOKE LEVER/FUEL VALVE

The choke lever/fuel valve is used when starting, stopping, and running the engine.

DIGITAL DISPLAY

The digital display shows AC voltage output, frequency, how long the engine has been running during the current usage period, and the total number of hours the unit has been used.

ENGINE STOP SWITCH

To turn the engine off, turn the engine stop switch to the OFF position.

FUEL TANK

The fuel tank has a capacity of 6 gallons.

GROUND TERMINAL

The ground terminal is used to assist in properly grounding the generator to help protect against electrical shock. Consult with a qualified local electrician for grounding requirements in your area.

LOW OIL SHUT DOWN PROTECTOR

The low oil sensor causes the engine to stop if the level of lubricant in the crankcase is insufficient.

OIL CAP/DIPSTICK

Remove the oil fill cap to check and add lubricant to the generator when necessary.

OIL DRAIN PLUG

When changing the engine lubricant, unscrew and remove the oil drain plug to allow old engine lubricant to be drained.

RECEPTACLES

Your generator has the following single phase, 60 Hz outlets: two 120 Volt AC duplex 20 Amp GFCI protected receptacles, and one 240 Volt AC, 30 Amp receptacle. These can be used for operating appropriate appliances, electrical lighting, tools, and motor loads.

RECOIL STARTER GRIP

The recoil starter grip is used to start the generator's engine.

ASSEMBLY

UNPACKING

This product requires assembly.

- Carefully cut the box down the sides then remove the machine and any accessories from the box. Make sure that all items listed in the loose parts list are included.

NOTE: This machine is heavy and requires a minimum of two people to lift. To avoid back injury, lift with your legs and not your back.

WARNING:

Do not use this product if any parts in the Loose Parts List are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.

■ Inspect the unit carefully to make sure no damage occurred during shipping.
■ Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
■ If any parts are damaged or missing, please call 1-800-525-2579 for assistance.

WARNING:

If any parts are damaged or missing do not operate this product until the parts are replaced. Use of this product with damaged or missing parts could result in serious personal injury.

WARNING:

Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.

WARNING:

Do not attempt to operate the generator until assembly is complete. Failure to comply could result in possible serious personal injury.

LOOSE PARTS LIST

See Figure 3.

The following items are included with the generator:

Key

No. Description Qty.

1 Axle....2
2 Wheel....2
3 Washer....2

4 Hitch Pin....2

5 Bolt....2

6 Rubber Foot 2

7 Lock Nut....2

8 Engine Lubricant....1

9 Handle Lock Pin ....1

10 Lanyard....1

Operator's Manual (not shown) ....1

TOOLS NEEDED

See Figure 4.

The following tools (not included or drawn to scale) are needed for assembly:

■ Socket Wrenches and/or Combination Wrenches

NOTE: Do not put fuel or lubricant in the generator before installing the feet, frame support, wheels and handle.

INSTALLING FEET

See Figure 5.

■ Locate the following items:
2 rubber feet
2 lock nuts
2 bolts
■ Insert bolt through rubber foot, then through the cross brace as shown.
■ Thread lock nut onto bolt and tighten one full turn past snug.

NOTE: Be careful not to overtighten so that foot material collapses.

■ Repeat with remaining foot.

ASSEMBLY

INSTALLING THE WHEELS

See Figure 6.

Wheels are provided to assist in moving the generator to the desired location and should be installed on the same side as the handle.

■ Locate the following items:

2 axles

2 hitch pins

2 washers

2 wheels

■ Raise the end of the generator where the handle is located high enough to gain access to the frame bottom; securely position props underneath to support.

■ Slide a washer onto the axle.
■ Slide the axle through the hole in the center of the wheel.
■ Slide the axle into the wheel mounting hole as shown.
■ Insert hitch pin to secure.

NOTE: The hitch pin should be pushed into the axle until the center of the pin rests on top of the axle.

■ Repeat with the second wheel.

OPERATION

DANGER:

Carbon Monoxide. Using a generator indoors CAN KILL YOU IN MINUTES.

Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell. If you can smell the generator exhaust, you are breathing CO. But even if you cannot smell the exhaust, you could be breathing CO.

■ Never use a generator inside homes, garages, crawl-spaces, or other partly enclosed areas. Deadly levels of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT supply enough fresh air.
■ ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can pull in generator exhaust.

Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or battery-backup CO alarm in the home.

If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY. See a doctor. You could have carbon monoxide poisoning.

WARNING:

NEVER ignore an automatic shutoff event. IF AUTOMATIC SHUTOFF OCCURS – YOU MUST leave the area immediately and relocate to an open outdoor area. Ventilate the area thoroughly before occupying again. Ensure the generator is located in an open, outdoor area at least 20 feet away from all doors, windows, and occupied spaces. Always point exhaust away from occupied structures. Never run the generator in enclosed areas (e.g. not in a house or garage). Failure to follow these instructions can lead to carbon monoxide (CO) poisoning which can result in death or serious personal injury.

WARNING:

If this generator will be used only with cord and plug-connected equipment, National Electric Code does not require that the unit be grounded. However, other methods of using the generator may require grounding to reduce the risk of shock or electrocution. Consult a qualified electrician, electrical inspector, or local agency having jurisdiction for local codes or ordinances to find out if grounding is needed in your situation before using the generator.

WARNING:

Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.

WARNING:

Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.

NOTICE:

This product is equipped with a spark arrestor that has been evaluated by the USDA Forest Service; however, product users must comply with Federal, State, and local fire prevention regulations. Check with appropriate authorities. Contact customer service or a qualified service center to purchase a replacement spark arrestor.

OPERATION

NOTICE:

Before each use, inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or a qualified service center for assistance.

APPLICATIONS

This generator is designed to supply electrical power for operating compatible electrical lighting, appliances, tools, and motor loads.

■ Only use OUTSIDE and at least 20 feet away from windows, doors, and vents as recommended by the U.S Department of Health and Human Services Centers for Disease Control and Prevention. Your specific home and/or wind conditions may require additional distance.
■ NEVER use inside a home or garage, EVEN IF doors and windows are open.
■ Always position the generator on a flat firm surface.

There may be General or State Occupational Safety and Health Administration (OSHA) regulations, local codes or ordinances that apply to the intended use of the generator. Please consult a qualified electrician, electrical inspector, or the local agency having jurisdiction:

In some areas, generators are required to be registered with local utility companies.
■ If the generator is used at a construction site, there may be additional regulations which must be observed.

RAISING AND LOWERING THE HANDLE

See Figures 7 - 8.

■ Attach the lanyard to the handle lock pin and generator.
■ To raise the handle (for moving the generator): pull the handle release knob out, raise the handle, then release the knob so it snaps into the locking position. Insert the handle lock pin to secure the handle in place.
■ To lower the handle (for storing or transporting the generator): remove the handle lock pin, pull the handle release knob out, then lower the handle to the down position.

Never use the handle to lift the generator. The handle should only be used for moving the unit by rolling it on its wheels.

CHECKING/ADDING LUBRICANT

See Figure 9.

NOTICE:

Attempting to start the engine before it has been properly filled with lubricant will result in equipment failure.

NOTE: If a separate engine manual is provided for this product, please follow the instructions provided in the engine manual instead of the information listed below.

Engine lubricant has a major influence on engine performance and service life. For general, all-temperature use, SAE 10W-30 is recommended. Always use a 4-stroke motor lubricant that meets or exceeds the requirements for API service classification SJ.

This engine comes with a feature that will shut off the engine when a specific lubricant level is not maintained. The engine will not restart until an appropriate lubricant level is reached.

NOTE: Non-detergent or 2-stroke engine lubricants will damage the engine and should not be used.

■ Unscrew the oil cap/dipstick and remove.
■ Wipe dipstick clean and re-seat in hole; do not re-thread.
■ Remove dipstick again and check lubricant level. Lubricant level should fall between the hatched areas on the dipstick.
■ If level is low, add engine lubricant until the fluid level rises to the upper portion of the dipstick.
■ Replace and secure the oil cap/dipstick.

USING FUEL STABILIZER

Fuel gets old, oxidizes, and breaks down over time. Adding a fuel stabilizer (not included) extends the usable life of fuel and helps prevent deposits from forming that can clog the fuel system. Follow fuel stabilizer manufacturer's directions for correct ratio of stabilizer to fuel.

■ Mix fuel stabilizer and gasoline prior to filling the tank by using a gas can or other approved fuel container and shaking gently to combine.
NOTE: To control the amount of fuel stabilizer being added to the engine, always mix fuel stabilizer with gasoline before fueling the tank rather than adding fuel stabilizer directly into the generator's fuel tank.
■ Replace and secure the fuel tank cap.
■ Start and run the engine for at least 5 minutes to allow stabilizer to treat the entire fuel system.

Do not use E15 or E85 fuel in this product. It is a violation of federal law and will damage the unit and void your warranty. Only use unleaded gasoline containing up to 10% ethanol.

OPERATION

ADDING FUEL

See Figure 10.

DANGER:

Risk of fire and serious burns: Never remove fuel cap when unit is running. Shut off engine and allow the unit to cool at least five minutes. Remove cap slowly.

WARNING:

Gasoline and its vapors are highly flammable and explosive. To prevent serious personal injury and property damage, handle gasoline with care. Keep away from ignition sources, handle outdoors only, do not smoke while adding fuel, and wipe up spills immediately.

When adding gas to the generator, make sure the unit is sitting on a flat, level surface. If the engine is hot, let the generator cool for five minutes before adding gas. ALWAYS fill the fuel tank outdoors with the machine turned off.

■ Move the choke lever/fuel valve to the OFF (O) position.

■ Remove the fuel cap slowly.
■ Fill the fuel tank to 1 in. below the top of the fuel neck.
■ Replace and secure the fuel cap.

WARNING:

Always shut off engine before fueling. Never remove fuel cap or add fuel to a machine with a running or hot engine. Make sure the unit is sitting on a flat, level surface and only add fuel outdoors. If the engine is hot, let the unit cool for at least five minutes before adding fuel. After fueling, immediately replace fuel cap and tighten securely. Move at least 30 ft. from refueling site before starting engine. Do not smoke and stay away from open flames and sparks! Failure to follow these instructions could result in a fire and cause serious personal injury.

NOTE: Always use unleaded gasoline with a pump octane rating of 86 or higher. Never use old, stale, or contaminated gasoline, and do not use a lubricant/gas mixture. Do not allow dirt or water into the fuel tank. Do not use E85 fuel.

DIGITAL DISPLAY

See Figure 11.

Press and release the mode button to cycle through the following displays:

Voltage (V) displays the operating voltage of the generator.

Frequency (F) displays the frequency in hertz at which the generator is running.

The Run/Maintenance Timer displays the amount of time the generator has run since being started. This timer resets each time the generator is shut off.

When a cumulative run time of 25 hours has been reached, P25 will display on the meter as a reminder to change the engine lubricant after the initial 25 hours of run time.

When a cumulative time of 50 hours is reached, P50 will display on the meter to remind you to clean the air filter.

When a cumulative time of 100 hours is reached, P100 will display on the meter to remind you to change/clean the fuel filter, clean the air filter, and change the engine lubricant.

STARTING THE ENGINE

See Figures 12 - 15.

NOTICE:

On a level surface with the engine off, check the lubricant level before each use of the generator.

NOTE: If location of generator is not level, the unit may not start or may shut down during operation.

■ Unplug all loads from the generator.

■ Turn the engine stop switch to the ON position.
■ Move the choke lever/fuel valve to the START position.

NOTE: If engine is warm or the temperature is above 50^ F, push the choke lever/fuel valve to the RUN position.

■ Pull the recoil starting grip until the engine runs.
NOTE: Do not allow the grip to snap back after starting; return it gently to its original place.
■ Allow the engine to run for 15-30 seconds, then move the choke lever/fuel valve to the RUN position.

STOPPING THE ENGINE

See Figures 15-16.

To stop the engine under normal operating conditions:

■ Remove any load from the generator.
■ Move the choke lever/fuel valve to the OFF (O) position or turn the engine stop switch to the OFF position.

To stop the engine in an emergency situation:

■ Turn the engine stop switch to the OFF position.

WARNING:

While operating and storing, keep at least 3 feet of clearance on all sides of this product, including overhead. Allow a minimum of 30 minutes of “cool down” time before storage. Heat created by muffler and exhaust gases could be hot enough to cause serious burns and/or ignite combustible objects.

MAINTENANCE

Normal maintenance, replacement or repair of emission control devices and systems may be performed by any qualified repair establishment or individual with original or equivalent parts. Warranty and recall repairs must be performed by an authorized service center; please contact customer service for assistance.

WARNING:

Before inspecting, cleaning, or servicing the machine, shut off engine, wait for all moving parts to stop, and disconnect spark plug wire and move it away from spark plug. Allow 30 minutes of cool down time before performing any maintenance. Failure to follow these instructions can result in serious personal injury or property damage.

WARNING:

When servicing, use only recommended or equivalent replacement parts. Service or maintenance performed by unqualified personnel or use of any other parts could result in a personal injury hazard or property damage.

WARNING:

DO NOT tamper with, adjust, or modify the carbon monoxide (CO) sensor module on your generator. Failure to follow these instructions can cause the monitor to malfunction which can result in death or serious personal injury.

NOTICE:

Periodically inspect the entire product for damaged, missing, or loose parts such as screws, nuts, bolts, caps, etc. Tighten securely all fasteners and caps and do not operate this product until all missing or damaged parts are replaced. Please contact customer service or a qualified service center for assistance.

GENERAL MAINTENANCE

Keep the generator in a clean and dry environment where it is not exposed to dust, dirt, moisture, or corrosive vapors. Do not allow the cooling air slots in the generator to become clogged with foreign material such as leaves, etc.

Do not use a garden hose to clean the generator. Water entering the fuel system or other internal parts of the unit can cause problems that will decrease the life of the generator.

To clean the unit:

■ Use a soft bristle brush and/or vacuum cleaner to loosen and remove dirt and debris.

■ Clean air vents with low pressure air that does not exceed 25 psi.

■ Wipe the exterior surfaces of the generator with a damp cloth.

CHECKING/CLEANING AIR FILTER

See Figure 17.

For proper performance and long life, keep air filter clean.

■ Loosen the screw on air filter cover. Remove cover and set aside.
■ Remove the filter element.
■ If the filter element is dirty, clean with warm, soapy water. Rinse and let dry.

■ Apply a light coat of engine lubricant to the element, then squeeze it out.

■ Replace the element in the air filter unit.
- Replace the air filter cover and use screw to secure.

NOTE: Do not run the generator without the air filter. Rapid engine wear will result.

CHANGING ENGINE LUBRICANT

See Figure 18.

■ Remove the oil cap/dipstick.
■ Place a container underneath the oil drain plug to collect used lubricant as it drains.
■ Unscrew the oil drain plug and remove.
■ Allow lubricant to drain completely.

NOTE: Drain the lubricant while the engine is still warm but not hot. Warm lubricant will drain quickly and more completely.

WARNING:

Do not change engine lubricant while it is hot. Accidental contact with hot engine lubricant could result in serious burns.

■ Reinstall the oil drain plug and tighten securely.
■ Refill with lubricant following the instructions in the Checking/Adding Lubricant section. For amount of lubricant needed to refill, see Product Specifications earlier in this manual or the accompanying engine manual, if applicable.
■ Reinstall the oil cap/dipstick.

NOTE: Used lubricant should be disposed of at an approved disposal site. See your local oil retailer for more information.

SPARK PLUG MAINTENANCE

See Figure 19.

The spark plug must be properly gapped and free of deposits in order to ensure proper engine operation. To check:

■ Remove the spark plug cap.
■ Clean any dirt from around base of spark plug.
■ Remove spark plug using wrench (not included).

MAINTENANCE

■ Inspect spark plug for damage, and clean with a wire brush before reinstalling. If insulator is cracked or chipped, spark plug should be replaced. For replacement spark plug, see Product Specifications earlier in this manual or the accompanying engine manual, if applicable.
■ Use gap spark plug tool to adjust gap. The correct gap is 0.028–0.031 in. (0.7-0.8 mm). To widen gap, if necessary, carefully bend the ground (top) electrode. To lessen gap, gently tap ground electrode on a hard surface.
- Seat spark plug in position; thread in by hand to prevent cross-threading.
■ Tighten with wrench to compress washer. If spark plug is new, use 1/2 turn to compress washer appropriate amount. If reusing old spark plug, use 1/8 to 1/4 turn for proper washer compression.

NOTE: An improperly tightened spark plug will become very hot and could damage the engine.

■ Reinstall the spark plug cap.

CLEANING THE EXHAUST PORT AND MUFFLER

Depending on the type of fuel used, the type and amount of lubricant used, and/or your operating conditions, the exhaust port and muffler may become blocked with carbon deposits. If you notice a power loss with your gas-powered products, you may need to remove these deposits to restore performance. We highly recommend that only qualified service technicians perform this service.

SPARK ARRESTOR

See Figure 20.

NOTICE:

This product is equipped with a spark arrestor that has been evaluated by the USDA Forest Service; however, product users must comply with Federal, State, and local fire prevention regulations. Check with appropriate authorities. Contact customer service or a qualified service center to purchase a replacement spark arrestor.

■ Inspect the spark arrestor for breaks or holes. Clean or replace if necessary.
■ Use a brush (not provided) to remove carbon deposits from the spark arrestor screen as needed.

DRAINING FUEL TANK/CARBURETOR

See Figures 21 - 22.

To help prevent gum deposits in the fuel system, drain the fuel from the tank and carburetor before storing.

DRAINING THE FUEL TANK

■ Turn the engine stop switch OFF.
■ Move the choke lever/fuel valve to the OFF (O) position.
■ Remove the fuel line from the hose barb by squeezing the end of the retaining clip and sliding the fuel line off.

NOTE: Make sure you are removing the fuel line that runs between the fuel valve and the carburetor, NOT the line that runs between the fuel valve and the fuel tank.

■ Place the fuel line with fuel valve in a fuel container large enough to catch the fuel being drained from the tank.

■ Move the choke lever/fuel valve to the RUN position.
■ When the fuel has drained from the tank, move the choke lever/fuel valve to the OFF (O) positon and reinstall fuel line securely on hose barb.

DRAINING THE CARBURETOR

■ Turn the engine stop switch OFF.
■ Move the choke lever/fuel valve to the OFF (O) position.
■ Position a suitable container under the carburetor drain screw to catch fuel; loosen the screw.
■ Allow fuel to drain completely into container.
■ Retighten drain screw.

NOTE: Consult hazardous waste management guidelines in your area for the proper way to dispose of used fuel.

REPLACING FUEL FILTER

See Figure 23.

Occasionally the fuel filter may become clogged and need to be replaced. To purchase a replacement fuel filter, contact customer service or a qualified service center.

NOTE: Fuel tank must be empty before replacing fuel filter. Run unit until tank is empty, if needed, or inspect filter prior to fill-up.

To replace:

■ Remove both fuel lines from the old fuel filter by squeezing the ends of the retaining clips and sliding the fuel lines off.
■ Reinstall fuel lines to the new fuel filter.
■ Pull on lines to make sure they are secured

TRANSPORTING

■ Turn the engine stop switch OFF.
■ Disconnect any equipment that is plugged into the generator.
■ Move the choke lever/fuel valve to the OFF (O) position.

- Allow 30 minutes of “cool down” time before storing the machine. Make sure engine and exhaust of unit are cool.

■ For security, insert the pins to secure the handles before transporting.

■ Tilt the machine toward you until it balances on the wheels, then roll the machine to the desired location.

If transporting in a vehicle, drain the fuel tank, move the choke lever/fuel valve to the OFF (O) position, and securely restrain the generator.

■ Provide a plastic sheet or absorbent pad below the generator to catch any drips of fuel or lubricant.

MAINTENANCE

STORAGE

When preparing the generator for storage, allow the unit to cool for 30 minutes then follow the guidelines below.

STORAGE TIME PRIOR TO STORING
Less than 2 months	Drain gasoline from tank and dispose of in a suitable container according to state and local ordinances.
2 months to 1 year	Drain fuel from carburetor.Drain gasoline from tank and dispose of in a suitable container according to state and local ordinances.
1 year or more	Drain fuel from the carburetor.Remove spark plug.Drain gasoline from tank and dispose of in a suitable container according to state and local ordinances.Put a tablespoon of engine lubricant into the spark plug cylinder. Turn the engine slowly with the pull rope to distribute the lubricant.Reinstall spark plug.Change engine lubricant.After removal from storage:Fill with fresh gasoline.
NOTE: If storing gasoline in suitable container for later use, make sure gasoline has been treated with fuel stabilizer according to stabilizer manufacturer's instructions.

MAINTENANCE SCHEDULE

NOTE: If a separate engine manual is provided for this generator, please follow the maintenance schedule provided in the engine manual instead of the maintenance information listed below.

	Before each use	After 1st month or 20 hours of operation	Every 3 months or 50 hours of operation	Every 6 months or 100 hours of operation	Every year
Check Engine Lubricant	■
Change Engine Lubricant^2		■		■
Check Air Filter	■
Clean Air Filter			■
Change Air Filter^2					■
Check/Adjust Spark Plug				■
Replace Spark Plug^2					■
Check/Clean Spark Screen				■
Check/Adjust Idle Speed					■
Check/Adjust Valve Clearance^1,2					■
Clean Fuel Tank and Filter^1,2				■
Check Fuel Hose	■				■
Fuel Filter Inspect Replace
Check All Hose Connections	■				■
Recharge Battery (if Equipped)				■
Inspect Fuel Tank Vapor Vent (If Equipped)	■				■
Inspect Carbon Canister (CARB Models Only)	■				■

1. These items should only be carried out by a qualified service center.
2. See engine manual for maintenance schedule for this item.

NOTE: Maintenance should be performed more frequently when generator is used in dusty areas.

When generator has exceeded the maximum figures specified in the table, maintenance should still be cycled according to the intervals of time or hours stated herein.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION
Engine will not start. No fuel.	Stale gasoline or water in gasoline.Lubricant level is low.	Fill fuel tank.Drain entire system and refill with fresh fuel.Engine is equipped with Low Oil Shutoff.If engine lubricant level is low, it must be filled before unit will start. Check engine lubricant level and fill, if necessary.Place engine switch in the on position.Move choke lever/fuel valve to the START position.Replace spark plug.Move choke lever/fuel valve to START position.Drain fuel and carburetor. Refuel with fresh gasoline.Replace fuel filter or contact a qualified service center.Leave area immediately and relocate to an open outdoor area. Ventilate area thoroughly before occupying again.Ensure the generator is located in an open outdoor area and point exhaust away from occupied structures.The CO sensor needs to be repaired or replaced. Contact customer service or a qualified service center for assistance.
	Engine switch is in the off position.Choke lever/fuel valve is in the OFF (O) position.Spark plug faulty, fouled, or improperly gapped.Choke lever/fuel valve is in RUN position.Engine stored without treating or draining gasoline, or refueled with bad gasoline.Dirty fuel filter.CO sensor LED is flashing red, indicating a CO hazard.CO sensor LED is flashing yellow and/or making an audible chirp, indicating a sensor fault.
Engine hard to start. Water in gasoline.	Weak spark at spark plug.	Drain entire system and refill with fresh fuel.Replace spark plug or contact a qualified service center.
Engine lacks power. Dirty air filter.	Engine stored without treating or draining gasoline, or refueled with bad gasoline.	Check air filter element. Clean or replace as needed.Drain fuel and carburetor. Refuel with fresh gasoline. If problem continues, contact a qualified service center.
AC receptacle does not work. Circuit breaker is tripped.GFCI is tripped.Item plugged in is defective.	Reset the AC circuit breaker.Reset the GFCI.Try a different item.
Generator makes a “spark knock” or “pinging” noise.	An occasional light “knocking” or “pinging” under heavy load is not a cause for concern. However, if the knocking or pinging occurs under normal load at a steady engine speed, the problem may be with the brand of gasoline being used.	Switch to a different brand of gasoline, making sure that the octane rating is 86 or higher. If problem continues, contact a qualified service center.
If problem persists after trying the above solutions, contact customer service or a qualified service center for assistance.
NOTICE:As the equipment owner, you are responsible for the performance of the required maintenance listed in the Maintenance section. It is recommended that you retain all receipts covering maintenance on your equipment. Neglecting or failing to perform the required maintenance may increase emissions, decrease fuel efficiency, degrade performance, cause irreversible engine damage and/or void your warranty.

NOTES

You WILL be KILLED or SERIOUSLY HURT if you do not follow the Operator's Manual instructions.

Exhaust contains poisonous carbon monoxide gas that can cause unconsciousness or DEATH. Operate in well ventilated, outdoor areas away from open windows or doors.

Risk of fire. Do not add fuel while the product is operating.

Do not expose to rain or use in damp locations.

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a polson you cannot see or smell.

Only use OUTSIDE and far away from windows, doors, and vents.

WARNING AVERTISSEMENT ADVERTENCIA IF AUTOMATIC SHUTOFF OCCURS • YOU MUST. Leave the area immediately and recate in an airway. You must have a 100% of the area that is necessary to be physically before accepting again. Ensure the protection is limited to it as open, outside area at 25 feet apart from all doors, windows and equipment again. Always present enough every time. You must have a 100% of the area that is necessary to be physically before accepting again. Ensure your attention to the area is necessary to be physically before accepting again. Ensure your attention to the area is necessary to be physically before accepting again. Ensure your attention to the area is necessary to be physically before accepting again. Ensure your attention to the area is necessary to be physically before accepting again. Ensure your attention to the area is necessary to be physically before accepting again. Ensure your attention to the area is necessary to be physically before accepting again. Ensure your attention to the area is necessary to be physically before accepting again. Continue your attention to the area is necessary to be physically before accepting again. Continue your attention to the area is necessary to be physically before accepting again. Continue your attention to the area is necessary to be physically before accepting again. Continue your attention to the area is necessary to be physically before accepting again. Continue your attention to the area is necessary to be physically before accepting again. Continue your attention to the area is necessary to be physically before accepting again. Continue your attention to the area is necessary to be financially necessary. + IF YOU FEEL SICK, DIZZY OR WEAK, SEEK MEDICAL HELP IMMEDIATELY. SI L'ARRET AUTOMATIQUE SE PRODUIT, VOUS DEVEZ! Quitter immediately ta care and you's rendre dans un titre d'une direction de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection de la collection des U.S.A. Si vous VOUS SENTES MALADE, ETOURDI OU AFFAIJELI, CONSULTEZ UN MEDECIN IMMEDIATÉMENT. + SI SIENTE ENFERMO, MAREADO DE O'BUEL, RUSQUE ASISTENCIA MÉDICA DE INMEDIATO.

▲WARNING

▲ AVERTISSEMENT ▲ ADVERTENCIA

This unit may experience a SHUTDOWN if CO level's exceed normal operating conditions. Please refer to the operator's manual for further instruction.

SYSTÈME DE SURVEILLANCE D'ARRÊT D'URGENCE CO DÉTECTER

▲ DANGER RISK OF FIRE AND SERIOUS BURNS: Never remove fuel cap when unit is running. Shut off engine and allow the unit to cool at least five minutes. Remove cap slowly. USE FUEL STABILIZER FOR STORAGE

DANGER PELIGRO RISQUE D'INCENDIE ET DE BLESSURES GRAVES : Ne jamais retirer le capuchon du réservoir d'essence pendant que l'appareil fonctionne. Etendre le moteur et laisser refroidir l'appareil pendant au moins cinq minutes. Retirer lentement le capuchon. RIESGO DE INCENDIOS Y LESIONES POR QUEMADURAS: Nunca retire la tapa de combustible mientras esté encendida la unidad. Apague el motor y deje enfriar la unidad durante al menos cinco minutos. Retire la tapa lentamente. UTILISEZ UN STABILISATEUR DE CARBURANT POUR LE STOCKAGE EL USO DEL ESTABILIZADOR DE COMBUSTIBLE PARA EL ALMANCENAMEIENTO

AVERTISSEMENT CONCERNANT LE CARBURANT

Product does not include ground rod or copper wire. Call a qualified electrician for local grounding requirements.

Operation of this equipment may create sparks that can start fires around dry vegetation. A spark arrestor may be required. The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements.

Risk of Fire. Keep all objects at least 3 feet away from this machine. Heat from Muffler and Exhaust gases can ignite combustible objects.

Using a generator Indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a person you cannot see or smell.

NEVER use Inside a home or garage, EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

DANGER

This unit may experience a SHUTDOWN if CO levels exceed normal operating conditions. Please refer to the operator's manual for further instruction.

SYSTÈME DE SURVEILLANCE D'ARRÊT D'URGENCE CO DÉTECTER

▲ DANGER RISK OF FIRE AND SERIOUS BURNS: Never remove fuel cap when unit is running. Shut off engine and allow the unit to cool at least five minutes. Remove cap slowly. USE FUEL STABILIZER FOR STORAGE

DANGER PELIGRO RISQUE D'INCENDIE ET DE BLESSURES GRAVES : Ne jamais retirer le capuchon du réservoir d'essence pendant que l'apparell fonctionne. Éleindre le moteur et laisser refroidir l'apparell pendant au moins cinq minutes. Retirer lentement le capuchon. RIESGO DE INCENDIOS Y LESIONES POR QUEMADURAS: Nunca retire la tapa de combustible mientras esté encendida la unidad. Apaque el motor y deje enfriar la unidad durante al menos cinco minutos. Retire la tapa lentamente. UTILISEZ UN STABILISATEUR DE CARBURANT POUR LE STOCKAGE EL USO DEL ESTABILIZADOR DE COMBUSTIBLE PARA EL ALMANCENAMEIENTO

Product does not include ground rod or copper wire. Call a qualified electrician for local grounding requirements.

Risk of Fire. Keep all objects at least 3 feet away from this machine. Heat from Muffler and Exhaust gases can ignite combustible objects.

Corriente en Amperios	Carga en vatios Longitud máxima permitida del cordón
	A 120 V	A 240 V	Conduct. #8 Conduct.	#10 Conduct. #12	Conduct. #14 Conduct.	#16
2,5	300	600		305 m (1000 pies)	183 m (600 pies)	114 m (375 pies)	76 m (250 pies)
5	600	1200 152 m	(500 pies) 91 m (300 pies)	61 m (200 pies)	38 m (125 pies)
7,5	900	1800 107 m	(350 pies) 61 m (200 pies)	38 m (125 pies)	31 m (100 pies)
10	1200	2400		76 m (250 pies)	46 m (150 pies)	31 m (100 pies)	15 m (50 pies)
15	1800	3600		46 m (150 pies)	31 m (100 pies)	20 m (65 pies)
20	2400	4800	53 m (175 pies)	38 m (125 pies)	23 m (75 pies)
25	3000	6000	46 m (150 pies)	31 m (100 pies)
30	3600	7200	38 m (125 pies)	20 m (65 pies)
40	4800	9600	27 m (90 pies)

CARGAS DE MOTORES ELÉCTRICOS

- PARTS AND SERVICE: Prior to requesting service or purchasing replacement parts, please obtain your item, manufacturing, and serial numbers from the product data plate.

ITEM NO.* MANUFACTURING NO.

SERIAL NO.

* Model/item number on product may have additional letters at the end. These letters designate manufacturing information and should be provided when calling for service.

HOW TO OBTAIN REPLACEMENT PARTS: Replacement parts can be purchased online at www.ryobitools.com or by calling 1-800-525-2579. Replacement parts can also be obtained at one of our service centers.

HOW TO LOCATE A SERVICE CENTER: Service centers can be located online at www.ryobitools.com or by calling 1-800-525-2579.

HOW TO OBTAIN CUSTOMER OR TECHNICAL SUPPORT: To obtain customer or technical support please contact us at 1-800-525-2579.

RYOBI is a trademark of Ryobi Limited and is used pursuant to a license granted by Ryobi Limited.
