USER MANUAL Moto Buds 125 MOTOROLA

1. Multi-function buttons (MFB)
2. Replaceable earcaps (size M)
3. Earbud charging contacts
4. Microphone
5. Charging case
6. USB-C charging socket
7. Battery level and charging status indicator
8. Pair/Reset button
9. Charging case charging contacts

2. Charge

Fig. 2a Fig. 2b Fig. 2c

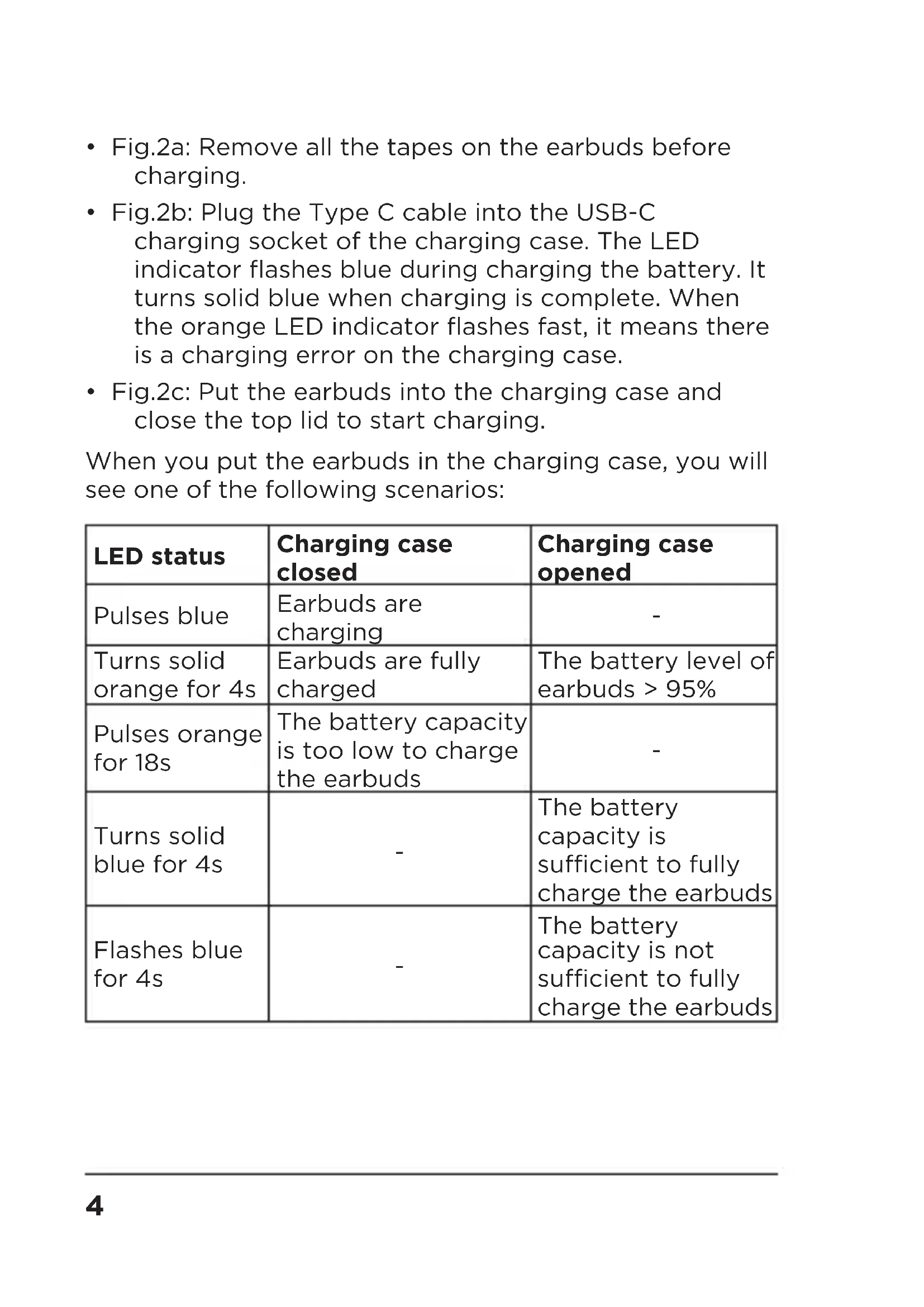

• Fig.2a: Remove all the tapes on the earbuds before charging.
• Fig.2b: Plug the Type C cable into the USB-C charging socket of the charging case. The LED indicator flashes blue during charging the battery. It turns solid blue when charging is complete. When the orange LED indicator flashes fast, it means there is a charging error on the charging case.
• Fig.2c: Put the earbuds into the charging case and close the top lid to start charging.

When you put the earbuds in the charging case, you will see one of the following scenarios:

LED status	Charging case closed	Charging case opened
Pulses blue	Earbuds are charging	-
Turns solid orange for 4s	Earbuds are fully charged	The battery level of earbuds > 95%
Pulses orange for 18s	The battery capacity is too low to charge the earbuds	-
Turns solid blue for 4s	-	The battery capacity is sufficient to fully charge the earbuds
Flashes blue for 4s	-	The battery capacity is not sufficient to fully charge the earbuds

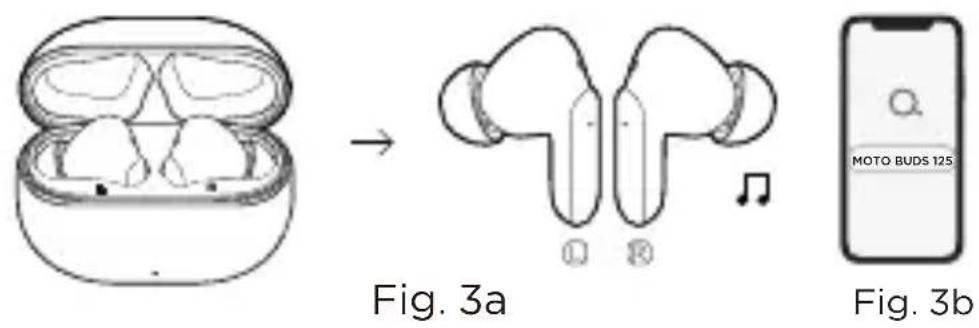

3. On/Off/Pair

1. Turn on earbuds: Open the charging case top lid, the earbuds will turn on automatically.
2. Turn off earbuds: Put the earbuds into the charging case and close the top lid, the earbuds will be off automatically.
3. Pairing: MOTO BUDS 125 supports Google fast pairing. Open the charging case top lid. For Motorola smartphone or Android phone with Android version 6.0 or above, simply confirm MOTO BUDS 125 directly on your device screen. For other devices, select MOTO BUDS 125 from the Bluetooth menu of your device. When pairing is successful, you will find a notification on your phone and hear a connected tone on the earbuds.

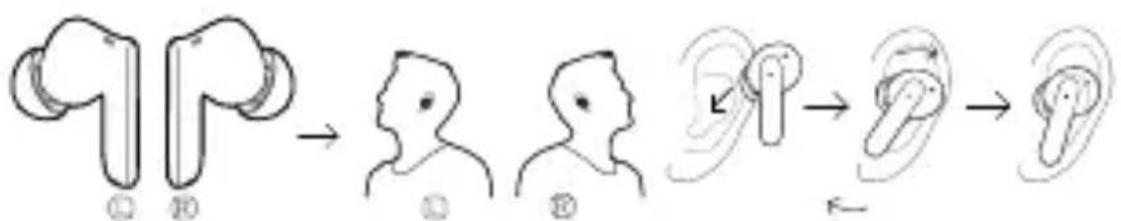

4. Fit and comfort

1. Choose the suitable earcap size.
2. Fit into the earbuds.

Fig. 4a

1. Insert the earbuds into ears and rotate to fit comfortably.

Fig. 4b
Fig. 4c

5. Operation

Call Button
Answer/End a call Left/right	MFB: Tap once
Reject a call	Left/right MFB: Press and hold for 2 seconds
3-way call
Pick up an incoming call and put the current call on hold/switch calls	Left/right MFB: Tap once
Reject an incoming call and continue the current call	Left/right MFB: Press and hold for 2 seconds
End the current call and resume the on hold call/Pick up an incoming call and end the current call	Left/right MFB: Tap twice
Music
Play/Pause Left/right MFB:	Tap once
Previous track Left/right MFB: Tap 3 times
Next track Left/right MFB: Tap twice
Activate voice assistant
Siri, Google	Left/right MFB: Press and hold for 2 seconds *Need to enable the corresponding voice assistant features on your smartphone.
Factory reset
1. Put both earbuds into the charging case.
2. In standby mode, press and hold the reset button for 10 seconds.
3. The orange LED flashes fast for 10 seconds and the factory reset is done.
4. Follow pairing instructions in section 3 to do pairing again.

6. Alert sounds

The earbuds play an alert sound when performing the following functions:

Ready for pairing
- Connected to Bluetooth
- Powering off the earbuds
- Low battery level
- Rejecting an incoming call while on another call
- Receiving an incoming call

For a full explanation of all features and instructions, please download the user guide from motorolasound. com.

7. Important notes

1. The multi-function button (MFB) of your earbuds has touch sensors that enable different functions.

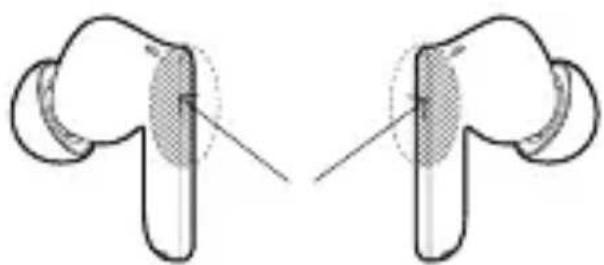

MFB touch sensor area

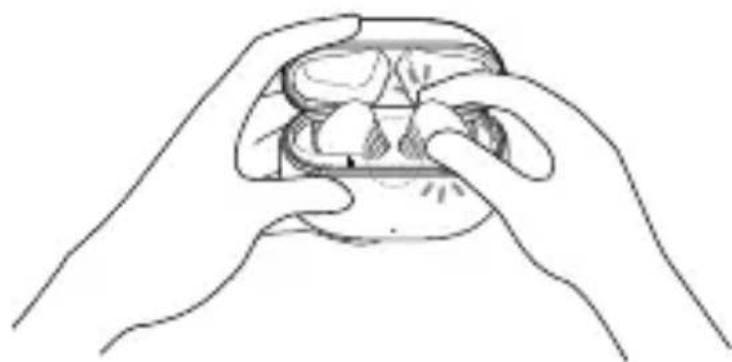

1. Avoid touching the MFB when taking out the earbuds.

1. When inserting the earbuds into ears, hold the sticks and avoid touching the MFB.

1. Visão Geral

Meizhou Guo Wei Electronics Co., Ltd.

Factory address:

AD1 Section, The Economic Development Area, Meizhou, 514000, Guangdong Province, China

USA address:

16192 Coastal Highway, Lewes, Delaware, 19958, County of Sussex, USA

Contact email address:

[e-mail]

Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners. © 2024 Motorola Mobility LLC. All rights reserved.

Version 6 (NA_LATAM)
