Toast&Taste Vintage 800 Vintage - Toaster CECOTEC - Free user manual and instructions

Product type	Toaster
Brand	Cecotec
Model	Toast&Taste Vintage 800 Vintage
Power	850 W
Voltage	220-240 V
Frequency	50/60 Hz
Number of slots	2
Slot width	Standard (approx. 38 mm)
Toast levels	6
Functions	Defrost, Reheat, Stop
Crumb tray	Removable
Exterior material	Stainless steel (depending on variant)
Weight (estimated)	Approx. 1.5 kg
Dimensions (estimated)	Approx. 30 x 20 x 20 cm
Automatic shut-off	Yes
Hot surface indication	Yes (symbol on appliance)
Maintenance	Clean with a damp cloth, do not immerse
Repairability	Contact Cecotec after-sales service

Frequently Asked Questions - Toast&Taste Vintage 800 Vintage CECOTEC

How to use the Toast&Taste Vintage 800 toaster for the first time?

Before first use, run the toaster empty 4 to 5 times. Lower the lever until it locks. A slight smoke and smell may appear, this is normal.

How to adjust the toasting level?

Use the browning level selector. There are 6 levels, from lightest (1) to darkest (6). Level 3 is recommended for a standard result.

Can I toast frozen bread?

Yes, insert the frozen bread, select the toasting level, then press the Defrost button. The toaster will adjust the time automatically.

How to reheat already toasted bread?

Insert the bread, select a low level, lower the lever and press the Reheat button. The indicator lights up.

How to stop the toaster during operation?

Press the Stop button at any time to interrupt the cycle. The bread will pop up automatically.

How to clean the toaster?

Unplug the appliance and let it cool down. Clean the exterior with a damp cloth. Remove the crumb tray and empty it. Never use abrasive products or the dishwasher.

What to do if the toaster emits smoke?

Turn it off immediately and unplug. This may happen during first use due to manufacturing residues. If smoke persists, stop using it and contact customer service.

Does the toaster have a warranty?

Yes, Cecotec covers conformity defects according to current regulations. In case of issues, contact after-sales service at [phone].

Can I toast other foods than bread?

No, this toaster is designed only for toasting bread without condiments. Do not put moist or spread foods, as this could cause a fire.

How to avoid burns during use?

Do not touch hot surfaces (indicated by a symbol). Use the buttons and lever. Do not leave the appliance unattended, especially near flammable materials.

USER MANUAL Toast&Taste Vintage 800 Vintage CECOTEC

Five decorative oedic tea sets arranged vertically against a dark background, no text or symbols visible.

Safety instructions 8

1. Parts and components 34
2. Before use 34
3. Operation 34
4. Cleaning and maintenance 35
5. Technical specifications 35
6. Disposal of old electrical and electronic appliances 36
7. Technical support and warranty 36
8. Copyright 36

SOMMAIRE

Before using the appliance, read the following instructions carefully. Keep this instruction manual for future reference or new users.

• All safety instructions must be closely followed when using the appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• The appliance is not intended to be used by children under the age of 8. The appliance can be used by children over the age of 8, as long as they are given continuous supervision.
• This appliance can be used by children aged 8 and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge, as long as they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Keep this appliance and its power cable out of reach of children under the age of 8. Cleaning and maintenance should not be carried out by children without supervision.
• Supervise children to prevent them from playing with the appliance. Close supervision is necessary if the appliance is used by or near children.
• This appliance is not intended to be operated by means of an external timer or separate remote-control system.
• This symbol means 'caution, hot surface'. The
  accessible surfaces of the appliance may reach high temperatures during operation. Be careful not to ourself.
• Bread can burn, so the toaster should not be used near or under combustible materials such as curtains.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the official Cecotec Technical Support Service to avoid any danger.

- Place the appliance on an even, heat-resistant surface. Do not place the appliance near heat sources, places with high humidity levels, or combustible materials.

- Do not immerse the cable, plug, or any part of the appliance in water or any other liquid. Do not expose the electrical connections to water. Make sure your hands are dry before handling the plug or switching on the appliance.

- Ensure that the mains voltage matches the voltage specified on the appliance marking and that the mains plug is earthed.

- Do not use the appliance if the cable, plug, or frame is damaged or if it is malfunctioning, has been dropped, or damaged.

- Do not twist, bend, pull, or damage the power cable. Protect it from sharp edges and heat sources. Do not allow the cable to touch hot surfaces. Do not let the cable hang over the edge of the working surface or worktop.

- Do not leave the appliance unattended during operation. Unplug the appliance from the wall socket when you have finished using it, when you leave the room where it is located, when it is not being used, and before cleaning it. Pull from the plug, not the cable, to disconnect it from the outlet.

- This appliance is designed for toasting unseasoned bread only. Do not use it for any other purpose, and follow the instructions described in this manual. Do not toast moist foods or bread spread with butter, jam, glaze, or any other condiments in the toaster, as this may cause fire or smoke.

- Ensure there is enough space above the appliance and on both sides to provide proper air circulation.

- Do not cover the toaster with aluminium foil or similar materials.

• Do not insert objects (utensils, fingers, or any other foreign object) into the appliance, as this may cause fire, electric shock, or injury.
• If the appliance does not work properly or if you notice fire or smoke, switch it off immediately and unplug the appliance from the mains.
• Do not try to repair the appliance by yourself. Contact the official Cecotec Technical Support Service for advice.
• No liability is accepted for any possible damage or personal injury resulting from misuse of the appliance or non-compliance with these operating instructions.

INSTRUCTIONS DE SÉCURITÉ

The graphics in this manual are schematic representations and may not exactly match the appliance.

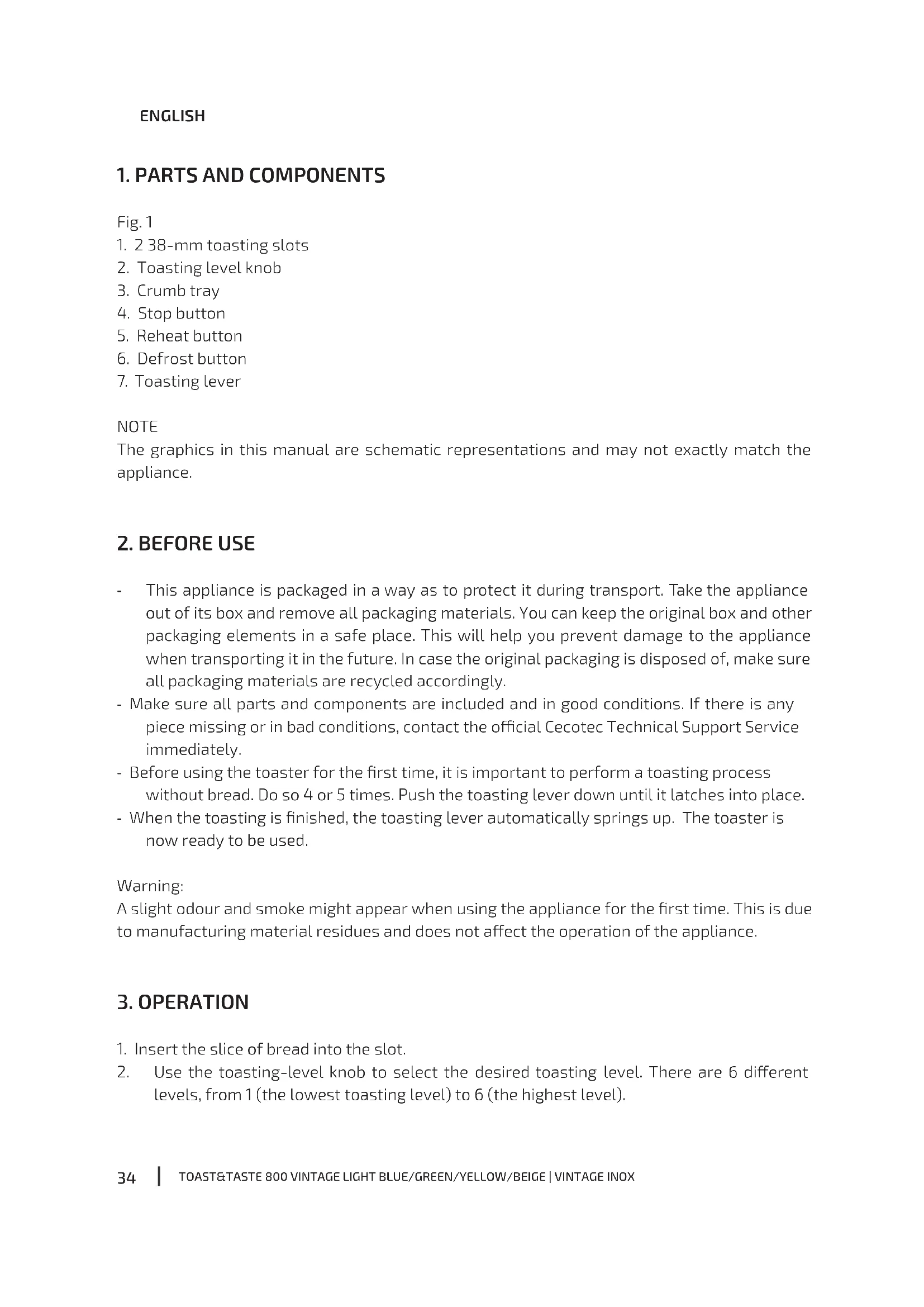

2. BEFORE USE

• This appliance is packaged in a way as to protect it during transport. Take the appliance out of its box and remove all packaging materials. You can keep the original box and other packaging elements in a safe place. This will help you prevent damage to the appliance when transporting it in the future. In case the original packaging is disposed of, make sure all packaging materials are recycled accordingly.
• Make sure all parts and components are included and in good conditions. If there is any piece missing or in bad conditions, contact the official Cecotec Technical Support Service immediately.
• Before using the toaster for the first time, it is important to perform a toasting process without bread. Do so 4 or 5 times. Push the toasting lever down until it latches into place.
• When the toasting is finished, the toasting lever automatically springs up. The toaster is now ready to be used.

Warning:

A slight odour and smoke might appear when using the appliance for the first time. This is due to manufacturing material residues and does not affect the operation of the appliance.

3. OPERATION

1. Insert the slice of bread into the slot.
2. Use the toasting-level knob to select the desired toasting level. There are 6 different levels, from 1 (the lowest toasting level) to 6 (the highest level).

Note

Recommendation: set level 3 (medium toasting) for brown results.

1. Push the toasting lever down until it latches into place. The Stop light indicator will turn on and the toasting process will start.
2. You can set the toasting level while the appliance is in operation. The toaster will automatically turn off once toasting time elapses, and the toast will be ready.
3. To toast frozen bread, waffles, or other pastry, use the Defrost button.
4. To toast bread that has previously been toasted, insert the bread in the toasting slot and select the desired toasting level. Then, pull the toasting lever and press the Reheat button. The Reheat indicator light will turn on too.
5. The defrost, toasting and reheat processes can be interrupted at any time by pushing the Stop button.

4. CLEANING AND MAINTENANCE

• Disconnect the appliance from the power supply and allow it to cool down before cleaning.
• Use a soft, damp cloth to clean the surface of the appliance.
• Do not immerse the appliance in water or other liquids. The appliance is not dishwasher safe.
• Do not use abrasive cleaners or scouring pads to clean the appliance.
• Slide the crumb tray out of the appliance and empty it.
• Clean the crumb tray regularly. Use a brush to remove the burnt bread remains.

5. TECHNICAL SPECIFICATIONS

Product reference: 03208 / 03209 / 03210 / 03211 / 03212 Product: Toast & taste 800 Vintage Light blue / Light Green / Light Yellow / Inox / Light Beige Power: 850 W Voltage: 220-240 V Frequency: 50/60 Hz Technical specifications may change without prior notification to improve product quality. Made in China | Designed in Spain

ENGLISH

6. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

7. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs be carried out by qualified personnel.

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

8. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS
