USER MANUAL GCH V 380 Gurari

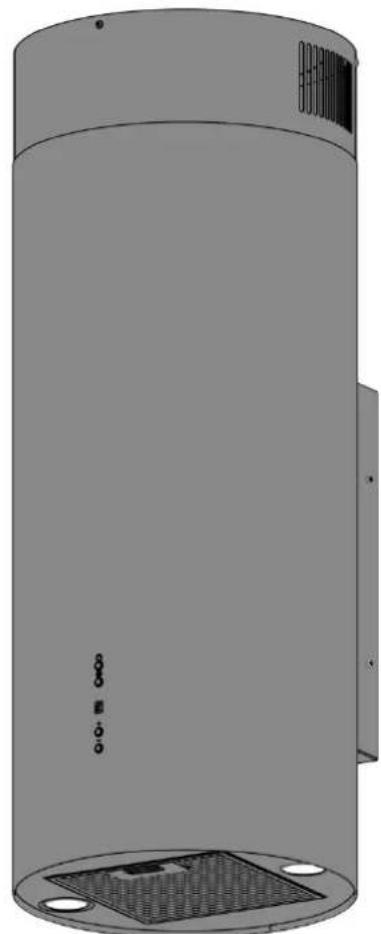

Manual for installation and use for model
GCH V 380
PRIME N
Dear customer,
we always strive to deliver you faultless products. Should this product not be in perfect condition upon receipt, please contact us immediately.
Before you start installing and / or using this product, please read this instruction carefully and be sure to follow the instructions given. Check the delivered parts for completeness and integrity. Should, despite our efforts, any parts be defective or missing, please contact us. You will receive immediate replacement in this case.
Never use defective parts!
This cooker hood has been constructed for installation and appropriate use in private households. Incorrect installation can damage the appliance and / or your kitchen, as well as it could lead to serious injuries. Do not use parts of the cooker hood or the hood itself for purposes that are not explicitly listed in the manual. No liability is taken over for accidents or damage, due to incorrect installation, use of defective parts or incorrect use of delivered utensils.
The supplied mounting parts are not suitable for all ceilings. If you are not sure which material your ceiling consists of and whether it has sufficient load-bearing capacity, be sure to check with an expert. You may need special screws and dowels that are not included.
If you do not understand this manual or are concerned about your safety, we recommend the commissioning of an experienced installer for the assembly. Due to the weight and the dimensions of this product we recommend to carry out the installation with 2 persons in any case.
We wish you a lot of joy with your new extractor hood.
General information
Pay attention to the environmentally friendly disposal of the packaging.
Please read this manual carefully before use. It contains important information about your safety, installation, commissioning, cleaning and care of your cooker hood.
Keep the instructions in a safe place if you need to read them again or need further hints and help in use.
Please to not start a damaged device.
The device is only suitable for use in private households and not in gastronomy.
Assembly and operation may only be carried out in accordance with the instructions in this manual.
Our devices comply with the legal requirements for electrical household appliances and may therefore only be repaired by authorized personnel. Besides the dangers involved by inappropriate treatment, we strongly point out, that improper intervention void the warranty.
Delivery content
- hood body incl. LED lights / motor / control / grease filter
- telescopic chimney
- Outlet Reducer 150mm / 120mm
-remotecontrol - Mounting material
-Operation manual
Technical specifications
power
| - power consumption in watts | 206W |
| - Of which lighting (LED) | 2x3W |
| - Voltage in volts | 220-240V |
| - Fan volume max. 1000m3/h |
Dimensions
| - Height in cm | 89-110cm |
| - Width in cm | 36cm |
| - Depth in cm | 39,4cm |
| - Exhaust outlet in mmø150/120mm | |
| - Net weight in kg 16,7kg |
specifications
| - Connection with safety plug |
| - 4-level control |
| - LED lighting (2x3W) |
| - grease filter (dishwasher-safe) |
| - Suitable for recirculation and exhaust air |
safety instructions
power supply
The connection is made via a fixed cable with earthing contact plug.
In the case of a required permanent connection, the hood may only be installed by an electrician, registered at the responsible electricity supply authority.
On the installation side, a disconnecting device (this includes fuses, contactors and circuit breaker acc. VDE 0730, §7, Part 1) has to be used.
Use in exhaust mode
In order to ensure optimal operation with exhaust air, we recommend implementation of the following activities
| - Short, straight tube guide |
| - As few pipe bends as possible |
| - Laying the pipes in flat bends and avoiding sharp angles |
| - The largest possible pipe diameter |
Failure to comply with these points may result in drastic loss of performance and possible raise of operating noise. This is not to be regarded as a malfunction of the device.
In addition, it is in any case inadmissible to blow the exhaust air in otherwise used chimneys or other kinds of culverts. It should only be used for the air of the cooker hood.
If the exhaust air is discharged into a non-operational chimney, we recommend to obtain approval of the responsible chimney sweeper.
For all exhaust air ducts, the official regulations must generally be adhered to. In exhaust mode it has to be ensured, that enough air supply exists.
The joint operation of cooker hoods and stoves using open fire like gas, oil or coal stoves in the same room are restricted subject to country regulations. We recommend the advice and approval of the district chimney sweeper or the local building authority.

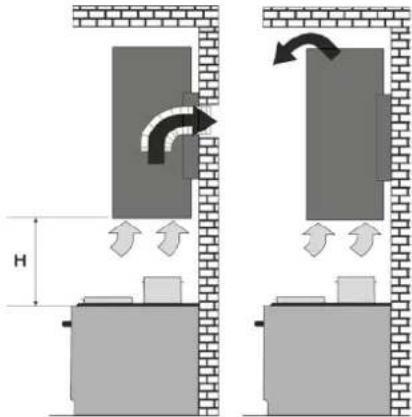

minimum distances
Distance to an electric hob
From the electric cooking area to the lower edge of the hood a minimum distance of 600mm must be maintained.
Distance to the gas hob
Between gas hobs (upper edge of pot carrier) and lower edge of the hood a minimum distance of 700mm should comply.
Other notes
Please take care, that hotplates in operation are always covered, so the device will not be damaged by excessive heat.
When deep-frying under an extractor hood, the appliance used for frying has to be supervised at all time during operation.
Oils contained in deep fryers may self-ignite due to overheating. Using old and dirty oil can lead to this even more easily.
We point out that overheating can cause a fire. Furthermore, we point out expressly that flambé under the hood is not allowed.
For all work on the cooker hood, even when changing the bulb, the hood has to be de-energized (turn off circuit breaker or remove the screw fuse from the socket). It is also important to follow the filter change and cleaning intervals.
If ignored, there is an acute fire hazard due to grease deposits!
Energy-saving tips
Preparation, warming and keeping food warm should always be done in pots or pans with closed lids.
The appliance should be switched off immediately after cooking or, if available, the time-delayed shutdown be used.
The lighting of the appliance should be switched off after the end of cooking.
Pot sizes should be adapted to the diameter of the cooking zones used.
Use the highest motor speed of the unit only at a high concentration of cooking fumes.
To increase the efficiency of the device, regularly clean the grease filters.
Carbon filters (when used in recirculation mode) should be replaced regularly according to the manufacturer's specifications.
Parts of the hood

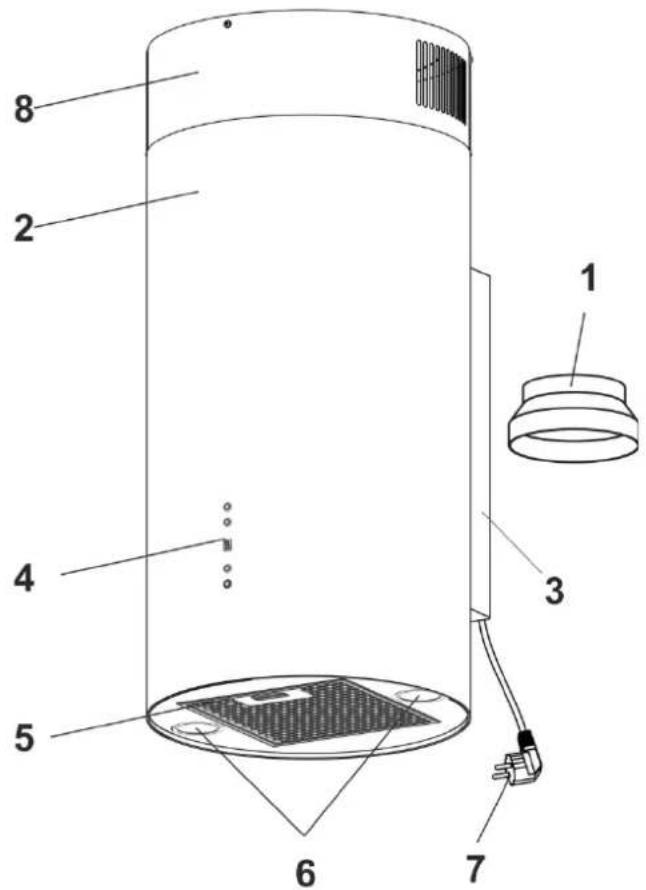

The extractor hood consists of the following parts
1- Outlet Reducer 150mm / 120mm
2-Frame
3 - Fixing Brackets
4 - Control panel
5 - Aluminium filter
6 - Lighting
7 - Electro cable grounded
8 - chimney cover

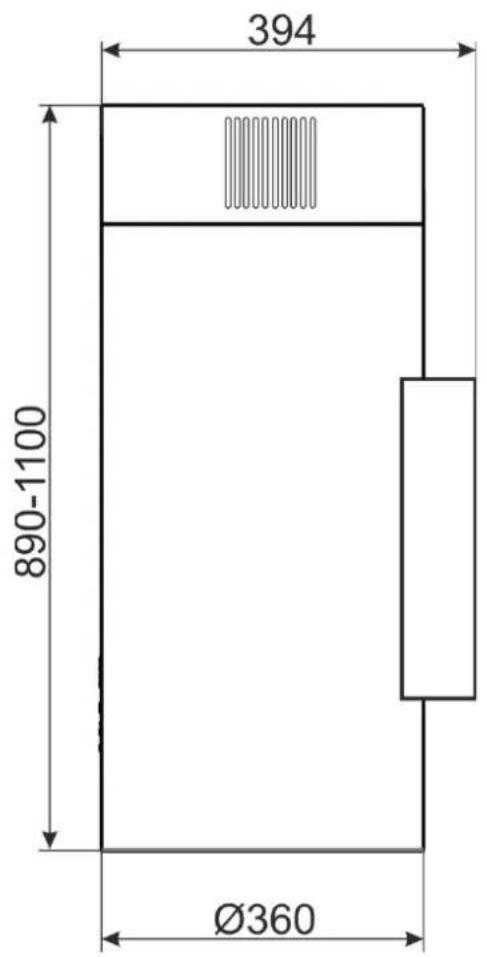

Dimension Drawings

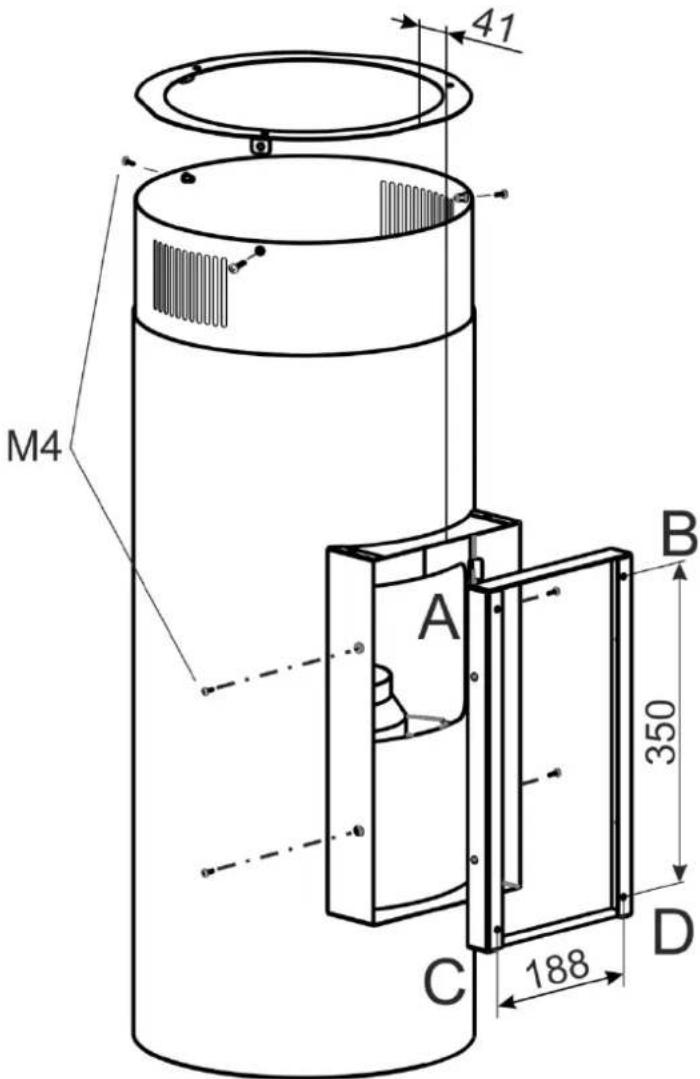

Assembly
1. examination
Before starting the actual installation, the device should be checked. In addition to the control of externally recognizable damage, a function check has to be done. Take out the device from the packing, get rid of all packing materials and put the device with the back on the floor / table. After connecting to a power supply, the lighting as well as the function of each stage should be checked. Please take care that exhaust outlet is open through check.
2. Taking dimensions
The relevant wall bracket is located behind the air outlet. The distance between the existing openings must be taken and be transferred to the wall in the same way. Best way is to start from the middle of the hob, take this to the appropriate height and take the distance to the left and right. The height depends on several components. For example, an existing tile mirror as well as the overall height of the kitchen influences the distance of the hood to the hob. The aforementioned minimum distance must be taken into account. Also, a higher tile level than the aforementioned minimum distance may require a higher positioning on the wall. In that sense, the position can only be finally determined on the basis of local conditions.
Start with the measurement from the minimum distance. In case the hood has to be hung higher because of other installations on the wall, though this is basically possible, we recommend the hood not to be placed more than 70cm above the hob (regarding the lower edge of the hood).
3. Attachment
If you have marked the holes for the screws in the appropriate height and width, now you can drill them and. Draw these measurements to the wall and drill the appropriate holes and screw the Wall bracket to the wall.
If you use the hood in the exhaust mode, before finally installing the hood body, you need to install the exhaust pipe between the air outlet of the hood and the wall connection of the wall / ceiling opening. This assumes that the wall exit will be hidden by the hood body after installation. Attach the ceiling bracket to the ceiling. To do this, mark the holes for drilling (E,F,G), drill them, insert the dowels, and then firmly fasten the bracket to the ceiling. After attaching the hood move the top of the chimney up and infix the chimney with screws.Consult, if necessary, a specialist. In recirculation mode, this step can be skipped. This completes the assembly.
Usage

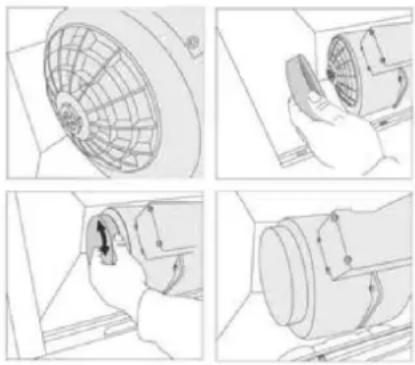

Inserting and changing the carbon filter
For recirculation mode we recommend the use of a carbon filter, which frees the cooking fumes from the smell. The carbon filter consists of two charcoal-filled cassettes, mounted left and right to the suction opening of the engine. For mounting please check picture.
To mount the carbon filter, please take the following steps:
- First remove the metal grease filters
- Place the charcoal filter on both sides of the motor in front of the suction openings
- In the middle of the filter is a receptacle and on the fan a suitable insert
- If the filter is seated correctly, you can fix it with a small twisting motion
- Then reinsert the grease filter
The matching carbon filter for this model is called GE15
Metal grease filter
The aforementioned grease filters are in front of the engine and ensure the absorption of greasy ingredients from the kitchen haze. The cleaning can be done in the dishwasher. It is recommended to do this all 14 days (at least once a month). Too long cleaning intervals lead to a blockage of the filter and thus reduced power.
Cleaning in the dishwasher
The grease filters of your hood are dishwasher safe (55^) . However, light discoloration of the metal can arise. These have no influence on the function of the grease filter and are not considered a reason for complaint. Put the filters loosely in the dishwasher. Do not bend or pinch them. NOTE: Do not clean very dirty grease filters together with other dishes.
Cleaning by hand
If cleaned manually, first soak the grease filter extensively in hot rinse liquor, then brush well and above all, rinse well with clean water. After that drain well. Avoid use of aggressive, acidic or alkaline detergent. For very stubborn dirt you can resort to commercially available degreaser sprays.
Usage

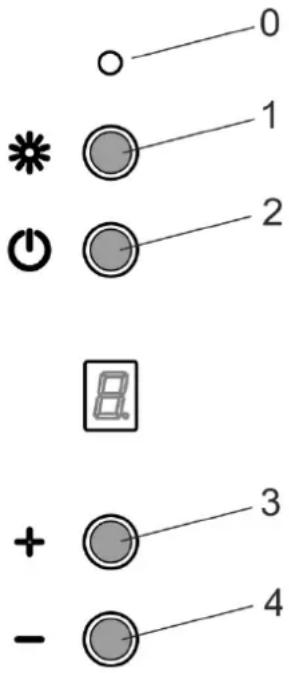

Infrared sensor(0)
Lighting (1)
Lighting is turned on and off by pressing this button.
Voltage (2)
This button launches the steam exhausting engine.
Display
The display shows the relevant stage of the operating panel at the present moment.
Power levels (3 and 4)
The cover/panel for the steam exhaust has four power levels, which can be changed increasing using the buttons, located below the display (3) and decreasing (4). Two buttons simultaneously are used for turning the panel/exhaust on.
Turbo level
The fourth power is the so-called "Turbo-power". At this power, the exhaust panel works in the maximum exhaust mode for nine minutes, and, then repeatedly turns to power level three. If the power four is turned on, the number four flashes on the display to show, that the exhaust will automatically shift to the previous power.
Remote control
The remote control controls the corresponding functions. Buttons 4 and 5, as well as button 1 turn on the hood. Button 1 turns off the hood during operation. Button 2 turns the light on or off. With button 6 one can activate the timer and set it as described above. Button 3 does not work on this unit (no automatic mode).
Cleaning and care
- De-energize the device to clean it.
- Clean the outer parts with mild soapy water. Avoid hot cleaners, brushes, or scrubbing cloths.
- Conventional glass cleaner can be used for the glass surfaces.
It is important to follow the filter changes and cleaning intervals. Failure to comply can be a fire hazard as a result of fat deposits.
Disposal of the transport packaging
The packaging protects the device against damage during transport. The packaging materials are selected to be environmentally friendly and recyclable. The return of the packaging into the material cycle saves raw materials and reduces waste. Your seller will take back the packaging.
Packing parts (e.g., foils, styrofoam) can be dangerous to children. There is danger of suffocation! Keep packaging parts out of reach of children and dispose them as soon as possible.
Disposal of the old device
Electrical and electronic devices often contain valuable materials. They also contain harmful substances that are essential to their function and safety were necessary. Disposal as residual waste can harmful to human health and the environment in case of wrong treatment. Therefore do not put your old device to residual waste. Instead, use those collection and return points established by your community or municipality for return and recovery of electrical and electronic waste.
service
If you have any questions or problems, please contact our customer service.
MO - FR from 8:30 - 16:30
Please have the serial number and the model name of the device ready. The serial number can be found on the nameplate inside the hood.
All data subject to design changes in the context of technical development of our products.
declare under our sole responsibility that the following product
meets the essential requirements of the following EU-Directives:
2014/35/EC Low Voltage Directive [OJEU L96/357-374, 29.03.2014]
2014/30/EU Directive on Electromagnetic Compatibility [OJEU L96/79-106, 29.03.2014]
2011/65/EU Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment [OJEU L 174/88-110, 01.07.2011]
2009/125/EC Directive for the setting of ecodesign requirements for energy-related products [OJEU L285/10-35, 31.10.2009]
Authorized person for technical documentation:
UK Declaration of Conformity
Wir, die Firma
We, the company
declare under our sole responsibility that the following product
Geräteart/Type of product.
Dunstabzugshaube
Modell
weitere Angaben
Model
further details
GCH V 380 Pime N
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
Ecodesign for Energy-Related Products Regulations 2010
meets the essential requirements of the following UK-Regulations.
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012
Ecodesign for Energy-Related Products Regulations 2010
Authorized person for technical documentation:

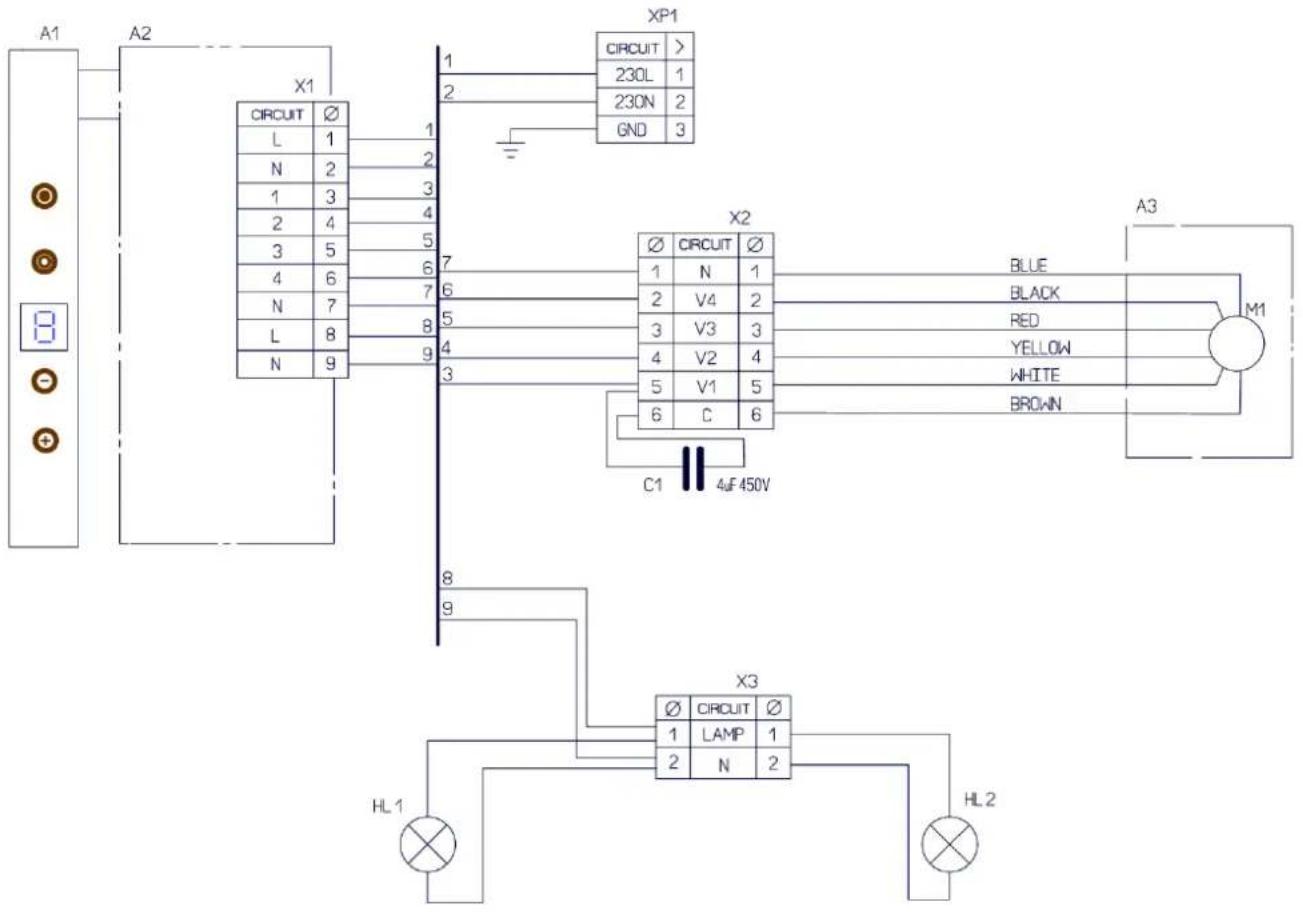

Circuit diagram for the model GCH V 380 PRIME N
Possible malfunctions of the extractor hood
| Air is poorly drawn in the recirculation mode | The extractor hood began to work louder | Reduced performance of the extractor | The lamp does not light | The extraction hood does not work | Extractor hood does not work | |
| Check connection to the electricity supply | ||||||
| Check whether the isplay is turned on | ||||||
| Check the lamp switch (should be turned on) | ||||||
| Check aluminum filter (should be leaned once every month) | ||||||
| Check the socket (For the power connection) | ||||||
| Check lamps | ||||||
| Check air outlet pipe (for the traction) | ||||||
| Check carbon filter (replacement once every 6-12 months) |
