USER MANUAL ST09400E STANLEY

3/($6(5($'7+()2//2:,1*,16758&7,216&$5()8//< %()25(86,1*7+($33/,$1&( - Children of less than 3 years should be kept away unless continuously supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance. - CAUTION: Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. - The heater must not be located immediately below a socket-outlet. - Do not use the appliance for other than its intended use. For domestic indoor use only.

- 3ODFHWKHDSSOLDQFHRQDÀDWVWDEOHKHDWUHVLVWDQWVXUIDFH2SHUDWLQJWKHSURGXFWLQDQ\RWKHU

position could cause a hazard.

6© 2014, Pinnacle Products International, Inc.

THERMAL POWER (BTU) 6,820 10,250 11,250 17,060 30,710 AIR FLOW (m

THERMISCH VERMOGEN (BTU) 6,820 10,250 11,250 17,060 30,710 LUCHTSTROOM (m

einwandfrei. )HKOHUEHKHEXQJ 15© 2014, Pinnacle Products International, Inc. NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Safety Information are trademarks of Stanley Black & Decker, Inc or its affiliates and are used under license by Pinnacle Products International, Inc. 67$1/(<DQG ,03257$17 Read and understand all of the safety information and instructions in this manual before operating your heater. 5,6.2)(;3/26,21'R1RWRSHUDWHWKLVKHDWHUZKHUHWKHUHDUHKDUPIXO explosive or flammable gasses, fumes or hazardous substances. DANGER 5,6.2)),5('R1RWRSHUDWHWKLVKHDWHUQHDUFRPEXVWLEOHPDWHULDOV WARNING (/(&75,&6+2&.+$=$5''RQRWXVHWKLVKHDWHULQWKHLPPHGLDWH surroundings of a bath, a shower, or a swimming pool. WARNING

%851+$=$5''R1RWWRXFKWKHIURQWRIKHDWHUZKLOHLWLVRSHUDWLQJ7KLV

heater is hot while operating. WARNING 5,6.2),1-85<'2127029(+($7(5:+,/(,7,623(5$7,1* WARNING This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience or and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children should be supervised so they do not play with the appliance. ALWAYS use only the electrical power (voltage

DQGIUHTXHQF\VSHFL¿HGRQWKHPRGHOSODWHRI

the heater. ALWAYS use an extension cord properly rated for this appliance. ALWAYS ensure that all cords are protected against short circuit and overload. ALWAYS keep power cord away from hot air outlet. ALWAYS disconnect heater from power source when not in use. NEVER place the heater on a small, uneven or unstable surface that may cause the heater to fall. NEVER connect other appliances to the same electrical outlet as the fan heater. NEVER operate heater with heater guards removed. NEVER block hot air outlet while heater is operating. NEVER cover or obstruct heater. NEVER use ducting with heater. NEVER pull or carry heater by the power cord. NEVER use heater with an external switching device: such as a timer. If heater is damaged, do not use it. The heater must be serviced by a qualified person or service agent. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool. The heater must not be located immediately below a socket outlet. In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility. CAUTION 16© 2014, Pinnacle Products International, Inc.

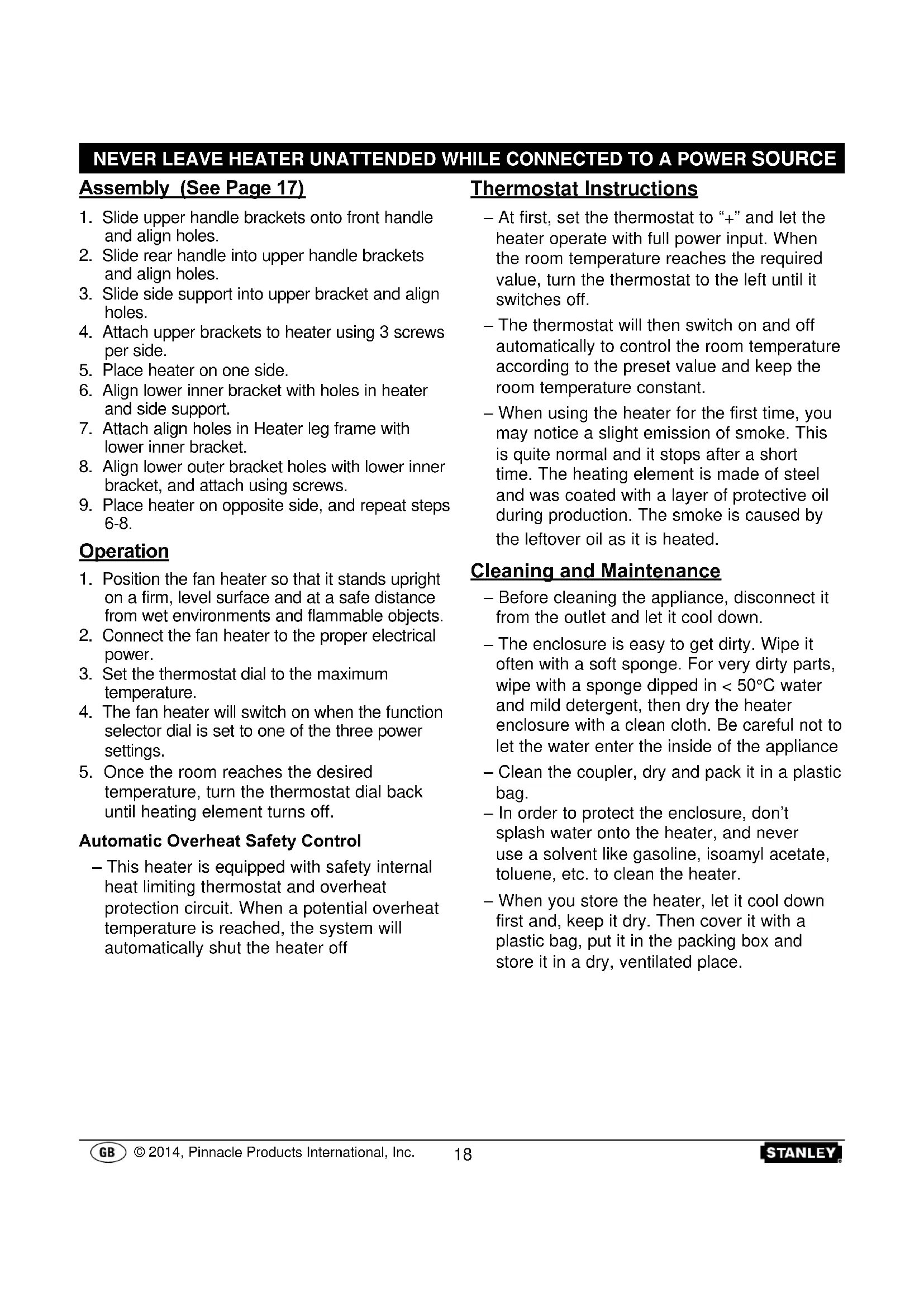

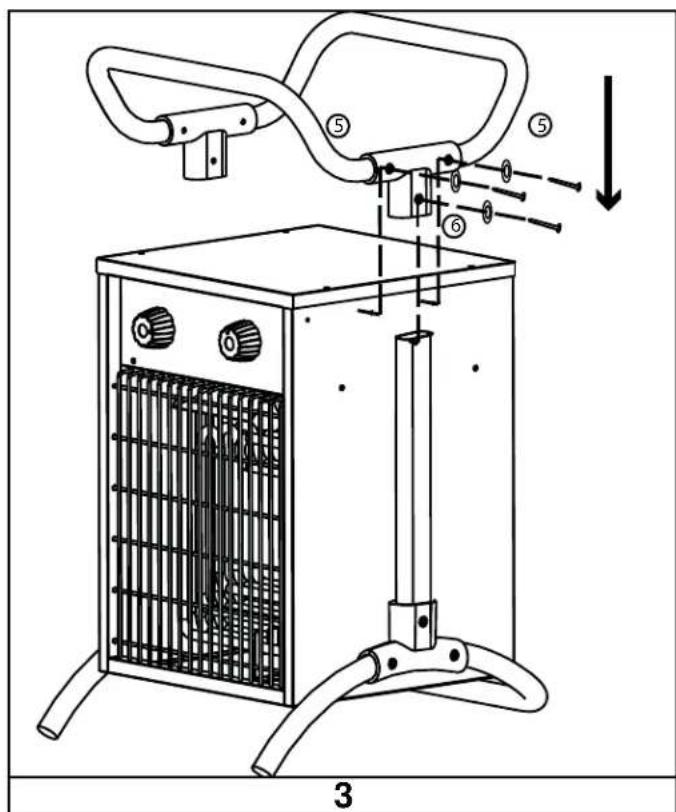

2. Slide rear handle into upper handle brackets

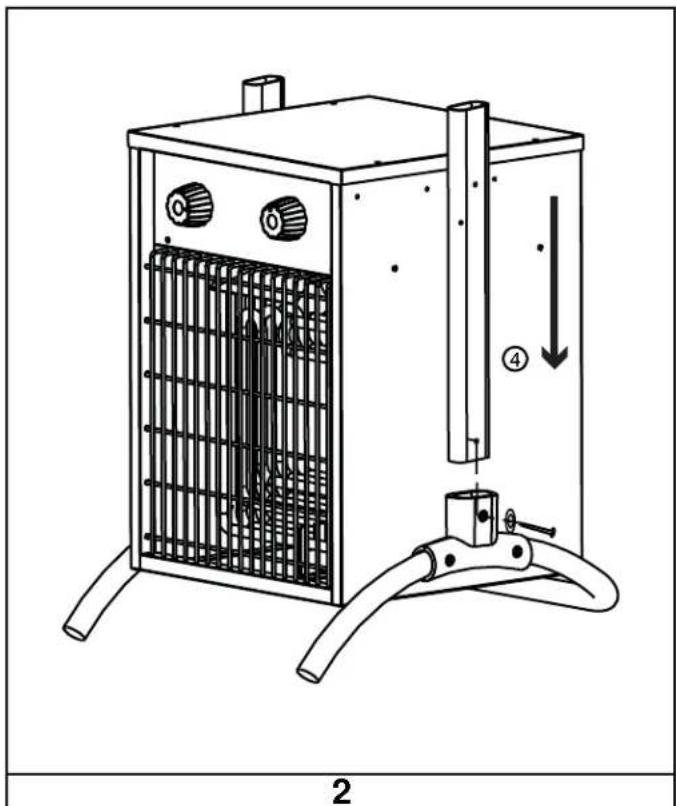

3. Slide side support into upper bracket and align

5. Place heater on one side.

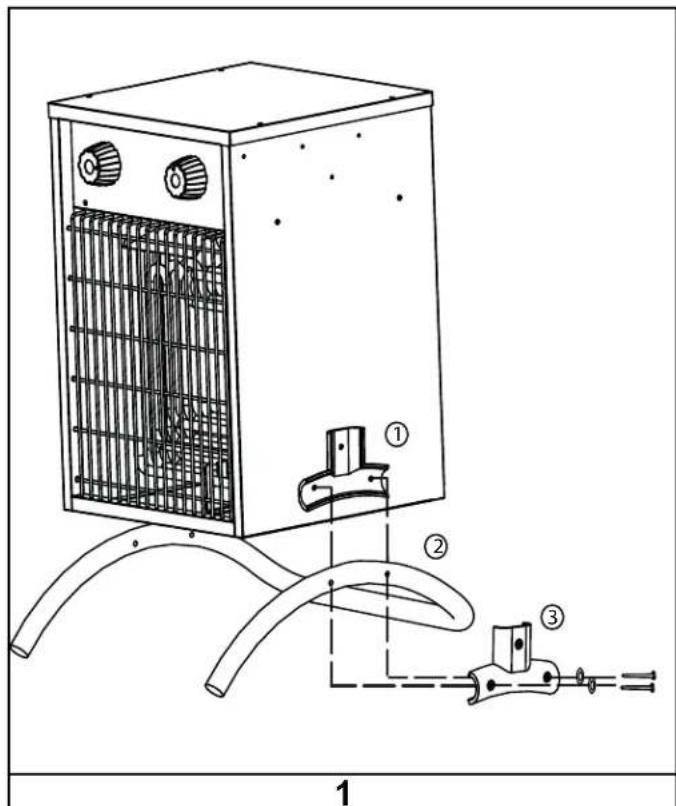

6. Align lower inner bracket with holes in heater

7. Attach align holes in Heater leg frame with

lower inner bracket.

8. Align lower outer bracket holes with lower inner

bracket, and attach using screws.

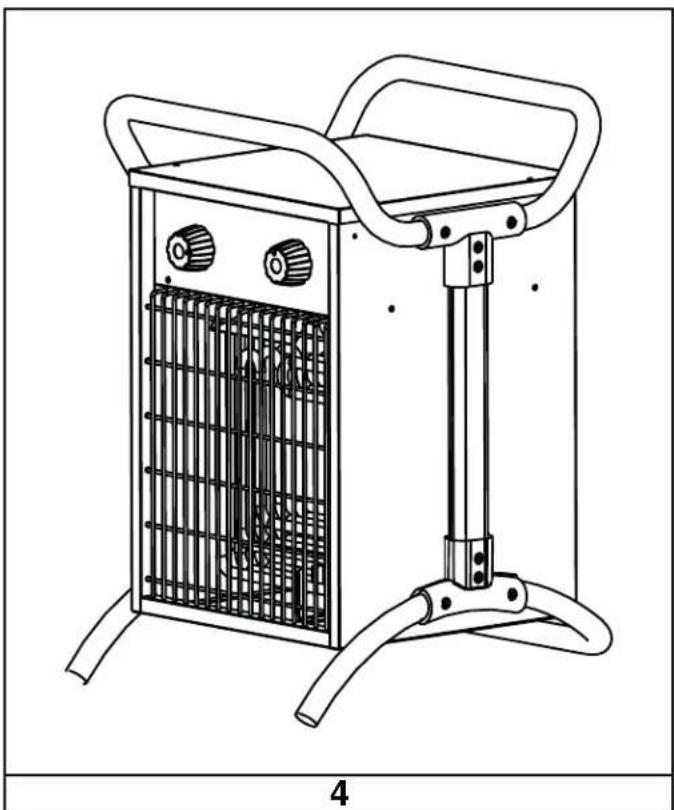

9. Place heater on opposite side, and repeat steps

1. Position the fan heater so that it stands upright

on a firm, level surface and at a safe distance from wet environments and flammable objects.

3. Set the thermostat dial to the maximum

selector dial is set to one of the three power settings.

5. Once the room reaches the desired

temperature, turn the thermostat dial back until heating element turns off.

$XWRPDWLF2YHUKHDW6DIHW\&RQWURO

– This heater is equipped with safety internal heat limiting thermostat and overheat protection circuit. When a potential overheat temperature is reached, the system will automatically shut the heater off Thermostat Instructions – At first, set the thermostat to “+” and let the heater operate with full power input. When the room temperature reaches the required value, turn the thermostat to the left until it switches off. – The thermostat will then switch on and off automatically to control the room temperature according to the preset value and keep the room temperature constant. – When using the heater for the first time, you may notice a slight emission of smoke. This is quite normal and it stops after a short time. The heating element is made of steel and was coated with a layer of protective oil during production. The smoke is caused by the leftover oil as it is heated. &OHDQLQJDQG0DLQWHQDQFH – Before cleaning the appliance, disconnect it from the outlet and let it cool down. – The enclosure is easy to get dirty. Wipe it often with a soft sponge. For very dirty parts, wipe with a sponge dipped in < 50°C water and mild detergent, then dry the heater enclosure with a clean cloth. Be careful not to let the water enter the inside of the appliance – Clean the coupler, dry and pack it in a plastic bag. – In order to protect the enclosure, don’t splash water onto the heater, and never use a solvent like gasoline, isoamyl acetate, toluene, etc. to clean the heater. – When you store the heater, let it cool down first and, keep it dry. Then cover it with a plastic bag, put it in the packing box and store it in a dry, ventilated place. 18© 2014, Pinnacle Products International, Inc. NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE 5,6.2)(/(&75,&6+2&.',6&211(&7)52032:(5%()25(0$,17(1$1&( WARNING Plug Replacement NOTE: This section only applies to heaters sold or used in Great Britain. This appliance is supplied with a BS1363 3 pin

SOXJ¿WWHGZLWKDIXVH6KRXOGWKHIXVHUHTXLUH

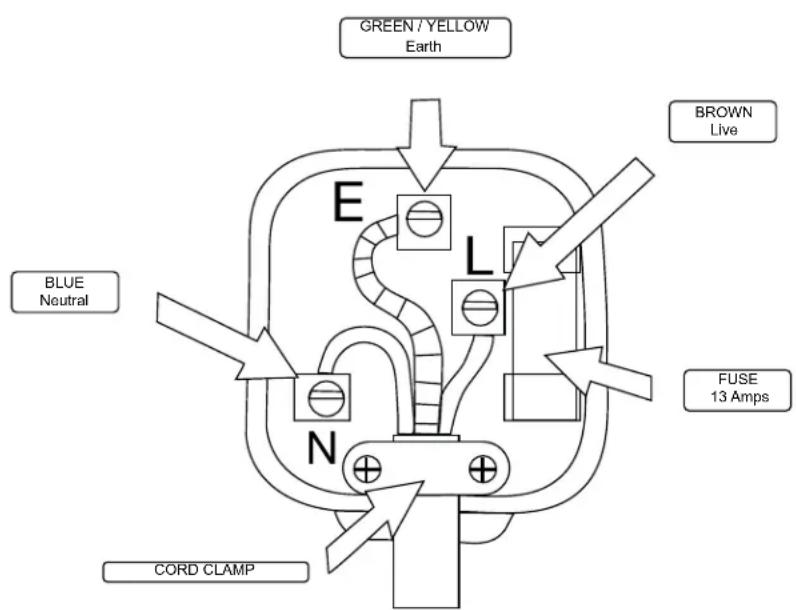

replacement, it must be replaced with a fuse with the proper amp rating. (see Technical 6SHFL¿FDWLRQVSDJHDQGDSSURYHGWR%6 In the event the mains plug has to be removed/ replaced for any reason, please note: IMPORTANT: The wires in the mains lead are colored in accordance with the following code: Blue – Neutral Brown – Live Green/Yellow – Earth As the colors of the wires in the mains lead of this appliance may not correspond with the colored markings identifying the terminals in your plug, proceed as follows: The blue wire must be connected to the terminal marked with an N or colored black. The brown wire must be connected to the terminal marked with an L or colored red. The green/ yellow wire must be connected to the earthing terminal which is marked with an E or with the earth symbol. 127(,IDPRXOGHGSOXJLV¿WWHGDQGKDVWR be removed take great care in disposing of the plug and severed cable, it must be destroyed to prevent engaging into a socket. 1HYHUFRQQHFWOLYHRUQHXWUDO wires to the earth terminal of the plug. WARNING GREEN / YELLOWEarthBROWN Live FUSE 13 AmpsCORD CLAMP BLUE Neutral Plug Replacement Wiring Diagram Figure 3 19© 2014, Pinnacle Products International, Inc. NEVER LEAVE HEATER UNATTENDED WHILE CONNECTED TO A POWER SOURCE Problem Cause Solution Fan stays on when heat shuts off.

1. Fan runs continuously while

the heater is operating.

1. Heater is operating correctly.

Fan speed stays the same when changing settings.

1. Fan speed stays constant.

Setting changes amount of heat output only.

1. Heater is operating correctly.

Heating element does not glow red.

1. Heating element is made of

stainless steel and will not glow red to produce heat.

1. Heater is operating correctly.

'RQRWIHHOKHDWRUDLUÀRZ

1. No power to heater.

2. Desired room temperature

3. Heater does not heat area

in front of heater, it will disperse heat throughout room to heat entire space.

1. Check power connections

/ connect heater to power supply.

2. Thermostat will shut off once

desired room temperature is reached. Heater is operating correctly.

3. Heater is operating correctly.

5,648('¶(;3/26,211HSDV)$,5(IRQFWLRQQHUFHWDSSDUHLOGHFKDXIIDJH

PRGL¿FKHGHOOHLPSRVWD]LRQL

£3(/,*52'(48(0$'85$61RWRTXHODSDUWHIURQWDOGHOFDOHIDFWRU

2. 7HUPRVWDWZ\áąF]\VLĊ
