USER MANUAL ZRDVP15EB SONY

Before operating the unit, please read this manual thoroughly and retain it for future reference. When using the product, do not use it for purposes other than those described in the instruction manual. WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabin et. Refer servicing to qualified personnel only. WARNING This apparatus must be earthed. WARNING When installing the unit, incorporate a readily

essible disconnect device in the fixed wiring. If a fault should occur during operation of the unit, operate the disconnect device to switch the power supply off. CAUTION For safety, do not connect the connector for

riph eral device wiring that might have excessive voltage to the following port: Cabinet DATA connector WARNING

1. Use the approved Power Cord (3-core mains

lead ) / Appliance Connector / Plug with earthing-contacts that conforms to the safety regulations of each country/region if applicable.

2. Use the Power Cord (3-core mains lead) /

Appliance Connector / Plug conforming to the proper ratings (Voltage, Ampere). If you have questions on the use of the above Power Cord / Appliance Connector / Plug, please consult a qualified service personnel. IMPORTANT The nameplate is located in the following location

the unit. Rear For the customers in the U.S.A. This equipment has been tested and found to

omply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. You are cautioned that any changes or

difications not expressly approved in this manual could void your authority to operate this equipment. All interface cables used to connect the equipment to peripherals must be shielded type to comply with EMC standard(s) and to prevent undesired operation due to radiated emissions. When cables are supplied, always use them for this purpose. If you have any questions about this product, you may call: Sony Customer Information Service Center 1-800-222-7669 or http://www.sony.com/ For the customers in Canada CAN ICES-3 (A)/NMB-3(A) Supplier's Declaration of Conformity Trade Name : SONY Model : ZRD-VP15EB/ZRD-VP23EB

ZRD-VP15EM/ZRD-VP23EM

Responsible party : Sony Electronics Inc. Address 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number : 858-942-2230 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. English15

CUSTOMERS (INCLUDING IN THE PROVINCE OF

QUEBEC). WARNING Operation of this equipment in a residential

vironment could cause radio interference. For the customers in Europe This apparatus shall not be used in the residential

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. This equipment is not suitable for use in locations

- Please visit www.sony.com/psa/warranty for important information and complete terms and conditions of Sony’s limited warranty applicable to this product. For the customers in Canada

SONY LIMITED WARRANTY

- Please visit www.sony.com/psa/warranty for important information and complete terms and conditions of Sony’s limited warranty applicable to this product. For the customers in Europe Sony Europe B.V. - Standard Warranty and Exceptions on Standard Warranty. Please visit https://pro.sony/support-services/ primesupport/support-professional-solutions- europe-standard-product-warranty for important information and complete terms and conditions. For the customers in Korea

SONY LIMITED WARRANTY

- Please visit https:/ /pro.sony/ko_KR/support-services for important information and complete terms and conditions of Sony’s limited warranty applicable to this product.EN

• Reproduction or duplication, in whole or part, of the operation manual supplied with the system without the authorization of the right holder is prohibited under copyright law.

• Note that the specifications of the system are subject to change for improvement without prior notice.17

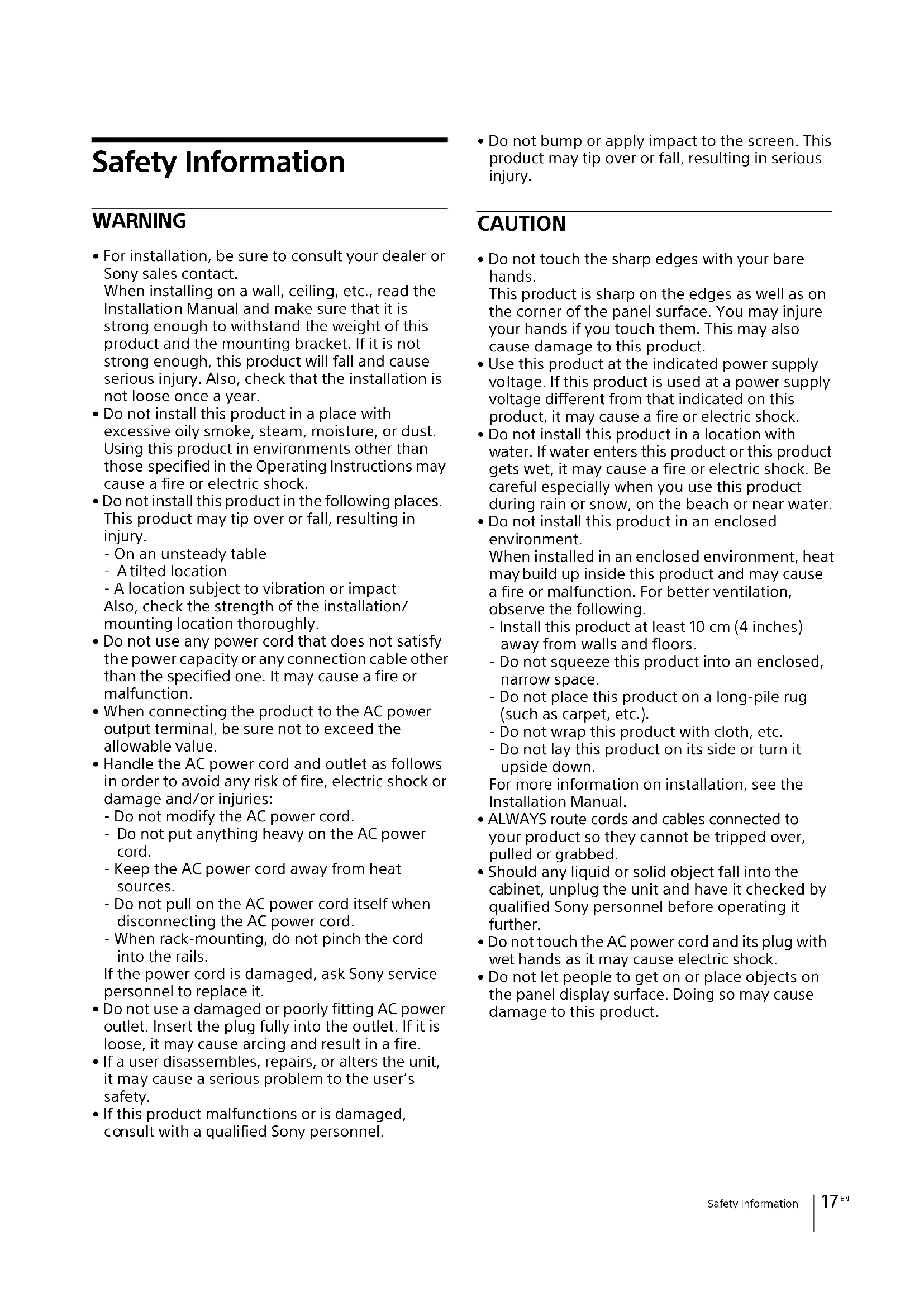

• For installation, be sure to consult your dealer or Sony sales contact. When installing on a wall, ceiling, etc., read the Installatio

Manual and make sure that it is strong enough to withstand the weight of this product and the mounting bracket. If it is not strong enough, this product will fall and cause serious injury. Also, check that the installation is not loose once a year.

• Do not install this product in a place with

cessive oily smoke, steam, moisture, or dust. Using this product in environments other than those

ecified in the Operating Instructions may cause a fire or electric shock.

• Do not install this product in the following places.

s product may tip over or fall, resulting in injury. - On an unsteady table

tilted location - A location subject to vibration or impact Also, check the strength of the installation/ mounting location thoroughly.

• Do not use any power cord that does not satisfy

e power capacity or any connection cable other than the specified one. It may cause a fire or malfunction.

• When connecting the product to the AC power

tput terminal, be sure not to exceed the allowable value.

• Handle the AC power cord and outlet as follows

order to avoid any risk of fire, electric shock or damage and/or injuries: - Do not modify the AC power cord.

o not put anything heavy on the AC power cord. - Keep the AC power cord away from heat sources. - Do not pull on the AC power cord itself when disconnecting the AC power cord. - When rack-mounting, do not pinch the cord into the rails. If the power cord is damaged, ask Sony service personnel to replace it.

• Do not use a damaged or poorly fitting AC power

tlet. Insert the plug fully into the outlet. If it is loose, it may cause arcing and result in a fire.

• If a user disassembles, repairs, or alters the unit, it ma y c ause a serious problem to the user’s safety.

• If this product malfunctions or is damaged,

nsult with a qualified Sony personnel.

• Do not bump or apply impact to the screen. This

oduct may tip over or fall, resulting in serious injury. CAUTION

• Do not touch the sharp edges with your bare hands. This product is sharp on the edges as well as on

e corner of the panel surface. You may injure your hands if you touch them. This may also cause damage to this product.

• Use this product at the indicated power supply

ltage. If this product is used at a power supply voltage different from that indicated on this product, it may cause a fire or electric shock.

• Do not install this product in a location with

ter. If water enters this product or this product gets wet, it may cause a fire or electric shock. Be careful especially when you use this product during rain or snow, on the beach or near water.

• Do not install this product in an enclosed env

ronment. When installed in an enclosed environment, heat

build up inside this product and may cause a fire or malfunction. For better ventilation, observe the following. - Install this product at least 10 cm (4 inches)

ay from walls and floors. - Do not squeeze this product into an enclosed, narrow space. - Do not place this product on a long-pile rug (such as carpet, etc.). - Do not wrap this product with cloth, etc. - Do not lay this product on its side or turn it upside down. For more information on installation, see the Installation Manual.

• ALWAYS route cords and cables connected to

ur p roduct so they cannot be tripped over, pulled or grabbed.

• Should any liquid or solid object fall into the

binet, unplug the unit and have it checked by qualified Sony personnel before operating it further.

• Do not touch the AC power cord and its plug with

hands as it may cause electric shock.

• Do not let people to get on or place objects on the

anel display surface. Doing so may cause damage to this product.EN

Please Read This First Please Read This First

ZRA-VP15EMSC/ZRA-VP23EMSC are the spare part kits of the Display Cabinet. ZRA-1ESK is a setup kit for installing the display. For details regarding the acquisition of these kits,

nsult a Sony sales contact. Manual Structure This product includes the following manuals to be used according to the situation. Installation Manual This includes information on important safety

ecautions, parts identification, specifications, etc. Refer to this manual when changing equipment settings or performing readjustments after installation as well. Operating Instructions (this document) This includes information on important safety

ecautions, parts identification, specifications, etc. Refer to this manual when performing general operations. Service Manual This is intended for use by service personnel and includ

s information on diagnosing malfunctions and instructions on repair. Condensation If the unit is suddenly taken from a cold to a warm location, or if ambient temperature suddenly rises, moisture may form on the outer surface of the unit and/or inside of the unit. This is known as condensation. If condensation occurs, turn off the unit and wait until the condensation clears before operating the unit. Operating the unit while condensation is present may damage the unit. Security

• Depending on the operating environment, una utho rized third parties on the network may be able to access the unit. When connecting the unit to the network, be sure to confirm that the network is protected securely. Burn-in Permanent burn-in may occur if a still image is displayed for a prolonged period of time. Playing a video with moving images may reduce the severity of burn-in once it occurs, but it will not remove the burn-in completely. Defective pixels Thus a very small proportion of pixels may be “stuck,” either always off (black), always on (red, green, or blue), or flashing. In addition, such “stuck” pixels may appear spontaneously over a long period of use due to the physical characteristics of the organic light-emitting diodes. Such occurrences do not indicate a malfunction. Unit Protection Function When the unit reaches an abnormally high temperature depending on the installing environment, the function which turns off the video display to protect the unit may operate. For details regarding the installation environment

• Avoid getting the product wet. In the event of accidental contact with liquids, do not turn on the power, and contact a service representative.

er enters the interior of the product, turn off the power and discontinue use, and contact a service representative.

• Do not subject the front panel of the Display Cab ine ts to damage or shocks.

• Request cleaning and maintenance periodically

om a service representative. Precautions regarding the effect on medical devices The display cabinet uses strong magnets. There are areas where the magnetic flux density is

kely to be 300 mT or more on the surface that is touched during installation or maintenance work.19

Please Read This First This may seriously affect medical devices such as defibrillators, pacemakers, and programmable shunt valves for hydrocephalus treatment. Keep users of these medical devices away from

as where installation and maintenance work is being performed or where display cabinets are stored. There is also magnetic flux leakage from the

wing surface, which may affect users of these medical devices when they approach the display cabinet. Take measures such as posting warning signs

pending on the installation conditions. Be sure to inform the contractor who undertakes the inst allation or maintenance work about these effects. Precautions on visually induced motion sickness (VIMS) and postural instability Depending on the displayed content, display size, and viewing location (distance), a viewer may experience VIMS symptoms such as postural instability or nausea. The symptoms of VIMS may be severer after some

me rather than during or immediately after viewing. Take measures such as posting warning signs. Furthermore, the movement in one direction in a

de part of the image may induce postural instability. Pay close attention to the displayed contents and installation location (direction) when installing the product in a position where it can be seen from stairs, escalators, landings, or other places that are considered dangerous when posture is unstable.

• Always verify that the unit is operating properly

fore use. SONY WILL NOT BE LIABLE FOR DAMAGES OF ANY KIND INCLUDING, BUT NOT

LIMITED TO, COMPENSATION OR

REIMBURSEMENT ON ACCOUNT OF THE LOSS OF

INATION OR DISCONTINUATION OF ANY

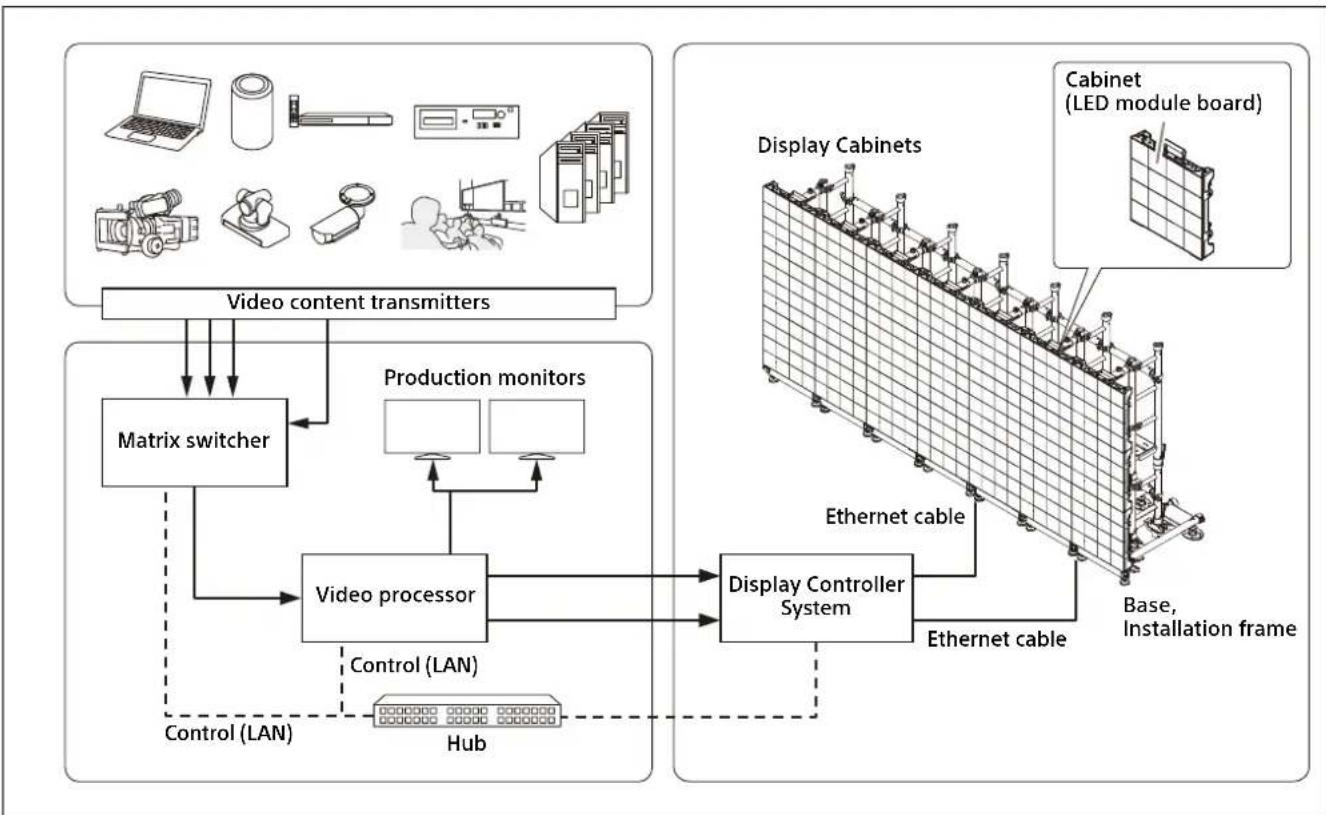

Overview Overview Connect cabinets to make a display cabinet screen according to the installation location and purpose, and video contents input in the Display Controller are output to the Display Cabinet by converting the signal. Depending on the products, the Display Controller differs. Use the following products. ZRD-VP15EB/VP23EB: Brompton Technology Tessera SX40 Processor, Tessera XD Data Distribution Unit ZRD-VP15EM/VP23EM: Megapixel LED Processing Platform HELIOS, Network Switch MSM4214X/GSM4210P Daisy-chain connections can be configured between Display Cabinets using a power cord (not supplied)

d an ethernet cable (not supplied). For the controller’s maximum controllable connection numbers, the controller’s control method and the used ethernet cable’s specification, refer to the operating instructions of the display controller system you will be using.

• Use the Display Controller with the calibration setting enabled. When used with calibration disabled, image quality may be affected due to changes or unevenness in

• Connect only the DATA connector of the corresponding display controller system and cabinet to the unit’s DAT A connector. Caution21

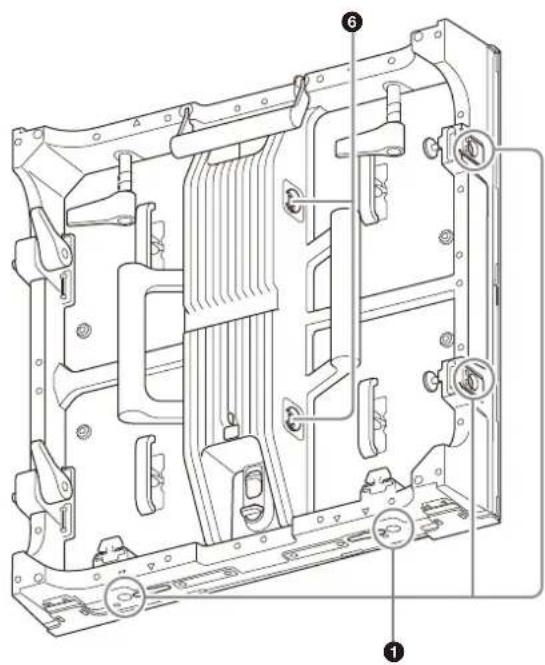

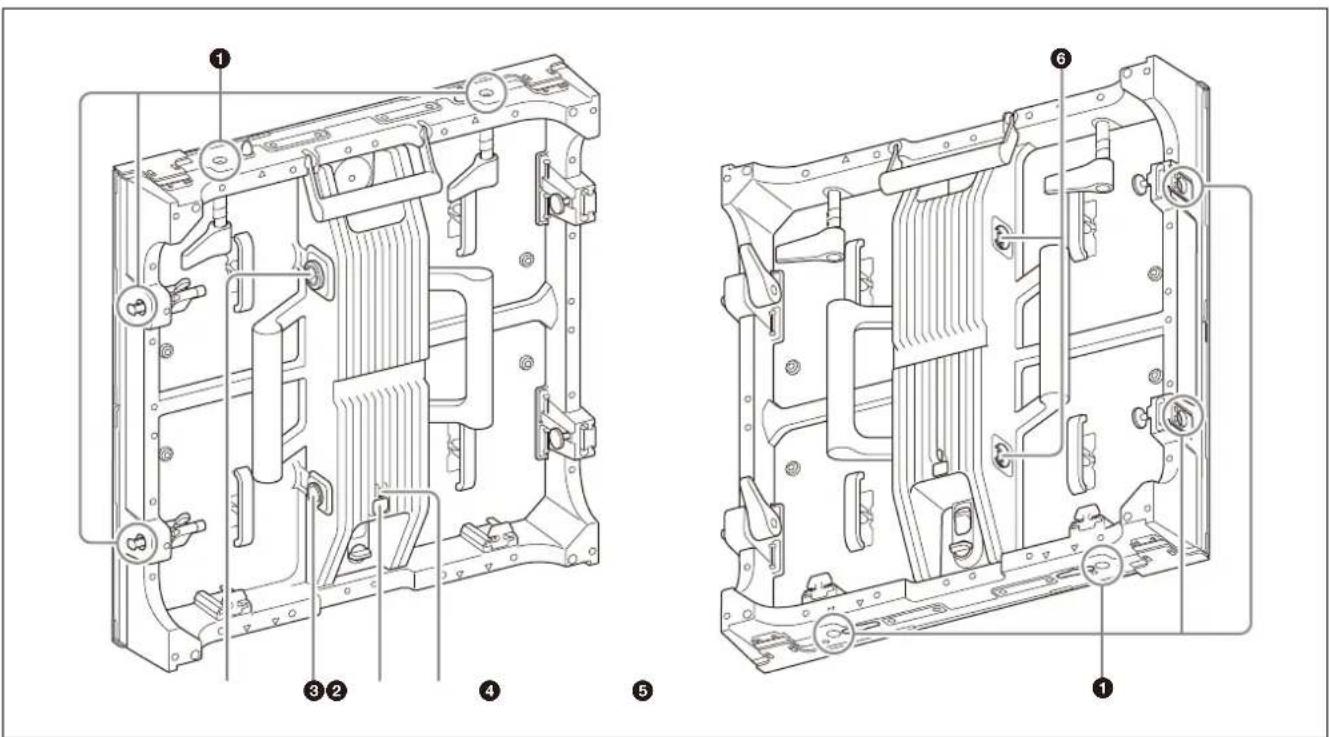

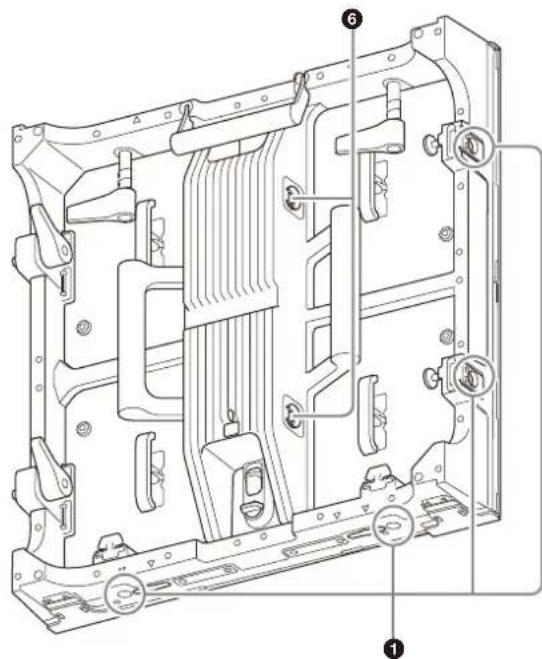

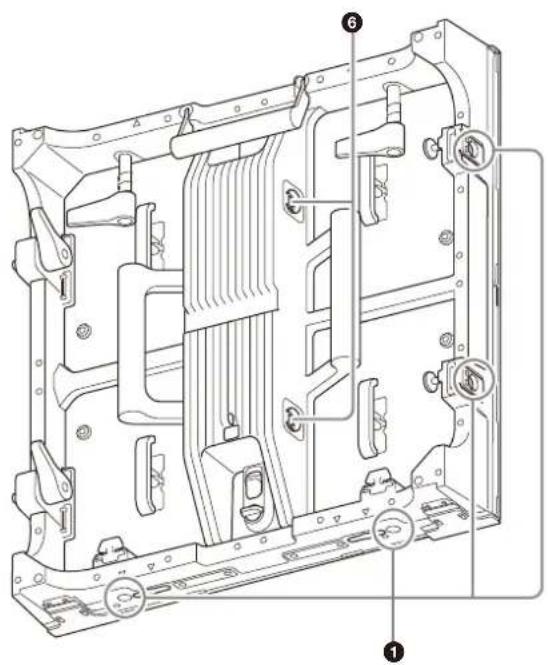

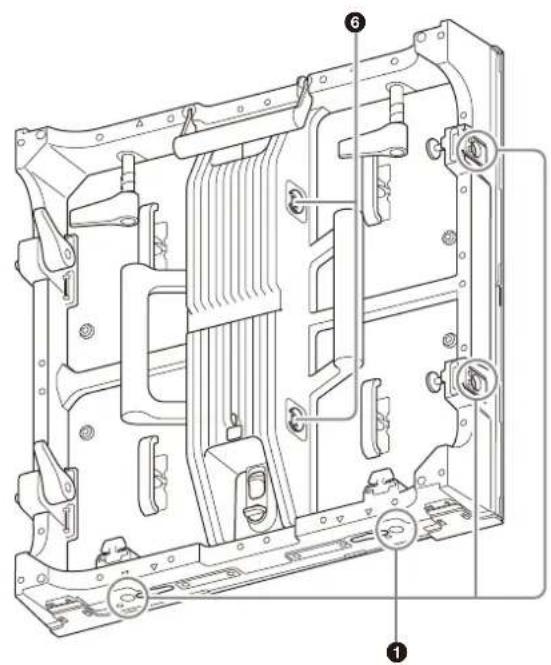

Parts Identification Parts Identification Left/Right Cabinet joints Connect to other Display Cabinets. There are two cabinet joints on the right side,

se a power cord for connecting between the

(not supplied) to connect this connector to the PWR IN (AC power input) connector on the succeeding Display Cabinet in the daisy-chain connection. This connector is not used for the last Display Cab

se a power cord for connecting between the

(not supplied) to connect this connector to the PWR OUT (AC power output) connector on the preceding Display Cabinet in the daisy-chain connection. For the first Display Cabinet in the daisy-chain

nnection, use a power cord for connecting between the power and the cabinet*

(not supplied) to connect this connector to the circuit breaker.

using the switch, the test pattern can be disp layed without connecting the controller.

ATUS indicator Ind icates the system status of the Display Cabine

Operation Description Press and hold Normal mode: Goes into test pat tern mode. Test pattern mode: Goes into nor mal mode. Press Normal mode: No changes Test pattern mode: Changes the

est pattern. Status ZRD-VP15EB ZRD-VP23EB ZRD-VP15EM ZRD-VP23EM The Display Cabinet is turned off Off Off The system is in the sta rtup state Lit red Lit white Lit magenta Lit yellow Returns to lit white Error status Blinking red Blinking red23

(not supplied) to connect this connector to the DATA connector on the succeeding Display Cabinet in the daisy- chain connection. For the first Display Cabinet in the daisy-chain

nnection, use an ethernet cable*

(not supplied) to connect this connector to the OUTPUT connector on the display controller system you are using. *1 Use the power cord with NEUTRIK’s inlet

nnector and outlet connector. *2 Use the plug for AC power connection and the

wever, the cable specification differs depending on the Display Controller you are using. Confirm the Display Controller’s specification. Error Codes Check the specifications of the corresponding display controller system. Cleaning and Storage Do not wet the surface of the Display Cabinets. Daily cleaning To clean the surface of the Display Cabinet, moisten the recommended cloth

with ethyl alcohol (near 100%) and wipe gently

*1 Recommended cloth: savina MX wiping cloth, KB Se iren Co. *2 Wipe the cabinet horizontally by moving the

oth in one direction. *3 If residue remains, wipe it off using the unused sid

of the cloth. Storage (for transportation)

• Make sure the Display Cabinets are completely dry before packing them.

• Store the Display Cabinets in dry, well-ventilated env

ronments. Signal Formats The signal format conforms to the specifications of the corresponding controller. Warning status Blinking yellow –Normal status(Ethernet not

nected)Lit green Lit greenNormal status(Ethernet

nection OK, controller not con nected, cabinet connection

inking blue (1 b link at a time: 1 port connection, 2 blinks at a time: 2 port connection)Blinking blue 1 blink at a time: 1 port connection, 2 blinks at a time: 2 port connection)Normal status(Ethernet

nection OK, controller con nection OK)Lit blue Lit blueNormal status(Test pattern mode)Lit yellow Lit yellowSafe mode – Lit cyanStatus ZRD-VP15EB D-VP23EBZRD-VP15EMZRD-VP23EMCaution Wipe horizontally in one directionDisplay CabinetClothWhen you wipe with the cloth texture in a vertical direction, it is easier to wipe off stains.EN

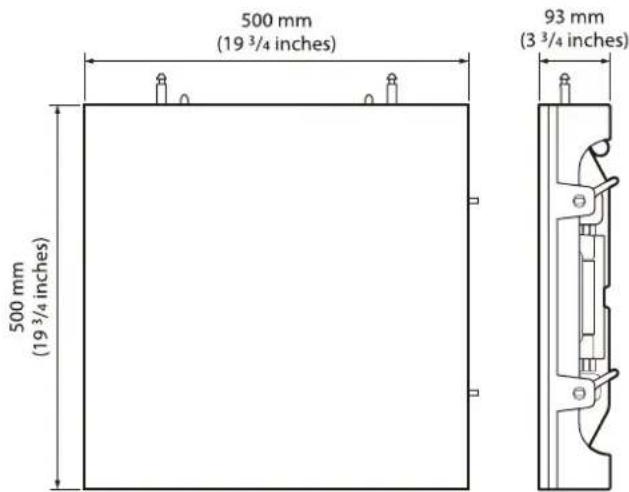

inches) (W/ H/D) Mass Approx. 10.1 kg (22 lb. 4.3 oz.) Input/Output PWR IN (AC power input) connector (1) PWR OUT (AC power output) connector (1) DATA connector (2) Power Input: AC 100 V to 240 V, 50/60 Hz, 11.9 A Output: AC 100 V to 240 V, 50/60 Hz, 10.2 A Operating conditions Temperature 0 °C to 45 °C (32 °F to 113 °F) Humidity 20% to 80% (no condensation) Storage and transport conditions Temperature –20 °C to +60 °C (–4 °F to +140 °F) Humidity 20% to 80% (no condensation) Accessories supplied Operating Instructions (1) Film spacer (16) Design and specifications are subject to change without no tic e.25
