USER MANUAL RDSE465K40WN BEKO

Εγχειρίδιο ΧρήστηPlease read this manual before using the product!Dear Customer,We'd like you to make the best use of our product, which has been manufactured in modern facilities with care and meticulous quality controls.Thus, we advice you to read the entire user manual before you use the product. In case the product changes hands, do not forget to hand the guide to its new owner along with the product.This guide will help you use the product quickly and safely. Please read the user guide carefully before installing and operating the product. Always observe the applicable safety instructions. Keep the user guide within easy reach for future use. Please read any other documents provided with the product.Keep in mind that this user guide may apply to several product models. The guide clearly indicates any variations of different models. Important information and useful tips. Risk of life and property. Risk of electric shock. The product’s packaging is made of recyclable materials, in accordance with the National Environment Legislation.

.The model information as stored in the product data base can be reached by entering following website and searching for your model identifier (*) found on energy label. https://eprel.ec.europa.eu/2 /22 EN Refrigerator / User Manual

1- Safety Instructions 3

• 2 Your Refrigerator 8 3 Installation 9 3.1. Right place for installation p. 9

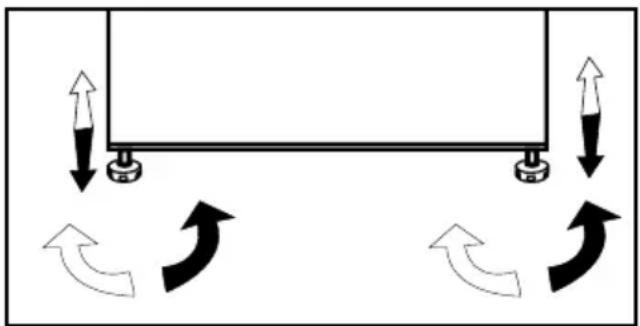

• 3.2. Adjusting the feet p. 10
• 3.3. Electrical connection p. 10
• 3.4. Changing door opening direction p. 10

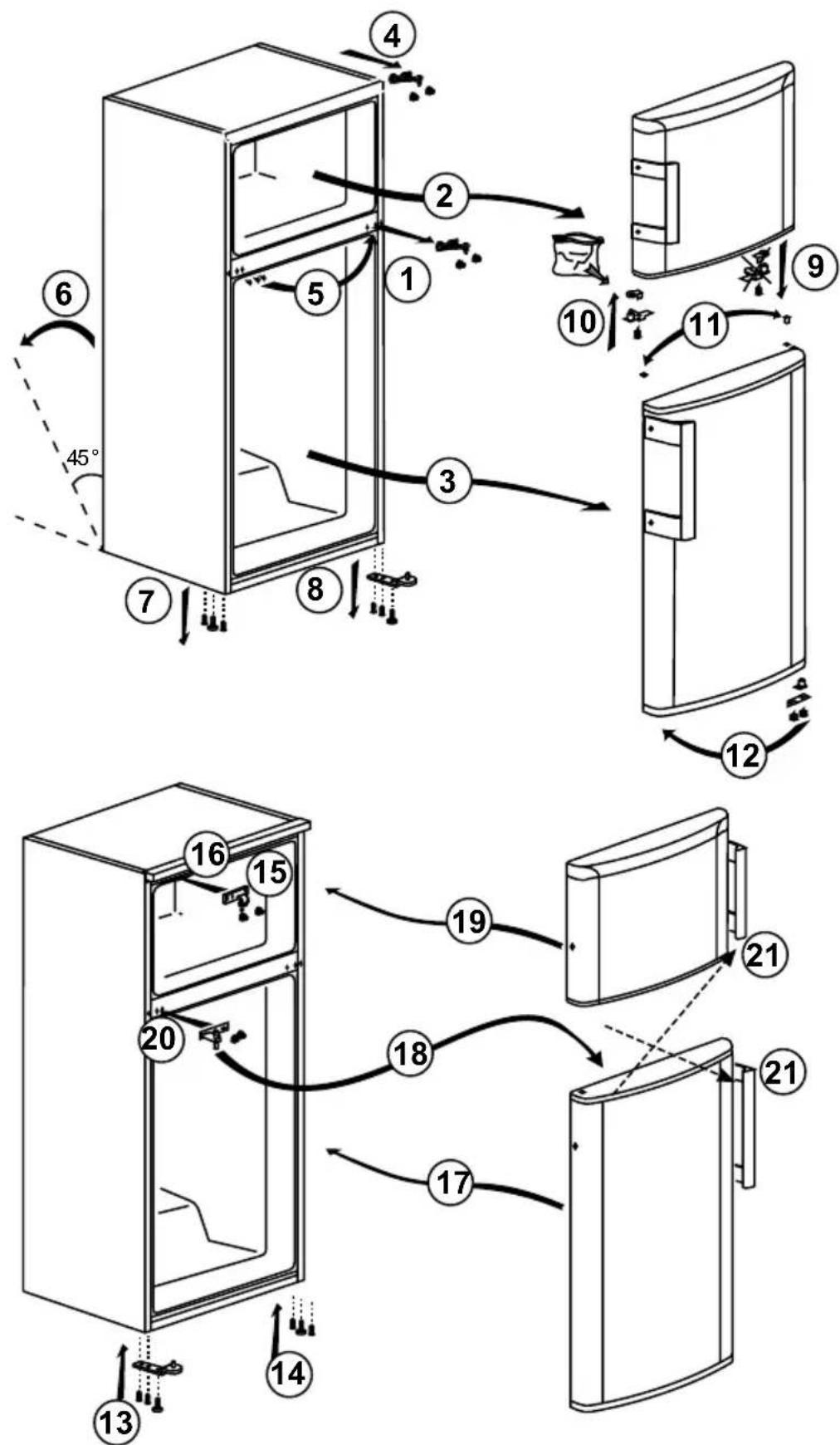

• 3.5. Reversing the doors p. 11
• 3.6. Reversing the doors p. 12
• 4 Preparation 13 4.1. Actions to be taken to save energy p. 13
• 4.2. First use p. 13
• 5 Use of the Product 14 5.1. Temperature adjustment knob p. 14

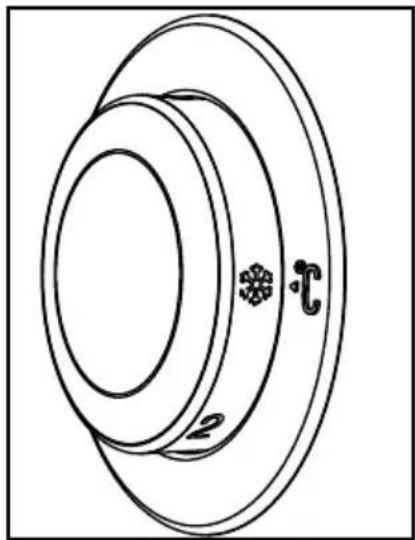

• 5.2. Fast freezing p. 14

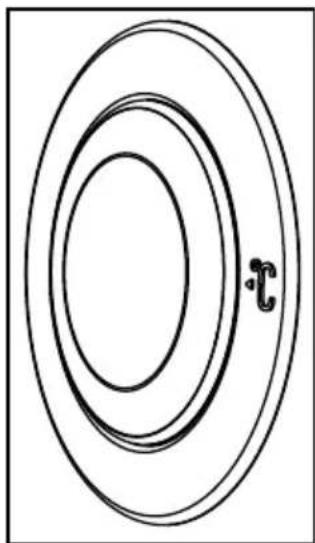

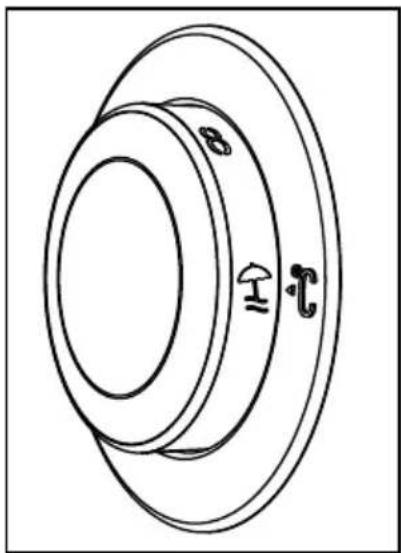

• 5.3. Holiday function p. 15
• 5.4. Snow defrosting p. 15
• 5.5. Door Open Warning p. 16
• 5.6. Ice tray p. 17
• 5.7. Egg tray p. 17
• 5.8. Fan p. 17
• 5.9. Crisper p. 17
• 6 Maintenance and Cleaning 18 6.1. Preventing Bad Odour p. 18

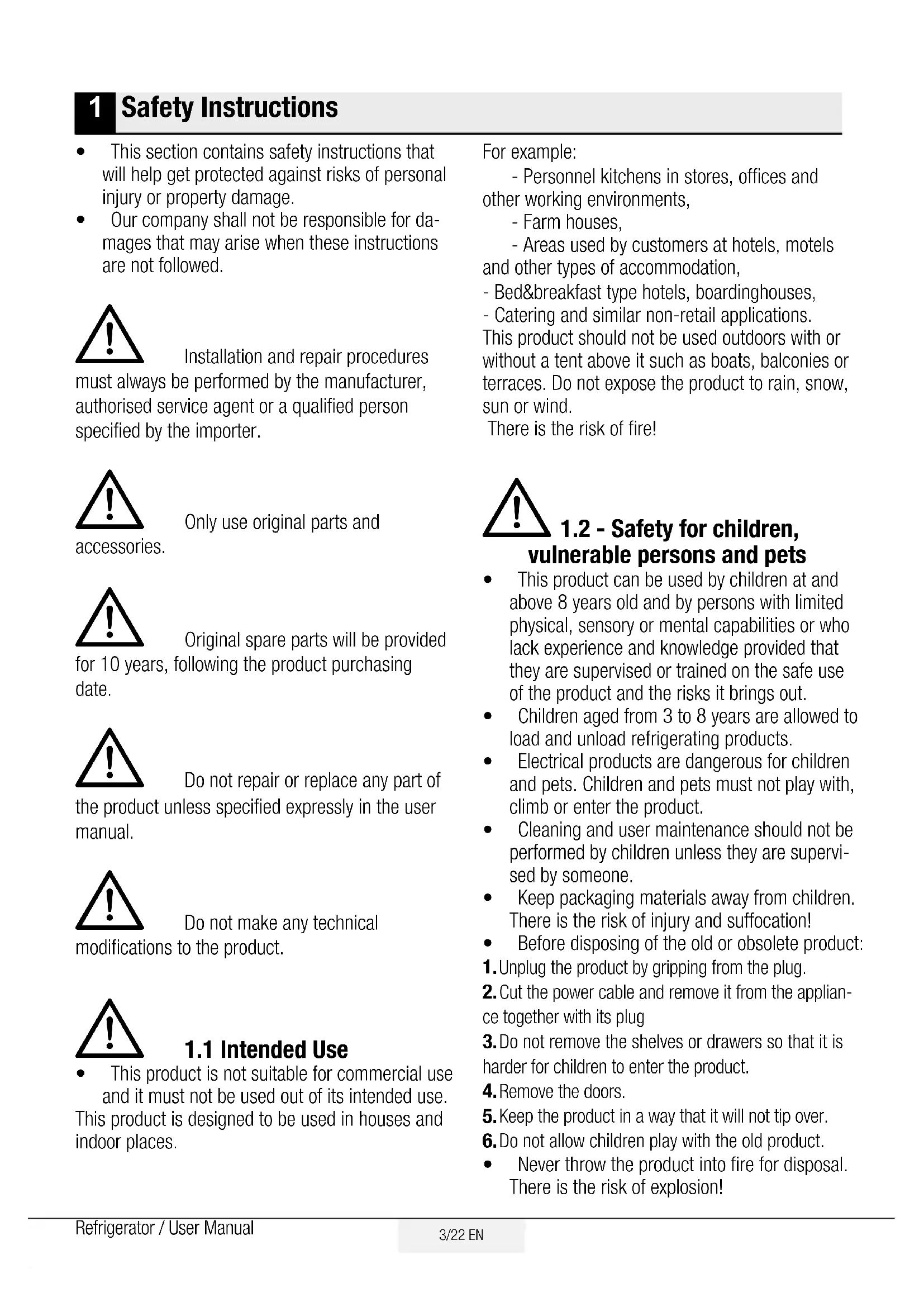

• 6.2. Protecting Plastic Surfaces 7 Troubleshooting 193/22 EN Refrigerator / User Manual This section contains safety instructions that will help get protected against risks of personal injury or property damage. Our company shall not be responsible for da- mages that may arise when these instructions are not followed. A Installation and repair procedures must always be performed by the manufacturer, authorised service agent or a qualified person specified by the importer. A Only use original parts and accessories. A Original spare parts will be provided for 10 years, following the product purchasing date. A Do not repair or replace any part of the product unless specified expressly in the user manual. A Do not make any technical modifications to the product. A 1.1 Intended Use This product is not suitable for commercial use and it must not be used out of its intended use. This product is designed to be used in houses and indoor places. For example: - Personnel kitchens in stores, offices and other working environments, - Farm houses, - Areas used by customers at hotels, motels and other types of accommodation, - Bed&breakfast type hotels, boardinghouses, - Catering and similar non-retail applications. This product should not be used outdoors with or without a tent above it such as boats, balconies or terraces. Do not expose the product to rain, snow, sun or wind. There is the risk of fire! A 1.2 - Safety for children, vulnerable persons and pets This product can be used by children at and above 8 years old and by persons with limited physical, sensory or mental capabilities or who lack experience and knowledge provided that they are supervised or trained on the safe use of the product and the risks it brings out. Children aged from 3 to 8 years are allowed to load and unload refrigerating products. Electrical products are dangerous for children and pets. Children and pets must not play with, climb or enter the product. Cleaning and user maintenance should not be performed by children unless they are supervi- sed by someone. Keep packaging materials away from children. There is the risk of injury and suffocation! Before disposing of the old or obsolete product: p. 18

Unplug the product by gripping from the plug.

Cut the power cable and remove it from the applian- ce together with its plug

Do not remove the shelves or drawers so that it is harder for children to enter the product.

Keep the product in a way that it will not tip over.

Do not allow children play with the old product. Never throw the product into fire for disposal. There is the risk of explosion!

1- Safety InstructionsSafety and environmental instructions

4 /22 EN Refrigerator / User Manual If there is a lock on the door of the product, the key should be kept out of the reach of children. A 1.3 - Electrical safety The product must be unplugged during ins- tallation, maintenance, cleaning, repairing and moving procedures. If the power cable is damaged, it must be replaced by a qualified person specified by the manufacturer, authorised service agent or importer in order to avoid potential dangers. Do not squeeze the power cable under or behind the product. Do not place heavy ob- jects on the power cable. Power cable must not be bent excessively, pinched or get in contact with any heat source. Do not use extension cords, multi-sockets or adapters to operate the product. Portable multi-sockets or portable power sources can overheat and cause fire. Therefore, do not keep any multi-sockets behind or near the product. Plug must be easily accessible. If this is not possible, the electrical installation to which the product is connected must contain a device (such as a fuse, switch, circuit bre- aker, etc.) which conforms to the electrical regulations and disconnects all poles from the grid. Do not touch the power plug with wet hands. Remove the plug from the socket by grip- ping the plug and not the cable. A 1.4 - Transportation safety Product is heavy; do not move it alone. Do not hold its door when moving the pro- duct. Pay attention not to damage the cooling system or the piping during transportation. If the piping is damaged, do not operate the product and call the authorised service agent. A 1.5 - Installation safety Call the authorised service agent for instal- lation of the product. To make the product ready for use, check the information in the user manual to make sure that the elect- ricity and water installations are suitable. If they are not, call a qualified electrician and plumber to have the necessary arran- gements made. Otherwise, there is the risk of electric shock, fire, problems with the product, or injury! Prior to installation, check if the product has any defects on it. If the product is damaged, do not have it installed. Place the product on a clean, flat and solid surface and balance it with adjustable feet. Otherwise, the product may tip over and cause injuries. The installation location must be dry and well ventilated. Do not place carpets, rugs or similar covers under the product. Insufficient ventilation causes the risk of fire! Do not cover or block the ventilation ope- nings. Otherwise, power consumption incre- ases and your product may get damaged. Product must not be connected to supply systems such as solar power supplies. Otherwise, your product may get damaged due to sudden voltage changes! The more refrigerant a refrigerator contains, the larger the installation location must be. If the installation location is too small,Safety and environmental instructions 5/22EN Refrigerator / User Manual flammable refrigerant and air mixture will accumulate in cases of refrigerant leakage in cooling system. The required space for each 8 gr of refrigerant is 1 m³ minimum. The amount of refrigerant in your product is indicated on the Type Label. Product must not be installed in places exposed to direct sunlight and it must be kept away from heat sources such as hobs, radiators, etc. If it is inevitable to install the product close to a heat source, a suitable insulation plate must be used in between and the following minimum distances must be kept to the heat source: - Minimum 30 cm away from heat sources such as hobs, ovens, heater units or stoves, - Minimum 5 cm away from electric ovens. Protection class of your product is Type I. Plug the product in a grounded socket that conforms the voltage, current and frequ- ency values stated on the type label of the product. The socket must be equipped with a 10 A – 16 A circuit breaker. Our company shall not be liable for any damages that will arise when the product is used wit- hout grounding and electrical connection in accordance with the local and national regulations. Product must not be plugged in during installation. Otherwise, there is the risk of electric shock and injury! Do not plug the product in sockets that are loose, dislocated, broken, dirty, greasy or bear the risk of getting in contact with water. Route the power cable and hoses (if any) of the product in a way that they do not cause risk of tripping over. Exposing the live parts or power cable to humidity may cause short circuit. Therefore, do not install the product in places such as garages or laundry rooms where humidity is high or water may splash. If the refrige- rator gets wet with water, unplug it and call the authorised service agent. Never connect your refrigerator to energy saving devices. Such systems are harmful to your product. A 1.6- Operational safety Never use chemical solvents on the pro- duct. There is the risk of explosion! If the product malfunctions, unplug it and do not operate until it is repaired by the authorised service agent. There is the risk of electric shock! Do not place flame sources (lit candles, ci- garettes, etc.) on or close to the product. Do not climb on the product. There is the risk of falling and getting injured! Do not damage the pipes of the cooling system with sharp or penetrating objects. The refrigerant that might come out when the refrigerant pipes, pipe extensions or surface coatings are punctured causes skin irritations and eye injuries. Unless recommended by the manufacturer, do not place or use electrical devices inside the refrigerator/deep freezer. Be careful not to trap your hands or any other part of your body in the moving parts inside the refrigerator. Pay attention not to squeeze your fingers between the door and the refrigerator. Be careful when opening and closing the door particularly if there are children around. Never eat ice cream, ice cubes or frozen food right after removing them from the refrigerator. There is the risk of frostbite! When your hands are wet, do not touch the inner walls or metal parts of the freezer or the food stored therein. There is the risk of frostbite! Do not place tins or bottles that contain carbonated drinks or freezable liquids in the freezer compartment. Tins and bottles may burst. There is the risk of injury and material damage!Safety and environmental instructions 6 /22 EN Refrigerator / User Manual Do not place or use flammable sprays, flammable materials, dry ice, chemical substances or similar heat-sensitive mate- rials near the refrigerator. There is the risk of fire and explosion! Do not store explosive materials that con- tain flammable materials, such as aerosol cans, in your product. Do not place containers filled with liquid onto the product. Splashing water on an electrical part may cause electric shock or the risk of fire. This product is not intended for storing medicines, blood plasma, laboratory pre- parations or similar medical substances and products subject to Medical Products Directive. Using the product against its intended pur- pose may cause the products stored inside it to deteriorate or spoil. If your refrigerator is equipped with blue light, do not look at this light with optical tools. Do not stare at UV LED lamp directly for a long time. Ultraviolet light may cause eye strain. Do not overload the product. Objects in the refrigerator may fall down when the door is opened, causing injury or damage. Similar problems may arise if any object is placed onto the product. To avoid injuries, make sure that you have cleaned all the ice and water that may have fallen or splashed on the floor. Change the position of the shelves/bottle holders on the door of your refrigerator only when they are empty. There is the risk of injury! Do not place objects that can fall down/tip over onto the product. Such objects may fall down when the door is opened and ca- use injuries and/or material damage. Do not hit or exert excessive force on glass surfaces. Broken glass may cause injuries and/or material damage. Cooling system of your product contains R600a refrigerant: Type of the refrigerant used in the product is indicated on the type label. This refrigerant is flammable. Therefore, pay attention not to damage the cooling system or the piping while the pro- duct is in use. If the piping is damaged: - Do not touch the product or the power cable, - Keep away potential sources of fire that may cause the product to catch fire. - Ventilate the area where the product is located. Do not use fans. - Call the authorised service agent. If the product is damaged and you see refrigerant leak, please stay away from the refrigerant. Refrigerant may cause frostbite in case of skin contact. For products with a Water Dispenser/ Ice Machine Use only potable water. Do not fill the water tank with any liquids -such as fruit juice, milk, carbonated beverages or alcoholic drinks- that are not suitable for use in the water dispenser. There is the risk for health and safety! Do not allow children play with the wa- ter dispenser or ice machine (Icematic) in order to prevent accidents or injuries. Do not insert your fingers or other objects into the water dispenser hole, water channel or ice machine container. There is the risk of injury or material damage! A 1.7- Maintenance and cleaning safety Do not pull from the door handle if you need to move the product for cleaning pur-Safety and environmental instructions 7/22EN Refrigerator / User Manual poses. Handle may break and cause injuri- es if you exert excessive force on it. Do not spray or pour water on or inside the product for cleaning purposes. There is the risk of fire and electric shock! Do not use sharp or abrasive tools when cleaning the product. Do not use household cleaning products, detergent, gas, gasoline, thinner, alcohol, varnish etc. Only use cleaning and maintenance pro- ducts inside the product that are not harm- ful for food. Never use steam or steam assisted clea- ners to clean or defrost the product. Steam gets into contact with the live parts in your refrigerator, causing short circuit or electric shock! Make sure that no water enters the elect- ronic circuits or lighting elements of the product. Use a clean and dry cloth to wipe the fo- reign materials or dust on the pins of the plug. Do not use a wet or damp cloth to clean the plug. There is the risk of fire and electric shock! A 1.8- HomeWhiz When you operate your product through HomeWhiz application, you must observe the safety warnings even when you are away from the product. You must also fol- low the warnings in the application. A 1.9- Lighting Call the authorised service when it is re- quired to replace the LED/bulb used for lighting.8 /22 EN Refrigerator / User Manual

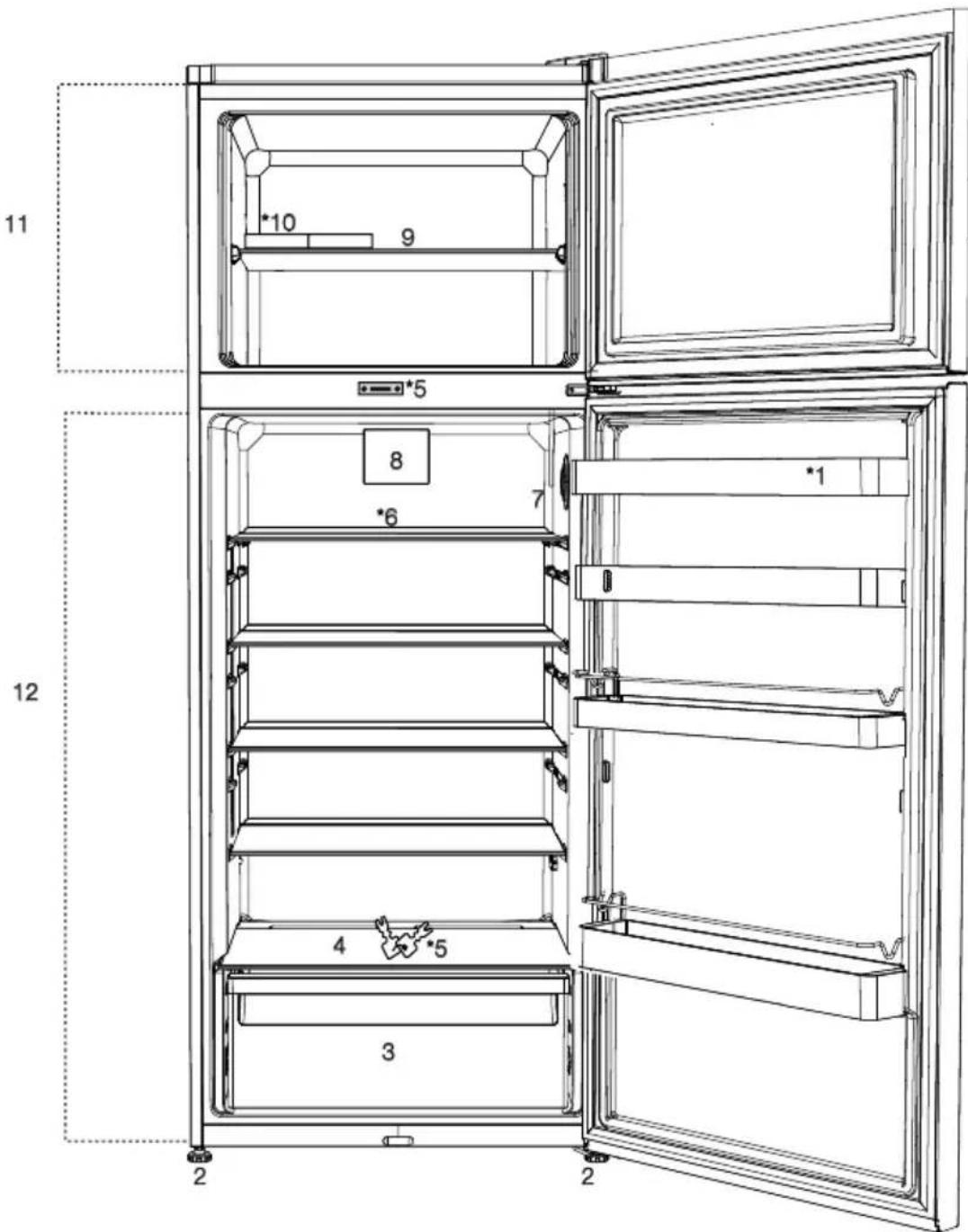

6. Refrigerator compartment glass shelf

9. Freezer compartment shelf

11. Freezer compartment

12. Fridge compartment

*optional: Figures that take place in this user manual are samples and may not correspond exactly with your product. If the subject parts are not included in the product you have purchased, then the figure is valid for other models. *12234*5*59*101112*6789/22 EN Refrigerator / User Manual 3 Installation 3.1. Right place for installation Call the Authorized Service Provider for installation of the product. To make the product ready for use, be careful that the electrical wiring and plumbing are appropriate by referring to the information in the user manual. If not, call a qualified electrician and plumber and have the necessary arrangements made.

WARNING: The manufacturer is not liable

for damages caused by operations by unauthorized persons.

WARNING: During the installation, the

power plug of the product should not be plugged in. Otherwise, there is a danger of death or serious injury!

to where the product will be placed is so narrow that the product cannot pass through, pass the product by turning it to side; otherwise, call an authorized service.

sources such as cooker, radiators, stove and at least 5 cm away from electrical oven.

do not store it in humid place.

function efficiently. If the product will be placed in an alcove, remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls.

remember to leave at least 5 cm clearance between the product and the ceiling, rear wall and the side walls. Check if the rear wall clearance protection component is present at its location (if provided with the product). If the component is not available, or if it is lost or fallen, position the product so that at least 5 cm clearance shall be left between the rear surface of the product and the wall of the room. The clearance at the rear is important for efficient operation of the product.

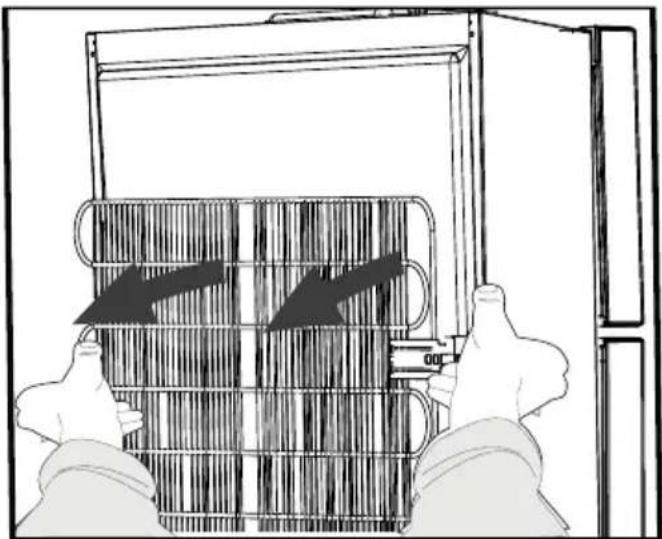

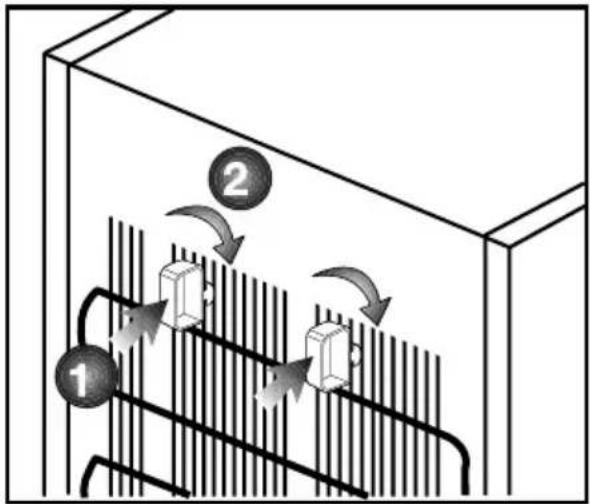

drops below 10 °C. Attach 2 plastic wedges as illustrated below. Plastic wedges are intended to keep the distance which will ensure the air circulation between your refrigerator and the wall. (The picture is drawn up as a representation and it is not identical with your product.) Condenser of your refrigerator is on the rear side. In order to increase the energy efficiency by minimizing the power consumption, the upper part of the condenser on the rear side of the product must be pulled backwards and locked as shown in the figure. When the condenser is pulled back, the right and left upper holders are locked and the position of the condenser is fixed.Installation 10 /22 EN Refrigerator / User Manual 3.2. Adjusting the feet If the product is unstable on the place where it is placed, adjust it by turning the front adjustment feet to the right or left. 3.3. Electrical connection

WARNING: Do not make connections to

the extension cords or multiple sockets.

WARNING: Damaged power cable must

be replaced by an Authorized Service. If two refrigerators are placed side by side, there should be at least 4 cm space between them. Our company will not be liable for any damages that occur when the product is used without grounding and electrical connections that are according to national regulations. The power cord plug must be easily accessible after installation. Do not use multi-group socket with or without extension cable in between your refrigerator and the wall outlet. 3.4. Changing door opening direction Based on where you use, your refrigerator’s door opening direction can be changed. When you need this, please contact your nearest Authorized Service Point.Installation 11/22 EN Refrigerator / User Manual 3.5. Reversing the doors Proceed in numerical order .

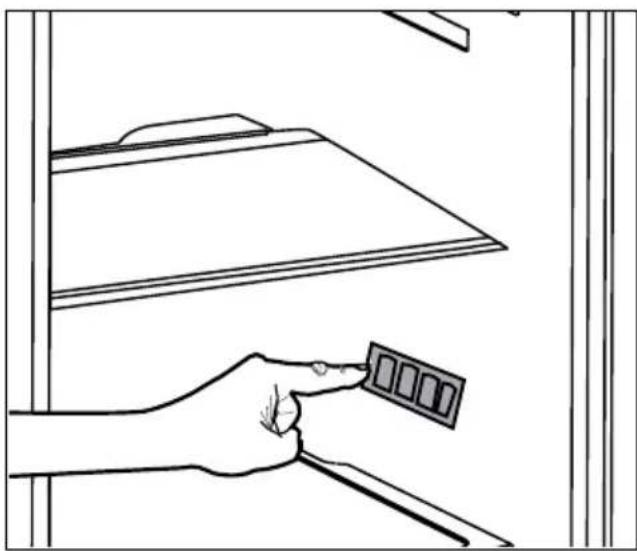

1512 /22 EN Refrigerator / User Manual 4.1. Actions to be taken to save energy

Connecting the product to electronic energy-saving system is inconvenient as this may damage the product. For a freestanding appliance; ‘this refrigerating appliance is not intended to be used as a built- in appliance’. Do not leave the doors of the product open for a long time. Do not put hot food or drinks in the product. Do not overfill the product. When the inlet air circulation is reduced, its cooling capacity is prevented. Put your food in the product in closed containers. You can store maximum amount of food items in the freezer compartment of the product when you remove the shelf of the freezer. Energy consumption value stated for the product has been determined by removing freezer shelf and under maximum food load. There is no harm to use a shelf according to the shapes and size of food to be frozen. Defrosting the frozen food in fridge compartment will both provide energy saving and preserve the food quality. This device is designed to operate at ambient temperatures up to 43°C (90 °F). It is equipped with Advanced Electronic Temperature Control System allowing to keep the frozen food in the freezer defrost even the ambient temperature reduces to -15 °C. When first installed the product MUST NOT be placed in low ambient temperatures. The baskets/drawers that are provided with the chill compartment must always be in use for low energy consumption and for better storage conditions. Food contact with the temperature sensor in the freezer compartment may increase energy consumption of the appliance. Thus any contact with the sensor(s) must be avoided. 4 Preparation Do not contact the foods to the fridge compartment temperature sensor indicated in the figure below. 4.2. First use Before you start using your refrigerator, make sure that preparations are made according to the instructions in the “Safety and environmental instructions” and “Installation” sections. Run the product empty without putting food for 6 hours and do not open the door unless necessary.

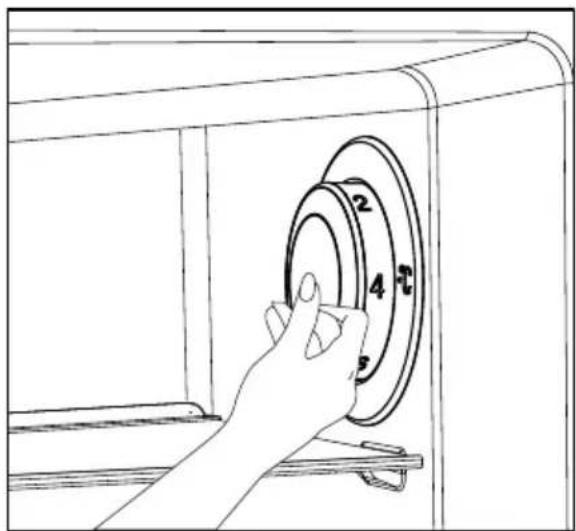

You will hear a sound when the compressor starts. The liquids and gases compressed within the cooling system may produce sound even if the compressor is not running and that sound is normal. The front edges of the product may be hot. This is normal. These areas are designed to be heated to prevent condensation.13/22 EN Refrigerator / User Manual 5 Use of the Product 5.1. Temperature adjustment knob The internal temperature of your refrigerator will vary due to the following reasons: Seasonal temperatures, Frequently opening the door and the door remaining open for a long time, Dishes put hot in your refrigerator before cooling down to room temperature, The location of the refrigerator in the room (such as exposure to the sun’s heat). You can adjust the internal temperature which varies due to these reasons by the adjustment knob. The numbers around the adjustment knob shows the degree of temperature as “°C”. If the ambient temperature is 25 °C, it is recommended to use the temperature adjustment knob of the refrigerator at 4 °C. In other ambient temperatures, this value can be increased or decreased according to need. 5.2. Fast freezing If you want to freeze large quantities of fresh food, put the temperature adjustment knob to ( ) position 24 hours before putting the food in the fast freezing compartment. In order to freeze maximum amount of fresh food specified as the freezing capacity, it is recommended to keep the knob in this position for at least 24 hours. Pay particular attention to not mixing food sold as frozen and the fresh food. Once the food is frozen, remember to bring the temperature adjustment knob to its previous position.Use of the Product 14 /22 EN Refrigerator / User Manual 5.3. Holiday function If the doors of the product is not opened for at least 12 hours after the temperature adjustment knob is put to the warmest ( ) position, Holiday function will be activated automatically. To cancel the function, the adjustment of the knob must be changed. When the holiday function is active, storing food in the fridge compartment is not recommended. 5.4. Snow defrosting During the cooling of your refrigerator, water droplets and snow up to 7-8 mm thickness are formed on the inside back wall of the fridge compartment. This formation is normal due to the cooling system. The snow formed in the fridge compartment is defrosted at regular intervals by means of the automatic defrost system contained in the interior rear wall. Therefore, there is no need of scraping snow and cleaning water droplets by the user. The water formed by defrosting flows to the evaporating dish on the rear of your refrigerator and spontaneously evaporates here. The water flows to the evaporating dish via a drain pipe contained in the inner back wall. Check whether the drain pipe is blocked at specific time intervals and if blocked, open. After adjustment process is complete, you can hide the temperature adjustment knob by pushing it in.Use of the Product 15/22 EN Refrigerator / User Manual

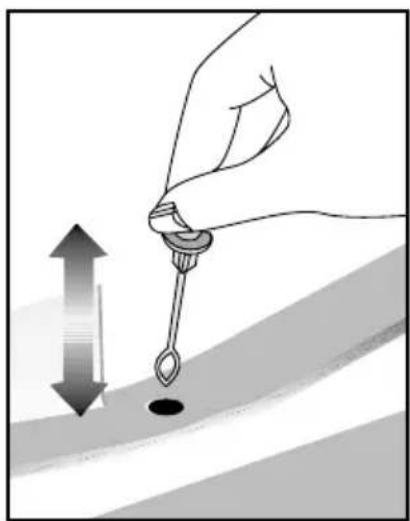

To avoid deterioration of the frozen food in the freezer compartment, no defrosting is performed automatically. The snow formed in the freezer compartment should be defrosted every 6 months. For snow defrosting process, it is primarily necessary to stop the operation of your refrigerator. To do this, unplug the power plug. Empty the freezer compartment. Keep your frozen food in a cool place during the snow defrosting process. The door of the freezer compartment should be kept closed during the defrosting process. When the snow formed is completely defrosted, take the water collected in the freezer compartment with an absorbent cloth or sponge and dry. To run your product re-connect the power plug.

WARNING: To speed up the

defrosting in your refrigerator, never use materials such as candles, gas lamps and heaters. Before putting your food back in the freezer compartment run for 2 hours with the doors closed and empty. 5.5. Door Open Warning (This feature is optional) The door open alert system of your refrigerator may differ depending on the model. Version 1; If the door of the product remains open for a certain time (between 60 s and 120 s), an audio warning signal sounds; depending on the product model, a visual warning signal (light flash) can also be displayed. If you close the door of the device or press a button on the screen of the device, if any, the warning sound will stop. Version 2; If the door of the device remains open for a certain period of time (between 60 s and 120 s), the door open alert is sounded. The door open alert is sounded gradually. First, an audible warning starts to sound. After 4 minutes, if the door is still not closed, a visual warning (lighting flash) is activated. The door open alert will be delayed for a certain period of time (between 60 s and 120 s) when any key on the product screen, if any, is pressed. Then the process will start again. When the device door is closed, the door open alert will be cancelled.Use of the Product 16 /22 EN Refrigerator / User Manual 5.6. Ice tray Remove the ice tray from the freezer compartment. Fill the ice tray with water. Place the ice tray in the freezer compartment. The ice is ready after about two hours. Remove the ice tray from the freezer compartment and slightly bend it over the ice cap in which you will serve the ice. The ice will be easily poured into the service cap. 5.7. Egg tray You can put the egg tray on any door or body shelf you want. If to be placed in the body shelf, it is recommended to prefer the bottom cold shelves.

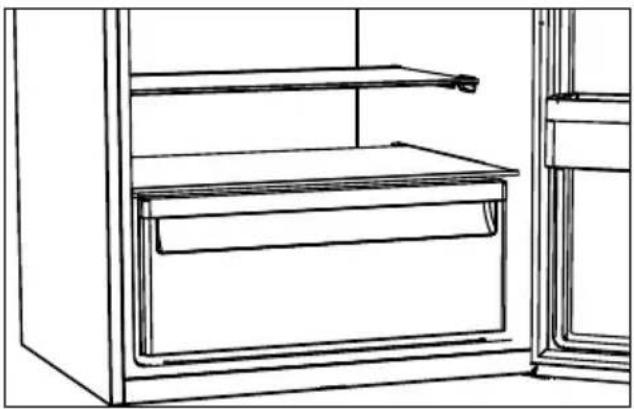

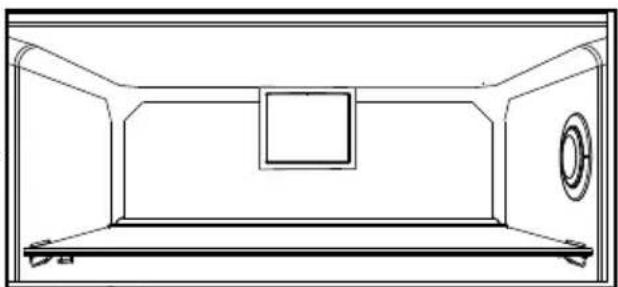

Never put the egg tray in the freezer compartment. 5.8. Fan Fan is designed to ensure that the cold air in your refrigerator is dissolved and distributed homogeneously. Fan operation time may vary depending on the properties of your product. While in some products fan only works with the compressor, in some products, the control system determines the time when it will work according to the cooling requirements. 5.9. Crisper Crisper of the product is specially designed to protect the vegetable as fresh without losing its moisture. For this purpose, cold air circulation throughout the crisper is concentrated.17/22 EN Refrigerator / User Manual 6 Maintenance and Cleaning Cleaning the product regularly will prolong its service life.

WARNING: Disconnect the power

before cleaning the refrigerator. Do not use sharp and abrasive tools, soap, house cleaning materials, detergents, gas, gasoline, varnish and similar substances for cleaning. Melt a teaspoonful of carbonate in the water. Moisten a piece of cloth in the water and wring out. Wipe the device with this cloth and dry off thoroughly. Take care to keep water away from the lamp’s cover and other electrical parts. Clean the door using a wet cloth. Remove all items inside to detach the door and chassis shelves. Lift the door shelves up to detach. Clean and dry the shelves, then attach back in place by sliding from above. Do not use chloric water or cleaning products on the exterior surface and chrome-coated parts of the product. Chlorine will cause rust on such metallic surfaces. Do not use sharp, abrasive tools, soap, household cleaning agents, detergents, kerosene, fuel oil, varnish etc. to prevent removal and deformation of the prints on the plastic part. Use lukewarm water and a soft cloth for cleaning and then wipe it dry. 6.1. Preventing Bad Odour The product is manufactured free of any odorous materials. However, keeping the food in inappropriate sections and improper cleaning of internal surfaces may lead to malodour. To avoid this, clean the inside with carbonated water every 15 days. Keep the foods in sealed holders. Microorganisms may spread out of unsealed food items and cause malodour. Do not keep expired and spoilt foods in the refrigerator. 6.2. Protecting Plastic Surfaces Oil spilled on plastic surfaces may damage the surface and must be cleaned immediately with warm water.18 /22 EN Refrigerator / User Manual 7 Troubleshooting Check this list before contacting the service. Doing so will save you time and money. This list includes frequent complaints that are not related to faulty workmanship or materials. Certain features mentioned herein may not apply to your product. The refrigerator is not working. The power plug is not fully settled. >>> Plug it in to settle completely into the socket. The fuse connected to the socket powering the product or the main fuse is blown. >>> Check the fuses. Condensation on the side wall of the cooler compartment (MULTI ZONE, COOL, CONTROL and FLEXI ZONE). The environment is too cold. >>> Do not install the product in environments with temperatures below -5°C. The door is opened too frequently >>> Take care not to open the product’s door too frequently. The environment is too humid. >>> Do not install the product in humid environments. Foods containing liquids are kept in unsealed holders. >>> Keep the foods containing liquids in sealed holders. The product’s door is left open. >>> Do not keep the product’s door open for long periods. The thermostat is set to too low temperature. >>> Set the thermostat to appropriate temperature. Compressor is not working. In case of sudden power failure or pulling the power plug off and putting back on, the gas pressure in the product’s cooling system is not balanced, which triggers the compressor thermic safeguard. The product will restart after approximately 6 minutes. If the product does not restart after this period, contact the service. Defrosting is active. >>> This is normal for a fully-automatic defrosting product. The defrosting is carried out periodically. The product is not plugged in. >>> Make sure the power cord is plugged in. The temperature setting is incorrect. >>> Select the appropriate temperature setting. The power is out. >>> The product will continue to operate normally once the power is restored. The refrigerator's operating noise is increasing while in use. The product’s operating performance may vary depending on the ambient temperature variations. This is normal and not a malfunction. The refrigerator runs too often or for too long.19/22 EN Refrigerator / User Manual Troubleshooting The new product may be larger than the previous one. Larger products will run for longer periods. The room temperature may be high. >>> The product will normally run for long periods in higher room temperature. The product may have been recently plugged in or a new food item is placed inside. >>> The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. This is normal. Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. The doors were opened frequently or kept open for long periods. >>> The warm air moving inside will cause the product to run longer. Do not open the doors too frequently. The freezer or cooler door may be ajar. >>> Check that the doors are fully closed. The product may be set to temperature too low. >>> Set the temperature to a higher degree and wait for the product to reach the adjusted temperature. The cooler or freezer door washer may be dirty, worn out, broken or not properly settled. >>> Clean or replace the washer. Damaged / torn door washer will cause the product to run for longer periods to preserve the current temperature. The freezer temperature is very low, but the cooler temperature is adequate. The freezer compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The cooler temperature is very low, but the freezer temperature is adequate. The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The food items kept in cooler compartment drawers are frozen. The cooler compartment temperature is set to a very low degree. >>> Set the freezer compartment temperature to a higher degree and check again. The temperature in the cooler or the freezer is too high.20 /22 EN Refrigerator / User Manual Troubleshooting The cooler compartment temperature is set to a very high degree. >>> Temperature setting of the cooler compartment has an effect on the temperature in the freezer compartment. Wait until the temperature of relevant parts reach the sufficient level by changing the temperature of cooler or freezer compartments. The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently. The door may be ajar. >>> Fully close the door. The product may have been recently plugged in or a new food item is placed inside. >>> This is normal. The product will take longer to reach the set temperature when recently plugged in or a new food item is placed inside. Large quantities of hot food may have been recently placed into the product. >>> Do not place hot food into the product. Shaking or noise. The ground is not level or durable. >>> If the product is shaking when moved slowly, adjust the stands to balance the product. Also make sure the ground is sufficiently durable to bear the product. Any items placed on the product may cause noise. >>> Remove any items placed on the product. The product is making noise of liquid flowing, spraying etc. The product’s operating principles involve liquid and gas flows. >>> This is normal and not a malfunction. There is sound of wind blowing coming from the product. The product uses a fan for the cooling process. This is normal and not a malfunction. There is condensation on the product's internal walls. Hot or humid weather will increase icing and condensation. This is normal and not a malfunction. The doors were opened frequently or kept open for long periods. >>> Do not open the doors too frequently; if open, close the door. The door may be ajar. >>> Fully close the door. There is condensation on the product's exterior or between the doors. The ambient weather may be humid, this is quite normal in humid weather. >>> The condensation will dissipate when the humidity is reduced. The interior smells bad. The product is not cleaned regularly. >>> Clean the interior regularly using sponge, warm water and carbonated water. Certain holders and packaging materials may cause odour. >>> Use holders and packaging materials without free of odour. The foods were placed in unsealed holders. >>> Keep the foods in sealed holders. Micro-organisms may spread out of unsealed food items and cause malodour. Remove any expired or spoilt foods from the product. The door is not closing.21/22 EN Refrigerator / User Manual Troubleshooting Food packages may be blocking the door. >>> Relocate any items blocking the doors. The product is not standing in full upright position on the ground. >>> Adjust the stands to balance the product. The ground is not level or durable. >>> Make sure the ground is level and sufficiently durable to bear the product. The vegetable bin is jammed. The food items may be in contact with the upper section of the drawer. >>> Reorganize the food items in the drawer. If The Surface Of The Product Is Hot. High temperatures may be observed between the two doors, on the side panels and at the rear grill while the product is operating. This is normal and does not require service maintenance!Be careful when touching these areas.

WARNING: If the problem persists after following the instructions in this section, contact

your vendor or an Authorised Service. Do not try to repair the product.DISCLAIMER / WARNING Some (simple) failures can be adequately handled by the end-user without any safety issue or unsafe use arising, provided that they are carried out within the limits and in accordance with the following instructions (see the “Self-Repair” section). Therefore, unless otherwise authorized in the “Self-Repair” section below, repairs shall be addressed to registered professional repairers in order to avoid safety issues. A registered professional repairer is a professional repairer that has been granted access to the instructions and spare parts list of this product by the manufacturer according to the methods described in legislative acts pursuant to Directive 2009/125/EC. However, only the service agent (i.e. authorized professional repairers) that you can reach through the phone number given in the user manual/warranty card or through your authorized dealer may provide service under the guarantee terms. Therefore, please be advised that repairs by professional repairers (who are not authorized by Beko) shall void the guarantee. Self-Repair Self-repair can be done by the end-user with regard to the following spare parts: door handles,door hinges, trays, baskets and door gaskets (an updated list is also available in support. beko.com as of 1st March 2021). Moreover, to ensure product safety and to prevent risk of serious injury, the mentioned self-repair shall be done following the instructions in the user manual for self-repair or which are available in support.beko.com. For your safety, unplug the product before attempting any self-repair. Repair and repair attempts by end-users for parts not included in such list and/or not following the instructions in the user manuals for self-repair or which are available in support.beko.com, might give raise to safety issues not attributable to Beko, and will void the warranty of the product. Therefore, it is highly recommended that end-users refrain from the attempt to carry out repairs falling outside the mentioned list of spare parts, contacting in such cases authorized professional repairers or registered professional repairers. On the contrary, such attempts by end-users may cause safety issues and damage the product and subsequently cause fire, flood, electrocution and serious personal injury to occur. By way of example, but not limited to, the following repairs must be addressed to authorized professional repairers or registered professional repairers: compressor, cooling circuit, main board,inverter board, display board, etc. The manufacturer/seller cannot be held liable in any case where end-users do not comply with the above.The spare part availability of the refrigerator that you purchased is 10 years. During this period, original spare parts will be available to operate the refrigerator properly The minimum duration of guarantee of the refrigerator that you purchased is 24 months. This product is equipped with a lighting source of the "G" energy class. The lighting source in this product shall only be replaced by professional repairers.Stimate client, Dorim să obţineţi performanţe optime prin utilizarea produsului nostru, care a fost fabricat în unităţi moderne și verificat conform celor mai riguroase proceduri de control al calităţii. În acest scop, înainte de a utiliza produsul, vă rugăm să citiţi manualul de utilizare în întregime și să-l păstraţi pentru a-l consulta pe viitor. Dacă predaţi produsul unei alte persoane, oferiţi acest manual împreună cu produsul. Manualul de utilizare asigură utilizarea rapidă și sigură a produsului. Citiţi manualul de utilizare înainte de instalarea și utilizarea produsului. Respectaţi întotdeauna instrucţiunile aplicabile referitoare la siguranţă. Păstraţi manualul de utilizare la îndemână pentru a-l putea consulta ulterior. Citiţi și celelalte documente furnizate împreună cu produsul. Reţineţi că instrucţiunile din acest manual se pot aplica și altor modele de produse. Acest manual precizează cu exactitate toate modificările diferitelor modele. Simboluri și observaţii Acest manual de utilizare conţine următoarele simboluri:
