B100X - Effect machine Antari - Free user manual and instructions

Product type	Bubble machine
Brand	Antari
Model	B100X (with control panel)
Power supply	AC 230V / 50-60Hz (230V model) or AC 120V / 50-60Hz (120V model)
Fuse	T1A / 250V (230V) or T2A / 250V (120V)
Dimensions (L x W x H)	341 × 170 × 172 mm
Weight	4.2 kg
Usage	Indoor only
Included accessories	Mounting bracket, 2 mounting screws, 2 washers, user manual
Features	Control panel for remote control and timer (B100X model); B100 model without panel
Compatible remote controls	Z-10 (on/off), BCT-1 (timer), BCR-1 (remote control)
Safety	Double safety screws (safety screws + finger screws) to prevent opening under voltage
Maintenance	Regular cleaning of the wheel for optimal performance
Installation	On a flat surface, out of reach of children, away from heat sources
Precautions	Do not point the output at people; risk of slippery floor; use only bubble liquid
Tank	With maximum level to be respected to avoid overflows
Power supply (plug)	Grounded outlet required; 110V models need 3-prong plug
Voltage compatibility	Check compatibility with local voltage before use
Repairability	No user-serviceable parts inside; contact the dealer for any repairs
Warranty	Not specified in the manual

Frequently Asked Questions - B100X Antari

How to turn on the Antari B100X bubble machine?

Plug the power cord into the mains, then press the power switch located at the back of the unit. The fans and bubble-making system start.

What type of liquid to use with the B100X?

Use only special bubble liquid for bubble machines. Avoid homemade liquids that could damage the device. Respect the tank's maximum level.

How to clean the machine's wheel?

Regular cleaning of the wheel is necessary for optimal use. Turn off and unplug the device before cleaning. Use a soft cloth and clean water to remove liquid residues.

Can I use the bubble machine outdoors?

No, the device is designed for indoor use only. Humidity and weather could damage the device and pose electrical risks.

What to do if the machine does not produce bubbles?

Check that the tank contains enough liquid and that the level does not exceed the maximum. Make sure the wheel is clean and that the device is properly plugged in and turned on. If the problem persists, contact your dealer.

How to use the remote control with the B100X?

The B100X is equipped with a control panel that allows the use of remote controls. Compatible models are: Z-10 (on/off), BCT-1 (timer), and BCR-1 (remote control). Plug in the receiver if necessary.

Can the machine be suspended from the ceiling?

Yes, a mounting bracket is included. Install it securely and make sure the machine is upright and stable. Follow safety instructions to prevent falls.

How to fill the bubble liquid tank?

Unplug the device. Unscrew the screws on the side to remove the tank cover. Pour the liquid without exceeding the maximum level. Close the cover and screw it back on tightly.

What to do in case of liquid leakage?

Turn off and unplug the device immediately. Clean up the spilled liquid. Check that the tank is properly closed and that the level is not excessive. If the leak persists, contact your dealer.

Where to find spare parts for the B100X?

There are no user-serviceable parts inside the device. For any repairs, contact your authorized Antari dealer. Do not attempt to repair yourself.

USER MANUAL B100X Antari

Thank you for choosing the Antari Bubble Machine. You now own a rugged and powerful state-of-the-art machine. Prior to use, we suggest that you carefully read all of the instructions. By following the suggestions found in this user manual, you can look forward to exceptional performance from your Antari Bubble Machine for years to come.

Please follow these operation, safety and maintenance instructions to ensure a long and safe life for your Antari Bubble Machine.

	Specifications
	Power: AC 120V/50-60Hz (120V Model)AC 230V/50-60Hz (230V Model)
	Fuse: T2A/250V (120V Model)T1A/250V (230V Model)
	Dimensions (mm): 341 x 170 x 172 mm
	Weight: 4.2 kg

CAUTIONS

Pay attention to all warning labels and instructions printed on the exterior of your Antari Bubble Machine

- Do not overfill your bubble machine. Overfilling will cause the unit to leak.

Danger of electric shock

• Keep this device dry.
• Keep the bubble machine upright.
• For the 110V models, use 3-prong grounded electrical outlet only. Prior to use take care to determine that the unit is installed at the rated voltage.
  • Turn off or unplug when not in use.
• The power plug needs to be clearly seen by user when installed on the wall.
• This machine is not water-proof or splash-proof. If moisture, water, or any liquid gets inside the housing, immediately unplug the unit and contact a service technician or your dealer before using it again.
• No user serviceable parts inside. Refer to your Antari dealer or other qualified service personnel.
• For indoor use only. Not designed for outdoor use.
  • This appliance must be earthed.
• For adult use only. The bubble machine must be installed out of the reach of children. Never leave the unit running unattended.
  • Never aim the output at open flames.
• Extended use will make all surfaces slippery.
  • Position output of bubbles away from persons.
• Switch off from mains when refilling the liquid or cleaning the system.
• Regular cleaning of the bubble wheel is required.

• Do not transport with liquid. If the machine get wet, do not use until it is completely dry.
- Antari bubble liquid may leave permanent marks on clothing.

Pay attention to all warning labels and instructions printed on the exterior of your Antari Bubble Machine.

Unpacking & Inspection

Open the shipping carton and check that all equipment necessary to operate the system has arrived intact. In addition to the Antari Bubble Machine, you should receive the following items:

1. This user manual.
2. Power cord and plug.
3. A hanging bracke.

4. 2 pieces of tightening screws and 2 pieces of washers.

5. Before beginning initial setup of your Antari Bubble Machine, make sure that there is no evident damage caused by transportation.

6. In the event that the unit's housing or cable is damaged, do not plug it in and do not attempt to use it until after contacting your dealer for assistance.

Setup

• Remove all packing materials from the bubble machine.
• Place bubble machine on a flat surface.
• Loosen the side screws and lift the housing upwards. You will see a liquid tank.
• Pour bubble liquid into the liquid tank, being careful not to exceed the maximum fluid level. DO NOT OVERFILL.
• When the container is full, lower the housing and tighten the screws.

IMPORTANT SAFETY NOTICE:

Ensure your bubble machine is unplugged from the mains electrical supply before attempting to open the housing.

To help avoid accidental exposure to dangerous live AC mains voltage, two safety screws are fitted that require a screwdriver to remove. Once these are removed, the finger screws can be undone by hand (see photo above).

Mechanical device with rotating arrow and white blocks, no visible text or symbols

Once the screws are removed, the lid of the housing can be carefully swung upwards, as shown above. Take care not to spill any of the bubble fluid inside the unit.

Diagram showing a bowl being processed with a tool, no text or symbols present

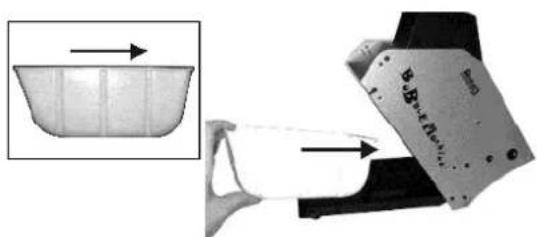

The fluid tank is designed to fit only one way around. Make sure you insert it correctly, as shown above, with the lower edge facing into the machine.

OPERATION

Turn on the power switch located on the back of the bubble machine. You will notice that the internal bubble drum and fan are activated. Bubbles are now produced.

B-100X

B-100X contains a control board allowing the bubble machine to use the wireless and timer remote controls. The B-100, without this board, cannot use these remote controls. The two versions are identical in all other respects.

Remotes

Z-10 (on / off)

BCT-1 (Timer for B-100X)

BCR-1 (Wireless for B-100X)

Mechanical device with rotating arrow and circular component (no visible text or symbols)

Diagram showing a plastic container being processed into a device, with an inset image of the container (no text or symbols visible)

Mechanical device with rotating arrow and block assembly (no visible text or symbols)

Diagram showing a bowl being processed with a tool, no text or symbols present

BCT-1 (B-100X 定時控制器)

BCR-1 (B-100X 無線控制器)

For current product information visit Antari at:www.antari.com For information requests please contact us at:[e-mail]
