Product Type	Ultrasonic Cool Mist Tower Humidifier
Brand	PureGuardian (Guardian Technologies)
Model	H3200BAR
Power Supply	AC120V; 60Hz
Power Consumption	30W
Tank Capacity	3.8 L (1.5 gal)
Dimensions (L x W x H)	22.4 cm x 22.2 cm x 55.7 cm
Weight (without packaging)	3.14 kg (6.93 lb)
Mist Type	Cool Mist
Main Features	LED nightlight, timer (4/8/12 h), mist adjustment (low/medium/high), auto shut-off, water refill indicator, Silver Clean™ technology
Antibacterial Technology	Silver Clean™ integrated into the tank to fight mold
Maintenance and Cleaning	Regular cleaning with soft water; descaling with white vinegar; cleaning the ultrasonic disc with the included brush
Safety	Auto shut-off when water level is low; motor protection; unplug before maintenance
Spare Parts and Accessories	Removable tank with plugs A and B, mist nozzle, cleaning brush, anti-scale cartridge FLTDC20 (optional)
Warranty	3-year limited warranty
Customer Service	1 866 603-5900 (USA); website: www.guardiantechnologies.com

Frequently Asked Questions - H3200BAR PureGuardian

How to fill the water tank?

Unplug the device, remove the tank, choose plug A (side fill) or B (longitudinal), pour cool soft water, then tightly screw the plug back on before placing the tank back.

How to clean the ultrasonic disc?

Use only the included cleaning brush to gently scrub the disc without scratching it. For stubborn scale, apply a solution of 1 teaspoon white vinegar and 1 teaspoon water for 5 minutes, then rinse thoroughly.

What to do if the device does not produce mist?

Check the power cord, tank installation, water level, and clean the ultrasonic disc. If the problem persists, contact customer service.

Why does white dust accumulate around the humidifier?

This is due to hard water. Use distilled water or install an anti-scale cartridge (model FLTDC20) to reduce mineral deposits.

How to use the timer?

Press the Timer button to select 4, 8, or 12 hours. The device will automatically turn off at the end of the selected duration.

Does the nightlight turn on independently?

Yes, press the Nightlight button to turn on or off the LED that illuminates the tank with a soft glow.

How to adjust the mist level?

Press the adjustment button: once for Low, twice for Medium (default), three times for High.

The device suddenly stops, what should I do?

This may be due to low water level (the refill indicator lights up) or triggered motor protection. Unplug the device for 5 seconds, plug it back in, and press the power button.

What is the warranty period?

The limited warranty is 3 years from the date of purchase. Keep your original receipt. Repairs must be carried out by Guardian Technologies LLC.

Where can I buy a replacement anti-scale cartridge?

Anti-scale cartridges (model FLTDC20) are available at your local retailer or on the website www.guardiantechnologies.com. You can also contact customer service at 1 866 603-5900.

USER MANUAL H3200BAR PureGuardian

guardian technologies™

USE & CARE INSTRUCTIONS

Line drawing of a tall cylindrical electronic device with control panel and indicator lights (no text or symbols)

pureguardian

Ultrasonic Tower Humidifier

guardian technologies™

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

Model No. H3200

3-Year Limited Warranty

www.guardiantechnologies.com

1.866.603.5900

REV0616

English E-1

French F - 1

Spanish S-1

Date Purchased

month ____

year ____

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

This product should be used only in accordance with the specifications outlined in this manual. Usage other than what has been specified here may result in serious injury.

• CAUTION: To reduce the risk of severe burns, keep this product out of the reach of children and pets.
• Disassembly, repair or remodeling by an unauthorized person may result in serious harm and will void the manufactures warranty.
• Always place this humidifier on a firm, flat & level surface. This humidifier may not work properly on an uneven surface.
• Do not place this product on cloth, carpet or an absorbent surface. This may block air inlet.
• This product releases mist. Do not place this humidifier directly on wood furniture, flooring or any surfaces that could be damaged by water. Manufacturer does not accept any liability for damage in the case of the unit being placed incorrectly.
• Do not use if the plug is damaged or loose.
• Before filling or cleaning the unit, make sure it is unplugged.
• Once the humidifier has been plugged in, do not tilt or move the unit.
• Do not remove the water tank from the unit while it is on.
• Do not handle the plug with wet hands.
• Do not excessively bend, twist, pull or damage the power cord.
• Avoid placing this product where the humidity spout is pointed directly at an object or person.
• Do not inhale the mist/vapor expelled from the product or drink water from the tank.
• Do not fill the water tank with hot or boiling water.
• Do not use this product in direct sunlight or near a heat source such as a stove, heater or radiator.
• If the water tank becomes cracked or damaged, do not use.
• Do not keep this product running for an extended period of time.
• Unplug the cord when unit is not in use for an extended period of time and/or when no one is home.
• Do not keep water in the tank when not in use for an extended period of time.

WARNING: The cords, wires and/or cables supplied with this product contain chemicals, including lead or lead compounds, known to the state of California to cause cancer and birth defects or other reproductive harm. Wash hands after using.

(California code of regulations Proposition 65)

READ AND SAVE THESE INSTRUCTIONS WARNINGS

Failure to comply with the warnings listed below may result in electric shock or serious injury.

• Do not clean the unit, water tank or water reservoir with detergents or chemicals of any kind.
• The use of water additives including ethereal/essential oils, fragrances, eucalyptus, water conditioners, etc. will damage the appliance materials and as a consequence the whole unit. Any use of such additives will void the manufactures warranty.
• Do not use this product near any other electronic device.
• Do not cover the spray spout at any time during use. Do not put anything on or in the tank.
• IMPORTANT: Neither humans nor animals can hear the high frequency vibrations.
• When unplugging from outlet hold humidifier securely.
• Do not place cord over objects.
• Do not get water in or on the power cord or where it connects to the product.
• Do not use near a sink.
• Do not touch the water tank during operation.
• Do not submerse the unit in water or pour water on the unit or in the humidity spout.
• When emptying water from water tank, pour on drain side.
• Do not cover the spout with cloth or hand and do not use without the spout.
• Use clean or distilled water in tank. Hard water areas will require more frequent cleaning.

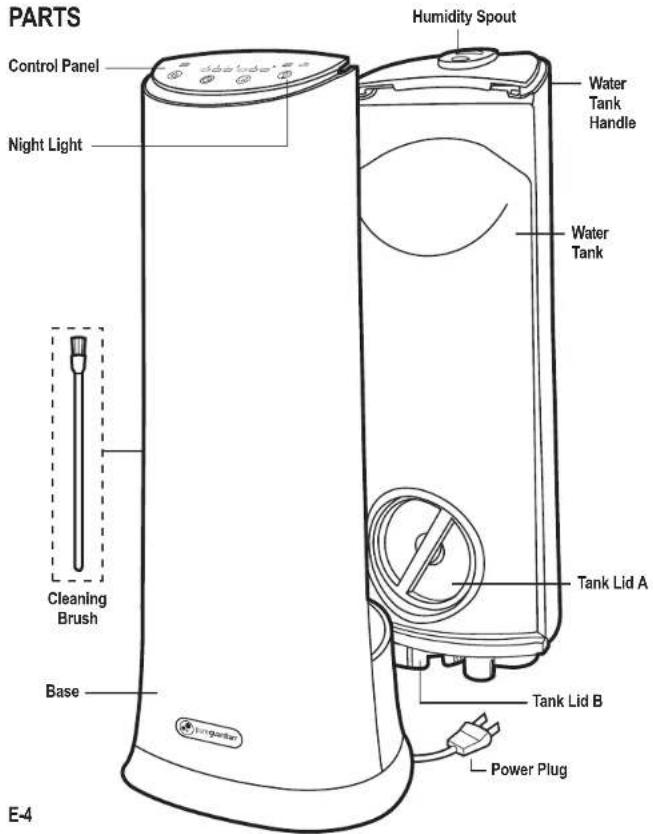

PRODUCT SPECIFICATIONS AND PARTS

SPECIFICATIONS

MODEL NUMBER: H3200

HUMIDIFYING MODE: Cool Mist

POWER SUPPLY: AC120V; 60HZ

POWER CONSUMPTION: 30W

TANK CAPACITY: 1.5 gallons

DIMENSIONS: 8.82" L x 8.74" W x 21.93" H

WEIGHT: 6.93 lbs. (not including packaging)

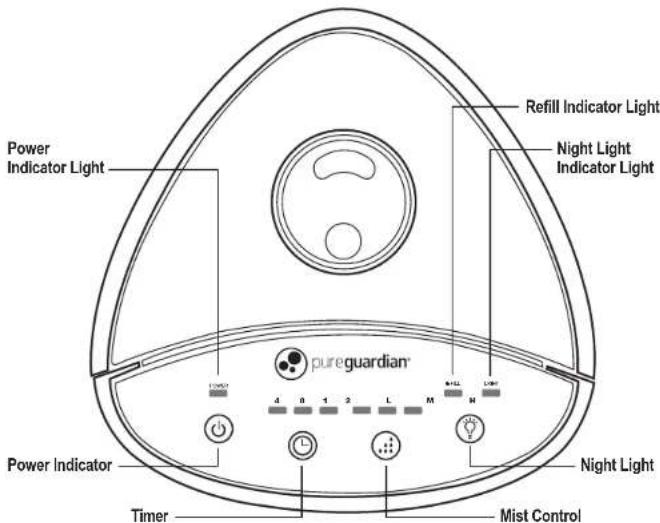

CONTROL PANEL BUTTON FUNCTIONS

FEATURE HIGHLIGHTS

NIGHT LIGHT

An LED illuminates the tank for a soft glow night light.

TIMER

Preset the humidifier to automatically turn off in 4, 8, or 12 hours.

POWER

Tums humidifier ON/OFF.

MIST CONTROL

The spray volume or amount of mist that is produced by the unit can be adjusted to three levels based on need.

REFILL INDICATOR

When the Water Refill button lights up it is time to refill the water tank.

SILVER CLEAN TECHNOLOGY

Unlike other humidifiers that grow slimy mold and mildew, the pureguardian™ Ultrasonic Humidifier uses Silver Clean™ technology embedded in the tank to fight the growth of mildew and mold on the surface of the water tank.

CONTROL PANEL LIGHTS

Automatically shuts off after 5 seconds. It will light up again when any control button is pushed.

DIRECTIONS FOR USE

SET UP

Select a firm, level, flat location - at least six inches (15 cm) from any wall or object for proper air flow. Place the humidifier on a water-resistant surface, as water can damage furniture and some flooring. Do not place unit directly on carpet, towels, blankets or other absorbent surfaces. Guardian Technologies will not accept responsibility for damage caused by water spillage.

NOTE: Handle is designed to carry tank, not unit.

FILLING

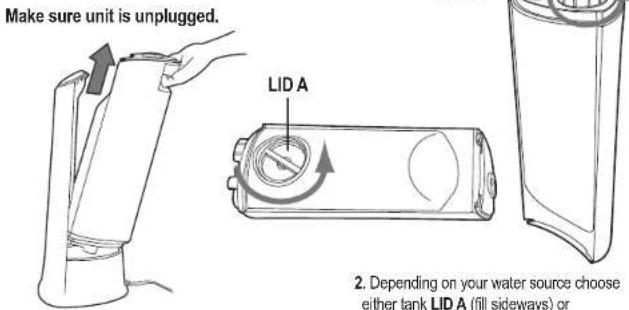

1. Lift the water tank by the handle to separate the tank from the base of the unit.

Line drawing of a cylindrical device with a handle and circular opening, no text or symbols present

1. Pour cool, clean water directly into the tank. Do not pour anything but water into the tank.
2. Depending on your water source choose either tank LID A (fill sideways) or tank LID B (fill lengthwise). Remove lid by turning it to the left. IMPORTANT: Remove only 1 lid when filling

4. Close the tank lid, turning it to the right. It is important to FIRMLY secure cap after filling the tank with water.

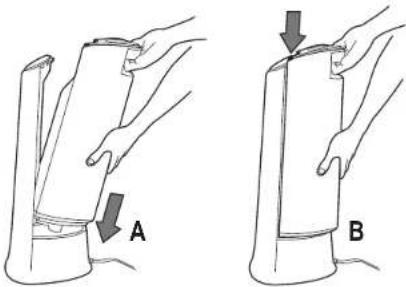

5. Return the tank.
A. Guide tank into base.
B. Lift tank slightly to connect tank to the top edge of the control panel.

E-6

DIRECTIONS FOR USE

POWER BUTTON
Before turning on make sure there is water in the unit. Press the Power Button.

CONTROL OPERATION

NOTE: If control panel lights are off - push any button to wake up, then proceed with control operation below.

Simple line icon of a light bulb inside a circle, symbolizing an idea or illumination (no text or symbols)

1. Night Light Feature
   Press the Night Lamp button to turn night light on/off.

1. Mist Control Button
   When you press the Mist Control button there are three options: Press once for LOW Press twice for MEDIUM* Press three times for HIGH *Medium is default setting.

1. Timer
   Press the Timer button to select either 4, 8, or 12 hours. The unit will turn off in that time.

1. Water Refill Indicator
   When the unit is low on water the Refill LED on the front panel will light up, and the unit will shut off. Simply add more water to continue use. Unit will automatically resume running when water tank has been refilled.
   NOTE: The humidifier is equipped with a safety device that will automatically shut the unit off when activated. To restart, unplug for 5 seconds, replug then press the power button. If the unit continues to shut down, there may still be an abnormal condition and the unit may need service. Call Customer Service at 1-800.603.5900.

CLEANING

CLEANING

• Always unplug the unit before servicing in any way.
• The water temperature of the water remaining in the unit after use may be high, allow time for it to cool.

GENERAL CLEANING

• Inside the base of the unit. Pour excess water out of the unit. Wash out the unit with fresh water using the cleaning brush and a soft cloth as needed. Do not submerse the base of the unit into water, or allow water to enter inside the dry air exhaust port of the unit.
• Water tank. Empty water tank. Remove mist nozzle and clean the mist tube with fresh water and a light brush (bottle cleaning brush is recommended).
• Outer surface of the unit. Wipe the surface of the unit with a soft, damp cloth if needed. If you notice an accumulation of water during usage, reduce humidity and dry outer surface with a cloth.

DESCALING

• Depending on usage and water type, cleaning to remove scale may be required weekly or every other week to optimize unit performance.
• If you live in a hard water area, we recommend the use of distilled water for your humidifier. This will help reduce the precipitation of minerals or 'white dust'.
• Do not clean the unit or water tank with detergents or cleaning chemicals of any kind.

ULTRASONIC DISK

1. Unplug unit.

2. Remove the tank and empty all water from unit base and tank.

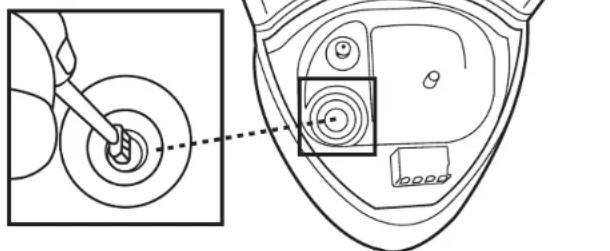

3. Locate the ultrasonic disk on the inside center of the base unit. (see pg. E-4)
4. Use ONLY the enclosed cleaning brush to gently clean disk and remove build up and deposits. Do not scrub or scrape the ultrasonic disk.

Ultrasonic Disk

*Clean the disk with the brush only. No other cleaning tool should be used. BRUSH ONLY

Technical diagram showing a mechanical component with a close-up inset of its circular feature (no text or symbols)

CLEANING

CLEANING

If scale becomes difficult to remove with brush:

1. Fill the Base with: mixture of 1 tsp. white vinegar and 1 tsp. water.
2. Let solution stand for 5 minutes.
3. With the vinegar in the Base, clean all interior surfaces with a soft cloth or brush to help remove scale.
4. Also check mist nozzle and mist tube in water tank. Clean as needed.
5. Rinse the Base thoroughly with water to remove scale and vinegar solution.

Are minerals in your water producing white dust?

Try Decalcification Cartridge FLTDC20.

Look for cartridge 2 at your local retailer or visit

www.guardiantechnologies.com

END OF SEASON STORAGE

• Follow the Cleaning and Descaling instructions when the humidifier will be stored at the end of the season.
• Dry the humidifier completely before storing. DO NOT store with water inside the Base or Water Tank.
• Pack the unit in its original carton and store in a cool, dry location.

NOTE: IF YOU EXPERIENCE A PROBLEM DO NOT ATTEMPT TO OPEN THE MOTOR HOUSING YOURSELF. DOING SO MAY VOID YOUR WARRANTY AND CAUSE DAMAGE TO THE HUMIDIFIER OR PERSONAL INJURY.

TROUBLE SHOOTING GUIDE

PROBLEM	SOLUTION
Water vapor and humidity are not produced.	Power Plug: Unplug and then try again.Power Failure: When the power is returned, try again.Tank Installation: Make sure the tank is correctly attached.The surface of the ultrasonic disk is dirty:Clean ultrasonic disk. (see pg. E-8)
Air blows but water vapor is not produced.	Excessive Water: Remove a certain amount of water from the tank. Increase mist setting.Detergent residue and/or oil ingredients from cosmetics, etc may be in tank; wash out tank and try again.The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) If you use hard water, replace with softer water.
Humidity level is low.	The surface of the ultrasonic disk is dirty: Clean ultrasonic disk. (see pg. E-8) The water in the unit is too cold: Replace with cool, but not cold water. Damage on the ultrasonic disk:Contact Customer Service 1.866.603.5900
The humidity has a bad smell.	Poor maintenance or dirty water: Clean the product thoroughly, and fill it with fresh water. (see pg. E-8)
White dust is forming on nearby furniture.	Hard water may deposit a certain amount of dust. Dust in the air also settles because of added humidity in the room. Use distilled water if this becomes a nuisance.FLTDC20 filter is available at www.guardiantechnologies.com or through customer service 1.866.603.5900
Unit has stopped working.	No or low water. Unplug unit and refill tank.
Unit shuts off unexpectedly or does not operate.	Check that the safety device triggered. To restart, unplug for 5 seconds, replug then press the power button.Call Customer Service 1.866.603.5900.
Water is accumulating outside of unit or area surrounding unit.	Saturation of humidity. Lower mist control setting.Unit not level and water is accumulating. Unplug and place on level surface. Point spray away from objects. Raise unit on a water-resistant level surface 2-3 feet off of floor.
Water dripping when refilling.	Water remaining on bottom of tank. Wipe tank or tilt to drain before transporting. Make sure both A and B tank caps are secured tightly.
Increased noise level.	Unit must be placed on a flat, level, hard surface.Make sure it is NOT placed on a soft or absorbent surface.

LIMITED WARRANTY

To the consumer, Guardian Technologies LLC warrants this product to be free of defects in materials or workmanship commencing upon the date of the original purchase. Save your original sales receipt to validate start of warranty period. Warranty is not valid without receipt. If this product should become defective within the warranty period, we will repair or replace any defective parts free of charge. All warranty repairs must be completed by Guardian Technologies LLC. This warranty does not cover unauthorized repairs. The warranty does not include unusual wear, damage resulting from accident, or unreasonable use of the product. This warranty only covers the product when used with genuine Guardian Technologies accessories. This warranty covers product that was purchased from authorized distributors. This warranty gives you specific legal rights and you may also have other rights (other rights may vary from state to state in the U.S.A.)

The product warranty registration can be completed online at www.guardiantechnologies.com. We consider the registration process important to ensuring superior service to our customers, however submitting the warranty registration is optional and does not affect your rights to utilize this warranty according to the conditions stated above. To submit product under warranty the complete machine must be delivered pre-paid to Guardian Technologies LLC. Please include complete information including: the problem, the model number of the product, the day of purchase, and a copy of the original sales receipt along with your name, address, and telephone (email optional). Address returns to the attention of: Customer Service, at the address below. Additional questions or comments can be made toll free to the number listed below.

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

This product has been tested and complies with the requirements for Federal Communications Commission, Part 18 for Radio/TW/Communication interference. Although tested, it may affect these devices. If the humidifier is found to interfere, separate the device and/or the humidifier. Conduct only the user maintenance found in this manual. Other maintenance and servicing can cause harmful interference and can void the required FCC compliance.

Additional copies of the instruction manual can be obtained by accessing and printing directly from our website or calling customer service.

guardian

technologies™

UTILISATION ET INSTRUCTIONS D'ENTRETIEN

Line drawing of a tall cylindrical device with a lid and control panel (no text or symbols)

pureguardian®

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

Modèle n° H4810

When the Water Refill button lights up it is time to refill the water tank.

TECHNOLOGIE SILVER CLEAN

Line drawing of a hand holding a cylindrical object with an arrow indicating upward motion (no text or symbols)

Line drawing of a cylindrical device with a faucet inserted, showing internal components (no text or symbols)

Illustration of a hand holding a rectangular object with a downward arrow labeled 'A' pointing to it (no text or symbols on the object itself)

Illustration of a hand pressing down on a cylindrical object with a downward arrow, labeled 'B' (no text or symbols beyond label)

MODE D'EMPLOI

1. Bouton Marche/Arrêt

Simple line icon of a light bulb inside a circle, symbolizing an idea or illumination (no text or symbols)

Diagram of a car interior showing a hand tool interacting with a circular component, with an inset close-up highlighting the central area (no text or symbols present)

NETTOYAGE

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com

Line drawing of a tall cylindrical device with control panel and base (no text or symbols)

pureguardian

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, OH 44132

1.866.603.5900 • www.guardiantechnologies.com

©2016 Guardian Technologies LLC

Modelo No. H3200

Line drawing of a cylindrical device with a handle and circular opening, no text or symbols present

INSTRUCCIONES DE USO

1. Botón interruptor

Technical line drawing of a mechanical component with an inset showing a circular feature detail (no text or symbols)

LIMPIEZA

CLEANING

Guardian Technologies LLC

26251 Bluestone Blvd. • Euclid, Ohio 44132

1.866.603.5900

www.guardiantechnologies.com
