NOTES ON SAFETY

• Before using the appliance, please carefully read this manual!
• The appliance is designed for household use only.
• The manufacturer reserves the right to introduce changes, which do not affect operation of the appliance.
• The manufacturer shall not be liable for any damage or fire caused by the appliance resulting from failure to follow instructions in this manual.
• Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.
• Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The length of the duct (usually a pipe of 120 or 150~mm ) should not be longer than 4 - 5m . An air extraction duct is also required for telescopic and furniture hoods in absorption mode.
• Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane (Mainly in chimney cooker hoods).
• The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.
• Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the

wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

• For details of the installation distance above an electric hob please refer to product technical sheet If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1).
• Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.
• When cooking on fat, supervise the pans constantly, because overheated fat can ignite.
• Unplug the appliance before any cleaning, replacing the filter or repair work.
• Cooker hood grease filter should be cleaned at least once a month, because the filter saturated with fat is flammable.
• Ensure adequate ventilation (air flow) if other equipment such as liquid fuel stoves or heaters are operated in the room in addition the cooker hood. When the cooker hood is simultaneously operated with burning appliances requiring adequate fresh air from the room to work properly, their safe operation is possible if under pressure around these appliances is a maximum of 0.004 mbar (this does not apply when the cooker hood is used as an odour filter).
• Do not lean on the hood.
• The hood should be cleaned regularly both inside and out (AT LEAST ONCE A MONTH, following the indications concerning maintenance provided in this manual)...Failure to adhere to the rules concerning cleaning the hood and replacing filters results in a fire risk.
• If the power cord is damaged it should be replaced by a specialised service centre.
• Ensure that it is possible to disconnect the ap

pliance from the mains by removing the plug or switching off the bi-polar switch.

• This appliance is not intended for use by persons (including children) with physical, mental or sensory handicaps, or by persons inexperienced or unfamiliar with the appliance, unless under supervision or in accordance with the instructions as communicated to them by persons responsible for their safety.
• Particular attention should be paid not to allow unaccompanied children to use the appliance.
• Make sure voltage indicated on the nameplate corresponds to the local mains supply voltage.
• Before use, extend and straighten the power cord.
• Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.
• Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. Do not connect the appliance to the mains until assembly is complete.
• Do not operate your kitchen hood without the aluminium grease filters.
• It is strictly forbidden to cook dishes under an open flame (flambé) under your kitchen hood.
• Always strictly adhere to regulations issued by the competent local authorities regarding the technical and safety requirements for fume extraction.
• Failing to tighten bolts and fasteners in accordance with these instructions may endanger life and health.
• Hanging kitchen hoods operate only in air circulation / odour absorber mode
• WARNING! Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

UNPACKING

During transportation, protective packaging was used to protect the appliance against any damage. After unpacking, please dispose of all elements of packaging in a way that will not cause damage to the environment.

All materials used for packaging the appliance are environmentally friendly; they are 100% recyclable and are marked with the appropriate symbol. Important! Packaging materials (bags, polyethylene, polystyrene, etc.) should be kept away from children during unpacking.

DISPOSAL OF OLD APPLIANCE

In accordance with European Directive 2012/19/EU and local legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. This marking indicates that the appliance must not be disposed of together with other household waste

after it has been used.

The user is obliged to hand it over to waste collection centre collecting used electrical and electronic goods. The collectors, including local collection points, shops and local authority departments provide recycling schemes.

Proper handling of used electrical and electronic goods helps avoid environmental and health hazards resulting from the presence of dangerous components and the inappropriate storage and processing of such goods.

OPERATION

Cooker hood controls

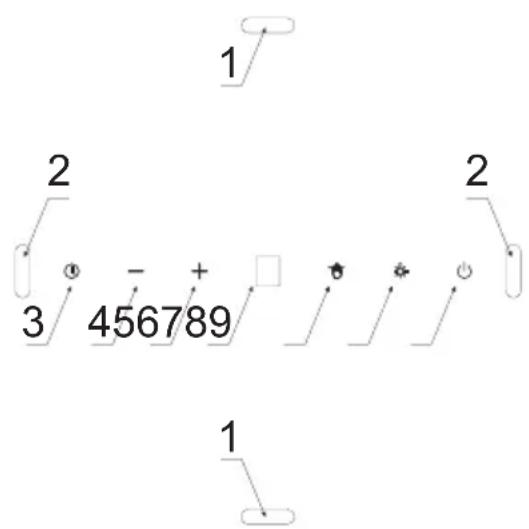

Control Panel is shown in Figure 4, for reference it is also shown below:

This appliance features gesture control:

1. Gesture sensors for switching the light on/off
2. Gesture sensors for fan speed control

The control panel is equipped with touch controls: Control functions are described below:

3-Off-Timer sensor
4- Reduce fan speed sensor
5- Increase fan speed sensor
6-Display
7- Gesture control management sensor
8- Light control sensor
9- StandBy mode sensor

When you plug in your appliance, will be shown on the display for a fraction of a second, then the display will go off. Only the gesture control sensor is illuminated on the control panel. Touch to activate the appliance - the pictogram will light up

When activated, touch to start the fan.

Available fan speeds:

• Low speed (1). Use this speed when cooking a little food with hardly any fumes.
• Medium speeds (2 - 3). Use this speed when cooking multiple dishes at the same time with moderate amount of fumes.
• Turbo ( )— use this speed when frying or grilling with large amount of fumes.

Use the and sensors to increase or reduce fan speed.

Note: The Turbo speed is active only for 5 minutes (the dot on the display flashes), then the fan speed will be reduced. Turbo speed operation is time limited. By activating the Turbo speed again and again, you can use it for a maximum of 30 minutes (including the Turbo off intervals if shorter than 5 minutes). After this time, Turbo speed will not be available for the next 30 minutes — during this time, the maximum possible fan speed is 3.

To turn off the fan, touch repeatedly until fan speed is reduced to zero or touch

Touch to turn the lighting on. Touch again to turn the lighting off. The lighting operates independently of the on/off sensor.

Off-Timer

Use Off-Timer to turn off the hood after a specified time. Use Off-Timer to filter the fumes out of the air after cooking. The Off-Timer can be set to 5, 10 or 15 minutes. Touch to activate the Off-Timer at any time. The sensor will flash and the display will show. Now use the and + sensors to select the Off-Timer delay:

Display indication Delay time [min]
8	15
8	10
8	5

Touch to confirm your Off-Timer setting (according to the above table). A flashing dot will appear by the fan speed on the display and the sensor will flash. Touch to deactivate the Off-Timer at any time — the dot by the fan speed and will stop flashing.

Gesture control

When you plug in your appliance gesture control is active and indicator is on. Touch to turn off the gesture control. Touch again to reactivate gesture control.

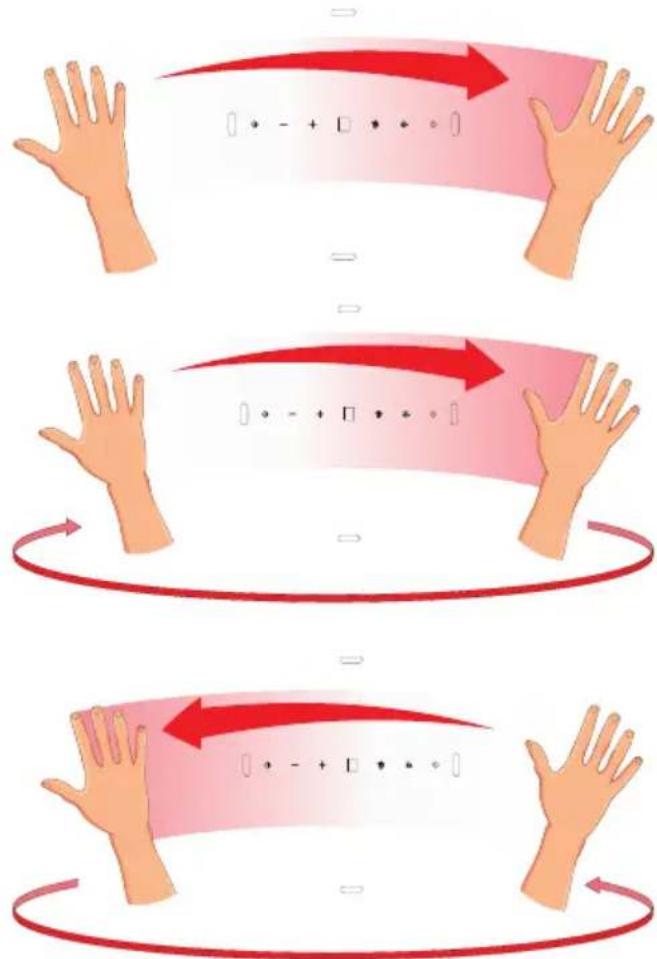

You can use gestures to control the fan speed and lighting. When gesture control is active, you can also control the appliance using the touch sensors.

Gesture control works correctly when you move your open hand about 5cm from the surface of the control panel.

Note: Depending on the function you want to activate you need to move your hand near the sensors (Figure 4, item 1, or Figure 4, item 2). The area over which to move your hand is marked on the figures presented below in this manual.

When activating a certain function (such as turbo speed) requires multiple hand gestures, reposition your hand for another gesture away from the control panel to avoid triggering the motion sensors). Hand movements must not be too fast. Preferably, a single gesture should take about 1 second.

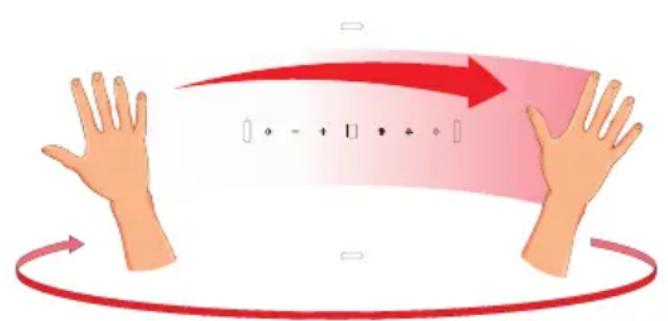

To activate the appliance, move your hand from left to right. The display will show

To turn on the fan or increase fan speed, move your hand from left to right several times in standby mode. The display will show the current fan speed after each hand gesture.

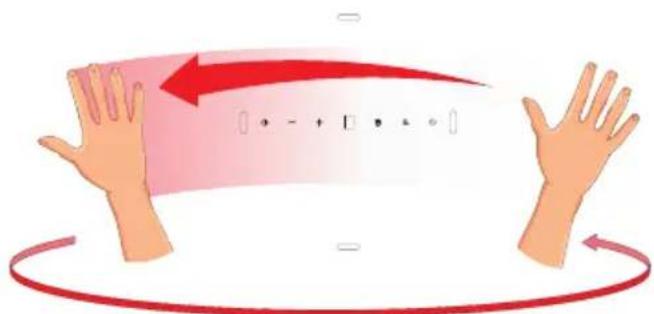

To turn off the fan or reduce fan speed, move your hand from right to left several times in standby mode until the display shows Move your hand one more time and the appliance will turn off (gesture control will still be active)

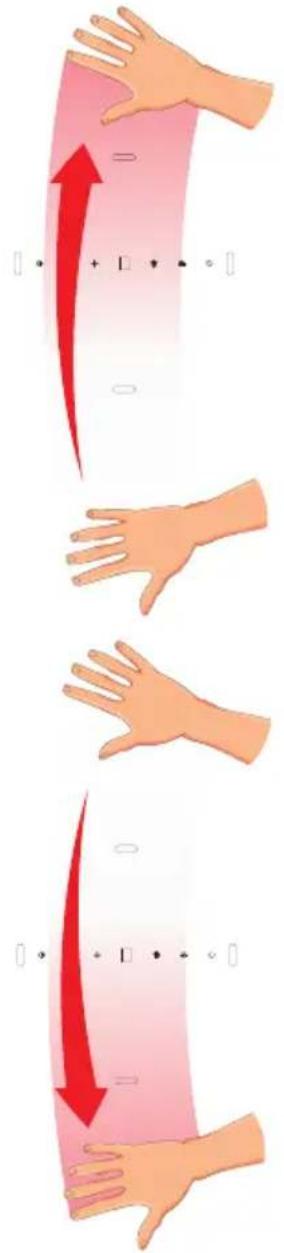

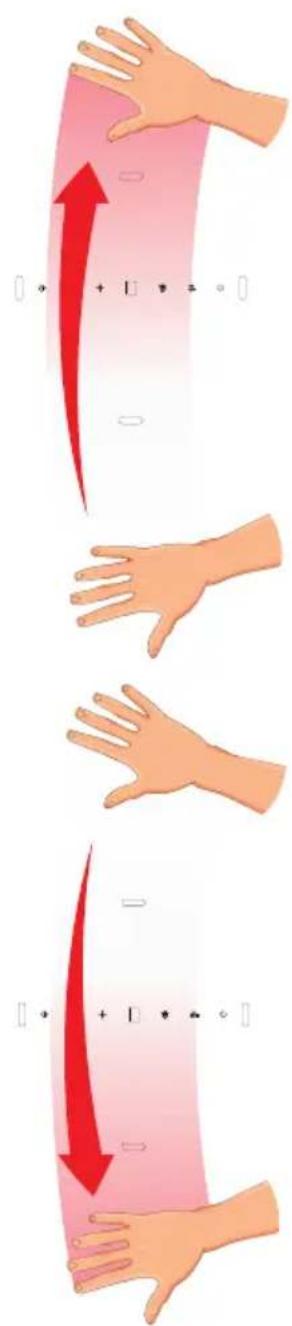

Move your hand from the bottom up to turn on the lighting

Move your hand from the top to bottom to turn off the lighting

Other important information concerning the operation of the hood

Operation in air circulation / odour filter mode. In this mode, the filtered air returns to the room through the outlets. Install activated charcoal filter in this setting. It is recommended to install the air guide (available depending on the model, mainly in chimney cooker hoods).

Air extraction operation: When cooker hood operates in extraction mode, air is discharged outside through an extraction duct. Remove activated charcoal filter in this setting. The cooker hood is connected to the air outlet opening using a rigid or flexible extraction duct with a diameter of 150 or 120mm , and the appropriate clamps, which must be purchased at a hardware store. The appliance should be installed by a qualified installer.

Fan speed: Lowest and medium fan speed is used in normal conditions and less intense odours, while the highest speed is used only when cooking odours are very intense, such as during frying or grilling.

Note (applies to universal hoods only): Due to the design of universal hoods you need to manually change the mode of operation. See Figure 8 for instructions on how to change the mode.

Note (only applies to telescopic and in-built kitchen hoods): Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Note: Hanging kitchen hoods operate only in air circulation / odour absorber mode

CLEANING AND MAINTENANCE

Maintenance

Regular maintenance and cleaning of the appliance will ensure trouble-free operation of the cooker hood and extend its life. Especially make sure that the grease filter and activated charcoal filter are replaced according to manufacturer's recommendations.

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.
• It is recommend to use a damp cloth and a neutral detergent.

Note: After several washes in the dishwasher, the colour of the aluminium filter may change. The change of colour does not indicate improprieties or the necessity to change it.

Grease filter

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Activated charcoal filter

Charcoal filter is used only when the cooker hood is not connected to the ventilation duct. Activated charcoal filter can absorb odours until saturated. Charcoal filter is not suitable for washing or regeneration and should be replaced at least once every two months or more frequently if the appliance is used intensively.

Dismantling of charcoal filter is shown on Figure 6.

Light

Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance. See Figure 7 for details how to replace lights. If there is no such figure in this manual, please contact authorised service to replace the lighting module.

WARRANTY AND AFTER SALES SERVICE

Warranty

Warranty service as stated on the warranty card. The manufacturer shall not be held liable for any damage caused by improper use of the product.

The manufacturer recommends that all repairs and adjustments be carried out by the Factory Service Technician or the Manufacturer's Authorized Service Point. Repairs should be carried out by a qualified technician only.

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

Low Voltage Directive 2014/35/EC
- Electromagnetic Compatibility (EMC) Directive 2014/30/EC
ErP Directive 2009/125/EC
- Directive RoHS 2011/65/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

Szanowny Kliencie

OBE3BPEKДАHE HA N3HOCEHn YPeDn

ToBa yCtpoiCTBO e MapKnpaHO B CbOTBeTCTBHe c EBrpoIeNcKaTa dIpeKTHBa 2012/19/EC. Ta3n MapKnPOBka Noka3Ba, ye ToBa o6OpyD-BAHe, cIed onpeIeIeH nepNoJ Ha IOn3BaHe, He MoJKe Da ce n3XbPrla 3aEiHo C dpyrnte 6HTOBn OTnaDbuN. Iotpe6nteJIrTe e DlbJxEn Da ro npe

Дадe Там, КыдeTo ce сьбират OTпадьци OT eilektpn-uecko и eilektpoHNO obOpyDbaHe.СьбирателнITEpyHKTOBe,В TOBaЧИСLO MeCTHи ПУнКTOBe 3a сьбиpaHe, МагаЗини Или OБшински CTpyKТури CB3da-Bat сИСтema, КаяTO ПОЗВOLЯВа пpeДаВаHe Ha obOpyDbaHeto.

IodxoJIoTO TpeTnpaHe Ha OTnadbUnte OT eJeK- Tpruecko n eJeKtpoHNO 06OpyDbAne nomara 3a n3- 6yRBaHe Ha BpeDn 3a YOBeShKOTo 3dpaBe n OkolHaTa CpeDa NocLeDiuN, PpOn3TuHaaN ot HaNuNeTo Ha OnaChn BeSeCTBa, KaKTo n He npabNlHo cBxpa- HenHe n 06pa6OTka Ha TaKOba 06OpyDbAhe.

OBCJIYJXBAHE

YnpaBJIeHne Ha a6cop6aTopa

PanaJIbT 3a ynpabIeHne Ha a6cop6aTopa e npedCTaBeH Bbpxy qnr. 4, HAMpa ce cbso TaKa n no-dOly:

UpeIbTe o6OpyIbAH cbc ceH3Opn, ynpaBIIaEMN C XecToBe:

1-CeH3Opn 3a DnHexHe,OTROBOPn 3a BKJIIOUBaHe / N3KJIIOUBaHe Ha OCBetJeHNeto
2- Cen30pn 3a DnXeHne, OTROBOpHn 3a npomHa Ha ckOpocTtHa ypeDa

PanaelbT 3a ynpablenHe e o6OpyDbH cbc ceh3Opn. No-dony ca onncanH TexHnTe fynKcnn:

3- Cen3op Timer (n3KJIIOUBaHe cbc 3a-KbcheHne Ha a6cop6aTopa)
4- Cen3op 3a cMaHa Ha CKOpocTTa ceHNO HNBO NO-HNCKA
5- Cen30p 3a cmraHa Ha ckopocTt a c eHNO HnBO nO-BnCOKa.
6-Диспел.
7-CeH3Op 3a ynpabJIeHne c JxecTOBe
8- Cen30p 3a ynpabIeHne Ha oCBeTneHHeTo
9- Cen3op 3a peKm StandBy (roTOB-HoCT)

Cnei Cbbp3BaHe Ha ypeHa KbM 3axpaHbAHeTo Bbpxu DnCnIe 3a qact OT cekyHdaTa ige Ce nOBn Cnei Koeto DnCnIeT ige n3rache. Bbpxy NaHeLa e NODCBTeH cAmO ceH3OpBt 3a ynpabLeHne C JecTOBe OKOCHete cEH3Op 3a da aKTHBnPaTe peXm RotOBHOCT (DOnbJIHnTeJHo CEH3OpBt ige CBETHe).

3a Da BkIouHte Typ6nHaTa Ha ypeDa, B peXm rOtOBHOCT Tp6Ba Da DOKoCHTe ceH3Op

Bb3MOxHn HacTpoiKa Ha cKOpocTTa:

• Hau-Hncka ckopocT (1). Ta3n ckopocT ce n3noJ3Ba npn MaIko KoJIInueCTBO npa.
  CpeHn ckopocTn (2-3). Ta3n ckopocT ce n3noJ3Ba npn cpeHa INHTeH3INBHOCT Ha napata, HapnpMe NO BpeMe Ha rotBeHe Ha MHOrOЯCTnHaBeDnBxK.
• Pexim Typ6o ( ) - H3noI3BaIe Ta3n cKOpoc T npn HaN- roJMyo KoJInueCTBO napn, HanpImep npn nbpxxe He nJn neye He Ha rpnJ.

CkopoCTnTe moKeTe da cMeHrTe cbc ceH3Opnte +.一

BHHMaHHe! PexKIM Typ6o e aKTINBeH cAmO npe3 5 MInHyTn (ToUkaTa Bbp-xy DnCnJIeR Mnra), CLeE N3TNuAHe Ha TOBa BpeMe CKOpocTTa ABToMaTnUHO Ce HamaJIaBA C eIHO HnBO. PexKIM Typ6o IMa OgrpaHnueHo BpeMe 3a N3POn3BaHe; BKIOUByaIKN eDIN CLeE dpyr pexKIM Typ6o MoKeTe Da TOr N3POn3BaTe MaKcImaIIHO cAmO npe3 30 MInHyTn (BKnIOUByaIKN B TOBa BpeMe N NaY3NTe MeJy NopeDHnTe BKIOUByaHNr Ha peKIM Typ6o, He Np-DbJIrN OT 5 MInHyTn). CLeE TOBa BpeMe IMa Nay3a B DoCTbPHocTTa Ha peKIM Typ6o - HMA Bb3MOxHOCt 3a N3POn3BaHeTO My npe3 NopeDHnTe 30 MInHyTn; npe3 TOBa BpeMe MaKcImaJIHaTA Bb3MOxHrCKOpocT e 3 ckopocT.

3a Da n3KJIIOUHTe Typ6HnHaTa Ha ypeDa, npn aKTINBHa CKOpOCT DOKOCHTe HAKOLKOKpATo Ceh3Op -DOKATO BbpxY DnCnIe Ce NOBu ,NInDOKOCHTe Ceh3Op

3a Da BKNIOHTe OCBETIeHHeTo, DOKOCHTe ceH3Op 3a Da N3KIIIOHTe OCBETIeHHeTo, DOKOCHTe OSe BeDNbX CeH3Op. OCBETJIeHHeTo DeiCTBa He3aBnCmO OT ceH3Opa StandBy.

Taimep (n3KJIIOUVAHe Ha a6cop6aTopa cbc 3aKbScheHne)

Ta3nФyHKZe e npedHa3HaueHa 3a n3KJIIOUBAHe Ha DBnraTeIeHa a6- cop6atopa cbc 3aKbCSHeHne. N3noJ3BaIte Ta3nФyHKZnCleJ 3aBbPwBaHe Ha rotBeHETO, 3a da NOuNCTIne Bb3dYxA B NOMeUeHNeTo OT n3NapeHnra. Bb3MOXHnTe BpemeHa 3a 3aKbCSHeHne ca 5,10 nn 15 mHyTu. 3a Da BKIoUHTeФyHKZnTA 3aKbCSHeHne Ha n3KJIIOUBAHeTO, Tp86Ba IIO Bpeme Ha pa6oTa Ha abcOp6atopa C npOn3BOJHa CKOpocT da HATncHeTe edHOKpaTHO ceH3Op. CeH3OpBT ige 3anoyHe da Mna, a Bbpxy dnc- PIIe Ie Ce IoRbN. C nomoTa Ha ceH3OpNTe - cF a MoKeTe da n36epTe BpemeTo 3a ABTomatNuHO n3KJIIOUBAHe, KaTO HAcTpOnTe CbOT-BETHncaMBOJ Bbpxv DnCnJIe, KONTO O3HaayabAT CbOTBETHO:

Показань на дислег	Врееме за закбуchenке [min]
8	15
8	10
8	5

CleД HabToPkHa Ha n36paHnI CmB0N Bbpy DnCpIe (cBrlacHO rOpHaTa Ta6nua), Tp8Ba Da nOTBbPdnte n36Opa Cn C DoKocBaHe Ha ceH3Op ①. Bbpy DnCpIe Ie Ce nOBu MrraUa ToUkA Pn A kTyalHaT a N3-10J3BaHa cKopocT, a CEH3Op Ue 3anOuH e Da Mra. 3a Da n3KlOHTe FyHKUraTa 3a 3aKbCHraIO n3KlOuBaHe, Tp8Ba B npOn3BOJeH MOMENT Da DOKOCHeTe CEH3Op UbOpN PbT, ToraBA ceH3OpbT TOUkata npn CKopocTTa Ie CNpaT da Mrrat.

Ynpablenne c JkeCTObe

Cnei cBbP3BaHe Ha ycTpoIcTBoTO KbM 3aXpaHbAHeTo, fYHKnraTa 3a ynpaBLeHne C JecTObe e aKTHBHa. ToBa e cnHaN3nPaHO OT nOcBeTeHnca H3Op 3a ynpaBLeHne C JecTObe 3a Da n3KIOUHTe fYHKnraTa 3a ynpaBLeHne C JecTObe, Tp6Ba Da DOKOChTe ceH3Op 3a Da BKIOUHTe OTHOBO fYHKnraTa ynpaBLeHne C JecTObe, Tp6Ba NOBtOPODa DOKOChTe ceH3Op

C n3noJ3BaHe Ha JecToBe MoKeTe Da ynpaBnaBate cKOpocTtHa Typ6nHaTa Ha a6cop6aTopa N ocBeTneHneTo. Korato e aKTINbHa fynKcIyra 3a ynpaBJIeHne C JecToBe, MoKeTe CbIoo TaKa Ca ynpaBnaBate ypeDa ITO TpaDnUOHe HauH - Upe3 n3noJ3BaHe Ha CbOTBeTHnte ceH3OpN.

YnpaBHeHneTo C XeCTObE DeiCtBa IpaBnIHO, KOraTo N3BbPWBaTe DnXeHneTo C OTBopeHa IlaH Ha pa3CToHne Okolo 5 cm ot NobbpxHocTtHa NaHeLa 3a YnpaBHeHne.

3a6eJekka:ДвижehneTo c OTBopeHa Длан Tpr6Ba Da obXbaHe ceH3Opnte 3a DBnHexHne (ФИгура 4,п03.1,nllnФИгура 4,п03.2,B 3aBnCIMOcT OT ФункцЯТа,КоЯTO nCKaTe Да BKlIOUHTe).3OnaTa,надКояTO Tpr6Ba Да ИЗВьршпTe DBnIxGeHne CpbKaTa Cn,e O3HaueHa BbpxyФИгypnteВПО-нaТaTbShHaTaЧaCT OT INHcTpPyKzIpyTa.

Korato BkIIOUbaHeTo Ha onpeJeIeHa yHKcIa (HanpIMep pexm Typ60) n3NCKBa MHOrOkaTHo IpeMeCTBaHe Ha pbKaTa, Tpr6Ba da n3nblHnte BpbuAto DBNXeHne no-daley OT naHeLa 3a ynpabLeHne (nInTaka, ye da n36erHete cEH3Opnte). DnIXeHnraTa c pbKa He MoRaT da 6bDaT n3nblHЯBaHn TBbpDe 6bp30. Han-do6pe e, KOrato eDINHueH JeecTe c npOdbJXHTelHocT OKO1o 1 cekyHda.

3a da aKTHBnpaTe peXm StandBy, n3BbPweTe dBN-XeHne c pbKa OT HaJIBO DЯCHO. Bbpxy DnCpIe Ie ce IoRbN

3a Da BkIouHte Typ6nHaT a Ha UpeDa nII Na yBeIInuTe HeiHaTa cKOpocT, Tp6Ba HAKoKoKpaTHO Da npemecHTe pbKaTa cN OT HaJIyBO dAcHO B peXm StandBy. DncnpeT ue NOKaKe aKtYaJHaTa cKOPOcT C BCaKO DBnJxHeHne Ha pbKaTa.

3a Da n3KJIIOHTe Typ-6nHaTa Ha ypeDa nIi Da HamaIInTe HeHata CKOpOCT,TPra6Ba HЯKoI-KOKpaTHO Da IpeMeCTe pbKaTAtC OToDЯCHO HAnRABO B pexm StandBy, DOKATO Bbpxy DiuCIIpeCe N0aBn IIpemeCTePbKaTa CNoe BeHbX -abCop6aTopbT ige Ce n3KJIIOUHnBJIHO (Функ-цяТа упраВлене сжecTOBe BCE OSe ige 6bde aKTINBHa)

3a Da BkIouHte OCBeTne HnETo, npemecTepe bKaTa cn OTdoNy HaRope.

3a da n3KJIouHte OCBetLeHneTo, npemecTepe KaTa CN OT rope HaDony.

Дрги вжни nhфорmaци 3a obcnykbaheTo ha a6cop6atopa

Pa6ota KaTo a6cop6aTop: Pn Ta3n OOnZnA FInTPnpaHnT Bb3dyX Ce Bpb7a 06paTHo B NOMEseHHeTO NocpeDCTBOM PpeBnDEHnTe 3a TOBa OTBOpN. Pn To3n peKm Ha pa6ota Tp86Ba Da MoHTnPaTe BbIeH FIn- Tbp n Ce npenopbUba MOHTnpaHe Ha HAnPabJIbBAuNtOka Ha Bb3dYxa eIemEh (DocbNeH B 3aBnCIMoCT OT MoeJa, Cpe7a Ce rIaNHo B a6cop-6aTopnTe OT KOMHHe TnI).

Pa60ta KaTo acnnpaTOp: B peKm 3a OTBeXdaHe Ha Bb3dUxHa acnnpaTOp bT OTBeJda Bb3dUxHa HABbH npe3 cneuJaIeH KaHaJI. Ppr To3n peKm Ha pa60Ta Tp8Ba Da otCTpaHInTe eBentyaIIHHa BbIJIeH fNITbp. AcnnpaTOpbTe npCbeDInHeN KbM OTBeJdaIeN BA Bb3dUxHa OTBOP C NOMOHTa Ha TBbpDA nn ElnaCTNuHa Tpb6a C dIaMeTbp 150MM nll 120MM n CboTBETHN cKo6n 3a Te3N Tpb6n, KOnTO Tp8Ba Da ce 3akynrT B MaRa3INHInTe 3a INHCTaIauNoHHMaTePnaJI. Cbbp3BaHeTo Ha acnnpaTopa KbM OTBopa Tp8Ba Da 6bJe n3BbpSeHo OT KBaIInΦnucpaH nHCTaJIaTOp.

CkopoCT Ha BeHTnlaTopa Hai-Hnckata n cpeHaTa ckopoCT ce n3no13-BaT npHOpMaJIHN yCloBnI MaJka nHTeH3NBHOCT Ha napata. Han-BnCOkata ckopoCT da Ce n3no13Ba camo npn BncoKa nHTeH3NBHOCT Ha npaPATA B KuxHra, HapnpMeR npn nbpXeHe nn neyeHe Ha cKapa.

3a6eJekka (OTHACCe cAmo 3a yHnBepcaJIHnTe a6cop6aTopn):KOHCTpyKcIyTa Ha yHnBepcaJIHnTe a6cop6aTOpn n3NCKBa pbUHa cMraHa HapeXIma Ha pa60Ta Ha ypeDa. HauINbT Ha cMraHa Ha peXIma e noka3aH Bbpxy fInypa 8.

3a6eJexka (oTHacr ce cAmO 3a BrpaJeHn B Me6JIi N TeLeckOnuHn acnnpaTopn): B cIyauH Na acnnpaTopnte 3a BrpaXdaHe B KuxHeNcKn IkaΦ n TeleckOnuHnTe acnnpaTopn, KonTO pa6OTrB peXm a6cop6aTOp, Tp6Ba De ce IHCTaJInpa Tpb6a, OTBeJdaUa Bb3dUxHa. BToPnT KpaH Ha Tpb6aTa Tp8Ba Da HacoHTe KbM NOMeUeHNeTo, Ppe3 Hej Ue 6bJe OTBeJdAn FInlTpnpaHn Bb3dUx.

3a6eIeKka:BncaIteacnpaToppa6oTcAmOBpeXm a6cop6atop.
