USER MANUAL Best Chef MB300 Mestic

1. Draai alle instelknoppen in de laagste positie (off).

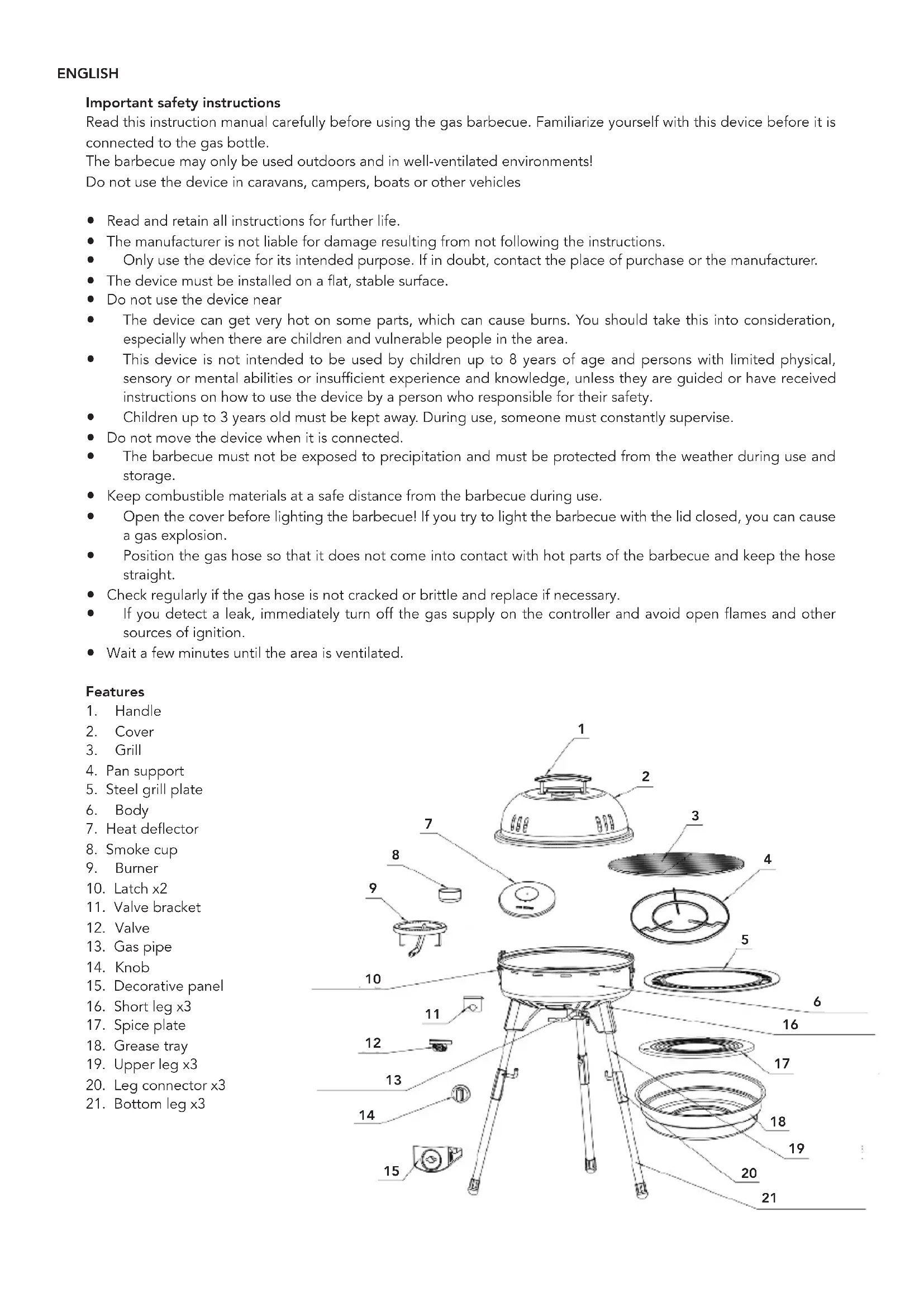

1008 CT 3229NEDERLANDSENGLISH Important safety instructions Read this instruction manual carefully before using the gas barbecue. Familiarize yourself with this device before it is connected to the gas bottle. The barbecue may only be used outdoors and in well-ventilated environments! Do not use the device in caravans, campers, boats or other vehicles

• Read and retain all instructions for further life.

• The manufacturer is not liable for damage resulting from not following the instructions.

• Only use the device for its intended purpose. If in doubt, contact the place of purchase or the manufacturer.

• The device must be installed on a flat, stable surface.

• Do not use the device near

• The device can get very hot on some parts, which can cause burns. You should take this into consideration, especially when there are children and vulnerable people in the area.

• This device is not intended to be used by children up to 8 years of age and persons with limited physical, sensory or mental abilities or insufficient experience and knowledge, unless they are guided or have received instructions on how to use the device by a person who responsible for their safety.

• Children up to 3 years old must be kept away. During use, someone must constantly supervise.

• Do not move the device when it is connected.

• The barbecue must not be exposed to precipitation and must be protected from the weather during use and storage.

• Keep combustible materials at a safe distance from the barbecue during use.

• Open the cover before lighting the barbecue! If you try to light the barbecue with the lid closed, you can cause a gas explosion.

• Position the gas hose so that it does not come into contact with hot parts of the barbecue and keep the hose straight.

• Check regularly if the gas hose is not cracked or brittle and replace if necessary.

• If you detect a leak, immediately turn off the gas supply on the controller and avoid open flames and other sources of ignition.

• Wait a few minutes until the area is ventilated. Features

15. Decorative panel

15ENGLISH Gas connection The device burns on propane / butane gas G30.G31 and is suitable for connection through a propane gas hose that conforms to EN 559 or EN1763. Connect the rubber hose to the connecting piece of the device with a quarter-left connection or a hose clamp. The gas hose may be a maximum of 150 cm long. Before installation, check whether the operating pressure of the gas pressure regulator corresponds to the operating pressure of this appliance as stated on the nameplate. Check all gas connections for leaks by means of a gas leak spray or soapy water. Never use an open flame Technical data Country of destination Catergory/ies Type of gas Supply pressure (mbar) Injector size (mm) Heat input (kW) Gas consumption (g/hr) BE, CH, CY, CZ, ES, FR, GB, GR, IE, IT, LT, LU, LV, PT, SI, SK, TR I3+ G30/G31 28-30/37 0.97 4.0 290 BE, BG, CY, CZ, DK, EE, FI, FR, GB, GR, HR, HU, IT, LT, LU, LV, MT, NL, NO, RO, SE, SI, SK, TR I3B/P G30/G31 30 0.97 4.0 290 AT, CH, CZ, DE, LU,

2. If the device has a lid, open it carefully

3. Connect the controller correctly.

4. Perform a leak test before using the device.

5. Fully open the tap on the gas bottle.

6. The device is operated by turning the adjustment knob. Press the button and turn it carefully to the left until

you hear a click. If the gas burner does not ignite, turn the knob slower until it clicks. This gives the gas more time to reach the gas burner.

7. When the gas flame is burning, it can be adjusted to the desired height.

8. If the gas stove does not work properly or if a gas smell is detected, immediately close the gas tap on the gas

bottle. After use Close the tap on the gas bottle after use. Then close the barbecue tap by turning it clockwise with this pointer to the closed position. Changing the gas bottle

1. The gas cylinder may only be exchanged in the open air and away from combustible materials.

2. Check the bottle tap and appliance tap are completely closed.

3. Unscrew the gas pressure regulator from the gas bottle.

4. Before reassembling the gas pressure regulator, check whether the rubber inlet ring is still present and

undamaged. 5. Screw the swivel of the gas pressure regulator tightly onto the threads of the cylinder valve.ENGLISHCheck the burner operationCheck the burners and control valves at least once a year. If necessary, you must have this replaced by a recognized installer.CleaningAll cleaning and maintenance work must take place with a cooled appliance and with a closed gas supply.Note: before you start cleaning, make sure that the gas supply is shut off. The gas burners must be cleaned regularly in order to prevent deposits of fat. If you remove parts during cleaning, ensure that these parts are correctly replaced. Never use aggressive cleaning agents or tools, but professional cleaning agents or soapy water. Dry the parts and the device thoroughly after cleaning.Storage

• The legs can be dissemble, and fix them all at backside of the plate
• Lock the cover and outer body by latch
• Store the product on a level, stable place where out of reach of children. RecyclingThis product bears the selective sorting symbol for waste electrical and electronic equipment This means that this product must be handled pursuant to European Directive (2012/19/EU) in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.Declaration of conformityHerewith, Gimeg Nederland B.V. declares that the MB-300 device complies with the basic requirements and other relevant regulations referred to in the European Directive for gas-operated dressing appliances (2016/426 / EU) and has been produced according to the following standards: EN 498:2012You can request a complete declaration of conformity at the address stated on the reverse. 1008 CT 3229 Country of destination BE,FR,GB,GR,IE,IT,PT,ES,CHCY,CZ,DK,EE,FI,LT,MT,NL,NO,SK,SI,SE,HU,BG,LV,LU,ROPL DE,AT,CHAppliance categories I3+ I3B/P I3B/P I3B/PType of gas G30 / G31 G30 G30 G30Supply pressure (mbar) 28-30/37 30 37 50Injector Size (mm) 0.97 0.97 0.89 0.83Heat Input (Hs) 4.0 (kW) / 291 (g/h)WARNING1. Read this instruction before using the appliance.2. For outdoor use only.3. Warning: accessible parts may be very hot. Keep young children away.4. Never move it during operation. Wait for about 7 minutes after extinguished the flame before moving it. 5. Check the gas type before you connect it to the camp stove, improper gas will cause serious danger.MesticStrijkviertel 27, 3454 PH De Meern, The Netherlands Barbecue best chef MB-300

MODEL: CMG01, CMG01L
