Mini Chef MB100 - Barbecue Mestic - Free user manual and instructions

Product Type	Gas Barbecue
Brand	Mestic
Model	Mini Chef MB100
Category	Barbecue
Use	Outdoor, well ventilated
Power Source	Propane/Butane gas (G30/G31)
Power	2.5 kW
Gas Consumption	182 g/h
Inlet Pressure	28-30 mbar (butane), 30 mbar (propane)
Injector Diameter	0.77 mm (butane), 0.7 mm (propane)
Cooking Surface	Grill plate (approx. 30 x 30 cm)
Main Material	Steel, bamboo (tray)
Included Parts	Bamboo tray, grill support, flame distributor, clip, ring, drip tray, housing, knob, grill plate
Safety	Leak detection recommended, lid must be opened before ignition
Cleaning	When cold, gas off, soapy water or mild cleaner
Weight	Approximately 8 kg
Dimensions (L x D x H)	Approximately 50 x 40 x 30 cm
Compliance	EN498:2012, Directive 2016/426/EU
Product Code	UR2802
Identification (PIN)	0063CR7811

Frequently Asked Questions - Mini Chef MB100 Mestic

Where can I use this barbecue?

This barbecue is designed for use outdoors only and in well-ventilated areas. Never use it indoors, in a caravan, motorhome or boat.

What type of gas should I use?

Use propane or butane gas (G30/G31). Check the corresponding inlet pressure (28-30 mbar for butane, 30 mbar for propane).

How do I light the barbecue?

First open the lid. Press the control knob and turn it gently to the left until you hear a click. If the burner does not light, turn the knob more slowly.

What should I do if I smell gas?

Immediately close the gas cylinder valve. Avoid any naked flame or ignition source. Ventilate the area for a few minutes before looking for a possible leak.

How do I clean the barbecue?

Wait until the appliance is completely cool and turn off the gas supply. Clean with soapy water or a mild cleaner. Never use abrasive products or aggressive tools.

How do I change the gas cylinder?

Perform the change outdoors, away from any combustible material. Ensure the cylinder and appliance valves are closed. Check the rubber seal before retightening the regulator.

How often should I check the burners?

It is recommended to check the burners and control valves at least once a year. If necessary, have them replaced by a qualified installer.

Can children use the barbecue?

No. Children under 8 years old must not use this appliance. Older children and vulnerable persons must be supervised at all times.

How do I check for a gas leak?

Use a leak detector spray or soapy water on the connections. Never use a naked flame to check for a leak.

What if the burner does not light?

Turn the control knob more slowly to allow gas to reach the burner. If the problem persists, check the gas supply and the condition of the burner.

USER MANUAL Mini Chef MB100 Mestic

30 cm 2.5 kW 30 Mbar mestic It's BBQ TIME! — Piëzo 7.6 kg

MB-100

Mini Chef

NEDERLANDS

Exploded view diagram of a mechanical device with numbered parts for identification

Gasaansluiting

Line drawings of two portable electric cookers with heat sinks, one marked with a checkmark and the other with an X (no text or symbols)

Na gebruik

Diagram illustrating a heating device with labeled components including thermometer, brush, and fan blade

Country of destination:

□ I3+(28-30/37): BE.CH.CY.CZ.ES.FR.GB.GR.IE.IT.LT.LU.LV.PT.SK.SI.

□ 13B/P(30): BE CY DK EE ELER HUIT LT NI NO SE SLSK RO HR TR

BG,IS,LU,MT.

□ 13B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.

KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.

Turn off the gas supply at the gas cylinder after use.

Do not modify the appliance.

mestic®

CE 0063

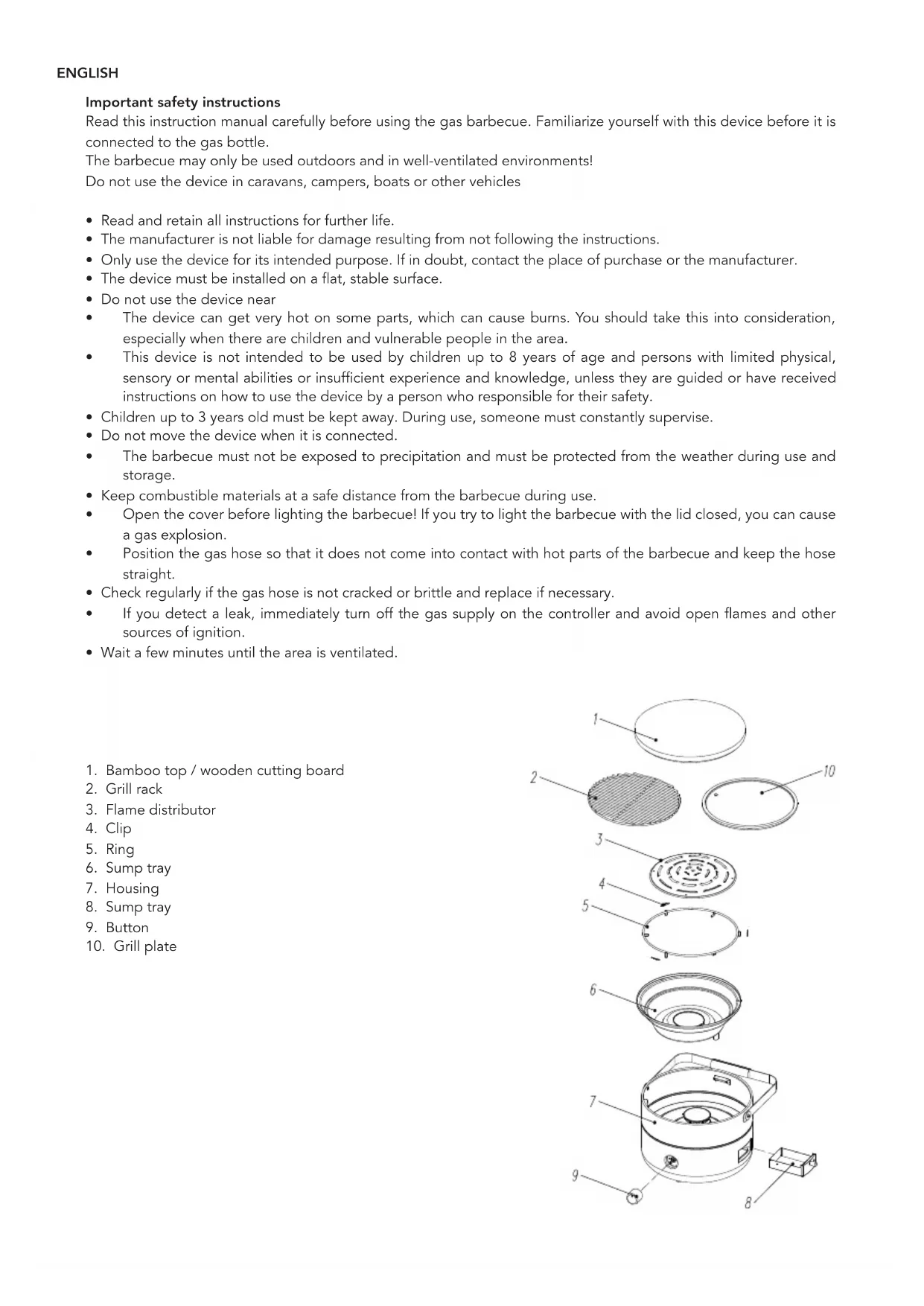

ENGLISH

Important safety instructions

Read this instruction manual carefully before using the gas barbecue. Familiarize yourself with this device before it is connected to the gas bottle.

The barbecue may only be used outdoors and in well-ventilated environments!

Do not use the device in caravans, campers, boats or other vehicles

• Read and retain all instructions for further life.
• The manufacturer is not liable for damage resulting from not following the instructions.
• Only use the device for its intended purpose. If in doubt, contact the place of purchase or the manufacturer.
• The device must be installed on a flat, stable surface.

- Do not use the device near

- The device can get very hot on some parts, which can cause burns. You should take this into consideration, especially when there are children and vulnerable people in the area.

- This device is not intended to be used by children up to 8 years of age and persons with limited physical, sensory or mental abilities or insufficient experience and knowledge, unless they are guided or have received instructions on how to use the device by a person who responsible for their safety.

• Children up to 3 years old must be kept away. During use, someone must constantly supervise.

- Do not move the device when it is connected.

- The barbecue must not be exposed to precipitation and must be protected from the weather during use and storage.

- Keep combustible materials at a safe distance from the barbecue during use.

- Open the cover before lighting the barbecue! If you try to light the barbecue with the lid closed, you can cause a gas explosion.

- Position the gas hose so that it does not come into contact with hot parts of the barbecue and keep the hose straight.

- Check regularly if the gas hose is not cracked or brittle and replace if necessary.

- If you detect a leak, immediately turn off the gas supply on the controller and avoid open flames and other sources of ignition.

- Wait a few minutes until the area is ventilated.

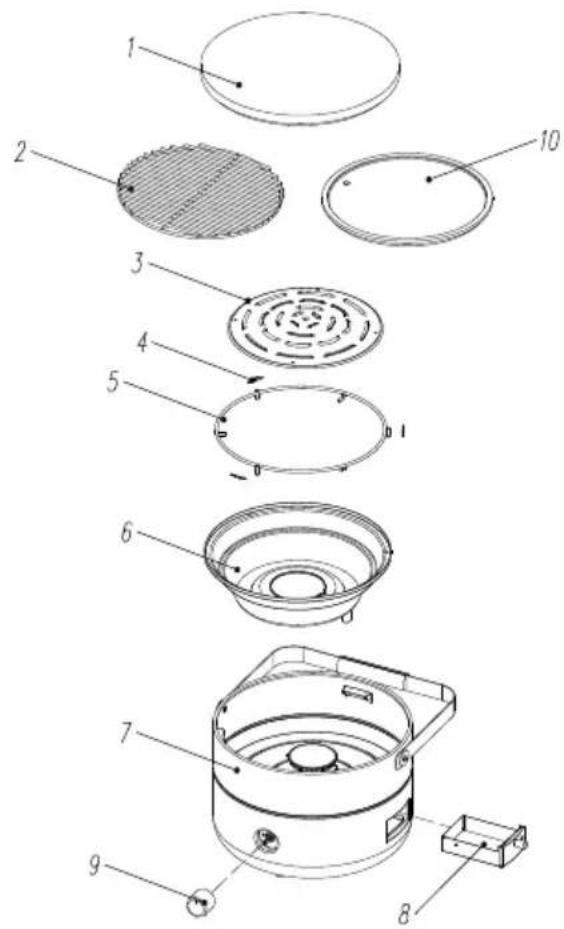

1. Bamboo top / wooden cutting board
2. Grill rack
3. Flame distributor
4. Clip
5. Ring
6. Sump tray
7. Housing
8. Sump tray
9. Button
10. Grill plate

Exploded view diagram of a kitchen appliance with numbered parts for identification

Gas connection

The device burns on propane / butane gas G30.G31 and is suitable for connection through a propane gas hose that conforms to EN 559 or EN1763. Connect the rubber hose to the connecting piece of the device with a quarter-left connection or a hose clamp. The gas hose may be a maximum of 150 cm long. Before installation, check whether the operating pressure of the gas pressure regulator corresponds to the operating pressure of this appliance as stated on the nameplate. Check all gas connections for leaks by means of a gas leak spray or soapy water. Never use an open flame.

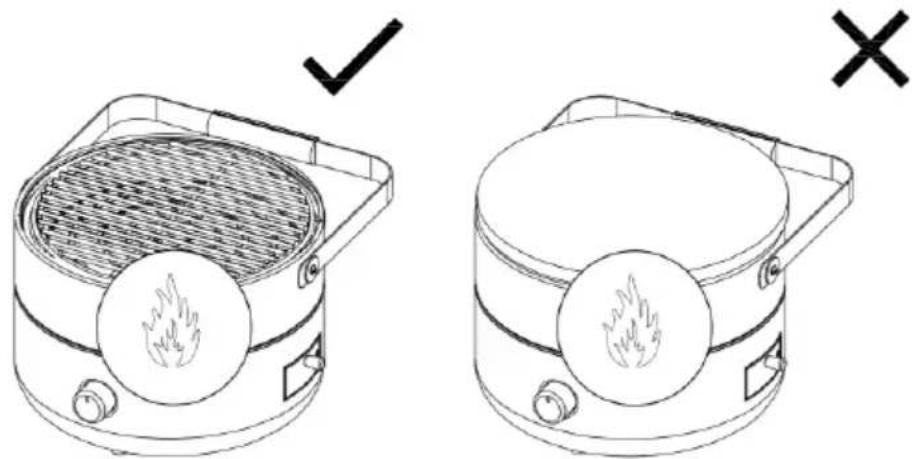

How to use

1. Turn all adjustment knobs to the lowest position (zero).
2. If the device has a lid, open it carefully
3. If the appliance is equipped with the wooden cutting board, carefully remove it.
4. Connect the controller correctly.
5. Perform a leak test before using the device.

6. Fully open the tap on the gas bottle.

7. The device is operated by turning the adjustment knob. Press the button and turn it carefully to the left until you hear a click. If the gas burner does not ignite, turn the knob slower until it clicks. This gives the gas more time to reach the gas burner.

8. When the gas flame is burning, it can be adjusted to the desired height.

9. If the gas stove does not work properly or if a gas smell is detected, immediately close the gas tap on the gas bottle.

Line drawings of two portable electric cookers with heat sinks, one marked with a checkmark and the other with an X (no text or symbols)

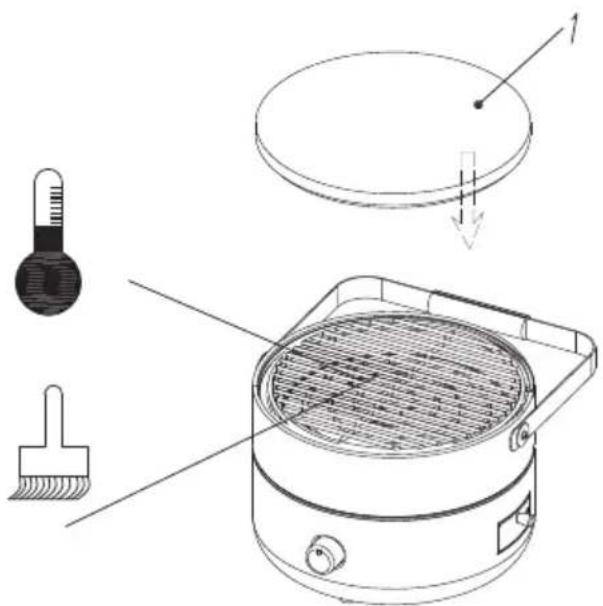

After use

Close the tap on the gas bottle after use. Then close the barbecue tap by turning it clockwise with this pointer to the closed position.

Diagram of a heating device with labeled components including thermometer, brush, and fan blade

Changing the gas bottle

1. The gas cylinder may only be exchanged in the open air and away from combustible materials.
2. Check the bottle tap and appliance tap are completely closed.
3. Unscrew the gas pressure regulator from the gas bottle.
4. Before reassembling the gas pressure regulator, check whether the rubber inlet ring is still present and undamaged.
5. Screw the swivel of the gas pressure regulator tightly onto the threads of the cylinder valve.

Check the burner operation

Check the burners and control valves at least once a year. If necessary, you must have this replaced by a recognized installer.

Cleaning

All cleaning and maintenance work must take place with a cooled appliance and with a closed gas supply.

Note: before you start cleaning, make sure that the gas supply is shut off. The gas burners must be cleaned regularly in order to prevent deposits of fat. If you remove parts during cleaning, ensure that these parts are correctly replaced. Never use aggressive cleaning agents or tools, but professional cleaning agents or soapy water. Dry the parts and the device thoroughly after cleaning.

Recycling

This product bears the selective sorting symbol for waste electrical and electronic equipment This means that this

product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

Declaration of conformity

Herewith, Gimeg Nederland B.V. declares that the MB-100 device complies with the basic requirements and other relevant regulations referred to in the European Directive for gas-operated dressing appliances (2016/426 / EU) and has been produced according to the following standards: EN498: 2012

You can request a complete declaration of conformity at the address stated on the reverse.

ITEM CODE UR2802
DECLARED HEAT INPUT CAT.	2.5 kW (182g/h)
INLET PRESSURE	I3b/p(30) I3+(28-30/37) I3B/P(50)
	G30 BUTANE	G30 BUTANE AT 28-30 MBAR	G30 BUTANE
	G31 PROPANE G31	PROPANE G31 PROPANE
	AT 30mbar AT 37mbar AT 50mbar
INJECTOR SIZE 0.77	mm 0.77 mm 0.7 mm
IDENTIFICATION CODE (PIN)	0063CR7811

FOR USE OUTDOORS AND IN WELL VENTILATED AREAS READ THE INSTRUCTION LITERATURE BEFORE USING THE APPLIANCE.

Country of destination:

□ I3+(28-30/37): BE.CH.CY.CZ.ES.FR.GB.GR.IE.IT.LT.LU.LV.PT.SK.SI.

□ 13B/P(30): BE CY DK FF ELER HU IT LT NI NO SE SLSK RO HR TR

BG,IS,LU,MT.

□ I3B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.

KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.

Turn off the gas supply at the gas cylinder after use.

Do not modify the appliance.

mestic®

CE 0063

Exploded diagram of a kitchen appliance with numbered parts for identification

Connexion gaz

Line drawings of two portable electric cookers with heat sinks, one marked with a checkmark and the other with an 'X' symbol (no text or labels present)

Après utilisation

Diagram of a heating device with labeled components including thermometer, brush, and fan blade

Country of destination:

☐ I3+(28-30/37): BE,CH,CY,CZ,ES,FR,GB,GR,IE,IT,LT,LU,LV,PT,SK,SI.
☐ I3B/P(30): BE,CY,DK,EE,FI,FR,HU,IT,LT,NL,NO,SE,SI,SK,RO,HR,TR,BG,IS,LU,MT.
□ I3B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.

KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.
Turn off the gas supply at the gas cylinder after use.
Do not modify the appliance.

mestic®

CE 0063

Exploded view diagram of a device with numbered parts for identification and assembly reference.

Gasanschluss

Line drawing of two identical portable cooktop devices with heat sinks, one marked with a checkmark and the other with an X (no text or symbols on device surfaces)

Nach Gebrauch

Technical diagram showing components of a heating or cleaning device with labeled parts including thermometer, brush, and fan.

Gasflasche wechseln

Country of destination:

☐ I3+(28-30/37): BE,CH,CY,CZ,ES,FR,GB,GR,IE,IT,LT,LU,LV,PT,SK,SI.
☐ I3B/P(30): BE,CY,DK,EE,FI,FR,HU,IT,LT,NL,NO,SE,SI,SK,RO,HR,TR,BG,IS,LU,MT.
□ I3B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.
Turn off the gas supply at the gas cylinder after use. Do not modify the appliance.

mestic®

CE 0063

DANSK

Exploded view diagram of a kitchen appliance with numbered parts for identification

Gastilførsel

Line drawing of two identical portable electric cookers with heat sinks, one marked with a checkmark and the other with an 'X' symbol (no text or labels present)

After brug

Technical diagram showing components of a heating or cooling system with labeled parts including thermometer, brush, and fan.

Skift af gasflaske

Country of destination:

□ I3+(28-30/37): BE.CH.CY.CZ.ES.FR.GB.GR.IE.IT.LT.LU.LV.PT.SK.SI.

□ I3B/P(30): BE CY DK FF ELER HUIT LT NL NO SE SLSK RO HR TR

BG,IS,LU,MT.

□ I3B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.

KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.

Turn off the gas supply at the gas cylinder after use.

Do not modify the appliance.

mestic®

CE 0063

ITALIANO

Exploded diagram of a kitchen appliance with numbered parts for identification

Line drawing of two identical portable steamers with heat sinks, one marked with a checkmark and the other with an 'X' symbol (no text or labels present)

Dopo l'uso

Technical diagram showing components of a heating or cooling system with labeled parts including thermometer, brush, and fan.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT. KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use.

Do not move the appliance during use.

Turn off the gas supply at the gas cylinder after use.

Do not modify the appliance.

mestic®

CE 0063

Exploded view diagram of a kitchen appliance with numbered parts for identification

Gassforbindelse

Enheten fungerer på propan / butangass G30.G31 og er egnet for tilkobling med en propanslange som er i samsvar med EN 559 eller EN1763. Koble gummislangen til tilkoblingsstykket på enheten med en kvart-venstre-tilkobling eller en slangeklemme. Gassslangen kan være maksimalt 150 cm lang. Før installasjon må du kontrollere om driftstrykket til gasstrykkregulatoren tilsvarer driftstrykket til dette apparatet som angitt på typeskiltet. Kontroller alle gassforbindelser for lekkasjer ved hjelp av en gasslekkasjespray eller såpevann. Bruk aldri åpen flamme.

Hvordan bruke

Line drawings of two different portable electric heaters with heat sinks, no text or symbols present

Etter bruk

Diagram illustrating a cleaning or dust removal setup with labeled components including thermometer, brush, and filter.

Skifte gassflasken

1. Gassflasken må bare byttes ut i friluft og vekk fra brennbare materialer.
2. Kontroller at flaskekranen og apparatkranen er helt lukket.
3. Skru ut gasstrykkregulatoren fra gassflasken.
4. Før du monterer gasstrykkregulatoren, må du kontrollere om gummiringen fremdeles er til stede og uskadet.
5. Skru dreieskruen på gasstrykkregulatoren godt fast på gjengene på sylinderventilen.

Country of destination:

□ I3+(28-30/37): BE.CH.CY.CZ.ES.FR.GB.GR.IE.IT.LT.LU.LV.PT.SK.SI.

□ 13B/P(30): BE CY DK EE ELER HUIT LT NI NO SE SLSK RO HR TR

BG,IS,LU,MT.

□ 13B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.

KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.

Turn off the gas supply at the gas cylinder after use.

Do not modify the appliance.

mestic®

CE 0063

Exploded view diagram of a mechanical device with numbered components and cross-sectional views

Conexión de gas

Line drawing of two identical portable electric cookers with heat sinks, one marked with a checkmark and the other with an 'X' symbol (no text or labels present)

Technical diagram showing components of a heating or cleaning device with labeled parts including thermometer, brush, and fan.

Country of destination:

□ I3+(28-30/37): BE,CH,CY,CZ,ES,FR,GB,GR,IE,IT,LT,LU,LV,PT,SK,SI.

□ I3B/P(30): BE,CY,DK,EE,FI,FR,HU,IT,LT,NL,NO,SE,SI,SK,RO,HR,TR,

BG,IS,LU,MT.

□ I3B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.

KEEP YOUNG CHILDEREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.

Turn off the gas supply at the gas cylinder after use.

Do not modify the appliance.

mestic®

CE 0063

SVENSKA

Exploded view diagram of a mechanical device with numbered parts for identification

Gasanslutning

Line drawing of two identical portable steamers with heat sinks, one marked with a checkmark and the other with an 'X' symbol (no text or labels present)

Efter användning

Technical diagram showing components of a heating or cleaning device with labeled parts including thermometer, brush, and fan.

Byte av gasflaska

Country of destination:

□ I3+(28-30/37): BE.CH.CY.CZ.ES.FR.GB.GR.IE.IT.LT.LU.LV.PT.SK.SI.

□ I3B/P(30): BE,CY,DK,EE,FI,FR,HU,IT,LT,NL,NO,SE,SI,SK,RO,HR,TR.

BG,IS,LU,MT.

□ 13B/P(50): AT,CH,DE,SK,CZ.

WARNING: ACCESSIBLE PARTS MAY BE VERY HOT.

KEEP YOUNG CHILDREN AWAY.

This appliance must be kept away from flammable materials during use. Do not move the appliance during use.

Turn off the gas supply at the gas cylinder after use.

Do not modify the appliance.

mestic ^®

CE 0063

mestic®

Importer:
