TotalPure 5000 Max Ozone - Generator CECOTEC - Free user manual and instructions

Product type	Ozone generator
Brand	Cecotec
Model	TotalPure 5000 Max Ozone
Ozone production	400 mg/h (±10%)
Power supply	220-240 V ~ 50 Hz, 50 W
Operating modes	Eco (low), Medium, Turbo (max)
Timer	2, 4 and 8 hours
Ozone function	Cycle of 20 min emission, then 40 min off, repeated
Filters	Primary filter, activated carbon filter, high-efficiency filter
Included accessories	Remote control
Warranty	2 years
Maintenance and cleaning	Clean with a soft, damp cloth; brush the air inlets/outlets
Safety	Do not use in the presence of people or animals; safety distance: 20 cm from walls, 30 cm above; unplug before cleaning
Repairability	Repair only by a qualified professional; contact Cecotec Technical Support
Recommended use	Domestic use only; empty rooms during operation

Frequently Asked Questions - TotalPure 5000 Max Ozone CECOTEC

Can I use the device in a room where people or animals are present?

No, during the ozone disinfection process and for 15 to 20 minutes after the device stops, people and animals must not enter or stay in the same room. This could cause health problems.

How long does it take for ozone to dissipate after use?

In a normal closed environment, it takes 20 to 40 minutes for ozone to dissipate. It is recommended to open windows for good ventilation for 5 to 10 minutes.

How do I set the timer?

Press the timer button: once for 2 hours, twice for 4 hours, three times for 8 hours. The timer is available in all modes.

What does the slight humming I hear mean?

This noise is normal when the negative ion function is activated. It comes from the negative ion generator and does not indicate a malfunction.

How do I clean the device?

Use a clean, soft, damp cloth to clean the surface. Do not use abrasive or chemical products. For air inlets and outlets, use a soft-bristled brush. Always unplug the device before cleaning.

What filters does the device use?

The device is equipped with three filters: a primary filter, an activated carbon filter, and a high-efficiency filter. They contribute to air purification.

Can I use the device in a bathroom?

Yes, but make sure humidity does not reach the product and avoid getting it wet directly. Place it on a stable, dry surface.

What should I do if the device does not turn on?

First check that the power outlet works and the voltage matches (220-240 V). If the problem persists, contact the Official After-Sales Service of Cecotec.

What is the lifespan of the ozone module?

The lifespan is not specified in the manual. The high-pressure ozone module can only be disassembled and repaired by qualified professionals. In case of problems, contact Technical Support.

Can I use the device continuously?

Yes, but the ozone function operates in cycles of 20 minutes of emission followed by 40 minutes of rest. The other ventilation modes (Eco, Medium, Turbo) can operate continuously.

USER MANUAL TotalPure 5000 Max Ozone CECOTEC

Safety instructions 5

1. Parts and components 23
   2.Before use 23
2. Operation 23
   4.Cleaning and maintenance 24
3. Technical specifications 24
4. Disposal of old electrical appliances 25
5. Technical support and warranty 25

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users. All safety instructions should be closely followed when using the appliance.

Make sure that the mains voltage matches the voltage stated on the rating label of the appliance and that the outlet is grounded.

This appliance is intended for domestic use only. It is not suitable for commercial or industrial use. Do not use it outdoors.

During ozone disinfection and within 15-20 minutes after the device has been turned off, people or animals shall not remain in the same room as the device. Staying in the room could cause body harm.

Avoid contact between eyes or respiratory system and the air outlet.

Do not operate the product in places where temperature is above 42^ .

Do not throw, drop or cause any impact on the unit. Do not block air outlets in order to ensure proper operation and to avoid risks.

No liability is accepted for any eventual damage or personal injuries derived from misuse or non-compliance with this instruction manual.

After using the device to conduct ozone disinfection or remove formaldehyde, ozone can be decomposed into oxygen itself, which will not produce residual leave. Ensure that the product and the adjacent walls or items are at least 20~cm away, and the upper vents are at least 30~cm away.

Make sure your hands are dry before handling the plug or switching on the appliance.

Do not try to repair the device by yourself. There are no fixable

pieces inside the device.

Place the appliance on a flat, stable surface. When used in a damp environment such as a bathroom or a kitchen, make sure not to spray water on the machine and avoid any risk of wetting it in order to avoid damage to the device.

The device contains an ozone high-pressure module, therefore it must only be disassembled or repaired by qualified personnel. Contact the official Technical Support Service of Cecotec.

Store the appliance in a safe and dry place when not in use. Cleaning and maintenance tasks must not be carried out by children.

INSTRUCTIONS DE SECURITÉ

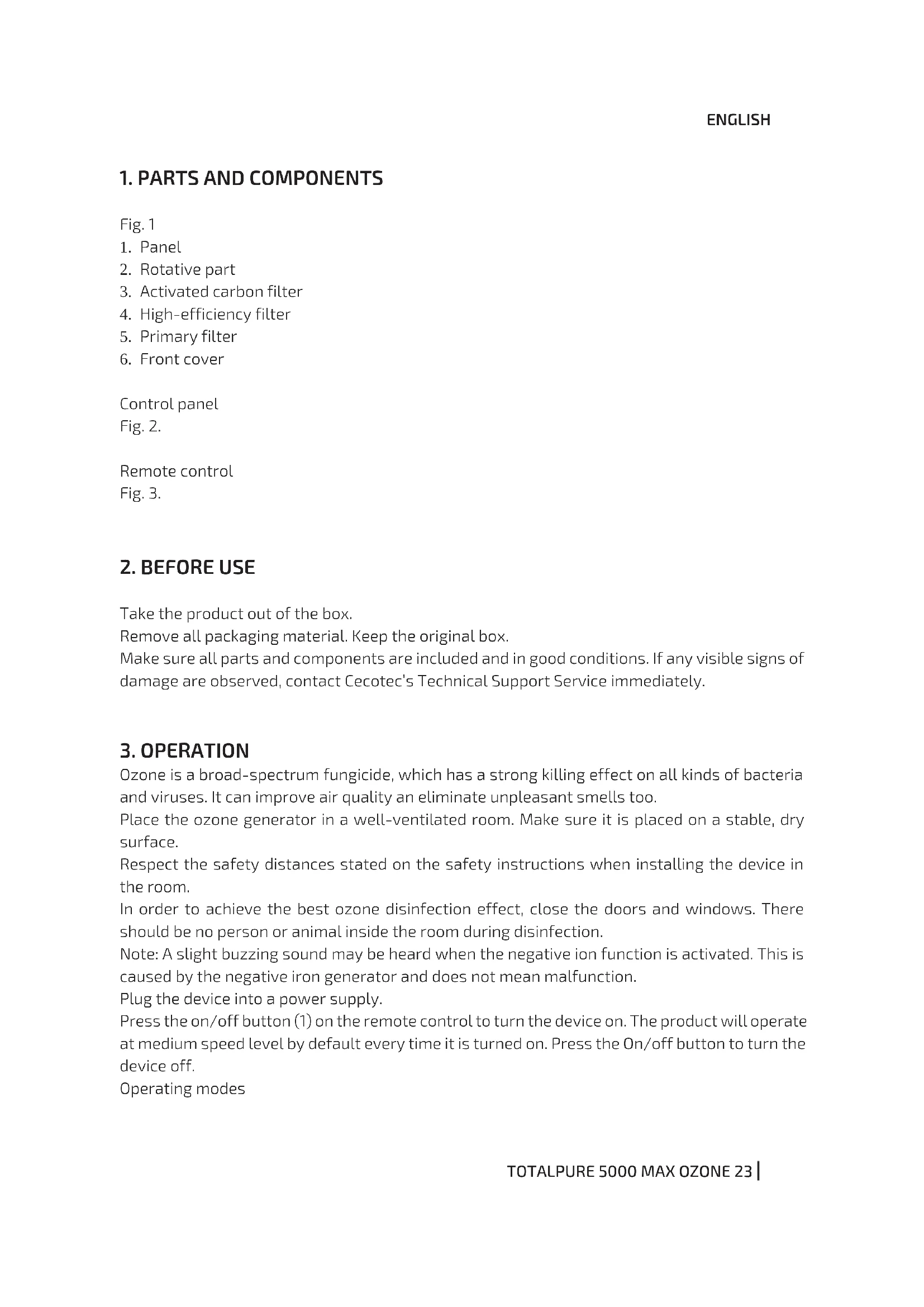

1. Panel
2. Rotative part
3. Activated carbon filter
4. High-efficiency filter
5. Primary filter
6. Front cover

Control panel

Fig. 2.

Remote control

Fig. 3.

2. BEFORE USE

Take the product out of the box.

Remove all packaging material. Keep the original box.

Make sure all parts and components are included and in good conditions. If any visible signs of damage are observed, contact Cecotec's Technical Support Service immediately.

3. OPERATION

Ozone is a broad-spectrum fungicide, which has a strong killing effect on all kinds of bacteria and viruses. It can improve air quality an eliminate unpleasant smells too.

Place the ozone generator in a well-ventilated room. Make sure it is placed on a stable, dry surface.

Respect the safety distances stated on the safety instructions when installing the device in the room.

In order to achieve the best ozone disinfection effect, close the doors and windows. There should be no person or animal inside the room during disinfection.

Note: A slight buzzing sound may be heard when the negative ion function is activated. This is caused by the negative iron generator and does not mean malfunction.

Plug the device into a power supply.

Press the on/off button (1) on the remote control to turn the device on. The product will operate at medium speed level by default every time it is turned on. Press the On/off button to turn the device off.

Operating modes

ENGLISH

Choose between its 3 different modes:

Eco: The device will run at low speed level (2).

Medium: The device will run at medium speed level (3).

Turbo: The device will run at maximum speed level. This mode is recommended when indoor pollution is high (4).

Timer settings (5)

There are 3 time options: 2, 4 and 8 hrs. Press tue timer button once to select 2 hours, press it again to select 4 hours and press it for a third time to select 8 hours.

Ozone function (6)

Press the Ozone button to activate this function. Ozone will be released for 20 minutes and then the device will turn off for 40 minutes. This cycle will be repeated.

Press again to deactivate this function.

Applications:

Bathroom deodorisation

Daily disinfection of pet house and areas

Room disinfection

Air purification in public spaces

Wardrobe clothing sterilisation

Furniture deodorisation

4. CLEANING AND MAINTENANCE

Clean the upper part of the device with a soft damp cloth.

Do not wet or allow water to come inside the device.

Do not use chemical or harsh abrasive cleaning agents.

Switch off the device before start cleaning it. Make sure it is completely dry before using it again.

Use a soft brush to remove dust accumulated in the air inlet and outlet. Store the device in a safe, fry place when not used for a long time.

5. TECHNICAL SPECIFICATIONS

05629 Pure 5000 Max Ozone

Ozone production: 20 mg/hour

50W,220V\~,50Hz

Range of variability (production deviation): 400 mg/hour +/- 10%

Ozone excitation curve: Peak after 20 minutes of non-stop use. Materials not suitable for concentration level generated by the unit: Natural rubber. Ozone decomposition curve: In 30 cubic meters, temperature 24^ , 2 minutes after starting, the ozone concentration can kill bacteria. After 20 minutes of operation it reaches the highest level of concentration, 180~mg / L . After 20 minutes, the ozone function will stop working, open the window to ventilate the room and to allow the ozone concentration to disperse into the room (5-10 minutes). In a normal closed room, it will take 20-40 minutes for the ozone to dissipate.

Maximum immission levels: 180mg / L

Ozone generator classification: Type C ozone generator. Ozone generator for direct and indirect discharge that does not include dilution system or production automatic control mechanism.

Made in China | Designed in Spain

6. DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), specifies that old household electrical appliances must not be disposed of with the normal unsorted municipal waste. Old appliances must be collected separately, in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation to dispose of the appliance correctly.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

7. TECHNICAL SUPPORT AND WARRANTY

This product is under warranty for 2 years from the date of purchase, as long as the proof of purchase is submitted, the product is in perfect physical condition, and it has been given proper use, as explained in this instruction manual.

The warranty will not cover the following situations:

The product has been used for purposes other than those intended for it, misused, beaten, exposed to moisture, immersed in liquid or corrosive substances, as well as any other fault attributable to the customer.

The product has been disassembled, modified, or repaired by persons, not authorised by the official Technical Support Service of Cecotec.

Faults deriving from the normal wear and tear of its parts, due to use.

The warranty service covers every manufacturing defects of your appliance for 2 years, based on current legislation, except consumable parts. In the event of misuse, the warranty will not apply.

ENGLISH

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact Cecotec Technical Support Service at [phone].
