USER MANUAL VTVS1 SANUS

Technical illustration of a mechanical support frame with mounting base (no text or symbols)

We'll Make It Stress-Free

If you have any questions along the way, just give us a call.

[phone] UK: [phone]

We're ready to help!

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let's make sure this mount is perfect for you!

1

Does your TV weigh more than 27.2 kg (60 lbs.) including accessories?

No — Perfect!

Yes — This mount is NOT compatible. Visit sanus.com or call [phone] UK: [phone] to find a compatible mount.

2

Do you have the tools needed?

3

Ready to begin?

Please read through these instructions completely to be sure you're comfortable with this easy install process. Also check your TV owner's manual to see if there are any special requirements for mounting your TV. If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service.

CAUTION: Avoid potential personal injuries and property damage! Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.

⚠ WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the weight of the weight of the display and any accessories does not exceed 27.2 kg (60 lbs). Use with heavier televisions may result in instability causing tip over resulting in death or serious injury!

⚠ WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

⚠ WARNING: Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over onto the child.

⚠ WARNING: Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or overturning onto a child.

NOTE: The VTVS1 has no user serviceable parts.

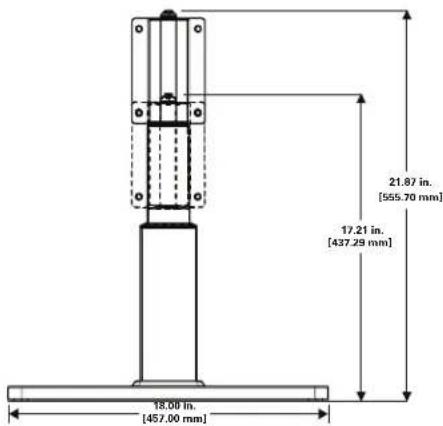

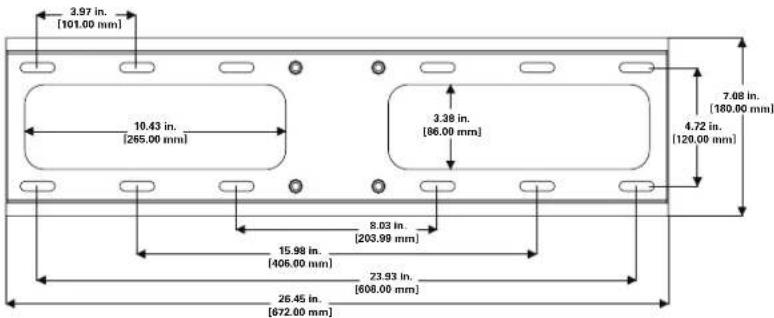

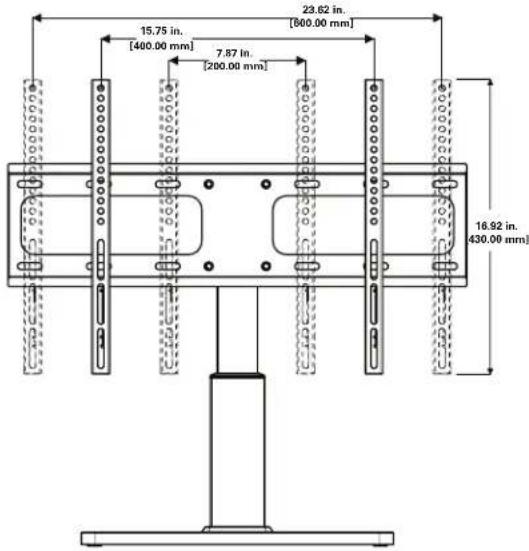

Dimensions in. [mm]

Supplied Parts and Hardware

⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!

NOTE: Not all hardware included will be used.

STEP 1 Parts and Hardware

Technical line drawing of a stand structure with mounting bracket and base plate (no text or symbols)

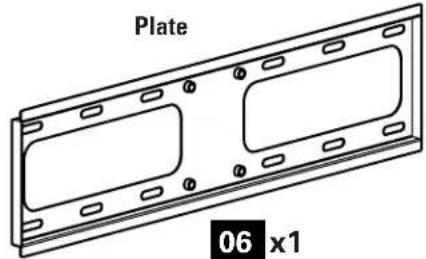

STEP 2 Parts and Hardware S

TV Brackets

Pure diagram of a vertical rectangular structure with internal slots and dots, no text or symbols present.

07 x2

M4 X 12 mm
08 x4

M6 X 12 mm

09 x4

M8 X16 mm

10x4

M8 X 20 mm
11x4

TV Screws

M4 X 35 mm
12 x4

M6 X 35 mm

13 x4

M8 X 35 mm
14 x4

Washers

M6/M8

15 x4

M4/M5
16 x4

Spacers

22 mm
17 x4

M4 Hex Key

18 x1

Step 1 Assemble Stand

1.1

Isometric line drawing of a rectangular frame with internal partition and mounting holes (no text or symbols)

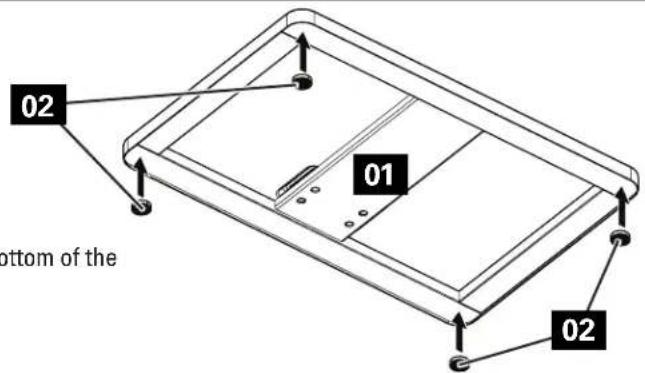

Place foot pads 02 on the bottom of the base 01 in the corners.

1.2

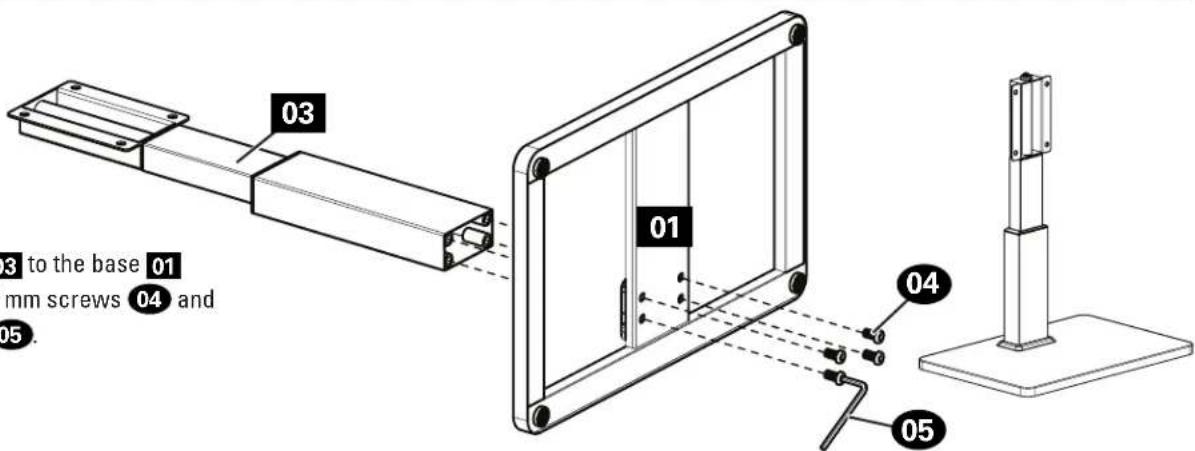

Attach the stand 03 to the base 01 using four M8 x 14 mm screws 04 and the 5mm hex key 05.

1.3

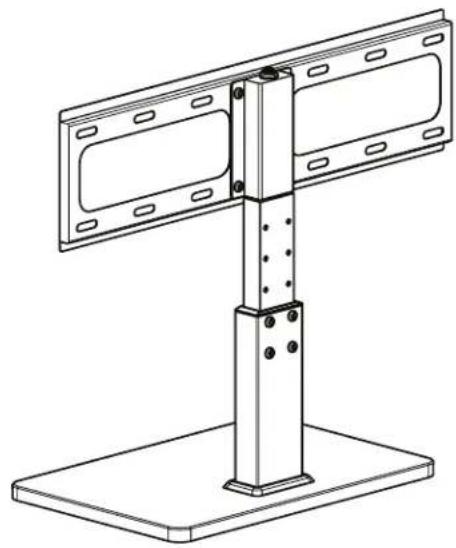

Attach the plate 06 to the stand 03 using four M8 x 14 mm screws 04 and the 5mm hex key 05.

Technical line drawing of a mechanical support structure with mounting base (no text or symbols)

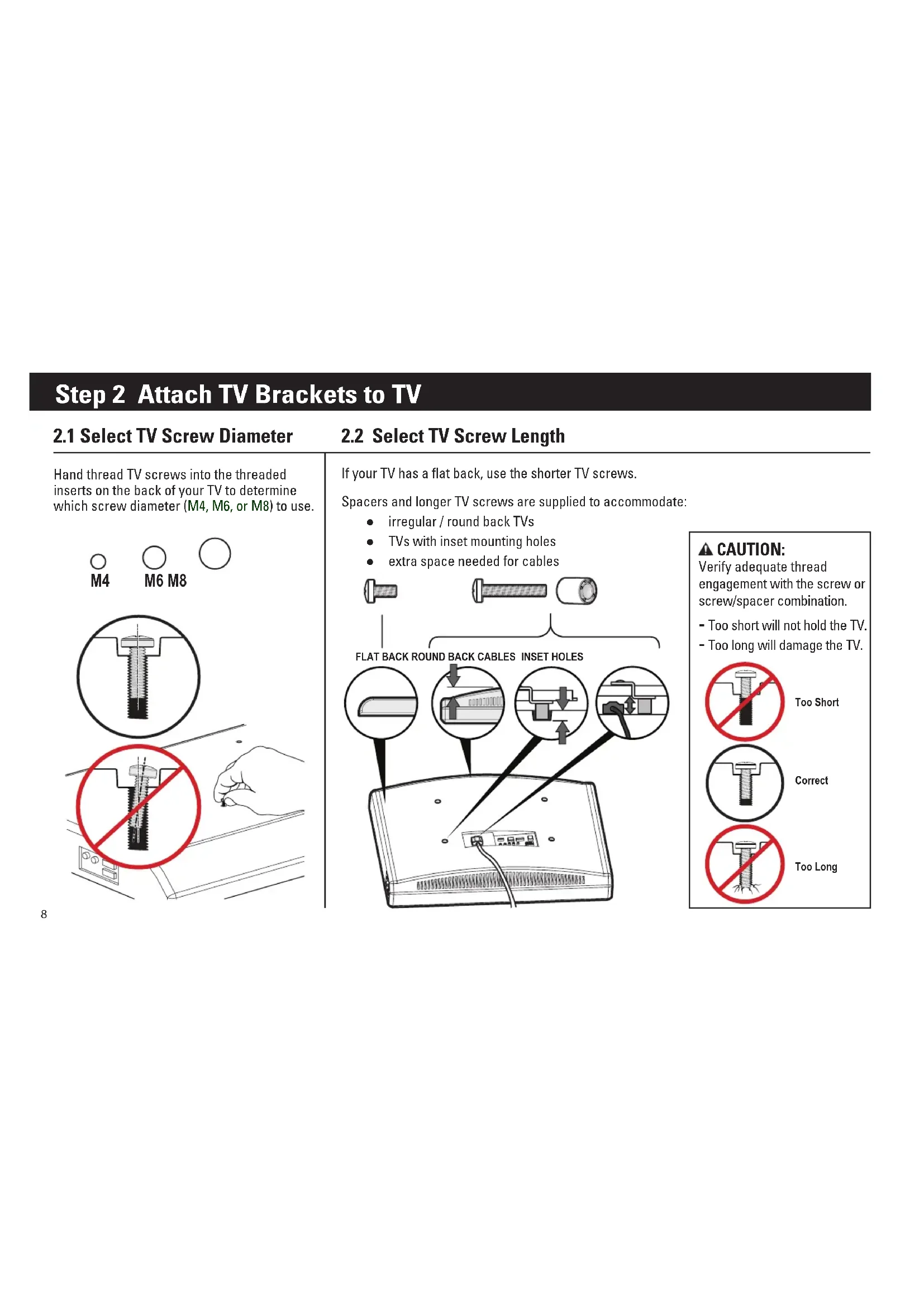

Step 2 Attach TV Brackets to TV

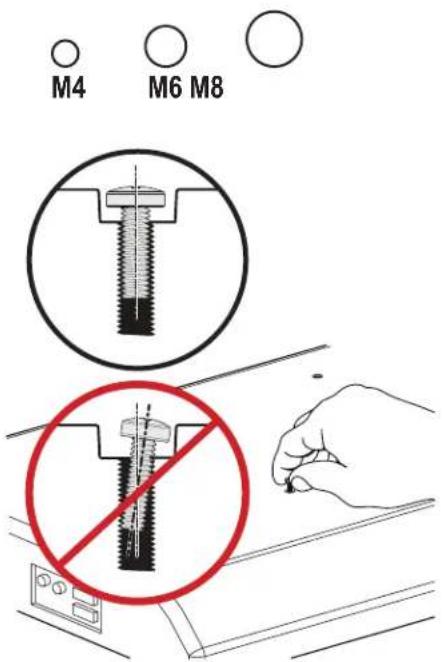

2.1 Select TV Screw Diameter

Hand thread TV screws into the threaded inserts on the back of your TV to determine which screw diameter (M4, M6, or M8) to use.

2.2 Select TV Screw Length

If your TV has a flat back, use the shorter TV screws.

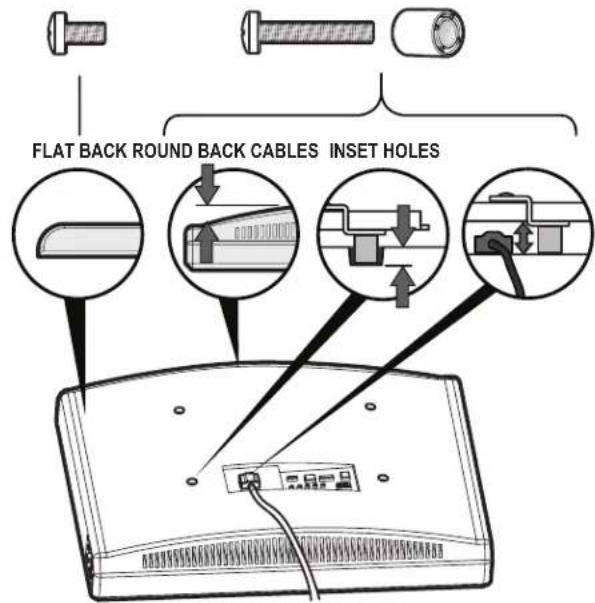

Spacers and longer TV screws are supplied to accommodate:

• irregular / round back TVs
  • TVs with inset mounting holes
  • extra space needed for cables

CAUTION:

Verify adequate thread engagement with the screw or screw/spacer combination.

• Too short will not hold the TV.
• Too long will damage the TV.

Too Short

Correct

Too Long

2.3 Attach Vertical TV Brackets

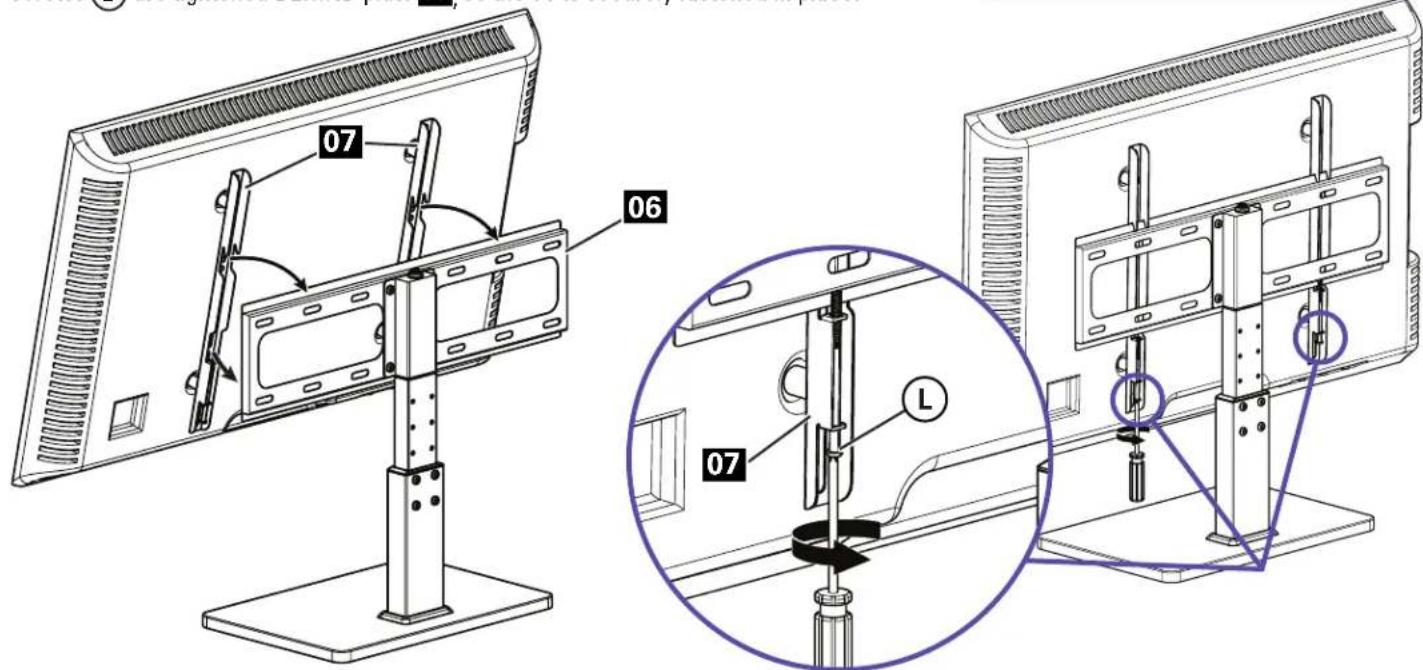

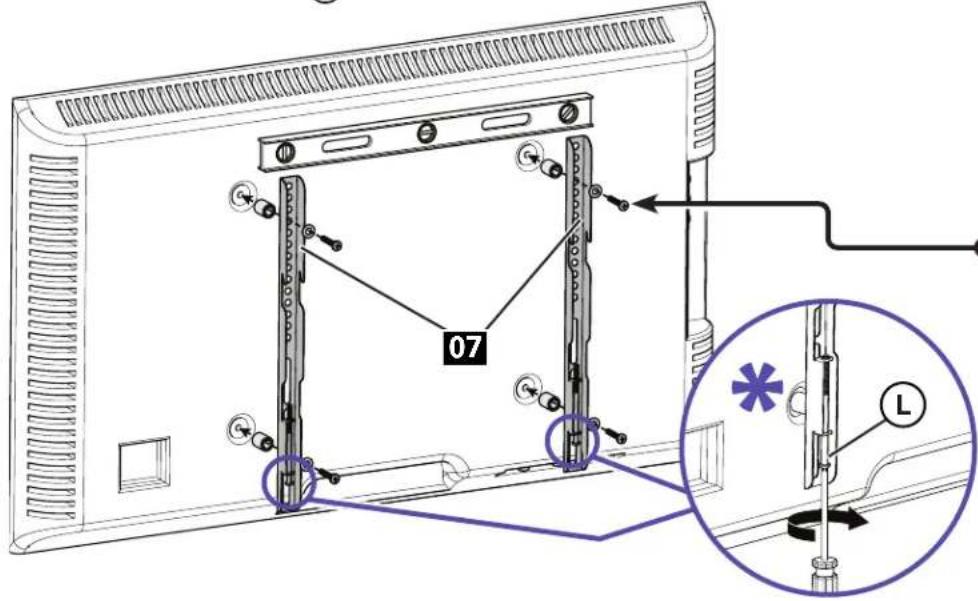

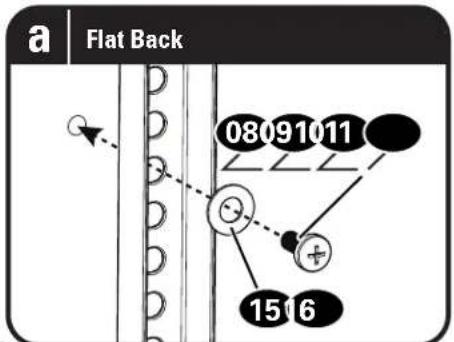

Ensure that your TV brackets 07 are level and centered on the back of the TV. Install using the TV screw/washer/spacer configuration you selected for your TV.

CAUTION: Avoid potential personal injuries and property damage! DO NOT use power tools for this step. Tighten the TV screws only enough to secure the TV brackets 07 to the TV. DO NOT overtighten the TV screws.

IMPORTANT: Ensure TV brackets 07 are securely fastened before moving on to the next step. *NOTE: Back off locking screws L enough to give clearance when mounting to plate.

Step 3 Determine Height of TV on Stand

The stand 03 can be adjusted to provide for different size TVs.

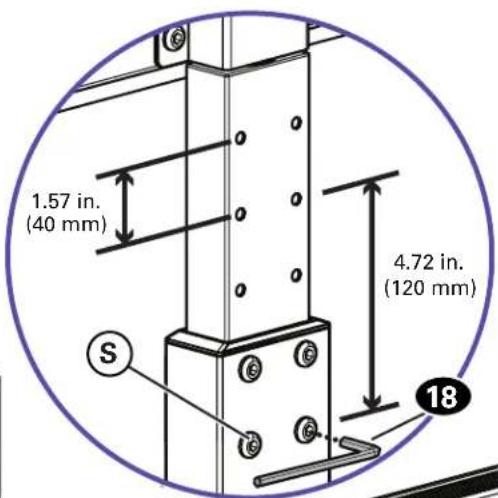

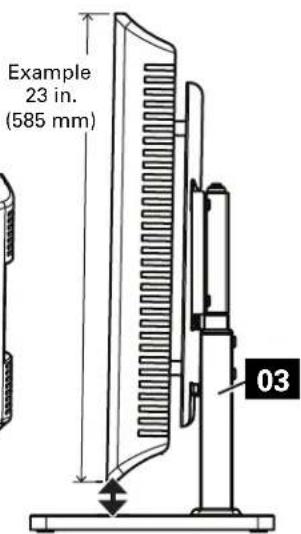

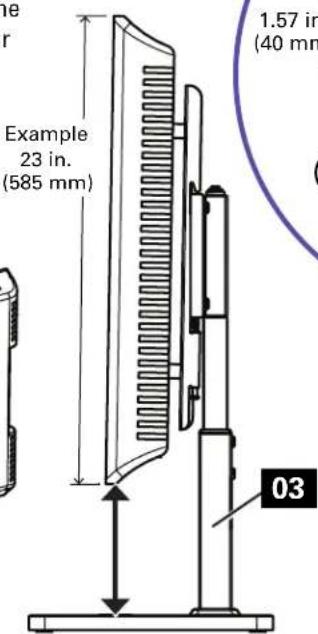

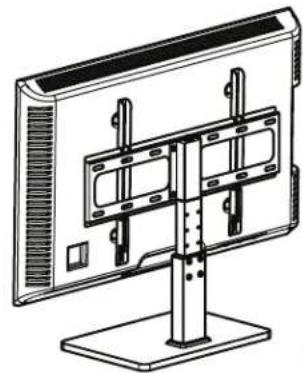

Before mounting the TV, adjust the stand to the desired height. Remove the four screws Ⓢ using hex key 18, slide the stand 03 up or down to the desired height and reinstall the four screws Ⓢ.

Line drawing of a computer monitor with mounted connectors and a stand (no text or symbols)

Technical line drawing of a flat-screen monitor with mounting stand (no text or symbols)

Step 4 Hang TV onto Stand

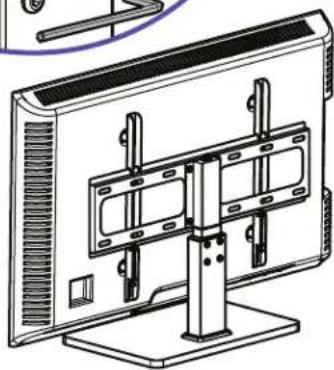

Hang the TV with brackets 07 onto the plate 06.

Center the TV on the plate 06 and secure with the locking screws L on the TV brackets 07.

CAUTION: Avoid potential personal injuries and property damage! Make sure locking screws L are tightened BEHIND plate 06, so the TV is securely fastened in place.

To Remove the TV: Loosen locking screws Ⓛ enough to pull the BOTTOM of the TV away from, then up and off of plate 06.
